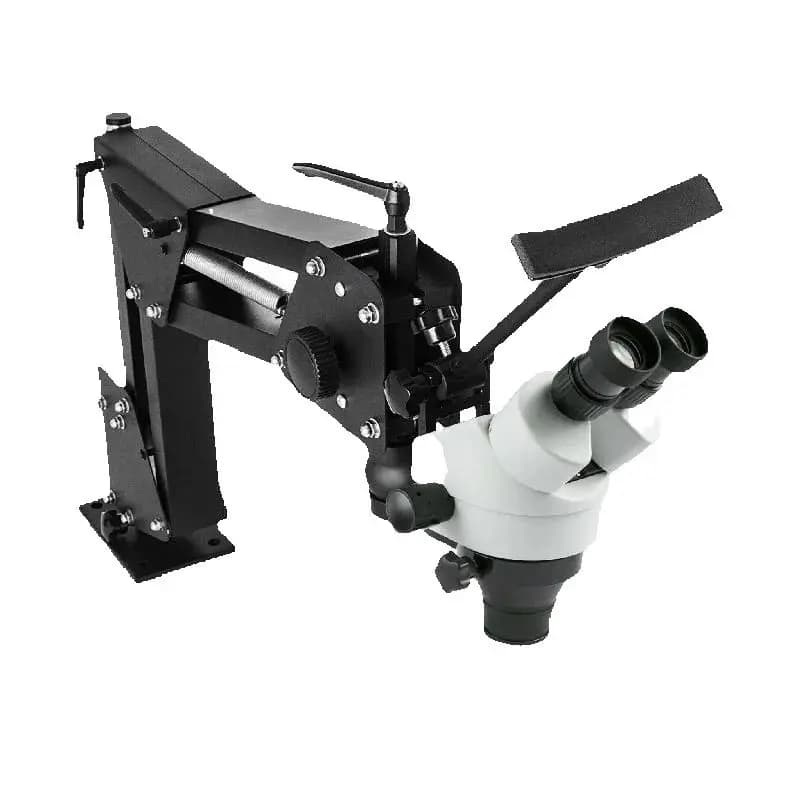

SucceBuy Micro Inlaid Mirror Multi-directional Micro-setting Microscope Jewelry Tools 0.7X-4.5X Super Clear Microscope Magnifier

Features & Details

【DETAILED PARAMETERS】- Continuous Zoom: 0.7X-4.5X, Long Working Distance: 95mm-300mm/ 3.7''-11.8”, Model: Jewelry Microscope Stand, Material: Hard Aluminum Alloy, Machine Objective Lens: 0.5X/165Mm, Machine Eyepiece: Wf10X/20Mm, Field Of View: 5.1-33 Mm (0.2-1.3 inch), Spin Angle: Horizontal ±15°, Straight: ±15°, Main Straight: 270°.

【CONTINUOUS ZOOM & STEREOSCOPE SENSE】- The continuous zoom microscope lens is characterized by high-definition, large field of view, and strong stereoscopic sense. Wide-angle vision technology brings high resolution and a large field of view with easy operation.

【POWERFUL PERFORMANCE】- The jewelry microscope inlaid stand is made of high rigidity aluminum alloy. With compact and stable chassis, it occupies a small space to store easily. A large zoom ratio & a wide field of view make the observation clearer and brighter.

【USER-FRIENDLY DESIGN】- The unified headrest rest frame, as a user-friendly operating design, relieves neck fatigue. Aesthetic and practical cross-section universal joints are suitable for various heights & azimuth angles.

【VARIOUS APPLICATION】- An essential tool for the micro-inlay jewelry industry, it’s able to meet all needs of operating requirements. Help you zoom in on the details of the jewelry and do better inlay work.

Features

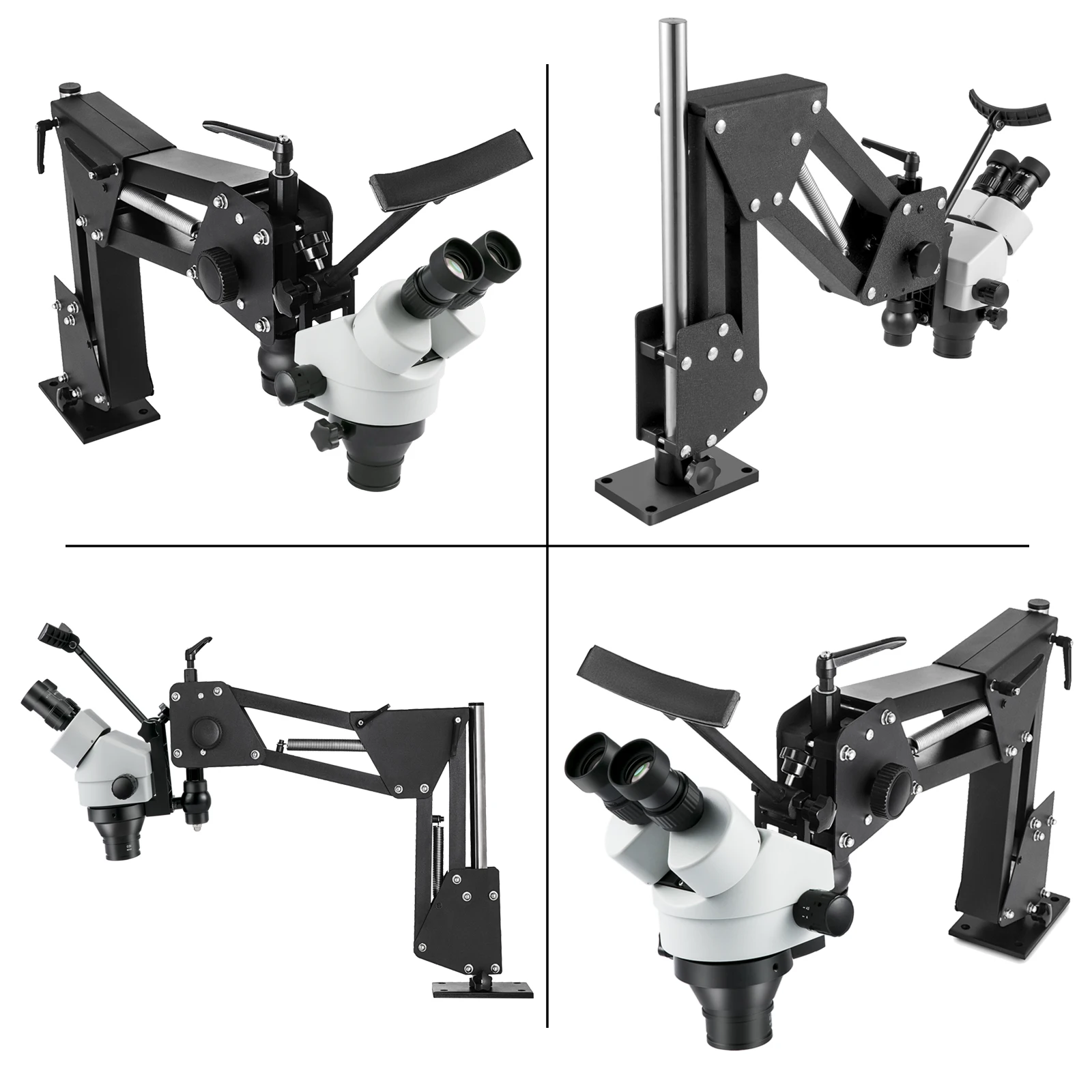

Micro inlaid mirror multi-directional microscope

With multi-directional spring bracket

Long working distance (95-300 mm)

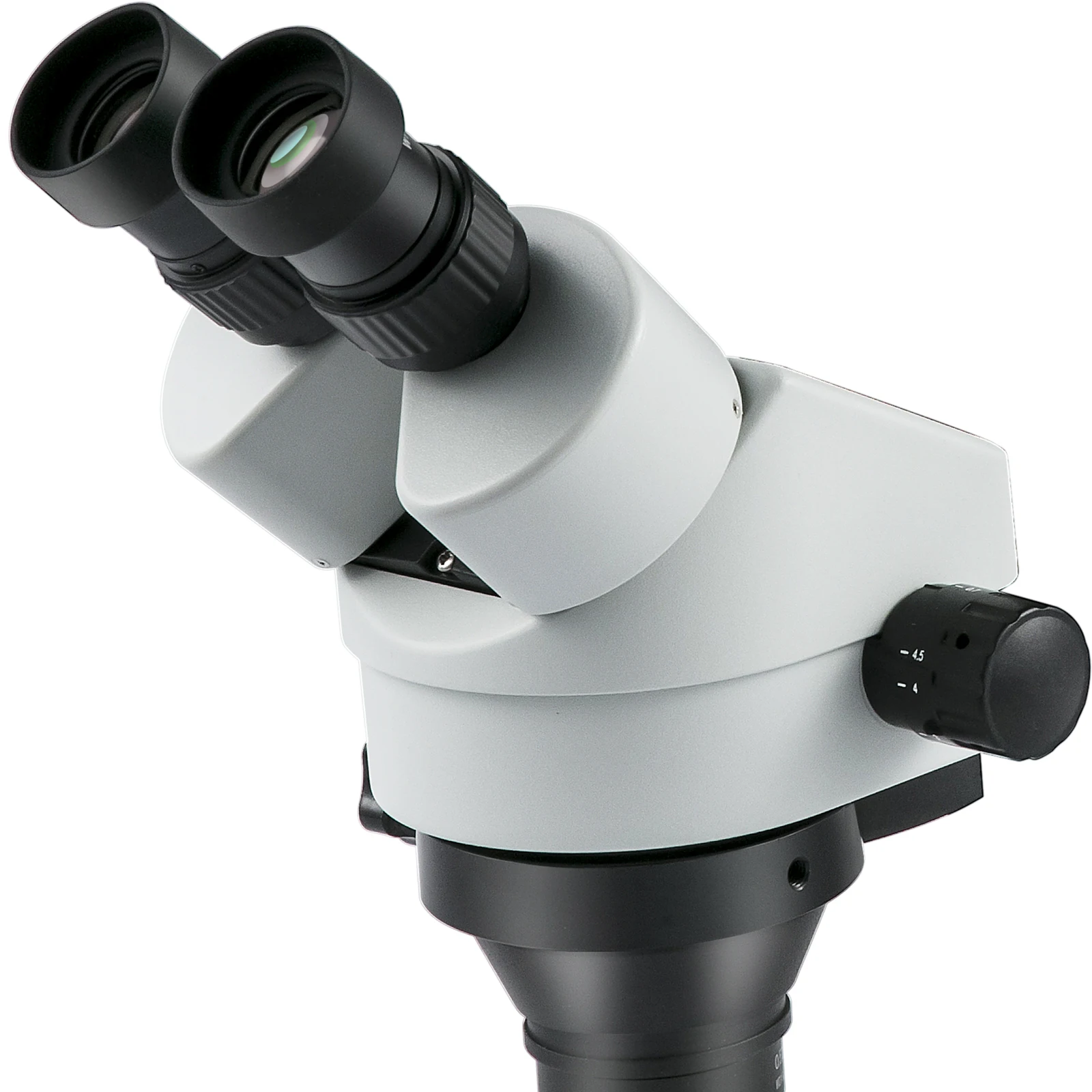

0.7X-4.5X continuous zoom stereo microscope head

high-resolution with large depth of view field

User-friendly operating system improves work efficiency

Micro inlaid mirror is an essential tool micro-inlay for jewelry industry. Place the fine jewelry objects under the microscope, clearer for more accurate inlaid. Our micro inlaid mirror is made of high rigidity, compact and stable chassis, with small footprint. Superior optical performance design, large zoom ratio and a wide field, long working distance, focusing convenient, fully meet the operational needs of the micro-inserts the industry.

Superiority

1. Long working distance (95-300 mm), the micro inlaid mirror features 0.7X-4.5X continuous zoom, can be equipped with micro telescopic adjustment device.

2. The sections gimbals universal brackets with aesthetic and practical structure are suitable for variety of height, azimuth work and working environment.

3. Designed with spring bracket to provide user-friendly operating system, flexible telescopic mechanical focusing mechanism makes the operation more convenient and user-friendly by the unique head rest frame, so that the operator exempt fatigue , improve work efficiency.

4. The micro inlaid mirror using a wide-angle vision technology, continuous zoom stereo microscope head, high-resolution, large depth of view field, stereoscopic, easy to operate.

5. The durability of the micro inlaid mirror parts has been improved greatly after optical mildew treatment.

Specification

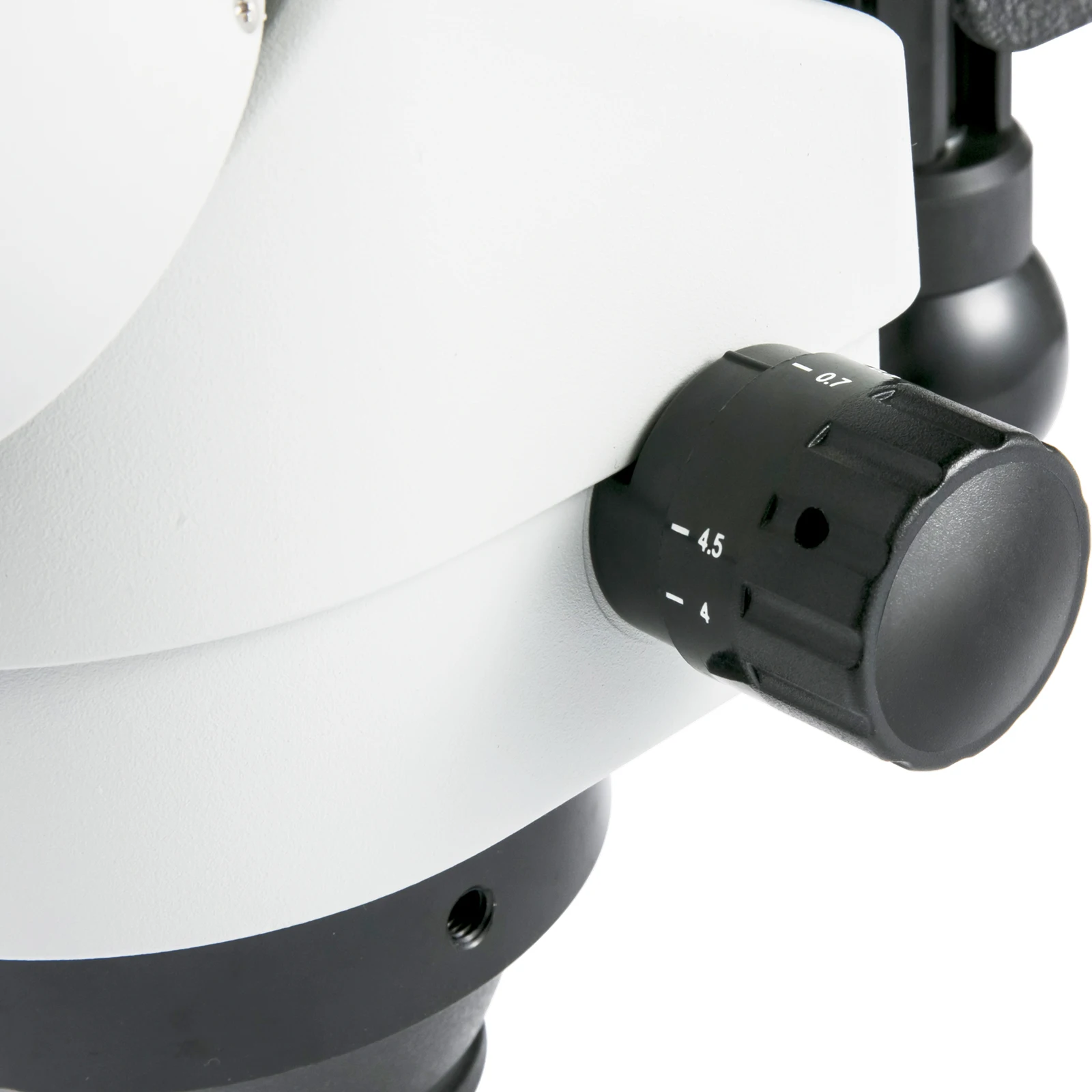

Continuous Zoom: 0.7X-4.5X

Long Working Distance: 95mm-300mm / 3.7''-11.8''

Model: Jewelry Microscope Stand

Material: Hard Aluminum Alloy

Bracket Hole: 85mm / 3.35''

Control High Range: 60mm / 2.36''

Straight: ±15°

Main Straight: 270°

Machine Objective Lens: 0. X/165 mm

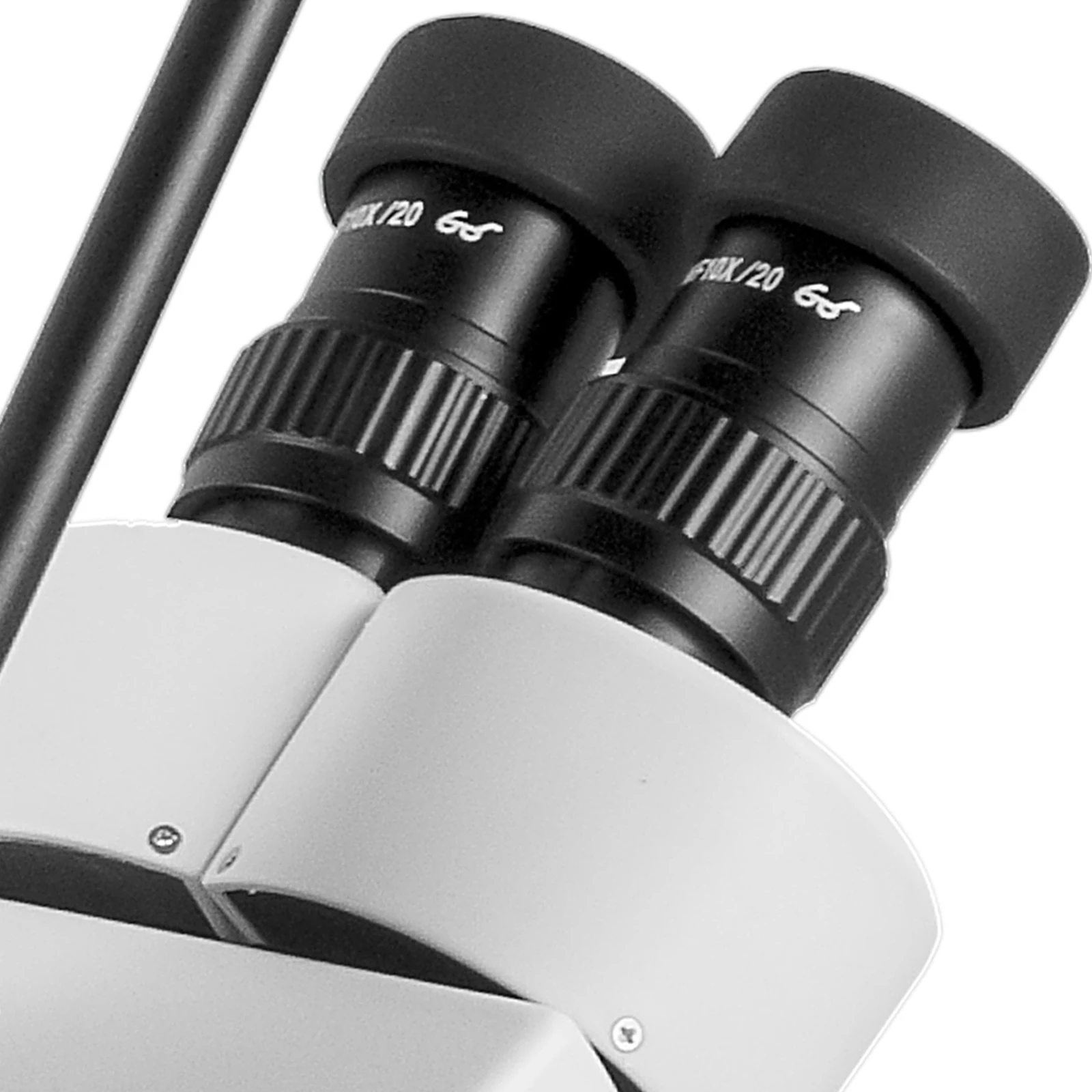

Machine Eyepiece: WF10X/20 mm

Binocular Pupil Distance: Pupil distance adjustment 54-76 mm (2.13-2.99 inch)

Field of View: 5.1-33 mm (0.2-1.3 inch)

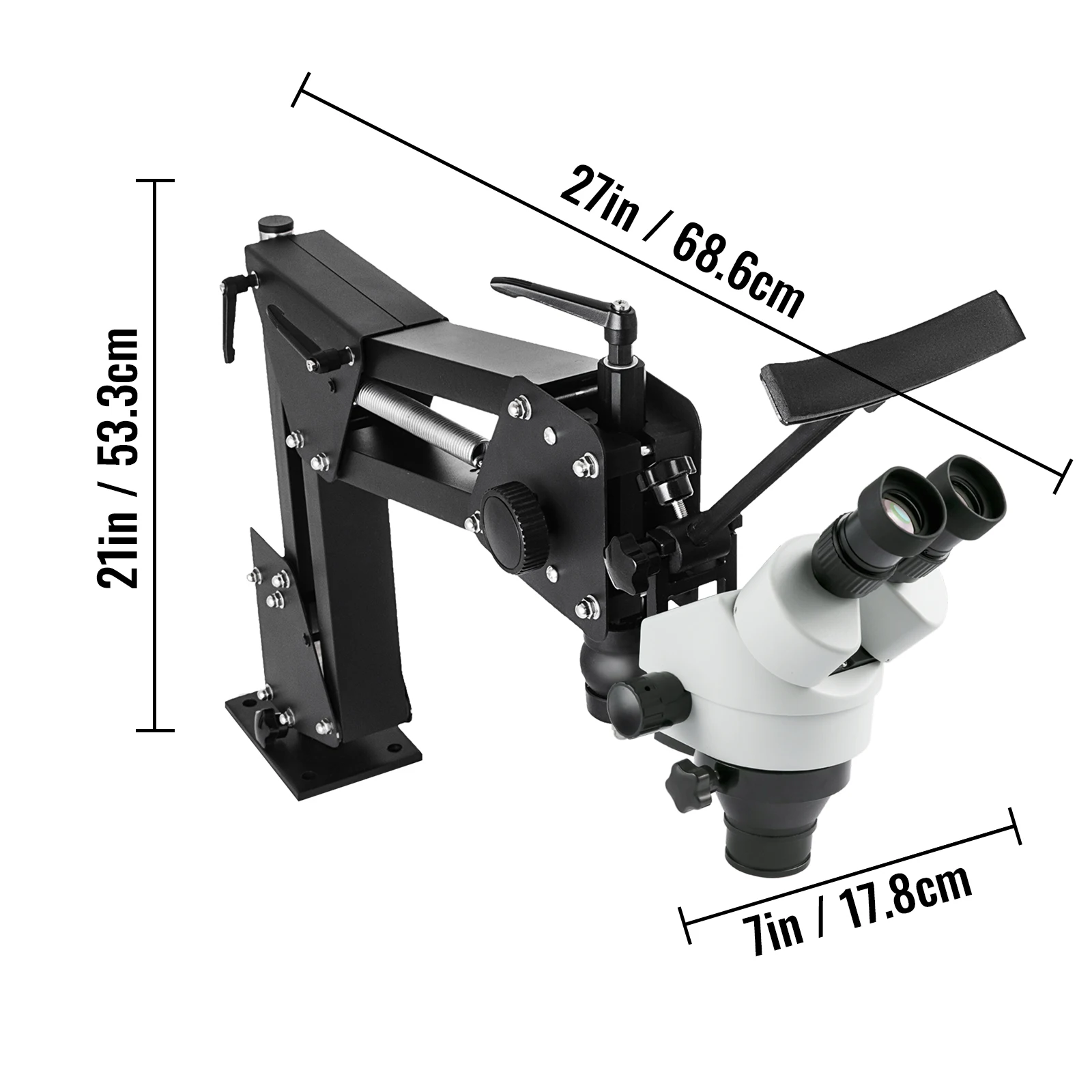

Product Size: 68.58 cm x 53.34 cm (L x H)/27'' x 21''

Total Magnifation :7X-45X

Package Content

1 x Micro Inlaid Mirror with Spring Bracket
