MUCAR CS90 OBD2 Scanner 28 Resets Services Lifetime Free Update Car Tools OBD II Diagnosis Engine Systems Diagnostic Tools

Mucar CS90 Only Support Engine System Diagnostic !!!

Why is MUCAR CS90 more suitable for technicians, DIY beginners, auto repair shops and auto engineers?

The MUCAR CS90 product is a new generation of high-end DIY car diagnostic tools based on the Android system, which can realize free upgrades of the diagnostic software online for life. Its main functions include not only OBD/EOBD standard protocol diagnosis, but more importantly, it has professional vehicle diagnosis software and maintenance software, which can comprehensively diagnose the Full system of more than 1,000 vehicles of more than 126 models and brands. Support 28 reset functions.

1. MUCAR CS90 is an upgraded brand new version, which runs faster and has better materials.

2.The 5-inch touch high-definition large screen, the memory is 16G. Plug and play, no need to charge and activate.

3.MUCAR CS90 can diagnose engine car systems for free for life, ead and erase code, live data stream, stores and playbacks data stream, helps to quick analysis and diagnosis, and turning off the system warning lights.

4. MUCAR CS90 supports 28 reset services, Lifetime Free for All Cars

5. Complete OBD2 function, read fault code, delete code, read data stream, etc.

6. One-click wifi free update for life, more than 126+ car brands, 10000+ models, upgrade new models to 2021, this scanning tool is suitable for most OBDII compatible vehicles in 1996 and newer.

7.2 in 1 diagnostic tool, health report recording, playback and printing, you can use the data cable connection to send the diagnostic report to the computer for printing. Support screen recording and screenshot function.

8. Online maintenance resources: operating skills, DTC help, automotive technical manuals, maintenance cases and operating videos. Allows you to grasp and understand car breakdown problems faster.

9.More Stronger and More Resistant to Fall. The anti-slip handle design and anti-fall shell greatly extend the lifetime of the MUCAR CS90 automotive scanner.

And more

Warm Tips

1) Before place order please check compatibility first. Send your car brand model and release year to seller.for example(Audi,A3, 2020)

2) Not 28 resets work for all cars, before place order please send your car brand, model and release year check compatibility for you.

All Cars Free Lifetime Engine System Diagnostic Machine Tools

ECM Diagnosis

You can diagnose the engine system via ecu obd2 port, support all 10 OBDII test modes, such as live data, O2 sensor test, component test and more;read and clear the engine error codes, find out the exactly problem, repair it, and turn off the MIL engine light.

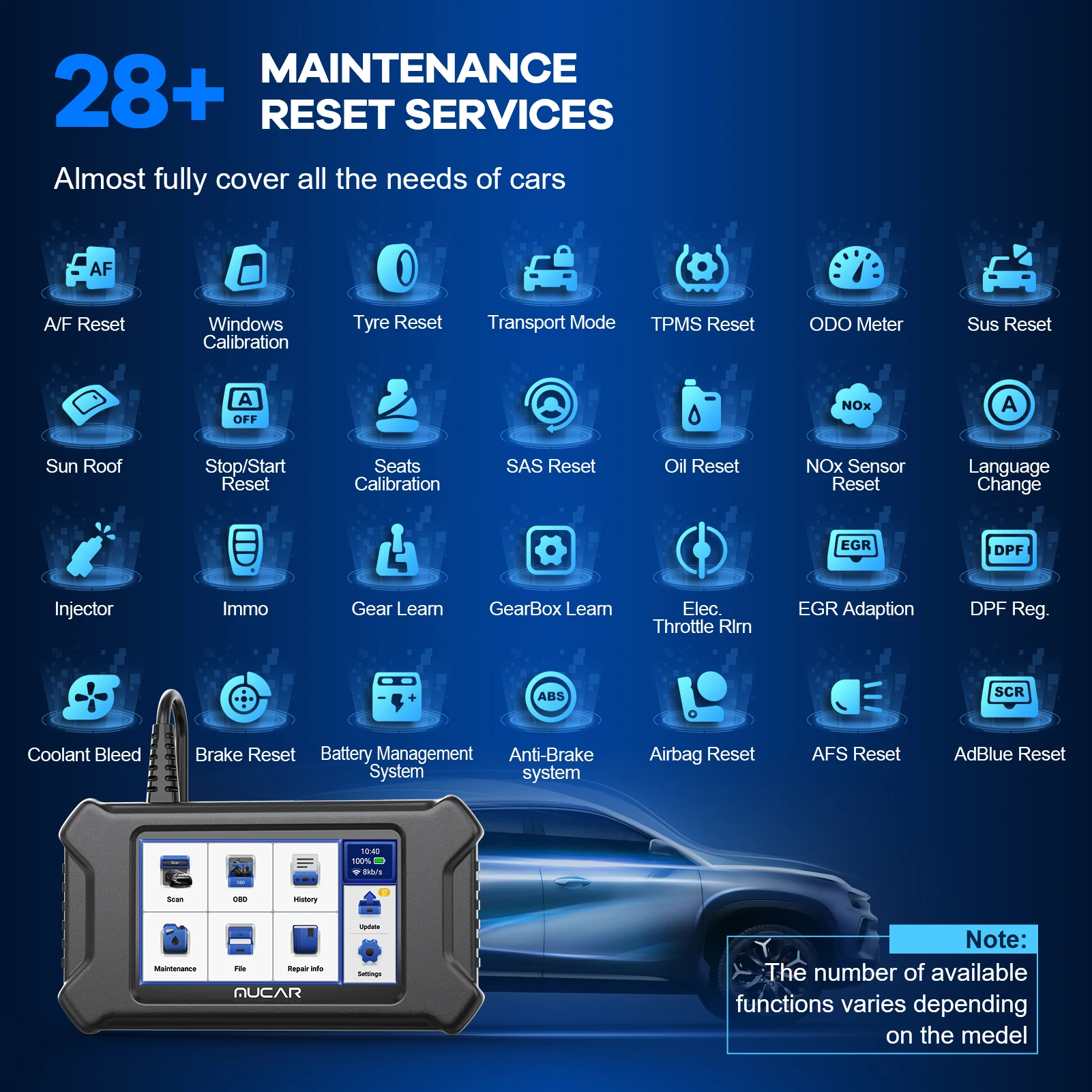

Support 28 Reset Services Lifetime Free Scanner for Car

1.Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming

The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change

This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset

Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.ODO Reset

a) ODO reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it
is necessary to do ODO reset after maintenance.

25.Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

Free Full OBDII Functions:

*-Read extensive current, pending and permanent codes in OBD system quickly
*-Clear detected fault codes and turn off the Check Engine Light efficiently
*-View graphical live data of vehicle's computer module(s) for easy analyses
*-View the vehicle's operating parameters at the moment a DTC is detected
*-Read I/M readiness status to have a vehicle inspected for state emissions compliance
*-Perform O2 sensor test to check fuel efficiency and vehicle emissions
*-Read the results of on-board diagnostic monitoring tests for specific components/systems
*-Retrieve the vehicle information of VIN, CINs, and CVNs completely
*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system

One-Click WIFI Free Update Lifetime Auto Tool Kit

1. Turn on the MUCAR CS90 car scanner
2. Connect to WIFI
3. Click the upgrade button on the home page to achieve one-click upgrade

Support 19 Languages

English, French, German, Italian, Spanish Portuguese, Japanese, Russian, Dutch, Hungarian, Slovak, Greek, Arabic, Czech, Polish, Chinese Traditional, Korean, Turkish, Danish

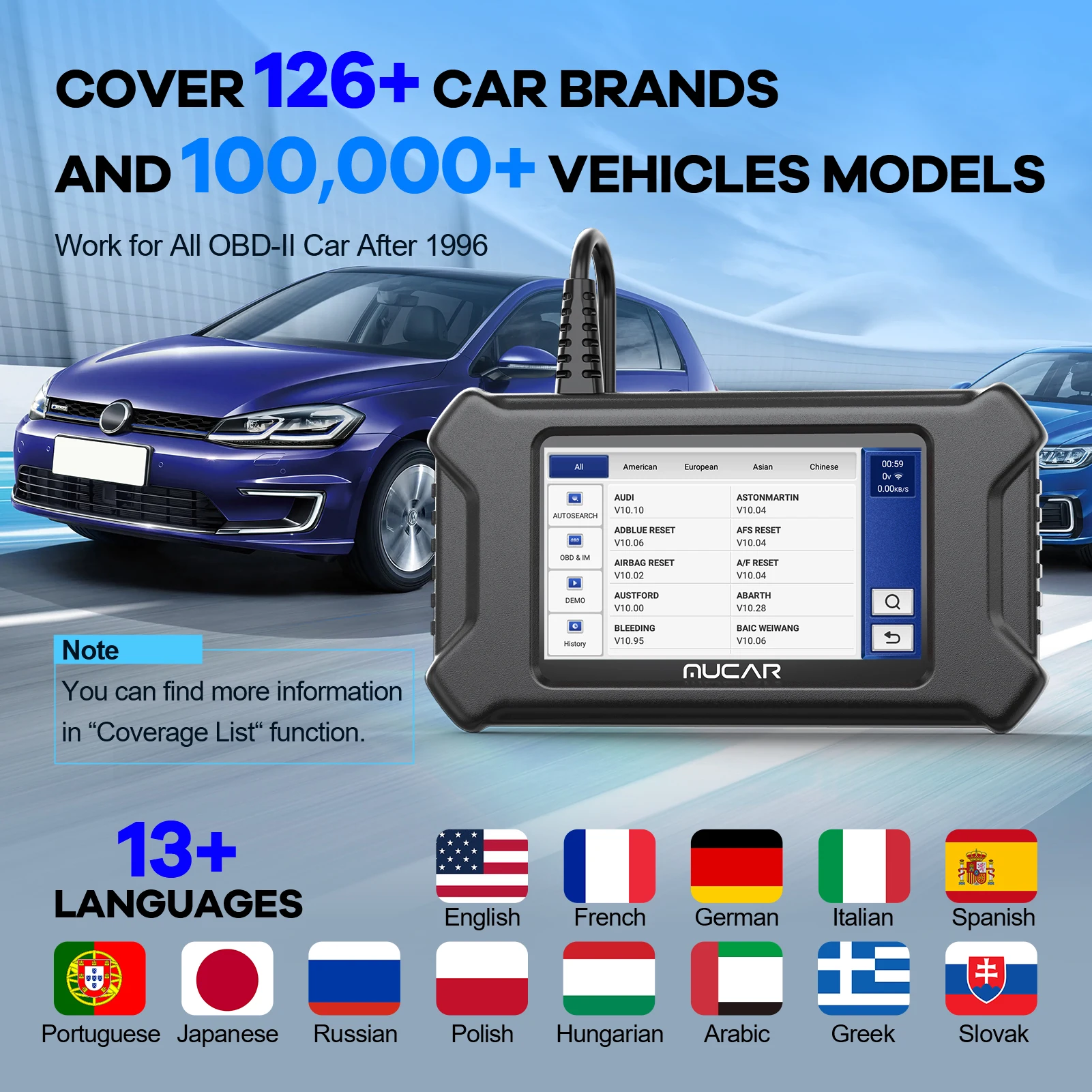

Support 126+ Car Brands and 1000+ Vehicles

USA：
BXGM,CHRYSLER, AUSTFORD, GM,USAFORD
EUROPE:
ASTONMARTIN,AUDI,BENZ,BMW,BXFIAT,CITROEN,FERRARI,FIAT,GAZ,LANDROVER,MASE,RATI,OPEL,PAZ,PEUGEOT,PORSCHE...
Austrillia:
AUSTFORD,AUSTHOLDEN
Asia:
BAIC,CHANGAN,CHANGCHENG,CHANGHE,DAEWOO,DAIHATSU,DFXK,FLYER,FUTIAN,HAFEL HMAZDA,HONDA,HUACHEN,HYUNDAI,IKCO,INDIANMARUTI,INDIANTATA,ISUZU,IVECO.IZH,JACTY JIAO,JINLONG,JOYLONG,JPISUZU,KIA,LIFAN, LIUWEITY ,LUXGEN,MAHINDRA,MALAYSIA PERODUA,MALAYSIA PROTON,MARUT,MAXUS,MAZDA,MITSUBISHI...

Reading Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

Product Parameters:

CPU:MT6580 CORTEX-A7 1.3GHz/4Core
Memory:1GB DDR3/16GB EMMC
Display:5 Inch/ 480*854 MIPI LCD Display Screen
TP:GT911 GFF
WIFI:802.11b/g/n 2.4GHz
USB:TYPE C*1
TF Card:Support SDHC High Speed Card
Battery:3.7V / 600mAH Lithium Polymer
Power Input:OBD 12V input or TYPE C 5V input

Packing List:

1*MUCAR CS90 Host
1*Manual
1*Charging cable

How to Register/Update MUCAR CS90?

1.Initial Use
2.Turn on the Machine
3.Language Setting
4.Connect WIFI
5.Choose Time Zone
6.User Agreement
7.Typing in Business Information

Application scenario:

1.For maintenance technicians, the MUCAR CS90, which is convenient to carry, is the best choice for road rescue or door-to-door service.
2.For small repair shops, there is no need to purchase expensive diagnostic equipment, Thinkscan Plus can also meet the fault diagnosis of different brands of vehicles.
3.In-depth DIY car owners, car owners with certain maintenance skills and strong hands-on ability, can always keep this comprehensive and powerful, yet economical diagnostic equipment.

Warranty service：

There is 12 months free warranty from the date of purchase. For any question or problem with this tool, please contact us for help directly and we will feed back to you within 24 hours.
