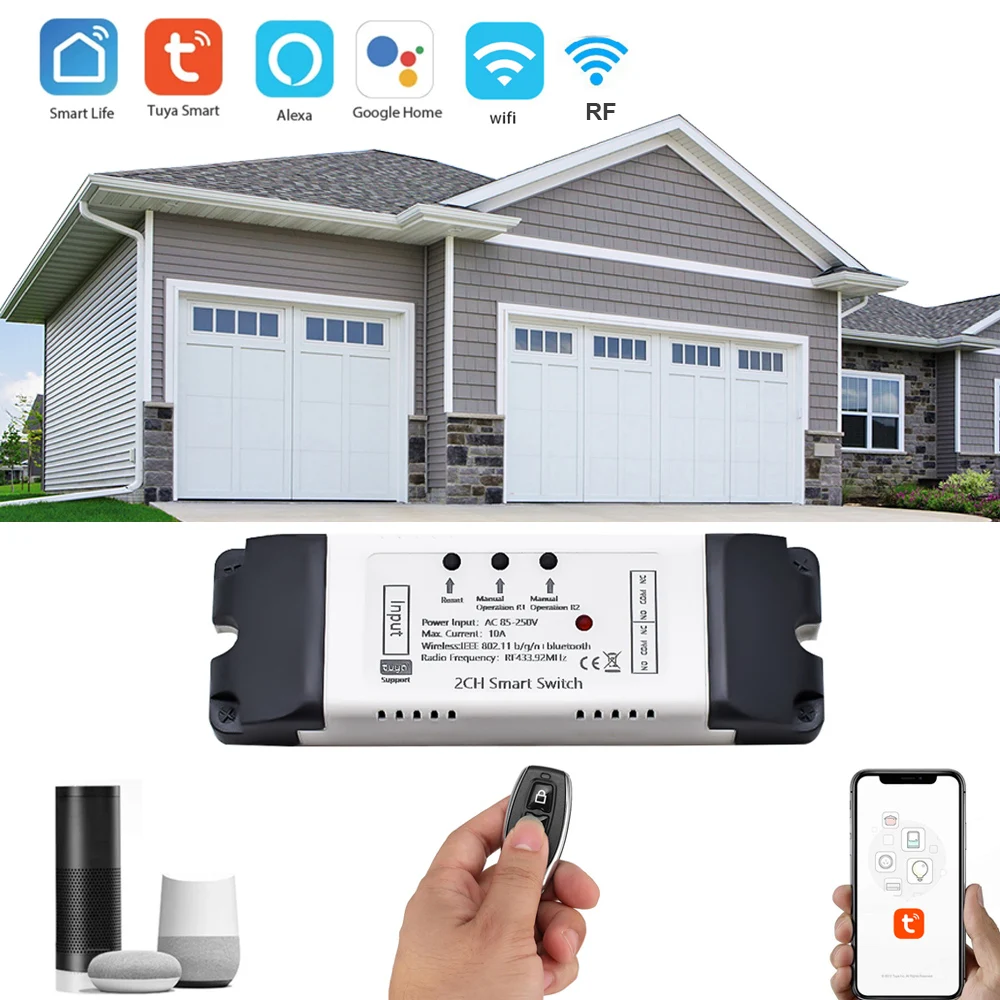

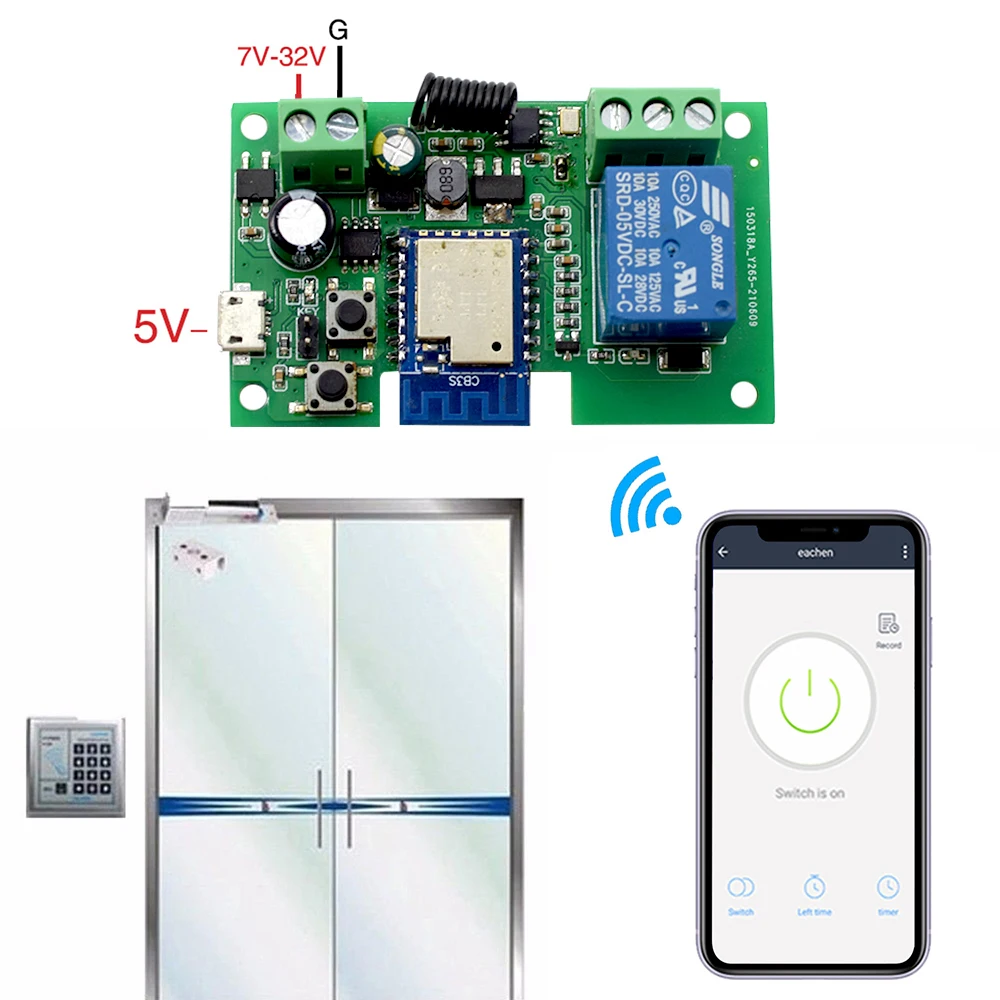

Tuya Smart Wifi Motor Switch Module 12V 32V 220V RF 433 Radio Remote Control 4 Channels Inching Relay for Alexa Google Home

Overview:

This product is a 1/2/4 channels universal WiFi wireless smart switch with RF 433MHz module, for your smart home system to remotely and automatically turn on/off home appliances and electronic devices by phone APP. It also can be controlled by RF remote controller indoors. It can connect and control four appliances on APP at the same time, and you can independently turn on/off each of the four gangs. It also supports timing turning on/off the appliances at a specified time, and share to others so that you can control your smart home together with your family. You can also voice control your home appliances by Alexa, and for Google Home/Nest, and enjoy intelligent life and make your home smarter.

Features:

*App Support: Free iOS and for Android mobile App Smart Life / Tuya Smart.
*Sync Status: Real-time device status provided to App.
*Remote ON/OFF: Turn 4 electrical devices on/off remotely from anywhere.
*RF Remote control: Turn on/off by 433MHz RF Remote indoors,Only support 433MHz Learning code.

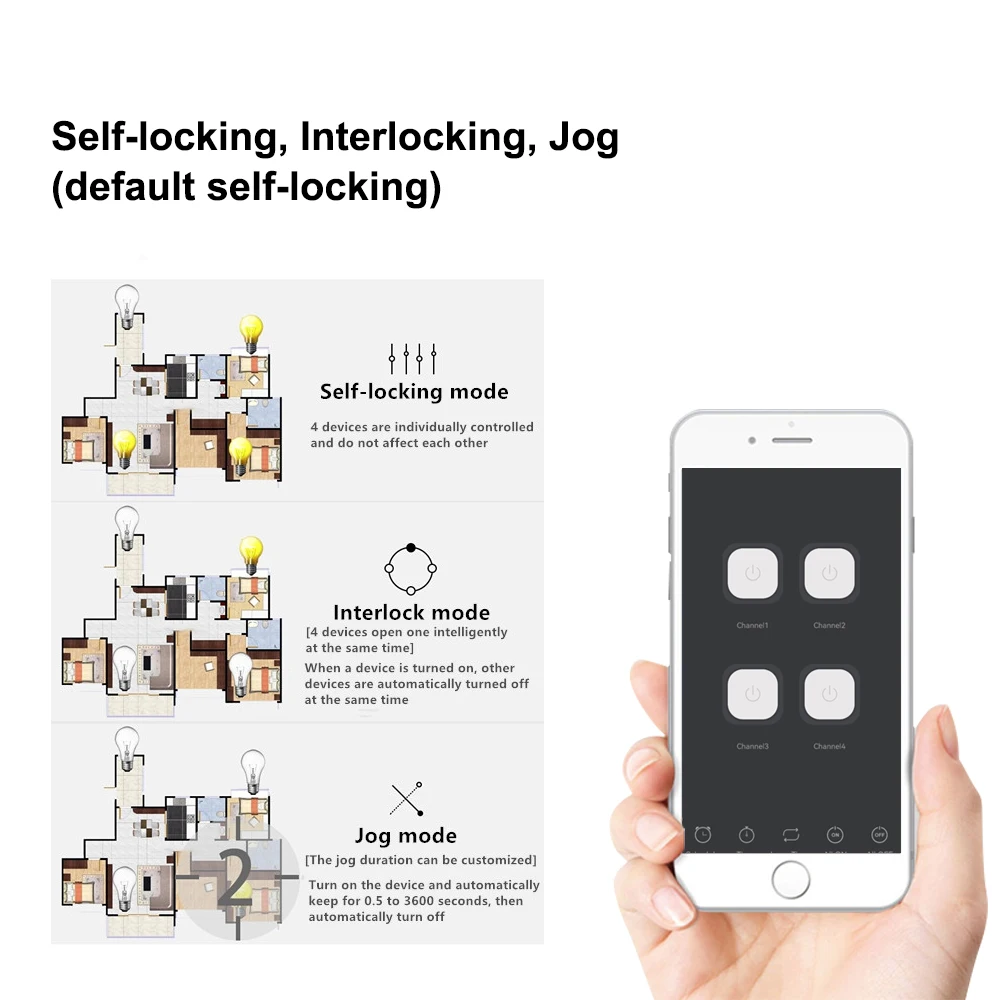

*Working Modes: 2CH/4CH Switch among interlock/self-locking/inching modes,1CH self-locking/inching.
*Independent control: Control each gang separately in APP Tuya.
*Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain, etc.
*Timing: Supports 8 enabled countdown/single/repeat timing tasks to turn on/off at specified time.

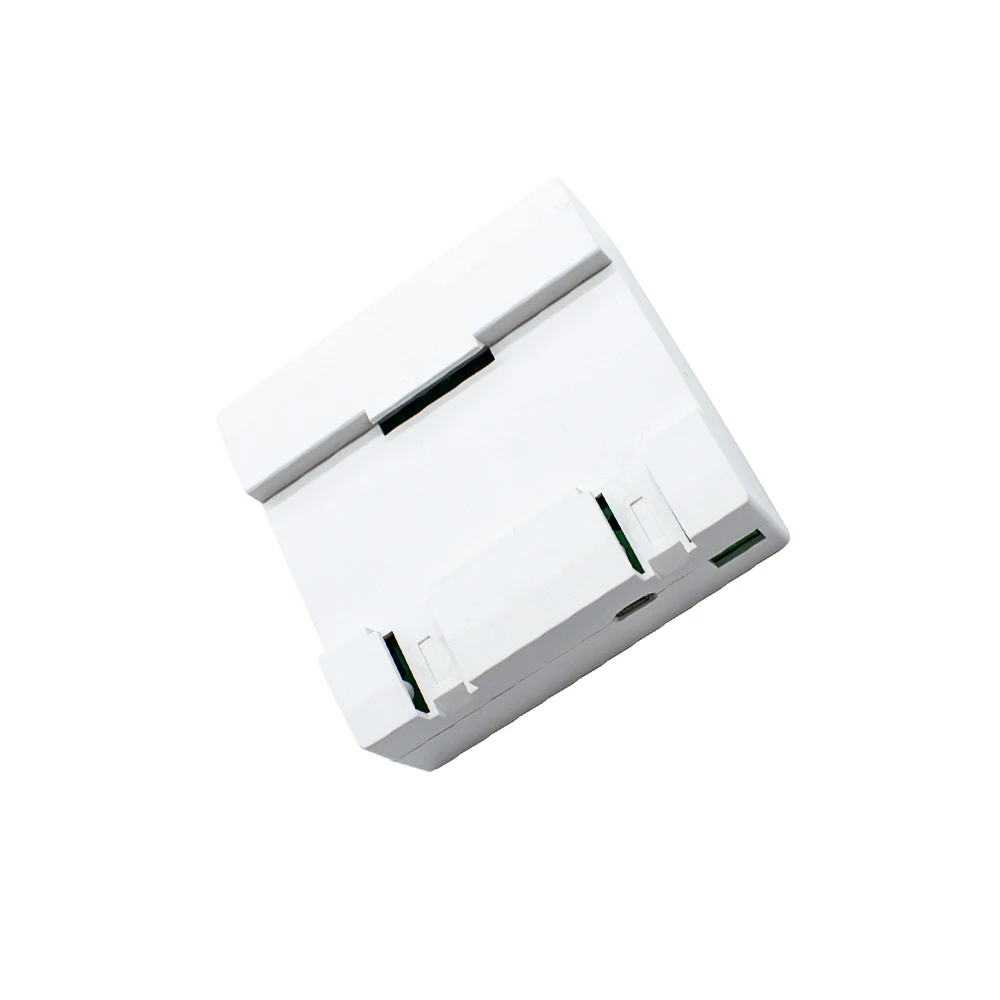

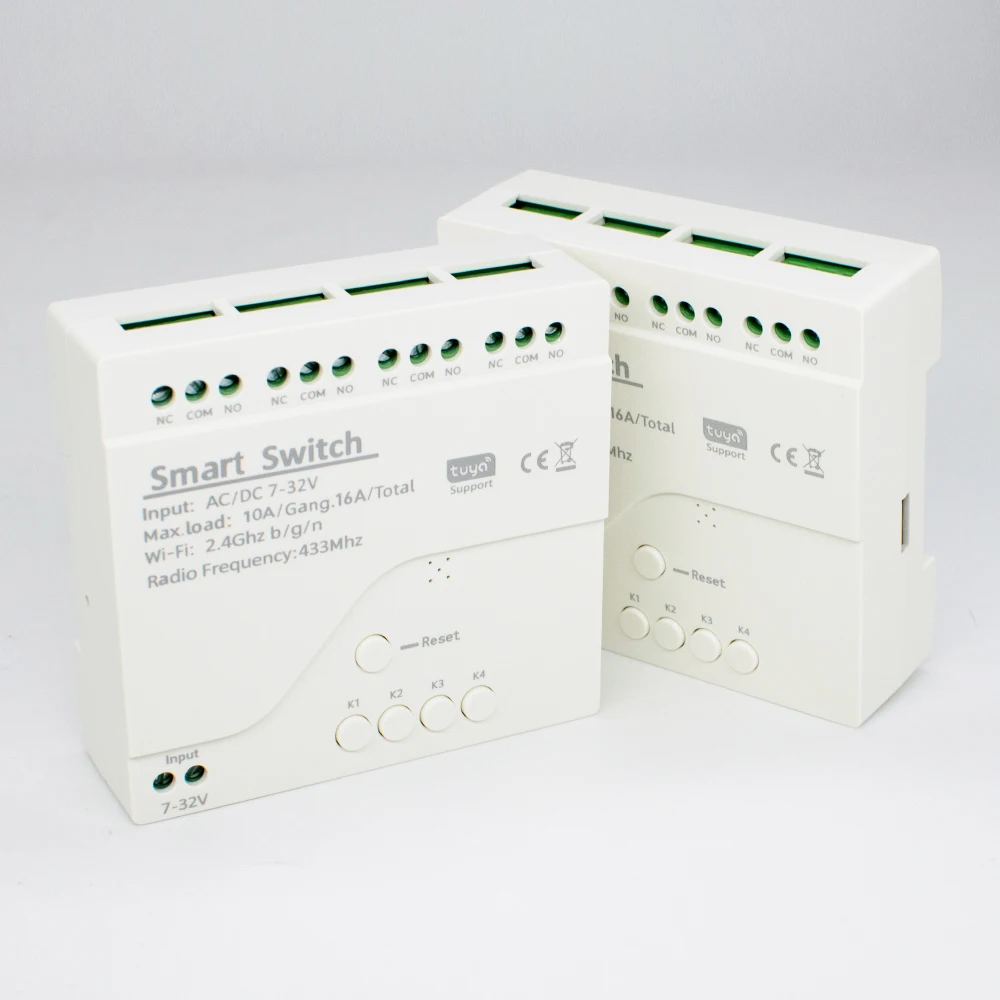

*DIN Rail Mounted: Great for industrial control.
*Voice Control: Compatible perfectly with Alexa, for Google Home, for Google Nest.
*Share Control: Control your smart home together with your family.

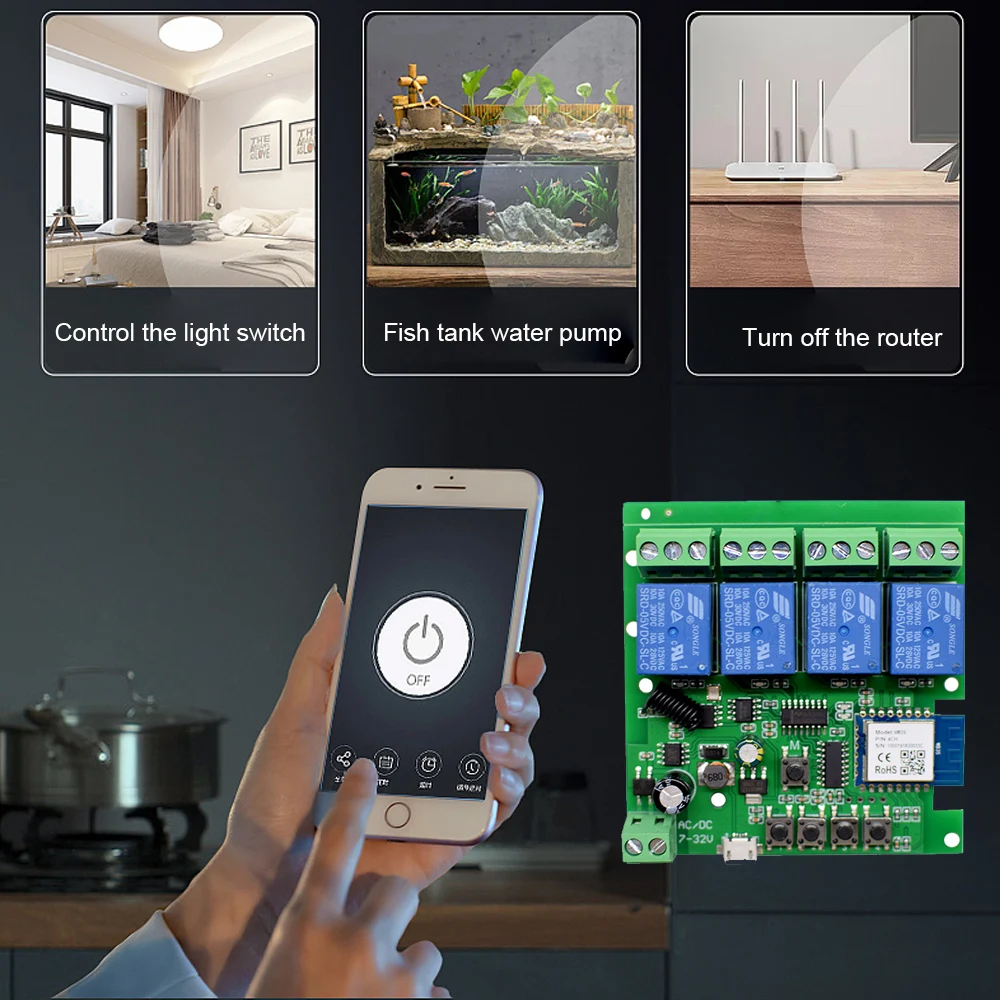

What can I use it for?

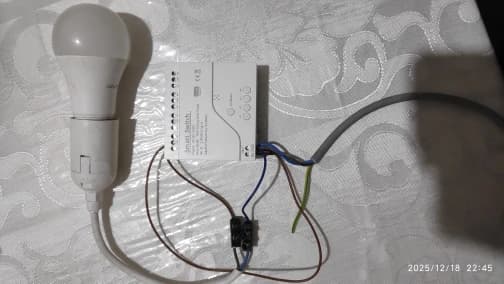

*Connect a light, remotely control the switch of the light.Connect a light, remotely control the switch of the light, and can also switch on and off regularly
19:00 On 21:00 Off
*Open your curtains regularly 7:00
*Change the water for the fish tank regularly
*Use mobile phone or voice control Garage door switch
*Control your heater remotely
*And your coffee machine
*Connect a water pump, remote control or timer switch
More functions waiting for you to discover. DIY

Specifications:

Input voltage : DC/AC 7-32V , AC 85-250V.
Output: Signal output only, no voltage output.
Max current : 2200W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.
The life of Relay Model is more than 1,000,00.
Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately, you can set the inching time in APP , it has the timing-share function at the same time.
Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.

Special Reminder:

The latest version does not support USB 5V voltage input.
We default to sending the latest version.

Noted :

Your have the correct wif password.
Your smart phone or tablet must have access to APP store or google play.
Your router is MAC-open.
Your smart phone or tablet has connected to a 2.4g wifi with internet.
Default inching time 1s , you can set inching time from 1s to 3600s in APP ( smart life / tuya smart).
The remote control is not included and you are strongly advised to purchase a 433MHz learning code remote control from my shop, clone codes and rolling code remotes are not supported.

Product Application Area

Factory \ Farm\ Office\ Instrument\ Ventilation \ Pump \ Motor \ Remote control garage door \ Remote control house door \ Remote control Lamp \ Remote control curtains \ Remote control Gate and other remote control device

APP remote control

Control your home appliances from anytime anywhere with the Tuya/Smart Life APP.

Timing Function

Single / Repeat / Countdown / Loop Timer

Set up timing schedules to save the trouble of overcooking the dish

Family Sharing

Share the control with family member.Enjoy the convenience and happiness together

Supports RF 433MHz remote control.

Catering for different needs, the RF remote control is more convenient. Only support 433MHz Learning code.

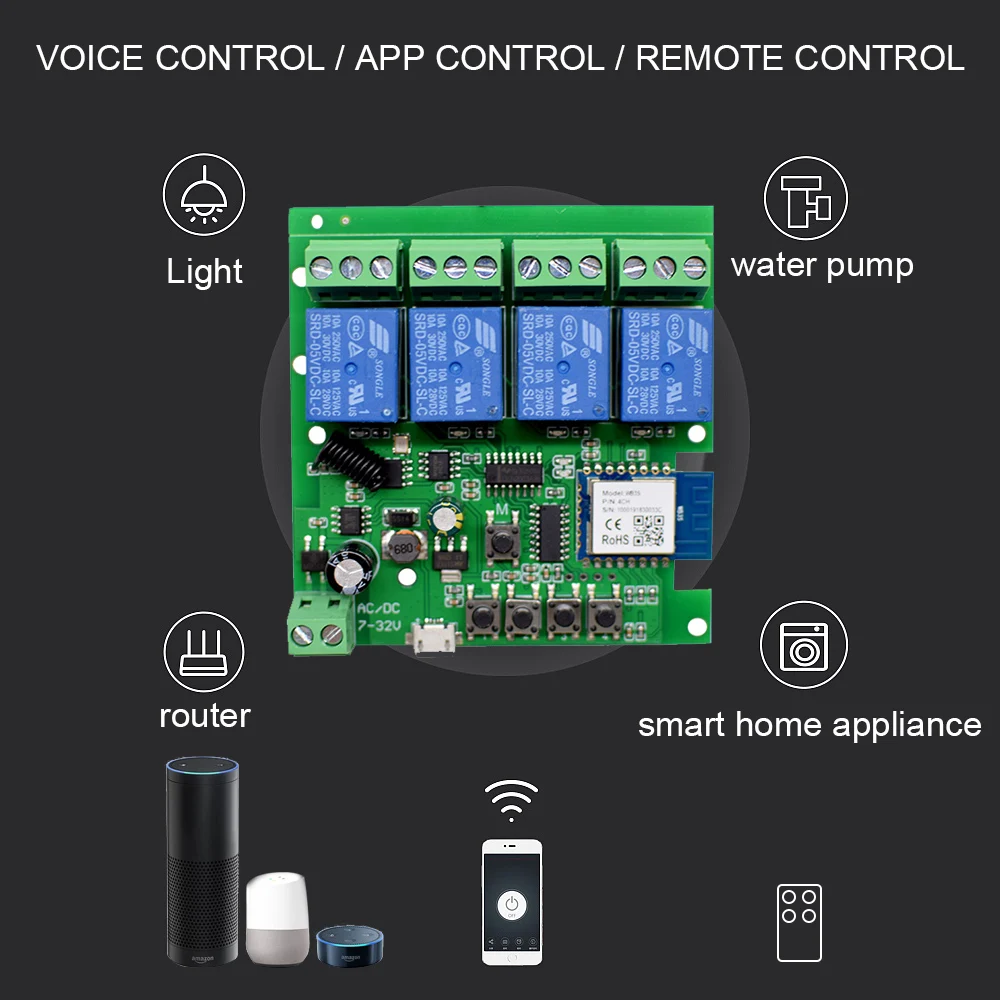

Voice Control

Compatible with Alexa & Google Home,the smart switch allows you to control lights/garage door on/off with your voice

Include:

1* wifi module

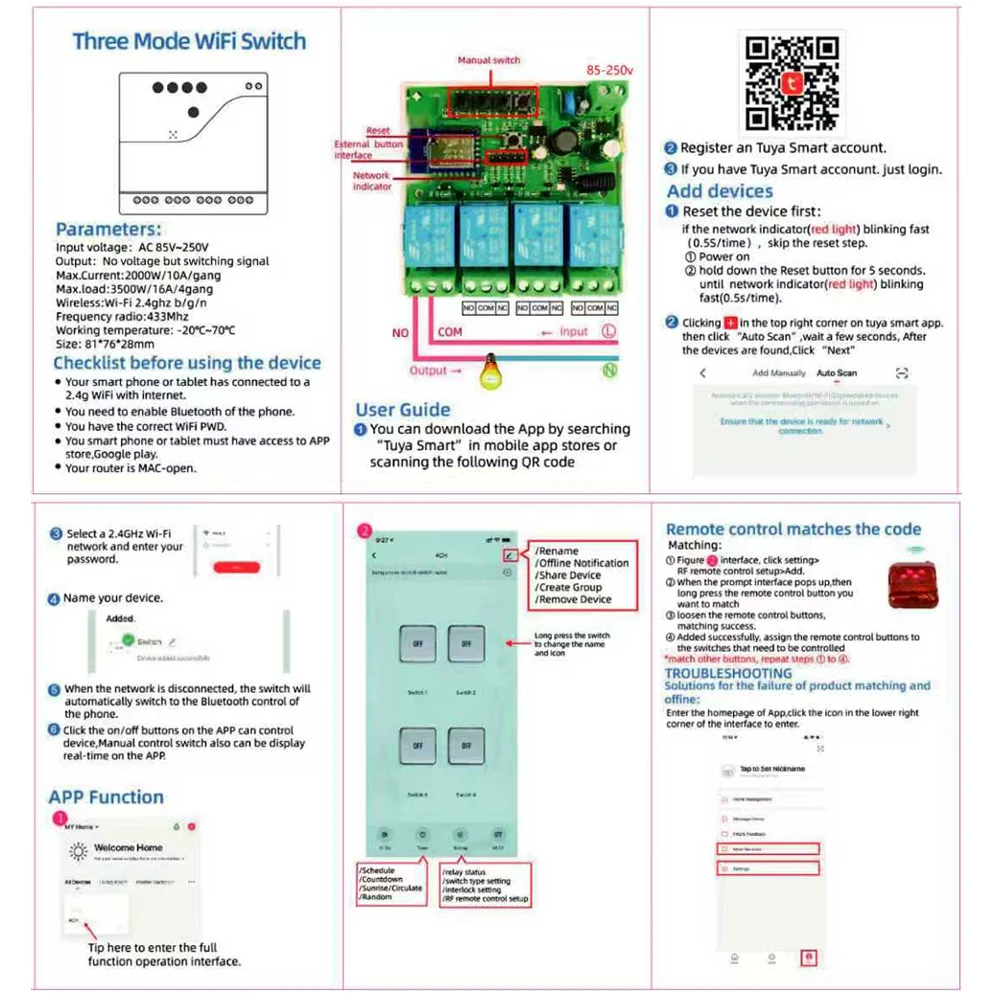

1* manual

Tuya smart Switch

This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP Smart life in order to remotely control connected home appliances or devices.

In self-locking mode, customers can remotely turn on/off connected devices immediately.

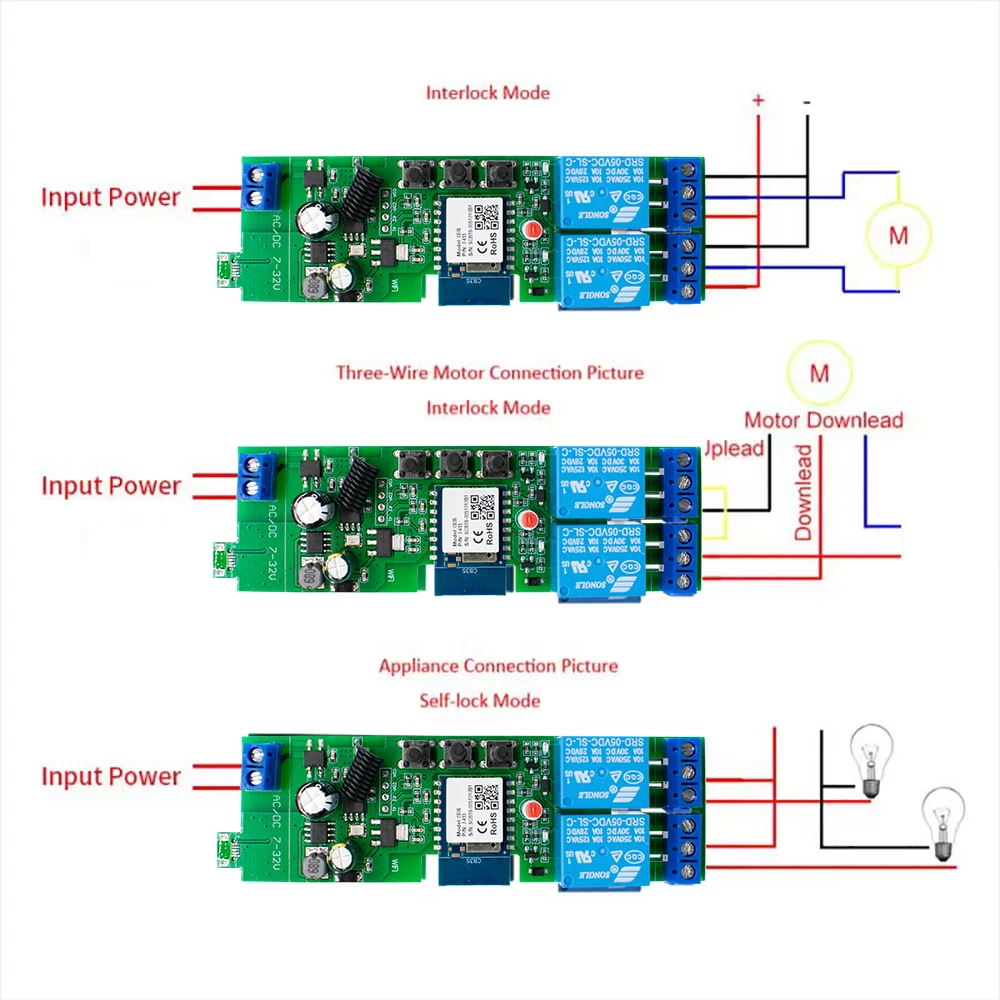

When in inching mode, customers can have two wiring ways to select, and you can set the inching time in APP .

WIFi control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.

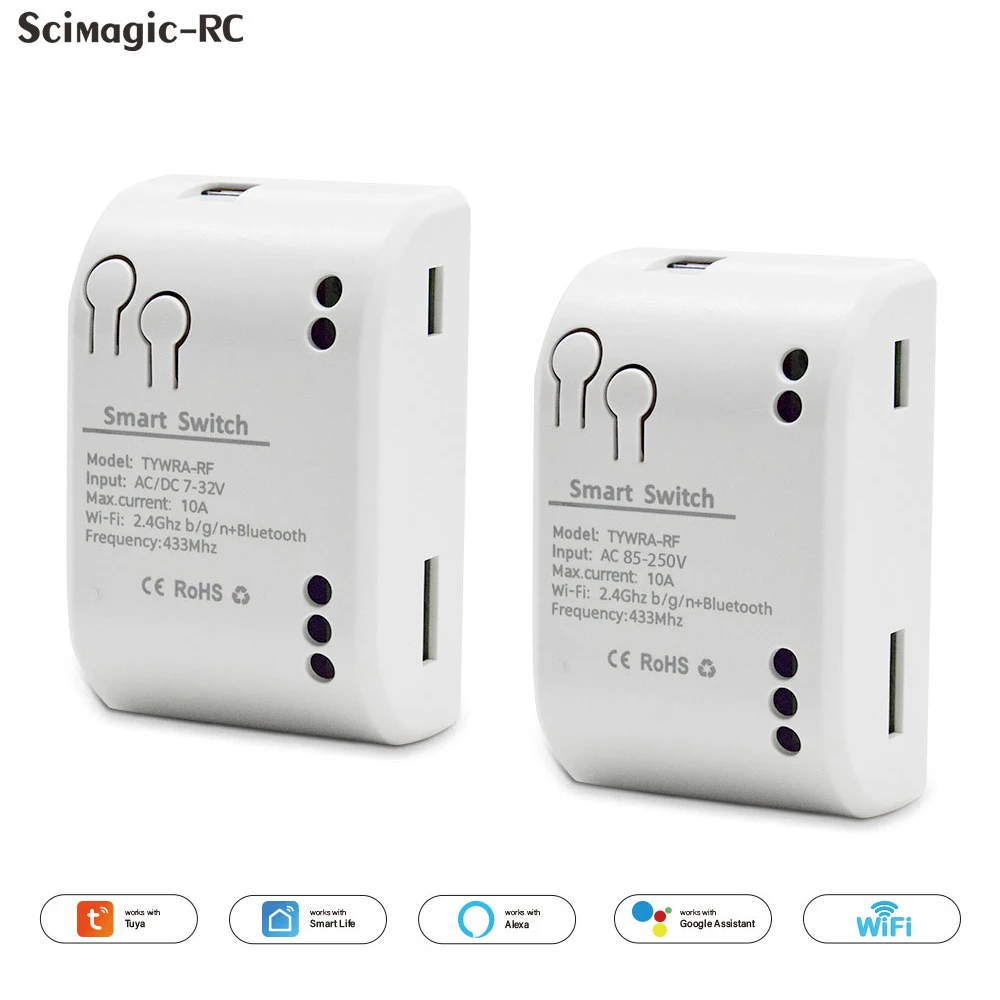

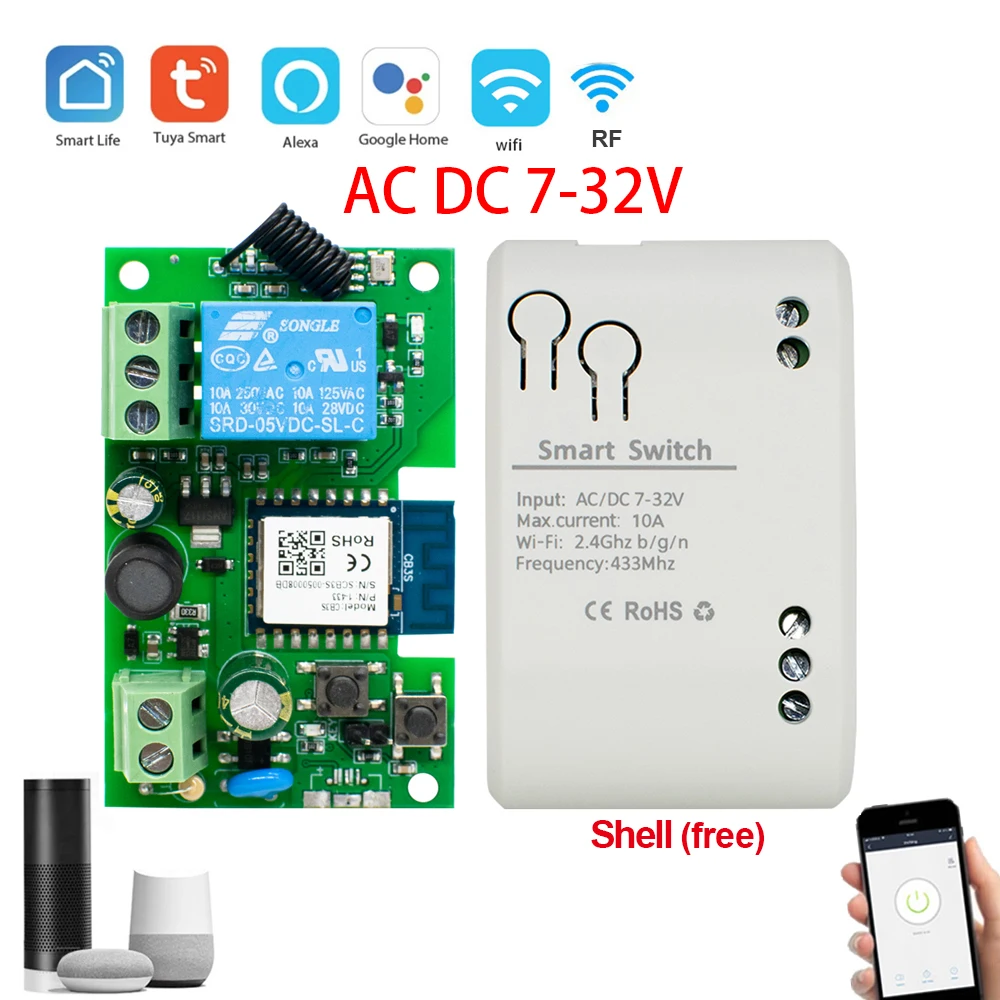

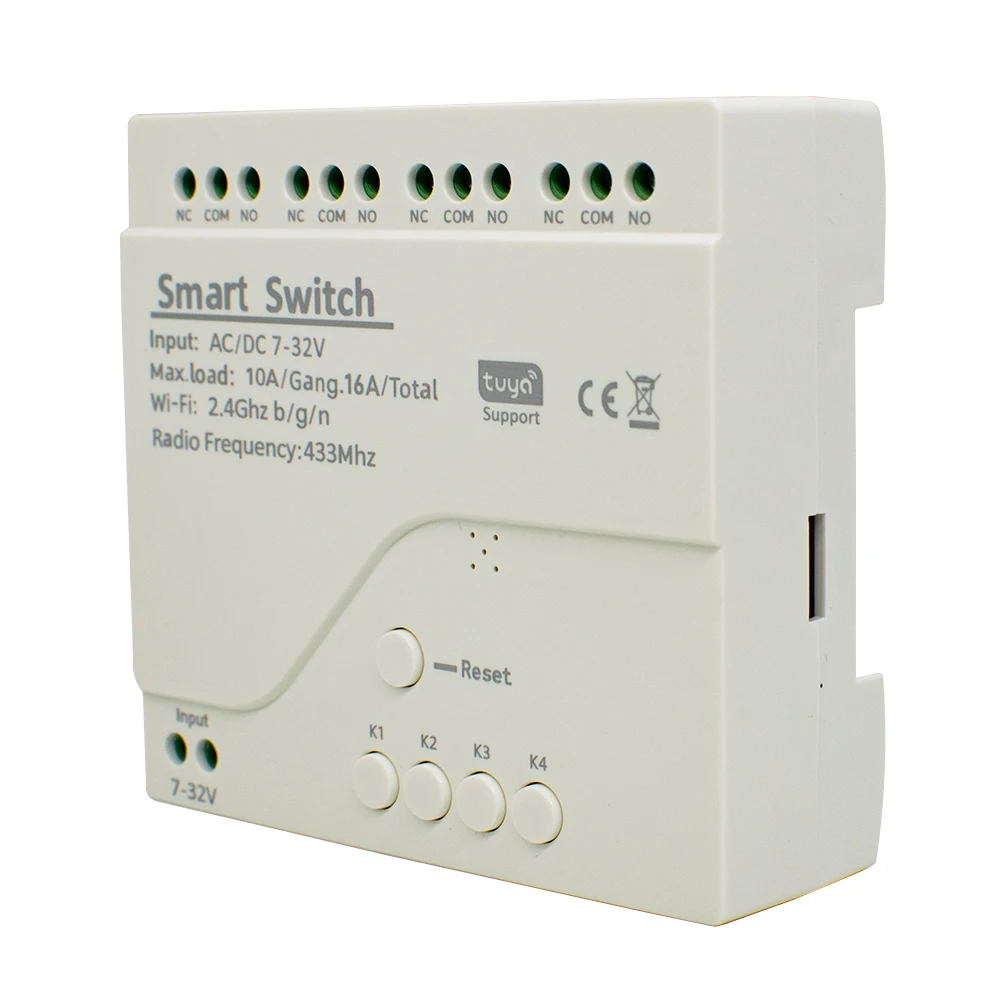

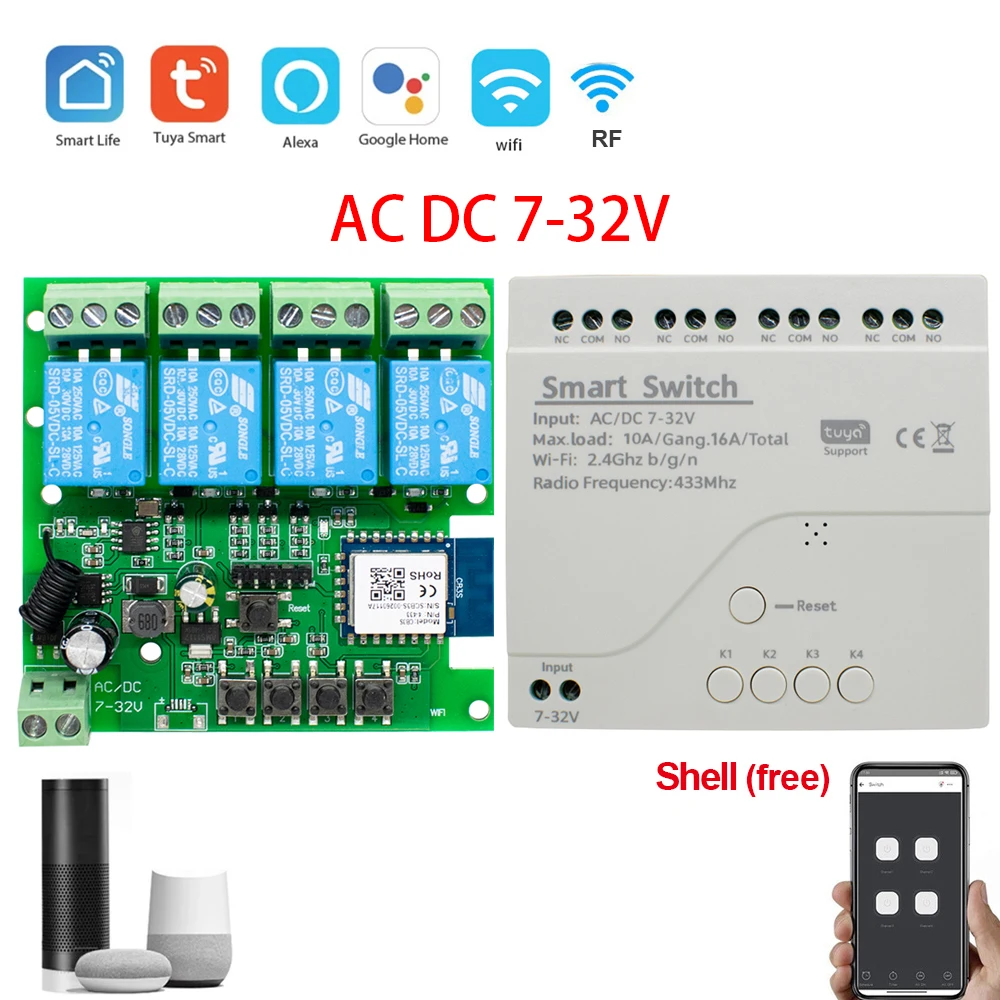

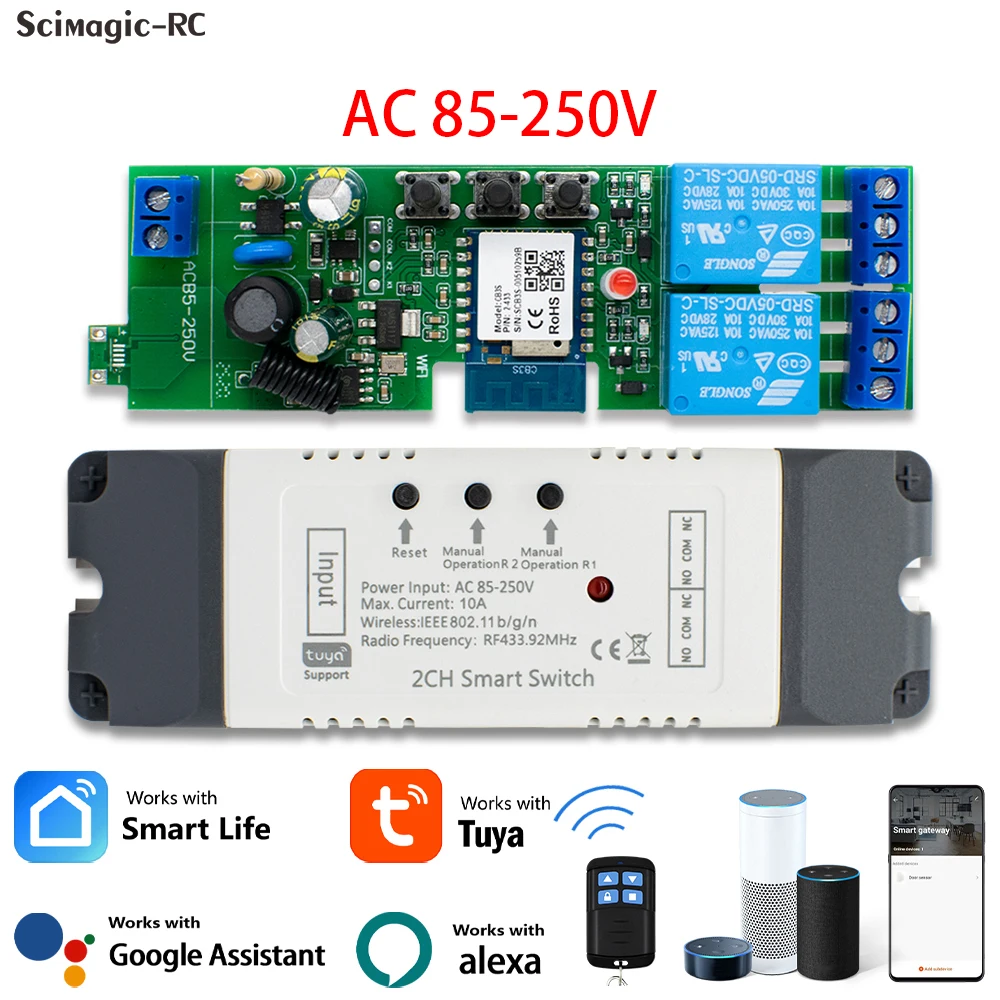

AC/DC 7-32V

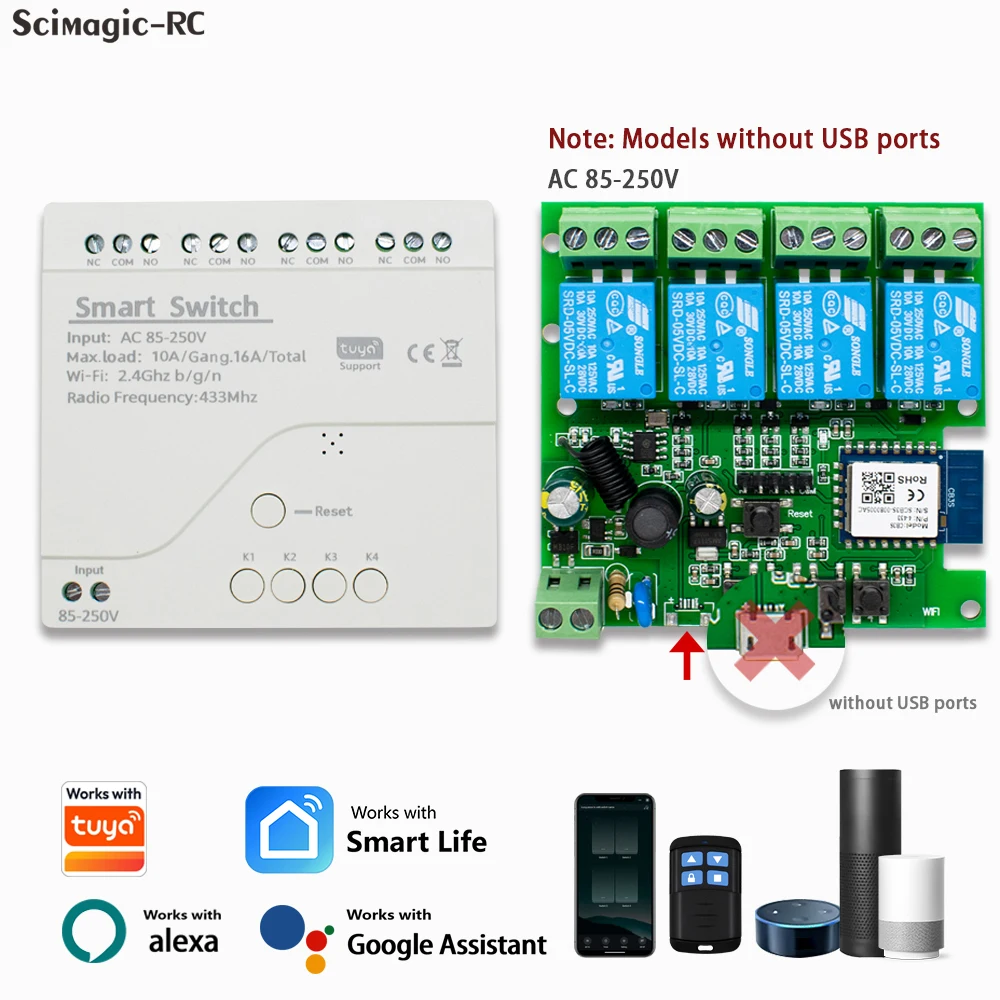

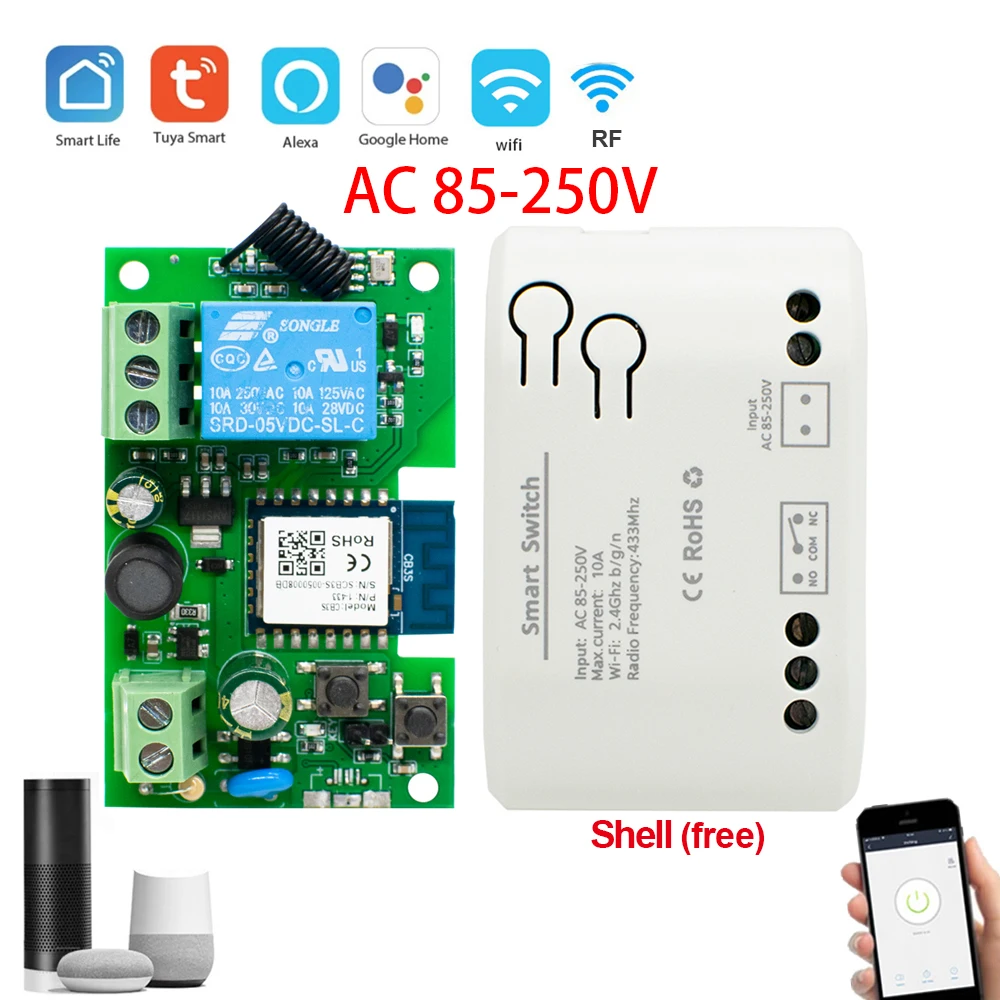

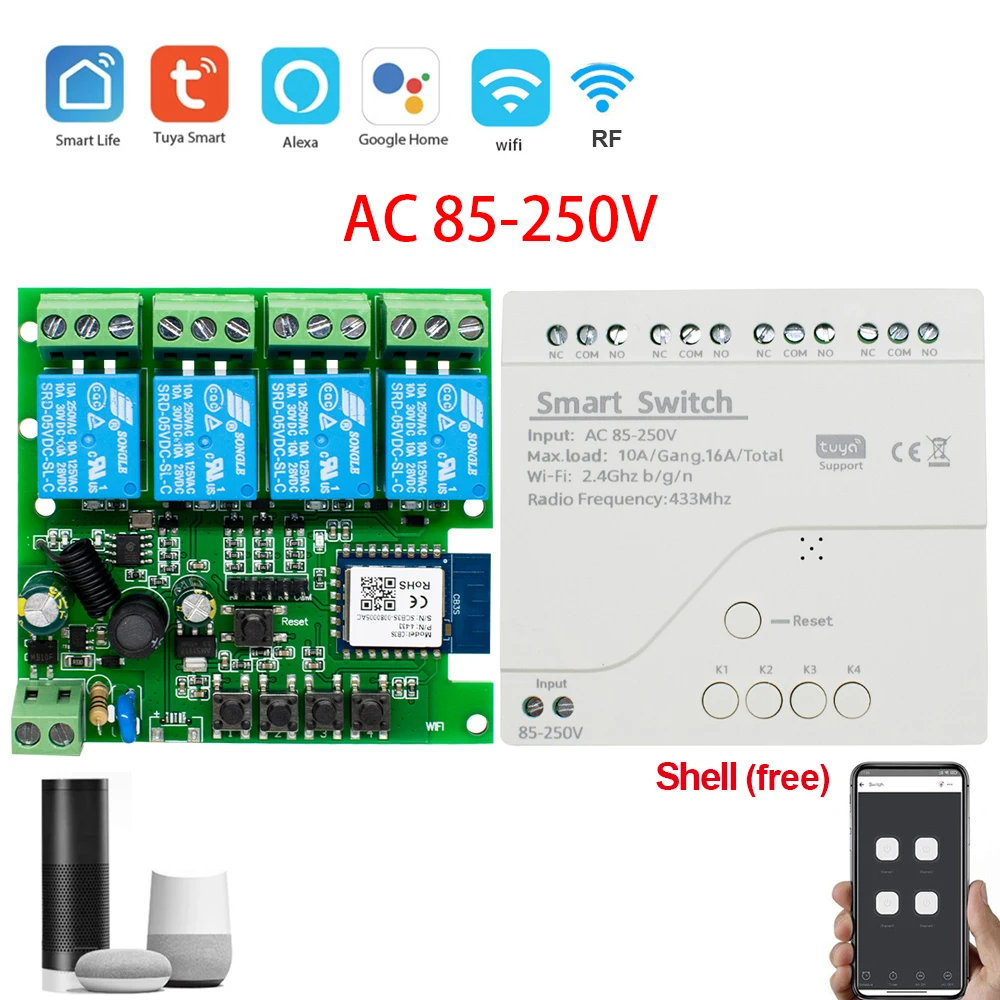

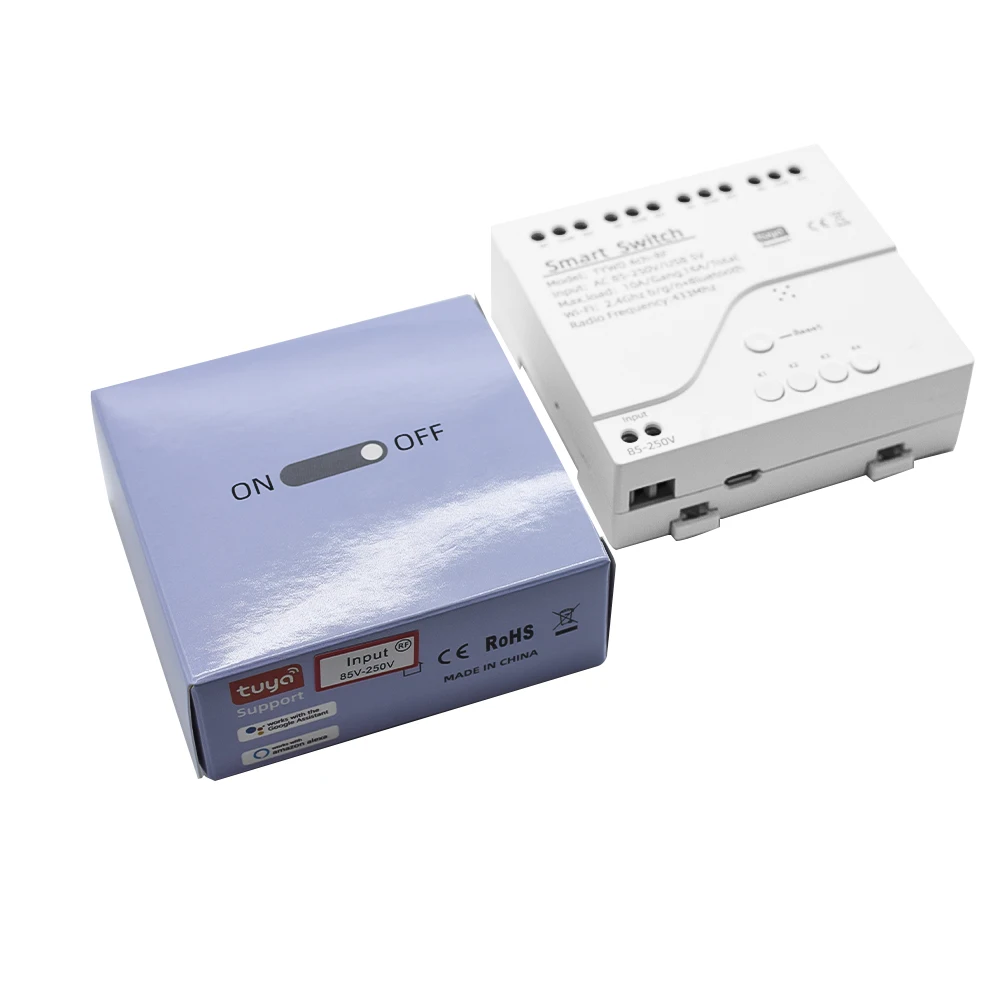

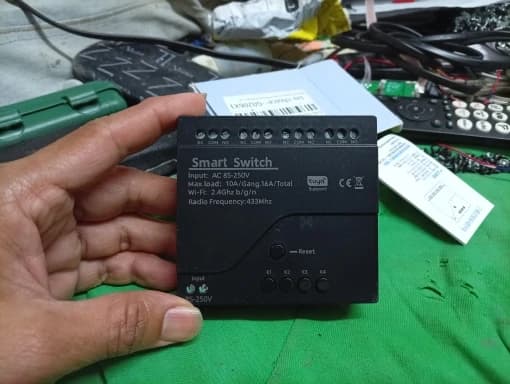

AC 85-250V

2/4 Channel has only three operating modes

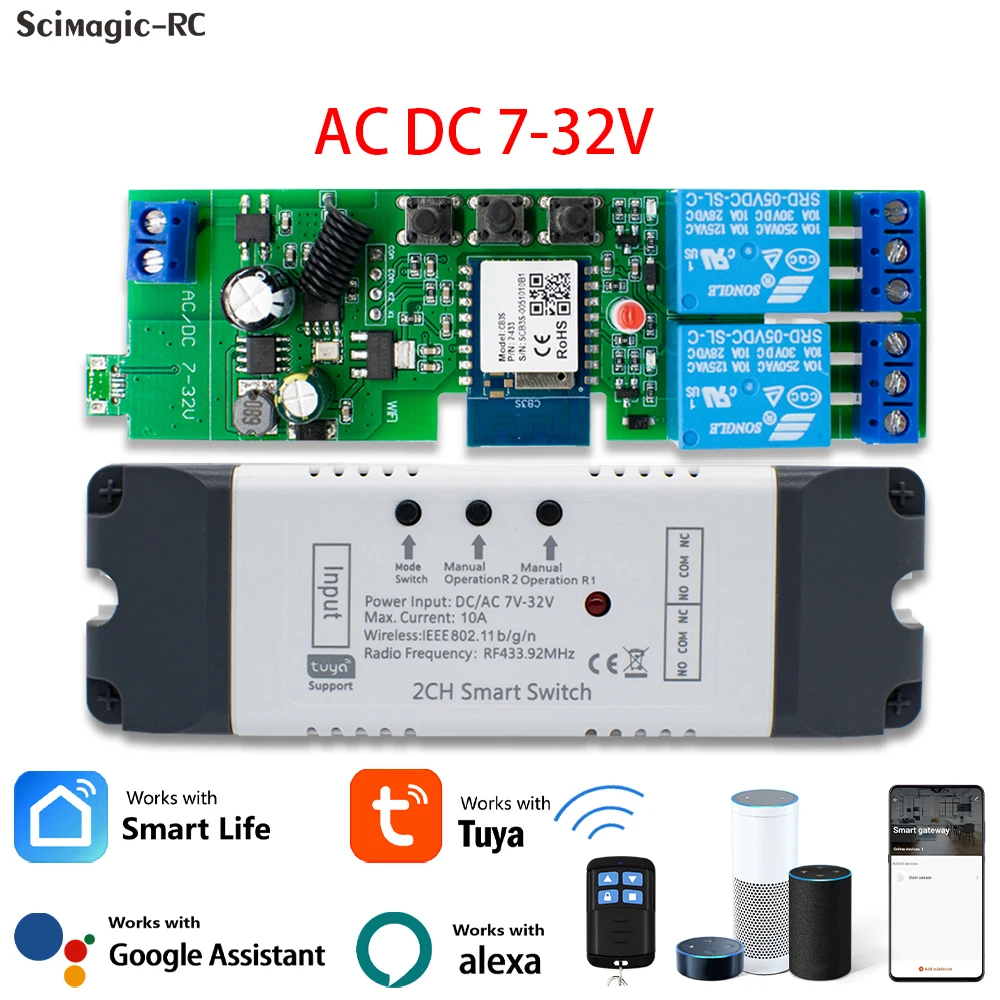

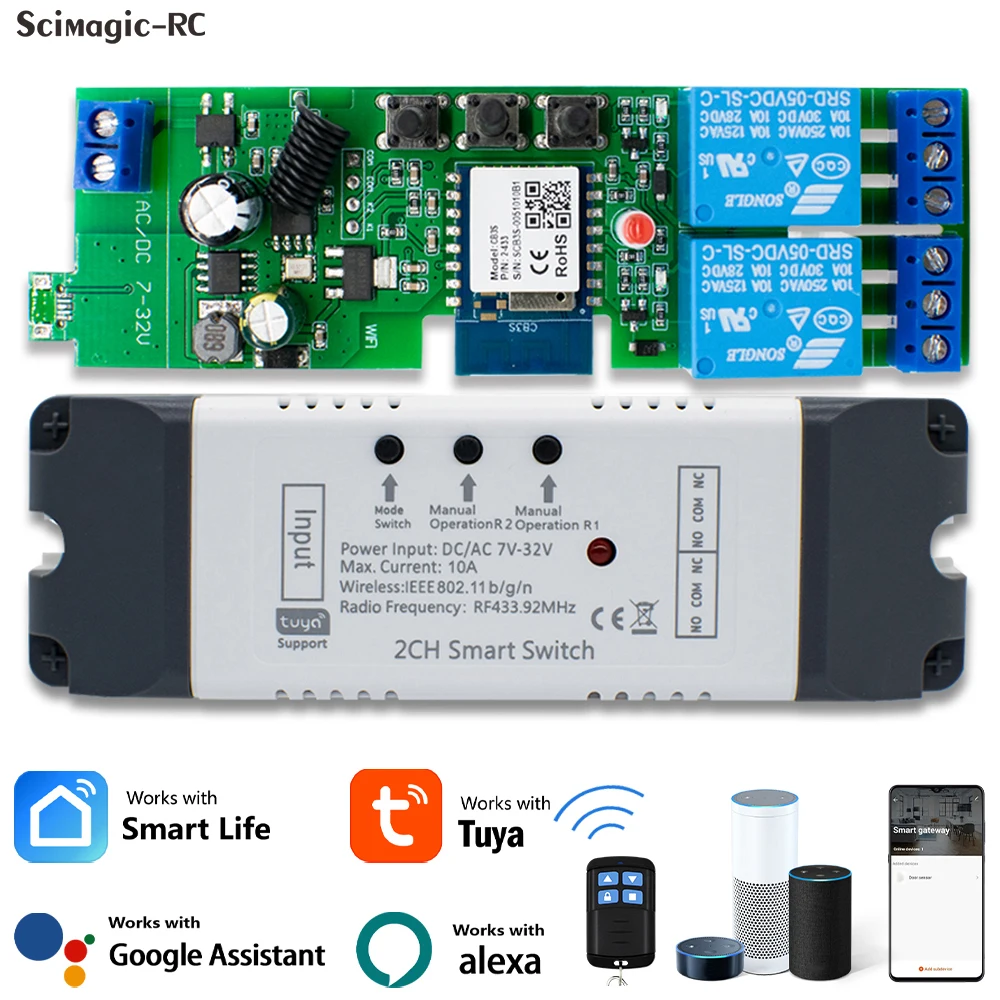

2CH AC/DC 7-32V

2CH AC 85-250V

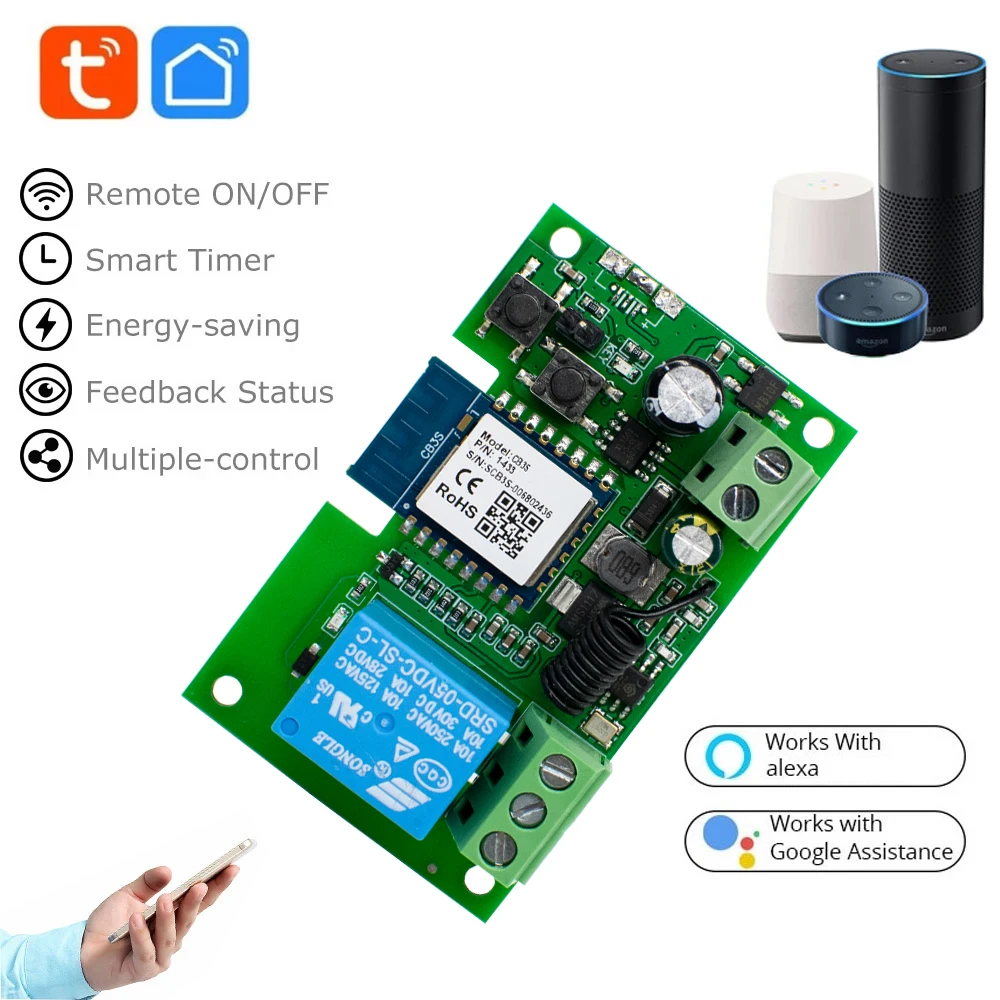

1 Channel has only two operating modes

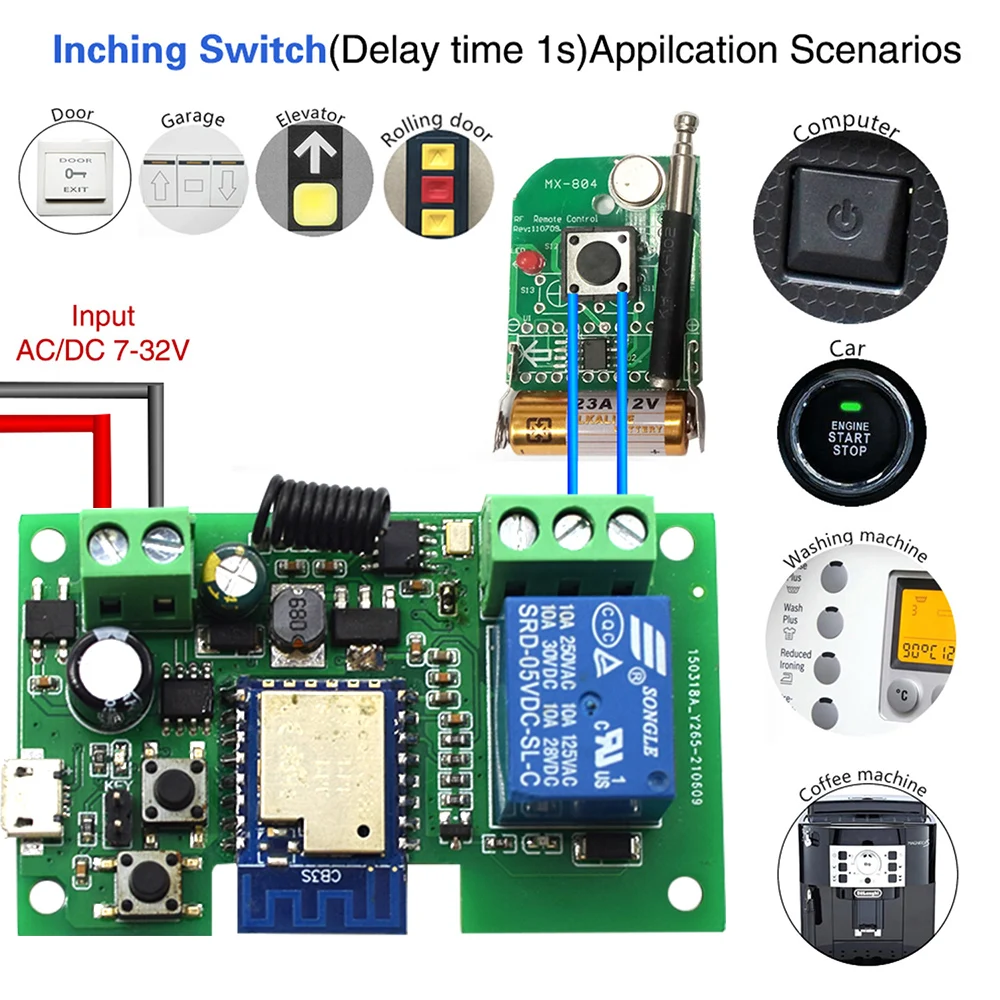

lnching Switch(Delay time 1s)Appilcation Scenarios

Work For Door,Garage,Elevator,Rolling door,Computer,Car,Washing machine,Coffee machine etc.

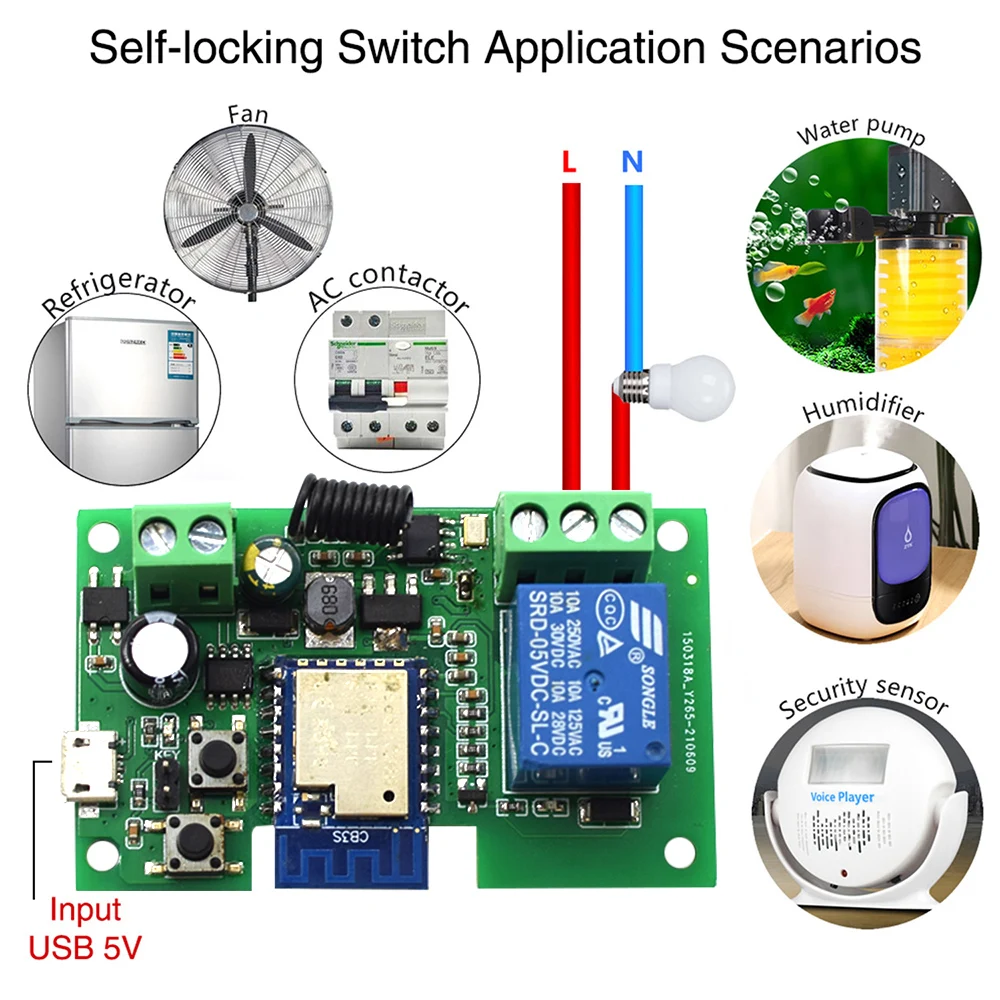

Self-locking Switch Application Scenarios

Work For Light,Fan,Refrigerator,AC contactor,Water pump,Humidifier,Security sensor etc.

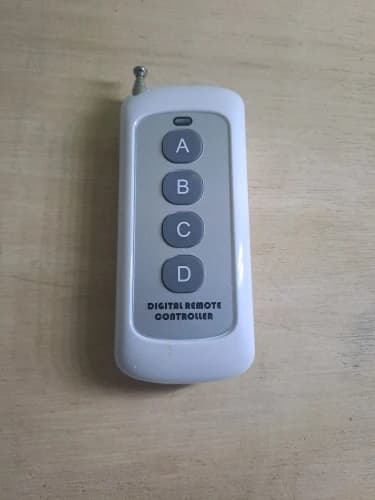

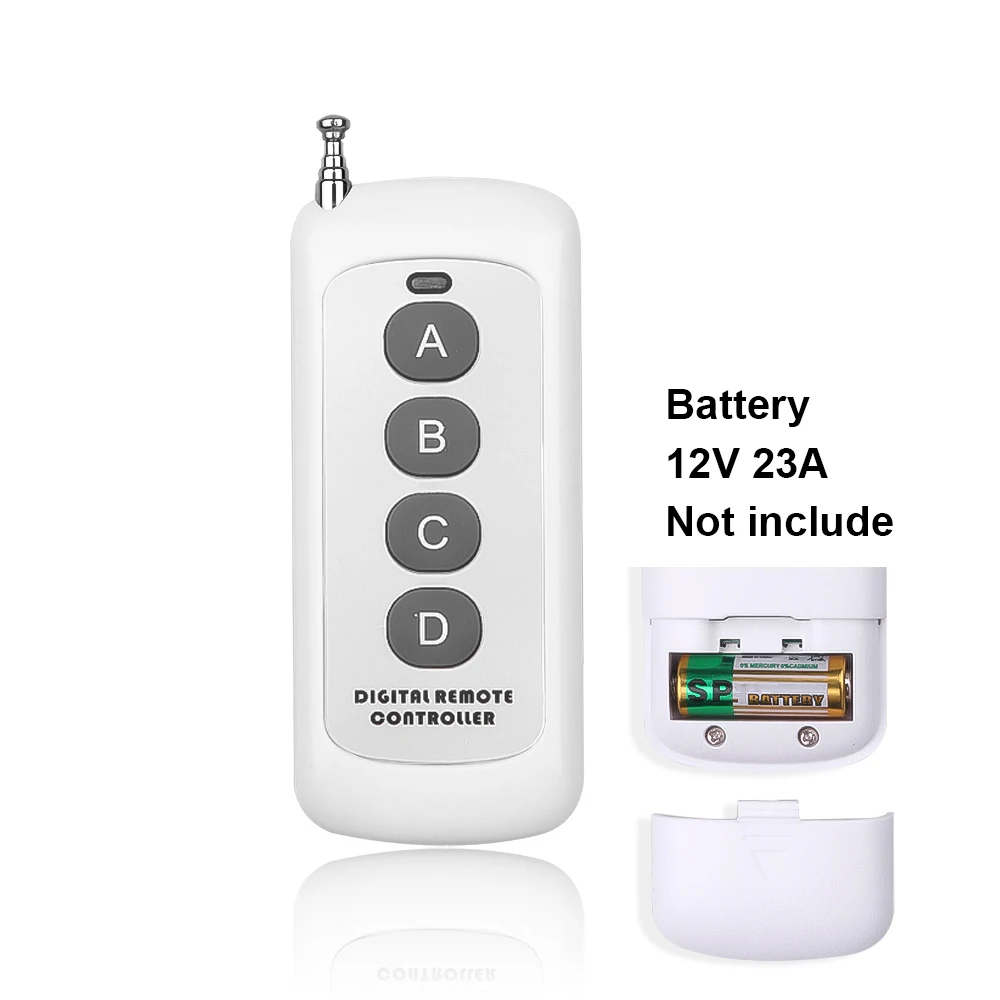

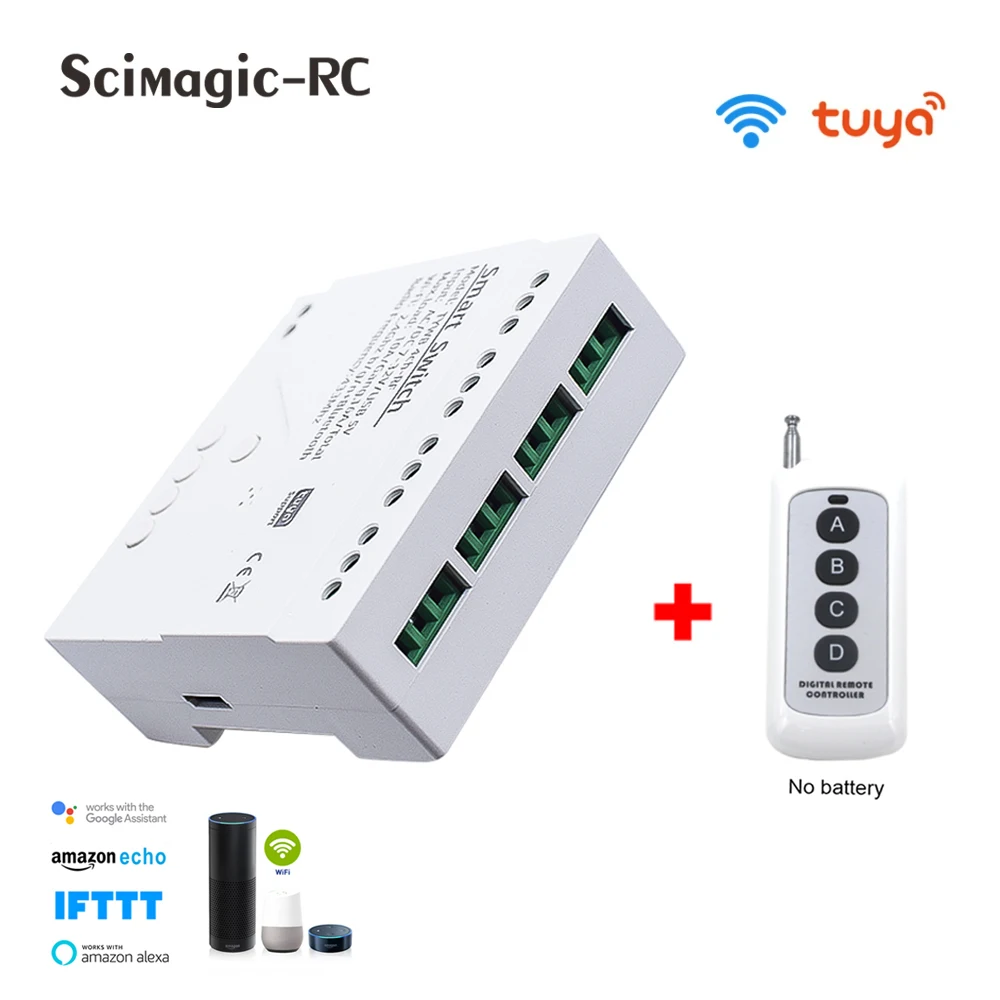

433MHz Learning Code Remote Control

Please note: The remote does not contain batteries.
Only support 433MHz Learning code.
I suggest you to buy my remote control, the smart switch does not support rolling code&Clone remotes.
