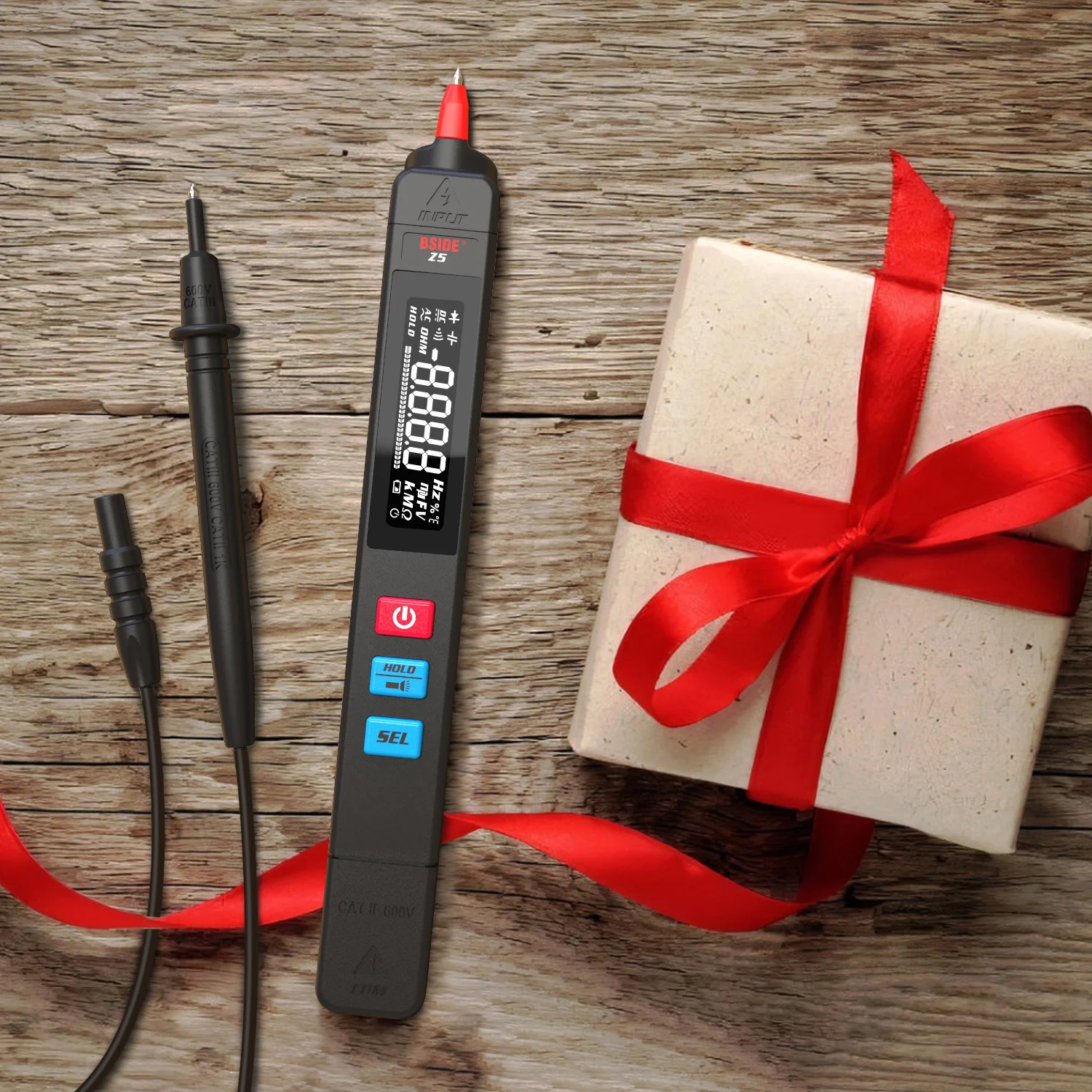

BSIDE Digital Multimeter Pen Type Smart multitester Auto Range DC AC Voltage Capacitance Ohm NCV Hz Diode Live wire Tester Meter

Product introduction:

This products belong to the latest generation of BSIDE brand smart Pen-shaped multimeter！

The 1.9-inch EBTN display design leaves an excellent user experience for buyers;The easy-to use/Single Button to Switch design is well recognized by buyers.

Equipped with a High-quality cloth bag made of EVA material, it is very portable.

Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as gift.

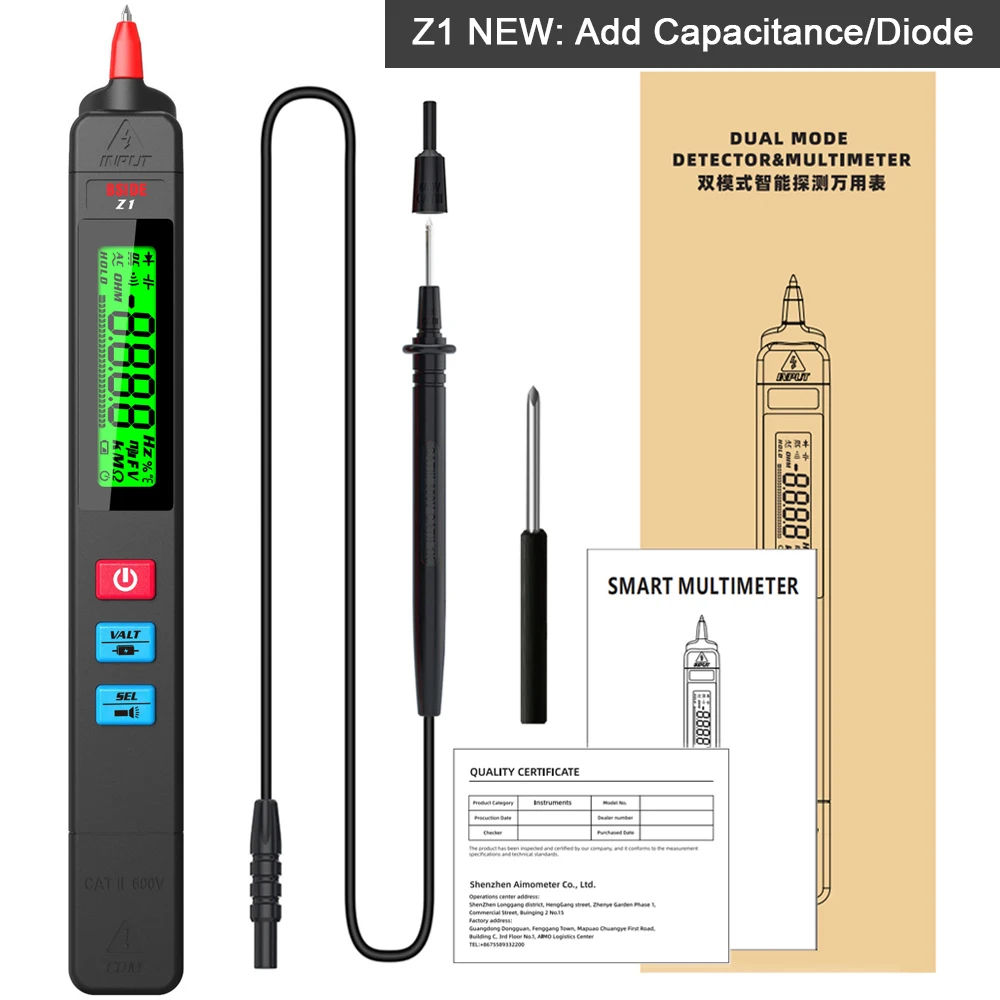

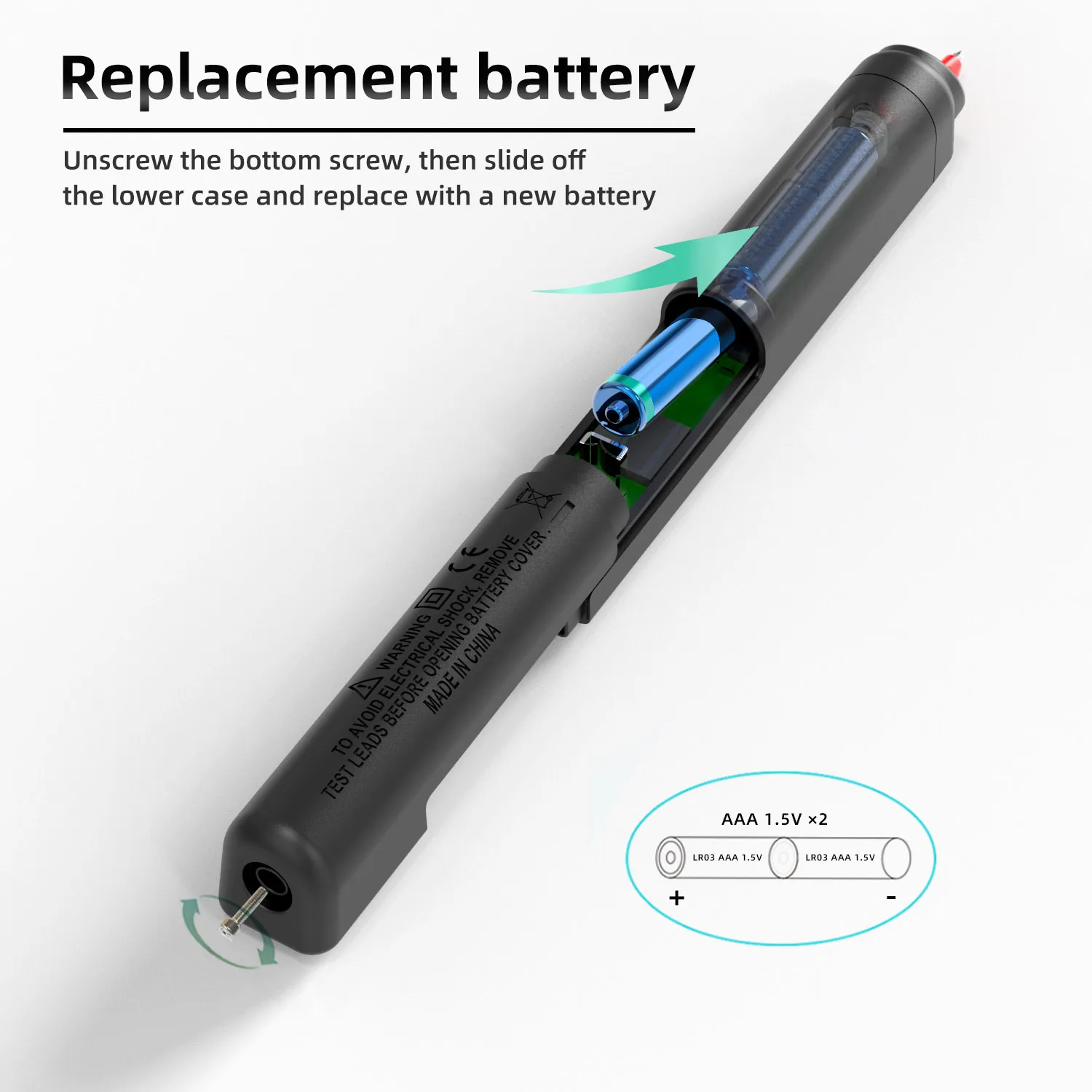

The video of installing batteries for Z1/Z5：

Product introduction:

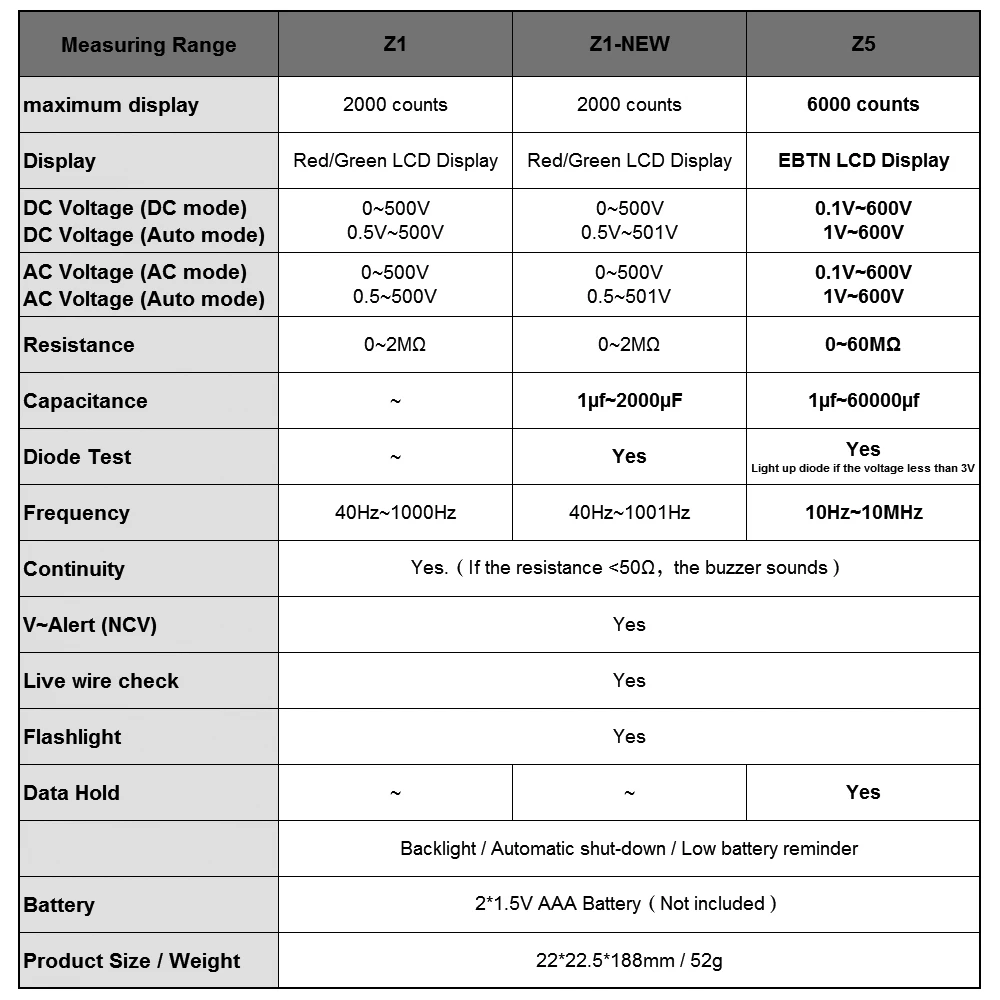

Max Display: 6000 counts.

True RMS

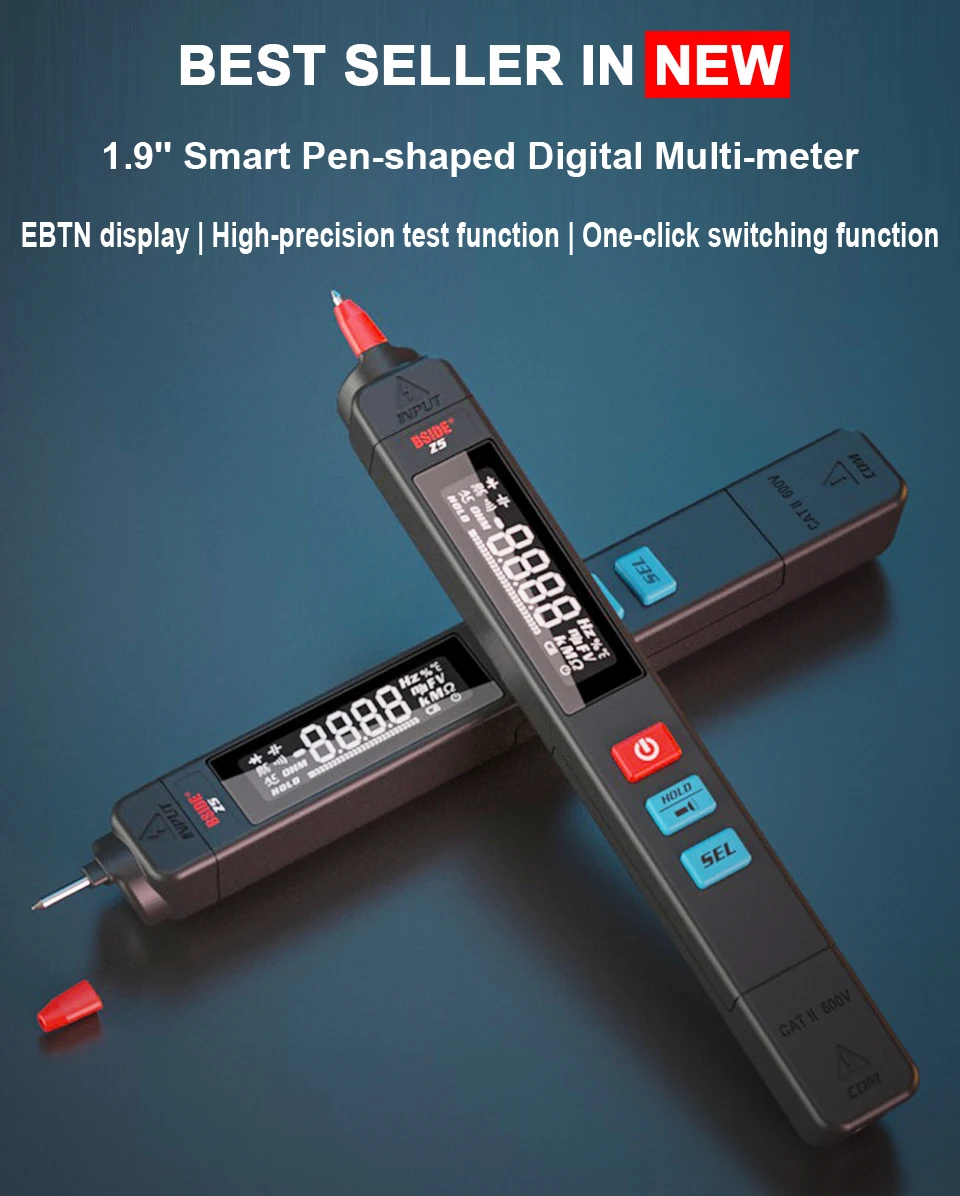

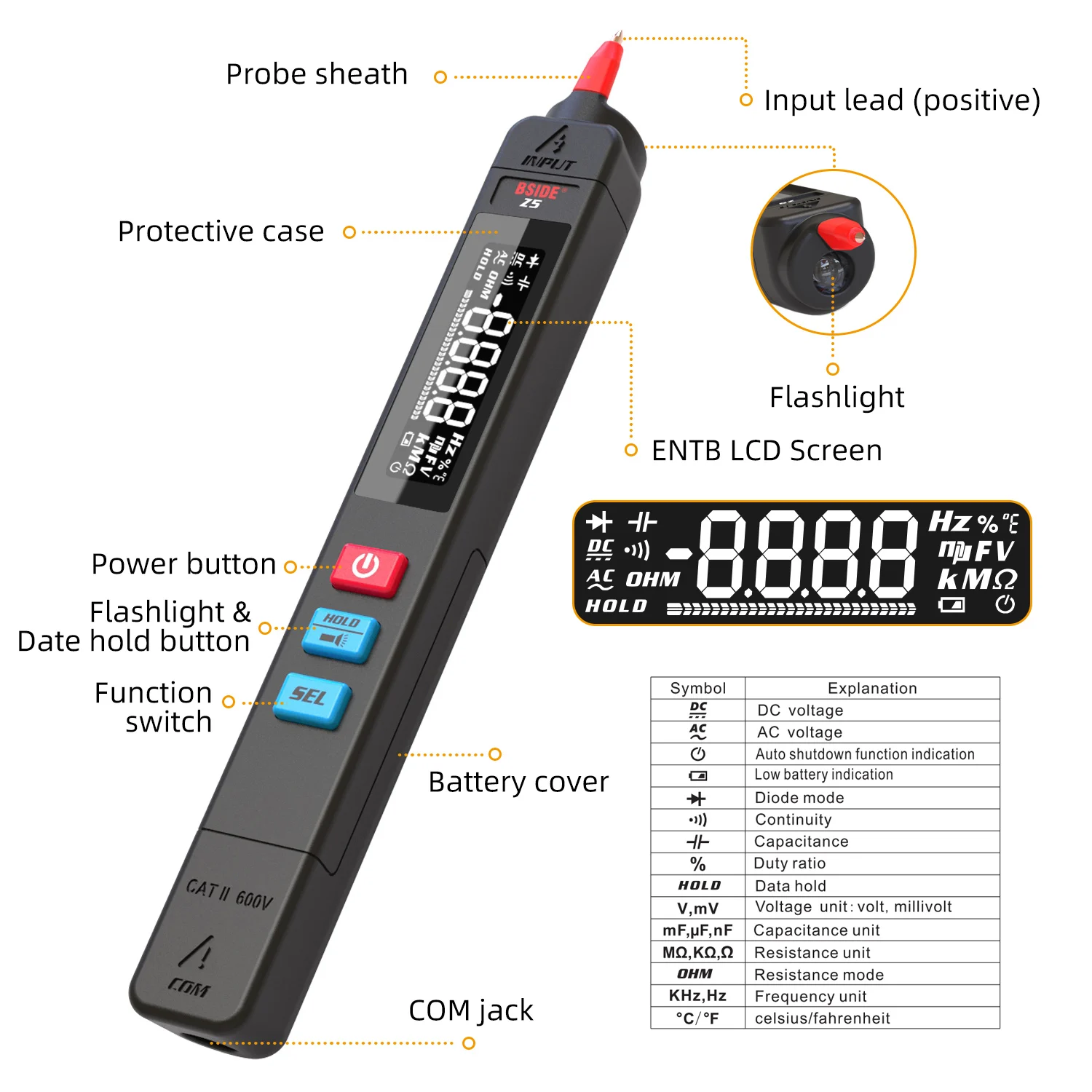

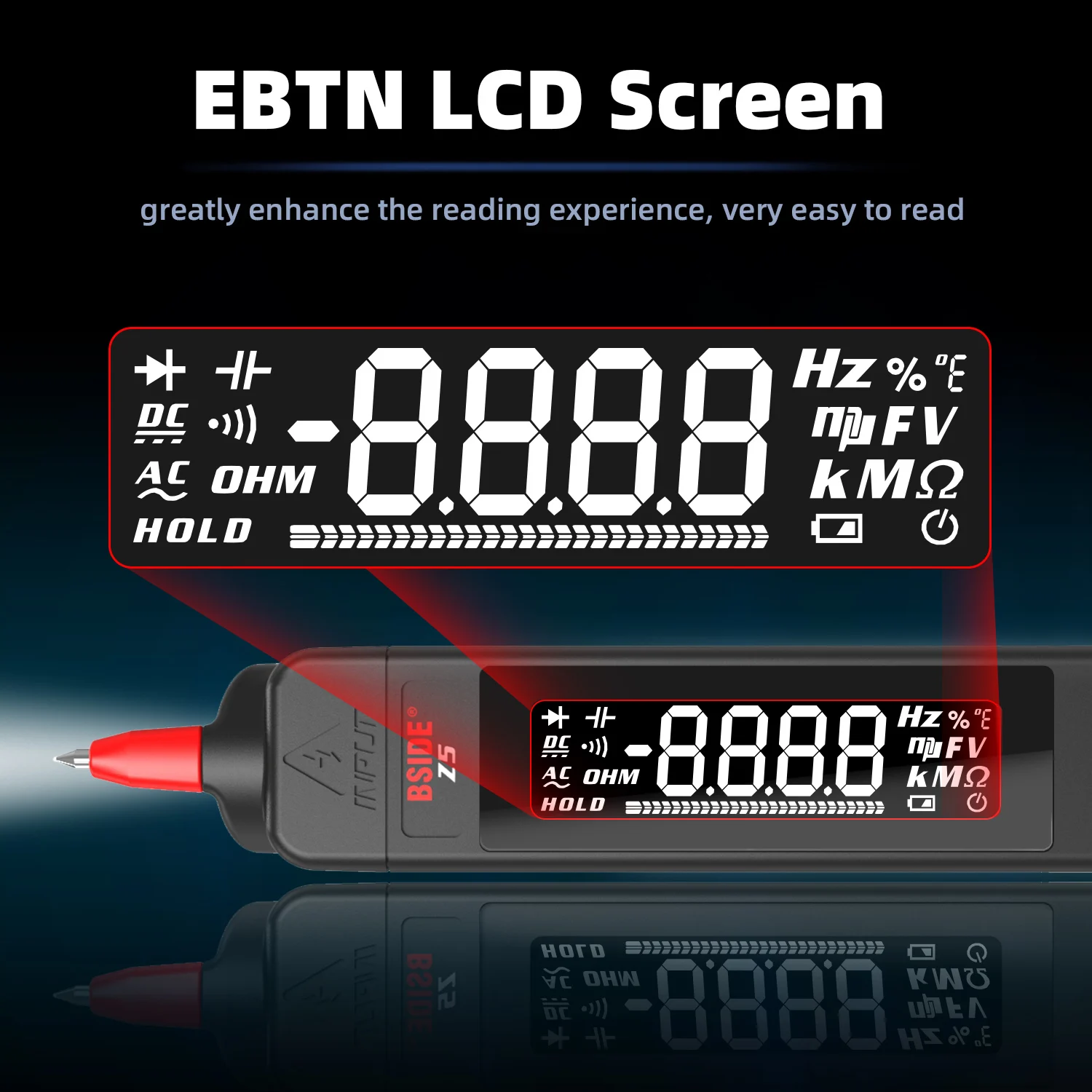

Display Type: EBTN screen.

Screen: 1.9 inch.

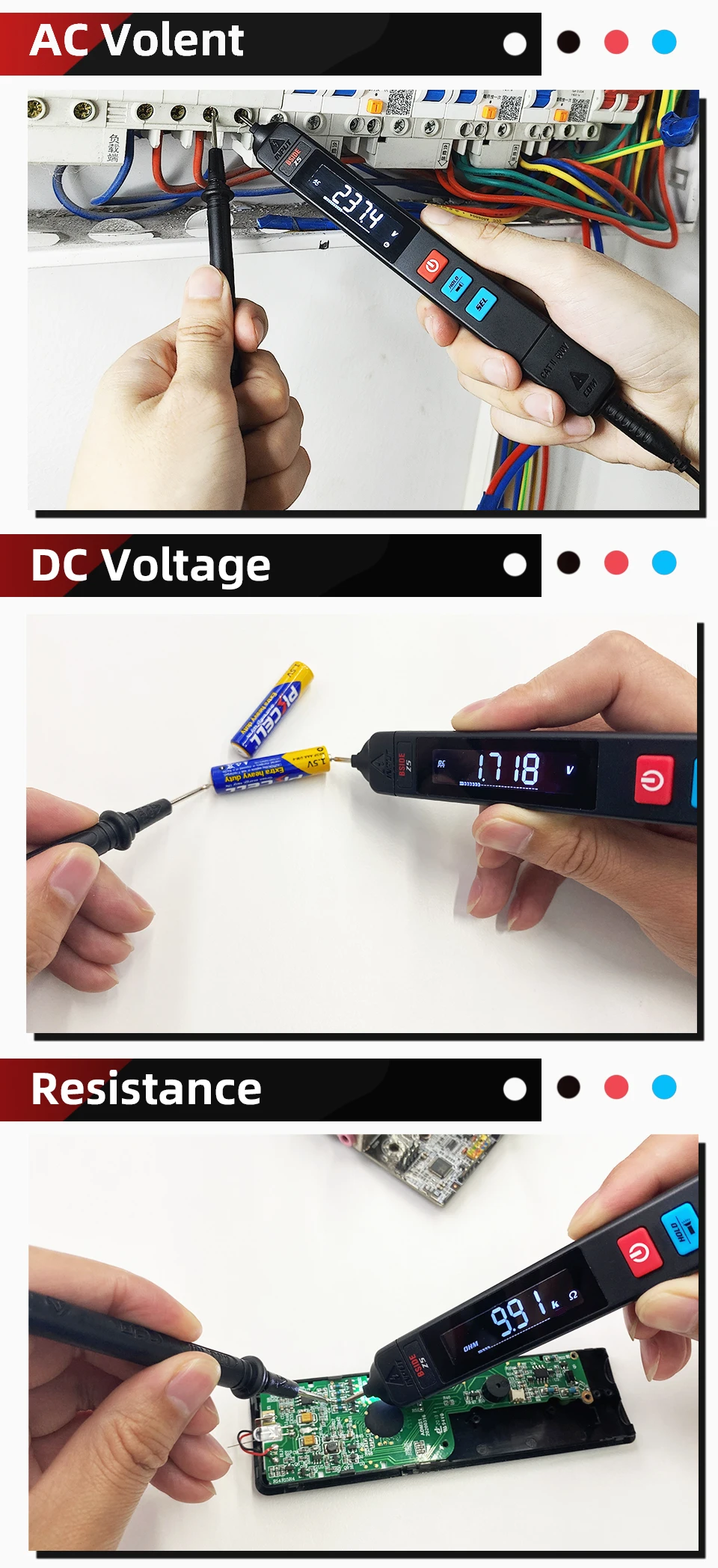

DC Voltage: 0.1V-600V ±(0.8%+3); Resolution: 0.001V.

AC Voltage: 0.1V-600V ±(1.2%+5); Resolution: 0.001V.

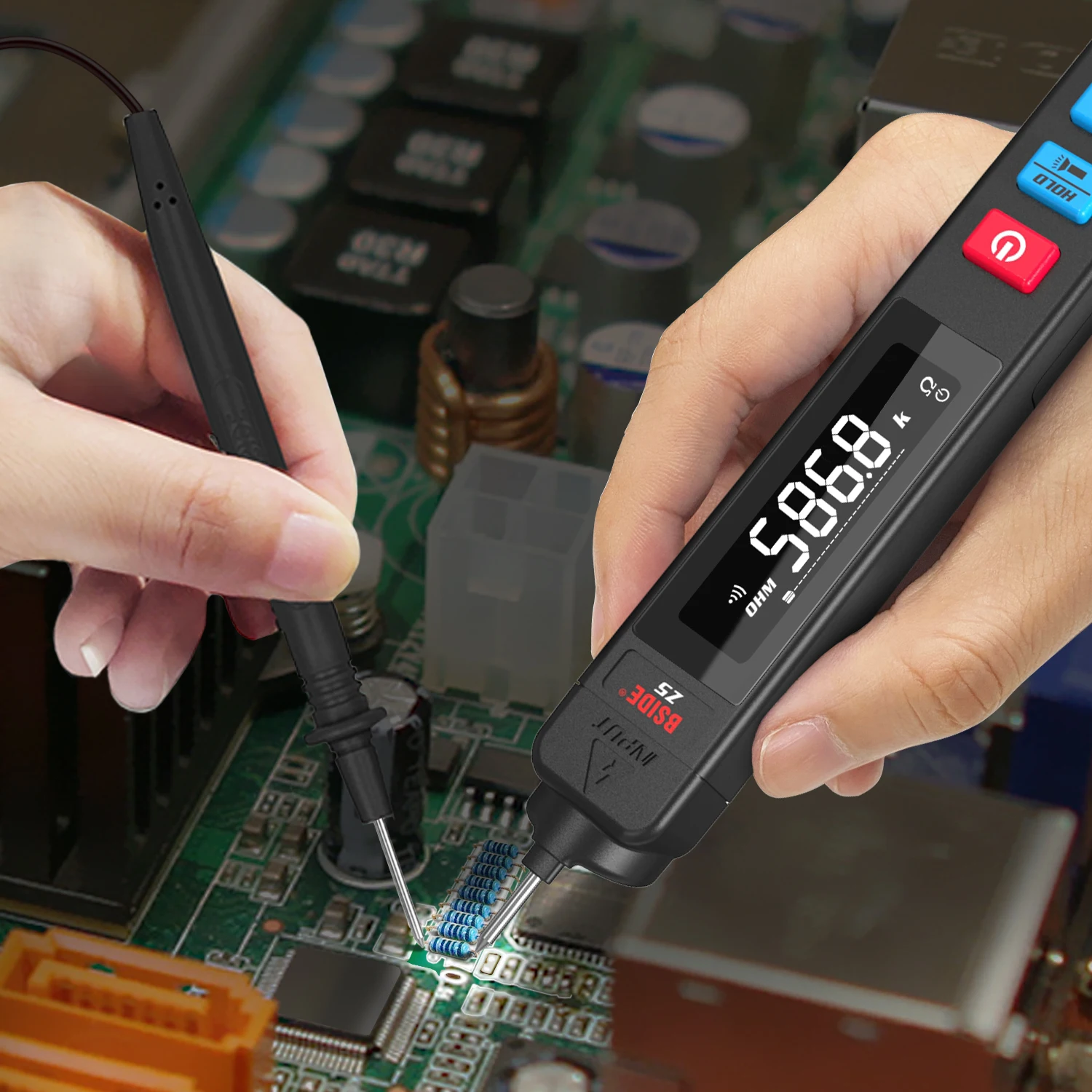

Resistance: 0.1Ω-10MΩ ±(1.2%+3), 10MΩ-60MΩ ±(2.0%+10); Resolution: 0.1Ω

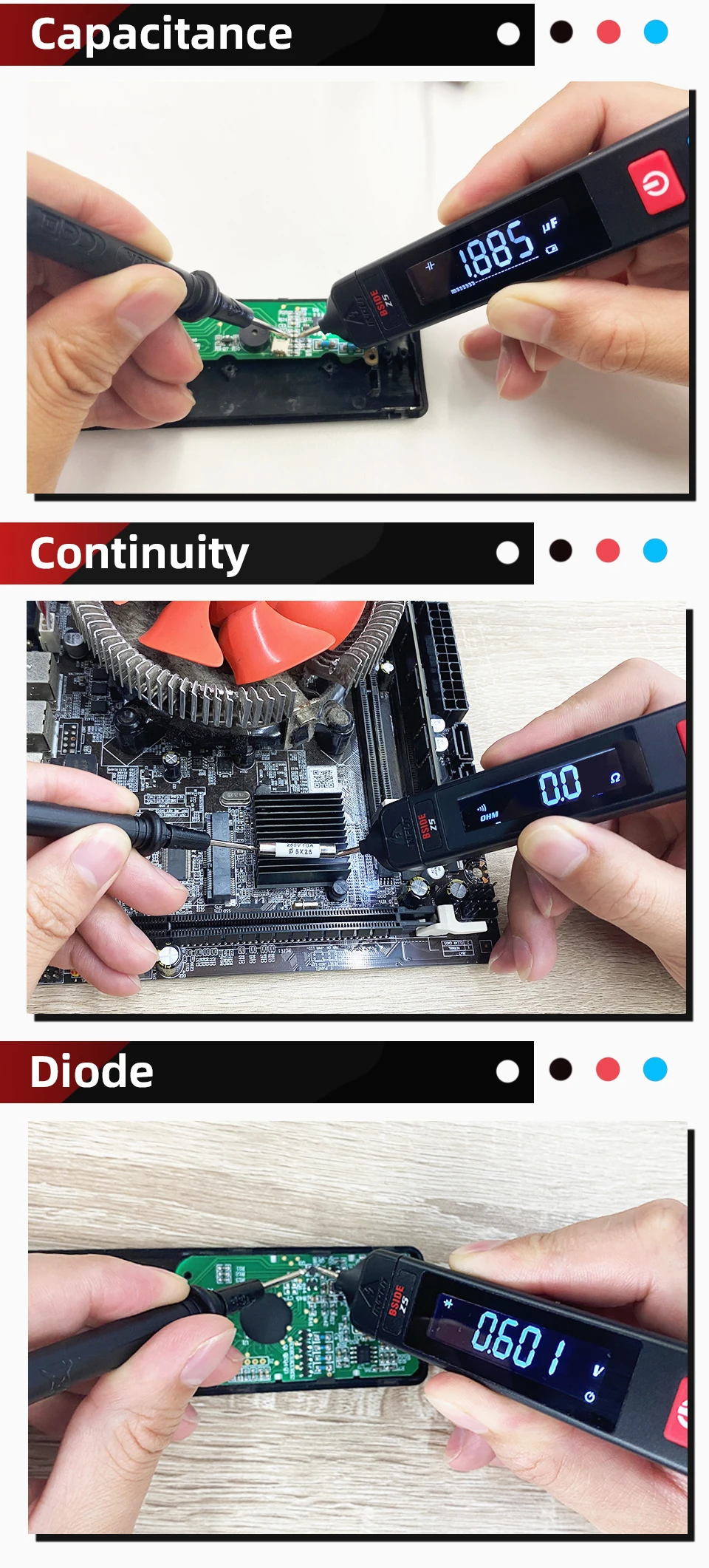

Capacitance: 1nF-1.00mF ±(3.5%+8), 1mF-60.00mF ±(4.5%+10); Resolution: 0.001nF

Frequency: 10Hz-10MHz ±(2.0%+10) (ACV: 3V-600V); Resolution: 0.1Hz

Diode: Auto identify diode if less than 3.0V.

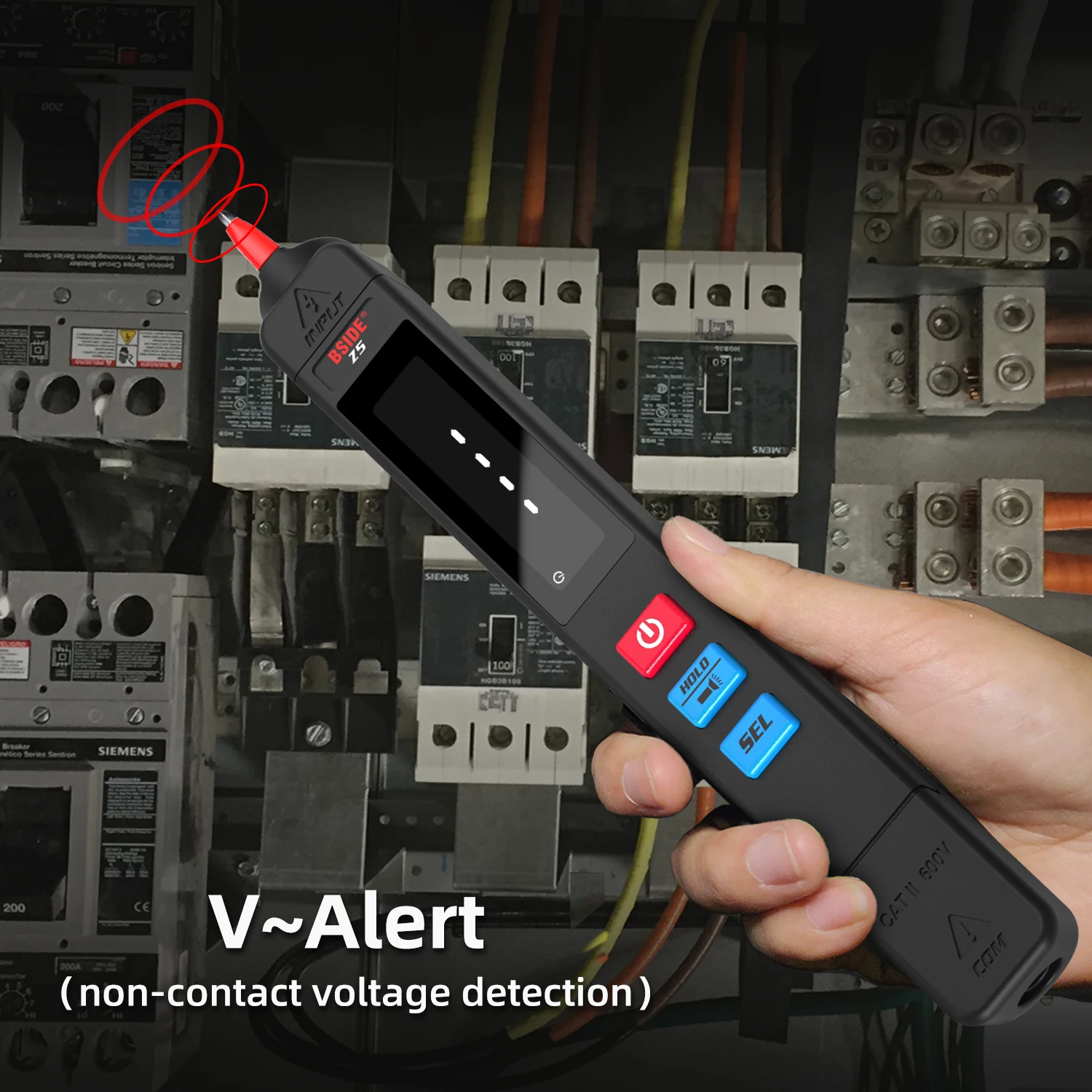

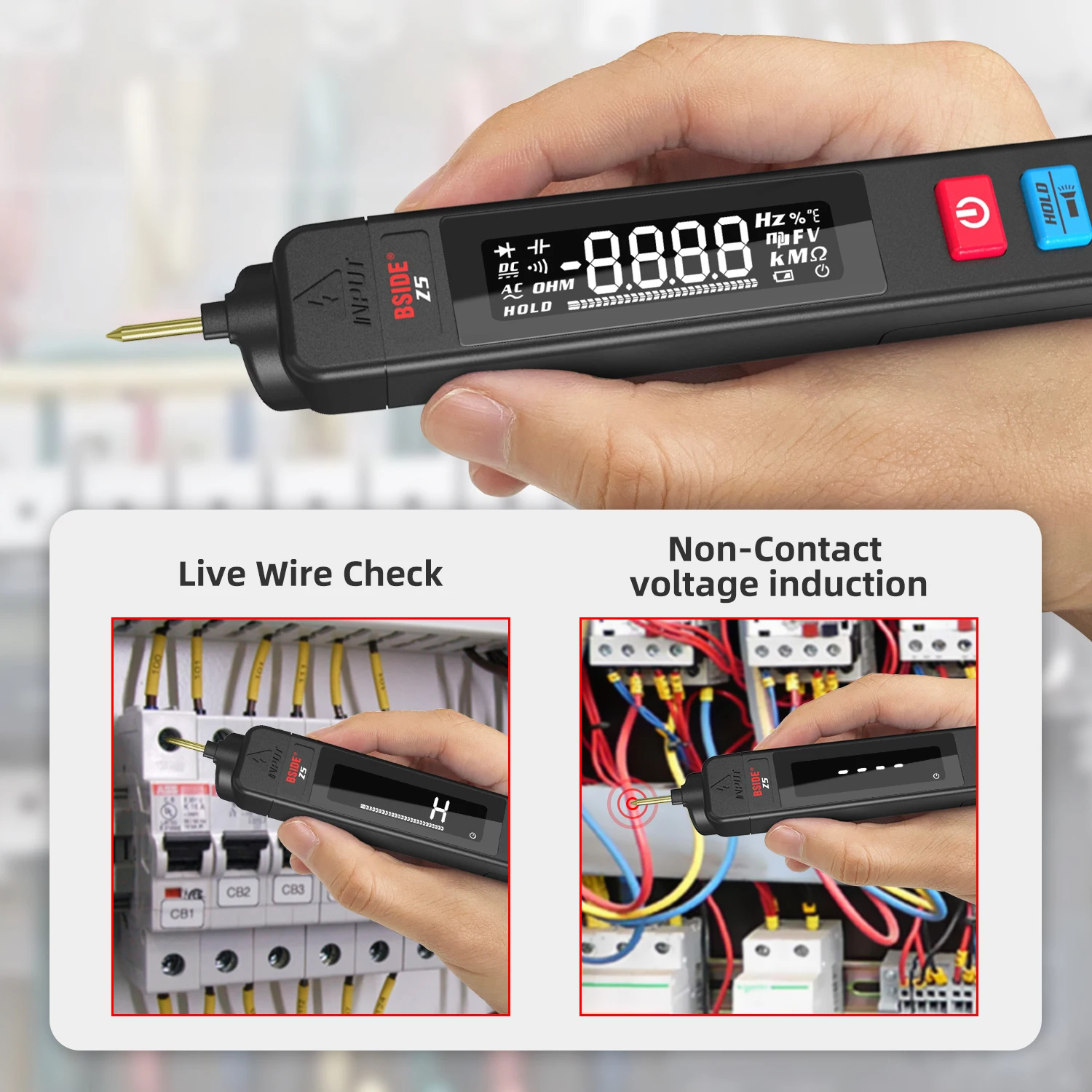

V-Alert(non-contact voltage detection): alarm beep sounds, LCD screen display stripe.

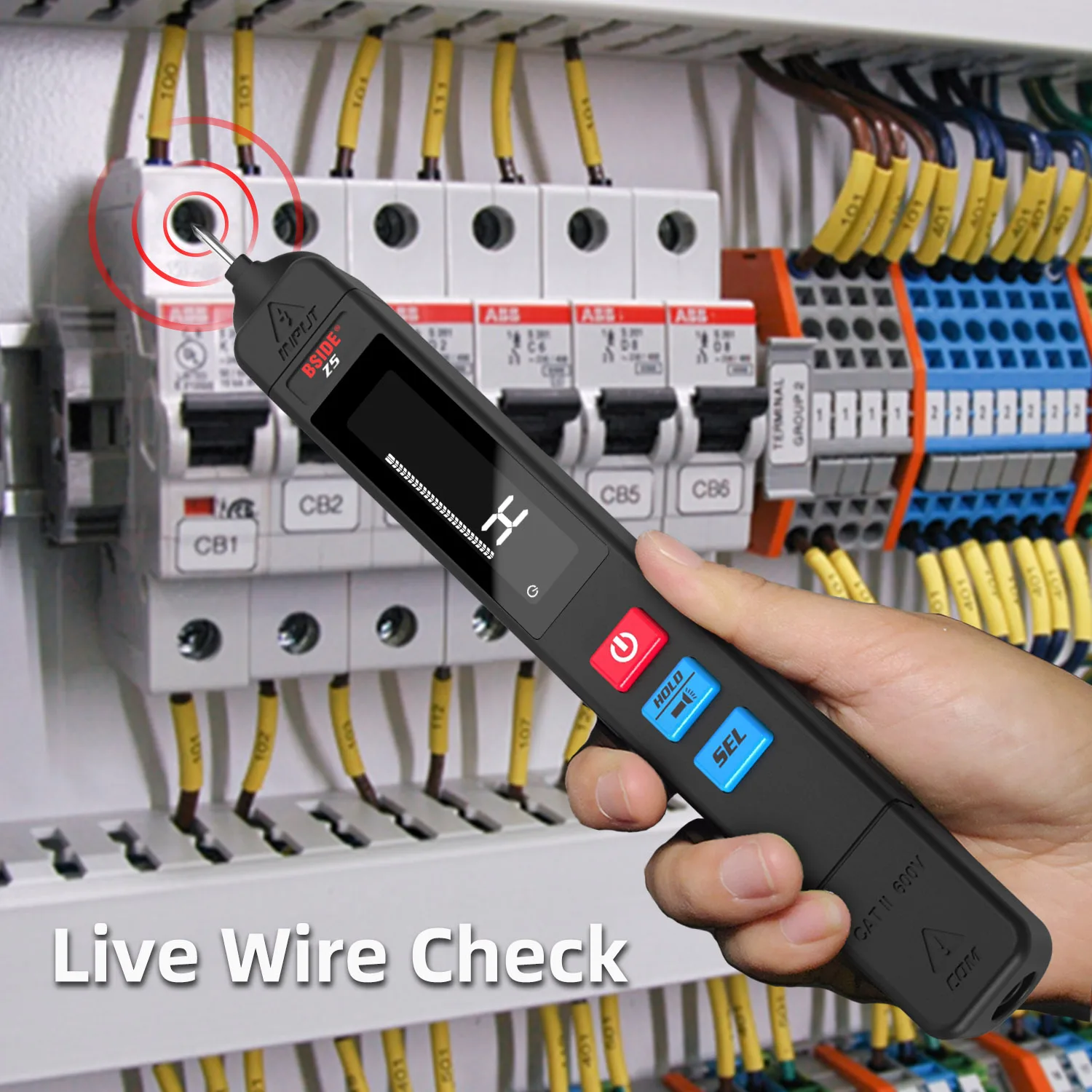

Live Check: alarm beep sounds, LCD screen display stripe.

Continuity: If the resistance is less than 50Ω, the beeper sounds.

Power: 2*1.5V AAA battery

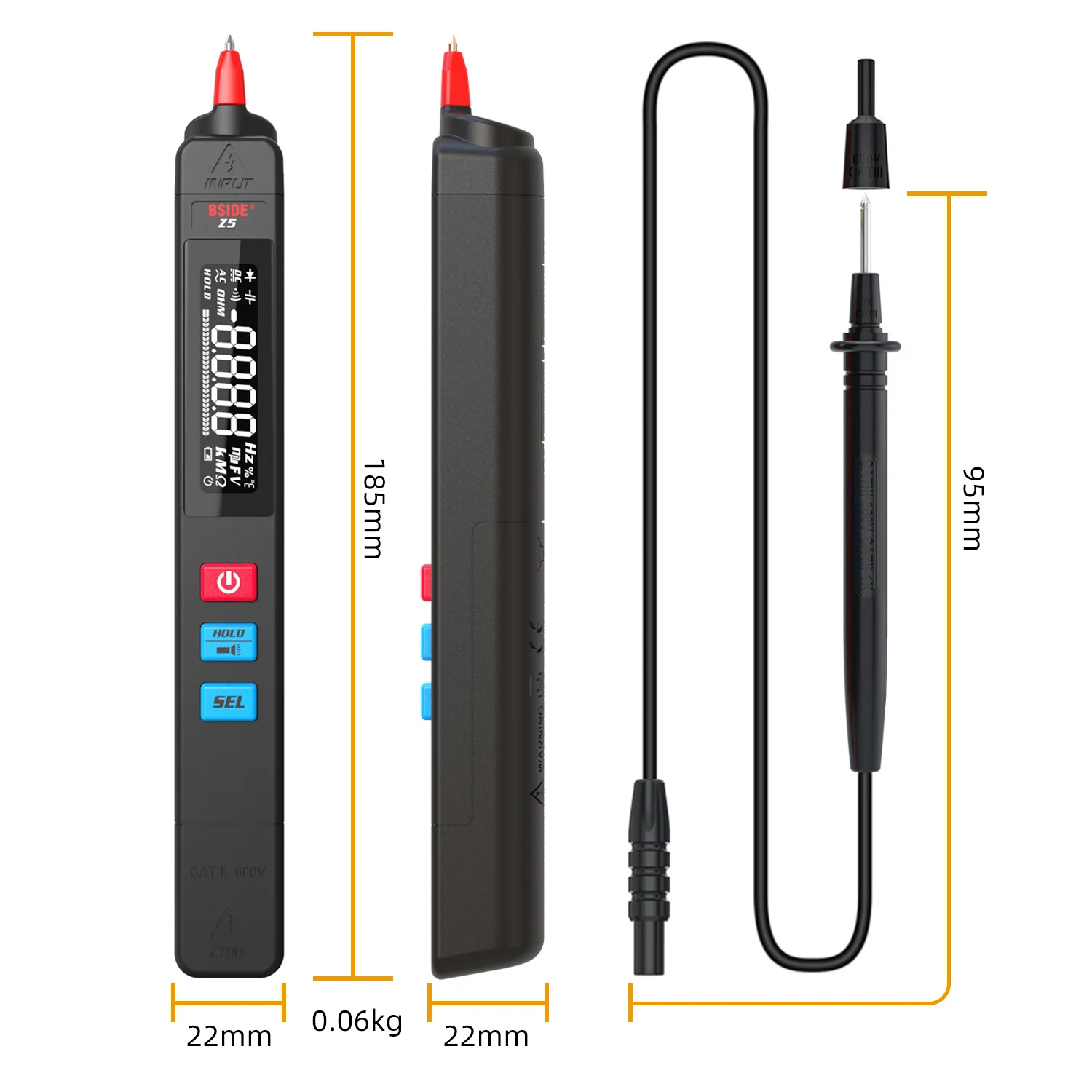

Size: 185*22*22mm.

Weight: 52g.

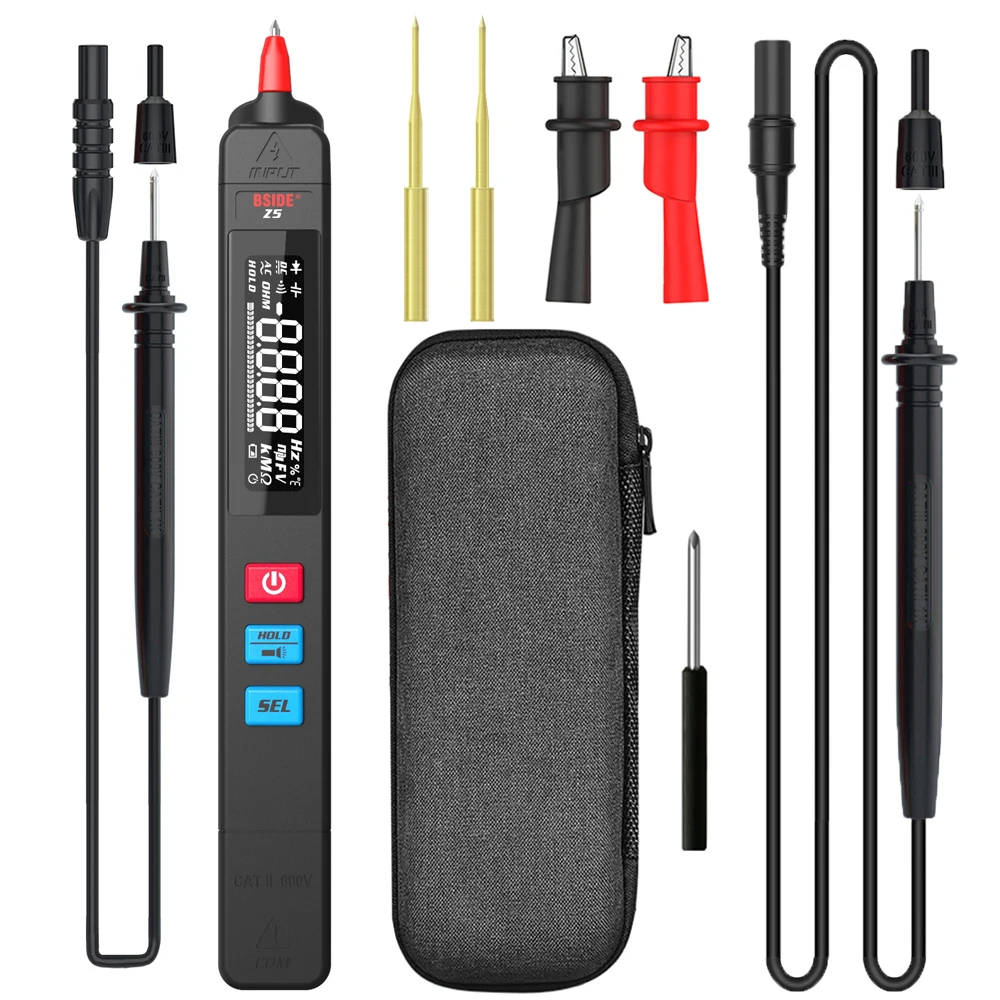

Tool kits：

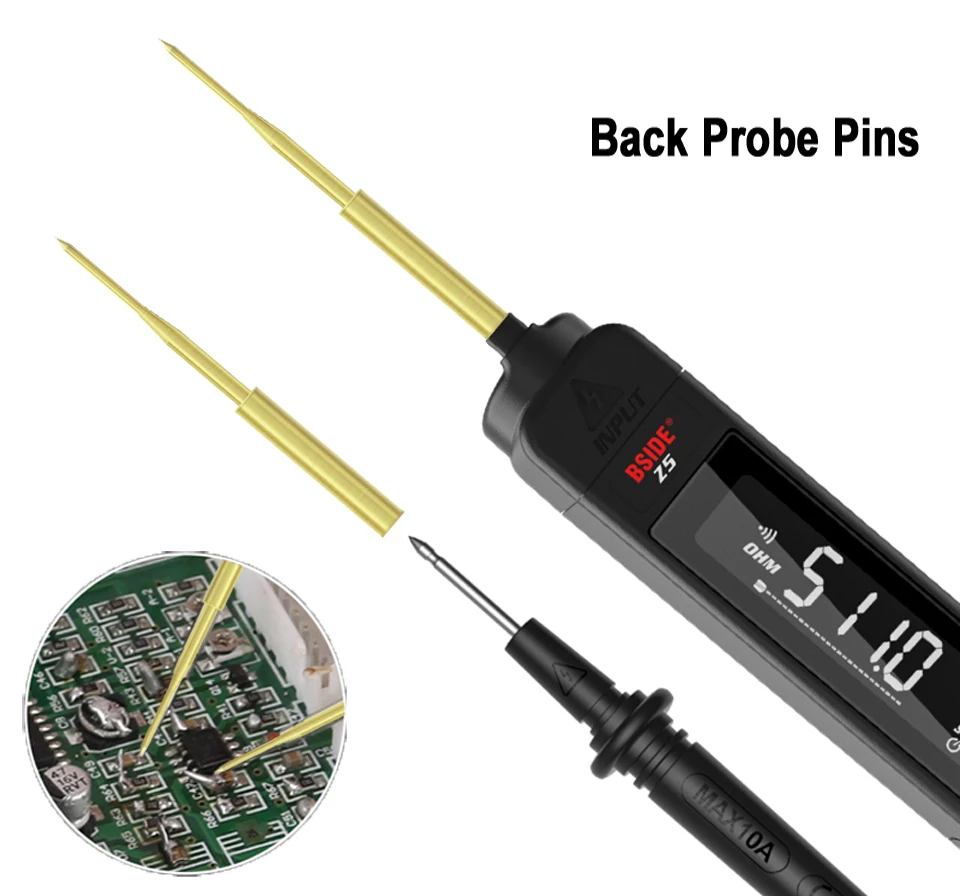

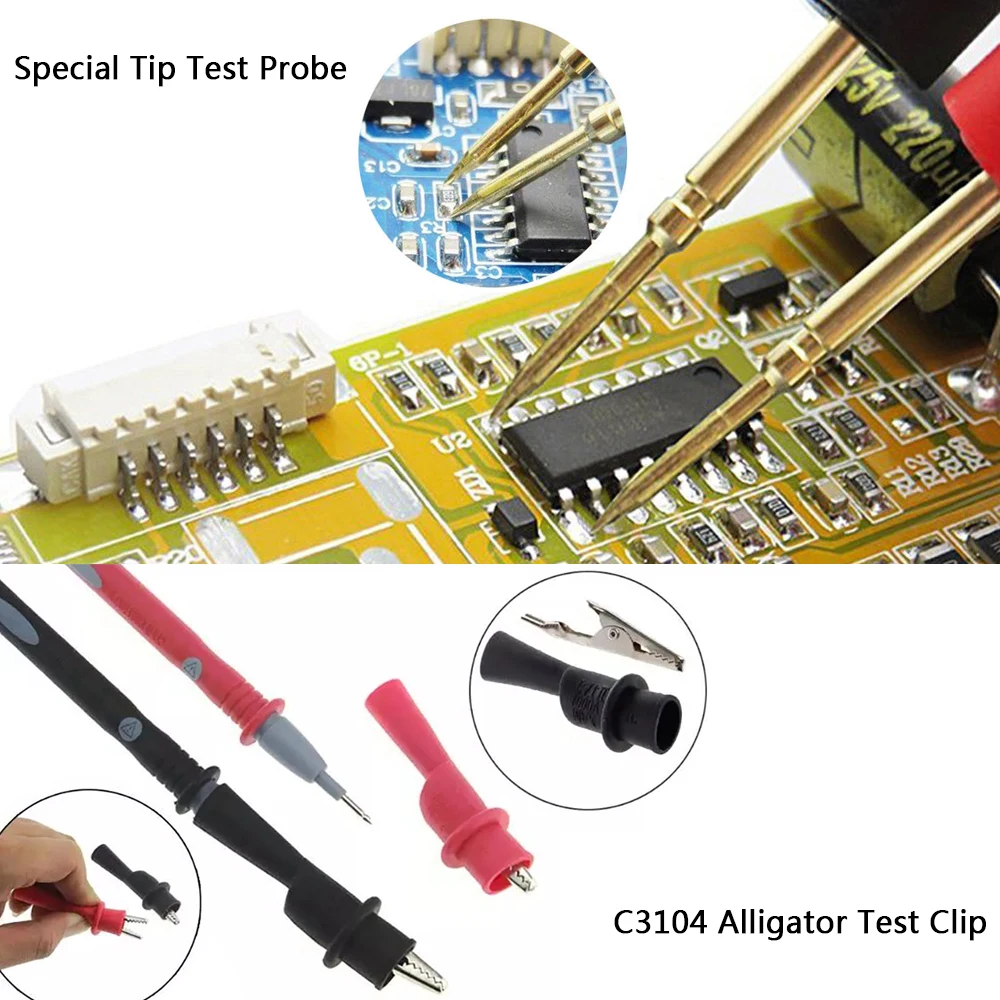

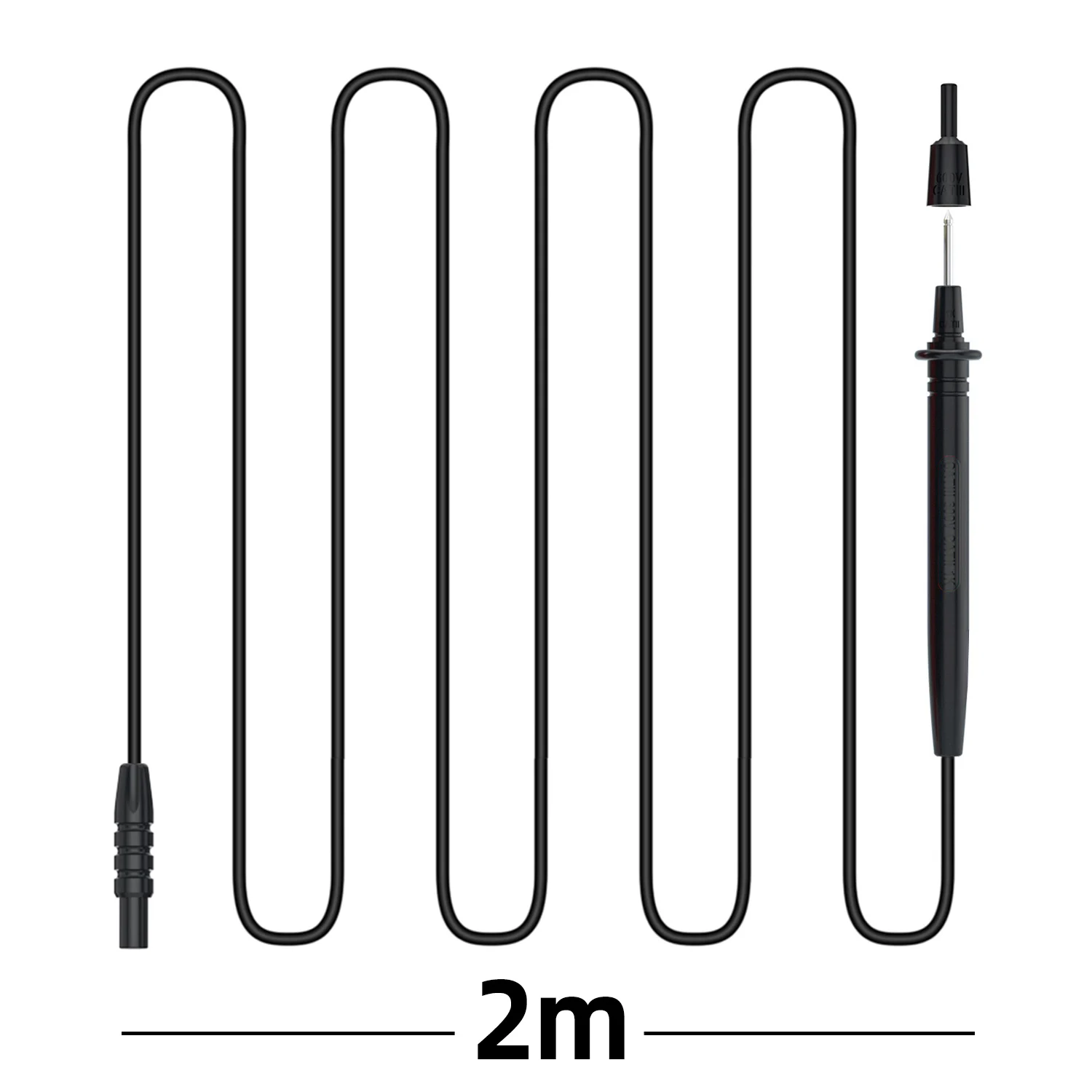

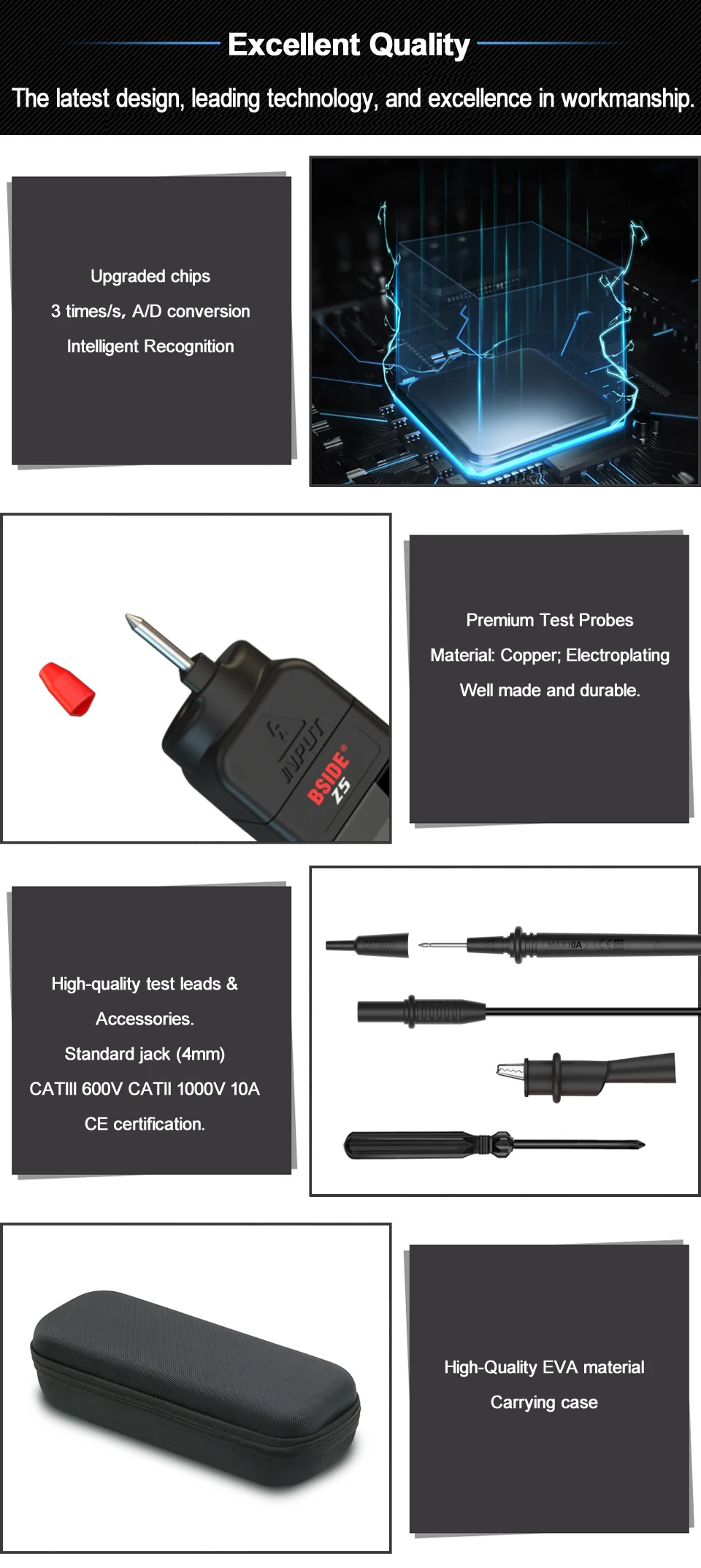

2*Special tip test probe + Extra long 2m test lead + C3104 Alligator Clip.

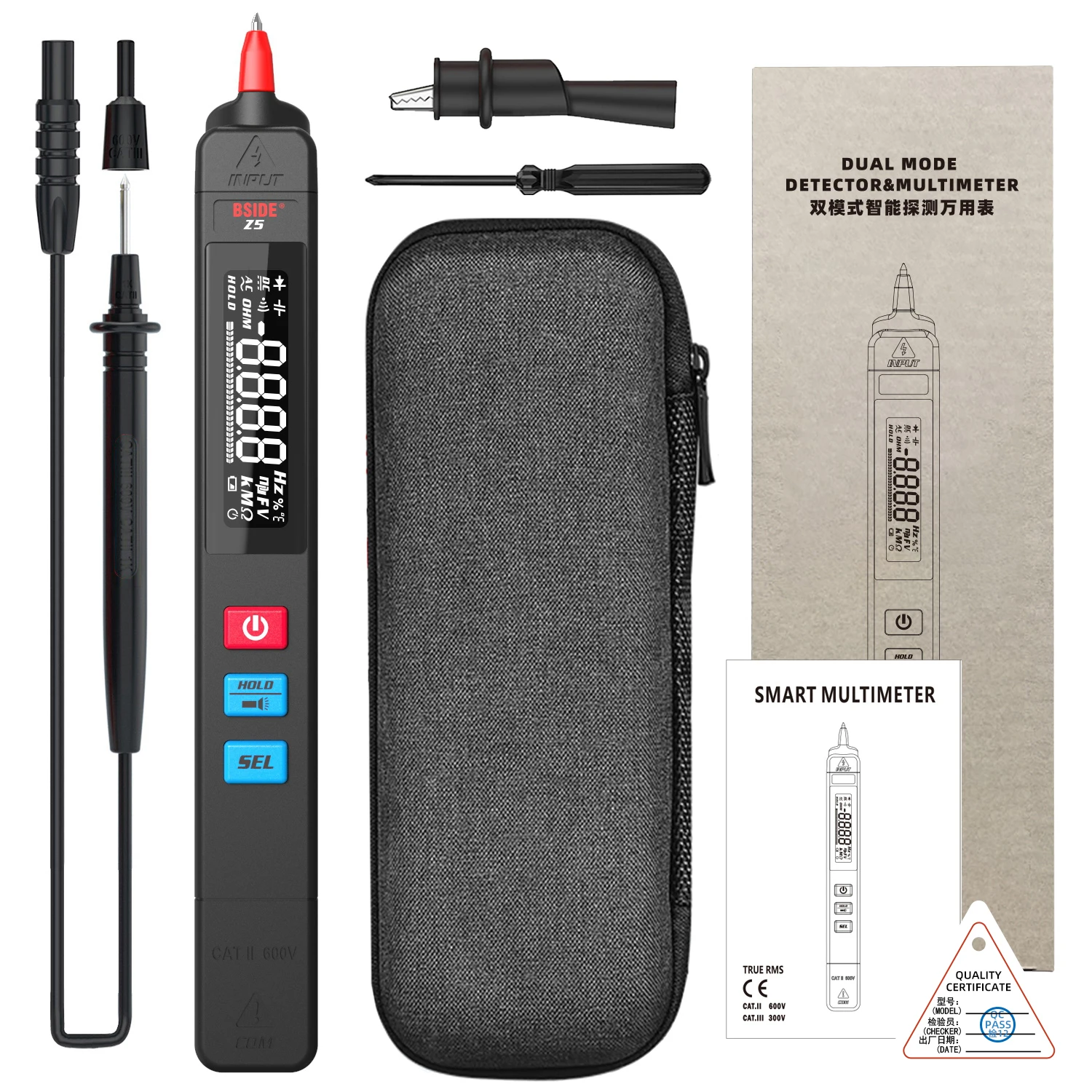

Package Includes:

1 * Z5 Ultra-portable Multimeter. 1 * Test Lead.

1 * EVA portable cloth bag. 1 * screwdriver.

1 * Alligator clip. 1 * User Manual.

1 * Packing Box. 1 * Quality Certificate.
