Premium Material 600W Reduction Electric Motor 36/24V DC 450r/min Reduction Motor 250KG Load Capacity for Mopeds/Bicycles

Description

Our reduction motor can help you realize an efficient reduction of your e-bike. The high-quality materials make it sturdy and durable. It has the advantages of excellent performance, flexible rotation, and large load capacity. It can realize smooth starting and low-speed riding of e-bikes, bringing you a more convenient and comfortable riding experience.

Specification

Color: Black, Silver
Style: Modern
Material: Aluminum Alloy, Cast Iron, Copper, Ferrite
Process: Spray Plastic
Assembly Required: No
Motor Type: Brushed DC Motor
Rated Voltage: 36/24VDC
Output Power: 600W
Rated Speed: 450r/min
Rated Current: 20/28A
Insulation Grade: F
Protection Grade: IP33
Reduction Ratio: 1:6.67
Load Capacity: About 200-250kg/ 440.92-551.16 lbs
Power Cord Length: About 70cm/ 27.56 in
Base Size: 10.2*5.6 cm/ 4.02*2.2 in

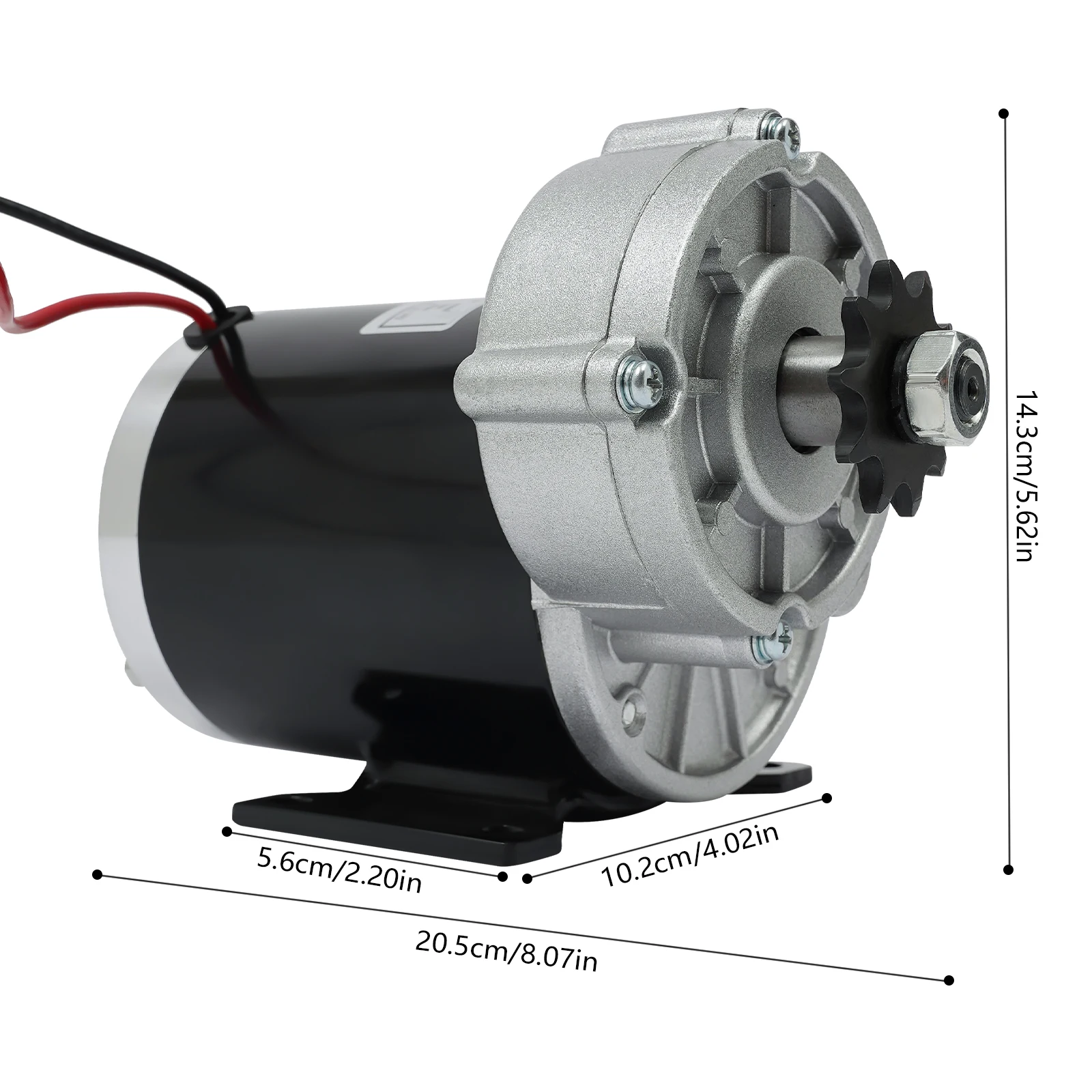

Each Product Size(L*H): 20.5*14.3 cm/ 8.07*5.63 in
Each Gross Weight: 5.7kg/ 12.57 lbs
Each Net Weight: 5kg/ 11.02 lbs
Each Package Size: 30*21*21 cm/ 11.81*8.27*8.27 in

Key Features

Premium Material: The product is made of high-quality aluminum alloy, cast iron, copper, and ferrite, and the surface adopts a plastic spraying process, which has high hardness, high-temperature resistance, and corrosion resistance to ensure long service life.

Excellent Performance: A 600W brushed DC motor with a reduction ratio of 1:6.67 and a speed of 450r/min provides excellent deceleration. Additionally, it provides higher torque at lower speeds compared to standard motors, giving you better control and performance.

Considerate Design: By adjusting the positive and negative direction of the wiring, you can easily change the direction of rotation of the motor, increasing flexibility and meeting different needs.

High Load Capacity: This product can support a heavy load of 440.92-551.16 lbs, providing you with more powerful operating performance.

Lightweight and Portable: The compact size (8.07*5.63 in) and lightweight (11.02 lbs) make it easy to carry everywhere.

Easy Assembly: The integrated construction and 4 pre-drilled holes allow you to install in a short time.

Effortless Cleaning: Thanks to the smooth surface and simple structure, you can easily wipe off the dirt on it with a soft cloth.

Good Customer Service: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

Stable Base: A large base (4.02*2.2 in) increases the contact area and ensures the stability of the motor when working.

Smooth Edge: The rounded and smooth edges not only add to the aesthetics of the product but also improve the safety of use.

Application

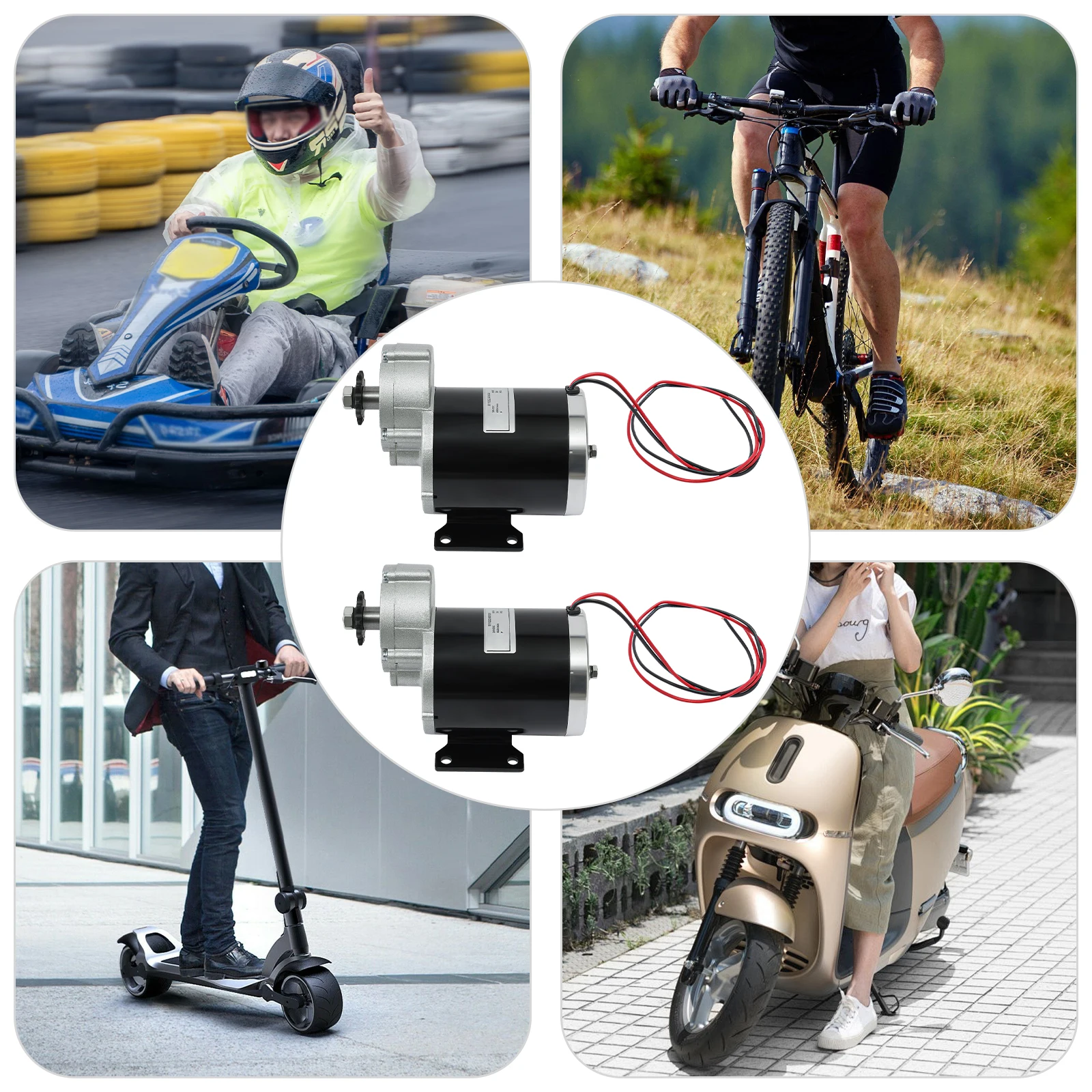

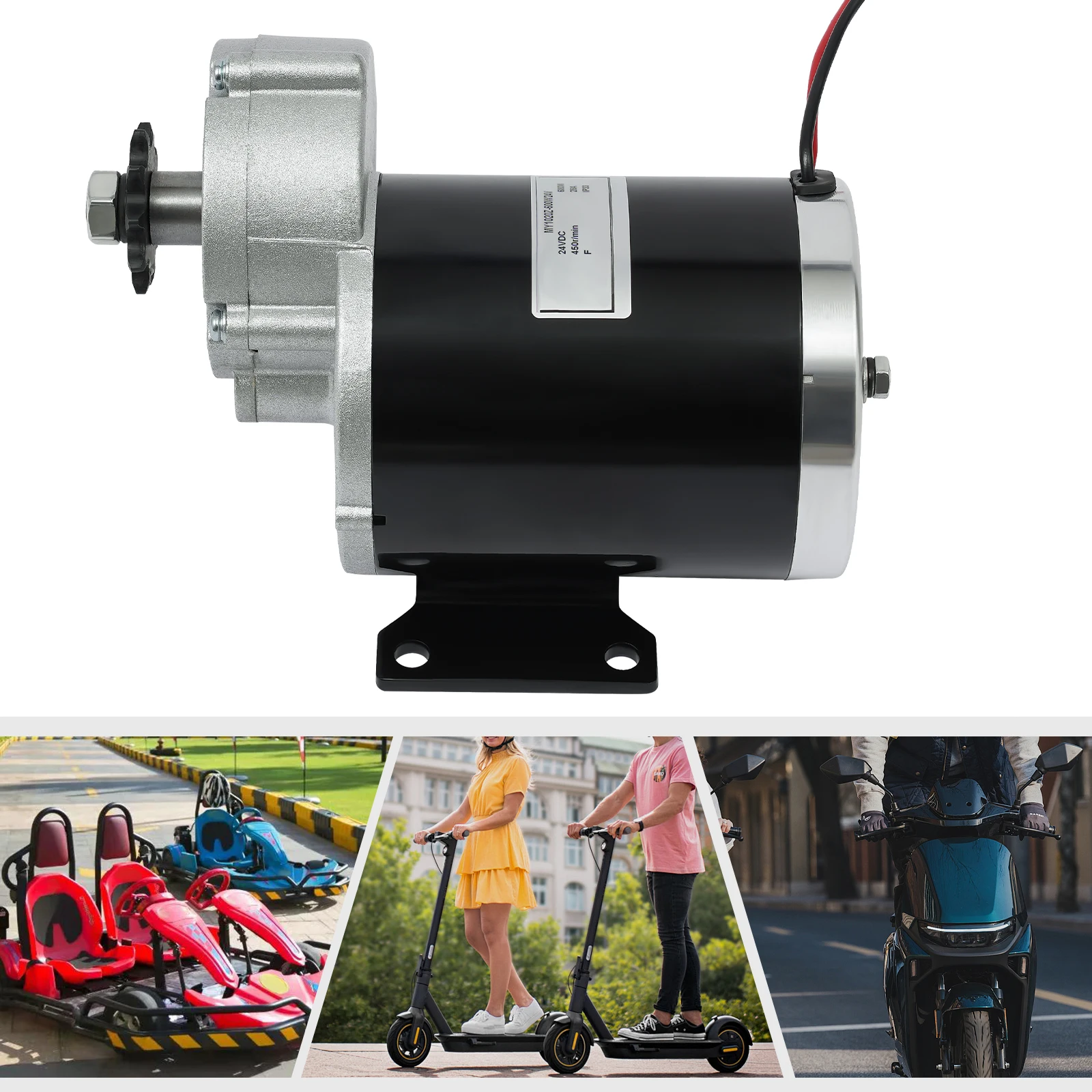

This product is suitable for modifying electric bicycles, mopeds, bicycles, electric scooters, and other small vehicles and agricultural equipment, etc.

Package Included

1* Reduction Motor

Notes

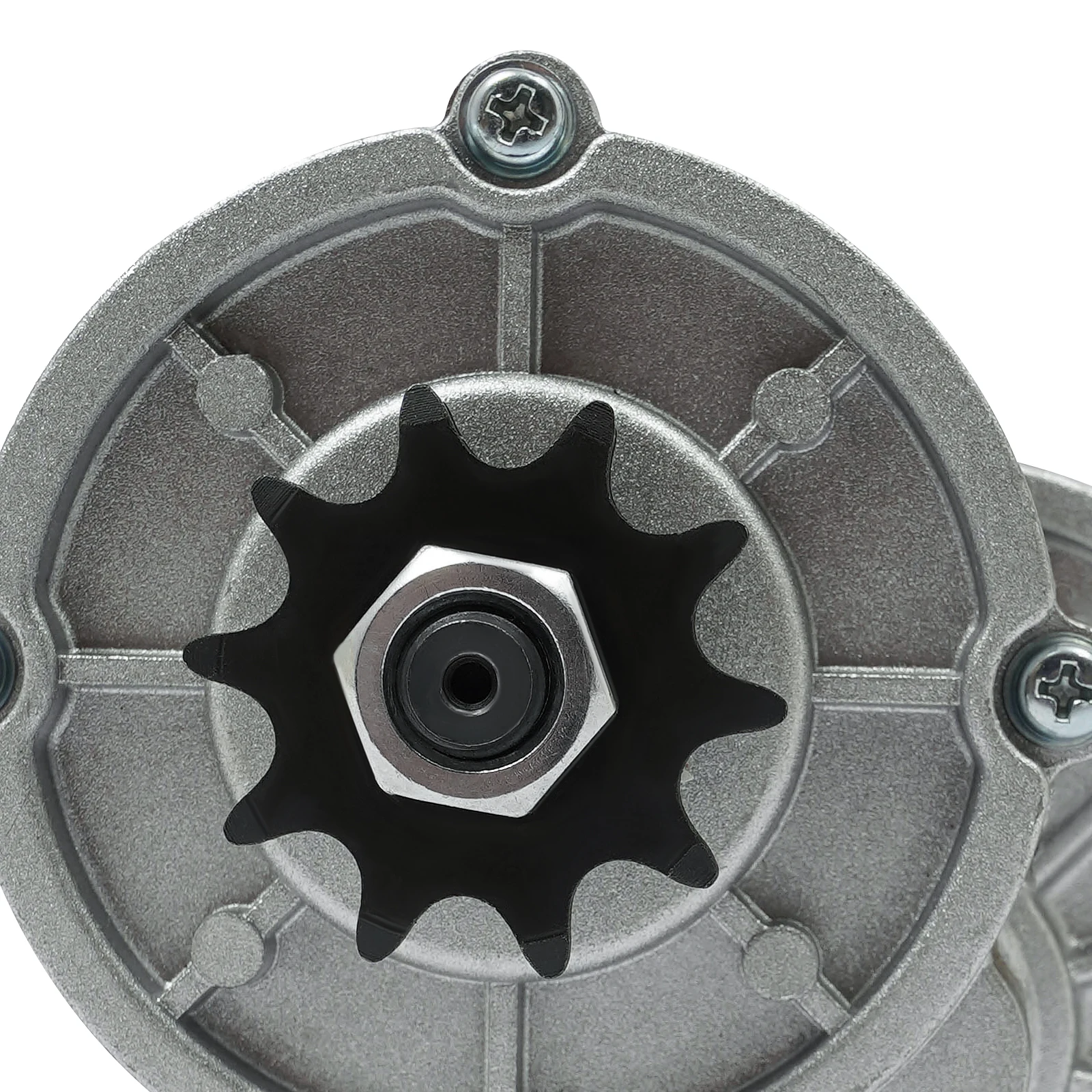

1.The gear model of this product is 420, which is only compatible with the same model of bicycle chain and chain disk.
2.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
