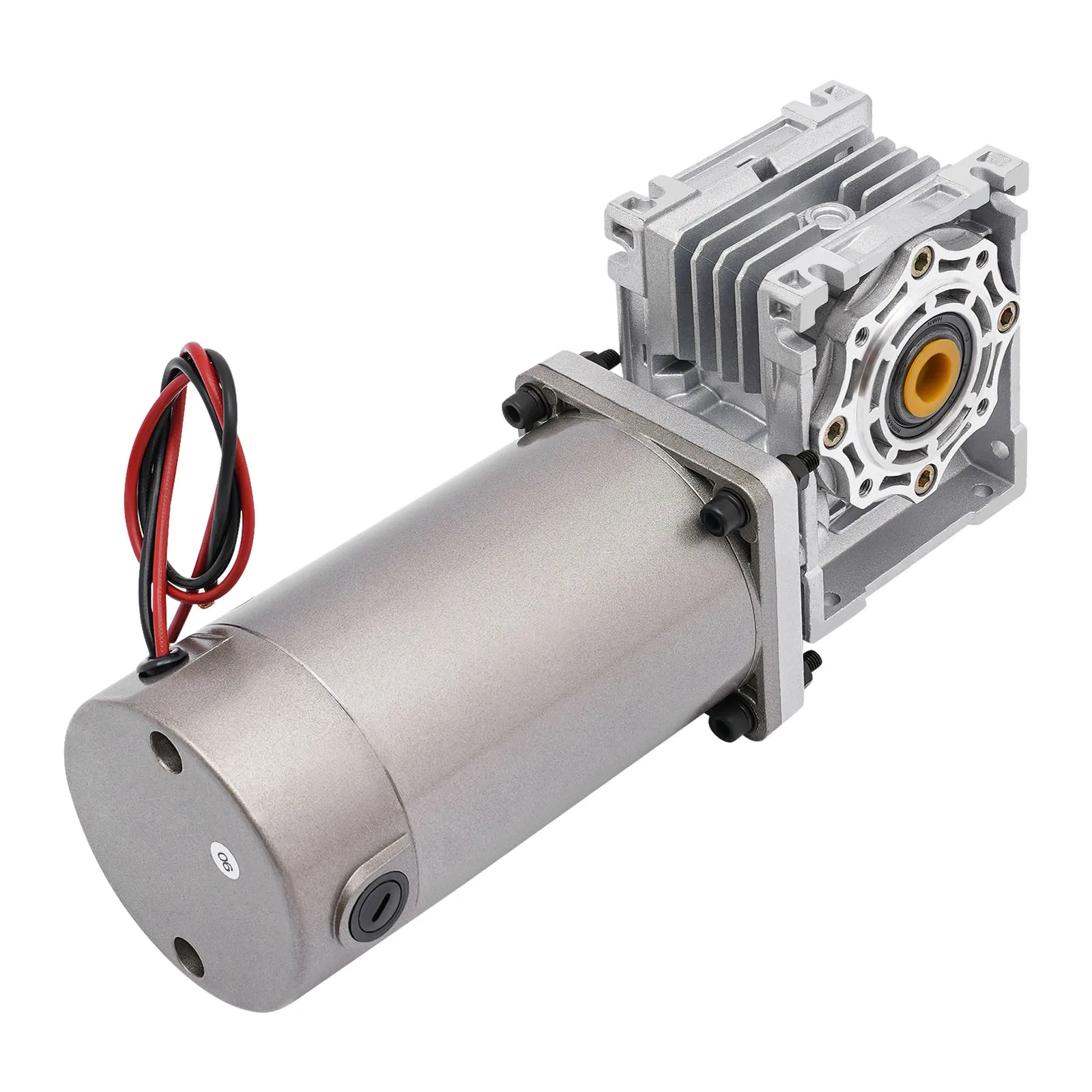

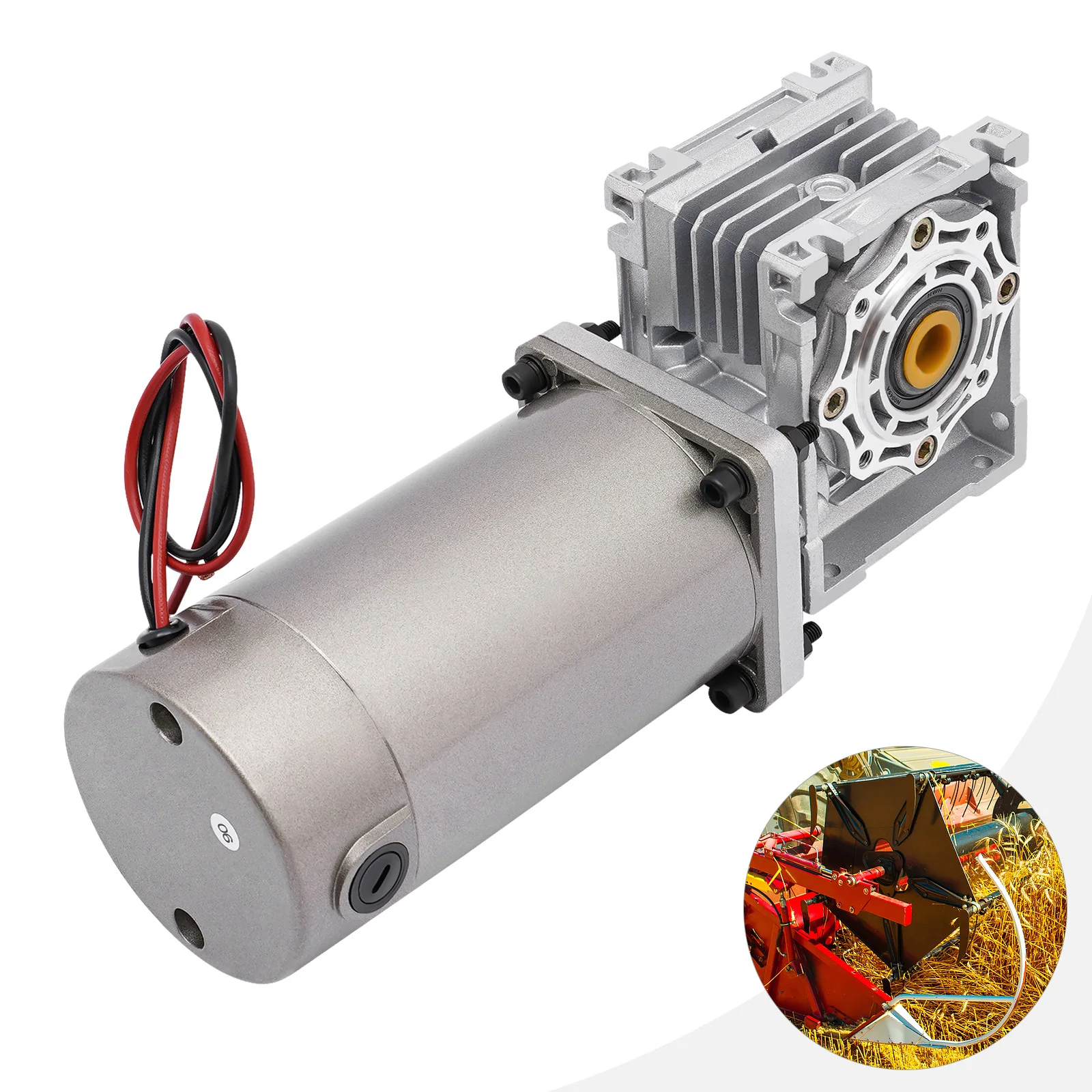

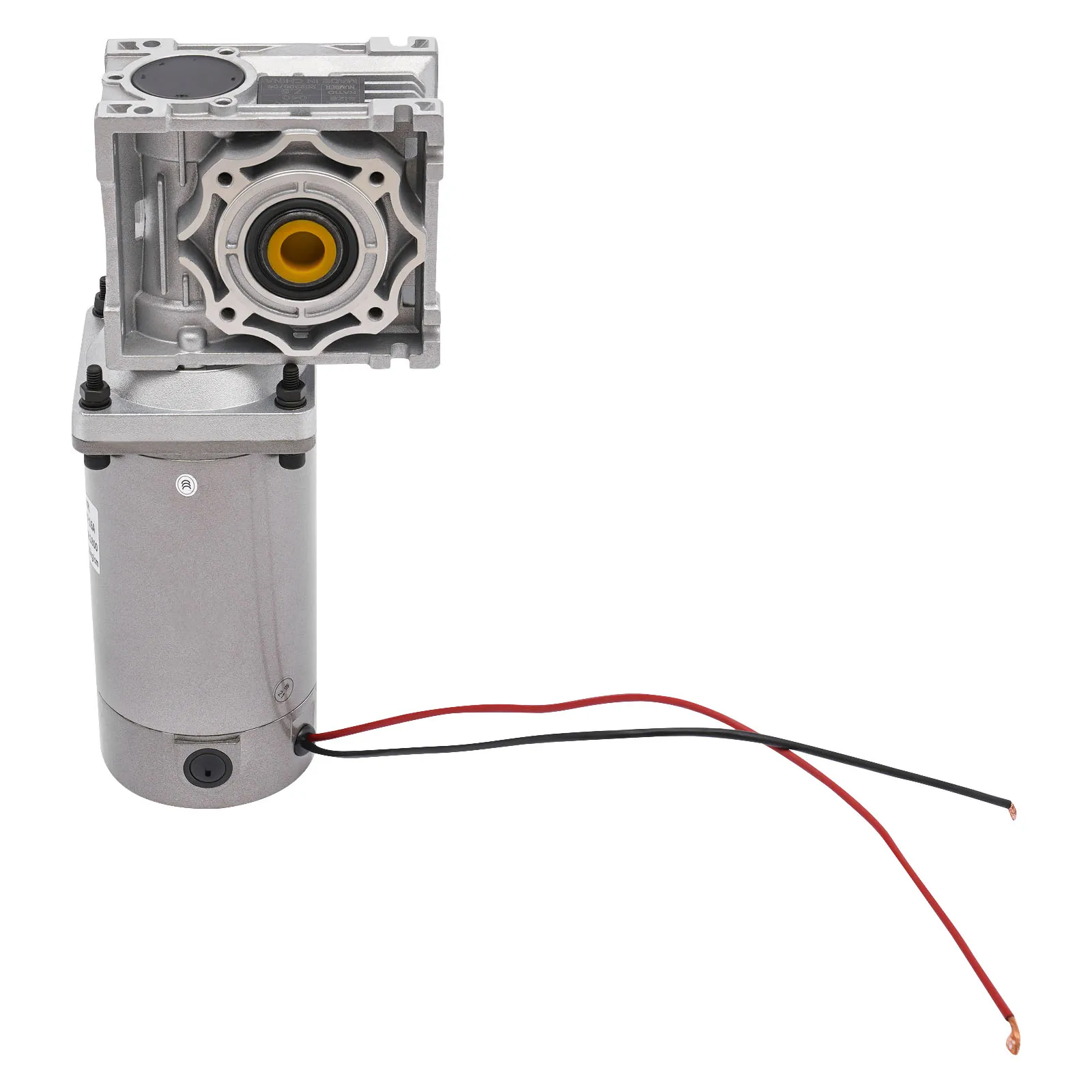

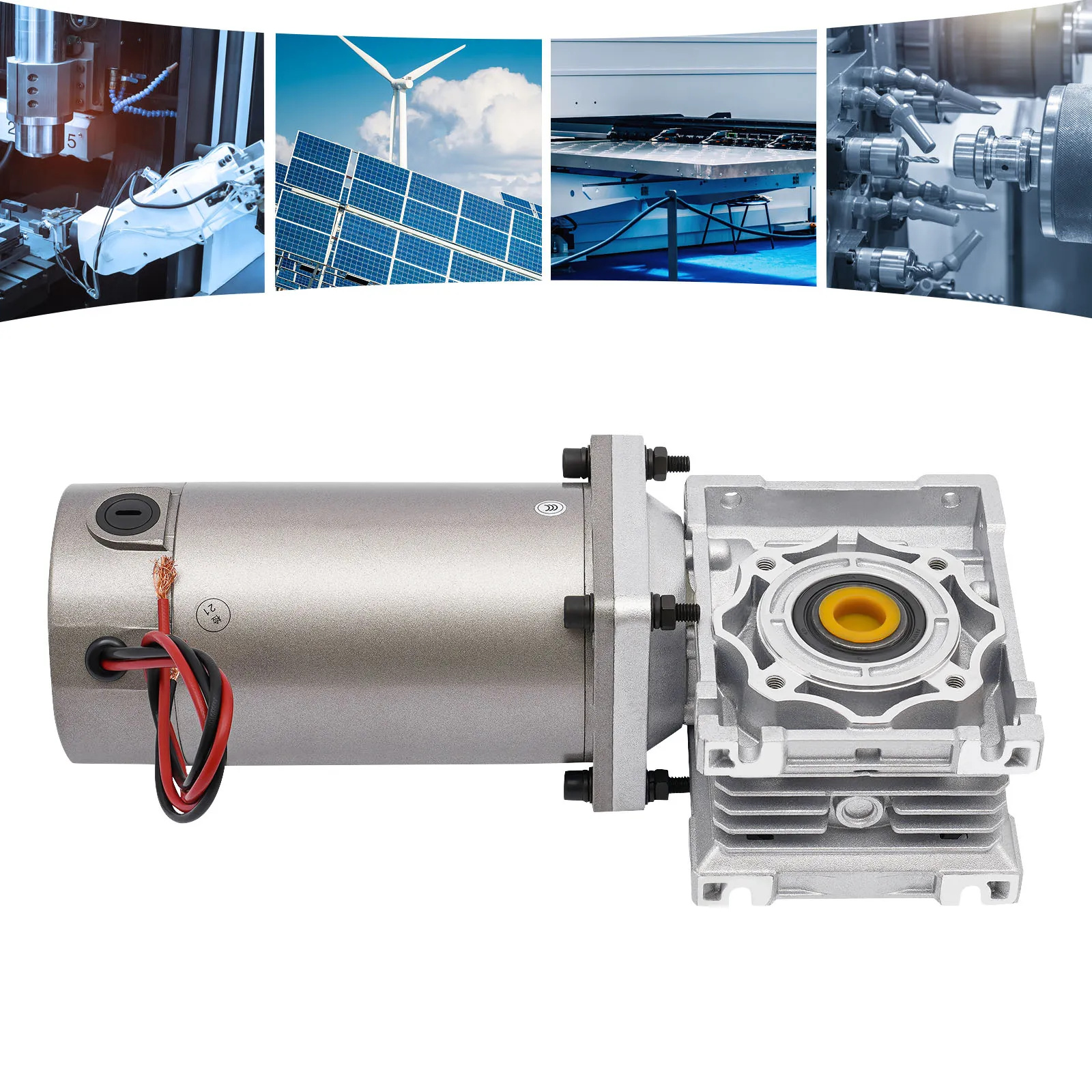

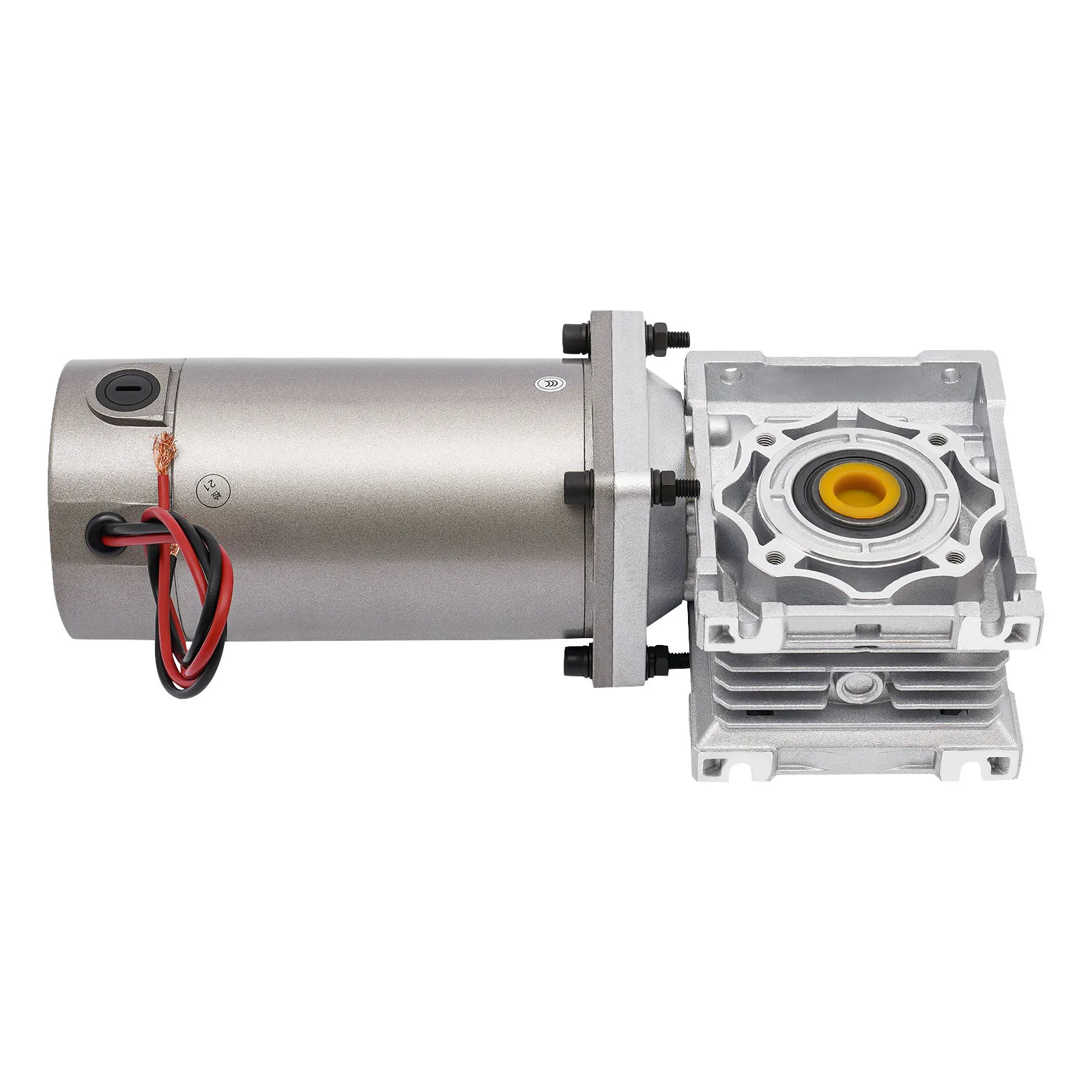

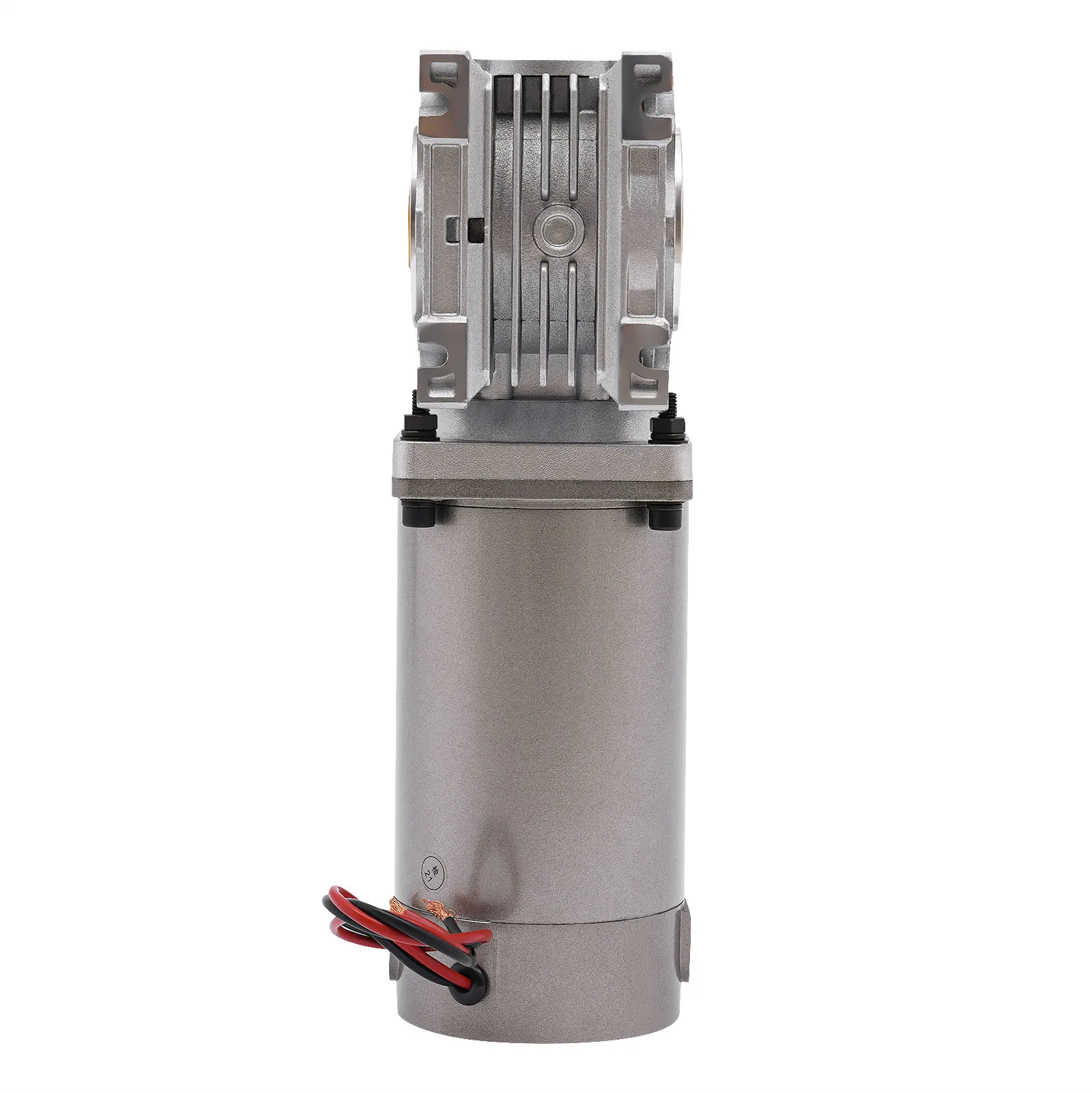

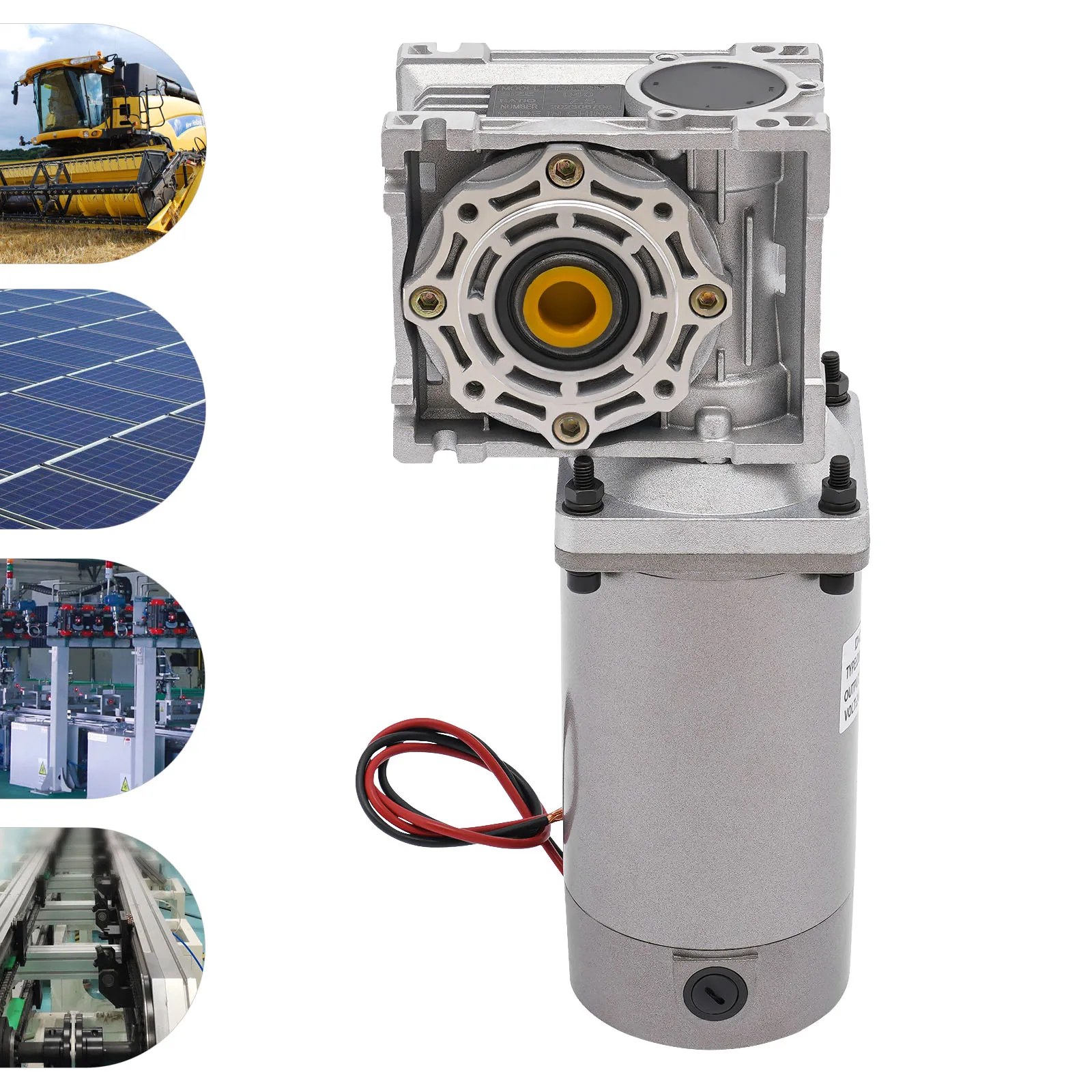

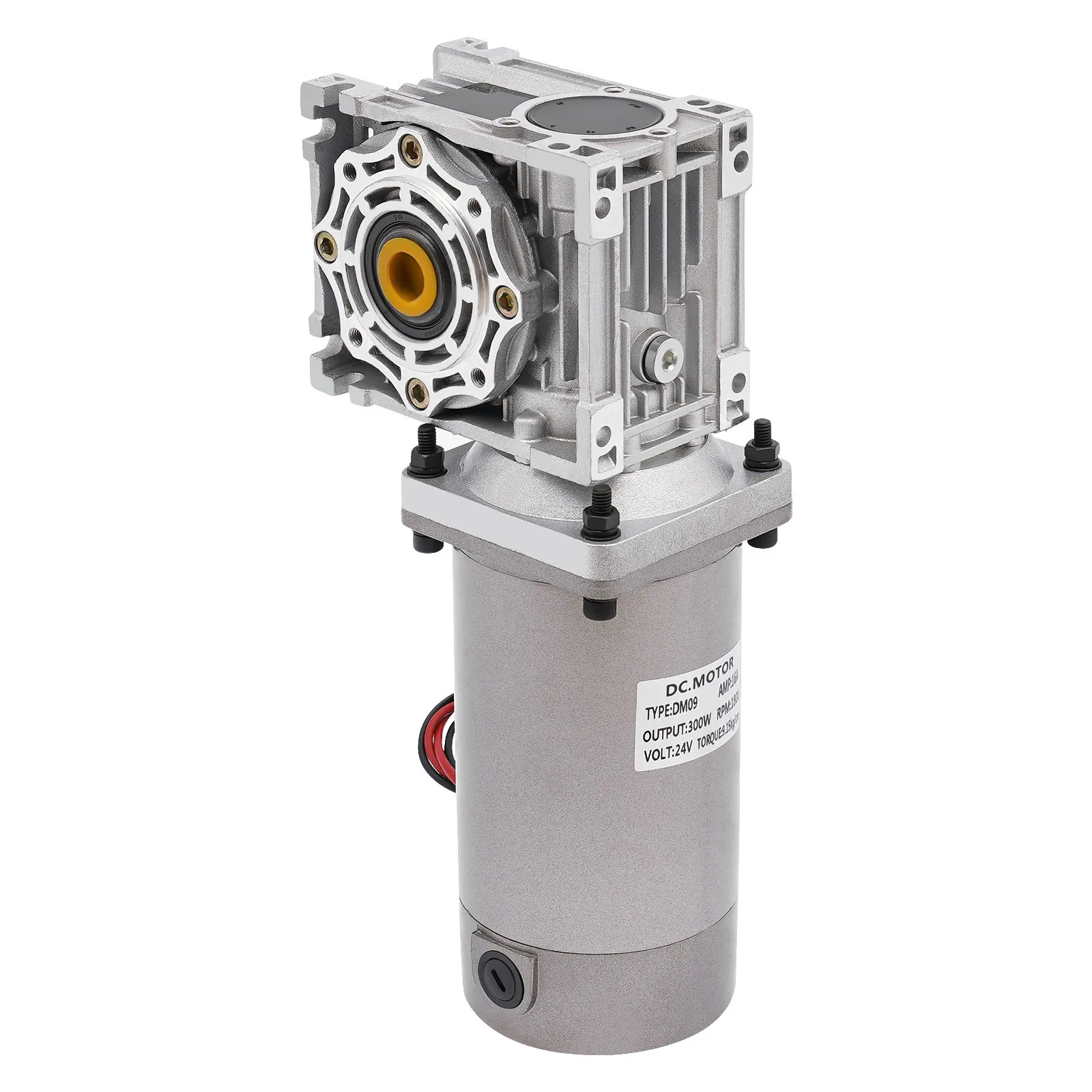

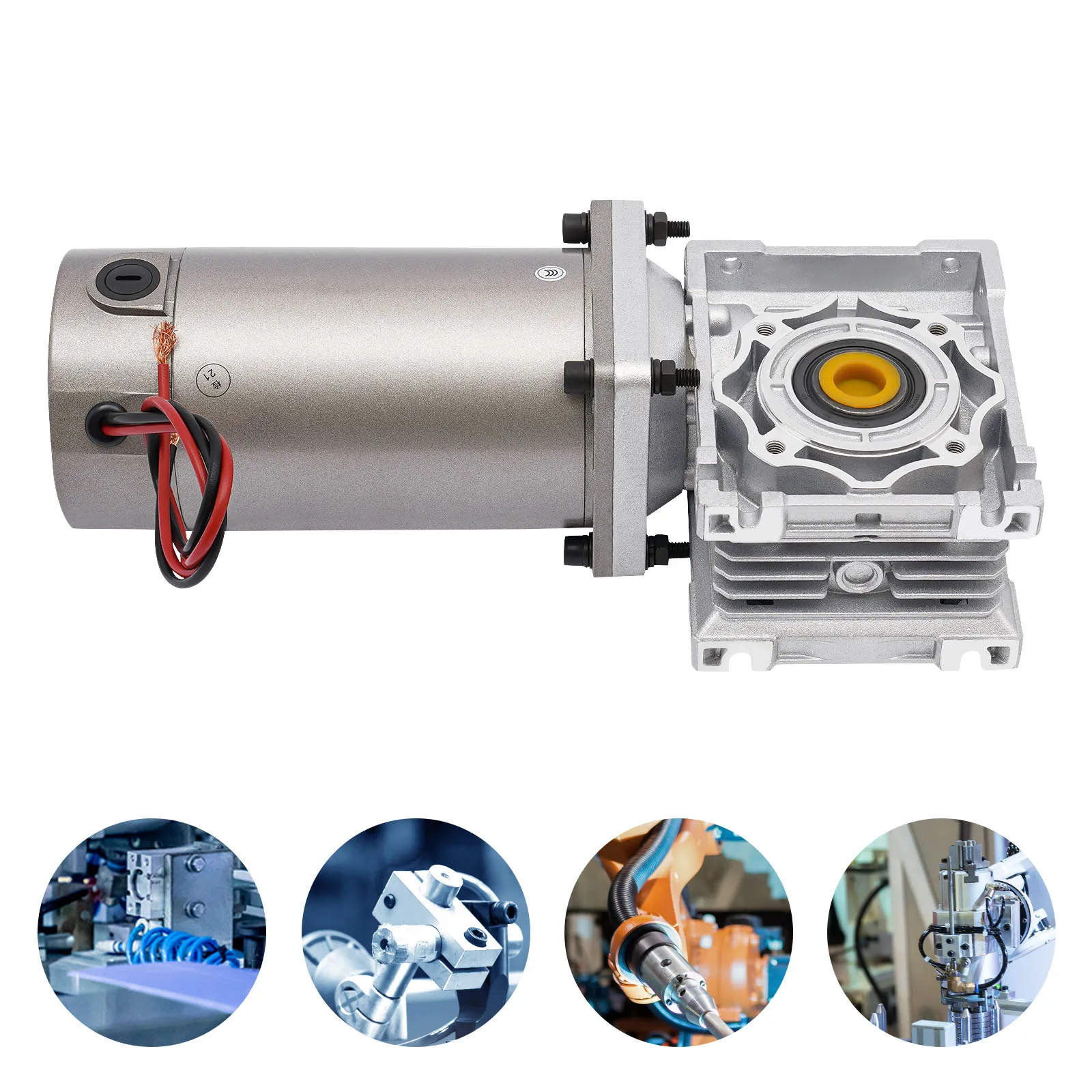

300W DC 24V Worm Gear Motor with Reducer Gearbox Speed Adjustable Electric NLRV Gear Motor Self-Locking 1800RPM

Description

This worm gear motor is made of high-quality material and features high efficiency and a self-locking function. The pure copper motor allows for low-noise and powerful working, making it suitable for packaging&vending machines, textile&printing&food machinery, office&medical equipment, etc. You can use it with a speed controller (not included) to adjust the motor speed, realizing the desired effect. It is a great helper in many scenarios and work environments.

Key Features

Build to Last: Our product is made of high-quality cast aluminum alloy, copper, 40Cr alloy steel, and adopts a nitriding process and heat treatment, making it characterized by heat resistance, wear resistance, and long service life.

Stable Operation: Both ends of the rotor are equipped with ball bearings, which can reduce friction and temperature during use to ensure stable operation.

Safe to Use: It has the functions of self-locking and automatic shutdown when power is off, ensuring your safety to the most extent during use.

Reversing Function: It has a reversing function that is flexible with normally open and closed control systems.

Ready Made: The product is integrated, so you can use it directly after receiving the goods, saving you time.

Adjustable Speed: You can match it with a speed controller (not included) to adjust different speeds according to different products to achieve the desired effect.


High Efficiency: It adopts a pure copper motor with 300W power, a high speed of 1800rpm, and low loss, which can greatly improve work efficiency.

Protective Package: To prevent the product from being damaged and bumped during transportation, we packed it with the sponge to protect your product to the maximum extent possible.

Buy with Confidence: We have been working hard to provide better service and quality for our customers, which is our goal. If there is any problem with our products, please contact us in time.

Details

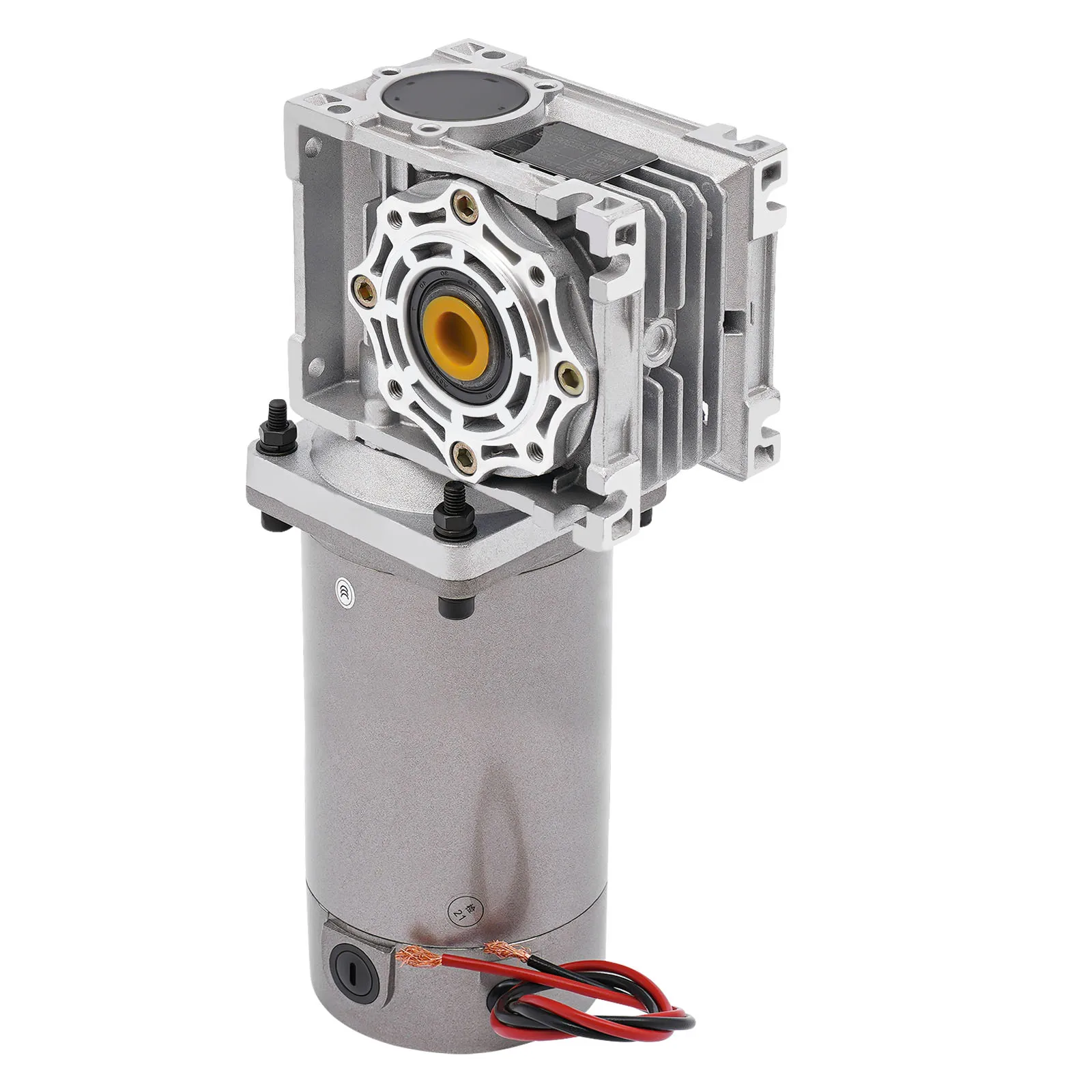

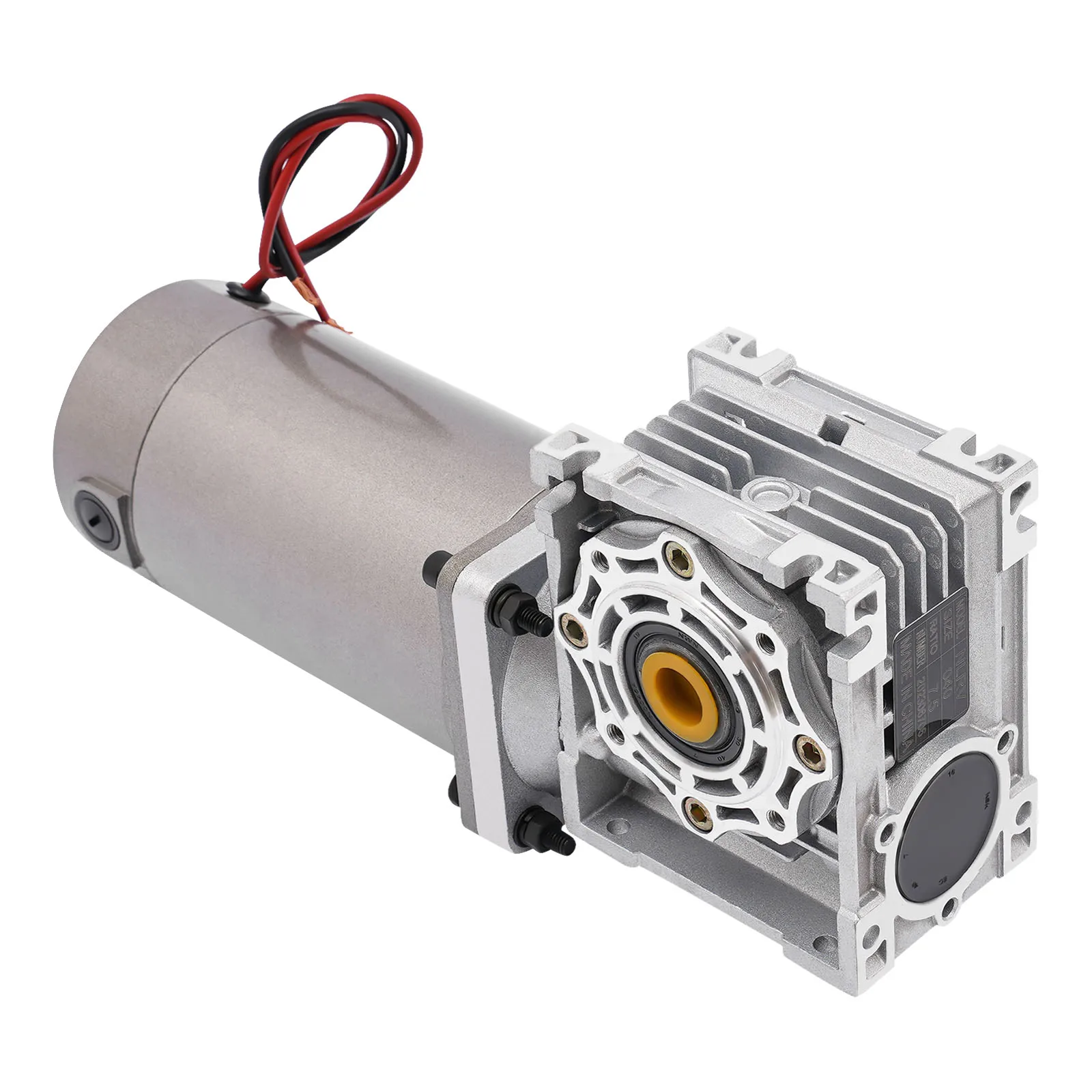

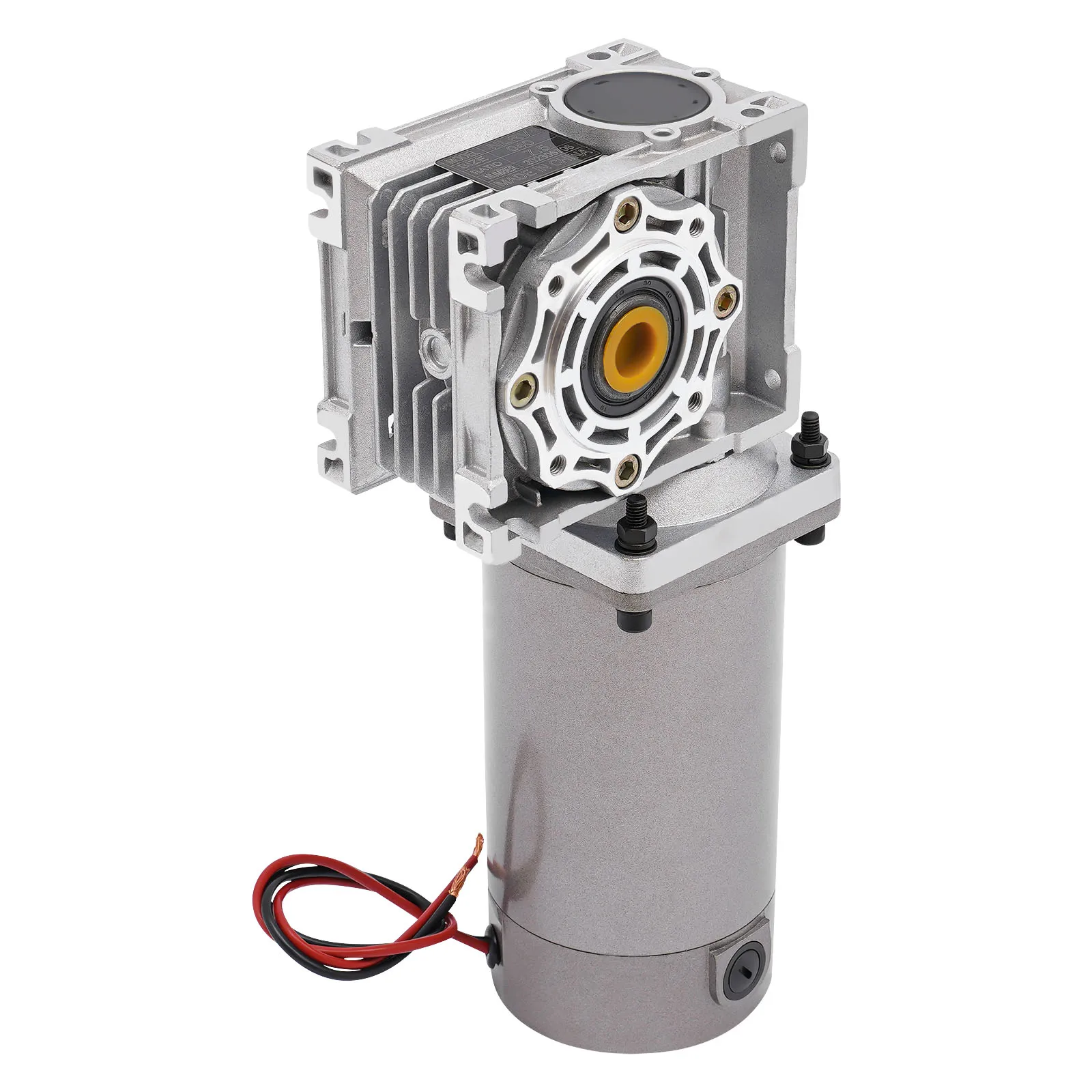

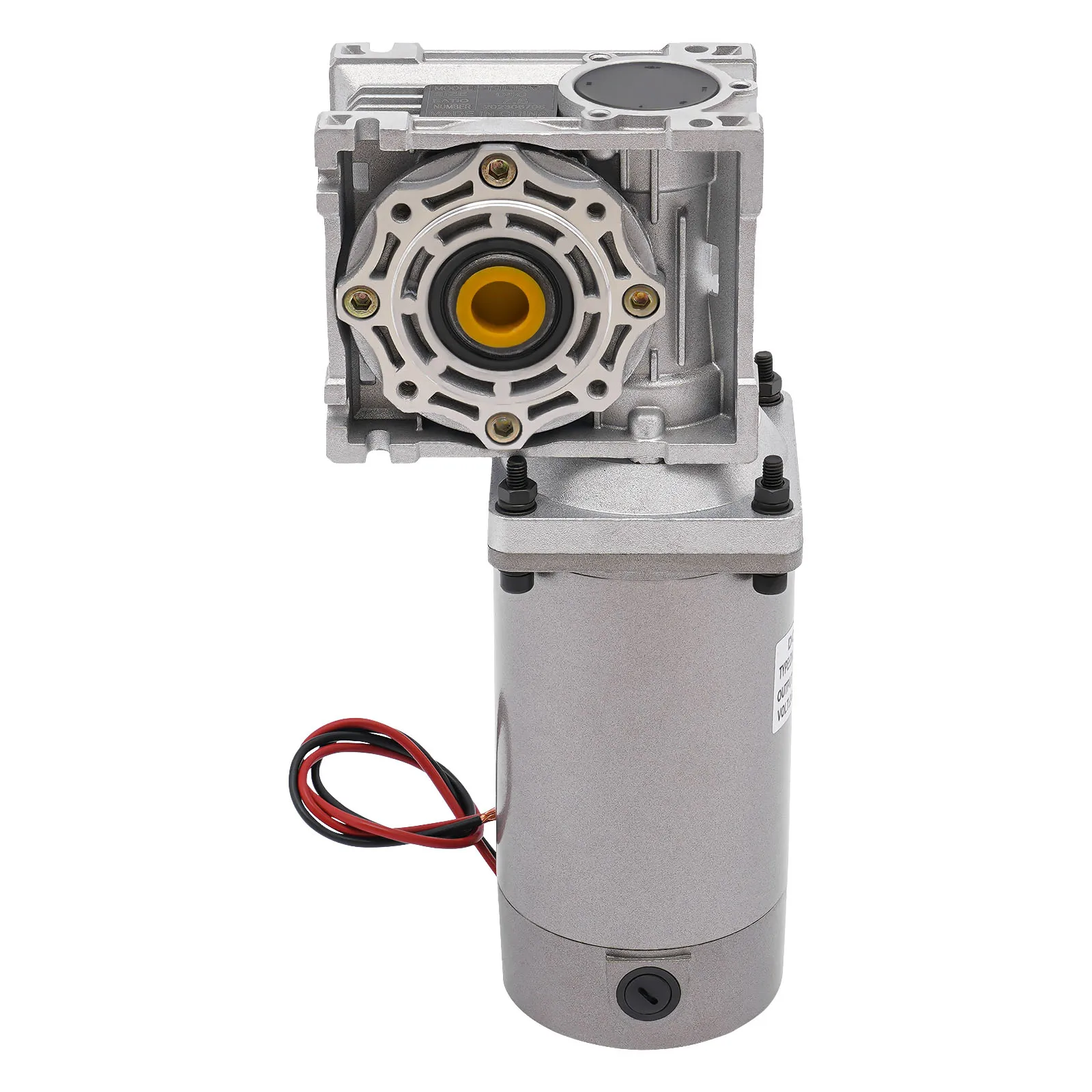

Cap: The yellow cap can effectively protect the output bore when not in use. After removing it, you can insert the shaft in the hole.

Power Cable: It has distinct colors for different wires, so you can connect them easily without confusion and it uses pure copper coils, featuring good conductivity and a large current carrying capacity.

Application

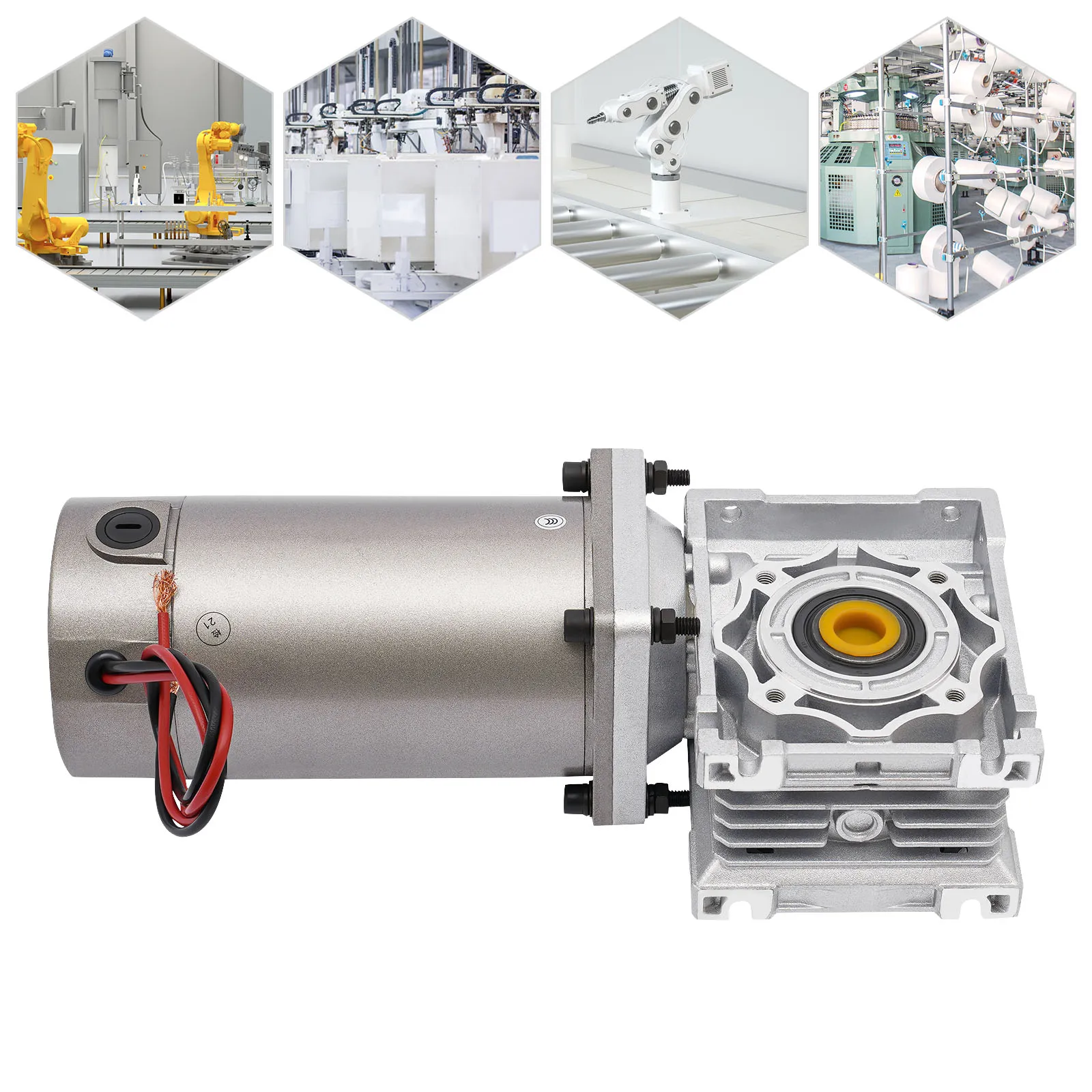

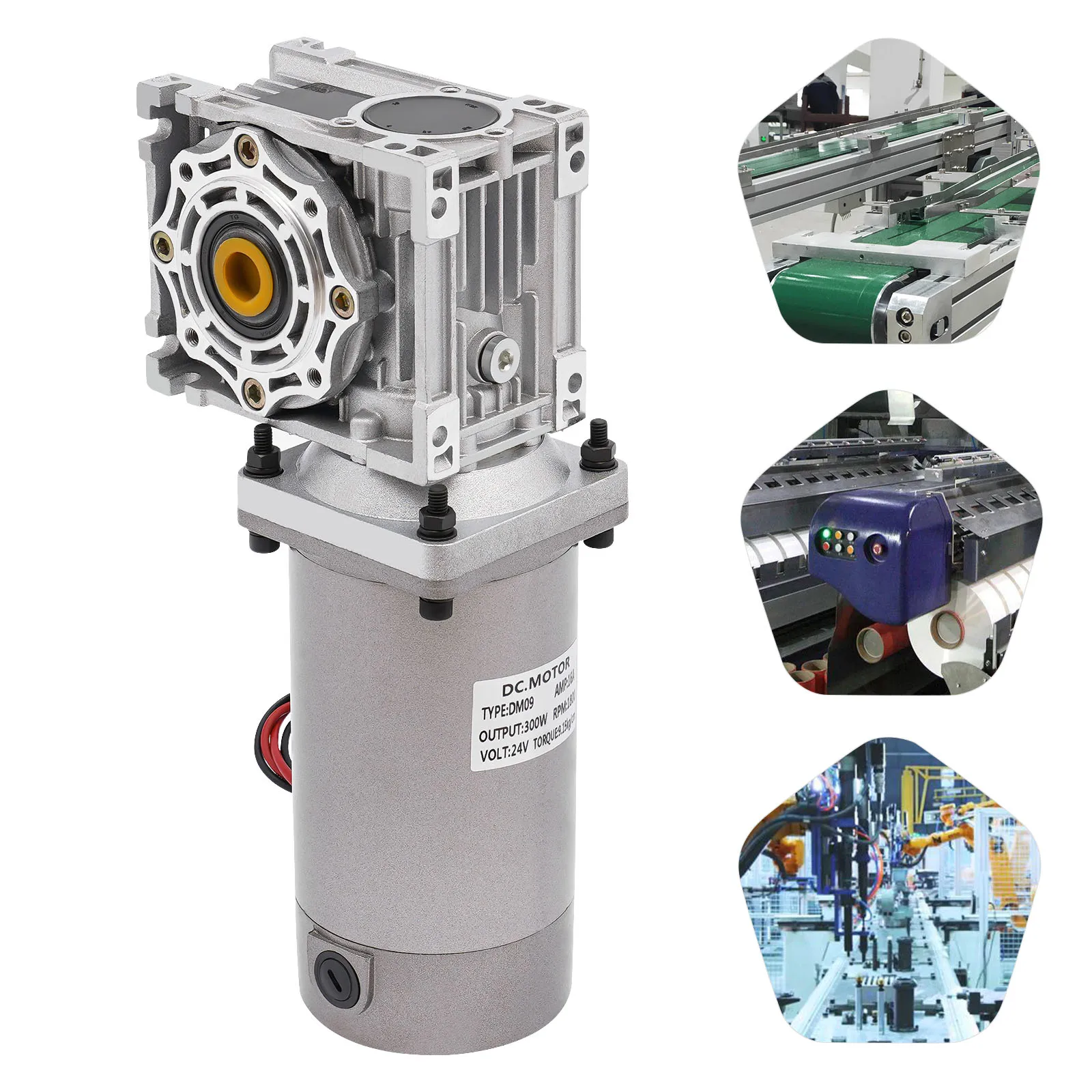

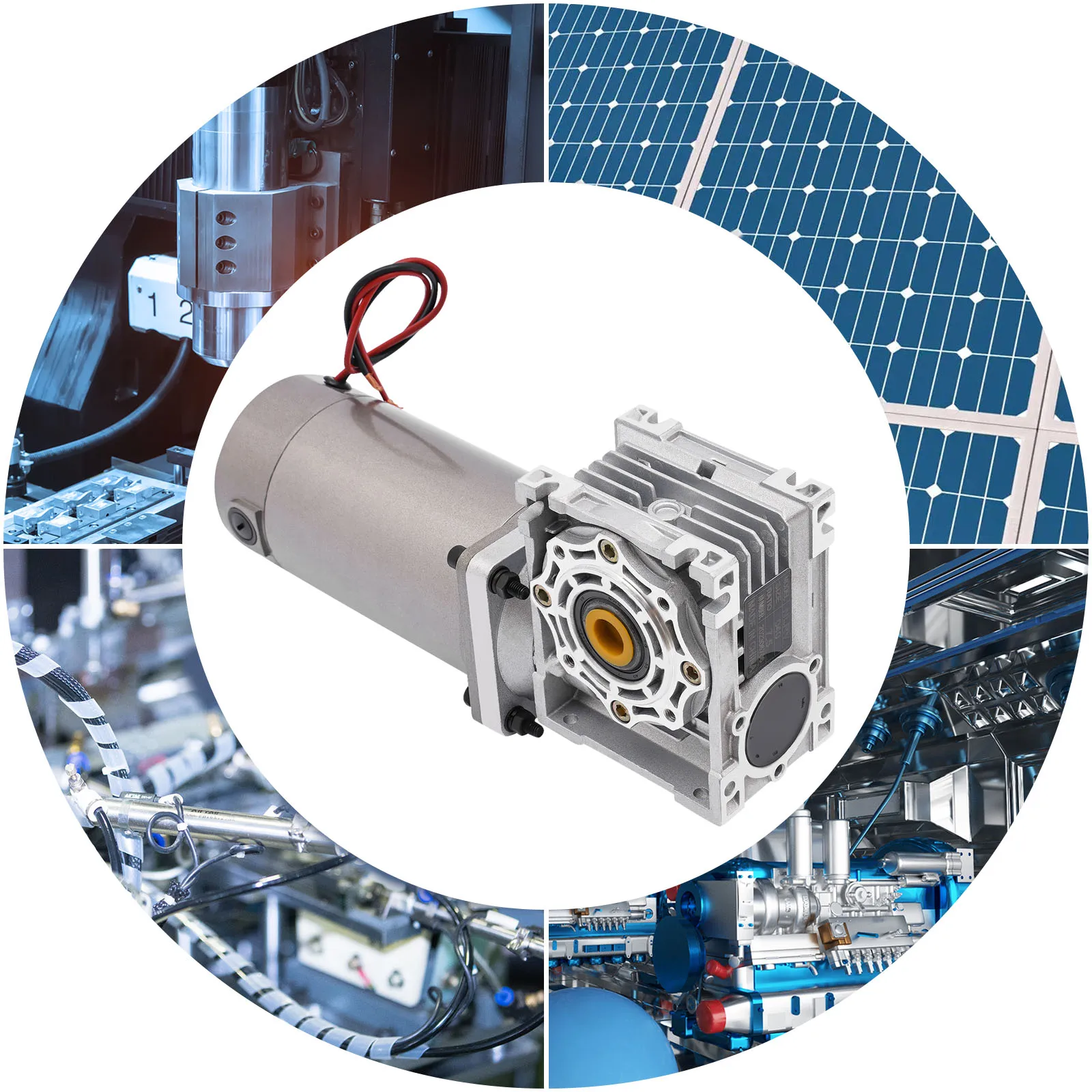

 It can be widely used in packaging, printing, textile, dyeing, chemical, medical, pharmaceutical, and other engineering work, as well as advertising, office, petrochemical, instrumentation, stage lighting, transmission, automatic warehouse, parking door security, automatic doors and windows, conveyor, vending machine, feeder, calender, extruder, peeling machine, blender, cargo lifts, food machinery, and other equipment.

Specifications

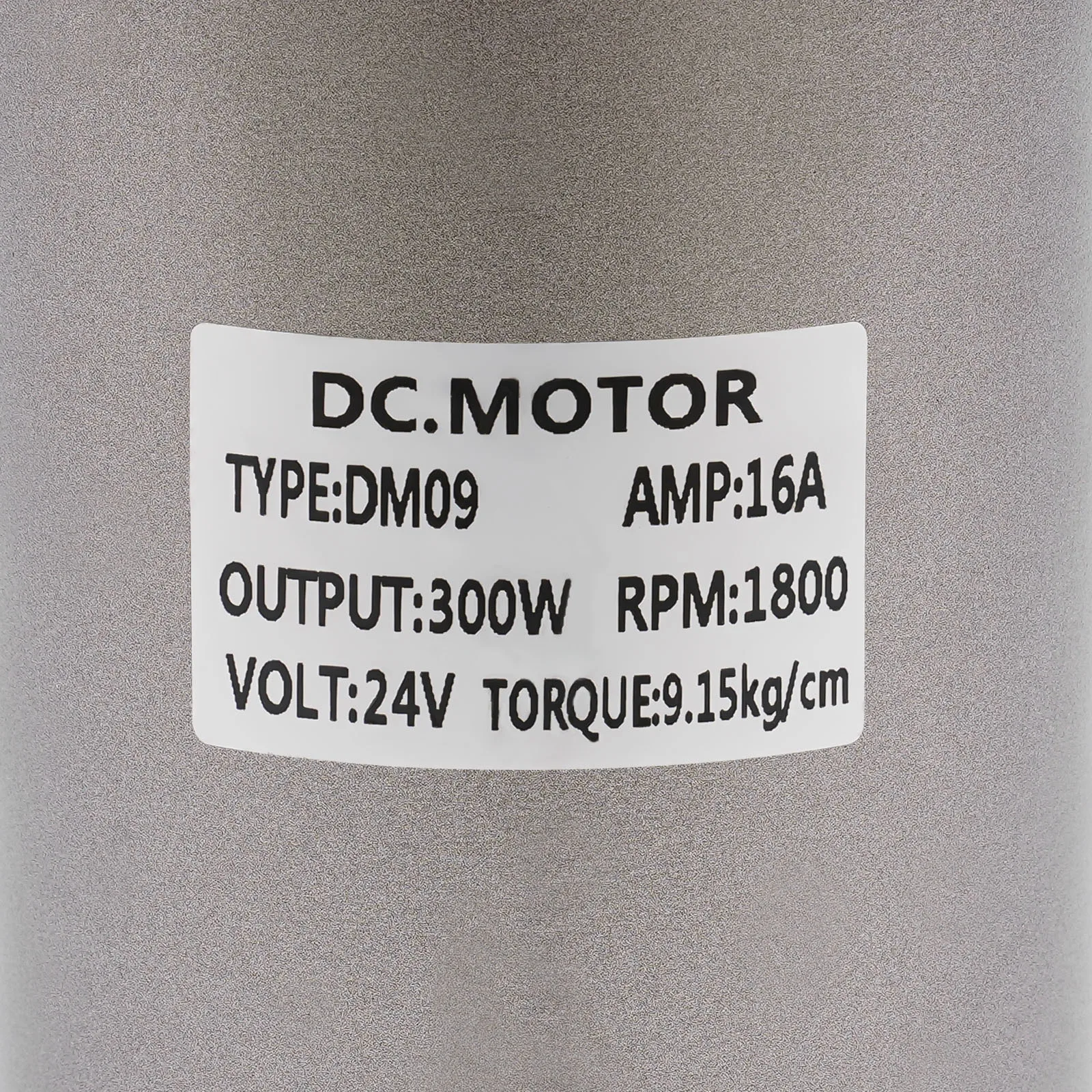

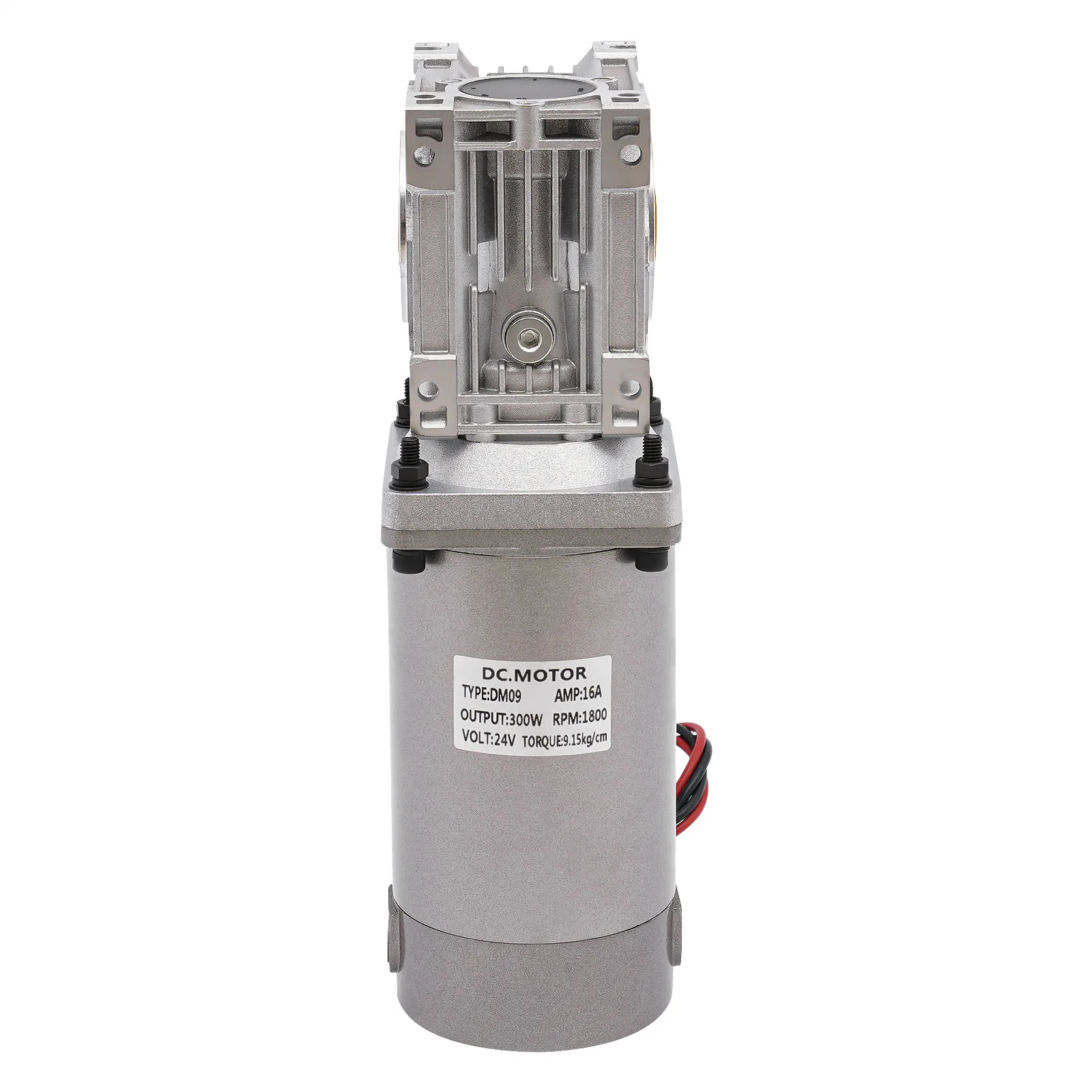

Type: DM09
Model: NLRV
Gearbox: NLRV-040
Color: Silver
Material: Cast Aluminum Alloy, Copper, 40Cr Alloy Steel
Processes: Nitriding, Heat Treatment
Number of Items: 1
Feature: Portable
Type: DC Motor
Gearbox Type: Worm Gearbox
Motor: Pure Copper Motor
Noise: About 70db
Torque: 9.15kg/cm
Voltage: DC 24V
Power: 300W
Speed: 1800RPM
AMP: 16A
Ratio: 7.5K
Protection Level: IP65

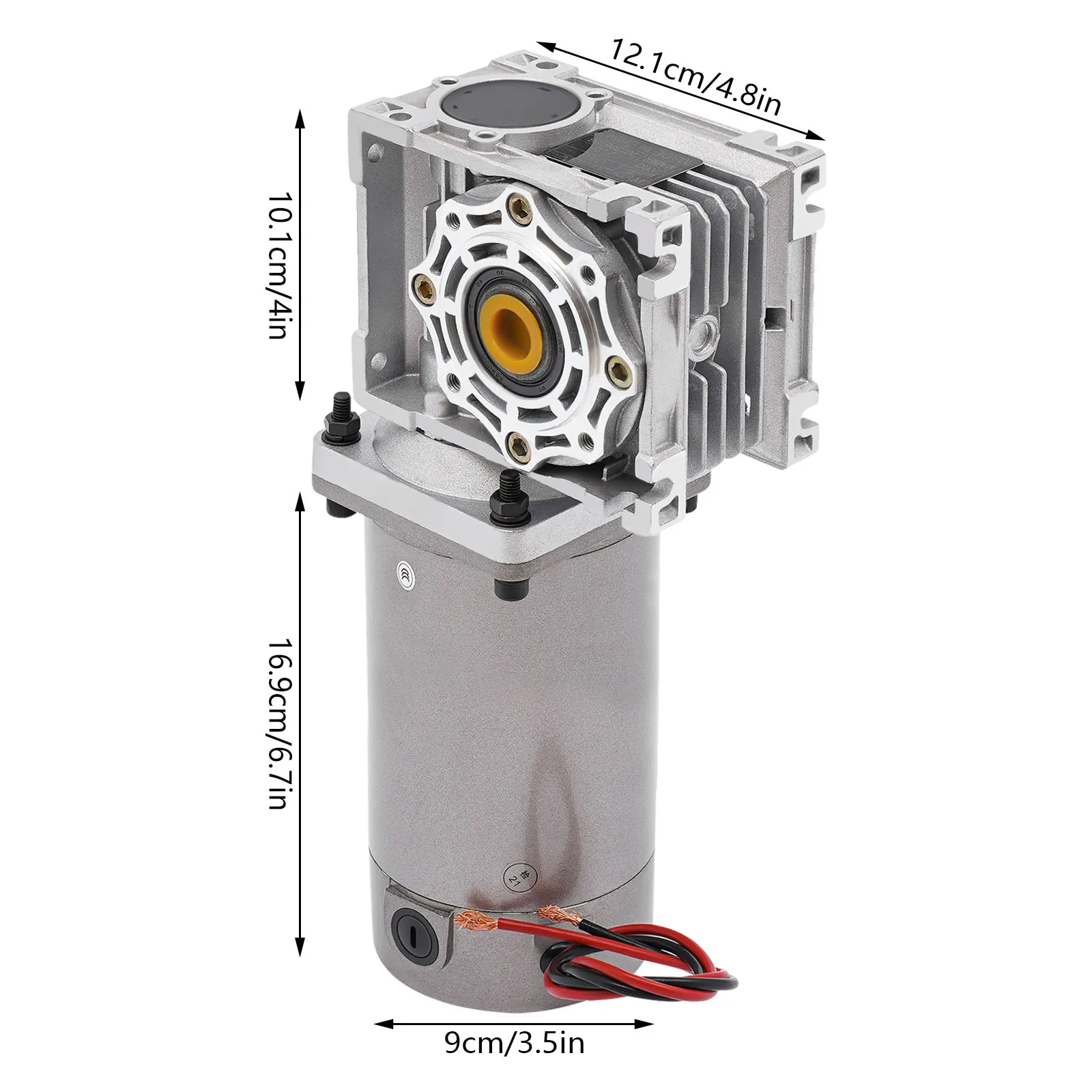

DC Motor Size(D*H): 9*16.9cm/3.54*6.65in
Gearbox Size(L*W): 12.1*10.1cm/4.76*3.98inch
Package Size: 31*13*10cm/12.2*5.17*3.94inch
Net Weight: 7kg/15.43 lbs
Gross Weight: 7.5kg/16.43 lbs

Package Included

1* Worm Gear Motor

Notes

1.Please note that the product does not include a speed controller.
2.Based on the industrial standard, to meet the different needs of customers, our motor does not include a power cord. You need to purchase a power cord to connect.
3.Please do not plug&unplug the power cable when the power is on. Please do not knock or beat the machine.
4.The motor can run for a long time within the safe speed regulation range. The safety speed range of a small load is 50% of full speed-full speed. The safety speed range of a large load is 70% of full speed-full speed.
5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
