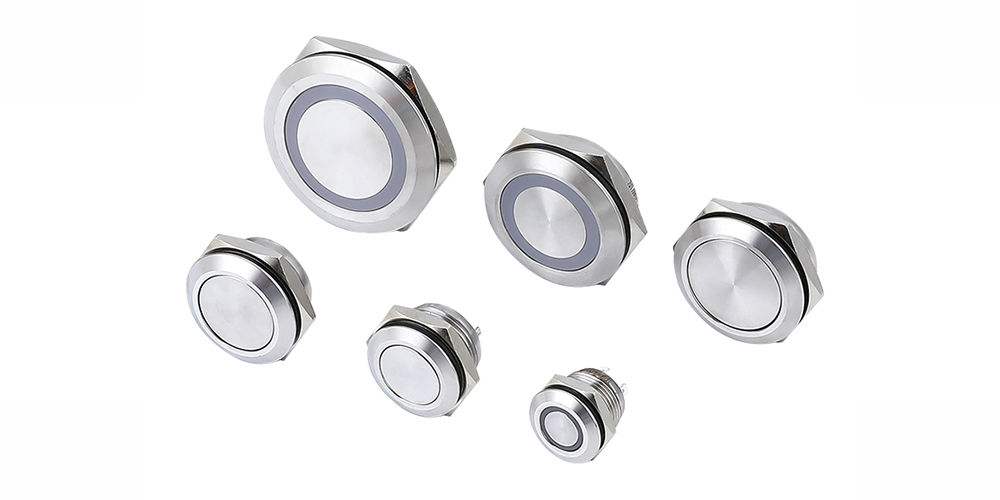

Electric Waterproof Power 12v Led Momentary Mini Push Button Switch Micro Pressure Switches 220v 24v Smart Home 12mm
2.98$
2.98$
Quantity:
1
Availability:
Limited StockColor
Size
Voltage
Standard
Card Payments
Crypto Payments
Easy return
Reliable Shipping
If you want more item, please contact us,we will add the quantity and give you the cheaper price
The button only have the momentary(like Car or Computer), don't have the lacthing (like the lamp), and don't have the Suitable connector,please think carefully before you buy
Operation Type :Momentary
After pressing the button ,press-key will return automatically If you don't continue to press the button。Self-reset.
Specification
The button don't have suitable connector,only buy the single connector.
If you need special specifications, please feel free to contact customer service,we can customize it .
Contact:sterling silver
Material: Nickel Brass Or aluminium oxide
Color: Silver Or Black
LED color: White Yellow Red Green Blue
Switch Rating: 2A /250VAC
Press distance : ≤0.5mm
Waterproof Grade: IP65
LED Voltage: 3-6V,12V,24V,220V
Operation Type: Momentary （like the button of Car or Computer）.
Hole size: 12/16/19/22/25/30mm
Voltage Selection
3V-6V :3V 5V 6V
12V-24V: 12V 24V
220V: 220V 230V
Other voltages are required. Please contact customer service
No led switch button can be applied to 2-250V.
Pin Terminal Introduction
"+": positive pole of the led
" - ": negative pole of the led
" NO ": Normal Open
" C " : Common
Connect " NO " and " C " : The circuit is alway open unless press the button.

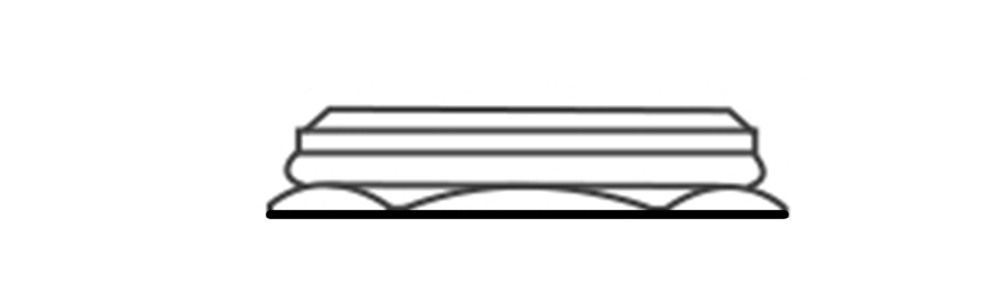

Flat Head
Wiring Diagram
There are many wiring method, the picture below is just for reference

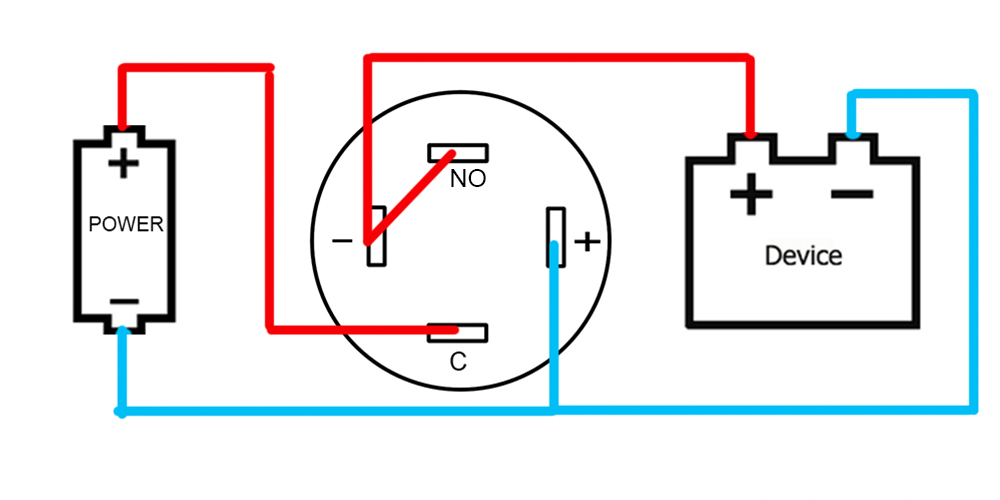

Wiring Diagram of Normal Open
When the switch is pressed, the LED lights up and the load is energized. After press-key return, the load is de-energized, and the light is off.
Features

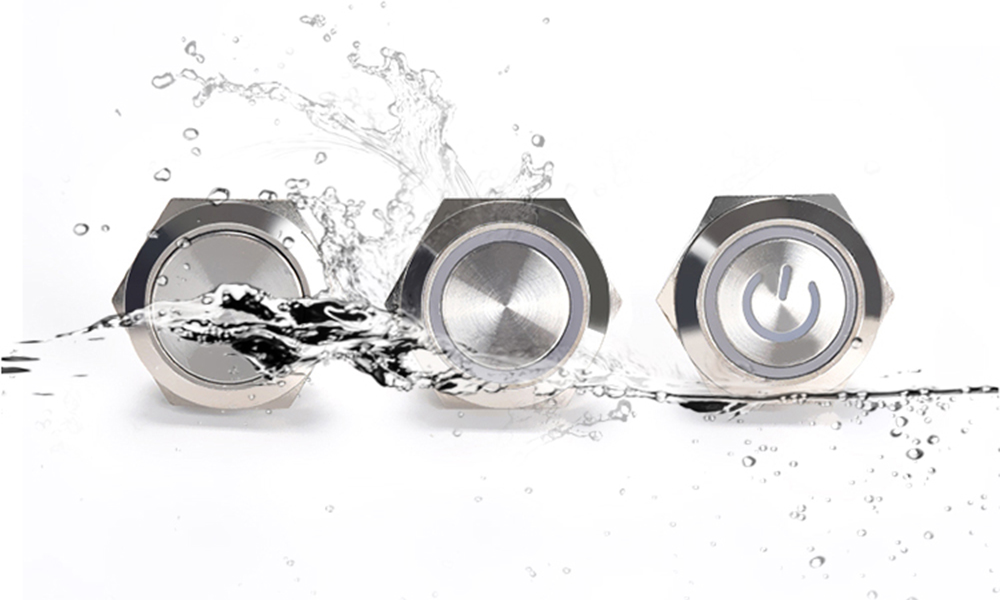

Made of metal material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Customer Reviews
63 ratings
satisfactory (3)
tactile feel (3)
reliable performance (1)
fast delivery (1)
as described (1)
beautiful design (1)

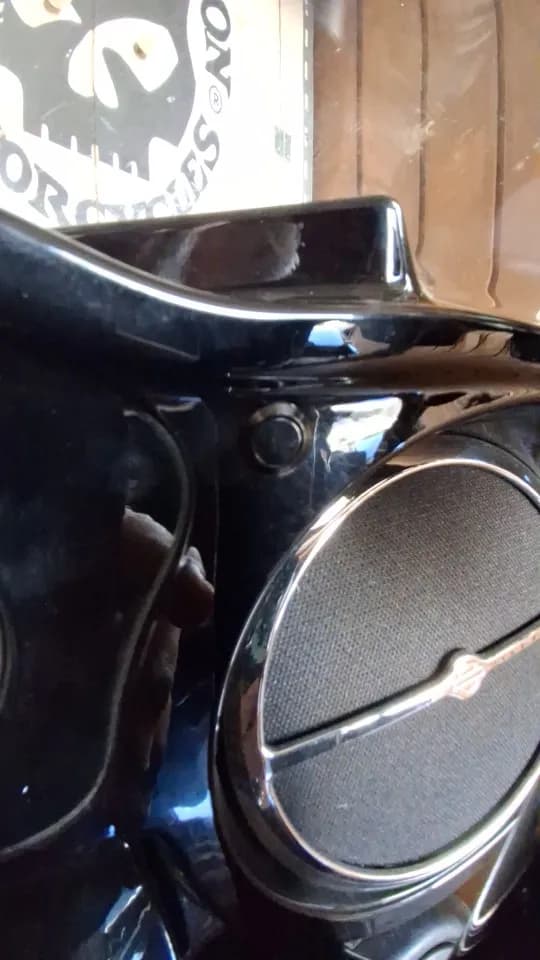

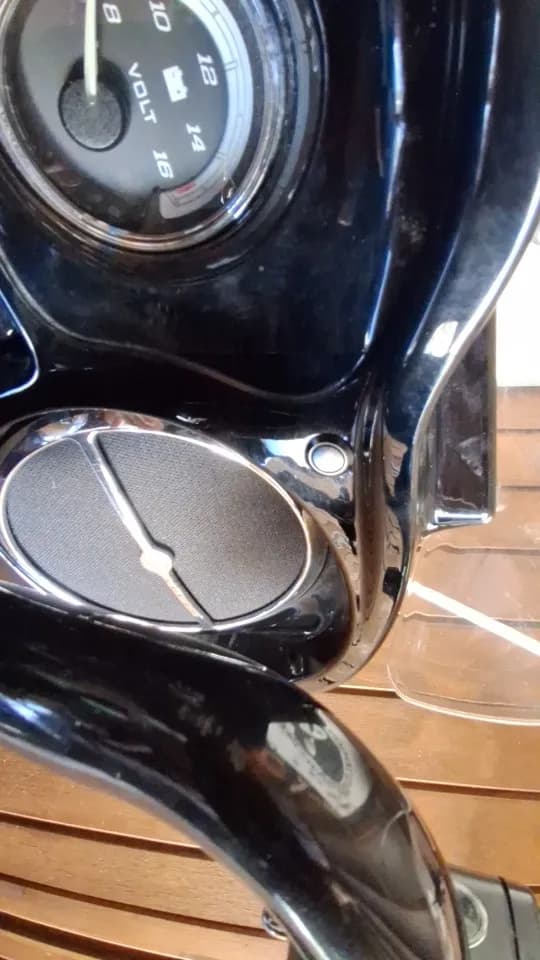

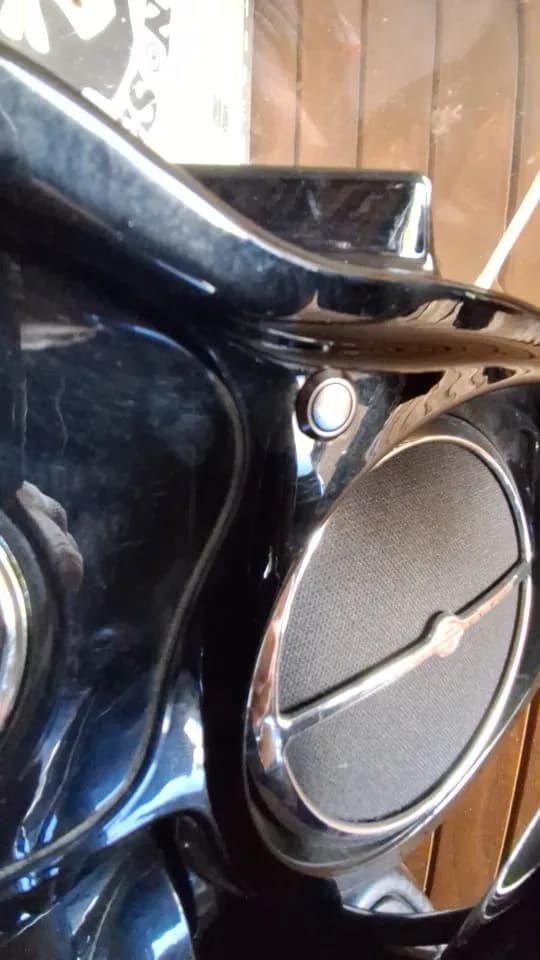

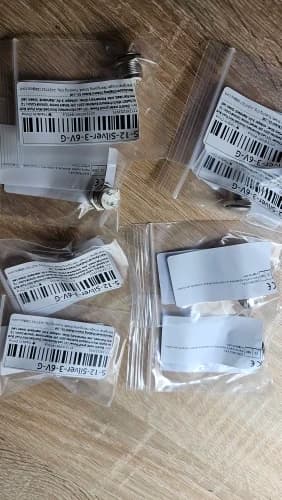

Customer photos (4)
R***z
August 2, 2026
Variant: Color:19mm Flat Head Size:Momentary Silver Voltage:3-6V Standard:Blue Led
ok
Buyer from Spain
July 5, 2026
Variant: Color:12mm Flat Head Size:Momentary Black Voltage:12-24V Standard:NO Led
Just what I was looking for, a small button to connect to the garage door control that doesn't look out of place when installed. 100% recommended.
Translated by AliExpress ·
T***c
June 16, 2026
Variant: Color:25mm Flat Head Size:Momentary Silver Voltage:12-24V Standard:Red Led
They break after a few days.
Translated by AliExpress ·
T***c
June 16, 2026
Variant: Color:25mm Flat Head Size:Momentary Silver Voltage:12-24V Standard:Yellow Led
They break after a few days.
Translated by AliExpress ·
J***E
May 21, 2026
Variant: Color:12mm Flat Head Size:Momentary Black Voltage:220 V Standard:NO Led
Perfect, thank you
Translated by AliExpress ·
M***a
May 8, 2026
Variant: Color:16mm Flat Head Size:Momentary Silver Voltage:3-6V Standard:White Led
good firm click
