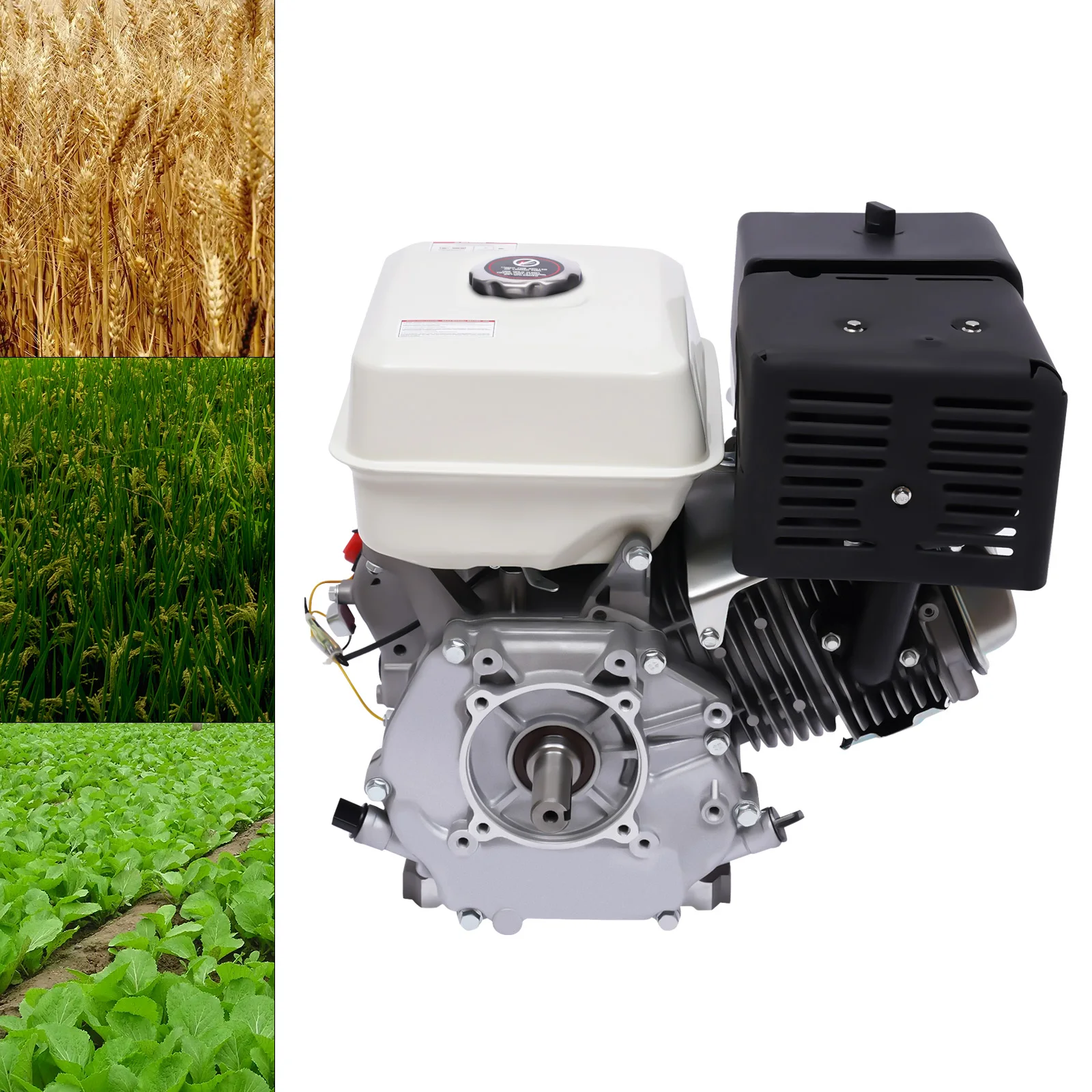

4 Stroke Gasoline Engine 15HP Low Noise Gas Powered Portable Generator 9.7KW for water Pumps and Vibrators

Description

Are you still hesitating about which engine to choose? Our engine has low noise and excellent performance, making it the ideal choice for purchase. With a powerful 9700W and a 1.72gal large fuel tank, the engine can show its colossal power. Whether you want to mount it on ships, go-karts, or water pumps, our gasoline engine will not disappoint you. Its reliable performance ensures smooth operation and reliable power transmission, making it the ideal choice for professional and entertainment purposes.

Specification

Material: Aluminium, Iron
Engine Type: 4 Stroke
Description: Gasoline Engine
Starting System: Pull Start
Power: 9700W 15HP
Rated Power: 8800W
Color: Red & Black
Fuel Type: Gasoline
Engine Displacement: 420cc
Rotational Speed: 3000-3600rpm
Fuel Capacity: 6.5L/1.72gal
Fuel Consumption: ≤ 374g/kw.h
Engine Oil Capacity:1.1L/0.92gal
Gross Weight: 36.5kg/80.47lbs
Net Weight: 28.15kg/62lbs

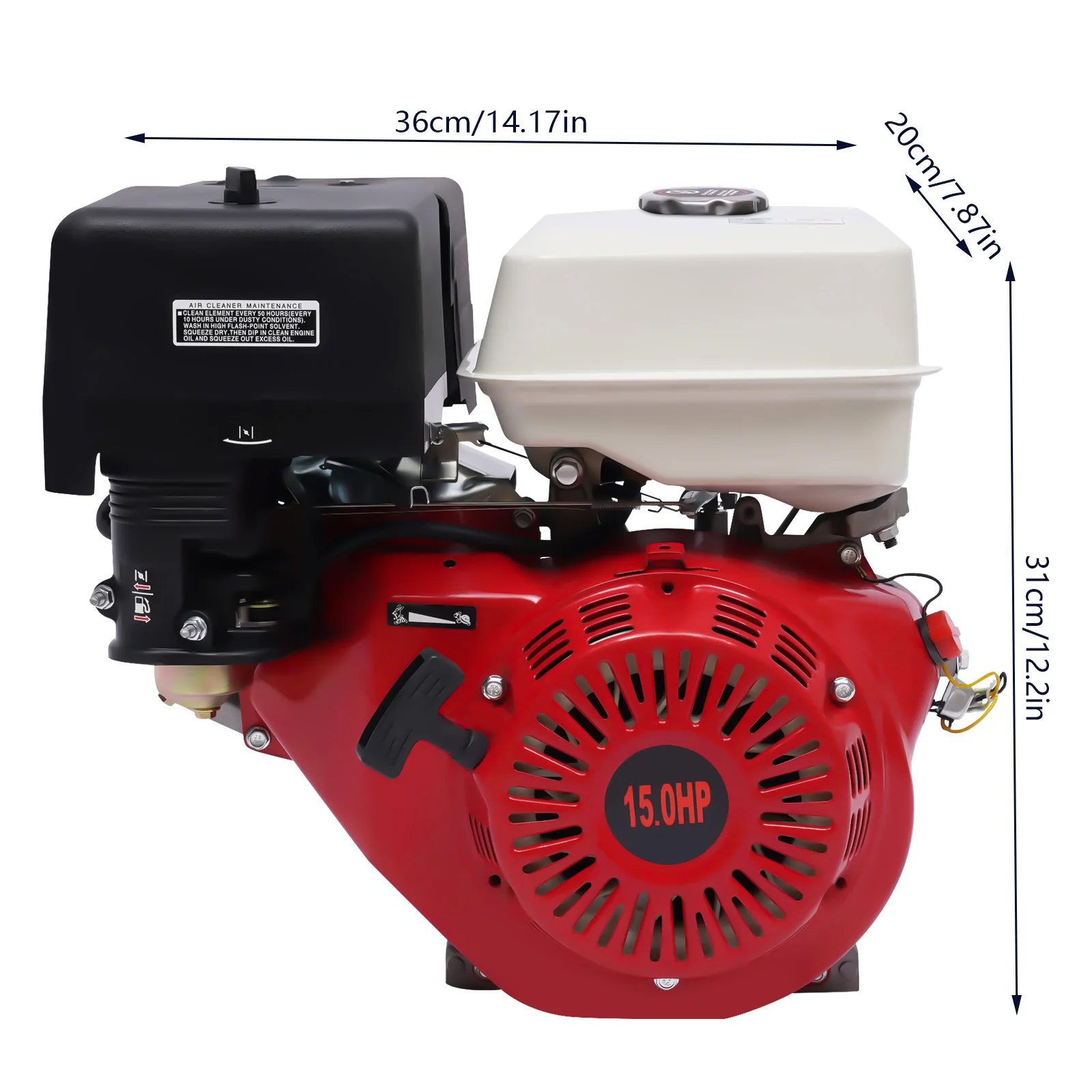

Product Size: 40.5*32*44cm/15.94*12.6*17.32in
Package Size: 55*46*49.5cm/21.65*18.1*19.5in

Key Features

Strong Power: The power of the engine is up to 9700W and its rated speed is up to 3600rpm, which can provide strong power for machine operation and help you finish your job quickly and efficiently.

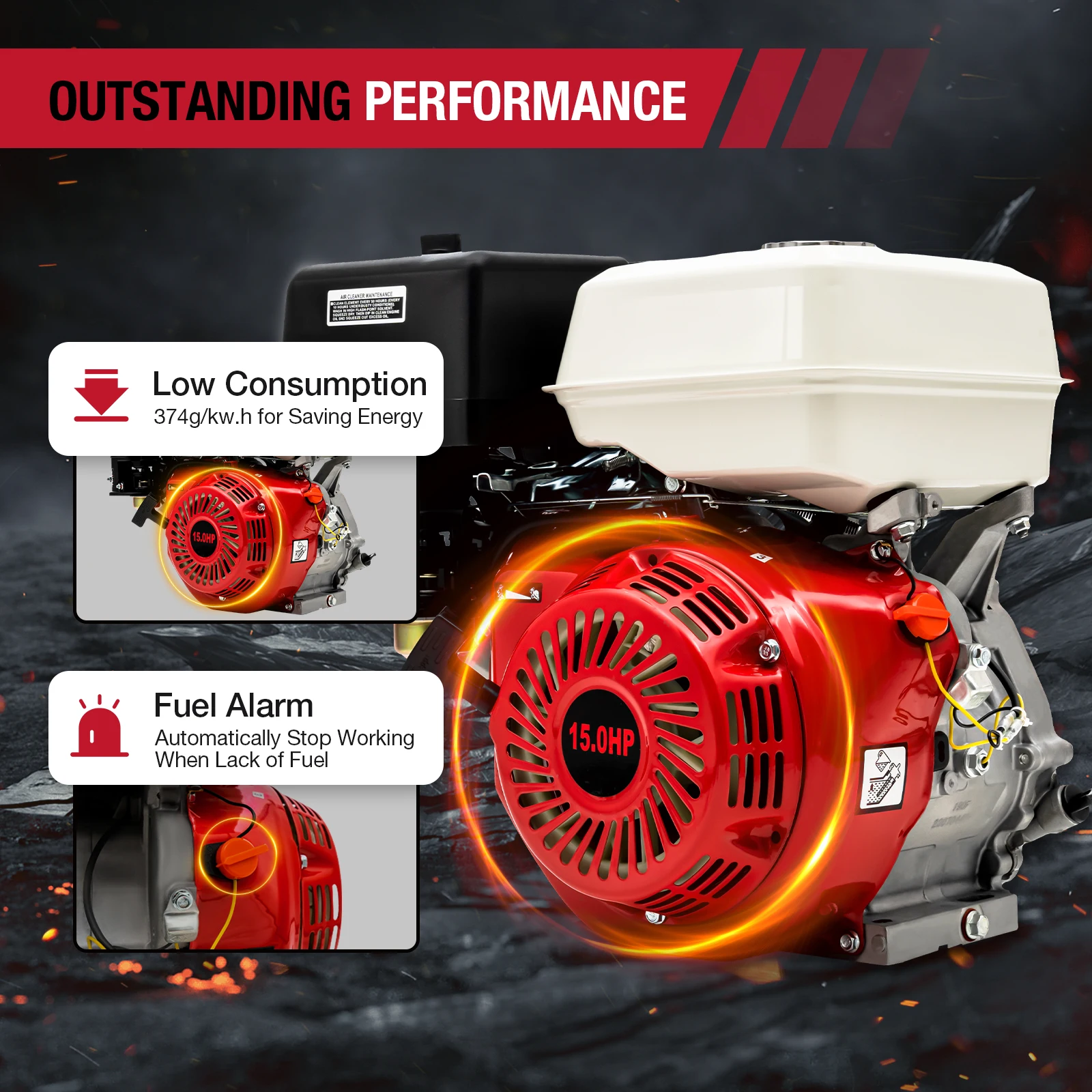

Low Fuel Consumption: The engine is equipped with a high-precision carburetor that can reduce fuel consumption(≤374g/kw.h) and cost.

Low Fuel Alarm: When it has low oil, the machine will automatically stop working. So you can avoid the engine suddenly stopping while you are working.

Long-lasting Operation: Equipped with a large capacity fuel tank(1.72gal), this engine can work for a long time. It ensures reliable performance without frequent refilling.

Efficient Cooling System: Featured with forced air cooling system and ventilated heat sink, the motor can keep cool, which provides high reliability and durability.

Low Noise: Its high-quality silencer will effectively reduce noise and provide you with a relatively quiet working environment.

Ergonomic Design: This engine has a start handle and a general control area, which fits ergonomically and makes it easy to start and use.

Protective Shipping: Our product comes with protective foam to prevent any damage during transportation, ensuring that it arrives in perfect condition.

Satisfaction Guarantee: If you have any questions, please just contact us and our team will help resolve your issues as soon as possible.

Details

Sealed Oil Port: The oil port adopts a cap sealing design to effectively prevent oil leakage from the fuel tank.

Air Filter: The air filter can purify the air. Its filtration performance helps to reduce wear and extend its life.

Metal Camshaft: The camshaft is made of iron, which has high wear resistance. It makes the engine work steadily.

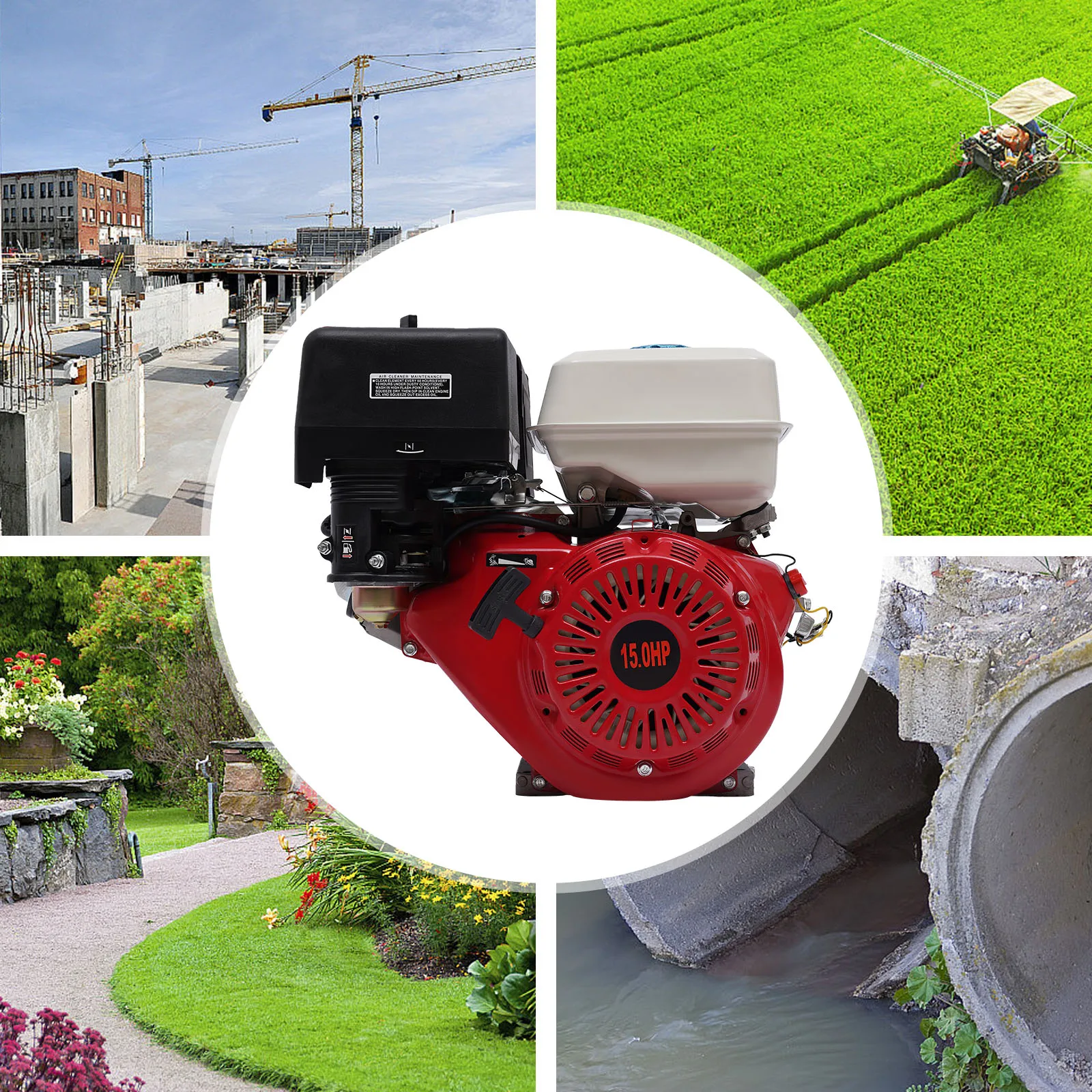

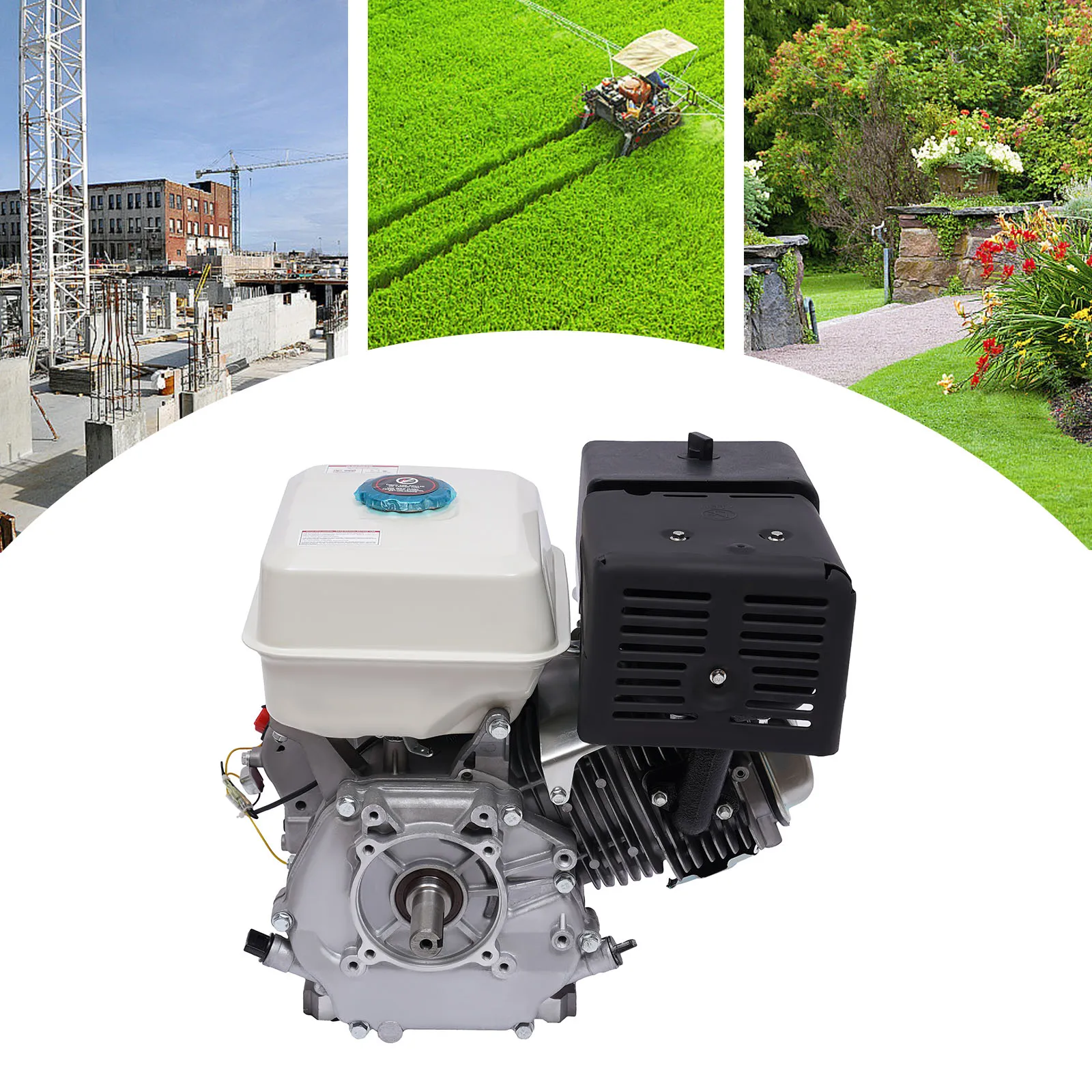

Application

This engine is ideal for such machines with suitable crankshaft as water pumps, vibrators, dosing machines, puffers, threshers, recreational vehicles, pressure washers, air compressors, trenchers, concrete/mortar mixers/saws, go-karts, minibikes, lawnmowers, log-splitter, and vacuums.

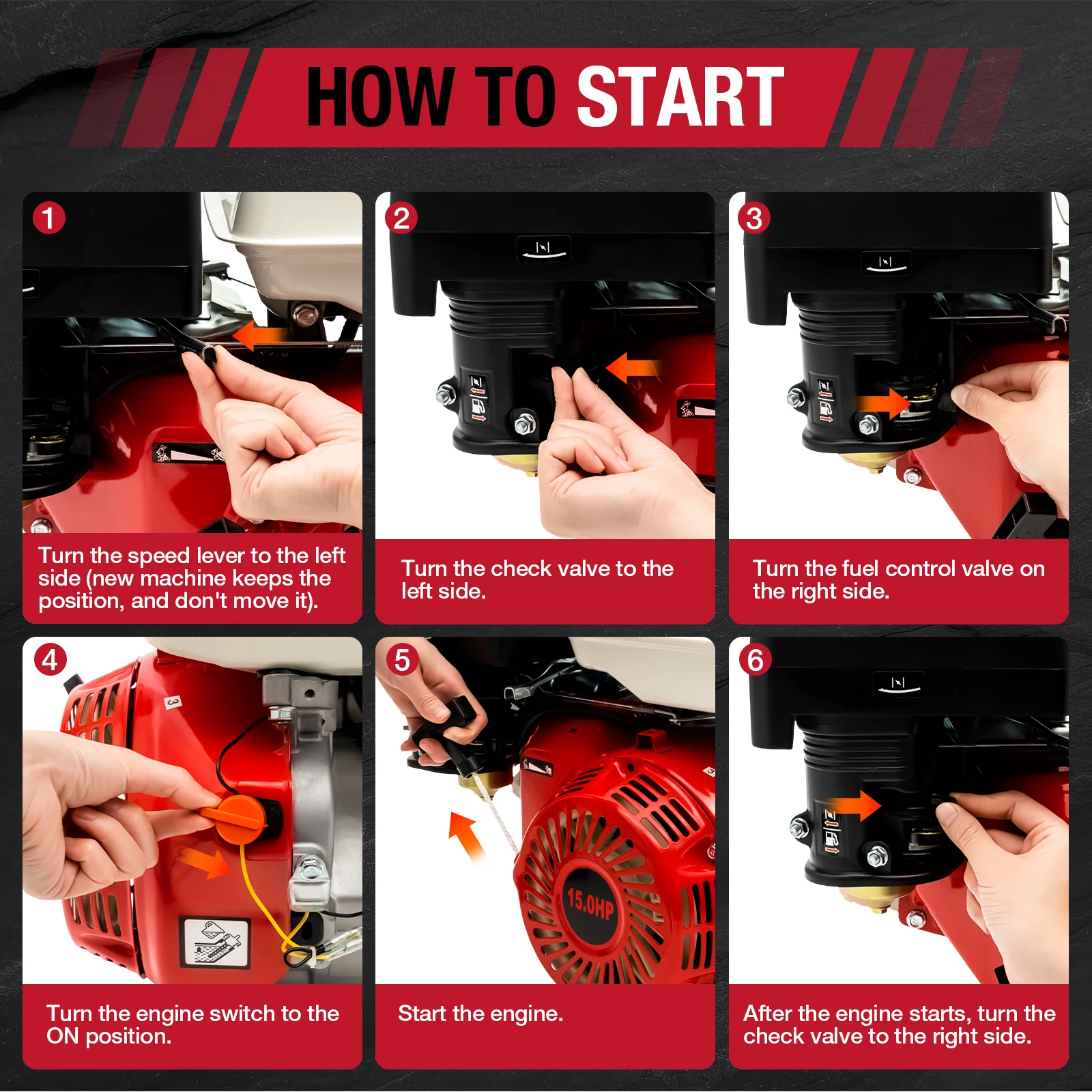

How to Use

1.Check the oil level, to the line above H. Add about 600ml 4-stroke gasoline engine oil, series: 15W30 or 15W40 (Remark: if the engine oil is not enough, it will cause the engine not to start. If it starts, the engine will shake.)
2.Add petrol 92# or 95# (Remark: when you put the fuel tank cap, you should fix the two ears in the cap well with the part concave in, then press the cap and turn the fuel tank cap.)
3.Turn the speed lever to the left side (new machine keeps the position, and don't move it). Turn the check valve to the left side. Turn the fuel control valve on the right side.
4.Turn the engine switch to the ON position.
5.Start the engine.
6.After the engine starts, turn the check valve to the right side.

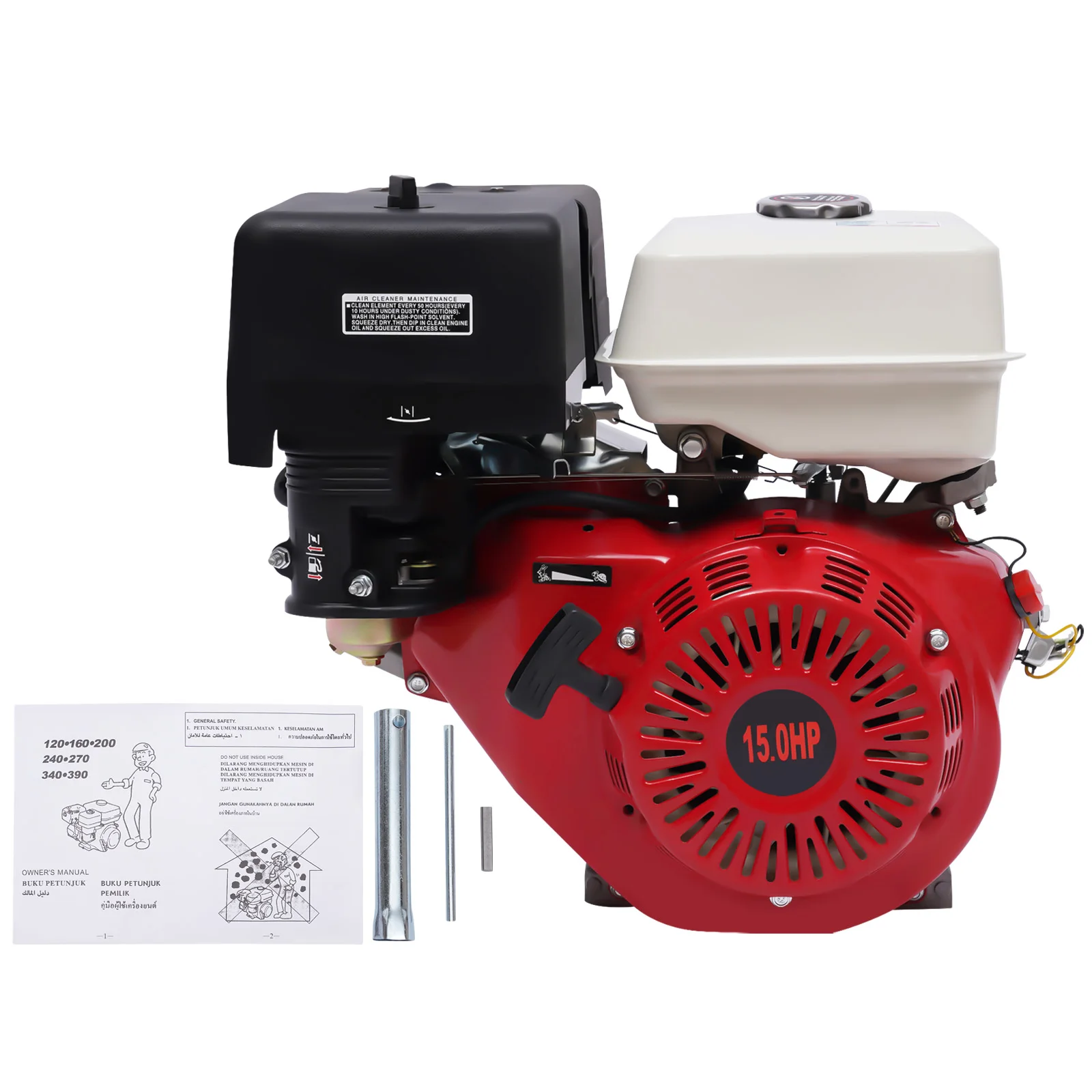

Package Included

1* Engine
1* Spark Plug Sleeve
1* Multilingual Manual
All Accessories for Installation

Notes

1.Please read the operating manual completely before use and pay particular attention to the safety instructions included.
2.Please change the engine oil and pump oil after the break-in period (10 hours). After that, you will need to change these oils every 100 hours.
3.After a long time stock, you will need to change the new petrol for the carburetor and fuel tank.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

If you are interested in the product or have any questions, please feel free to contact us, we will reply to you within 24 hours.
