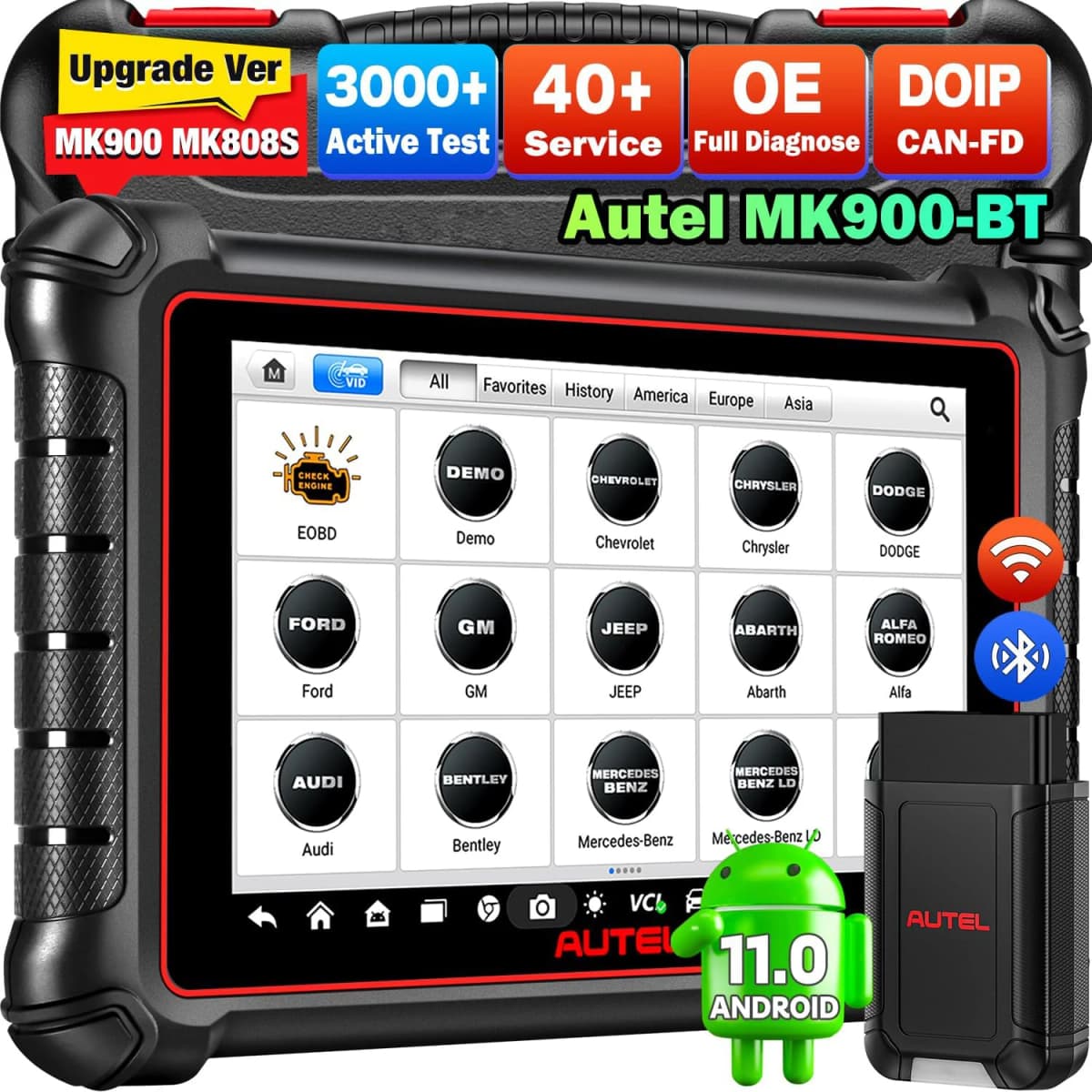

Autel MaxiCOM MK900-BT MK900BT Diagnostic Scanner Wireless DoIP / CAN FD Scan Tool, Bi-directional Control Automotive Tools

Autel MaxiCOM MK900BT

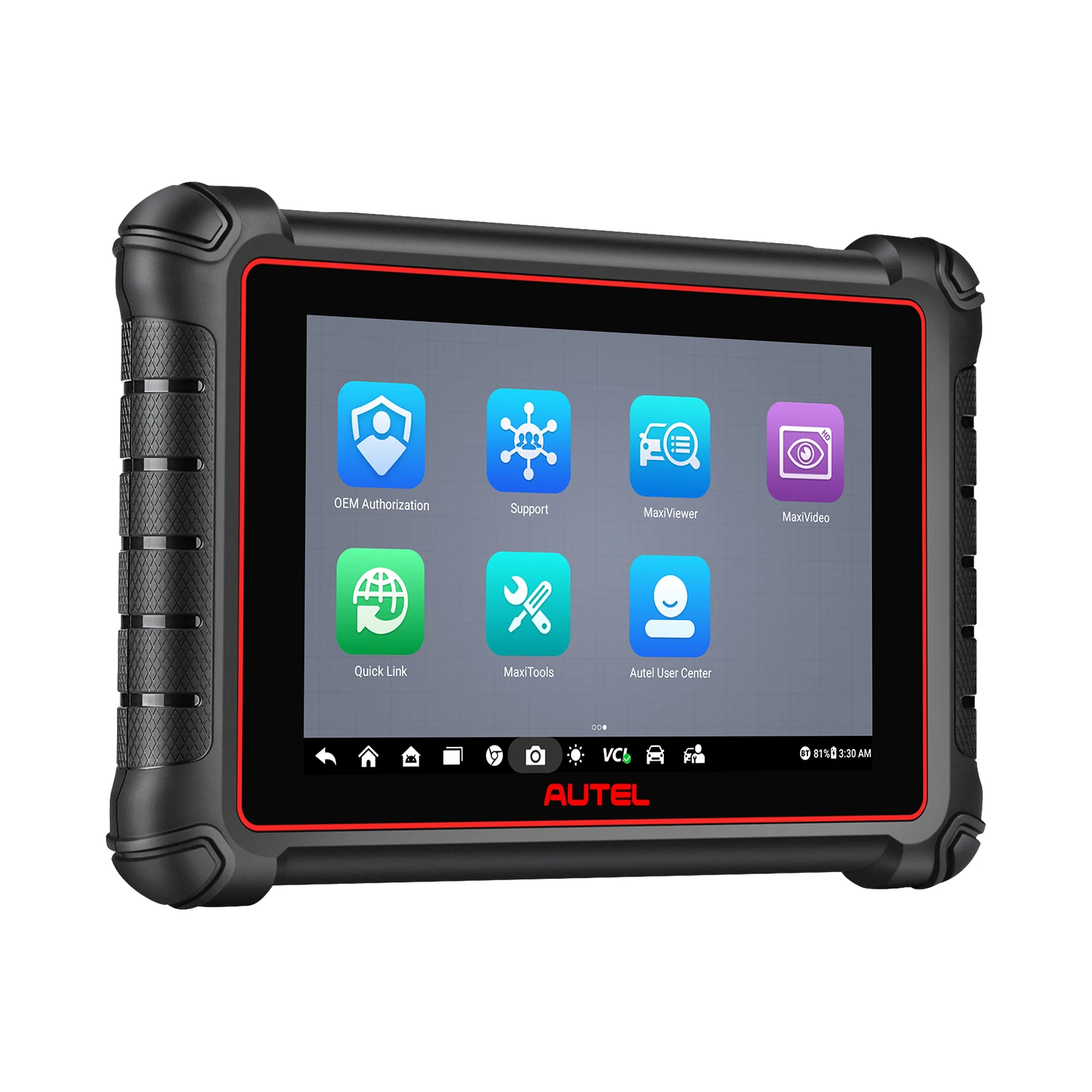

The AUTEL MaxiCOM MK900BT, running on Android 11, is the latest base model scan tool intended to replace the popular MK808BT Pro. It offers improvements such as a longer battery life, enhanced memory, and a more powerful processor for faster performance.
It full upgraded All both software&hardware. It offers: CAN-FD&DOIP; Pre&Post Scan; WIFI Print; Bidirectional/ 3000+ Active Tests; 40+ Services; Full System Diagnose; Graphing Live Data; Data Playback/Record; FCA Renault SGW etc.

Features：

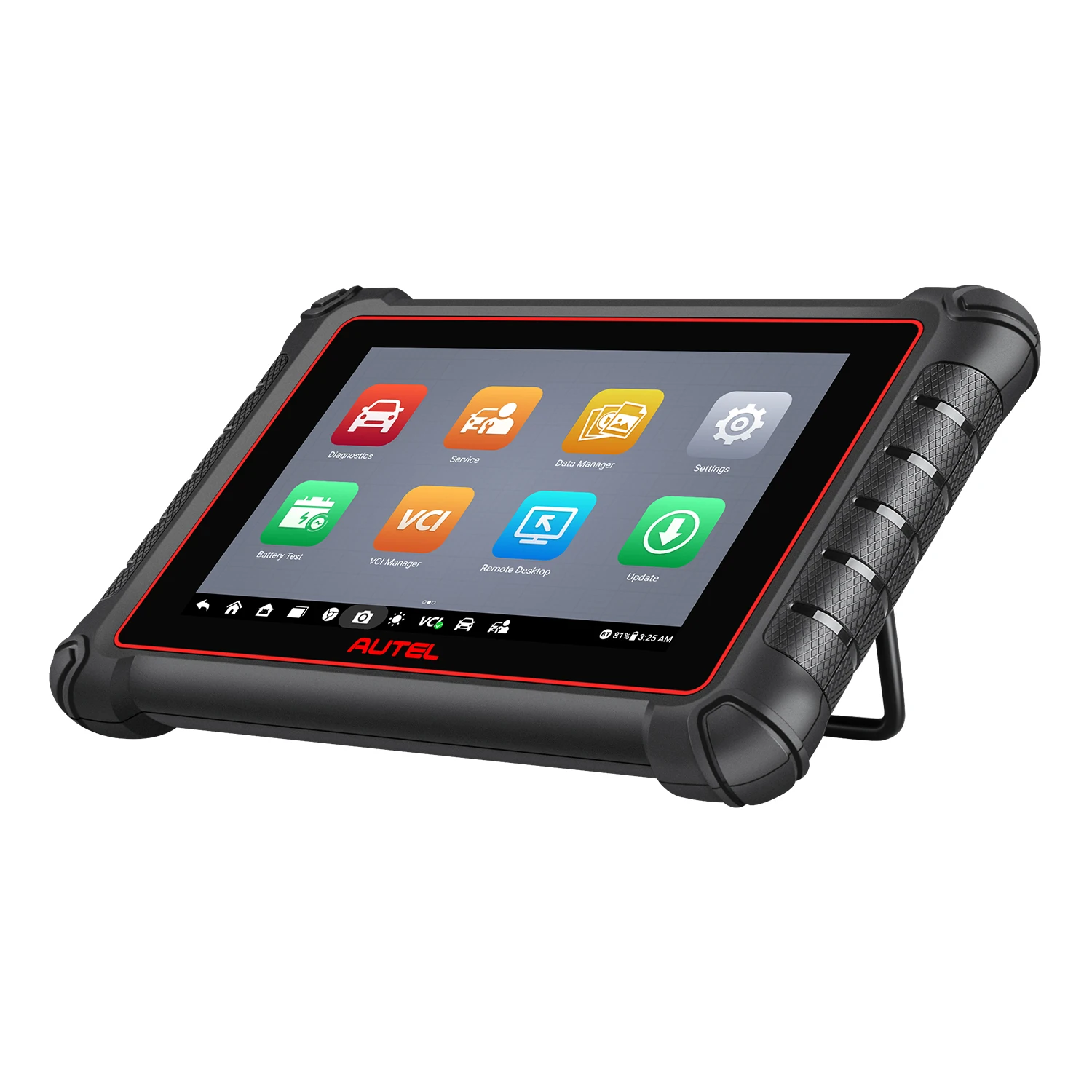

8-inch high-resolution, responsive touchscreen display
Android 11 operating system offers advanced streamlined functionality
Extensive vehicle coverage for U.S., Asian, and European vehicle makes
Exceptional OE-Level system coverage for all electronic systems
Complete code, live data, ECU information, active test, and special function capabilities
Supports the latest communication protocols, including DoIP and CAN FD
Smart AutoVIN technology for quick and accurate vehicle identification
Expansive menu of service and maintenance tasks
Detailed Pre- and Post Scan Reporting
Automatic system and software updates with real-time Wi-Fi push notifications
Remote Access Technical Support Troubleshooting
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Convenient data management system for managing internal applications and reviewing data
Bluetooth Wireless Connection, Work with BT506 Battery Tester

New Added Functions

Autel MaxiCOM MK900BT
New protocols CAN FD &DOIP: CAN FD works for GM (2019+) ；DOIP works for Volv.o 2018+, Jaguar&Land Rover 2017+, BM.W F&G chassis models. ；WIFI Print allows print；Pre&Post diagnostic reports in one-button, get logical and clear diagnostic contr.ast reports and share to your cli.ents. Autel Cloud server offers infinite space to save repair data, never loose data anymore.
Battery Test (Work with BT506): cranking/ charging test, in/out-vehicle test ; Work with MV108S/MV105S to check inner car status; Immo Keys for Asian vehicles with low-grade anti-the.ft systems ; Infinite Autel Cloud Space ; Auto Scan 2.0 in seconds; Remote Desk ; FCA& Renault Auto Auth; Globel Version; 21+ Languages.

Enhanced Bidirectional Control/ 3000+ Active Tests

Inherited from MP808BT MS906 & 3000+ active tests, Autel MK900-BT escaner automotriz professional is mo.re powerful tha.n oth.ers with only 50+ tests. Directly send command to ECUs & monitor actuat.ors operation to quickly pinpoint issues, it takes your diagnostics to the n.ext level with menu lists 3000+ active tests. Such as fuel inje.ctor, coo.lant fans, coola.nt pump, win.dshield wipers, E.G-R valve, sunroof, windows/ door/ skylight etc.

All systems diagnostic, 40+Hot services

Autel new release MK900-BT embodies all system diagnostic with its 8in display. Like Sna.p-on tools, It can perform ✔Read/Clear Codes✔View Live Data Stream✔Record & Playback Data✔Retrieve Info✔Active Test✔Special Reset on all available systems like ABS ECM BCM SRS TCM TPMS etc. Based on Auto License/Auto VIN, MK900BT provides faster speeds and more accurate results th.an OE scanners, stronger tha.n MS906 MP808 MP808BT MK808S MX808S on scanning.
As updated ver. of OBD2 code reader MK808S MK808, Autel MK900BT auto diagnostic scanner offers 40+ service for mechanics solve issues on 10,000 vehicles. Hottest Services like: Oil Reset, ABS Bleed, SRS, Throt.tle Reset, Gearbox Reset, Battery Matching etc. Added advanced resets: occupan.cy se.at dete.ction, rain s.lash light sensor reset, H.V.A.C/ S.U.S calib.ration etc.

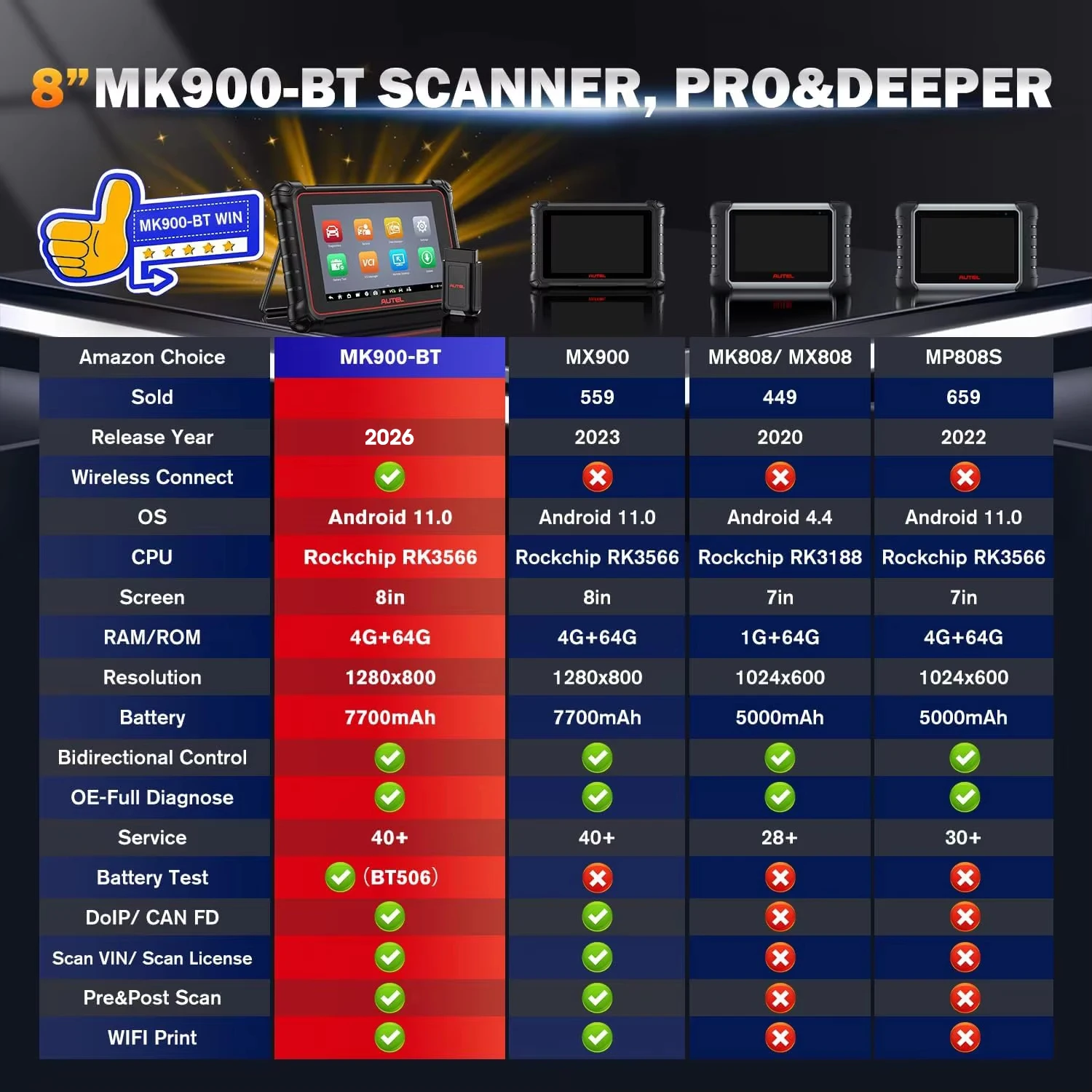

The newest-level version

Autel MK900BT beats MS906 MP808 MK808S MX808S. It adopts ; Android 11.0 OS ; RK3566 Rockchip CPU; 4G&64G; 5&2.4GHz WIFI; 7700mAh Battery, responds quickly for data transmission, just seconds are needed for the diagnostic results displaying. The enhanced V150 Blueto-oth OBD dongle tucks away inside the MK900-BT, stable and efficient, No more tethe.red to the wheel.

Specification

Operating System：Android 11
Processor：Quad core Processor(1.8GHz)
Memory：4GB RAM &64GB ROM
Display：8-inch LCD capacitive touchscreen with 1280x800 resolution
Rear Camera：8 MP
Connectivity：USB Type-C，USB 2.0 Wi-Fi
Mini SD card (supports up to 64GB)
Audio Input/Output：Input: N/A，Output: buzzer
Power and Battery：3.7 V/7700mAh lithium-polymer battery
Charges via 5 VDC power supply
Battery Charging Input：5V/3 A
Operating Temp：0 to 50°C (32 to 122°F)
Storage Temp：-10 to 60°C (14 to 140°F)
Protocols：ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD

Package List

1x MK900-BT tablet main unit

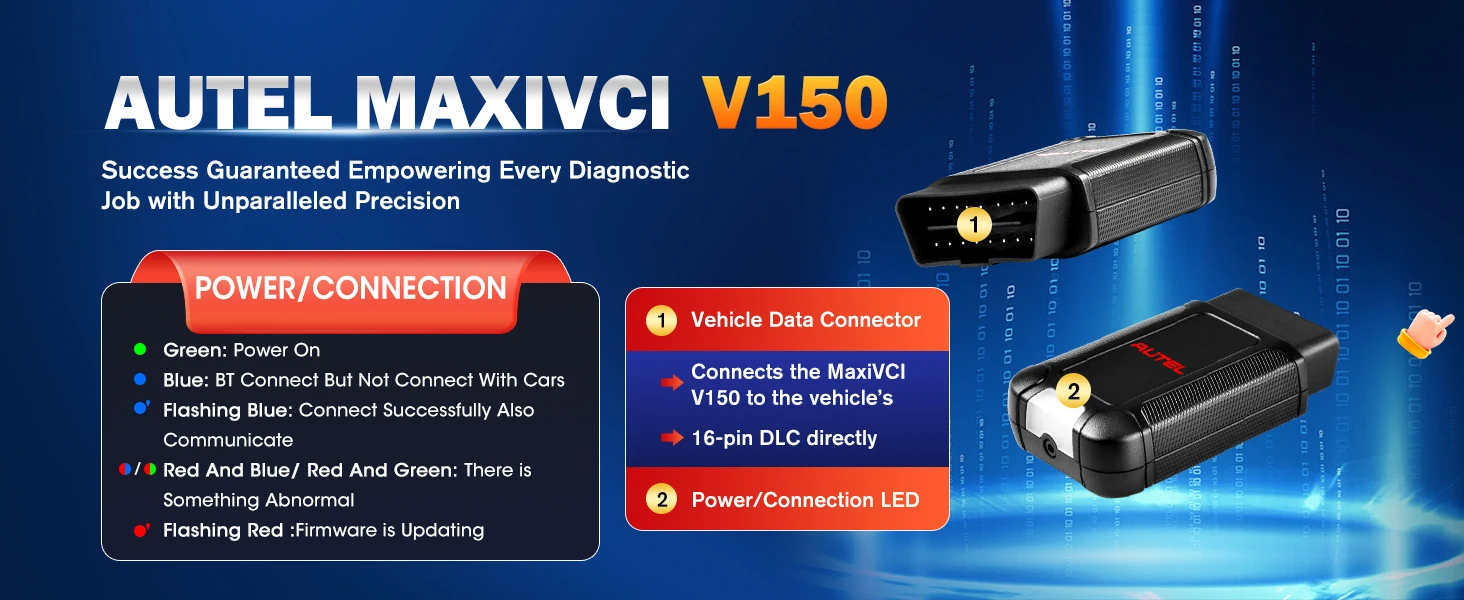

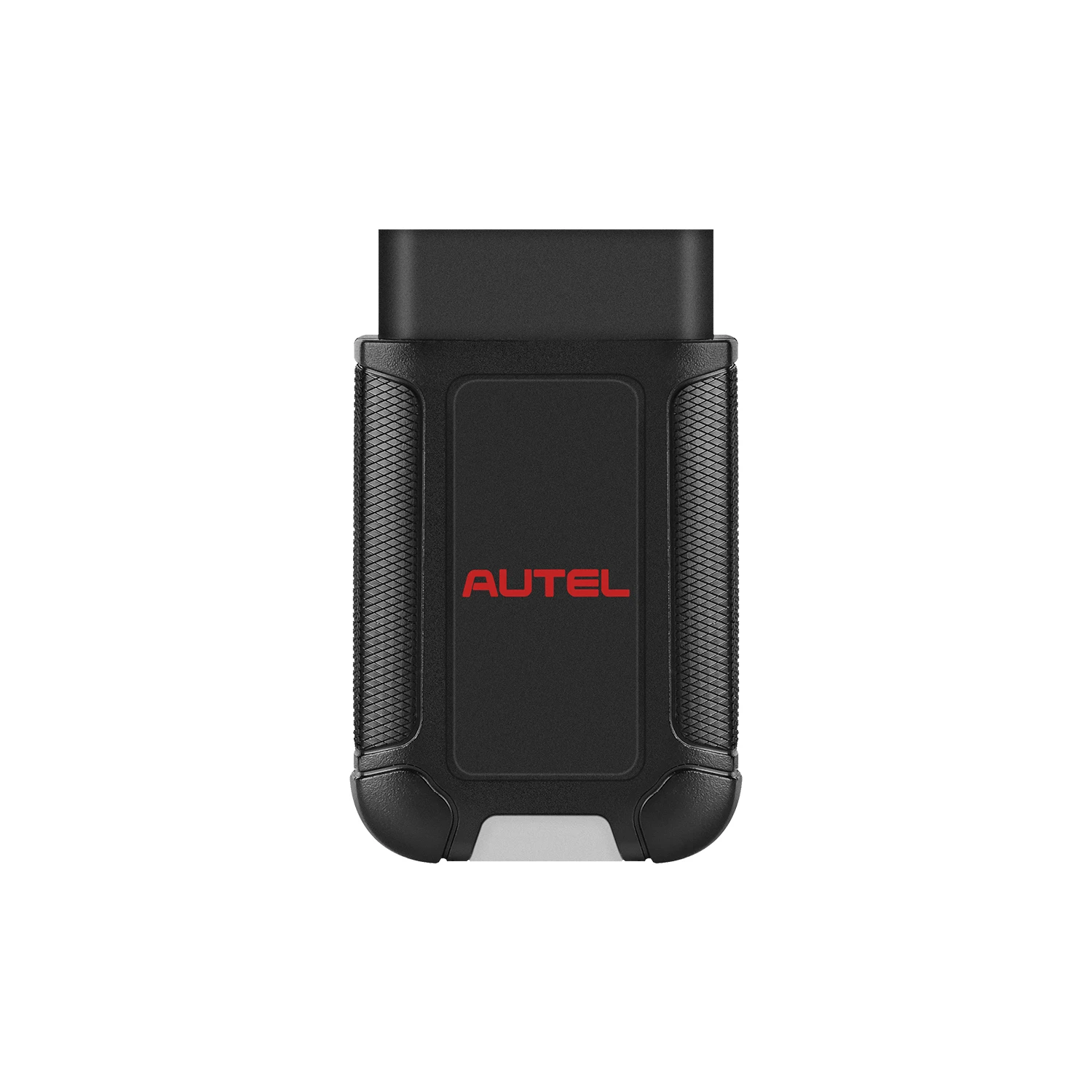

1x MaxiVCI V150
1x Power Adapter
1x USB Type-C Cable
1x Soft Cloth
1x Quick reference guide

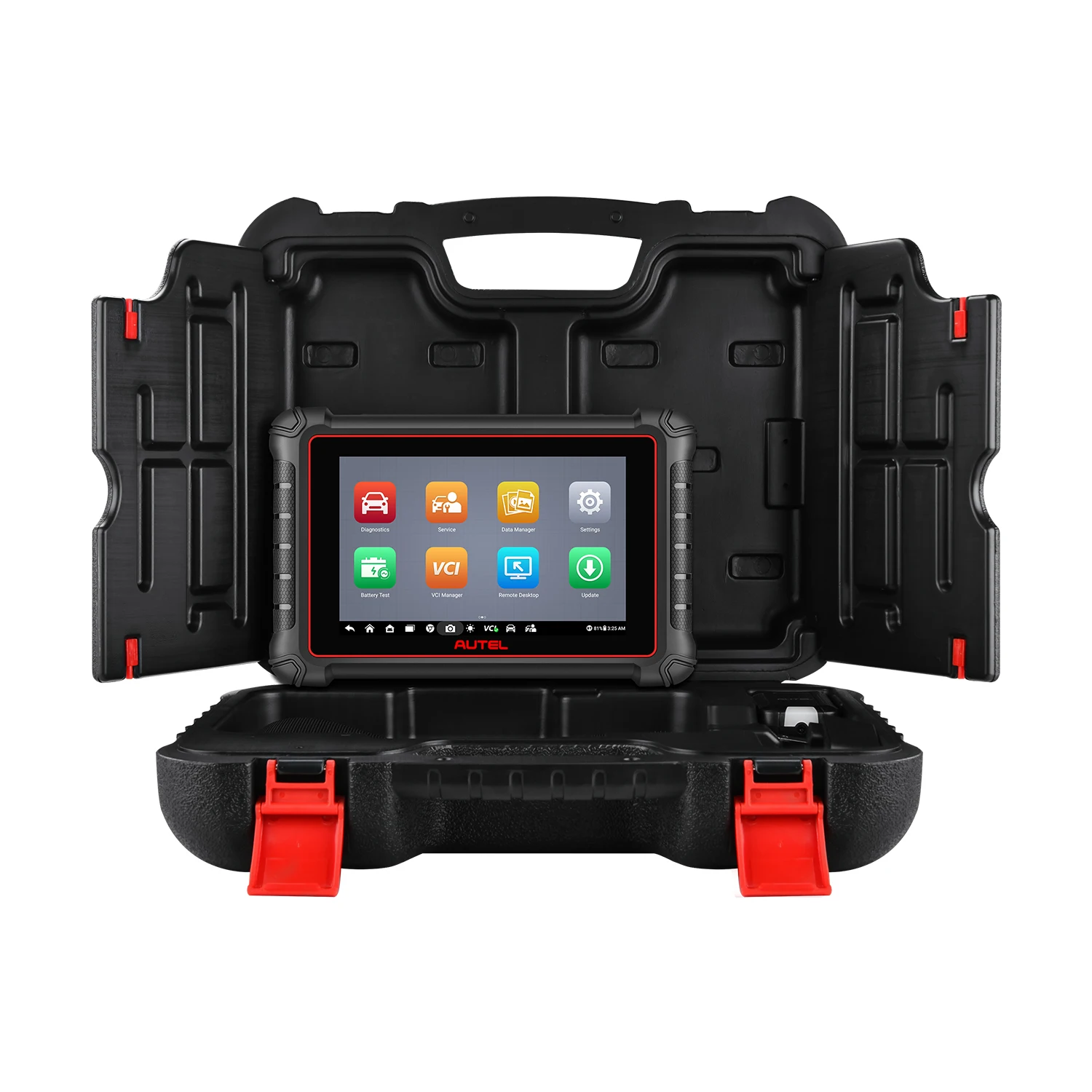

1x Carrying Case
1x Packing List
