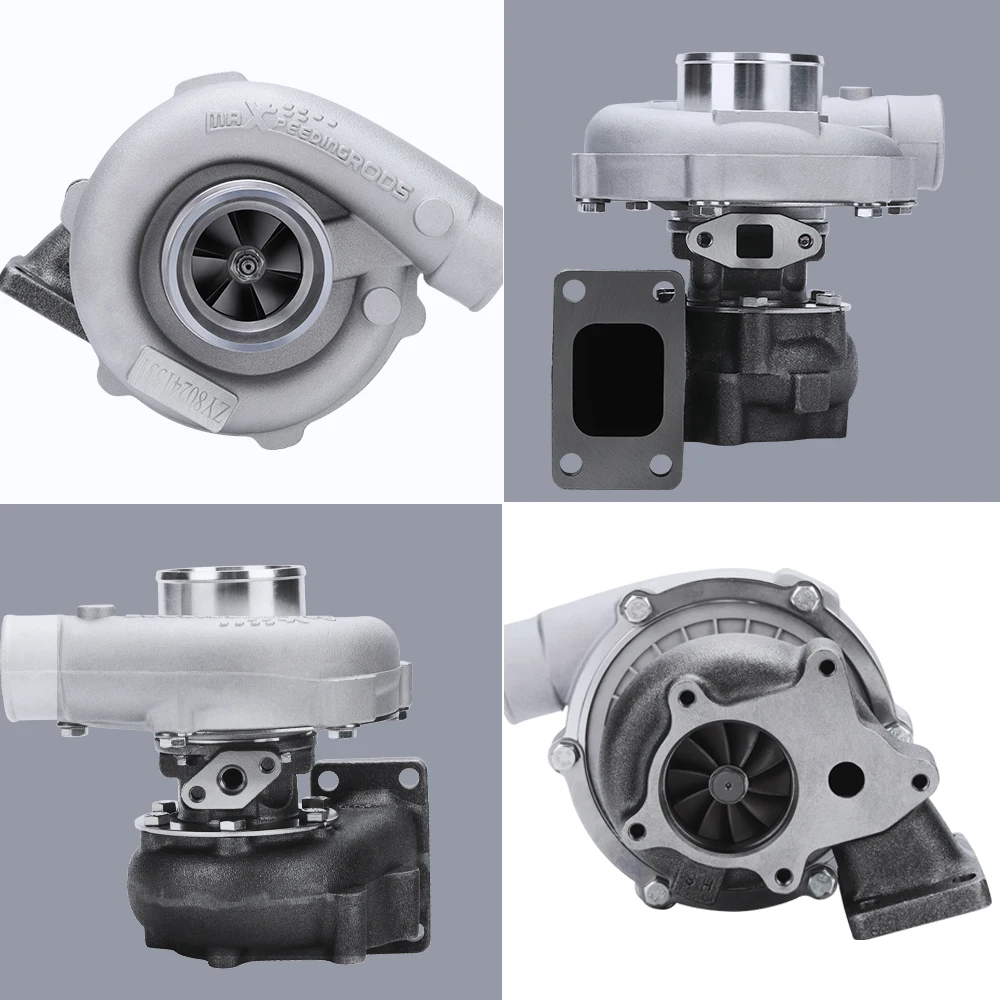

T3 T4 T04E .57 A/R Universal 5 Bolts Turbo Turbocharger for 1.5L to 2.5L 400HP T3 Flange

Legal Note: Not For Sale or Use in California, or New York.(for all vehicles registered in these states)

Universal T3/T4 T04E .57 A/R Turbo Charger for 1.5L to 2.5L engine Oil CooleFit for:

This item fits:   Universal Application ( Modification might be required for some vehicles )

Compatible for 1.5L to 2.5L any 4/6 cylinder engine

Maximum PSI 18（1.2Bar）

Specific:

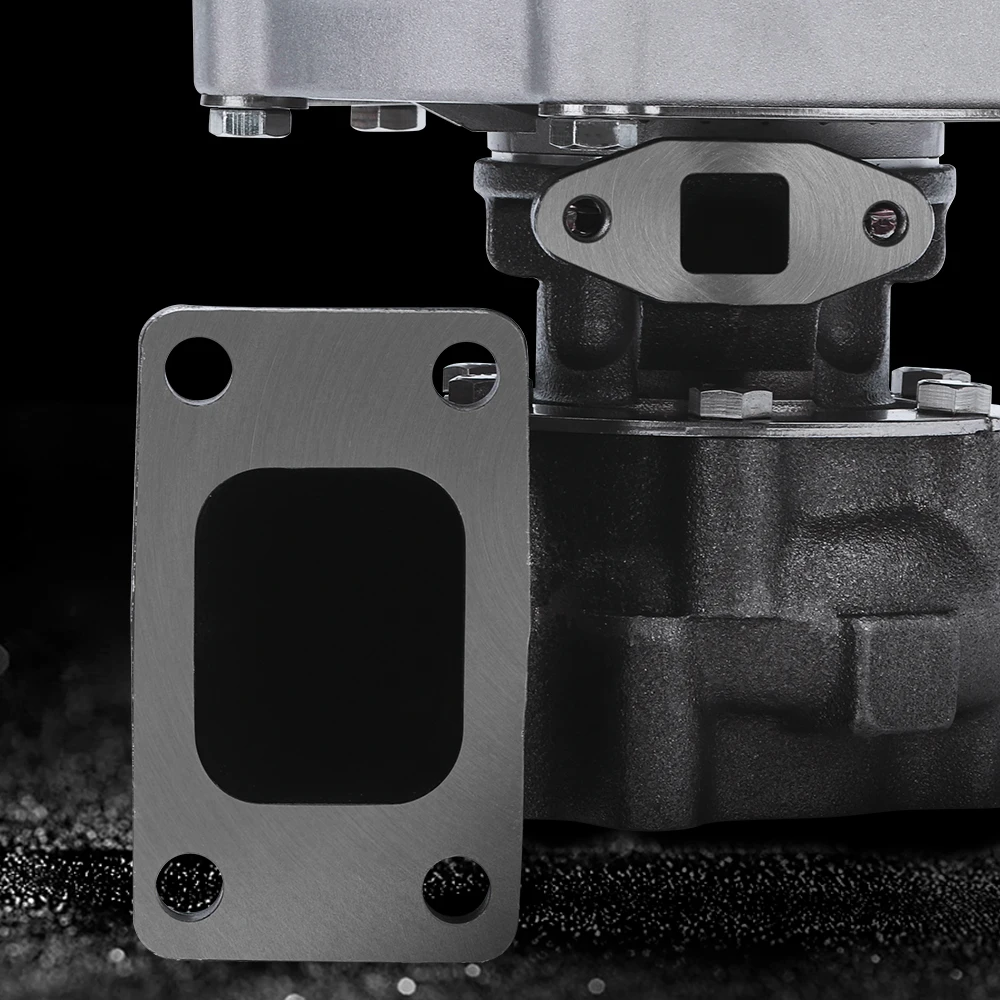

Exhaust (Turbo Manifold) Flange:   T3 T4 4 bolt Flange Patterns

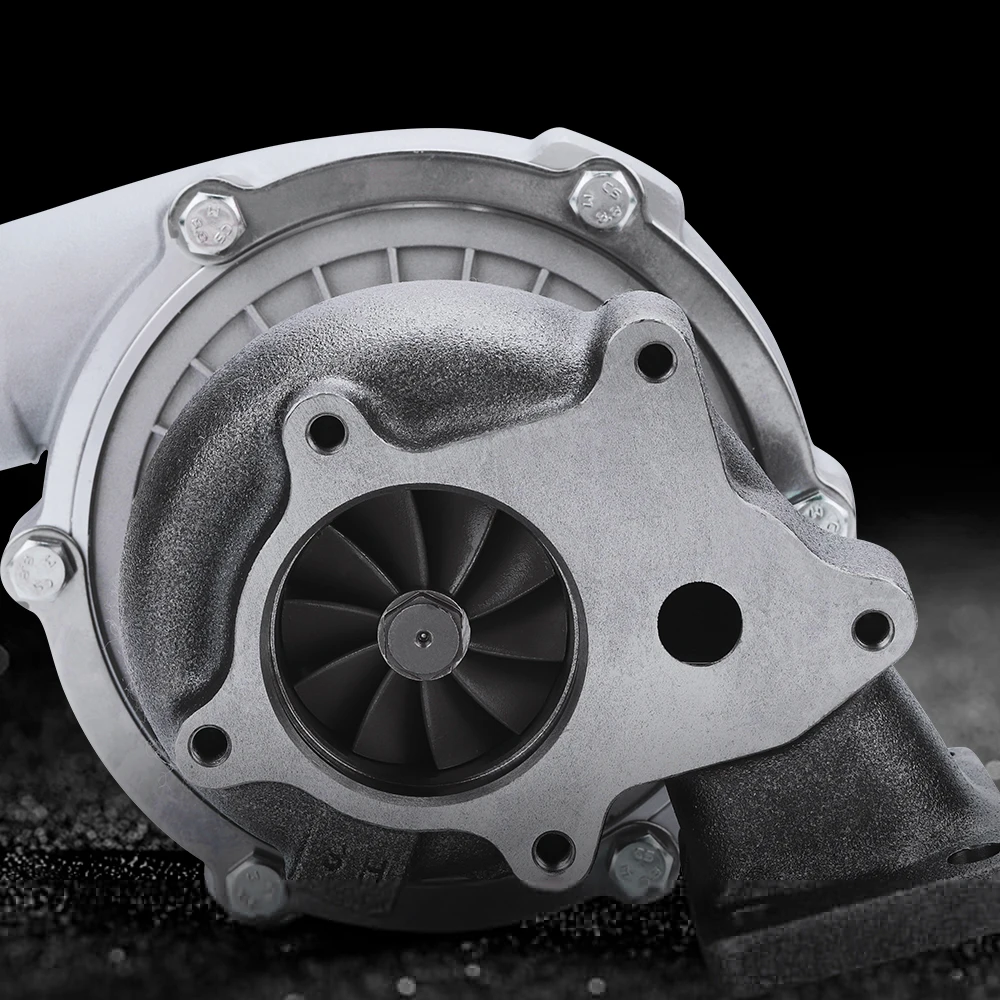

Exhaust (Downpipe) Flange:   Standard T3 5 bolt downpipe flange pattern

Cooling Type:    Oil Cooled

Wastegate:Without Wastegate

Horse Power:   Boost Horse Power up to 300+HP

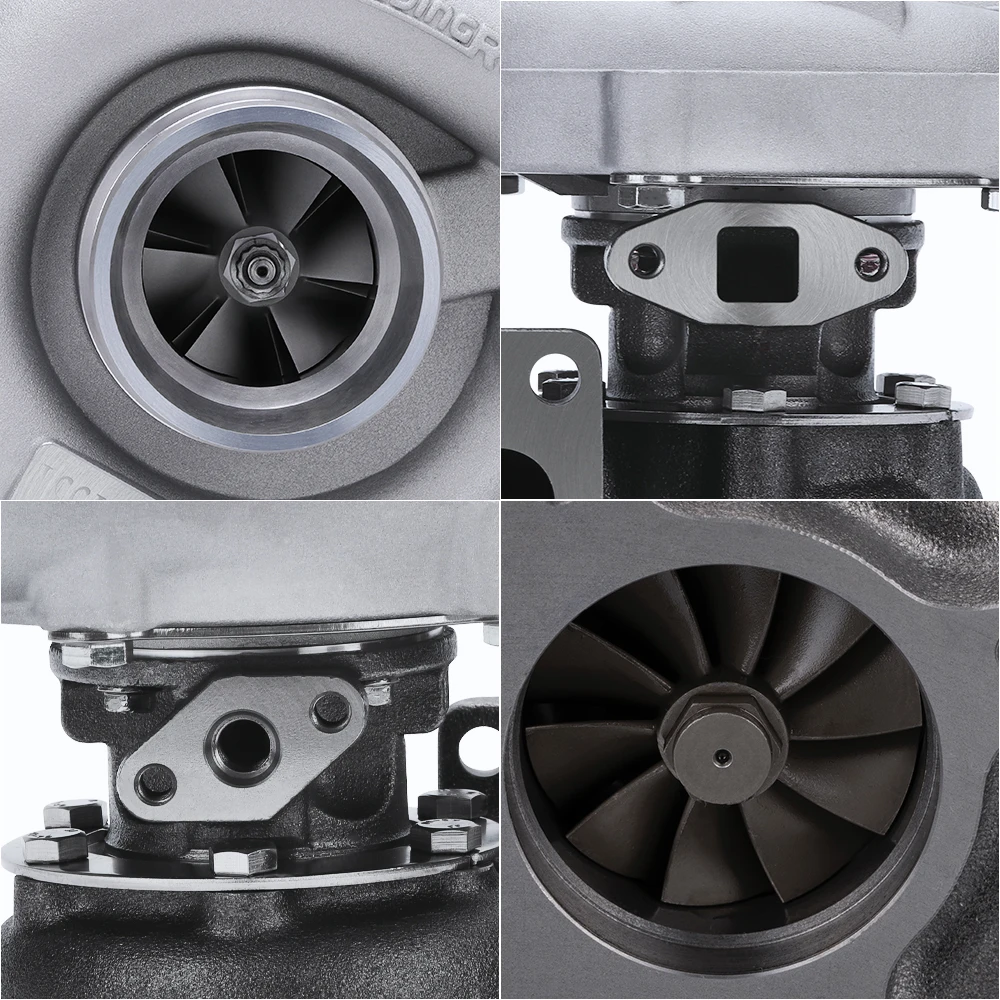

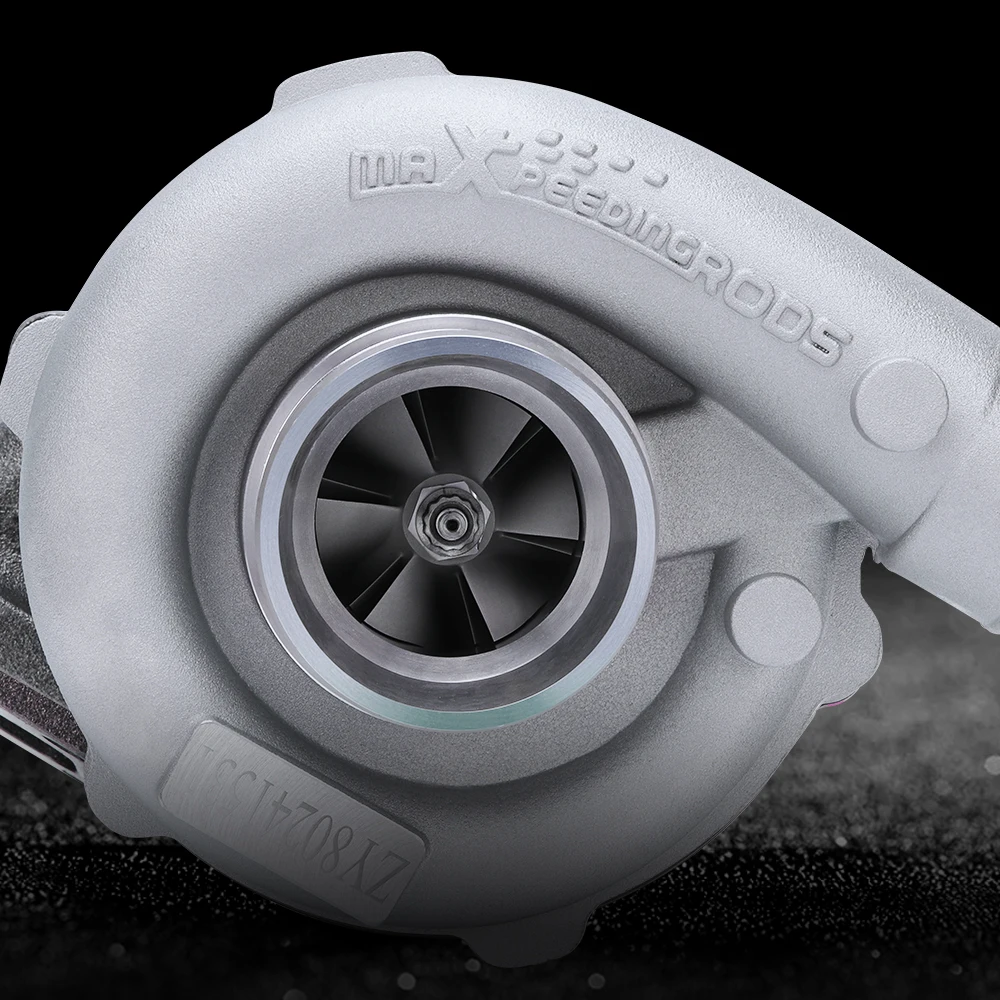

Compressor:

Trim: 44

A/R: 0.5

Inducer: 50.5

Exducer: 76

Turbine:

Trim: 73

A/R: 0.57

Inducer: 65.5

Exducer: 55.9

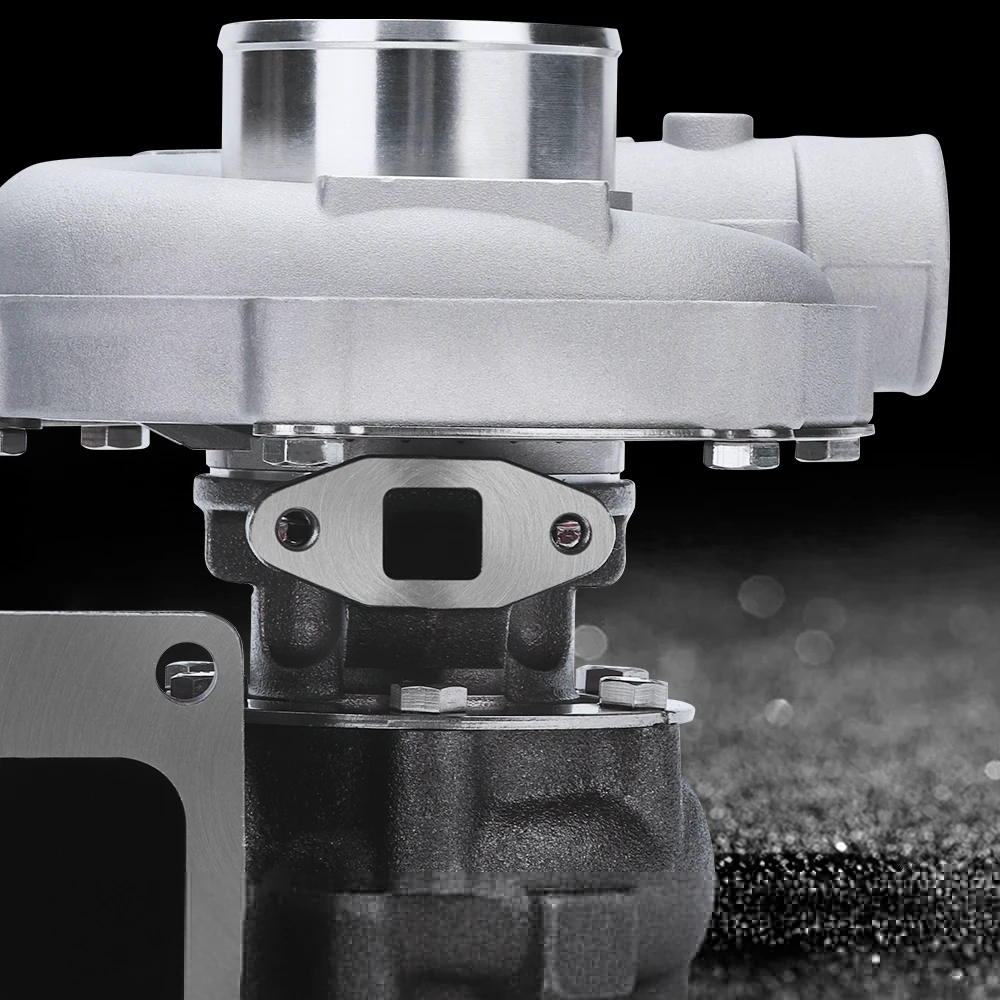

Oil Inlet: M12*1.25

Oil Outlet:2*M8*1.25

Condition:Brand New

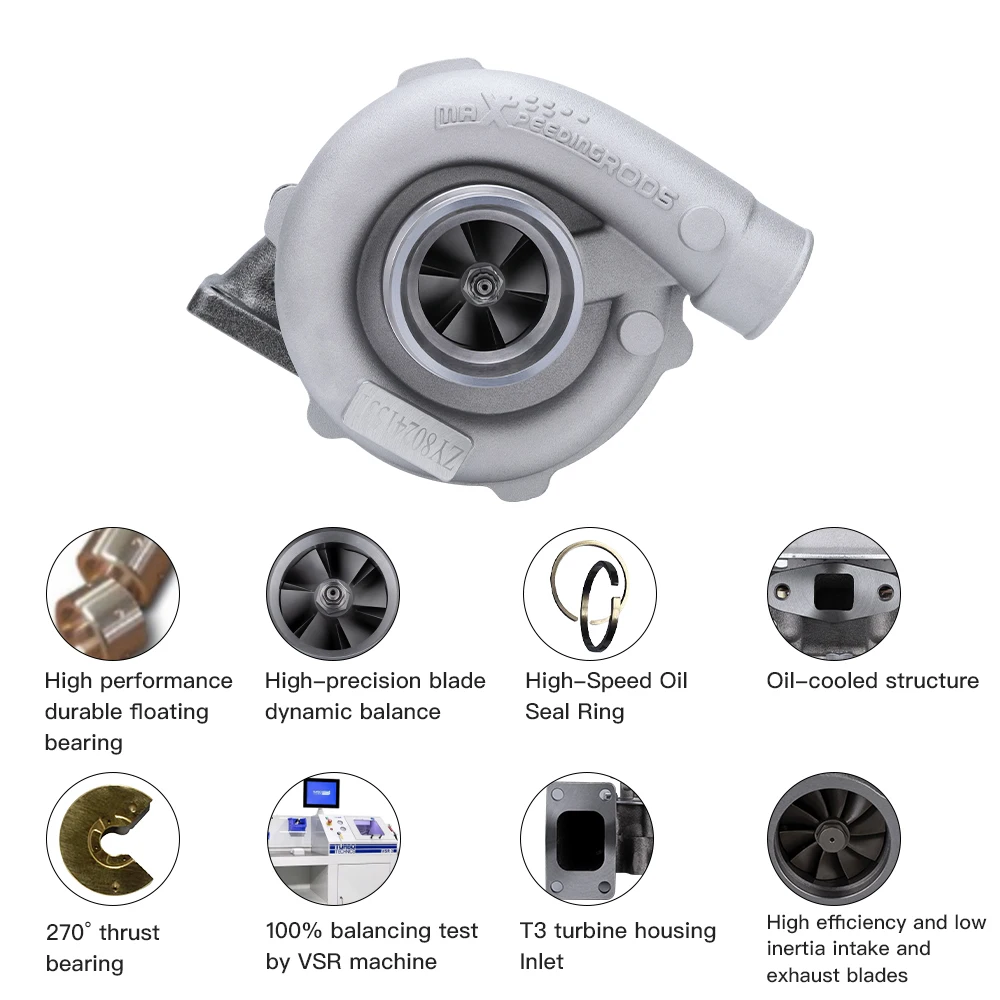

Bearing Type:Floating Bearing

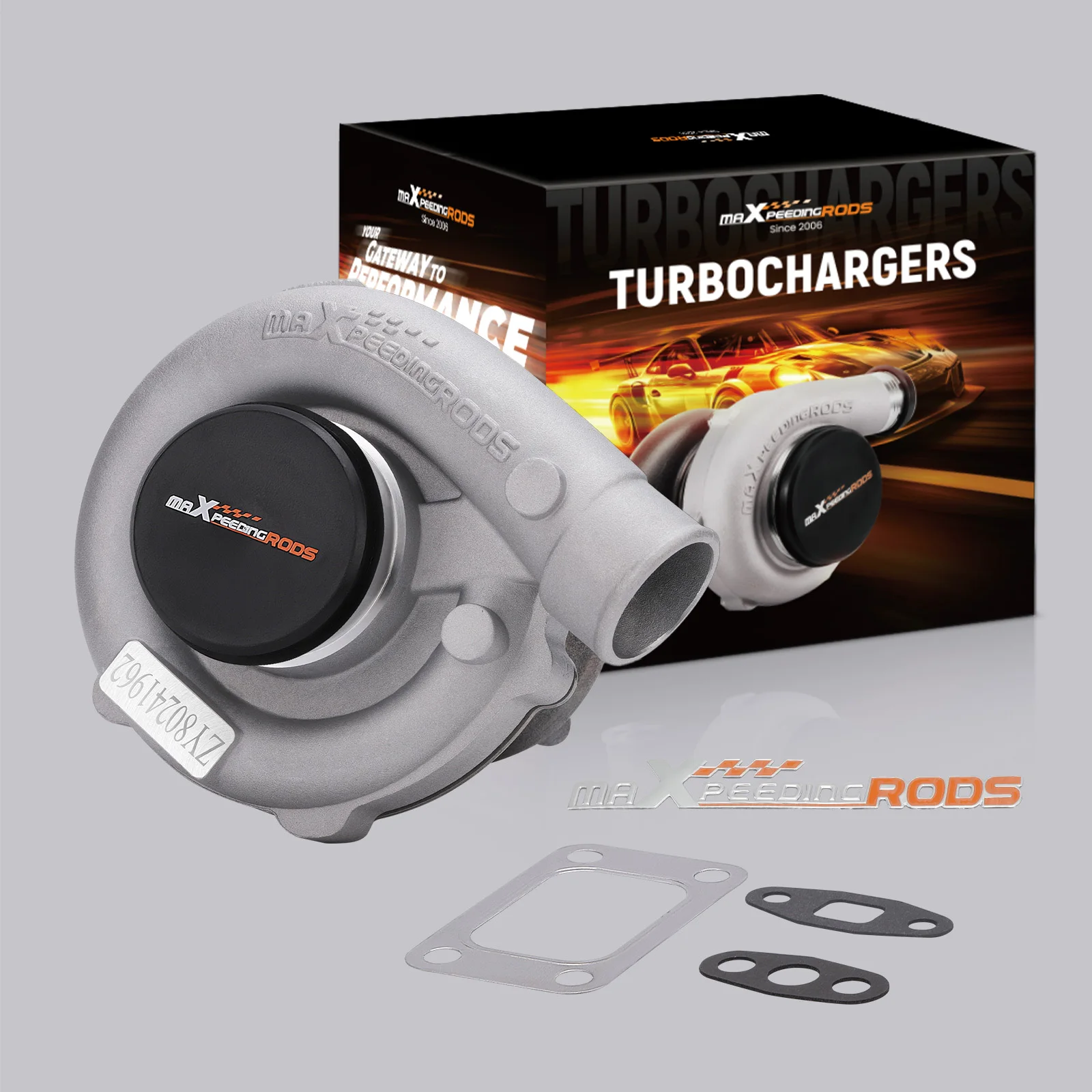

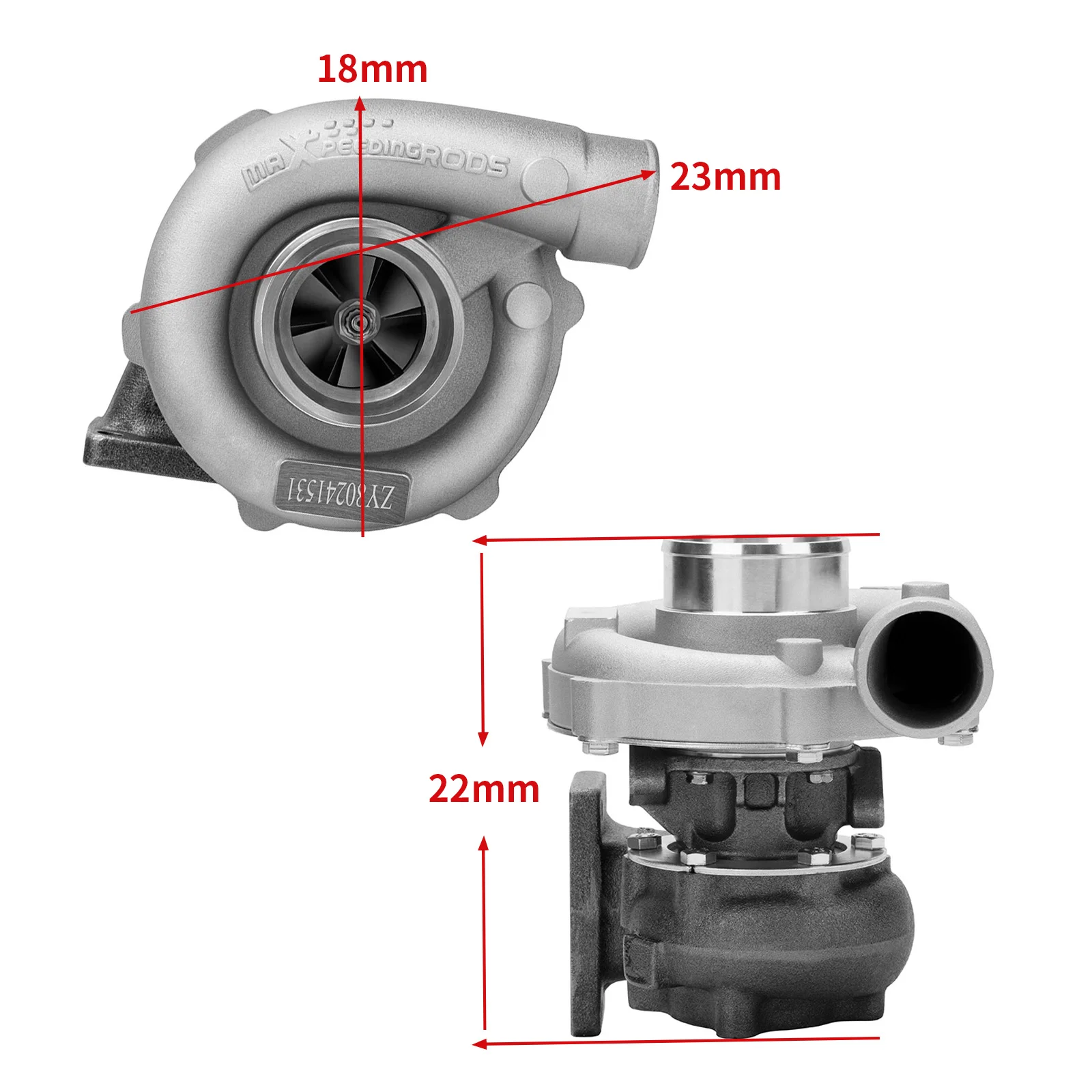

Accessories:You will get exactly as shown in the picture above

Key Features:

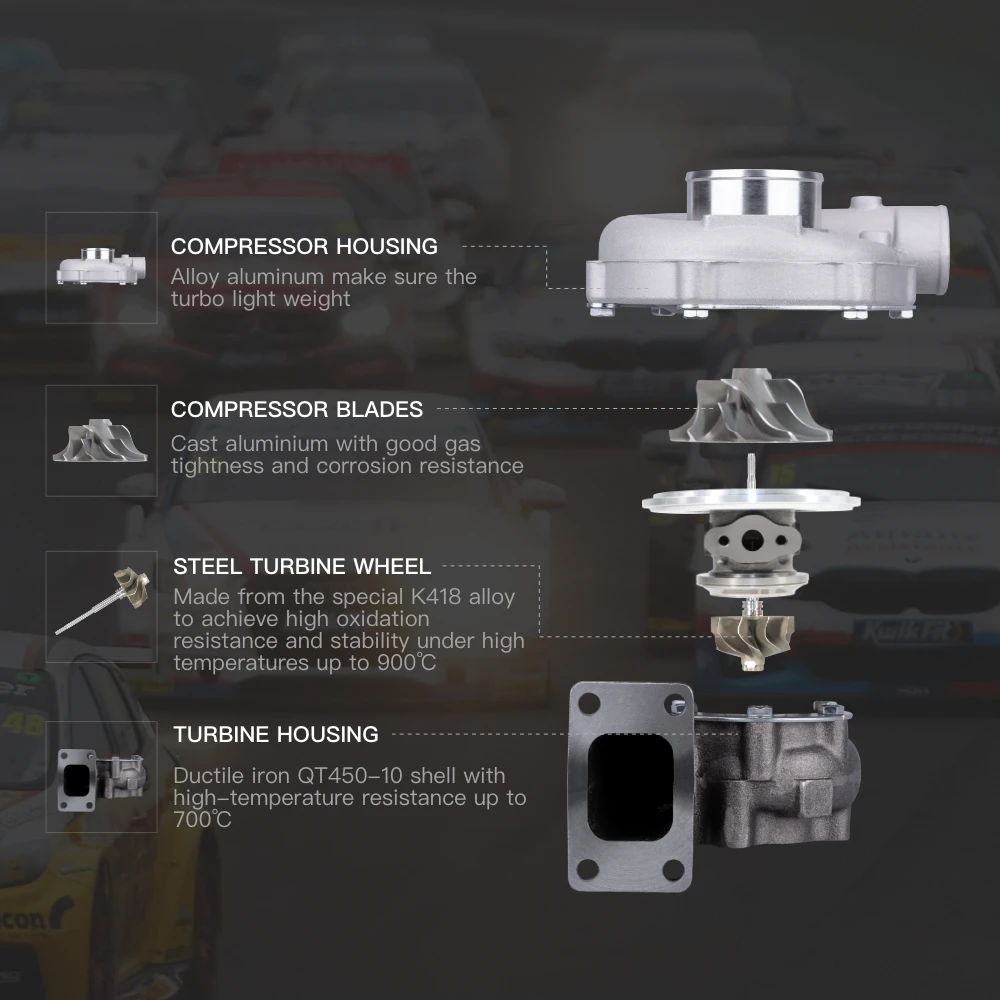

* High Quality Material, Cast Housing with Durable Steel

* Boost Engine Horsepower Significantly

* Increase Engine Power and Torque Outpout;

* Maintain Combustion Chamber Pressure and Fuel/Air Load

* Contructed with High Quality Material

* Built for Durability and Strength

Tips before installing:

1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.

2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.

3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately. Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.

NOTE:

* Professional installation is highly recommended (No Instruction Included)

* For any needs please contact us
