GODIAG ECU GPT Boot OBD2 ECU Diagnose Read & Write Adapter Work with Openport GT100 J2534 Standard OBD2 Protocol

GODIAG ECU GPT Boot AD programming adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GTP Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFLash software.

Features:

1. ECU dedicated connection terminal.

2. Support manual ignition power control

3. The ECU interface cable is labeled

4. Support ECU conversion to OBD2 mode to read and write data

5. Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.

6. Support PCMFlash automatic control of ignition power supply

7. Support ECU opening BOOT method to read and write data

8. CANbus is equipped with a switch to freely select the 120Ω resistor

9. Support GPT to read and write data without disassembling the ECU.

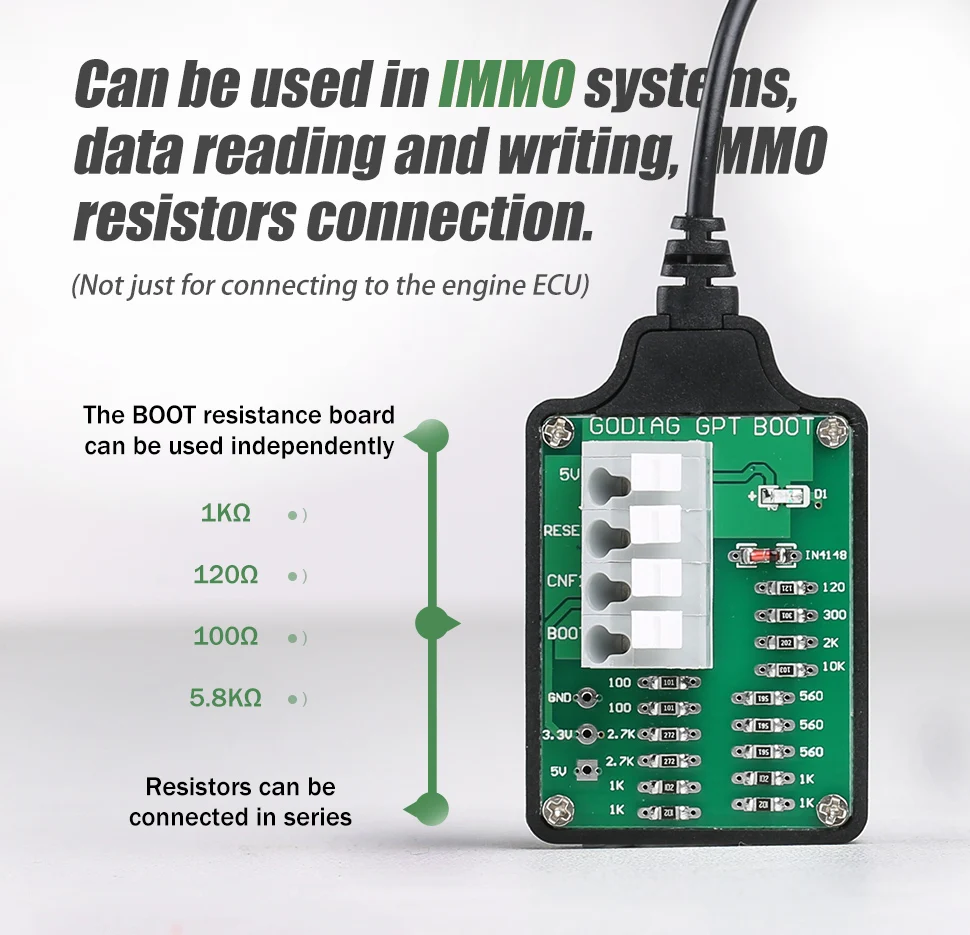

10. Equipped with BOOT resistance board connecting cable [anti-lost resistor design]

Functions:

Diagnostic function supports standard OBD2 protocol equipment.

Supports ECU reading and writing data, and supports J2534 devices.

Only Scanmatik 2 PRO for PCM-flash allows to form GPT1, GPT2 signals necessary to work with Module71.

Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR,

Teradyne GNA600 (VCM 1), for Mazda VCM 2 supports OBD2 or BOOT 53 mode to read and write ECU data

Package Includes:

1pc x GODIAG ECU GPT Boot AD Programming Adapter

8pcs x Soft Silicone Wires
