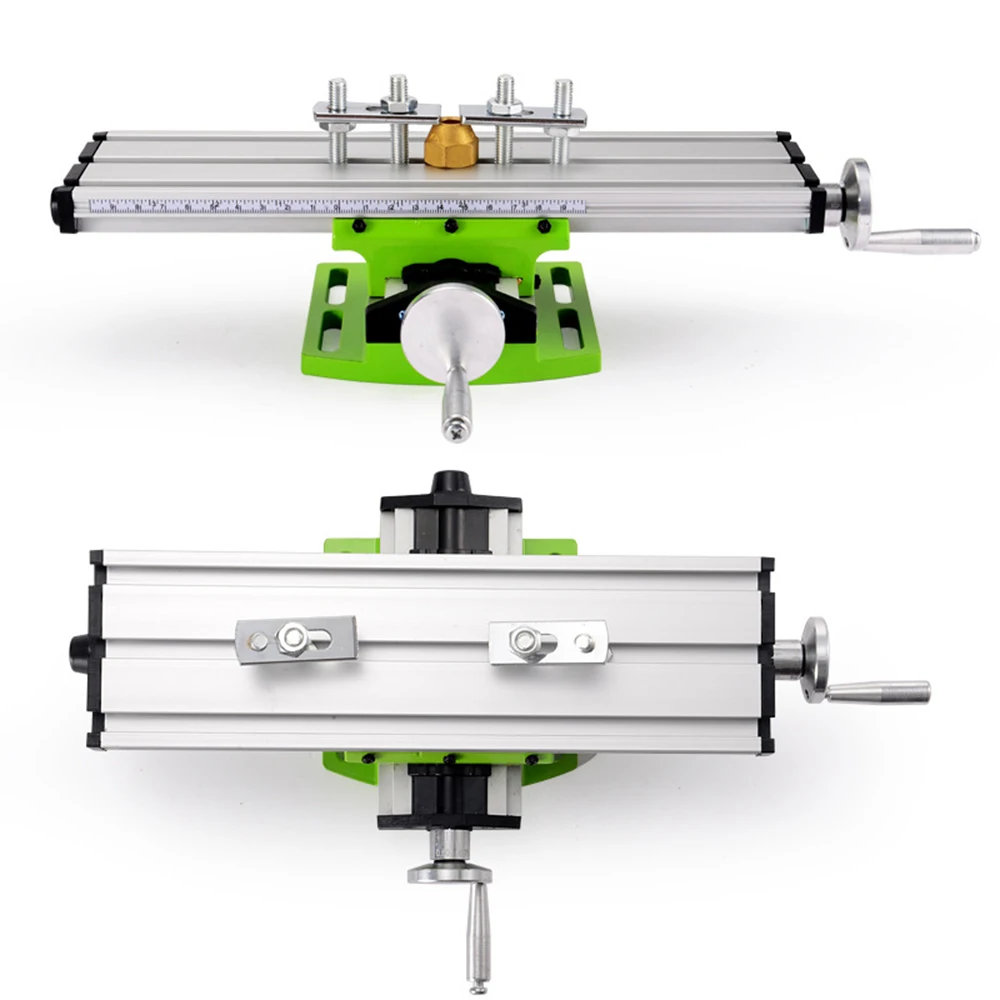

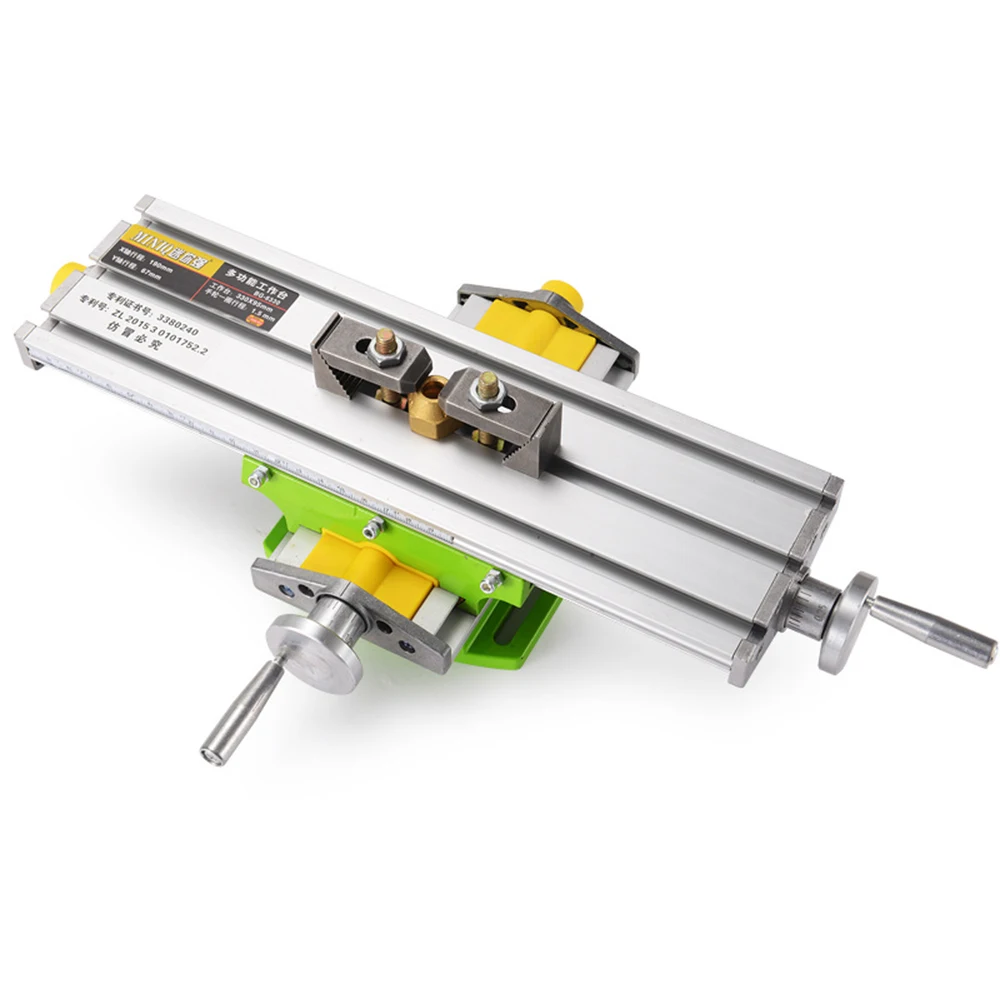

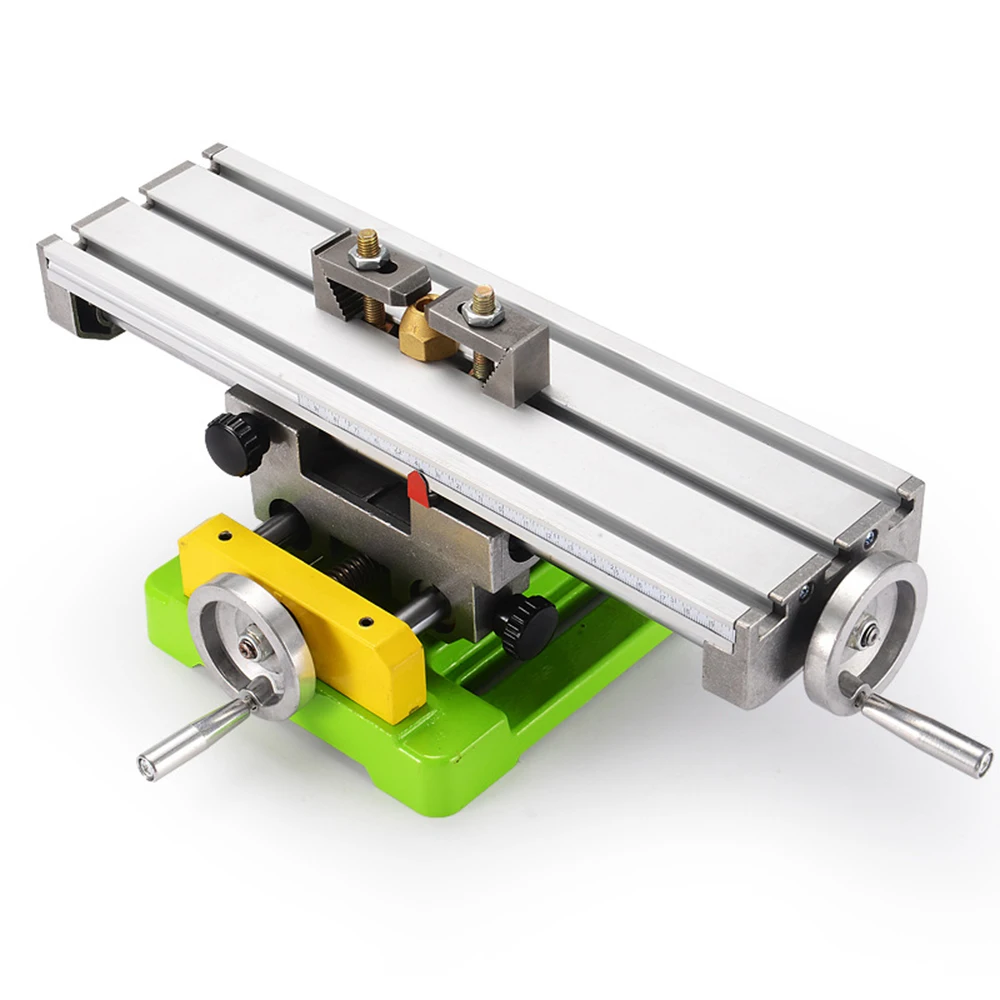

ALLSOME MINIQ Multifunction Drill Vise Fixture Working Table Mini Precision Milling Machine Worktable

Features:

The table is suitable for Mini Drill and drill bracket series.

It can also apply to other suitable machine.

The work table is composed of several adjustable dovetail slotaluminum alloy composition, can guarantee the minimumspace and ensure the accuracy.

The working table with three T shaped groove, standard size is 15x8x6mm.

Scale is in front of the movable positioning.

Zero adjustment handwheel rotates a circle of 1.25mm. A lattice is equal to 0.05mm.

The X axis Y axis distance is 200mm, the stroke is 50mm.

Working table size is 310x90mm and the height of 76mm, including two working clamp.

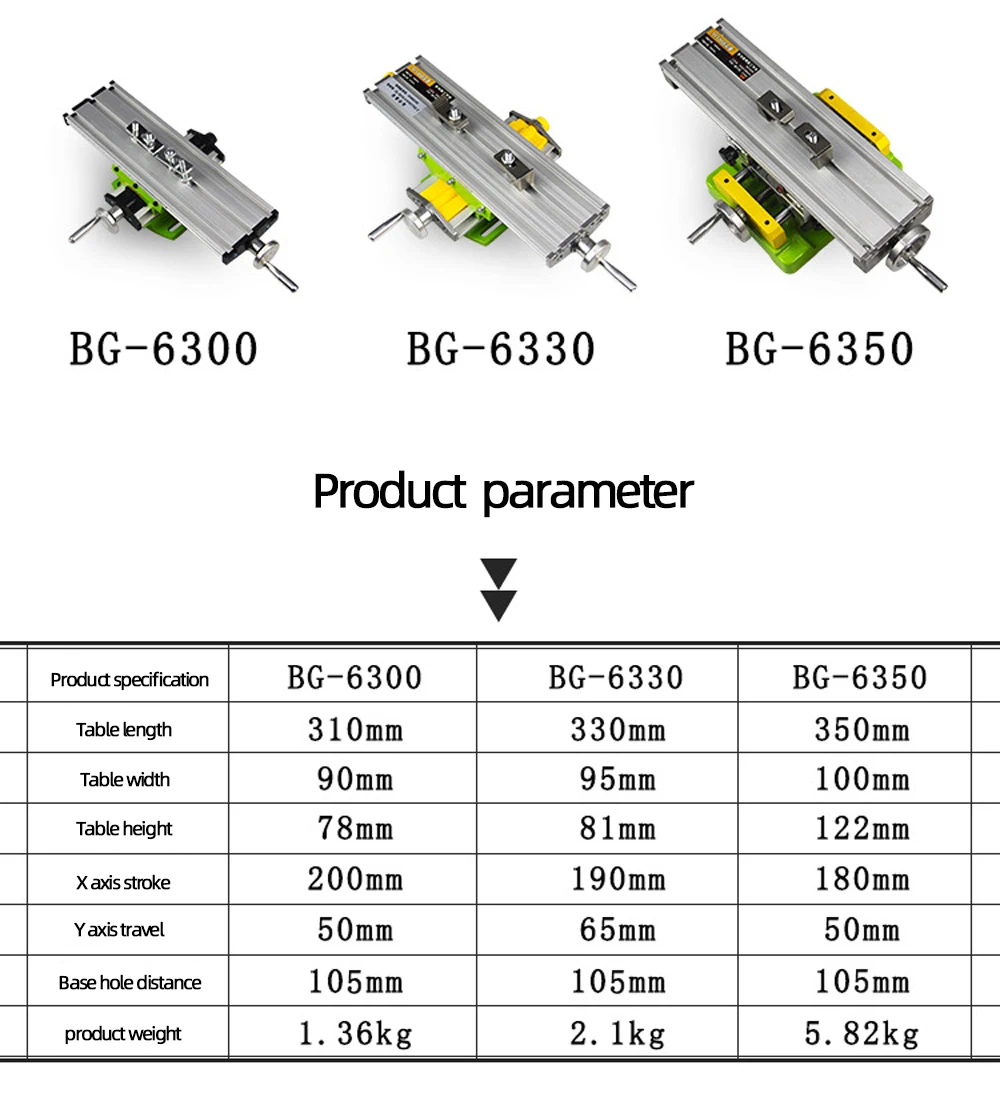

Specification:

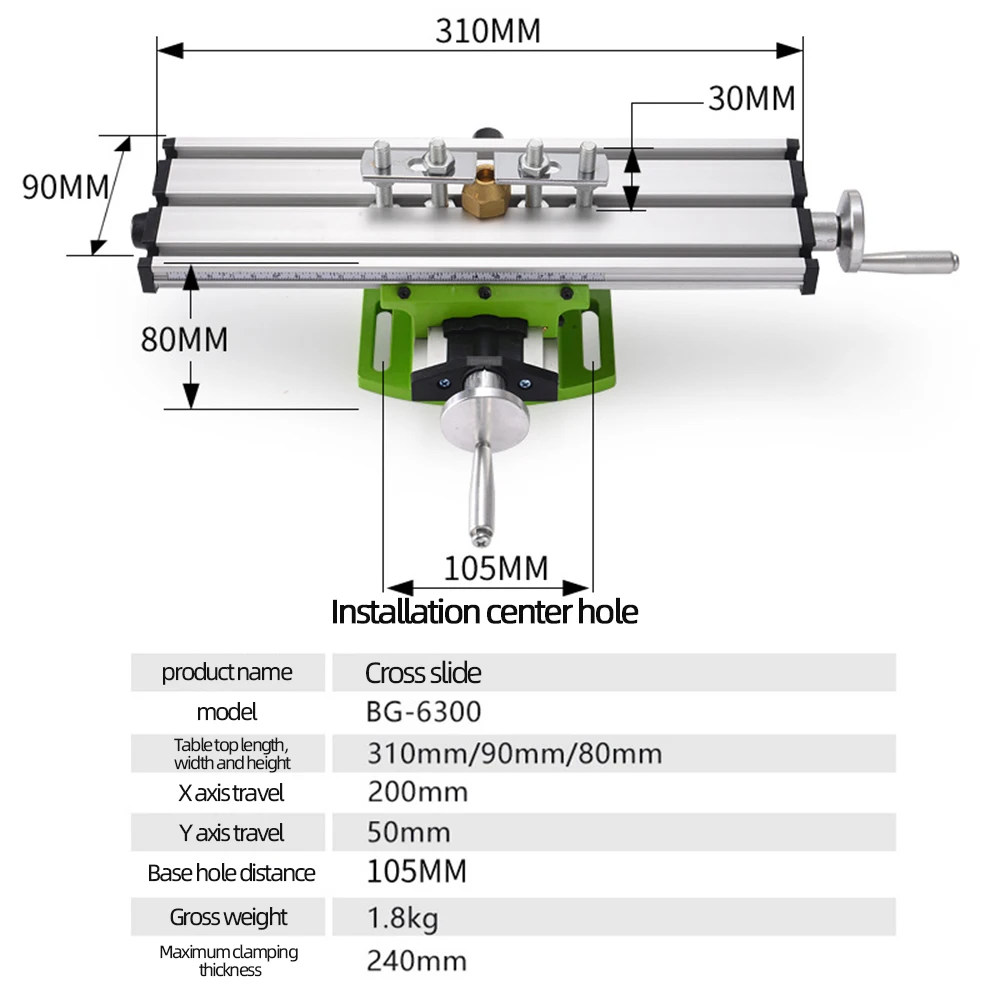

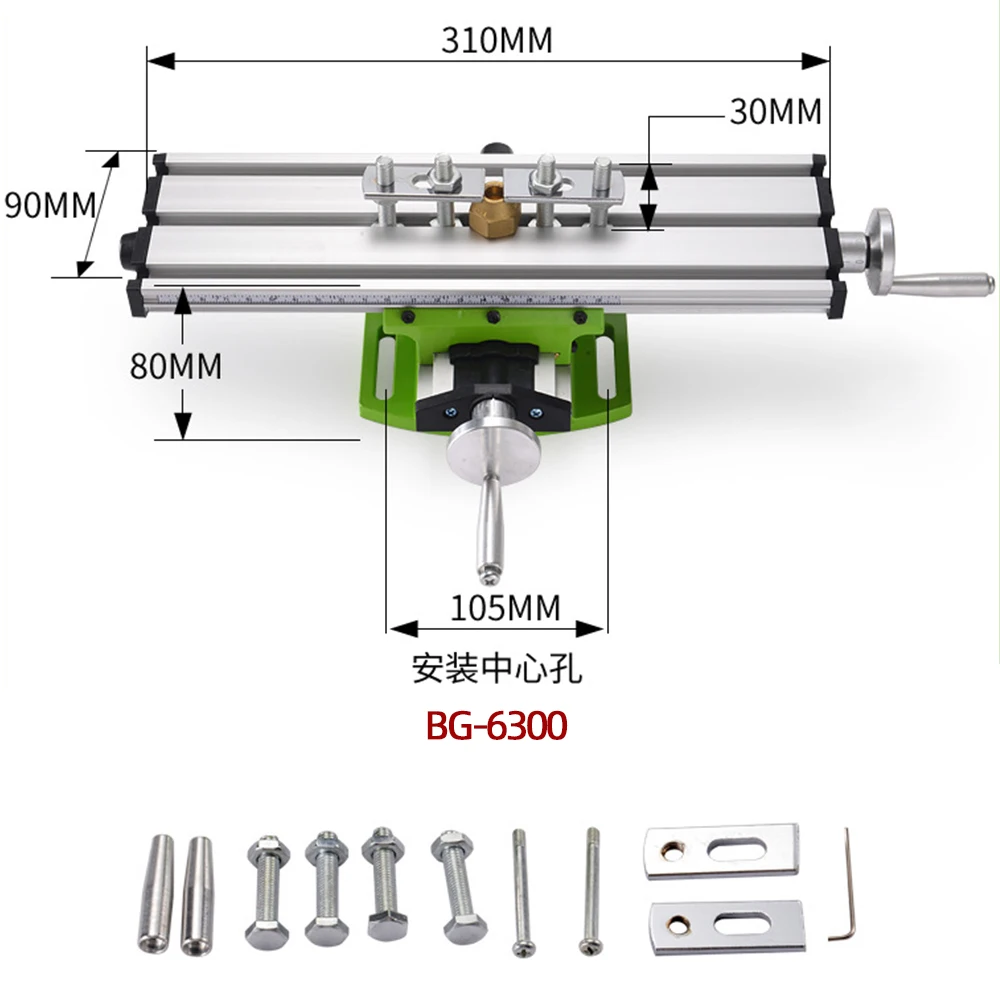

Model: BG6300

Table size: 300 * 90mm

X -axis travel: 200mm

Y-axis travel: 50mm

X Y-axis scale adjustment:

1 circle = 1.25mm

A subdivision marks= 0.05mm

The lead screws are M8X1.25

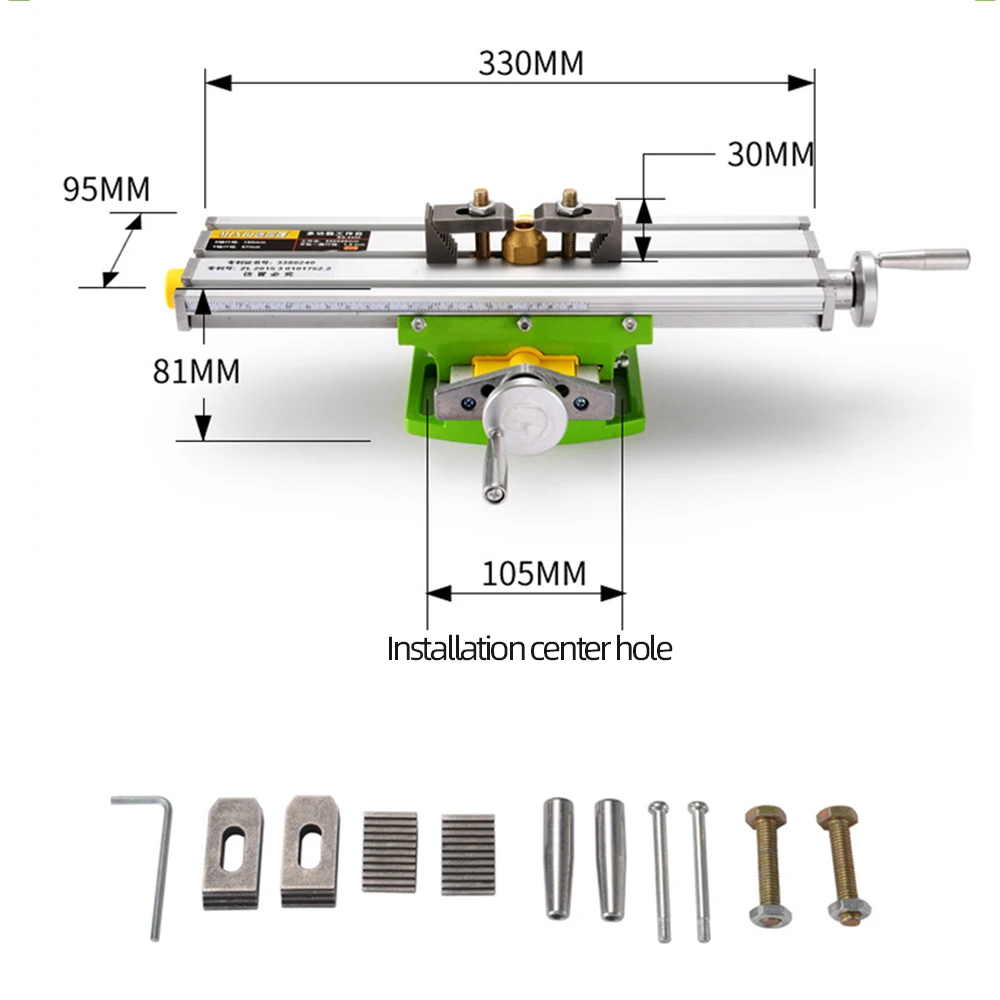

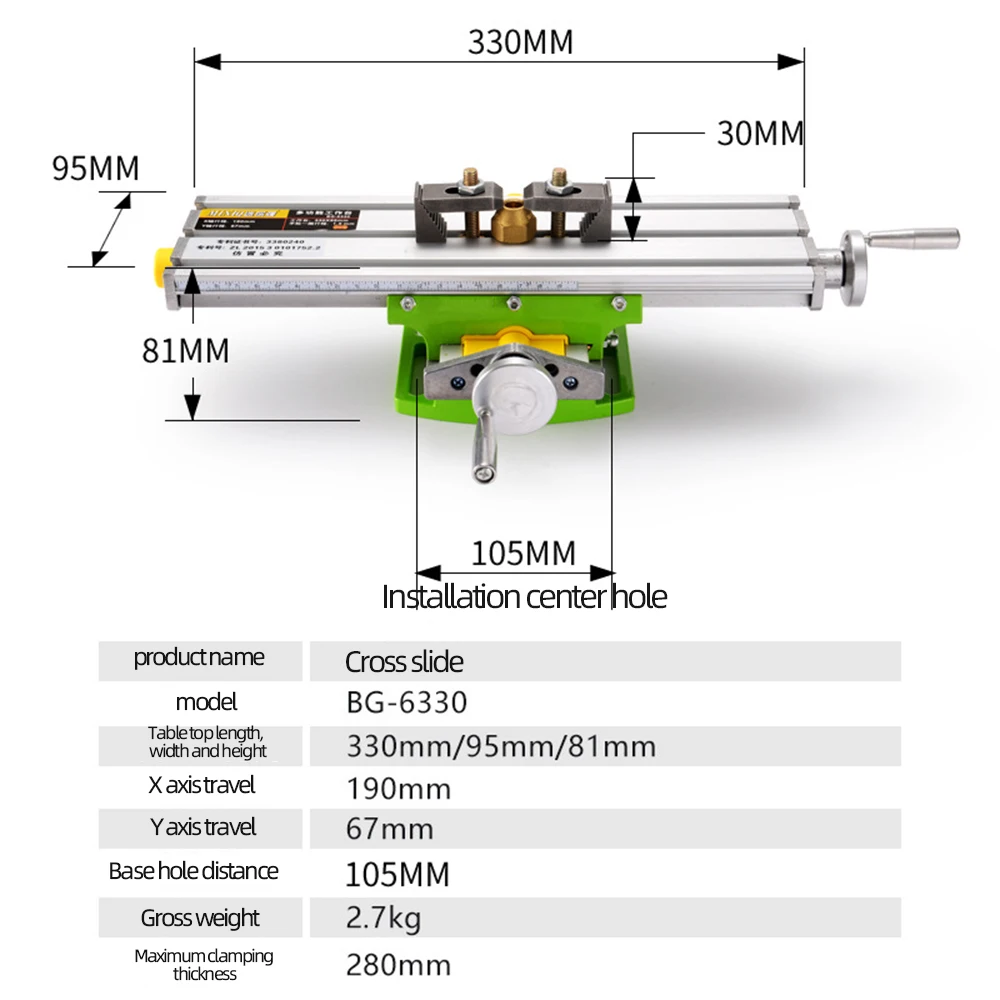

Model: BG6330

Table size: 330*95mm

Adjustable for X direction:190mm

Adjustment for Y direction:67mm

X Y-axis scale adjustment:

1 circle = 1.5mm

A subdivision marks= 0.05mm

The lead screws are M10x2

Apple to : Mini drill and drill bracket series and other suitable machine

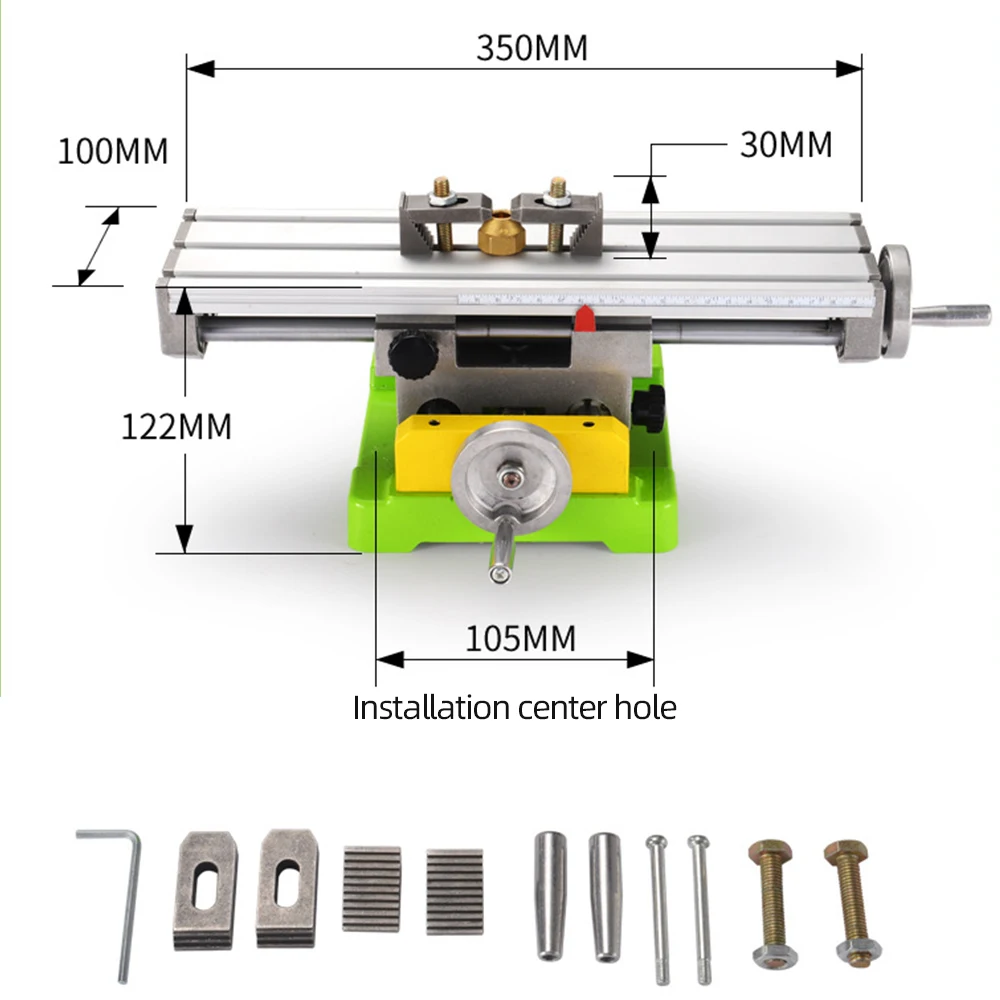

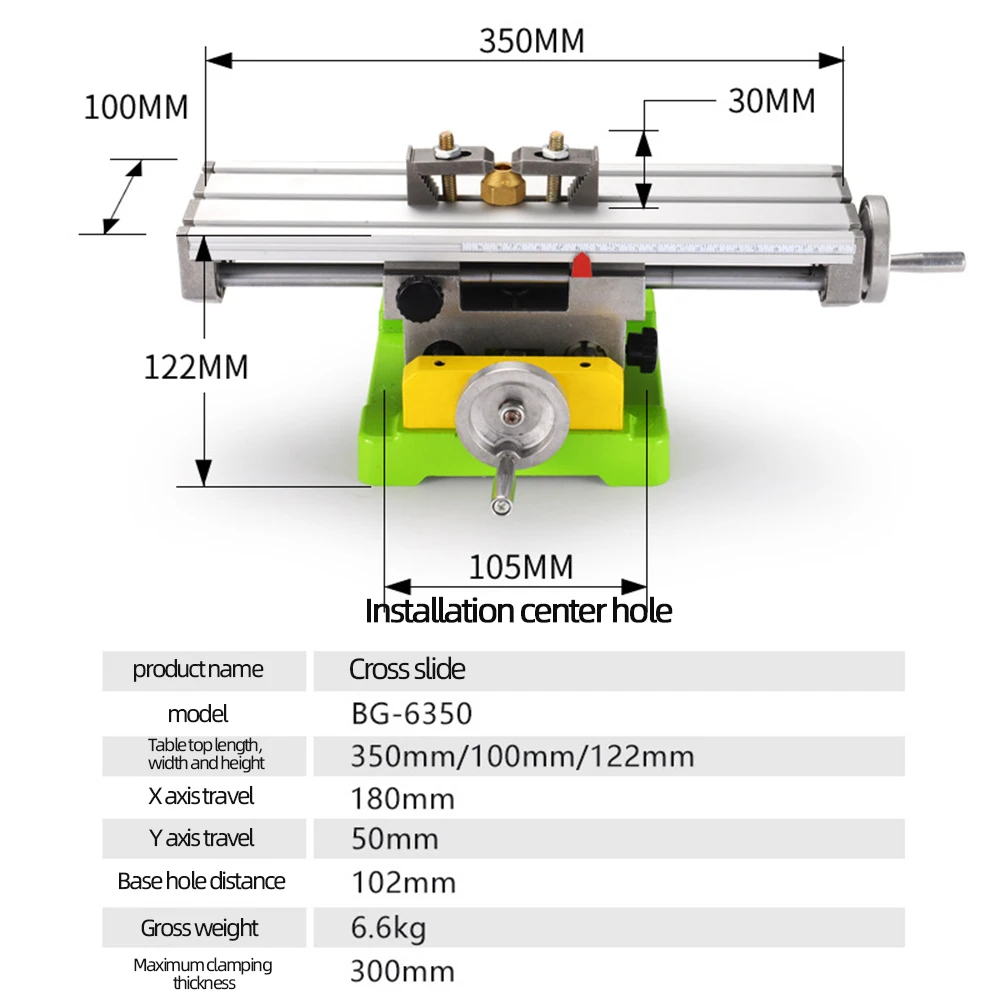

Model: BG6350

Table size: 350*100mm

Adjustable for X direction: 180mm
