U6 U6X Digital Fork Clamp Meter 600A Current Open Jaw Ammeter Multimeter DC AC Current Hz Electrical Tester Rechargeable Battery

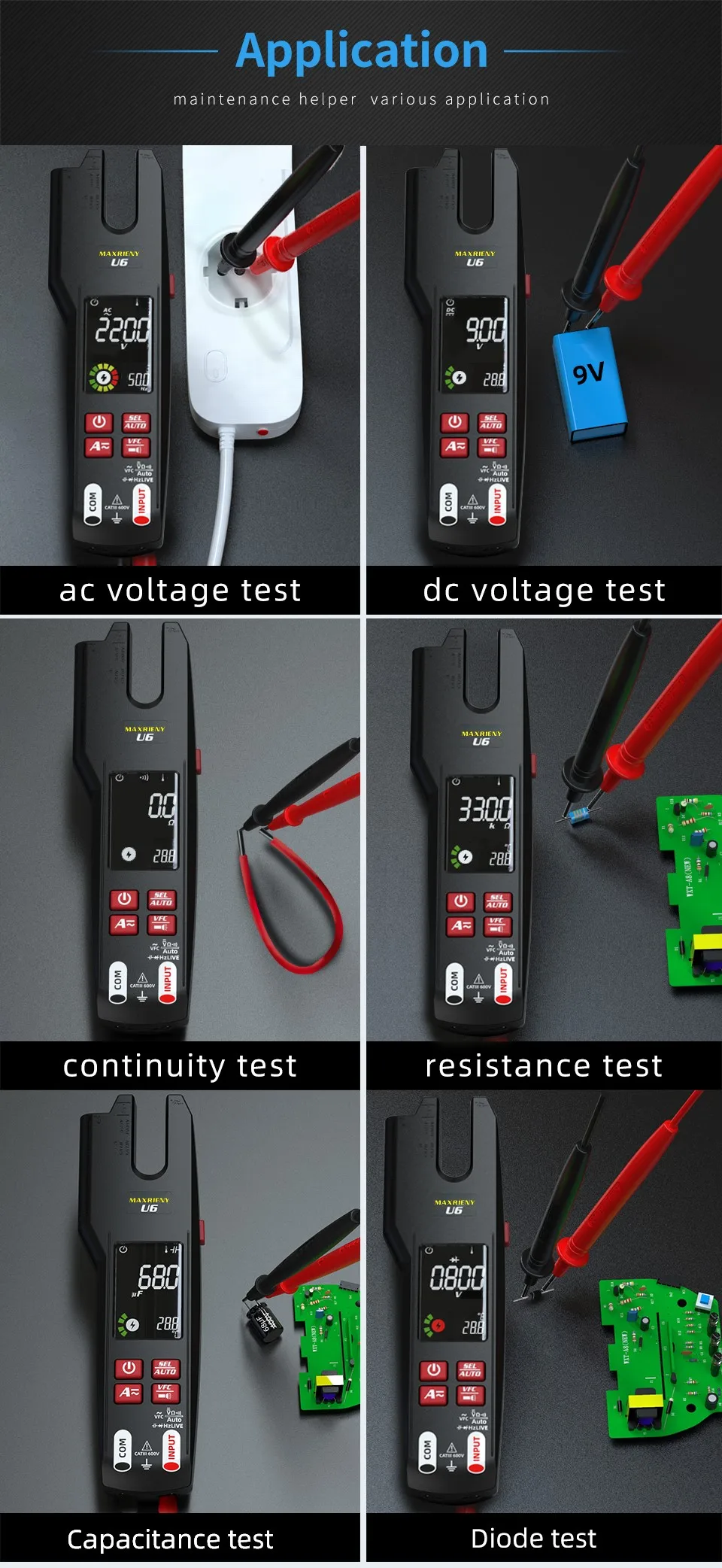

The new generation True RMS DC/AC 600A forked open jaw digital clamp watch. The OpenJaw design facilitates current testing and maintenance. Equipped with rechargeable batteries and compatible with 2 * 1.5V (AA) battery replacement power supply, providing longer power supply. Professional clamp type Ammeter, with infrared thermometer for measuring capacitance, VFC, diode, ambient temperature, AC/DC current, AC/DC voltage, resistance, frequency, continuity, V alarm, live check It is the best choice for professional electricians, engineers, electronics enthusiasts or home users

Features:

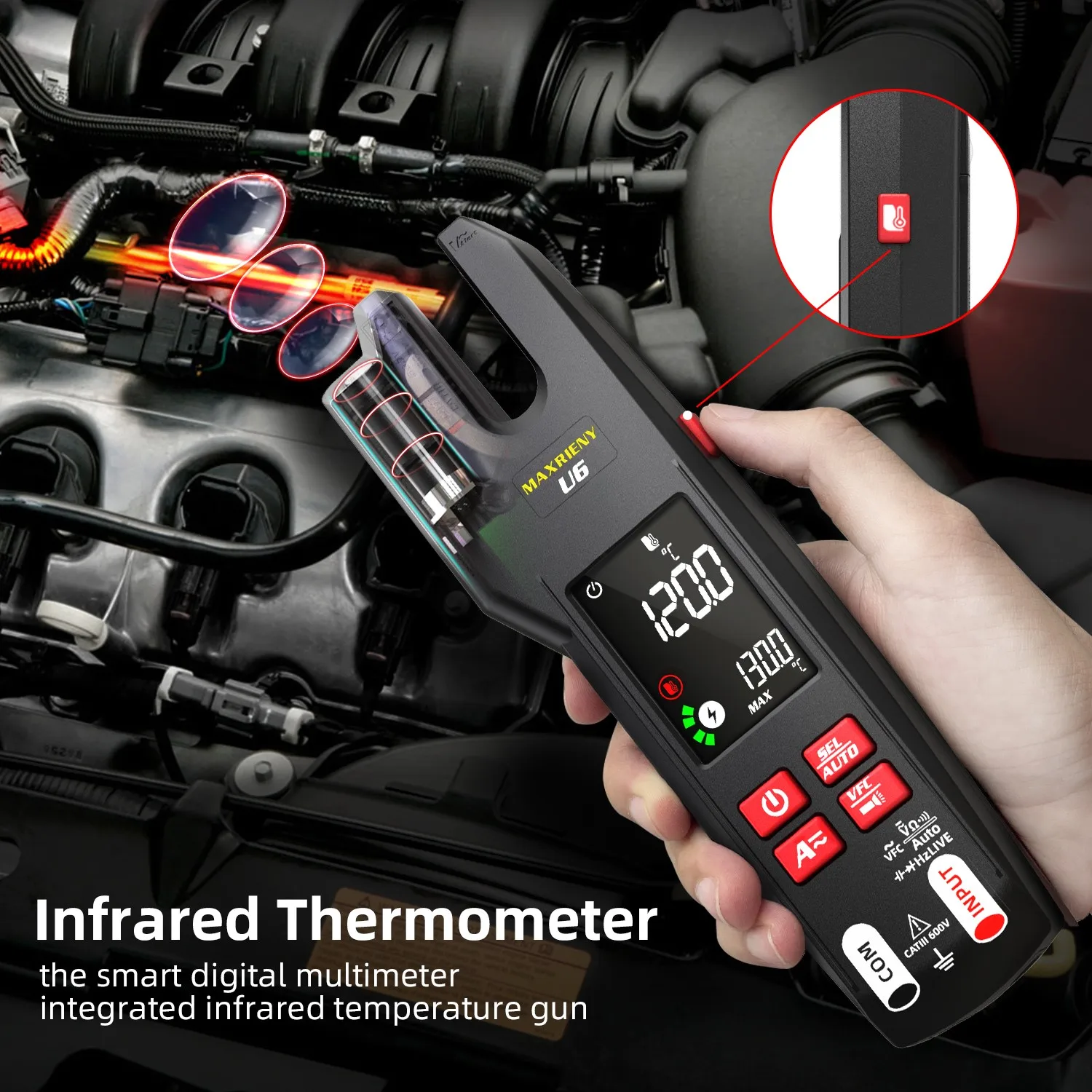

Professional DC/AC clamp Ammeter with Infrared thermometer for testing.

Display a maximum of 9999 counts.

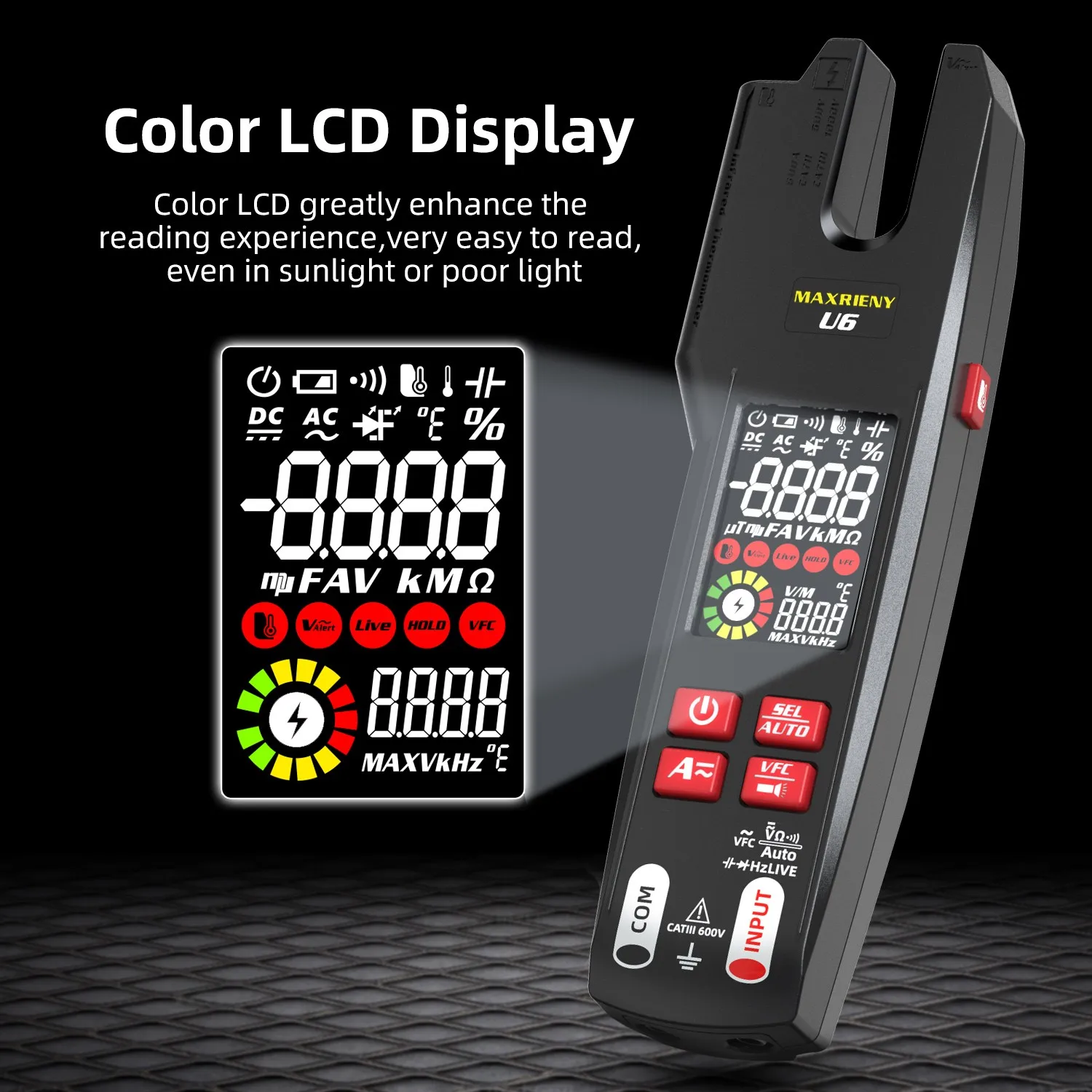

EBTN color large high-definition LCD display screen.

True RMS, automatic/manual range.

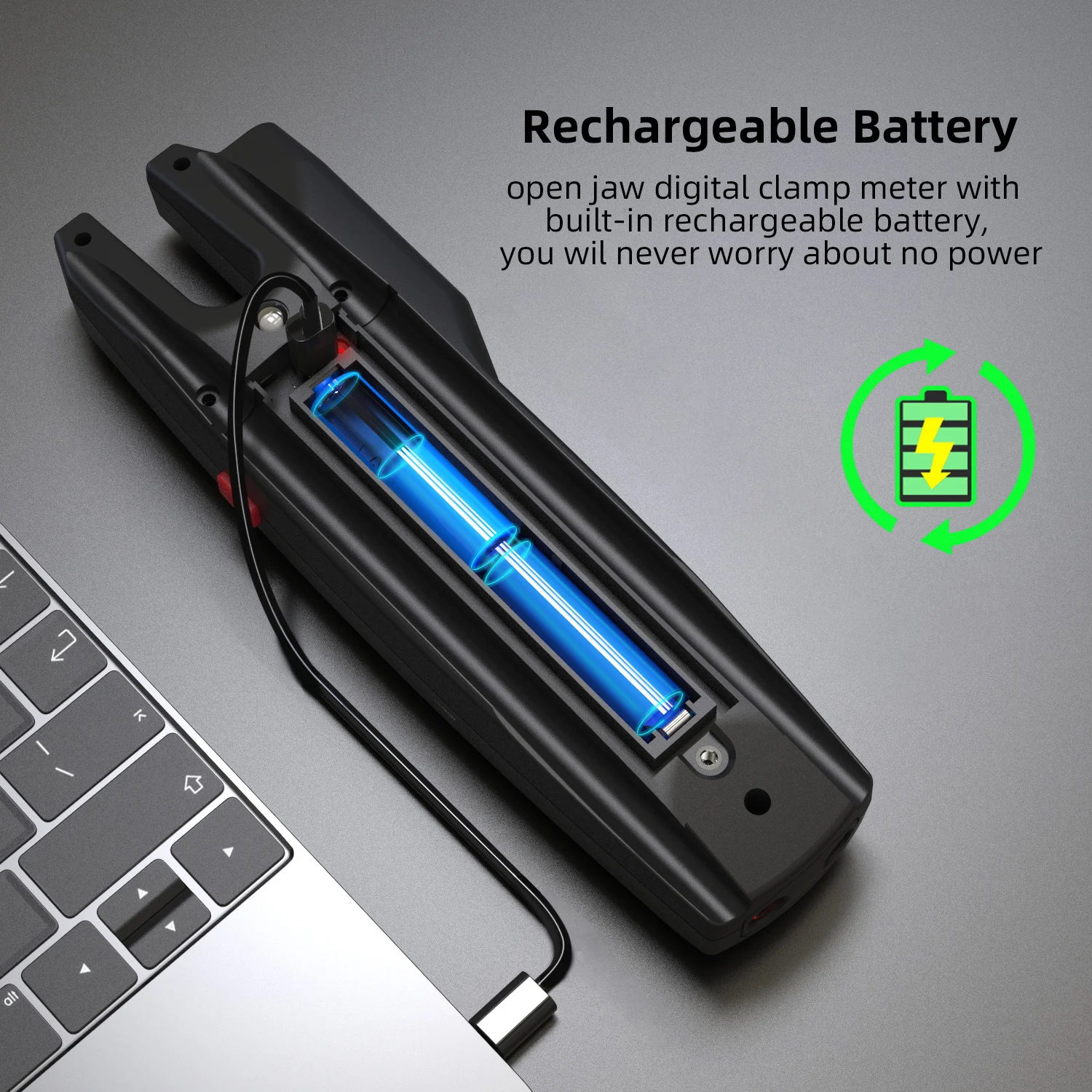

Power supply system: equipped with rechargeable batteries, also compatible with 2 * 1.5V (AA) battery replacement power supply to meet power supply needs

The electronic amplifier tester has intelligent mode and is easy to use.

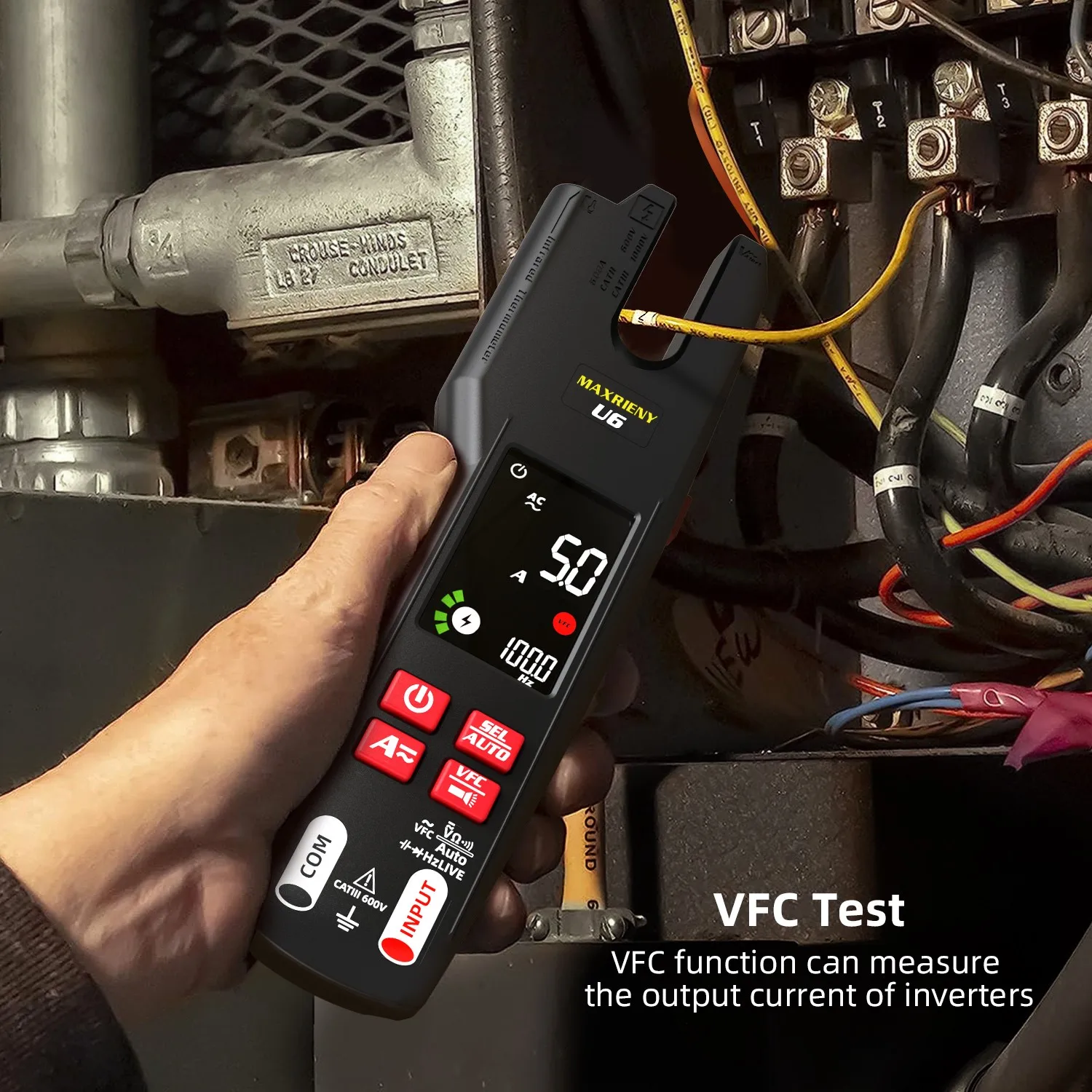

VFC/VFD variable frequency voltage test.

The oversized body design makes testing safer.

The large design card is more convenient to fit with the rear and side of the body.

Equipped with high-quality portable cloth bags.

It can also be used as a professional voltage detector with adjustable sensitivity.

Automatic gear, automatic power outage, low battery indicator with flashlight.

CAT111 600 high safety regulations meet global testing and maintenance requirements.

U6 Product+T9004 Ultra-Sharp Silicone Tester Probe + T1101 High-Quality Alligator Clip Test Leads.

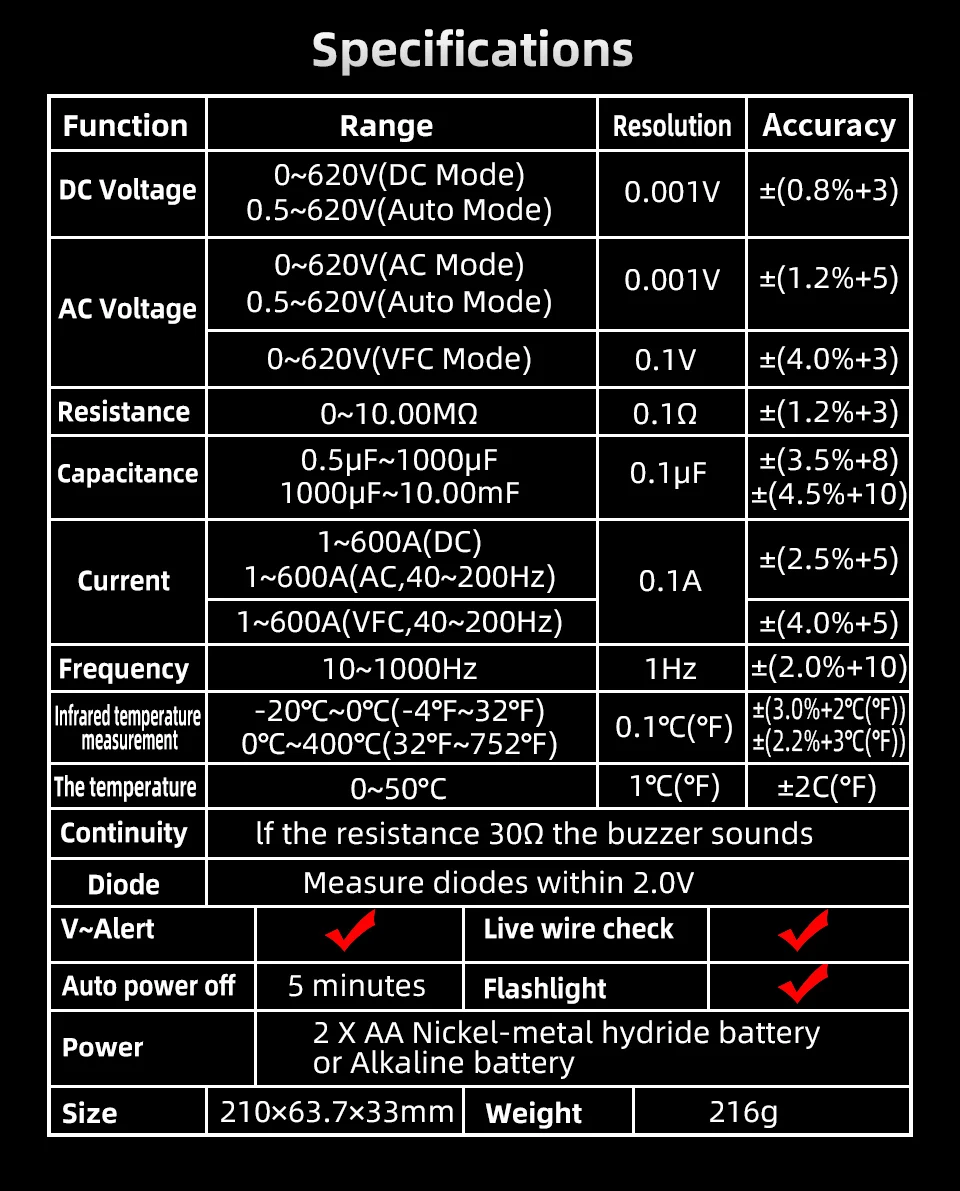

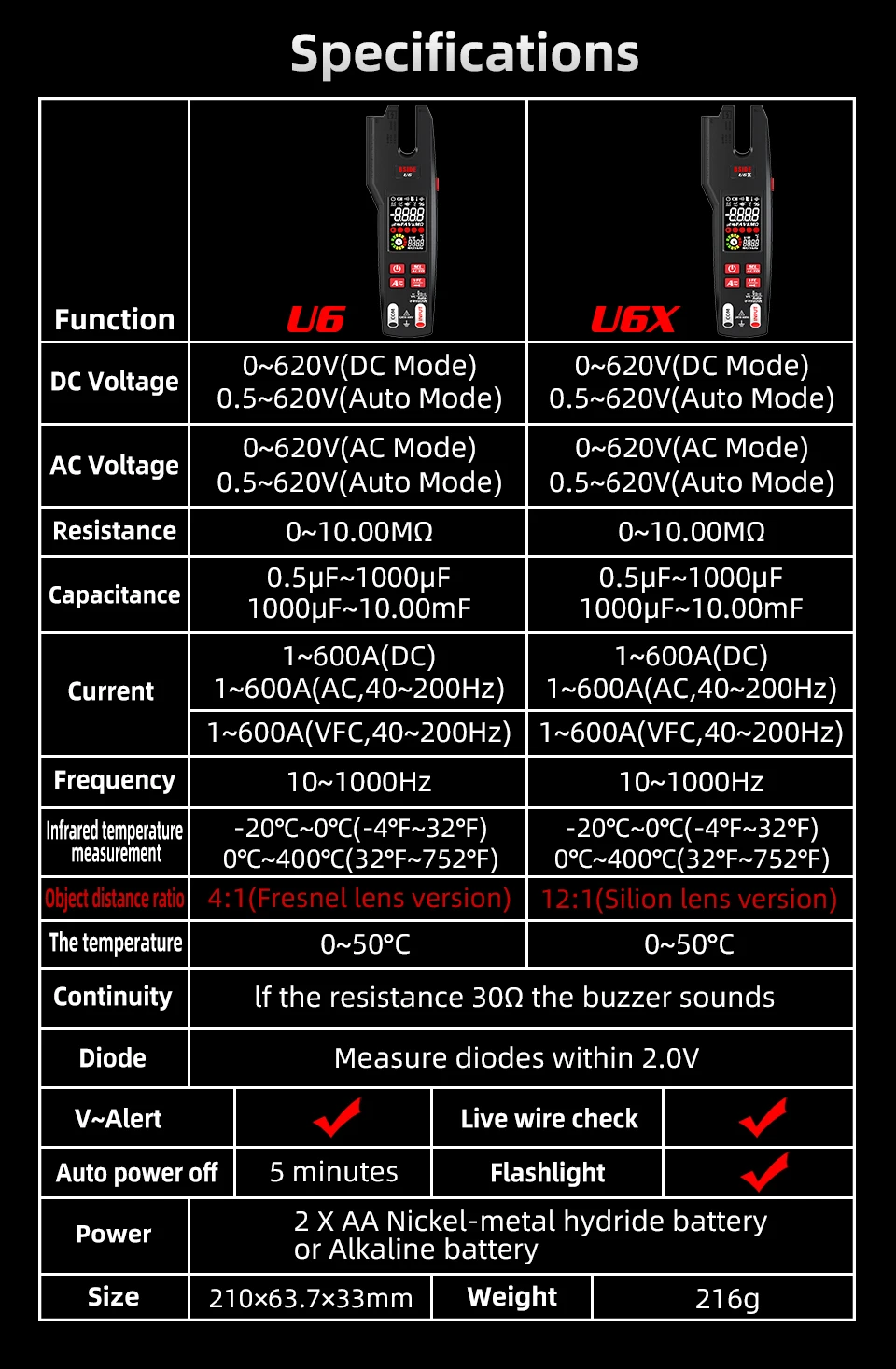

Specifications:

Display: 9999 counts

DC current: 1-600A 0.1A ±(2.5%+5 counts)

AC current: 1-600A (AC mode, 40-200 Hz) 0.1A ±(2.5%+5 counts); 1-600A (VFC mode, 40-200 Hz) 0.1A ±(4.0%+5counts)

DC voltage: 0-620V (DC mode) 0.001 V ±(0.8%+3 counts); 0.5-620V (Auto Mode) 0.001 V ±(0.8%+3 counts)

AC voltage: 0-620V (AC mode) 0.001 V ±(1.2%+5 counts); 0.8-620V (Auto Mode) 0.001 V ±(1.2%+5 counts); 0-620 V (VFC mode) 0.1V ±(4.0%+3 counts)

Resistance: 0-10MΩ 0.1Ω ±(1.2%+3 counts)

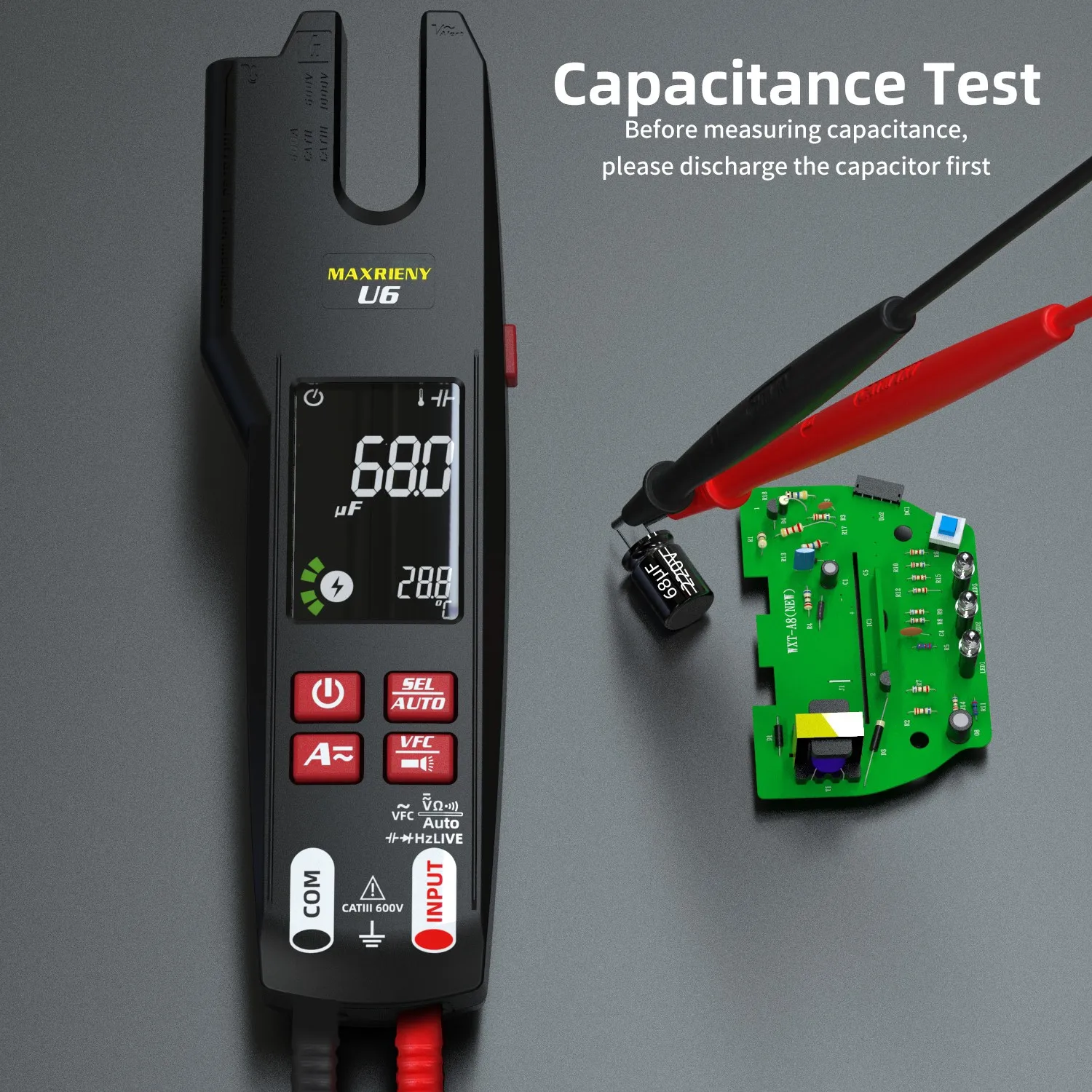

Capacitance: 0.5µF-1000µF 0.1µF ±(3.5%+8 counts); 1000µF-10mF 0.1µF ±(4.5%+10 counts)

Frequency: 10-1000Hz 1Hz ±(2.0%+10 counts)

Infrared temperature: -20℃~0℃/-4℉-32℉ 0.1℃/0.1℉ ±(3.0%+2℃/℉); 0℃~400℃/32℉-752℉ 0.1℃/0.1℉ ±(2.5%+3℃/℉)

Diode: Measure diodes within 2.0V

Continuity: If the resistance is less than 30Ω, the continuity beeper sounds

Temperature: 0-50℃/32℉-122℉ ±2℃/℉

V-Alert (non contact voltage detection): Yes

Live wire check: Yes

Power: rechargeable 1.5 V (AA) x 2 (built-in)

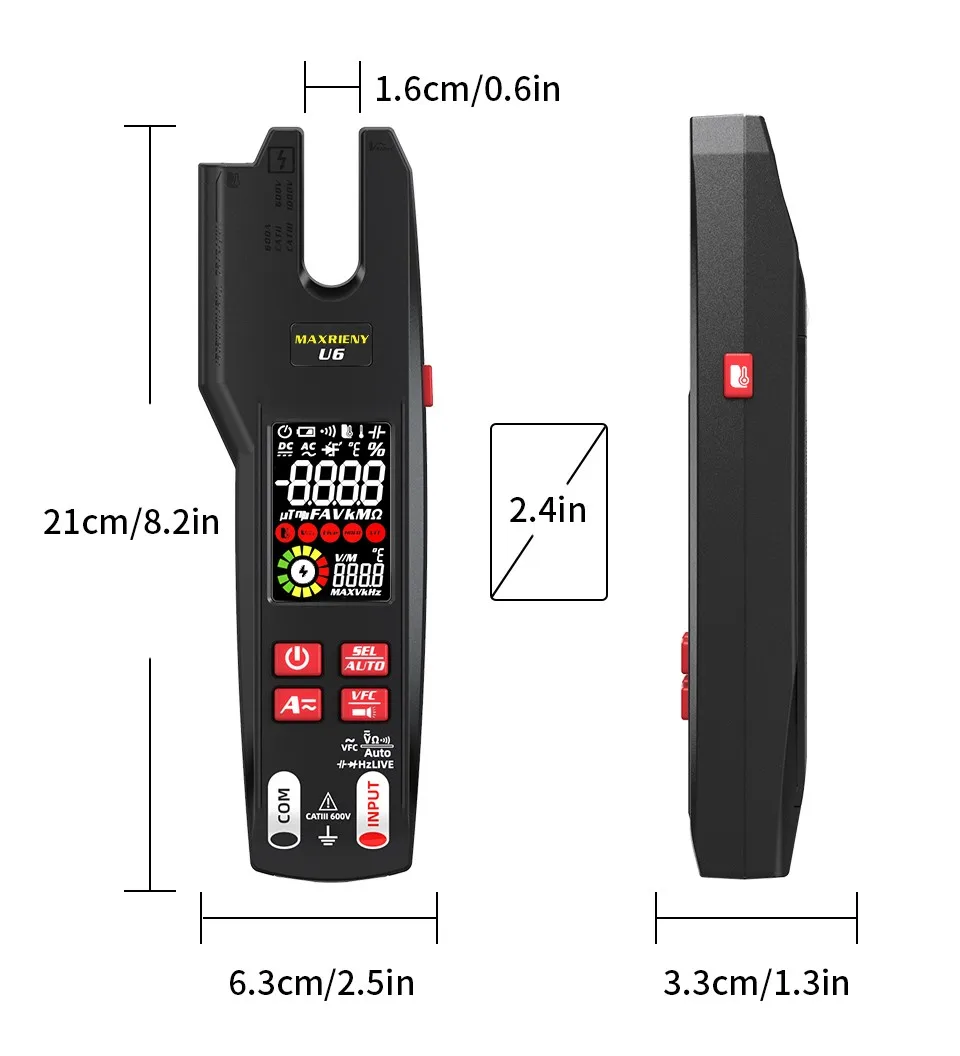

Size: 210 x 63.7 x 33 mm

Weight: 216 g

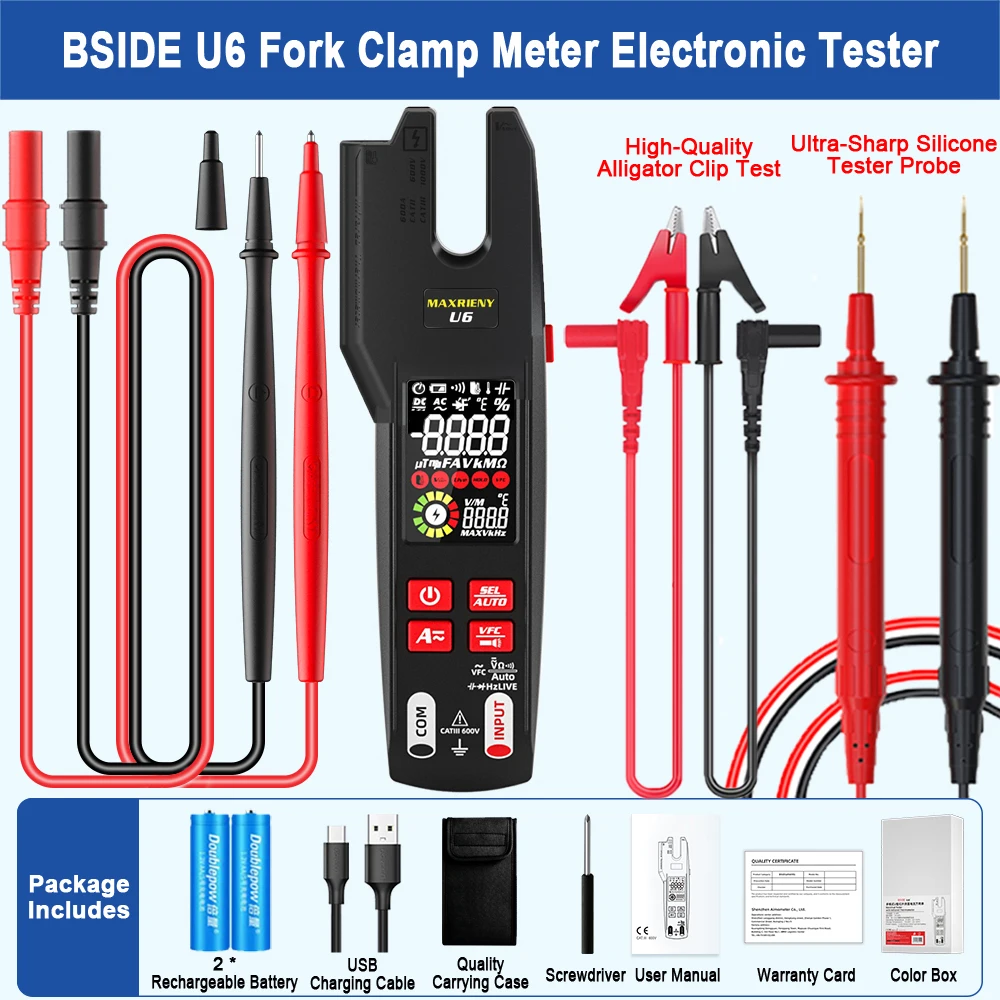

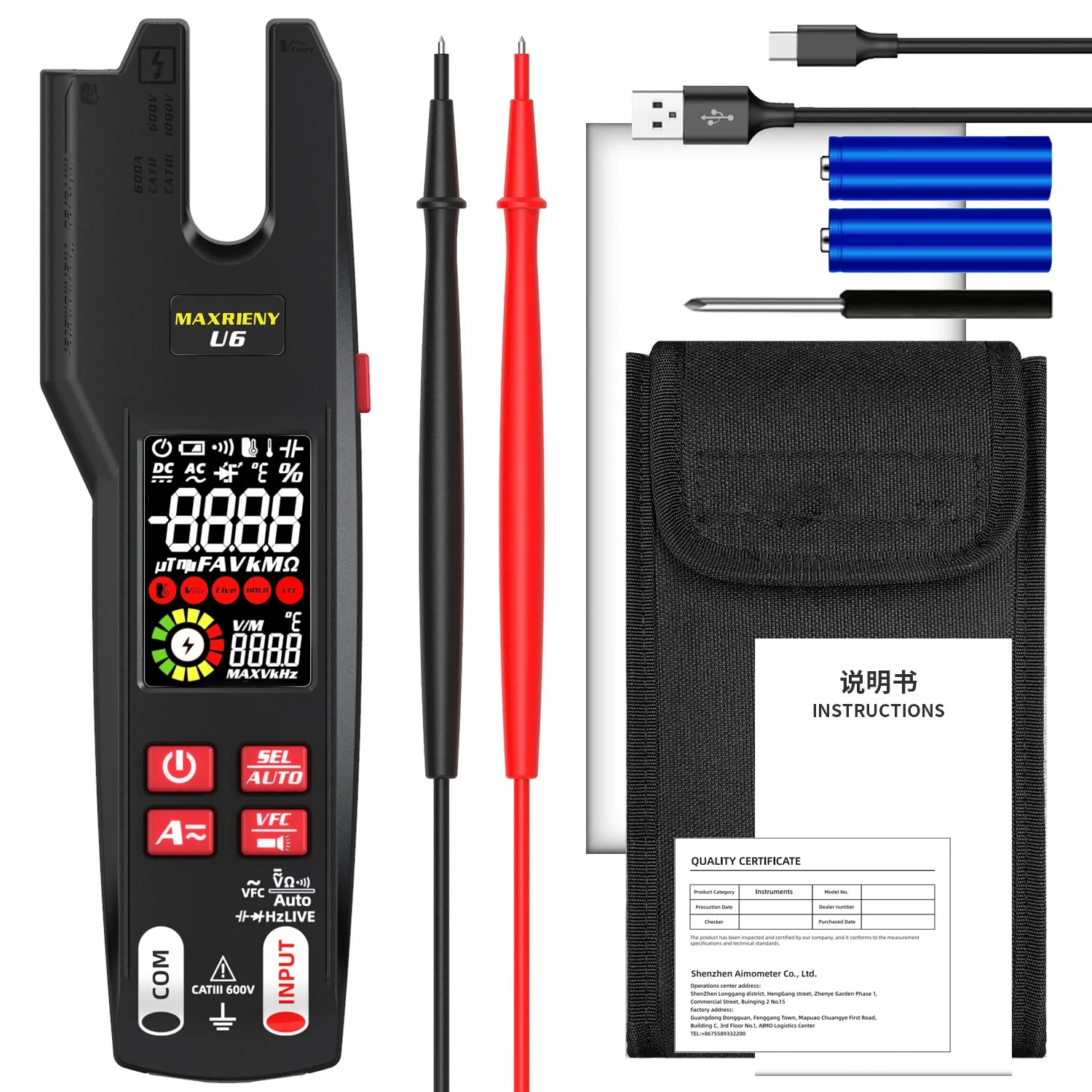

Package Includes:

1 x Digital Clamp Meter

1 x Test Leads

1 x Charging Cable

1 x Carrying Case

1 x Screwdriver

1 x User Manual
