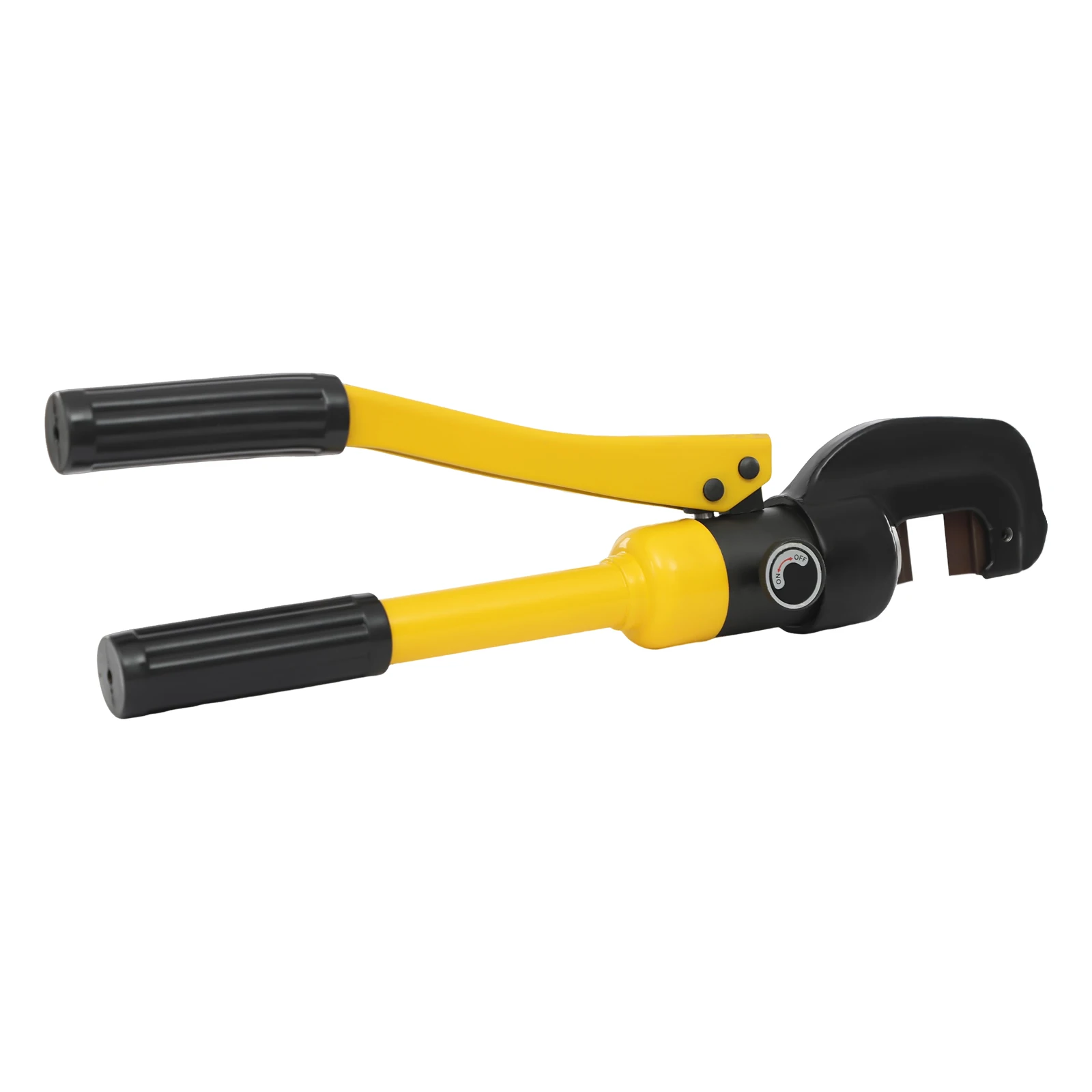

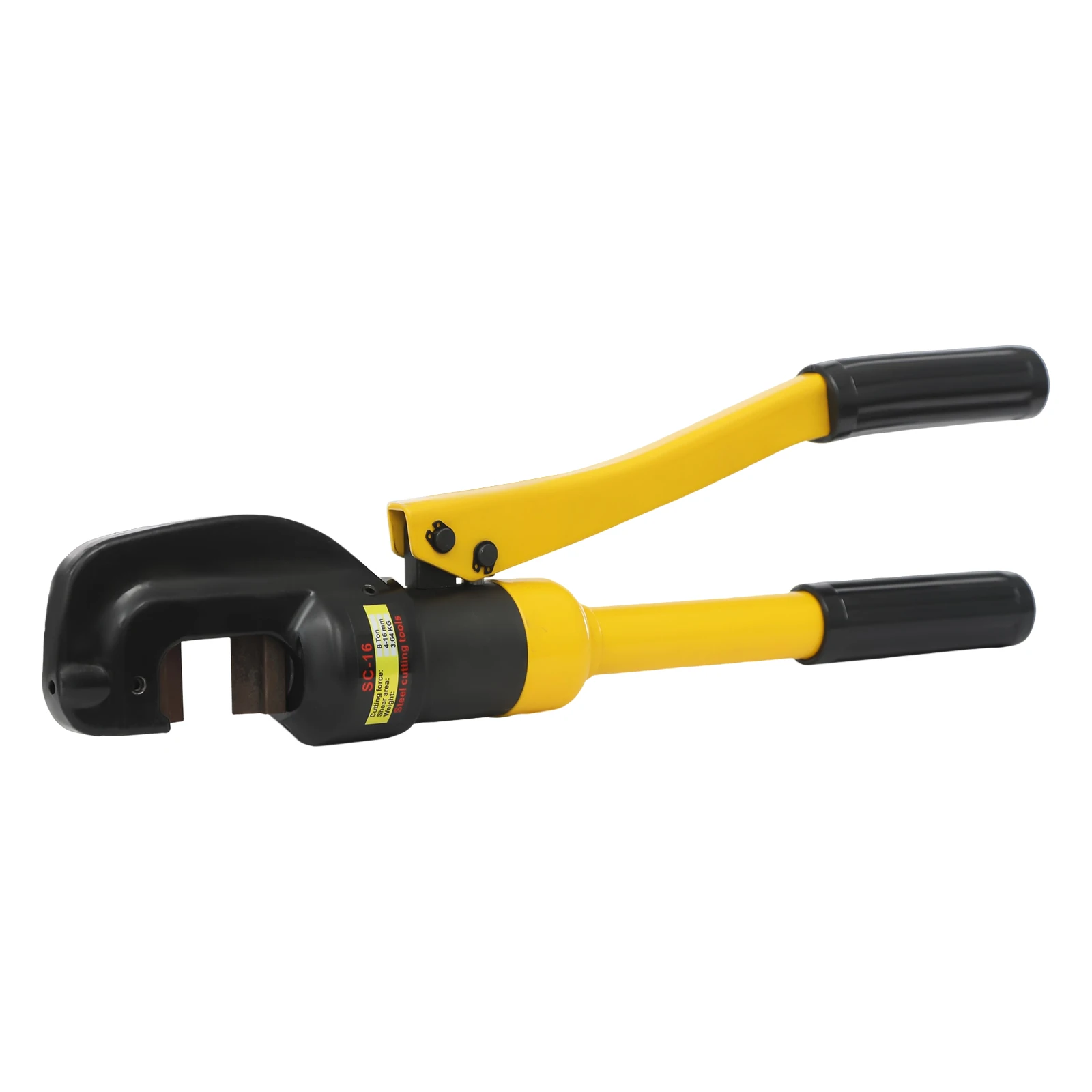

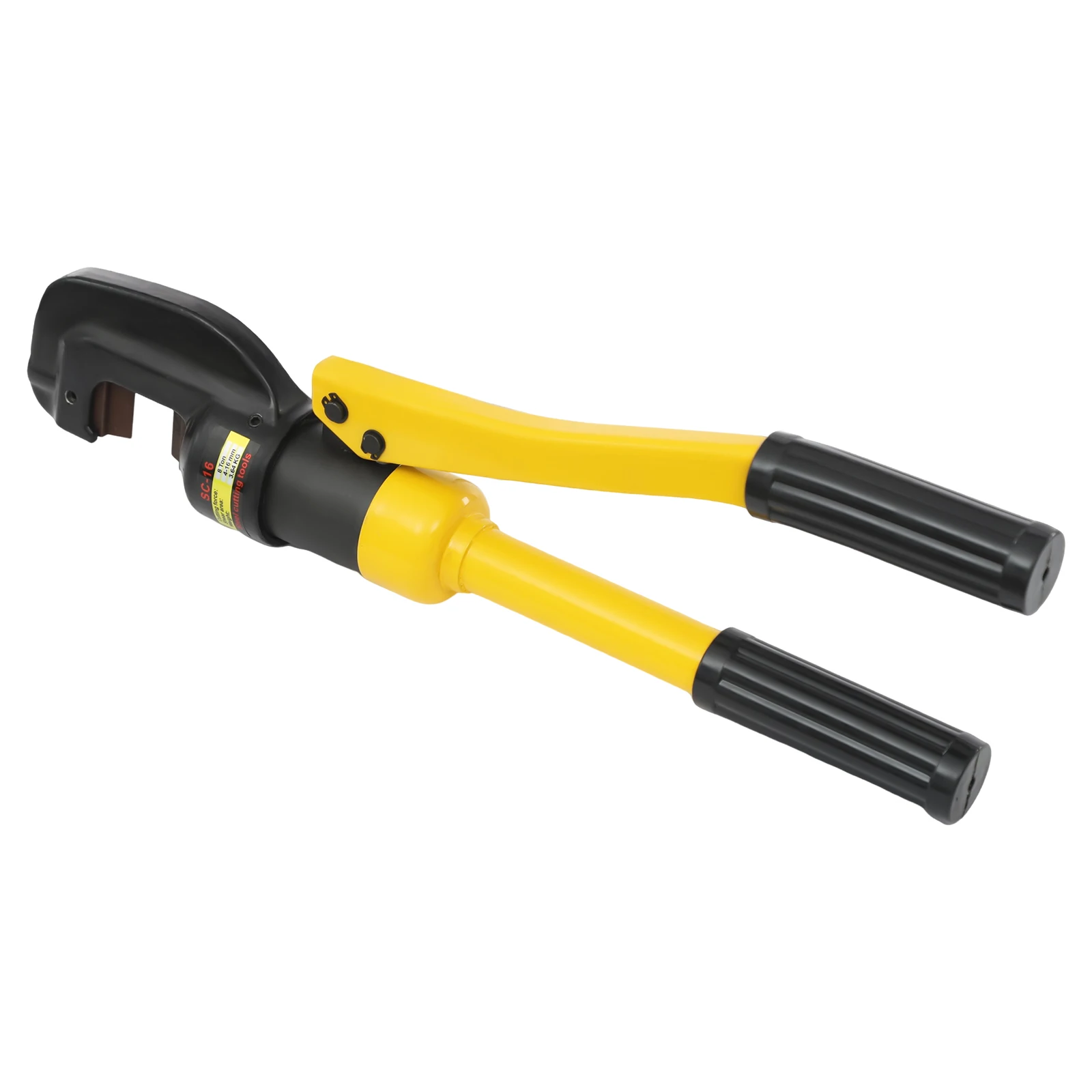

Hydraulic Rebar Cutter Large Pliers Threaded Steel Bolt Cutters Construction Cutter Clamp Hydraulic Scissors 8Ton/17637Ibs

Hydraulic Rebar Cutter Large Pliers Threaded Steel Bolt Cutters Round Steel Low Carbon Steel Hydraulic Scissors 8Ton/17637Ibs Bolt Chain Cutting Tool Construction Electricity

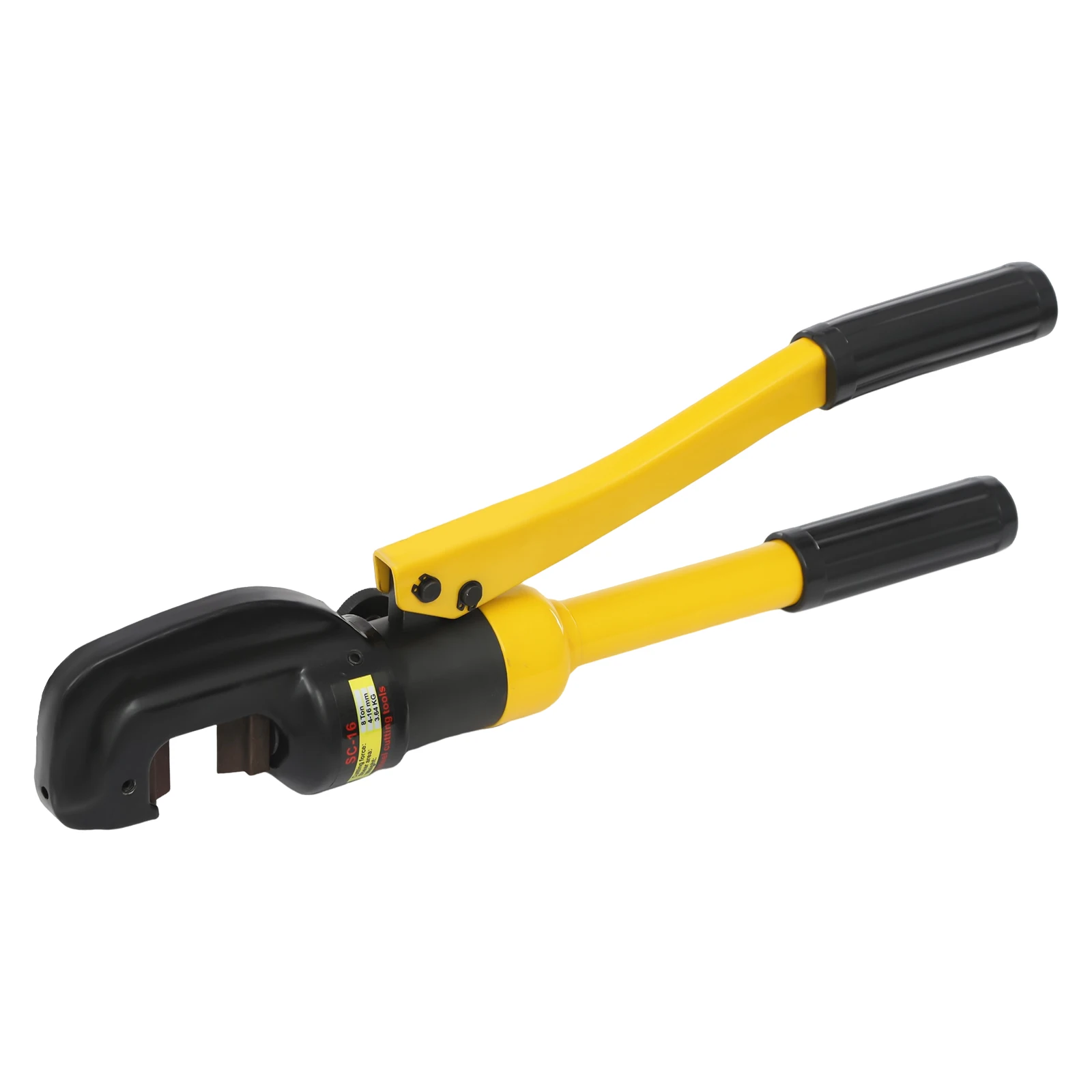

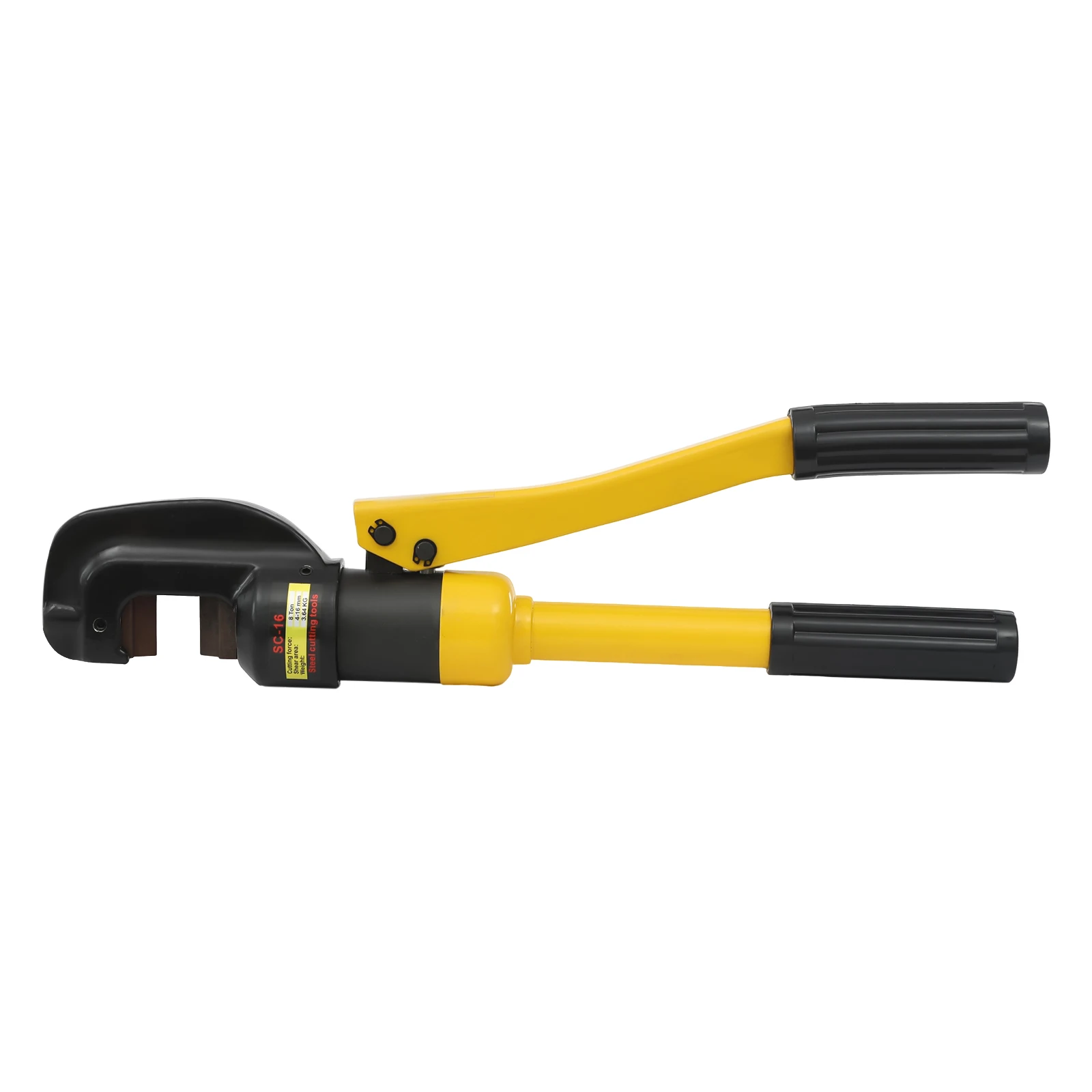

Specification

Material: Metal
Blade Technology: 12 Chrome
Color: Yellow, Black

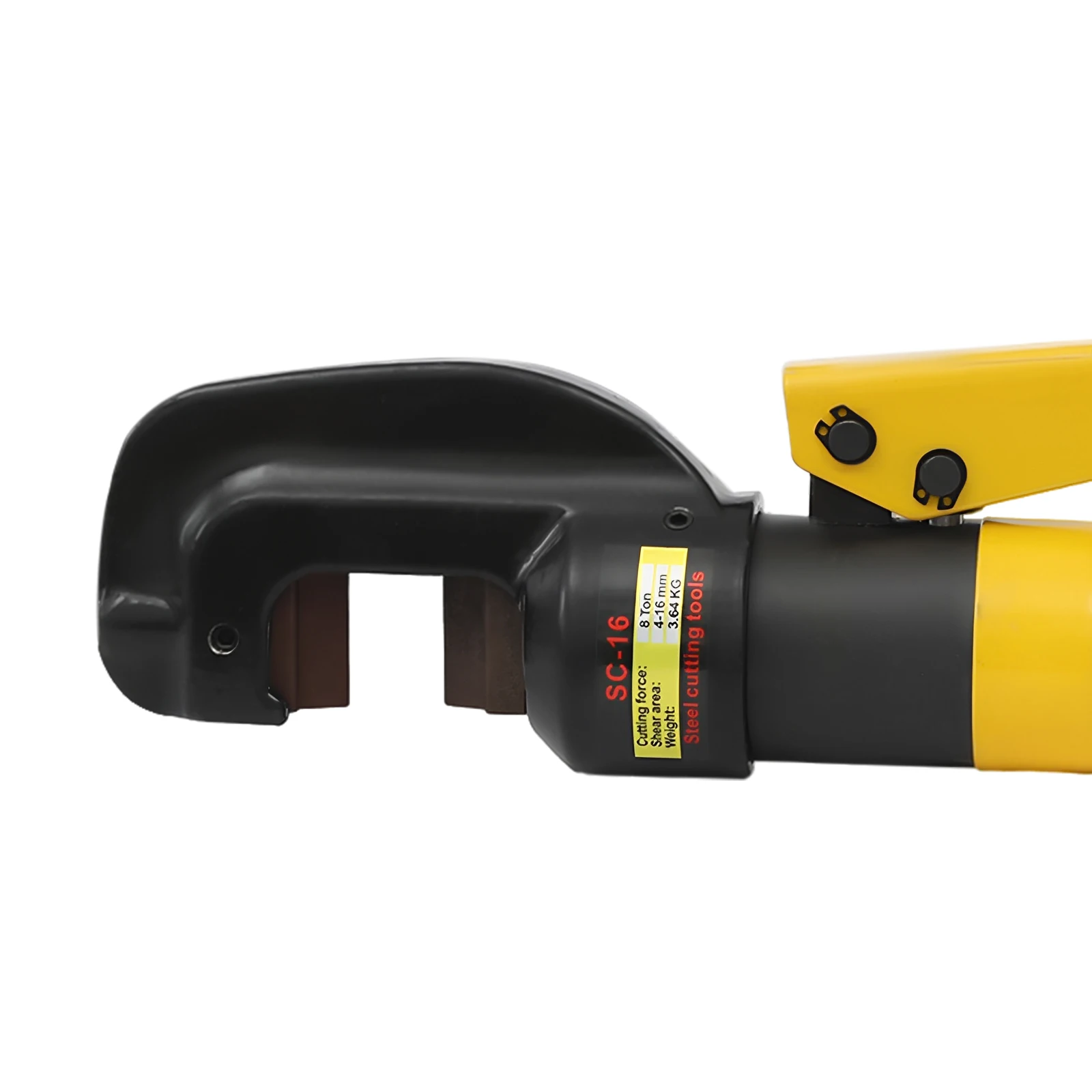

Model: SC-16
Item Package Quantity: 1
Cutting Force: 8Ton/17637lbs
Shear Area: 0.4-1.6cm/ 0.16-0.63in
Assembly Required: No
Gross Weight: 3.7kg/ 8.16 lbs
Net Weight: 3.3kg/ 7.28 lbs

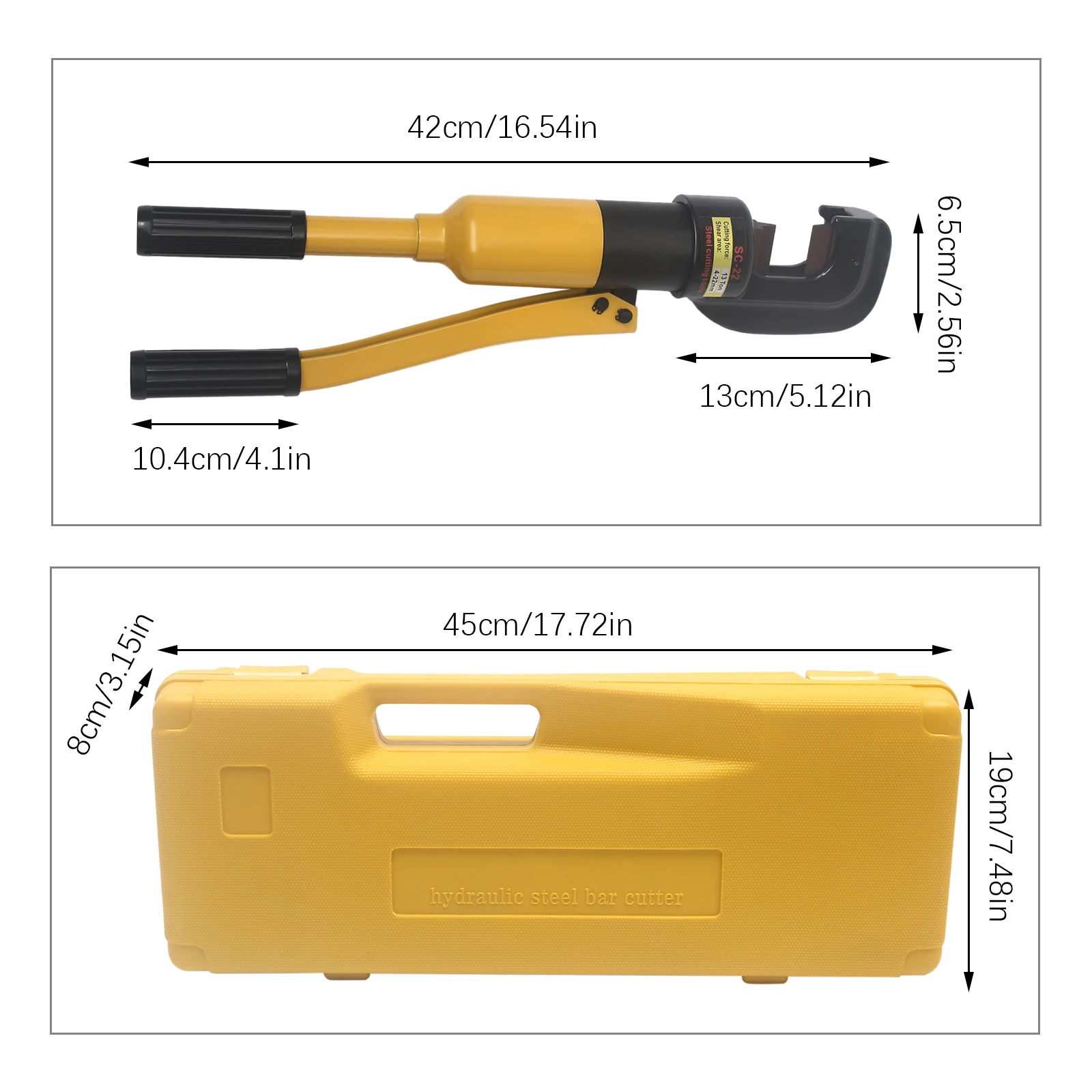

Total Length: 42cm/16.54in

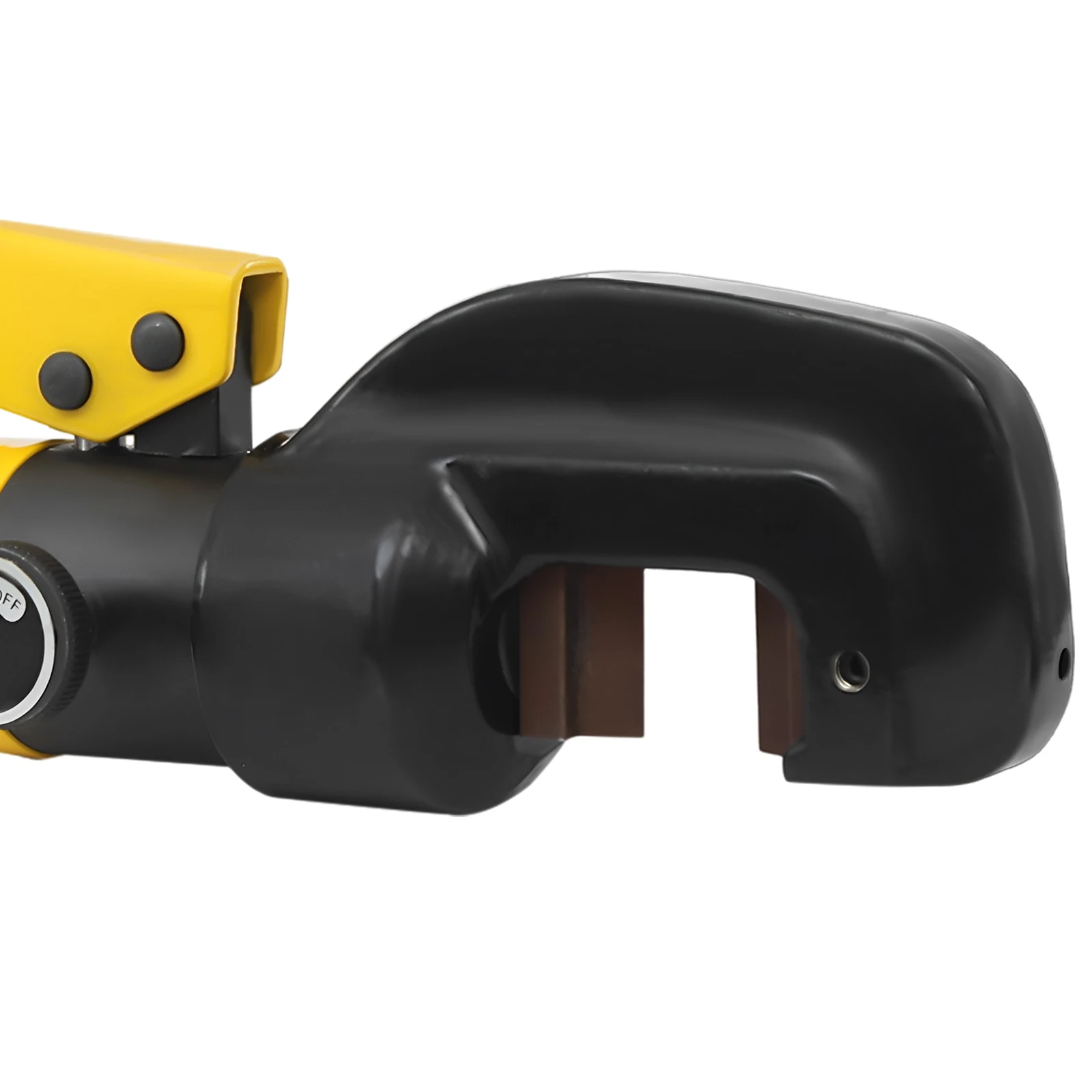

Cutter Head Size: 13*6.5cm/5.12*2.56in
Handle Length: 10.4cm/4.1in
Package Size: 45*19*8cm/ 17.72*7.48*3.15in

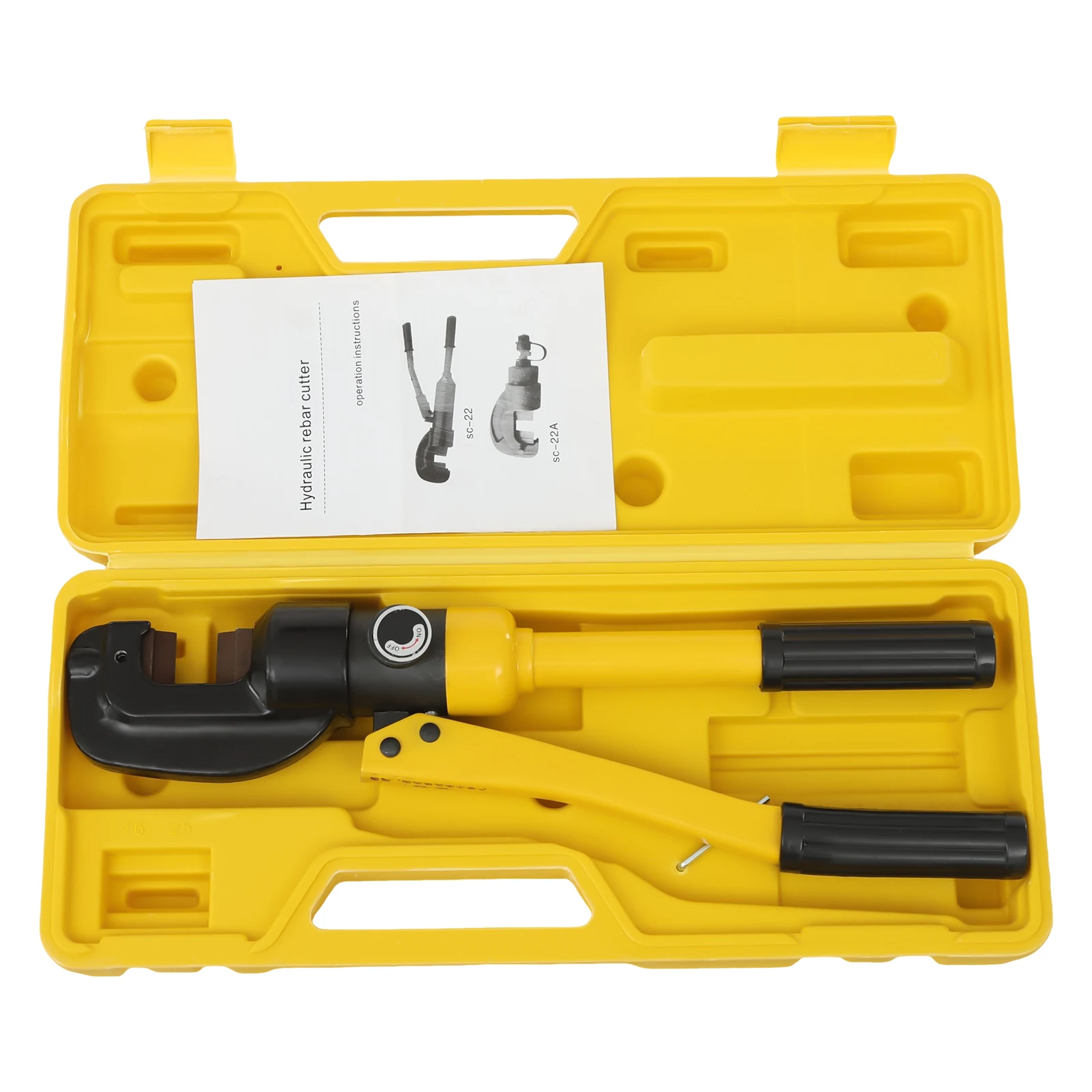

Package Included
1 * Hydraulic Rebar Cutter

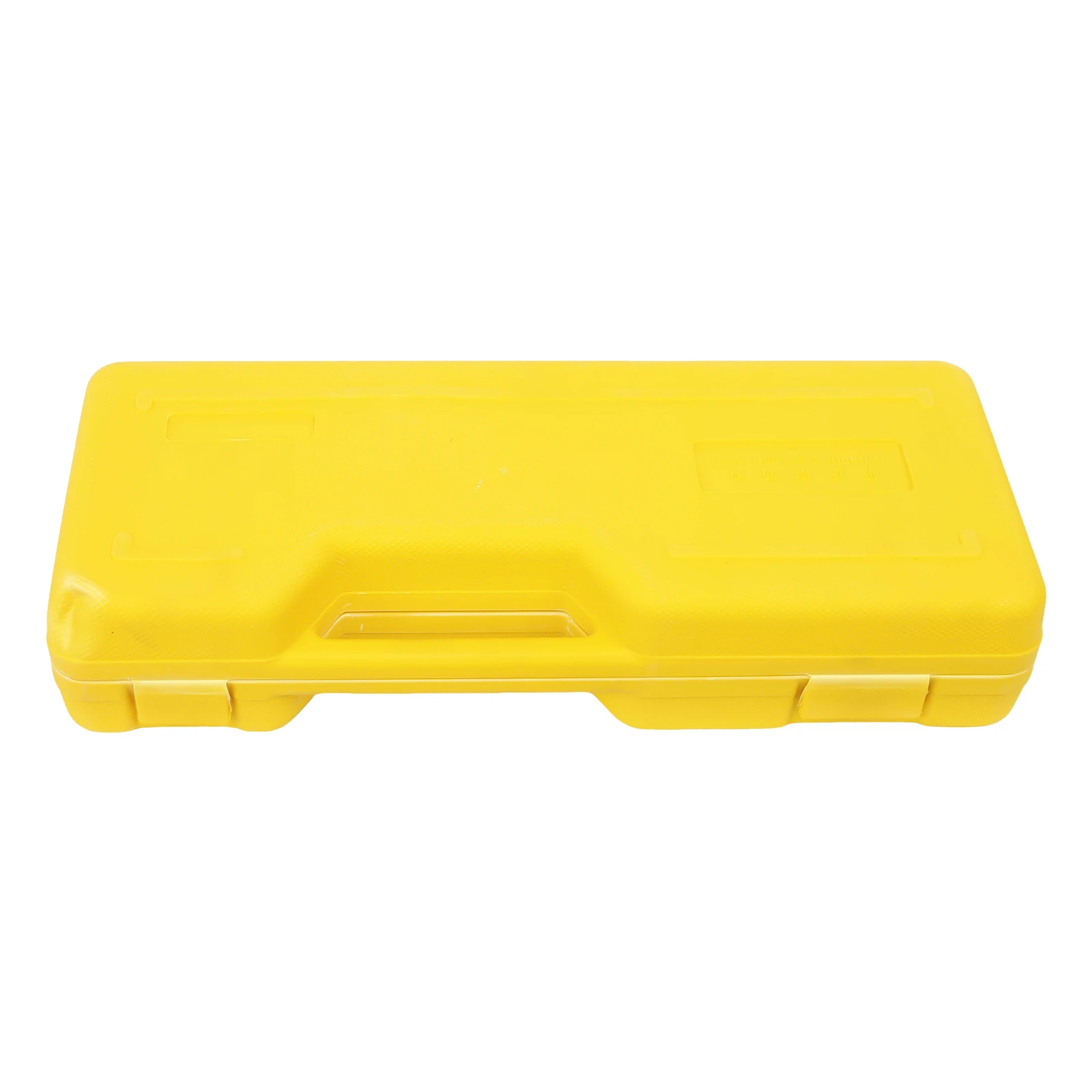

1 * Portable Box
1 * Hex Key
1 * Chinese and English Instruction

Key Features

Good Sealing: Double-layer sealing ring makes the oil cylinder have stronger sealing for stronger shear force.

Large Cutting Range: 0.16-0.63 inches cutting range can provide you with more cutting options. It can meet a large number of your cutting needs.

Powerful Cutting Force: The pressure generated by the hydraulic pump has a more powerful cutting force. The crimping power of 8T allows you to cut more high-hardness steel bars.

Details

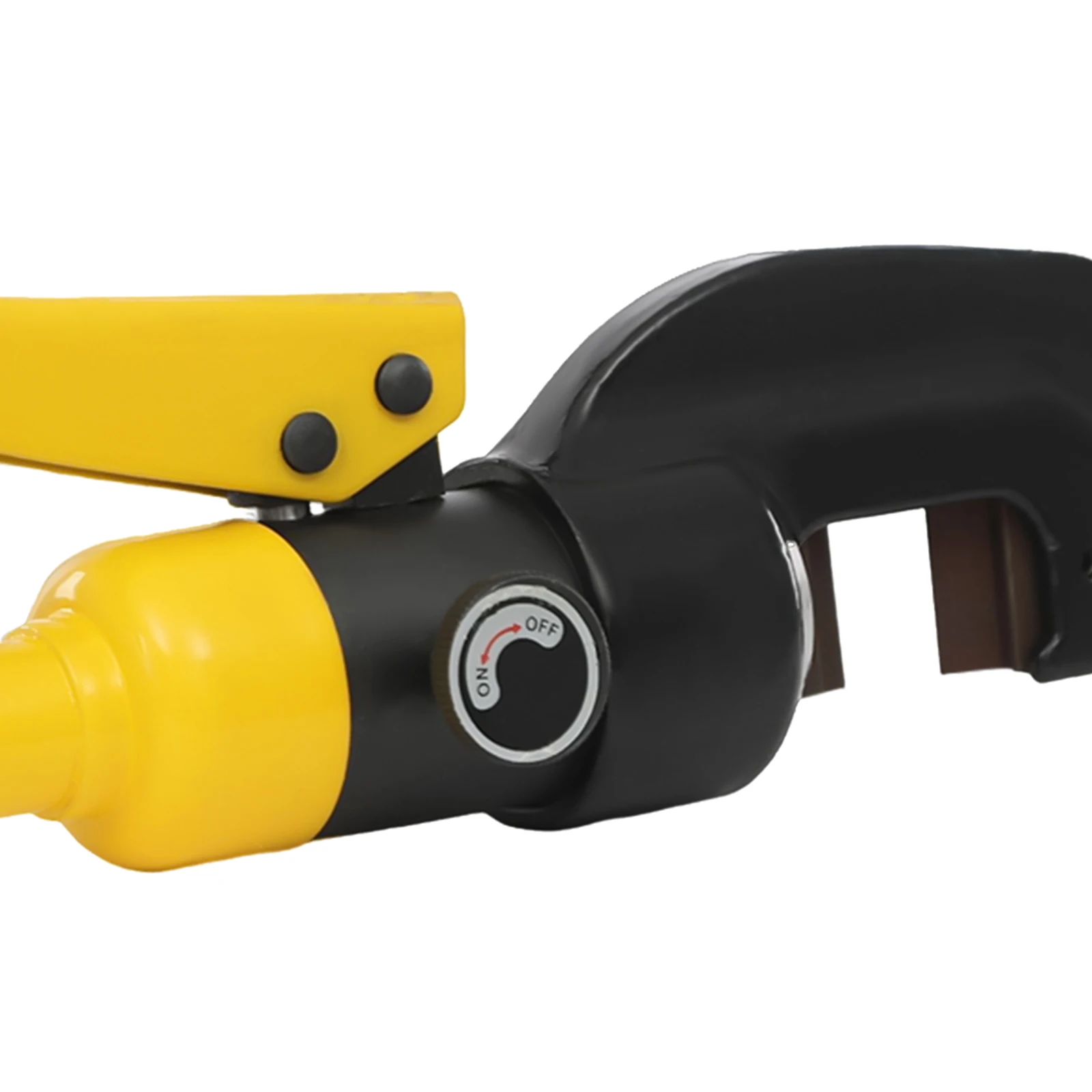

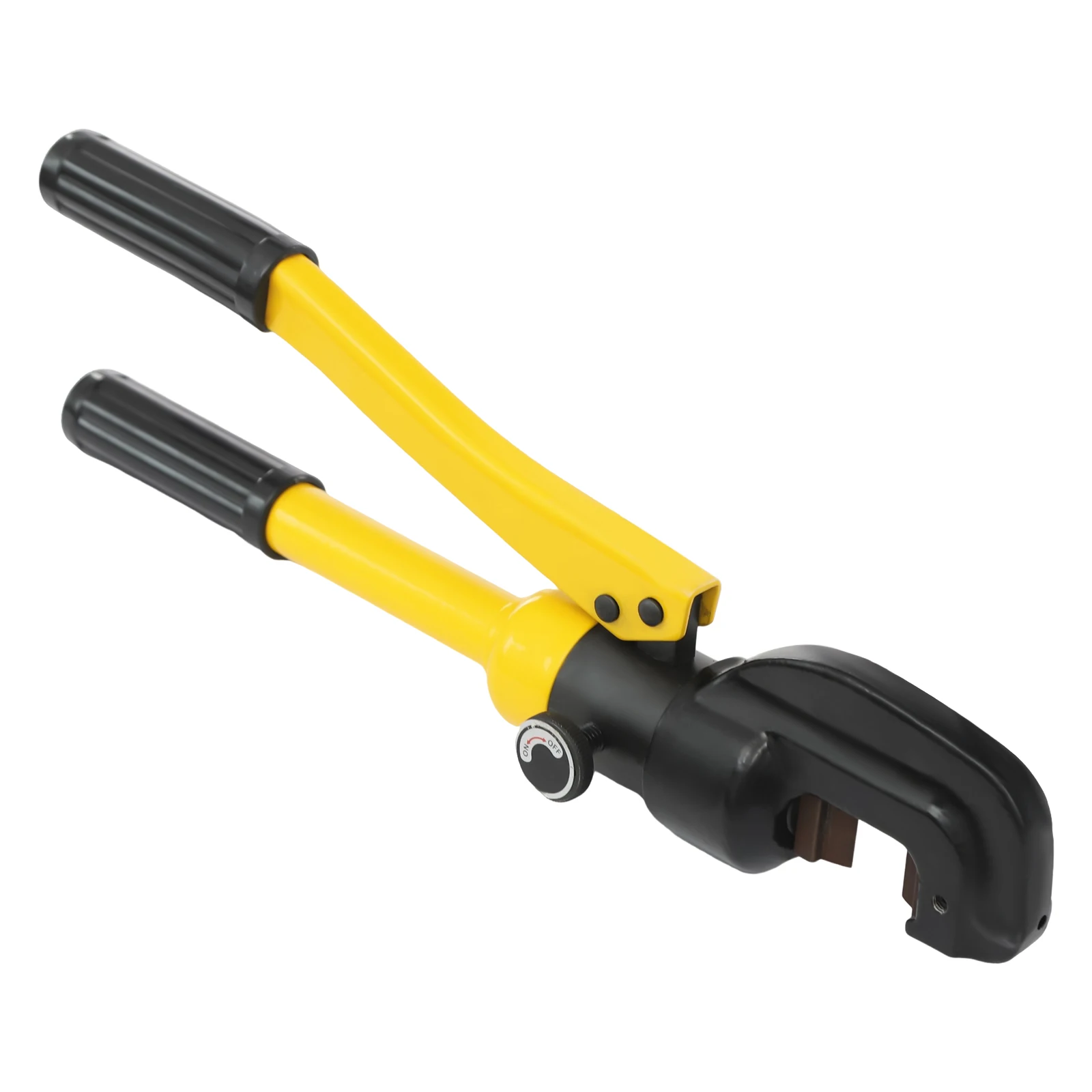

Twist Valve: The twist valve can easily control the hydraulic switch, and the clear logo on the valve can make you operate more accurately.

Hex Key: The hex key in the package can help you easily remove and replace the cutter head.

Application

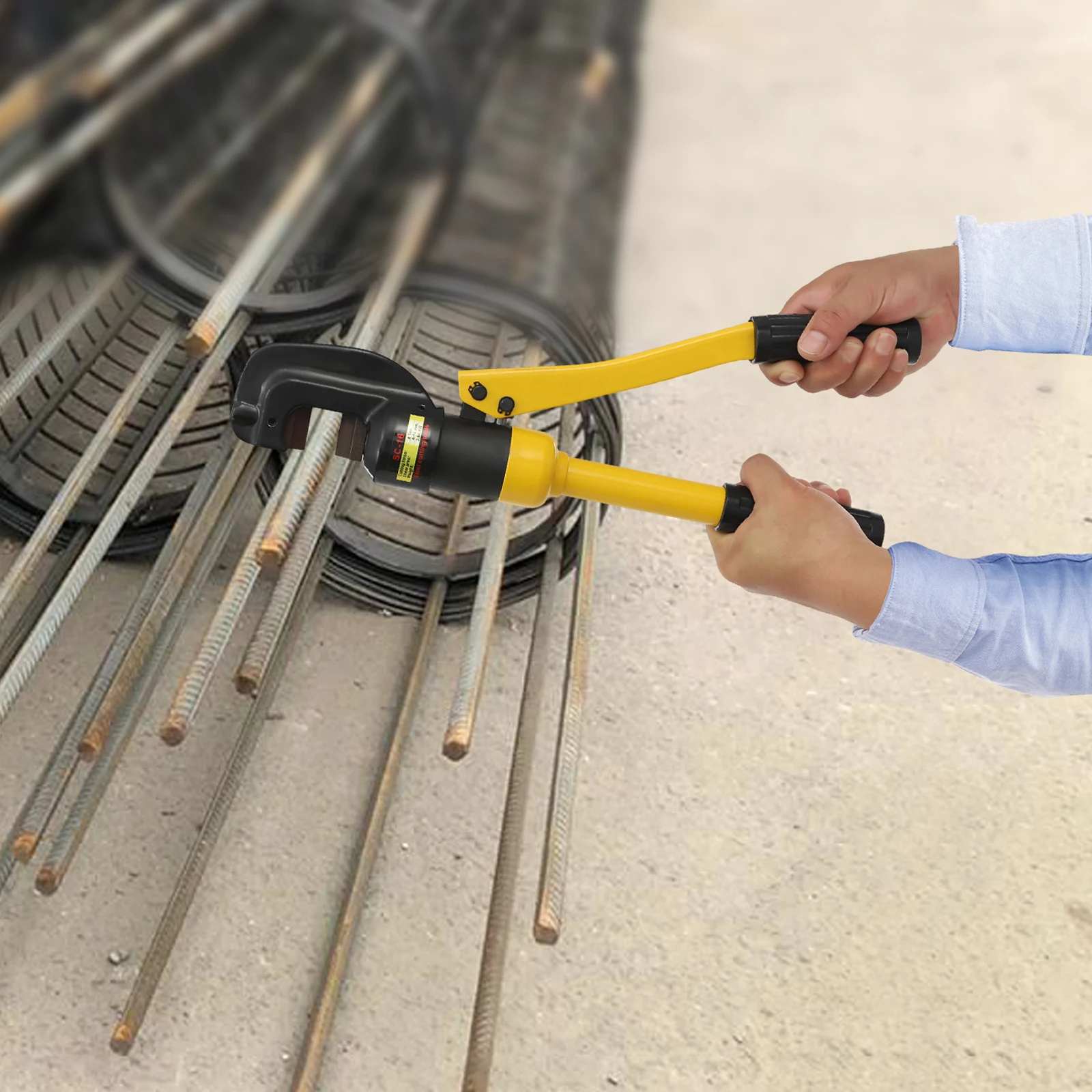

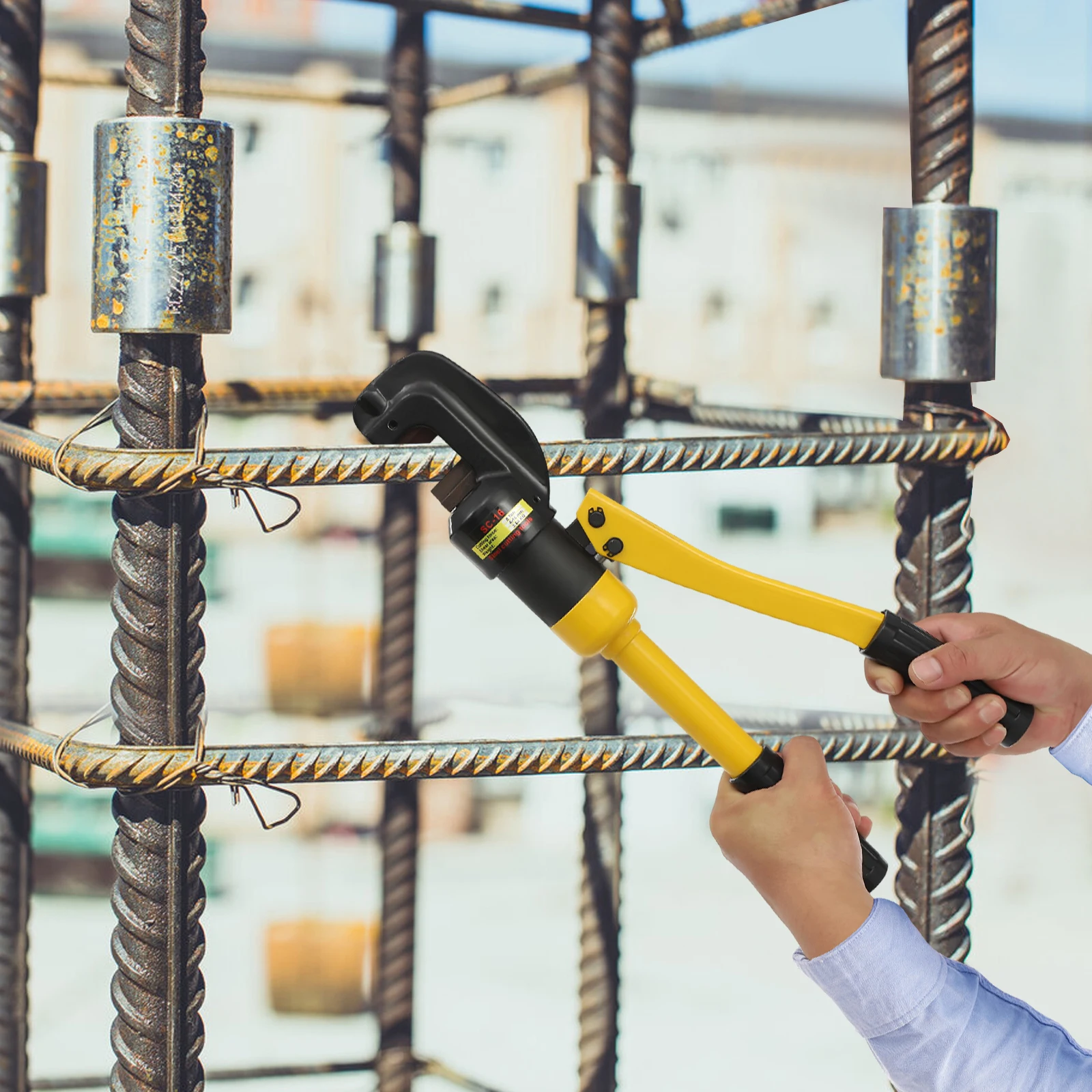

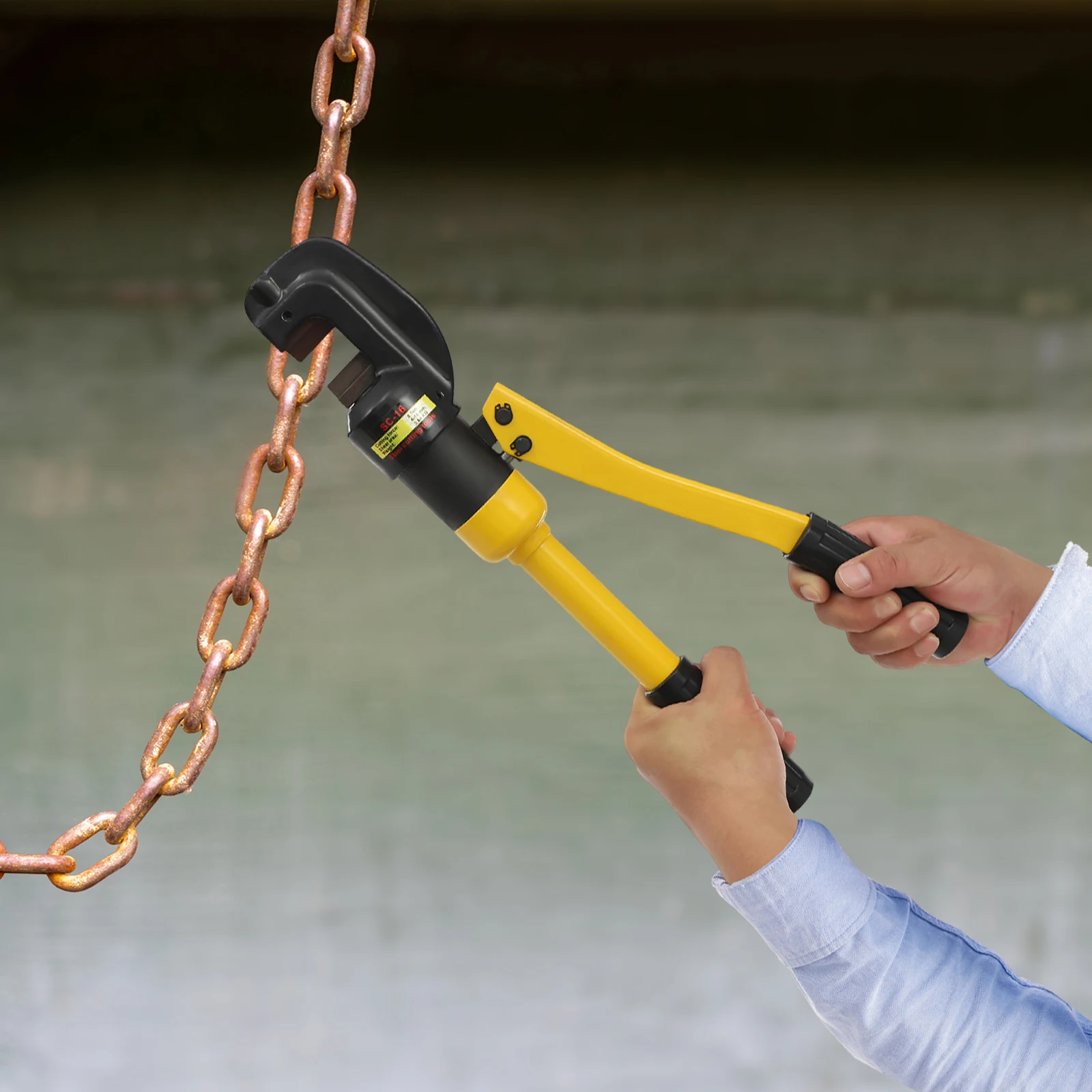

The rebar cutter hydraulic-driven is ideal for making roll cages, frames, furniture, and other rebar works, widely used in construction, electricity, transportation, oil, fire protection, construction site, traffic etc. It can cut screw thread steel, round steel, low carbon steel and medium carbon steel.

Notes

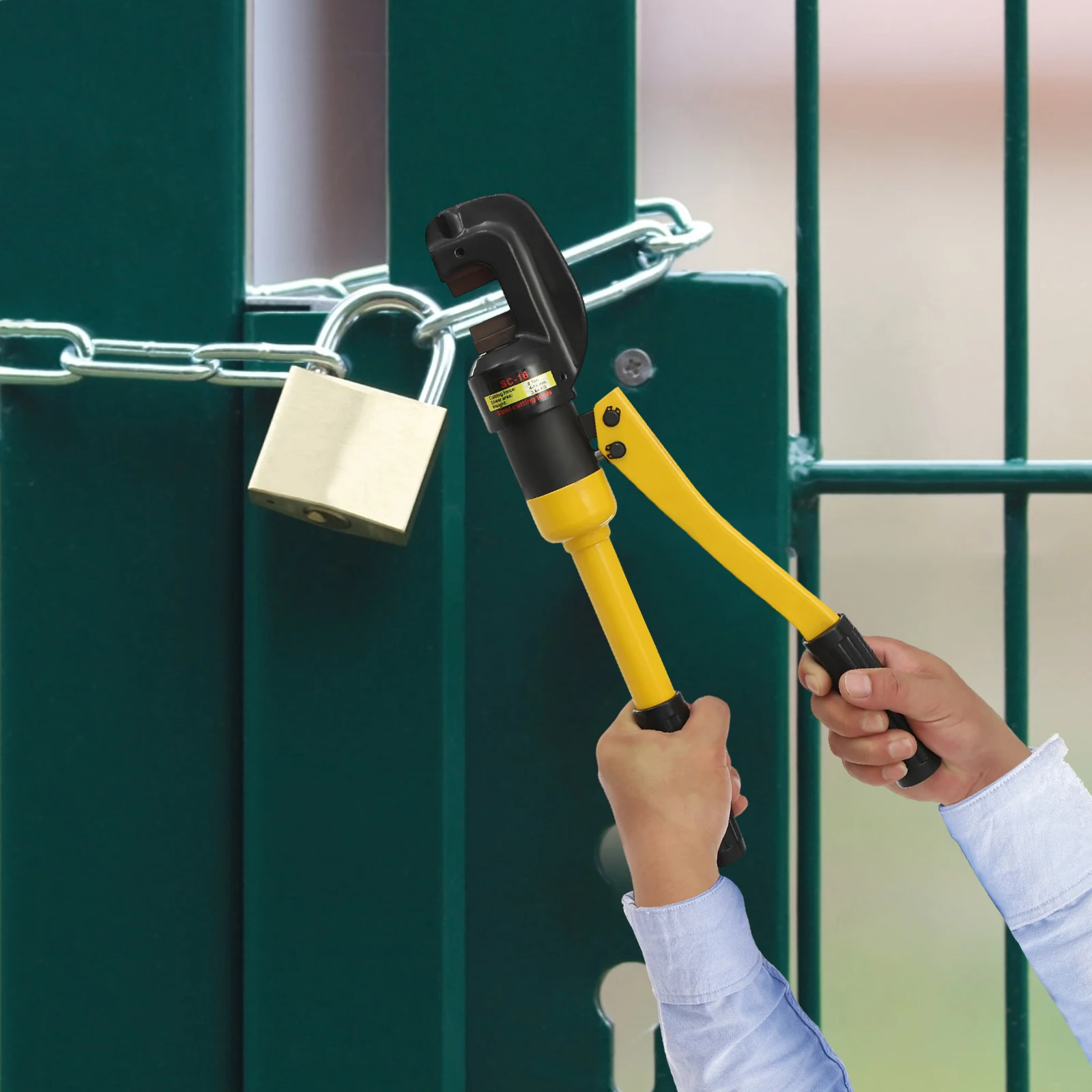

1.It can't cut anchor chain, U-shaped lock, high hardness round steel, alloy with unknown composition, flat iron and stainless steel.

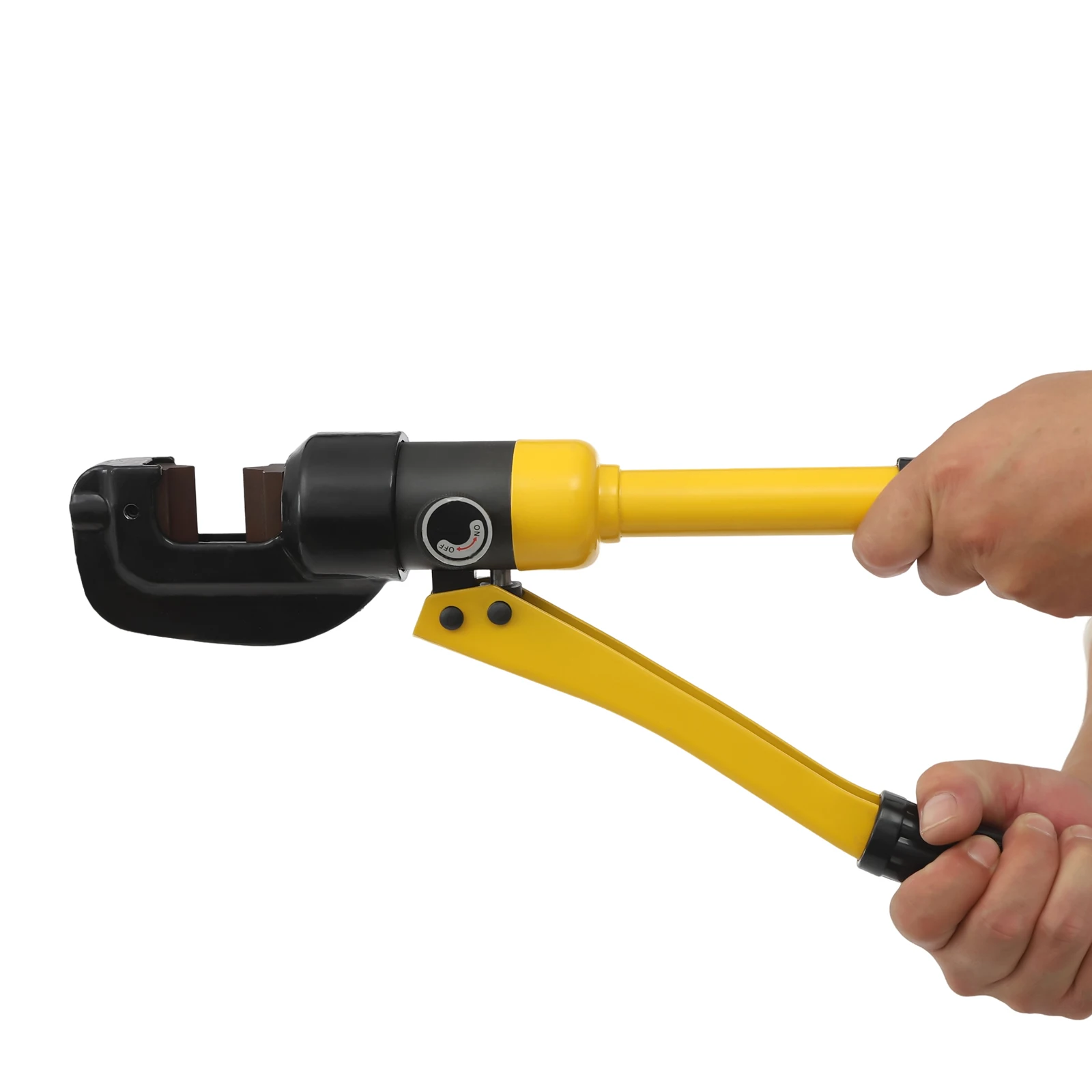

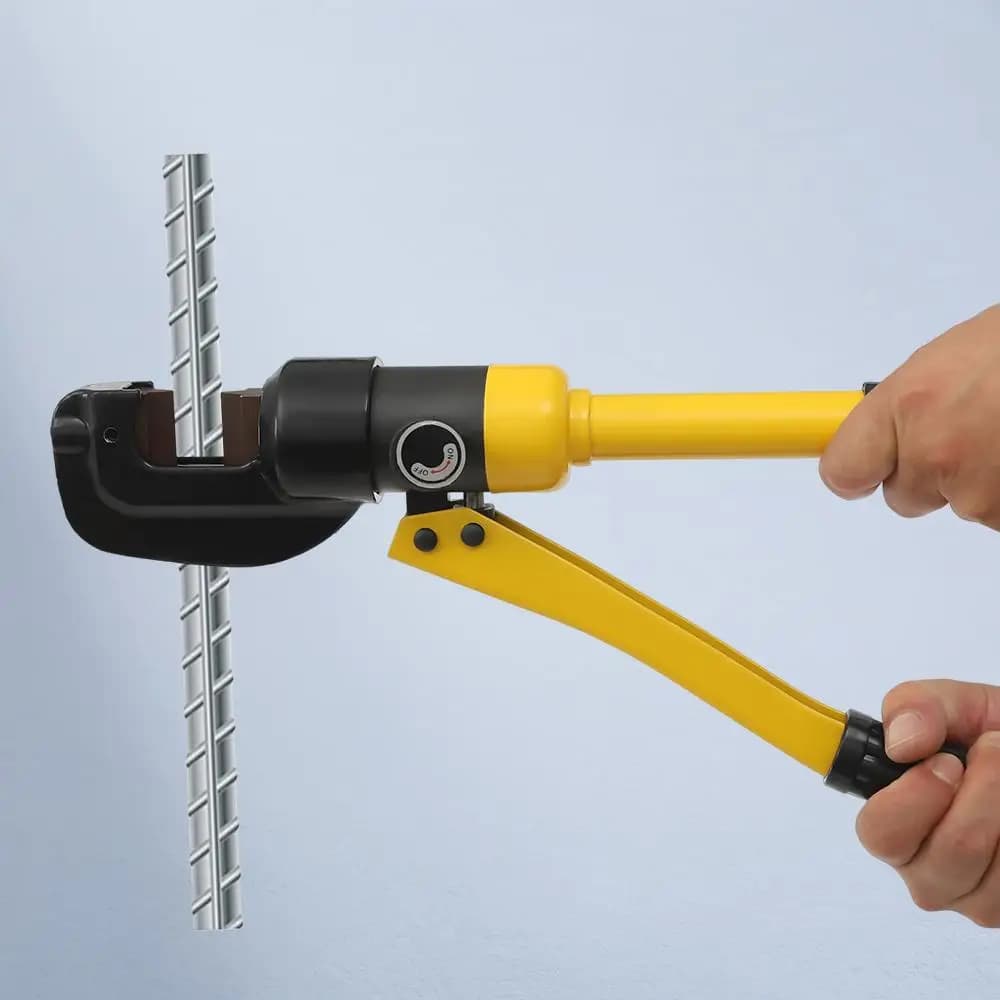

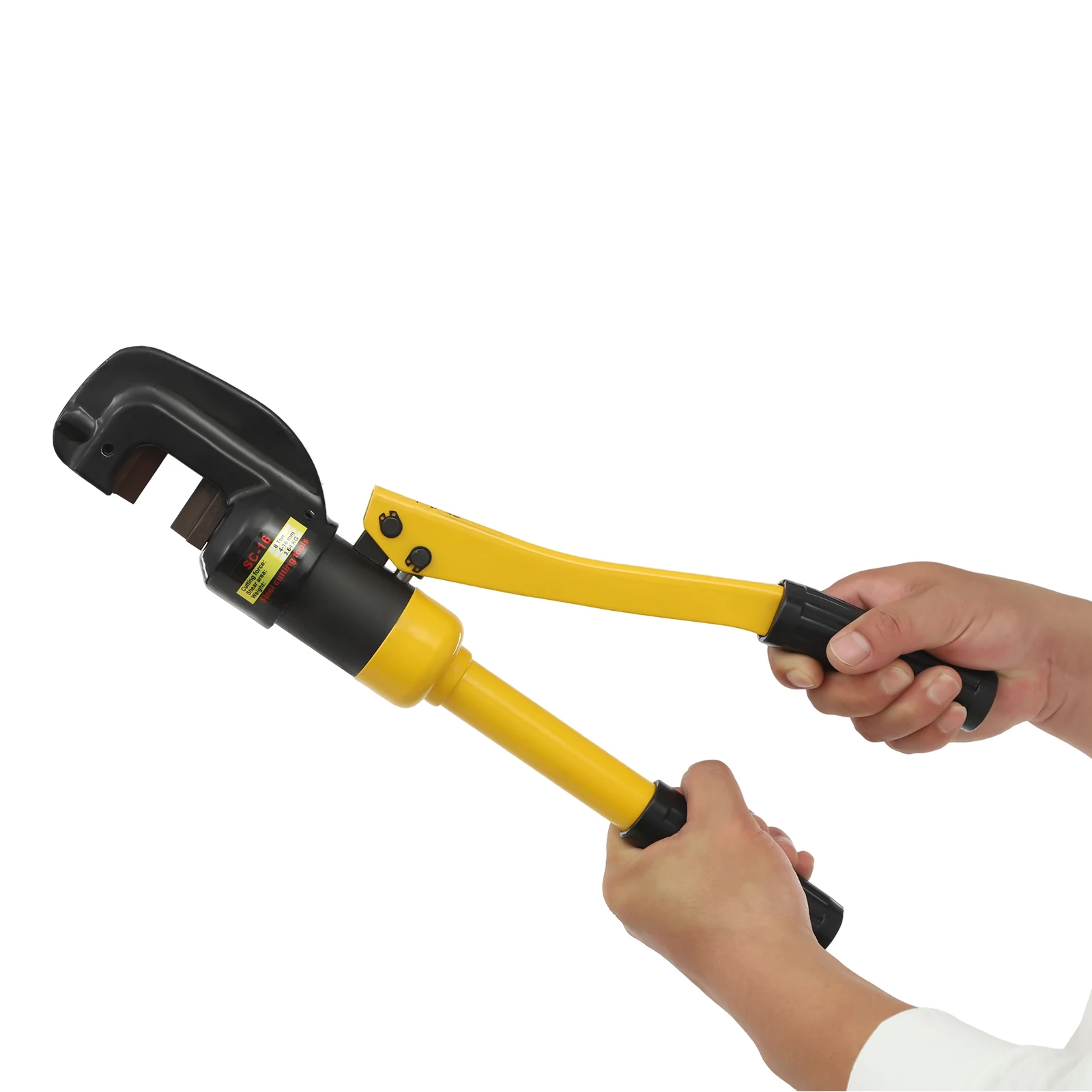

2.When using it, align the upper and lower cutter heads with the straight line of the blade, put the rebar in the middle of the knife, close the oil return switch in a clockwise direction, repeatedly pull the movable handle until the rebar is cut off, then release the oil return switch to reset the upper and lower cutter heads, and finally the operation is completed.
3.This product is strictly forbidden to be used under empty pressure and must be used in the presence of objects.
4.Please make sure that the cutting range of this product meets the material you want to cut before buying.
5.Please read the instructions in the package carefully before use, and pay special attention to the matters needing attention.
6.Tools should be maintained by personnel, and should not be disassembled arbitrarily, not knocking collision. When disassembling, attention should be paid to the cleanliness of the site. After using the product for a long time, the oil quantity will be reduced. You should spin off the fixed handle, pull out the oil plug at the end of the oil bag and loosen the oil return switch after the oil is filled. Toggle the active handle empty pressure repeatedly several times, so that all the air in the oil pipe out, and then the oil plug plug tight and screwed on the fixed handle.
7.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
