T3 T4 TO4E T04E 400HP Universal Turbo Turbocharger Kit w/ Wastegate Intercooler

T3 T4 TO4E T04E 400HP Universal Turbo Turbocharger Kit w/ Wastegate Intercooler

Legal Note: Not For Sale or Use in California, or New York.(for all vehicles registered in these states)


Application

Universal Turbo Kit Perfect for 1.5L-3.0L engine, 4/6 cylinder
This Kit Will be able to add 350+HP at 7.5-14.5 PSI.
(You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)

*Notice: Please confirm that your vehicle displacement is 1.5L-3L before purchasing. Otherwise, if you buy the wrong one, you will not be able to use it normally.


Specification

Turbine Side:
Exhaust Inlet Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet pipe Flange: 5 bolt Flange
Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Compressor Side:
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Compressor Inlet Diameter: 72mm(2.8")
Compressor Outlet Diameter: 53mm（2"）

Bearing Type: Wet Float Bearing
Cooling Type: Oil Cooling
Thrust Bearing: 270 degree
Horsepower: Up to 400HP
Oil Inlet: 1/8 NPT
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above

Other specification in the kit :
*1 x Intercooler: Size 27'' x 7'' x 2.5'' inch. Inlet size is 2.5 inch.
Support up to 350 hp for this small intercooler size - tube and fin style .
Intercooler core size: 21*7*2.5
*1 x Type-S Blow Off Valve: 2.5" Inch Type S/Rs Flange Pipe. 25PSi Boost! (the color will be shipped randomly)
*1 x BOV pipe: can install anywhere suitable
*1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit (the color will be shipped randomly)
*1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo.

Package Size: 94x 46 x 45 cm
Package Weight: 24600g



Features

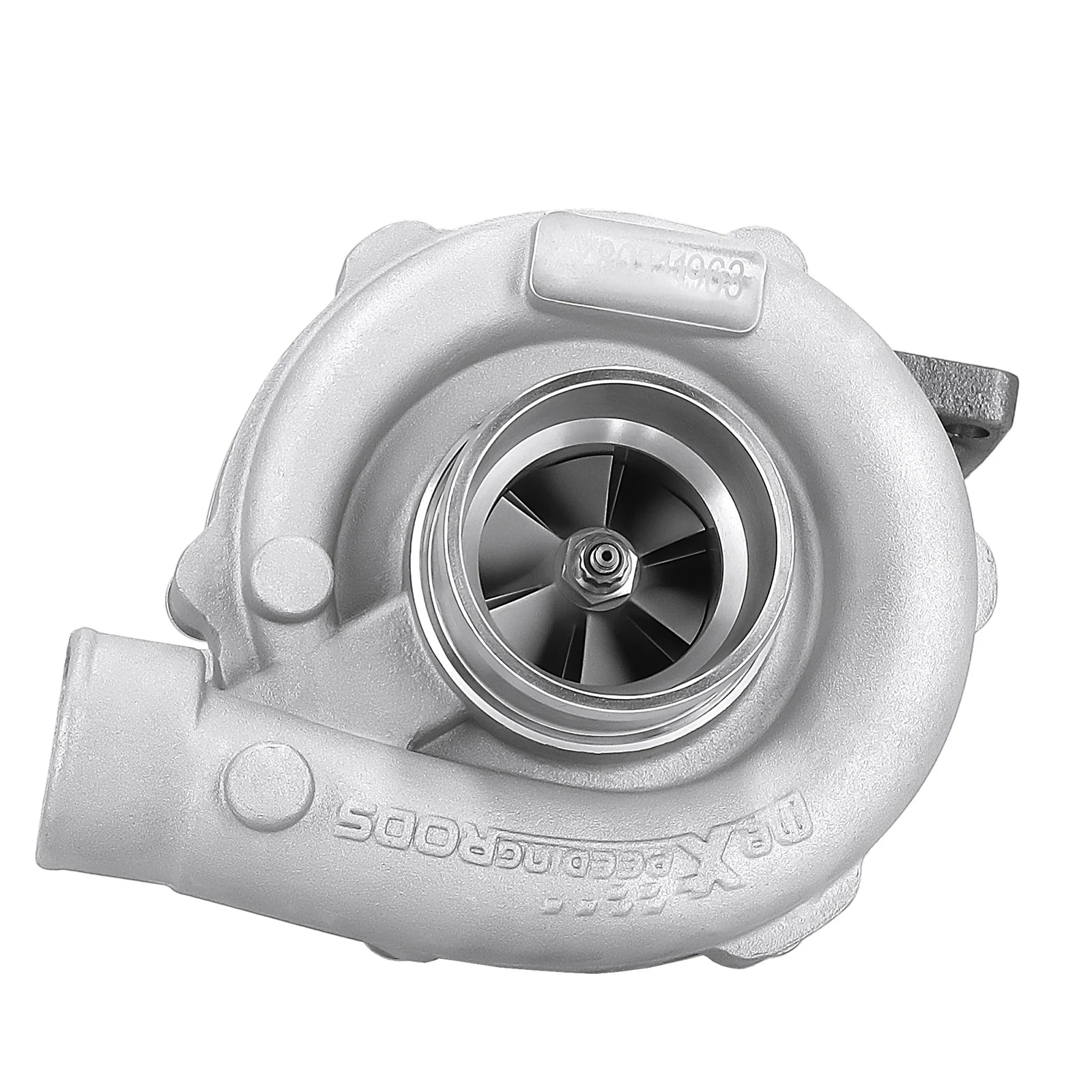

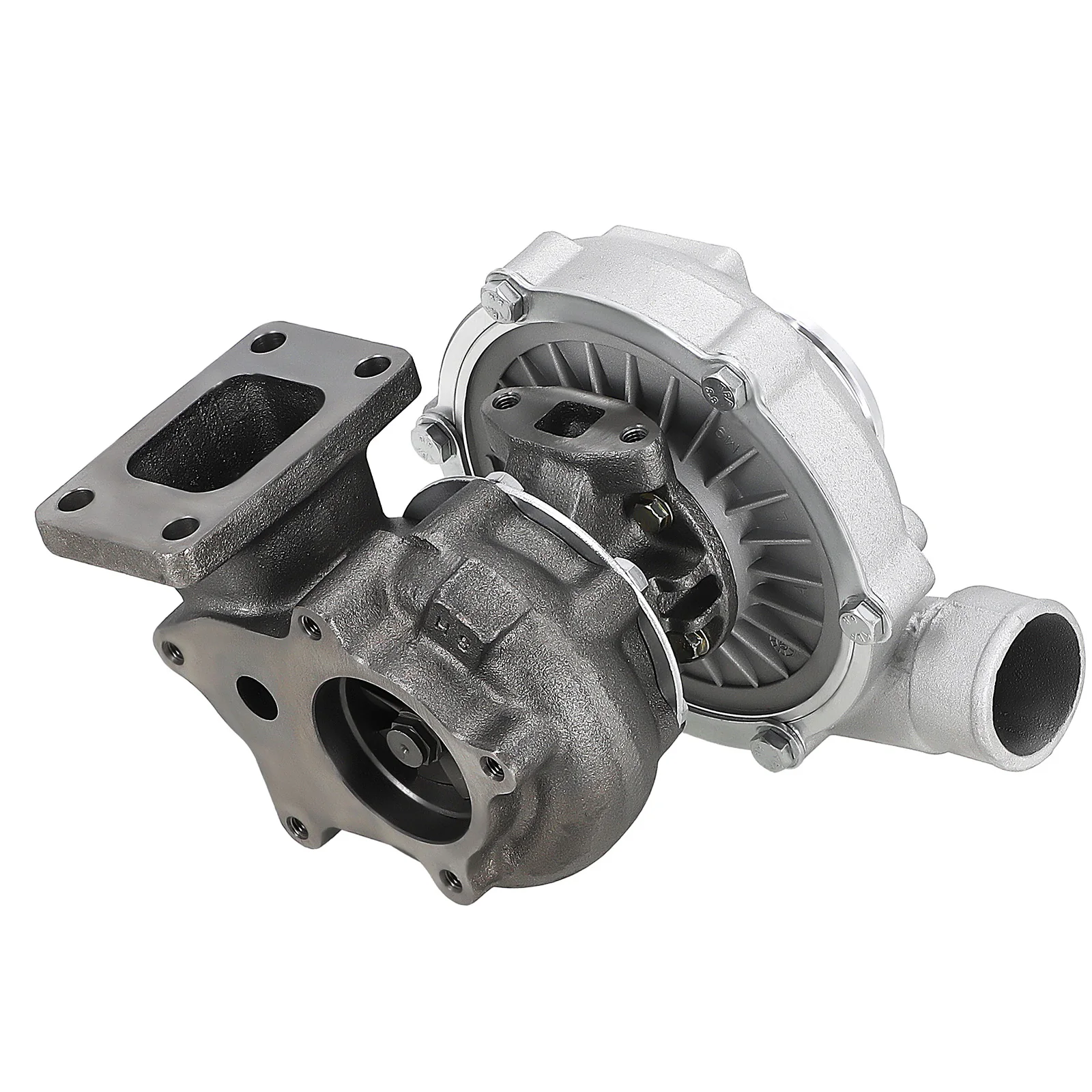

1. Turbocharger:
*Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
*Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
*Compressor housing: ZL104 aluminum with lightweight

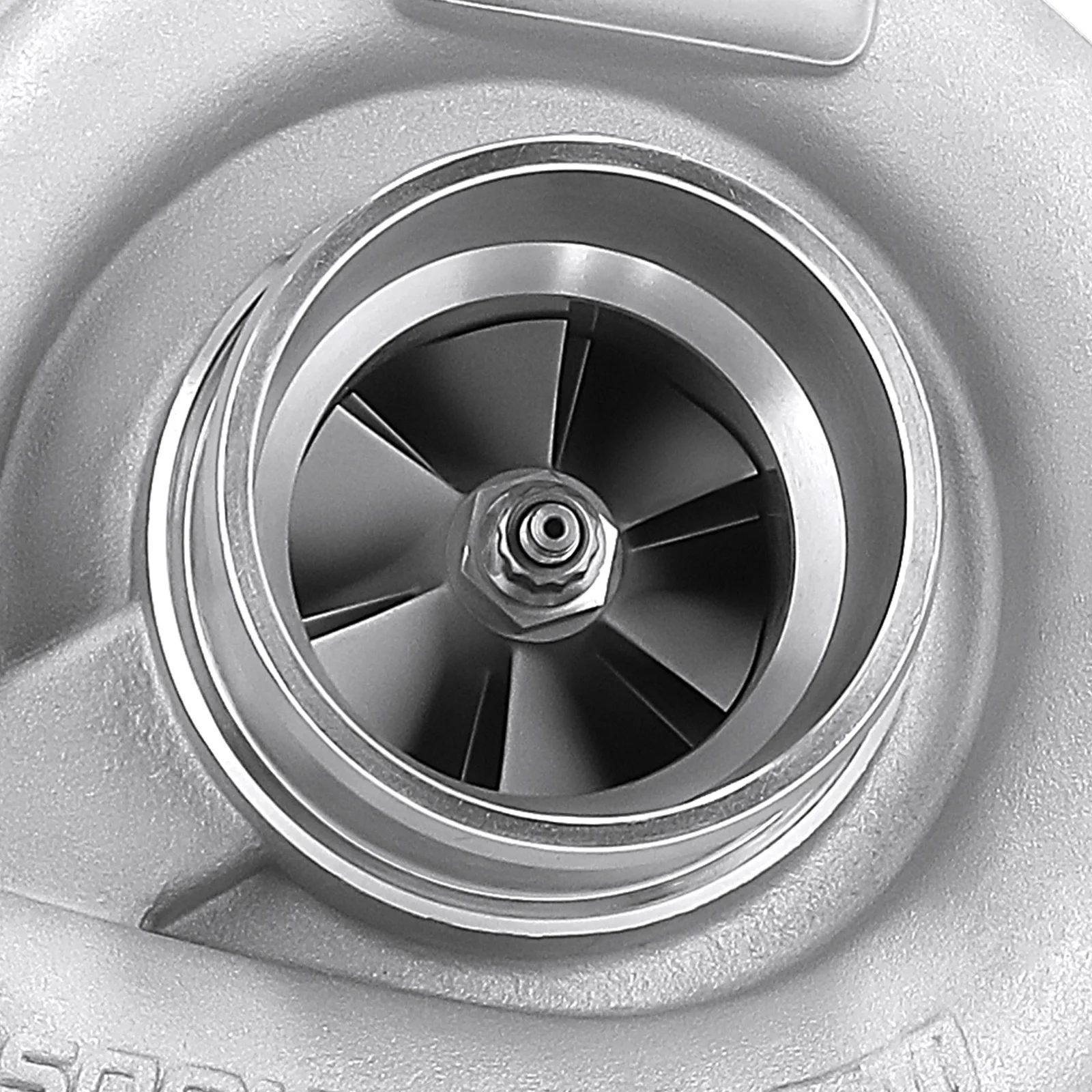

*Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
*Product Features
Cost-effective turbo increase 20-40% power for your car
Rich experience in turbo production and own factory
High-Speed oil seal ring and Precision clearance
Built for durability and strength
* Technology Advantage:
100% balancing Test by TURBOTECHNICS VSR3
G3-min-Flow VNT Turbo testing
Advanced Actuator Tester/Programmer


2. Intercooler
* core size:21*7*2.5 cools down the turbocharged air efficiently
* Lightweight aluminum racing intercooler，
* Strong TIG welds will support high PSI levels



3. Turbo Oil returen /Feeding line kit
* Stainless Steel Braided
* Includes complete install kit
* It helps circulate oil from the Turbocharger to the oil pan.
* The kit provides a anodized look
* gives a best cooling on your turbo and long lasting life.

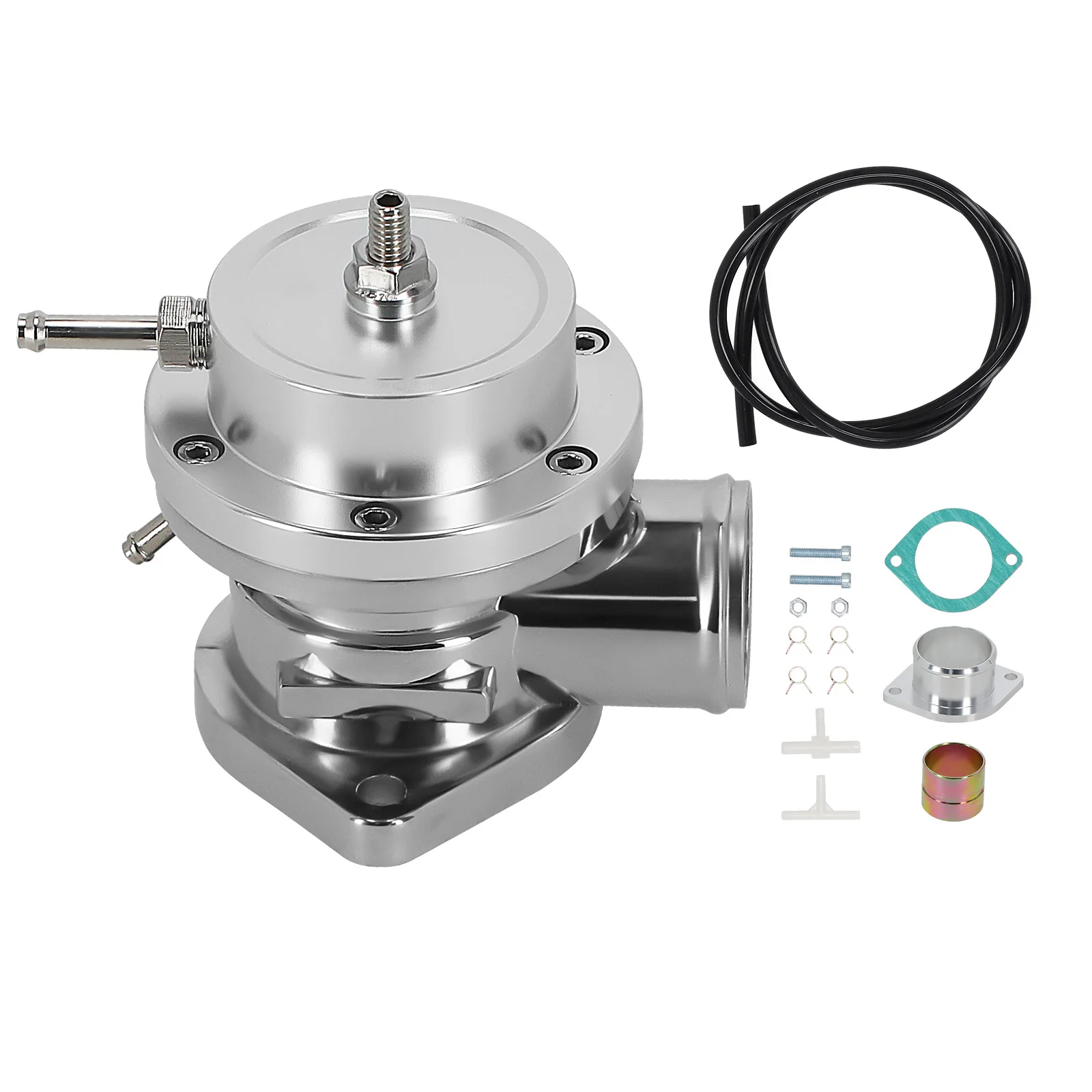

4. Blow Off Valve Kit (the color will be shipped randomly)
* CNC Billet Aluminum Type RS Style Blow off Valve
* Easy Mount Piping Set Included For Bolt-On.
* Including all necessary hardwares.
* easily adjustable to prevent both permature boost leakage and compressor surge.
* Fast response One For Low And High Boost Pressure.
* Quality design will not leak under high boost conditions
* Flanges can be installed at user discretion


5. 38MM Wastegate (the color will be shipped randomly)
* Most reliable wastegates For competition vehicles.
* accurate boost control
* high quality appearance features Dual port design
* comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.


6. BOV pipe/Adapter
* can install anywhere suitable

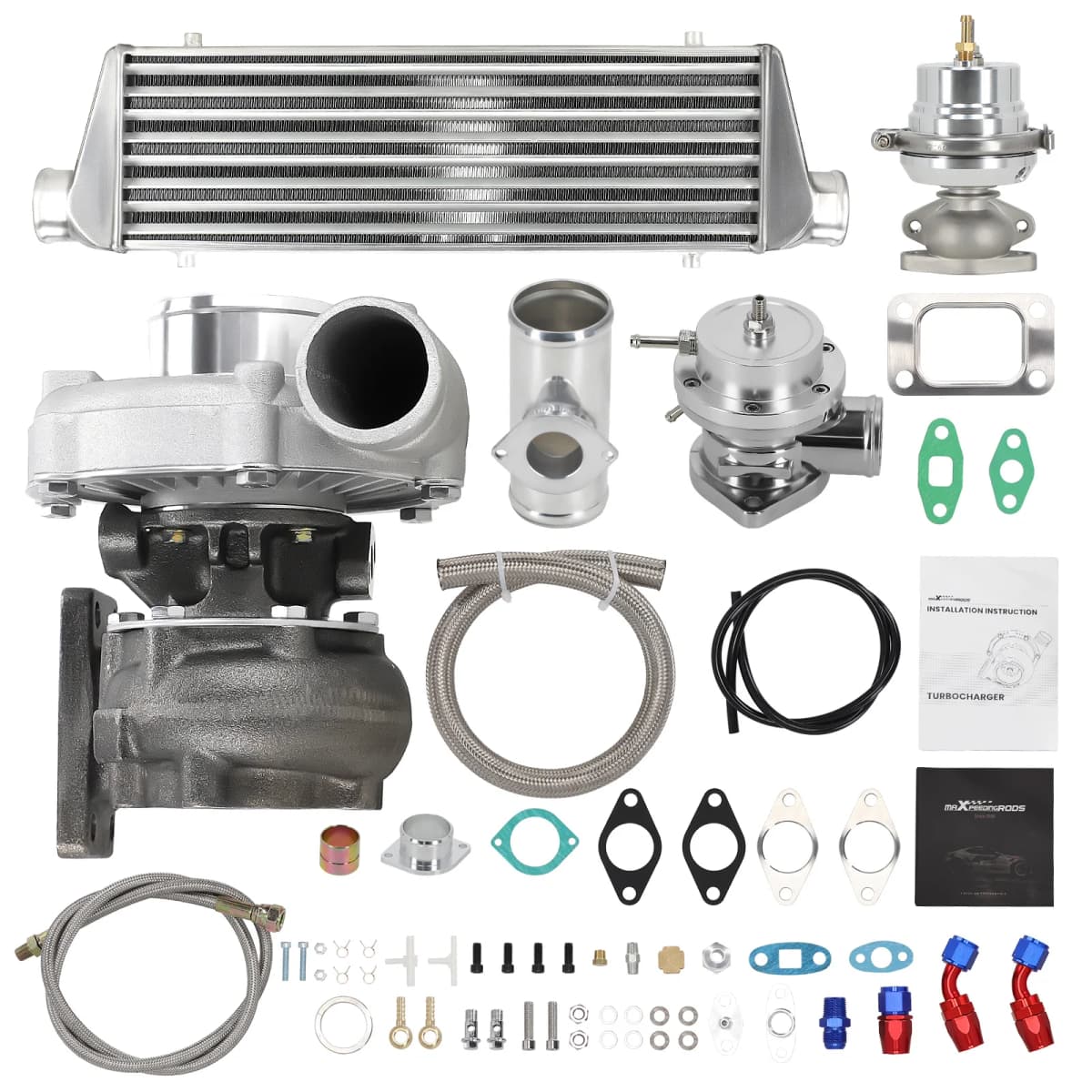

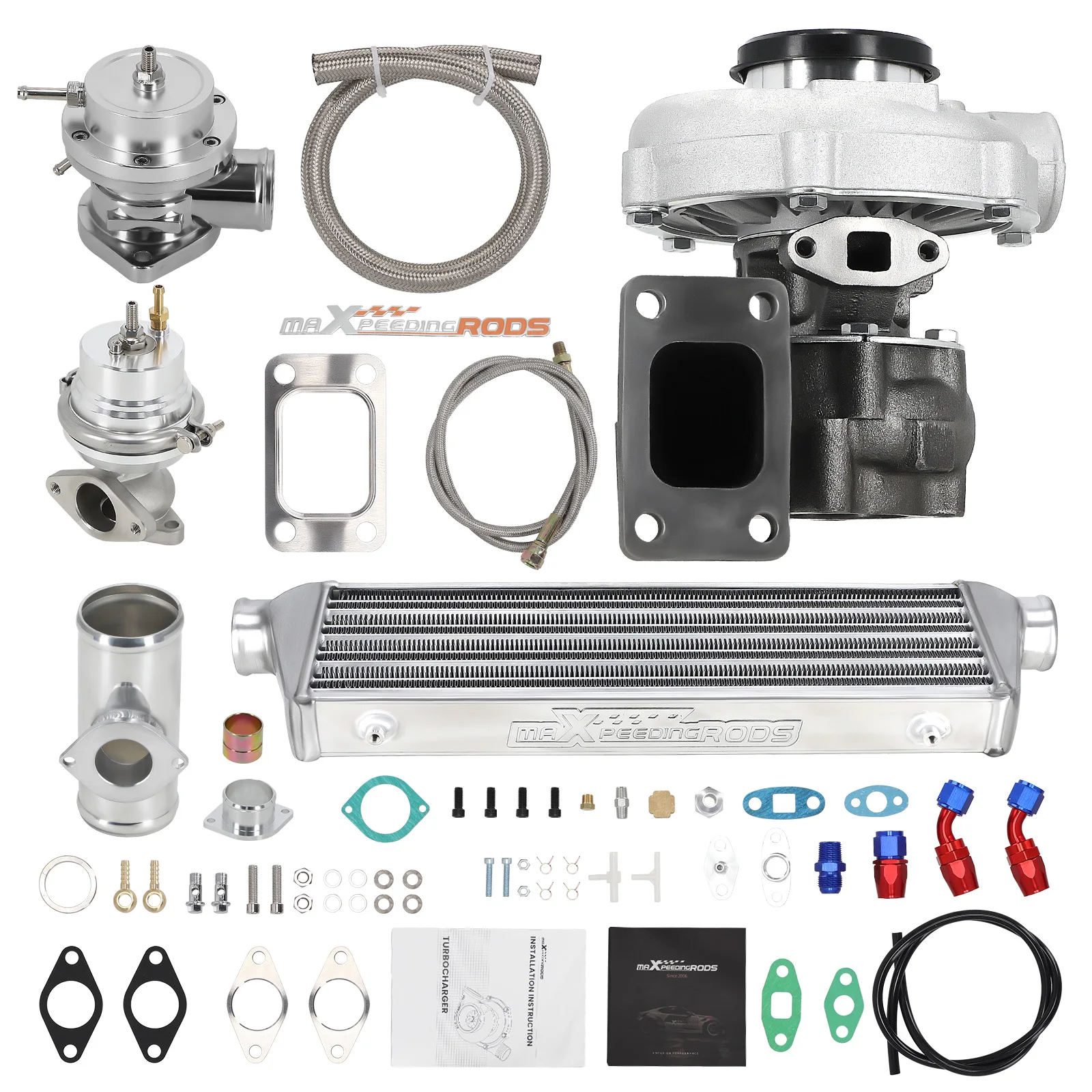

Package Include
1x Turbocharger
1x Oil Feed / Return Line
1x 35/38mm Wastegate (the color will be shipped randomly(Random Color)
1x Turbo Intercooler
1x Type-S Blow Off Valve(Random Color)
1x BOV Adapter/pipe
(You will get exactly as shown in the picture)

Note
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )
