LAUNCH X431 PRO Elite OBD2 Scanner Scan Tool with CANFD DOIP Automotive Diagnostic Tool ECU Coding Full System,37+ Resets,FCA

Must Read Before Buying

1.100% original LAUNCH Authorized Store, support 5 years Warranty and lifetime free technical Support.
2..Lifetime free to use and 2 years free update

3.X431 Pro Elite has 2 versions:
>EU version: it has the IP limit and only can be used in European area, such as the Spain,France,Poland,Russia,UK.......

>Golobal version: it has no IP limit and can be used in all country and all area.

Note：

All gifts on pictures will be sent after you receive the main package and give us all 5 stars reviews

please contact us when you receive the main products. Thanks

2024 Launch X431 Pro Elite

Main Features:

1.All system diagnosis: including Engine,Transmission, ABS, SRS, TPMS, EPB,Body System,Battery,ESP, IMMO etc.

2.Full OBD2 Functions: read car module informa,read and clear fault code.....

3. OE-level advanced diagnosis： ECU offline/online coding, Bi-Directional Test(active test), Refresh Hidden .....

4.Extension module: WIFI printer, Endoscope，TPMS, ADAS.......

5. Support CAN FD & DOIP Protocols+ FCA AutoAuth access

6.Supports 31+ Reset function: includes Oil reset, A/F Reset.......

7. Auto VIN：Support VIN code intelligent identification function, quickly enter the diagnosis

9.Other function: Share & Print Diagnostic Report,4-in-1 Live Data in Graphic .........

2023 X431 Pro Elite PK X 431 V V4.0

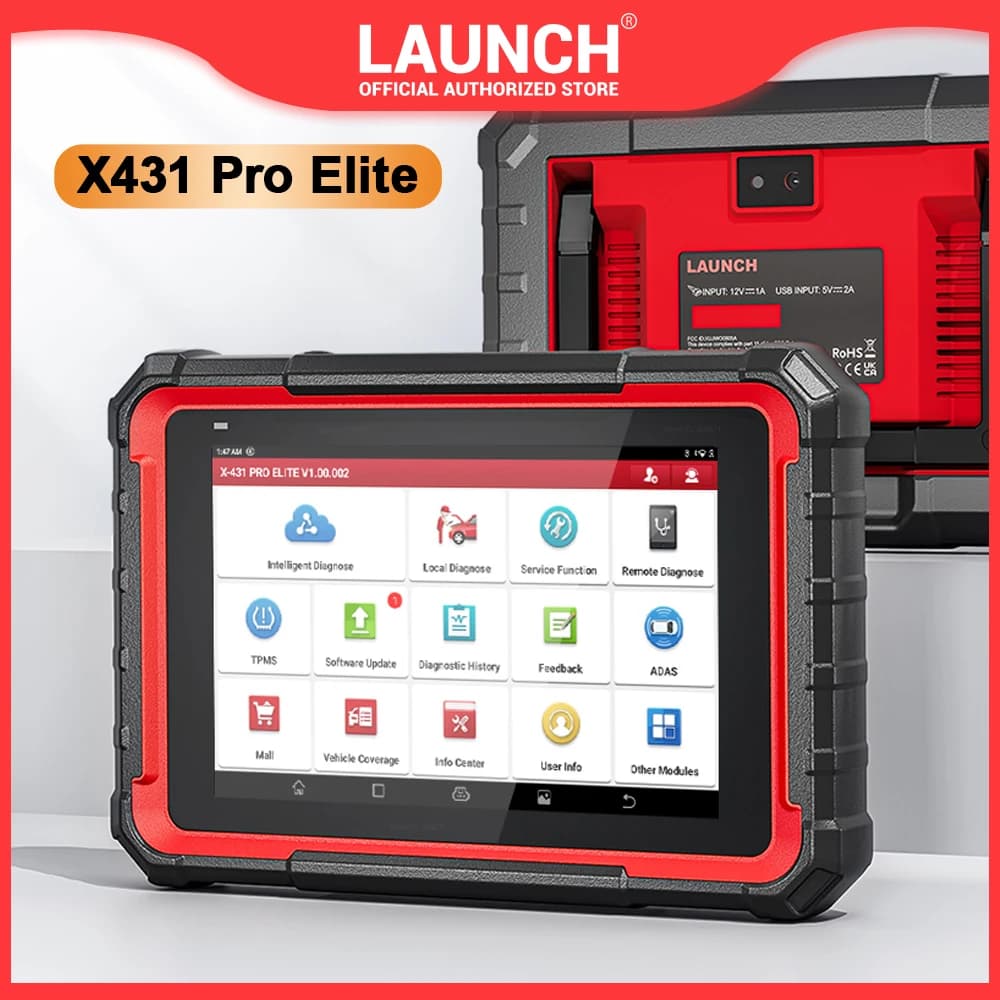

X-431 PRO ELITE is an 8-inch smart car diagnostic device developed based on Android 10.0 system. It adopts 2.0Ghz 4-core high-efficiency processor, 4GB RAM+64GB ROM large storage, and is equipped with a high-endurance battery, which runs faster, more stably and lasts longer.
The product inherits the functions and advantages of the X-431 V V5.0 product, which can cover more than 98% of the cars on the market, supports fault diagnosis of the whole system, has code reading, clearing code, reading data stream, special function, action test, code setting, matching functions.

All System Diagnosis:

The LAUNCH X431 Pro Elite auto code reader is a cost-effective automotive scanner, that offers OE-level diagnoses on all available electronic systems, which can read/clear codes, data stream, read control module information for ECM, ABS, SRS, TCM, EPB, TPMS, SAS, A/C, BMS, ESP systems, etc.

Supports OBD2 Full Functions:It supports OBD ll functions to help you turn off the annoying instrument fault indicator and also can read/clear codes, O2 sensor test, I/M readiness, On-board monitor test, read data stream, display freeze frame data, EVAP system test, retrieve vehicle information (VIN, calibration ID, calibration verification numbers)

Supports Full System Diagnostics: Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/Self Leveling Suspension systems Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System Stabilizer/Intelligent Parking Assist/Door Motors/Audio systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/DP.F Reset Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Reset / Sliding Doors / Electronic Throttle Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics ... and more.

ECU Coding：

The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc. But please note, ecu coding are NOT universal for all vehicles, please check compatibility with VIN number before purchase.

1.Online Coding: Compatible with VW/ Audi/ Skoda/ Ford/ Lincoin/ Mazda ONLY
2.Offline Coding: Compatible with Benz/ BMW/ Ford/ Mazda /Jaguar /Vauxhall /Opel, etc
3.Refresh the Hidden Features(Personalization)
4.Component Matching: Matching, relearning, calibration
5.Customize OE-Settings(Retrofitting/Modification)

Note: Coding functions vary by model. Check the compatibility by sending VIN to us

Bi-directional control :

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .For example , CRP919E BT have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.

Here are some other examples of active tests, which help you locate faults in the shortest time, saving time on troubleshooting:

Injector Buzz Test;
Fuel Pump & Valve Tests;
A/C Compressorclutch Activation;
Turn the Wipers ON/OFF;
Modulate Throttle ON/OFF;
Acceleration Device Test;

31+ Resets functions:

1.Oil Lamp Reset Service – Reset the oil life systems every time the oil and oil filter are changed;

2.Injector Coding – Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;

3.EPB Reset – Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;

4.SAS Steering Angel Sensor Reset – Perform steering angle sensor calibration and clear records;

5.BAT battery service – Evaluate the battery charge state, monitor the closed-circuit current, register the battery replacement, etc.;

6.ABS Bleeding – When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;

7.Throttle Adaptation – Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state;

8.TPMS service – Tire pressure resetting is required to be performed after maintenance is performed;

9.Gear Learning – Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced;

10.IMMO (K ey Programming) - Disable any lost keys and add new keys. **Please note: This function only work for some cars with easy system.You can send the year, model to us to check compatibility. WARM NOTICE: LAUNCH X431 V+ 4.0 2023 scan tool may not work IMMO program function for some cars. Therefore, if you buy this diagnostic scan tool for IMMO/key programming function, please c ontact us before to check the compatibility.

11.AFS Headlamp Reset: Initialize the adaptive headlamp system.

12.Sunroof Initialization: The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

13.Suspension Reset:Adjust the vehicle body height sensor for level calibration.
14. RESET ACINI
15. RESET ADBLUE
16. RESET AIRFUEL
17. RESET BOX
18. RESET COOLANT
19. RESET DPF
20. RESET EGR
21. RESET ENGPBM
22. RESET GPF
23. RESET HVOLBAT
24. RESET ICCS
25. RESET LANGUAGE
26. RESET NOXSENSOR
27. RESET PROG
28. RESET SEAT
29. RESET STOPSTART
30. RESET TRANSPORT
31. RESET TYRE
32. RESET WINDOW

Supports CANFD and DIOP protocol:

CANFD :

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer

DOIP：

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH CRP909X save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).

Tips:

( Note : this is car list that CANFD and DIOP supports , CRP919E also supports other cars , more than about 100+ brands , like for bmw , for vw , for ford etc , there has the detailed car list in the following description , you can check ）

2023 New Function AutoAuth Access: Bypass SGW in FCA Vehicles

you now have access to the security gateway module on 2018 and newer Fiat Chrysler vehicles, so that the diagnostic tool can clear codes, run bi-directional active tests, actuations, relearns or even IMMO key programming (pulls PIN & write), ADAS calibration assistance etc.

*Note: Update to get this new Function. Since November 23, 2022, all FCA-supported regions will require an account purchase to log in AutoAuth. The payment is charged by AutoAuth directly. LAUNCH is not involved in any transaction process. Reach us for more detail.

Full 10 Mode OBDII/EOBD/JOBD Car Diagnostics Functions:

1.Reading Codes:Show the detailed description of the Diagnostic Trouble Code (DTCs)

2.Erasing Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets monitors.

3.Data Stream:Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4.I/M Readiness Status:Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.Read Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6.View Freeze Frame Data:Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7.O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8.On-Board Monitor Test:Retrieves and displays test results for emission-related powertrain components and systems

9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10.Component Test:Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Extension module：

X431 ADAS Mobile/PRO:

When the adaptive cruise control module (ACCM), radar sensor or front bumper has been replaced or does not meet the maintenance calibration requirements, you need to perform "radar calibration" on your vehicle.

VSP600-Videoscop:

helps technicians to check issues on unreachable area in a vehicle. With 6 levels light strength, technicians can easily adjust the brightness according to the environment. It will work with LAUNCH X-431 scanners or any Android device and streams live video on it. Technicians can view, record and save images and videos.

LAUNCH X431 TSGUN:

a professional tire pressure diagnostic tool that integrates TPMS sensor activation, reading, learning and pro-gramming. It activates reading tire pressure information by receiving signals at low or high frequencies. Check for abnormal conditions in time to prevent tire pressure problems.

X-PROG & X-PROG3 Immobilizer:

turn this X431 diagnostic scanner into a capable IMMO service tool, providing fast, easy, and intuitive k-ey pro-gramming for VAG group vehicles with 2/3/3.5 gen. IMMO, and most Asian cars with low-level antitheft systems; also to have completed IMMO & K-ey Pro-gramming (read & write 1200+ EEPROM and MCU chips, etc.) for VW/Audi/Skoda/Seat models manufactured after 2008 with 4/5/5.5/6 gen. IMMO system.

X431 PRINTER: Print out diagnostic data/ reports

O2-1 ScopeBox, Oscilloscope: to quickly acquire the circuit signal, and slowly display the waveform for better data analysis.

BTS360 Bluetooth Battery Tester

With LAUNCH BST360 automotive battery tester, we can check the overall health of the battery.works for all 6 volt and 12 volt lead-acid batteries include regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries with the test range (100-2000 CCA). Compatible with cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers, and even golf carts.

Anto VIN

Through "smart diagnosis", you can quickly read the vehicle VIN code, quickly enter the diagnosis, and check the historical diagnosis records

Extra functions:

IMMO Function: LAUNCH X431 Pro Elite launch scan tool has the immo function which is similar to x431 V's anti-theft key car model. It can add a new key and disable the lost car keys,but only covers some 3.5th gen. Volkswagen, Audi, Skoda, Seat, and some Asian cars.

4 in 1 Live Data Stream: The scan tool X431 Pro Elite launch scan tool shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.

Data Recording Functionality is convenient, customer can record the live data stream for up to 4, simultaneous, PID's. Once these have been recorded they can be played back in text format and/or graph format.

Data Playback supports two graphs (independent) or 4 PID's graphed (combined). Playback timeline can be scrolled, paused, viewed, etc. There's quite a bit of power in the graphing.

One Click to Generate Report: Launch X431 Pro Elite obd2 scanner support auto generate and store vehicle diagnostic report which can let your mechanic know how to do vehicle inspection and maintenance.

Print and Share Report: The diagnostic report can help you save time to analyze the problem, it is very great for repair shop , mechanics can print out the vehicle report for customer.The diagnostic report can be shared to email.

Displays Error Codes With Explanations:Click on the “Code Search” icon to dig more. It will switch to Google to show you more analysis of trouble codes, reasons why such faults occur, and even YouTube links.

With Online DTC Code Search: Search the DTC definition on “Google” for more online help & tips.
NICE & PERFECT GIFT IDEA-FOR YOUR FAMILY,FRIENDS,COLLEGUES！

Compatible with a Wide Range of Vehicles

LAUNCH X431 Pro Elite Car Diagnostic Tablet is an evolutionary Android smart solution for 12V passenger car,light duty,pickup truck diagnosis & maintenance. Covering more than 100 car brands(1996-2023) and 20000+ models.It's design for car repair garage,car beauty service parlors, auto mechanic and DIY car owners auto scanner.

2023 New Function FCA AutoAuth Access Function:

With the newly update on Launch scan tool CRP919E, you now have access to the security gateway module on 2017 and newer Fiat Chrysler Jeep Dodge vehicles.(Note:FCA autoauth requires a paid FCA account to log in directly. If the login fails, you can choose to connect to 12+8 FCA adapter to solve your problem.)
Compatible with a Wide Range of Vehicles:

Compatible with J1850 PWM, CAN, ISO9141, J1850 VPW & KWP2000 protocols, made after 1996 in the US, 2000 in EU, and 2008 in Asia.
Much commonly-seen car brands in the U.S. like GM, Toyota, Honda, Chevrolet, Ford, Benz, BMW, Audi, Renault, Land Rover, Volvo, Chrysler, Jaguar, Kia, Hyundai, Nissan …
Support CAN FD/ DOIP Diagnostic Protocols: Compatible with GM models (2020 and later).DoIP makes LAUNCH CRP919E save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), Volvo models (2018 later), Land Rover & Jaguar models (2017 later).

More Details of Car Brands:

[America]: Compatible with Chevrolet, Buick, Cadillac, Chrysler, Dodge, Ford, GMC, etc.
[Asia]: Compatible with Infiniti, Acura, Kia, Lexus, Hyundai, Subaru, Daewoo, Daihatsu, Mitsubishi, Honda, Mazda, Suzuki, Toyota, etc.
[Europe]: Compatible with BMW, Benz, Audi, Porsche, Abarth, Alfa Romeo, Bugatti, Citroen, Dacia, Volvo, VW, Land Rover, Opel, Peugeot, Renault, Fiat, Jaguar, Lancia, Mini, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, etc.
NOTICE: Kindly send your VIN to check compatibility as the function vary on cars. Menu varies by vehicle's make, model, and year！

Supports 25 Languages:

English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Chinese Traditional...

Warm TIP: The factory presets the language and the model software in English. After switching the language, customer needs to re-download the model software in the corresponding language.

X431 Pro Elite parameter：

OS: Android 10.0
Processor: 2.0GHz, quad-core
Memory: 4GB
Storage: 64GB
Display: 8 inches, LCD screen
Resolution: 1280*800
Camera: rear 8 million pixels
Wi-Fi: 5G/2.4GHz
Battery: 6000mAh
Working temperature: 0℃～50℃
Storage temperature: -20°C to 70°C
Size: 256*171*40.5 (mm)
Net weight: 1000g
