BSIDE Smart Digital Multimeter, ACDC Voltage 620V Multifunction Voltmeter, Current Capacitance Ohm Connected Hz NCV Diode Tester

Benefits:

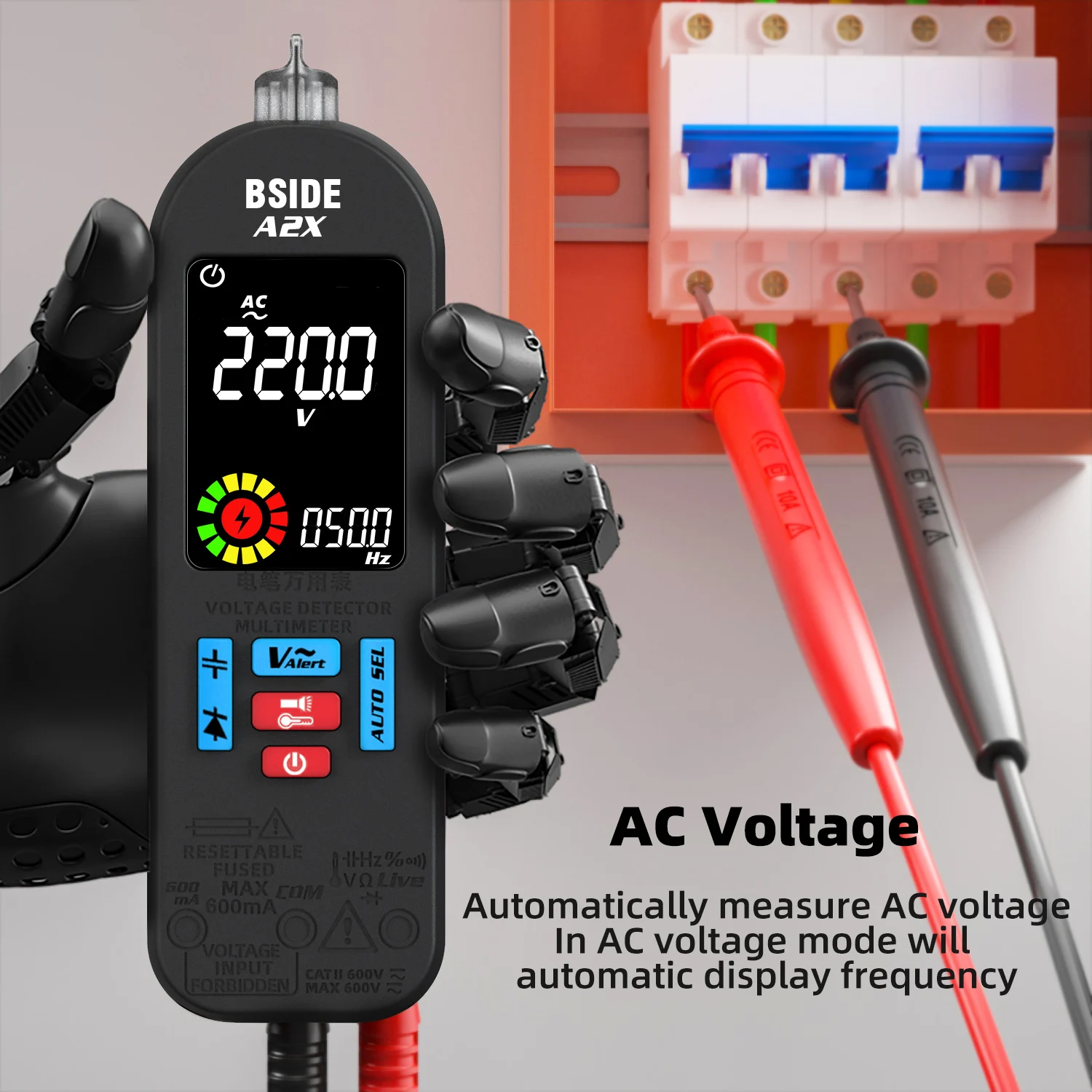

[Smart Mode]: This smart multimeter tester can automatically measure AC and DC voltage, resistance, and continuity with the best resolution. All of these functional measurements can also be done manually.

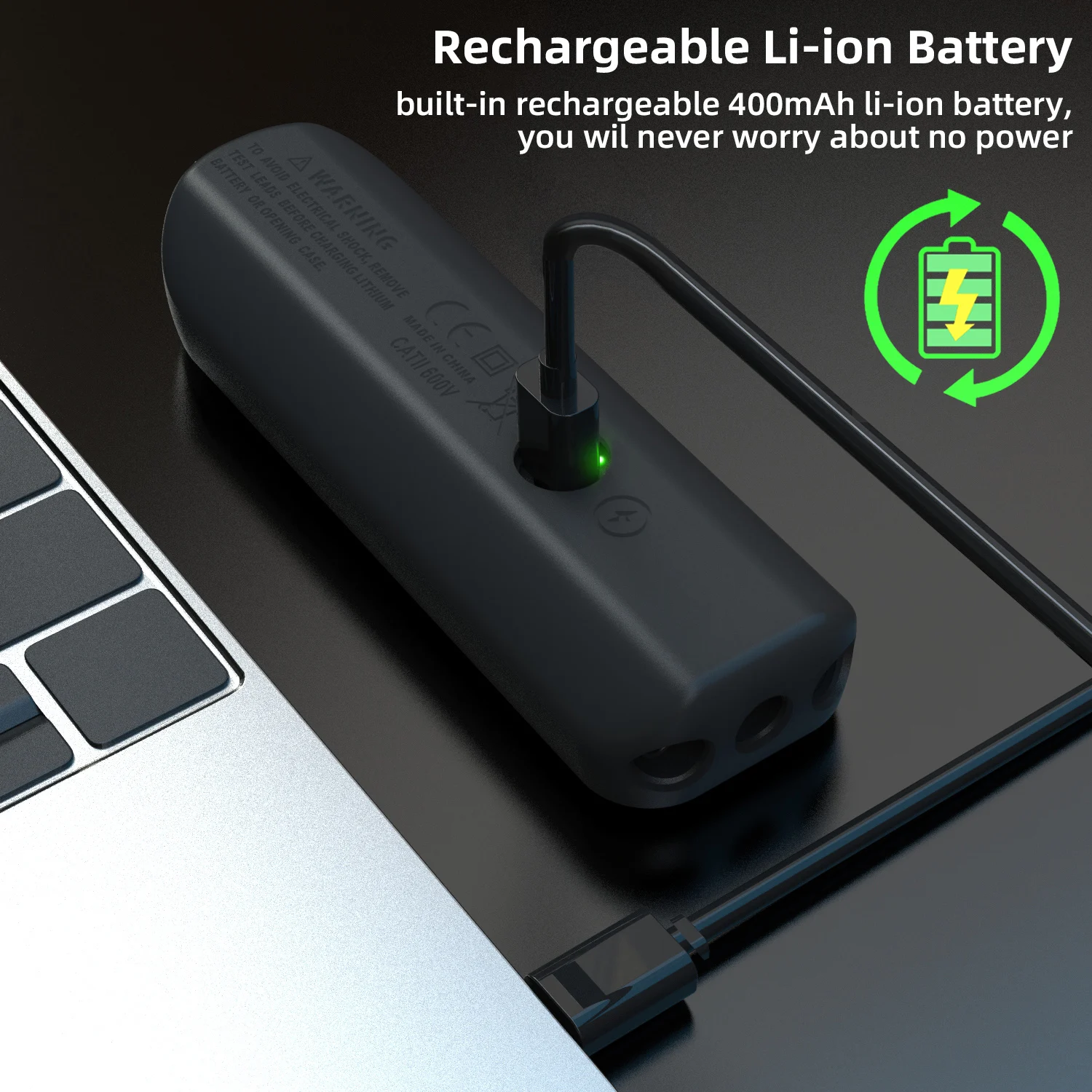

【Rechargeable】: The smart multi-function meter is equipped with a rechargeable battery and a charging cable, so you never have to worry about the power supply.

【High Efficiency】: Activate current, capacitor, diode, V-alert or auto mode measurement, any function design makes the test more convenient and greatly improves your efficiency.

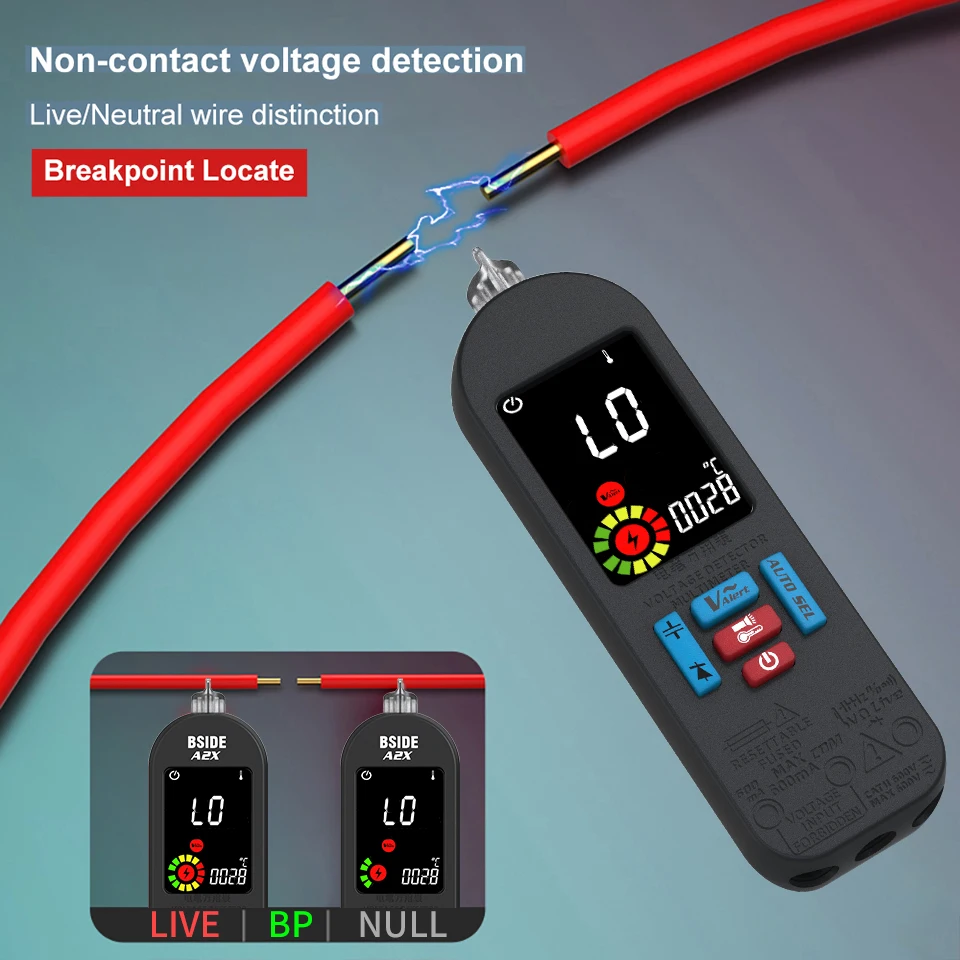

[Professional Voltage Tester]: The rechargeable multimeter can also be used as a professional non-contact voltage tester. The sensitivity of the AC voltage tester is adjustable.

Features:

Smart Digital Multimeter Tester

Charging pocket voltmeter

Universal digital voltmeter

Automatic or manual mode electrical tester

Red and green backlit digital smart voltmeter

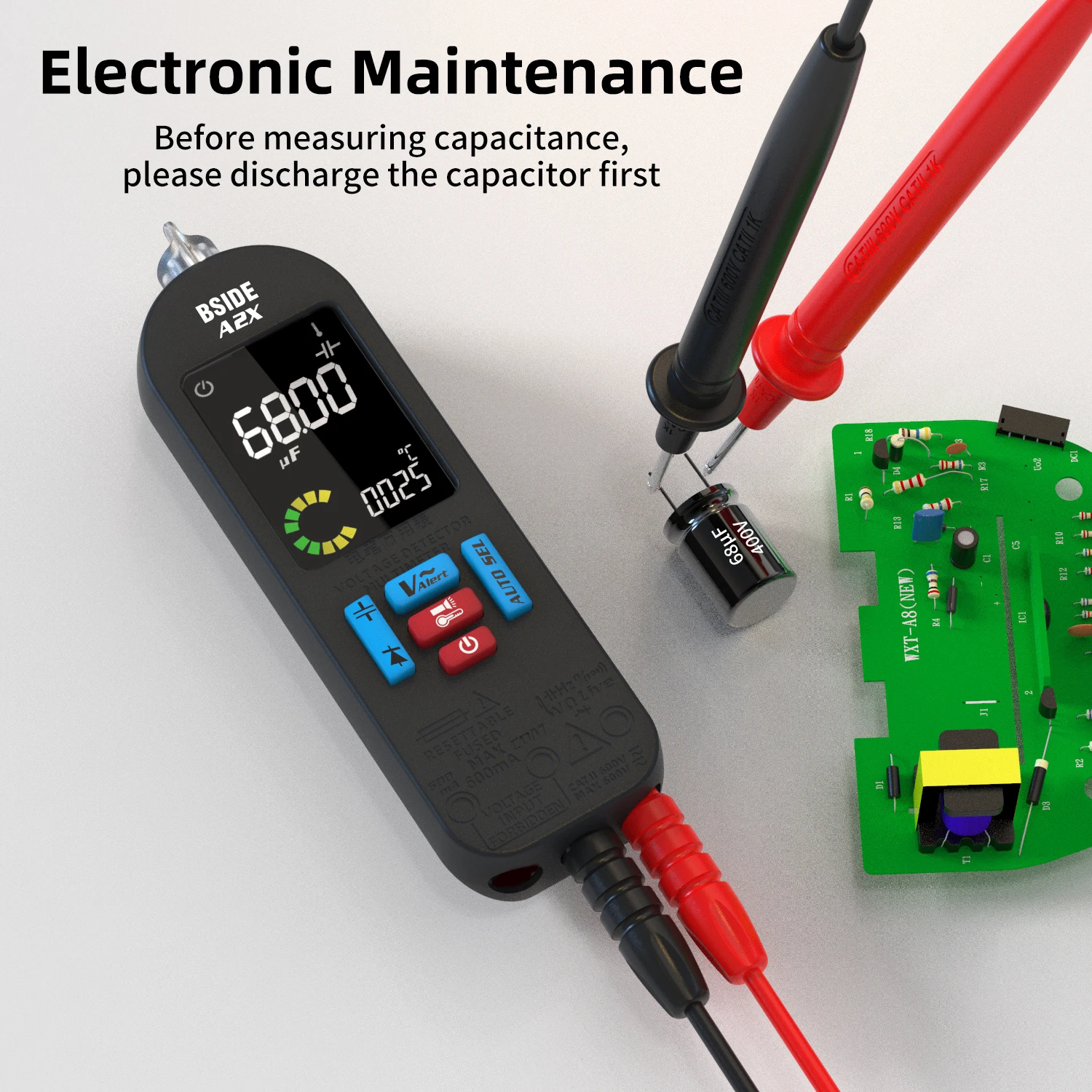

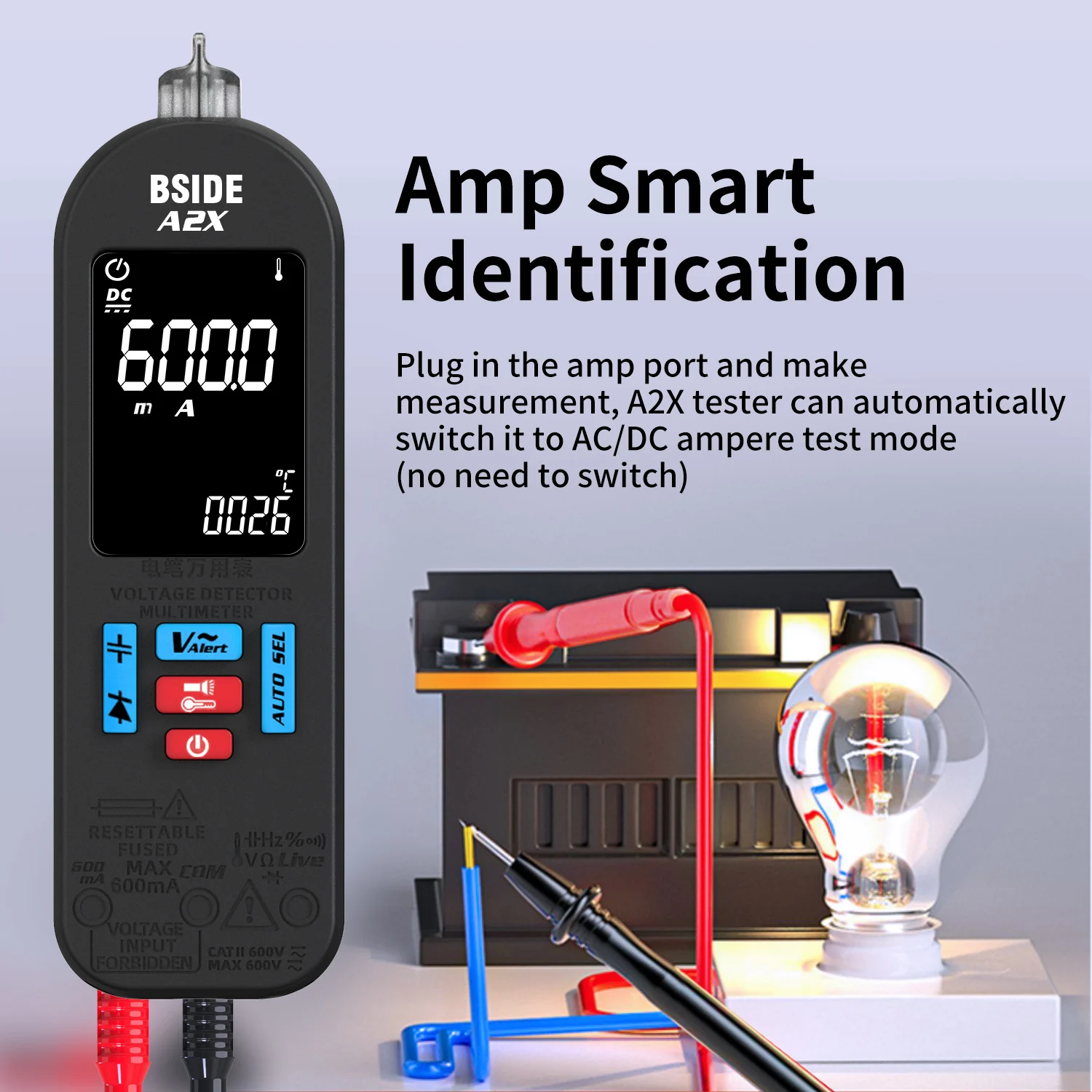

Measure current capacitance, diode, AC and DC voltage, resistance, continuity, V-Alert and livewire checks

It can also be used as a professional voltage tester with adjustable sensitivity

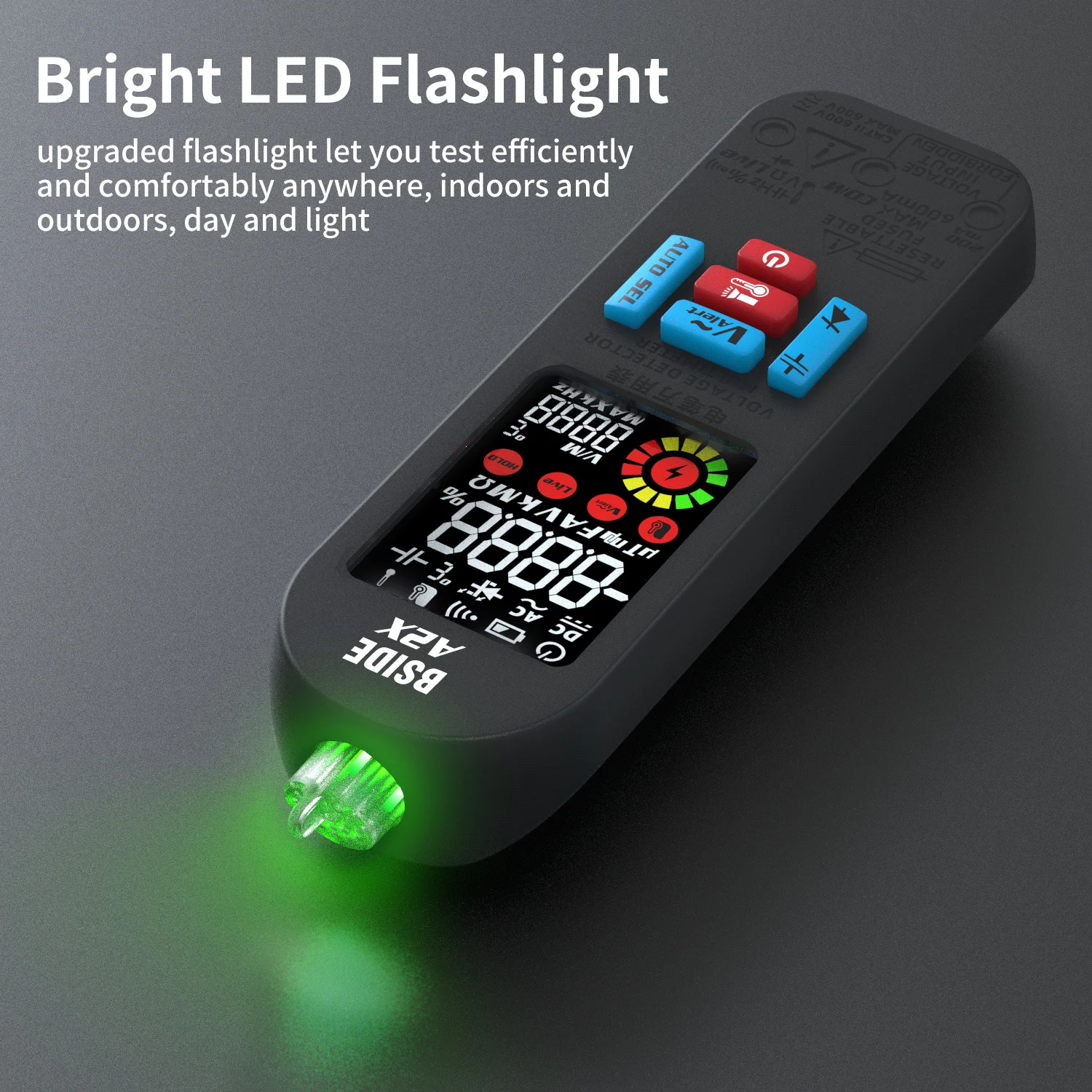

Auto-ranging, auto-shutdown, low battery indication with flashlight

Specification:

Maximum display: 6000 counts

DC Voltage:

0V-620V 0.01V ±（0.8%+3）(DC); 0.8V-620V 0.01V ±（0.8%+3）(AUTO)

AC Voltage:

60mV-620V 0.01V ±（1.2%+5）(AC); 0.8V-620V 0.01V ±（1.2%+5）(AUTO); 10V-620V 1V ±（4.0%+3）(VFC);

DC Current:

1.0-610mA 0.1mA ±（1.5%+3）

AC Current:

1.0mA-610mA 0.1mA ±（1.5%+3）

Resistance:

0-6.0MΩ 0.1Ω ±(1.2% + 3); 6MΩ-60.0MΩ 0.1Ω ±（2.0% + 10

Capacitance:

0.5nF-6.0mF 0.001F ±（3.5%+8）; 6mF-60.0mF 0.001F ±（4.5%+10）;

V-Alert (Non-Contact Voltage Detection): High and low mode

Fireline Check: Yes

Continuity: If the resistance is less than 50Ω, the buzzer will emit it

Diode: Diodes that measure up to 3V

Power supply: 3.7V (built-in, rechargeable)

Size: 146*44*25.2mm

Weight: 95g

Package Includes:

1 x Smart Multimeter

1 x Test Leads

1 x Charging Cable

1 x User Manual
