Chainsaw Accessories Wood Carving for Husqvarna and Stihl Efficient Professional Easy to Use Belt Driven

Chainsaw Accessories Wood Carving, for Husqvarna and Stihl. Efficient Professional, Easy to Use, Belt Driven

High-quality Material: This product is made of high-quality steel and aluminum, with high hardness, high wear resistance, anti-corrosion, and anti-rust performance.The peeling system of this product is compact and rotates by a V-belt drive, resulting in a high transmission rate and better peeling effect.

High Efficiency: The four blades are arranged in the outer circle at the end of the aluminum disc for high engraving efficiency. It can also be paired with an electric saw to turn into an electric chisel, thus having higher peeling efficiency.

Easy to Install: The simple product structure, complete installation parts, and detailed English manual in the package can help you quickly complete the installation.V-belt driven design, 3:2 pulley reduction ratio and durable steel drive pulley make the log peeler better balanced.

DIY Fun: This product can be used for debarking, grooving, flattening, shaping, and carving logs, it is an ideal gift for wood DIY lovers.You can adjust the depth of the blades to adjust the thickness of the cut, thus increasing the speed of grooving.

Assembly Sequence

1. Drain the oil from the chainsaw.

2. Remove the bar and chain (see your chainsaw manual).

3. If there is a removable comb (support) - remove it.

4. Remove the clutch (star).

5. If there is a tensioning device in the housing, remove the device.

6. Install the clutch (drive pulley from the attachment kit) if necessary, using shims.

7. Install the attachment on the chainsaw using a set of washers,

install the belt on clutch (pulley) and spindle shaft.

8. In order to avoid overwhelming the belt - do not install the brake

cover.

9. Using a screwdriver wrench for the chainsaw, carry out the

following steps:

A) make a weak tightening of the chainsaw attachment

B) insert the screwdriver wrench into the groove between the chainsaw body and the nozzle fork.

B) use a screwdriver to tighten the belt (the belt should not hang out-sag)

D) carry out the final tightening of the nuts securing the attachment to the chainsaw (For tightening torque, see your chainsaw instruction manual).

10. To carry out broaching of nuts of fastening of knives.

11. Install the stop using 2 bolts and M8 nuts.

Application

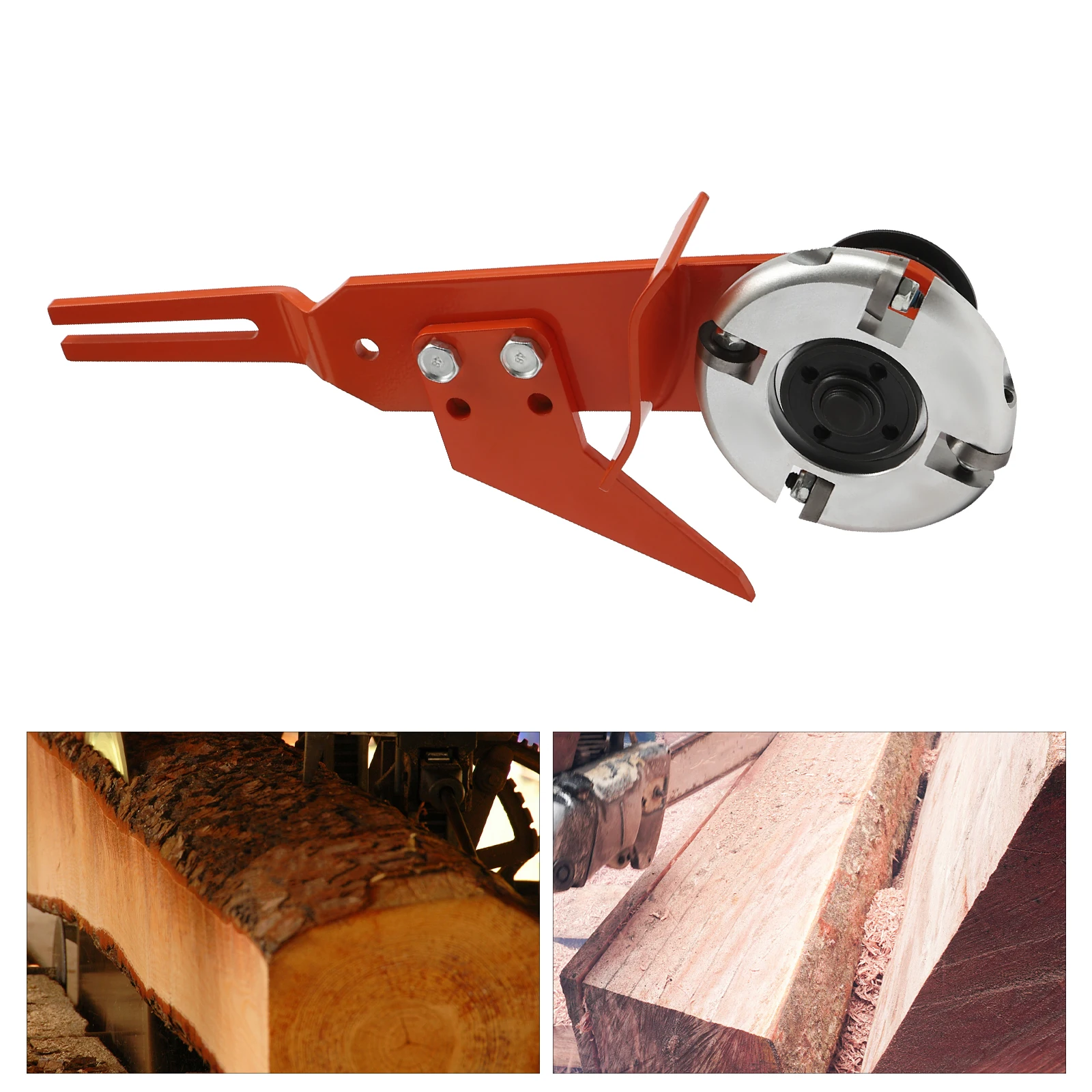

This product is mainly used for wood debarking, root debarking, etc. It is an ideal tool for building material stores, farms, construction works, energy and mining industries, etc.

Specification

Model: BY-73

Material: Aluminum and Steel

Color: Red

Assembly Required: Yes

Compatible Products: Chainsaws

Extended Compatible Chainsaw Models: Fujinova Series Chainsaws and Carver Series Chainsaws

Compatible Chainsaw Models: Stihl MS170 MS180 MS181 MS210 211 MS230 231 MS250; Husqvarna 137, 141, 142, 235, 235E

Pulley Reduction Ratio: 3:2

Gross Weight: 3kg/ 6.61 lbs

Net Weight: 2.5kg/ 5.51 lbs

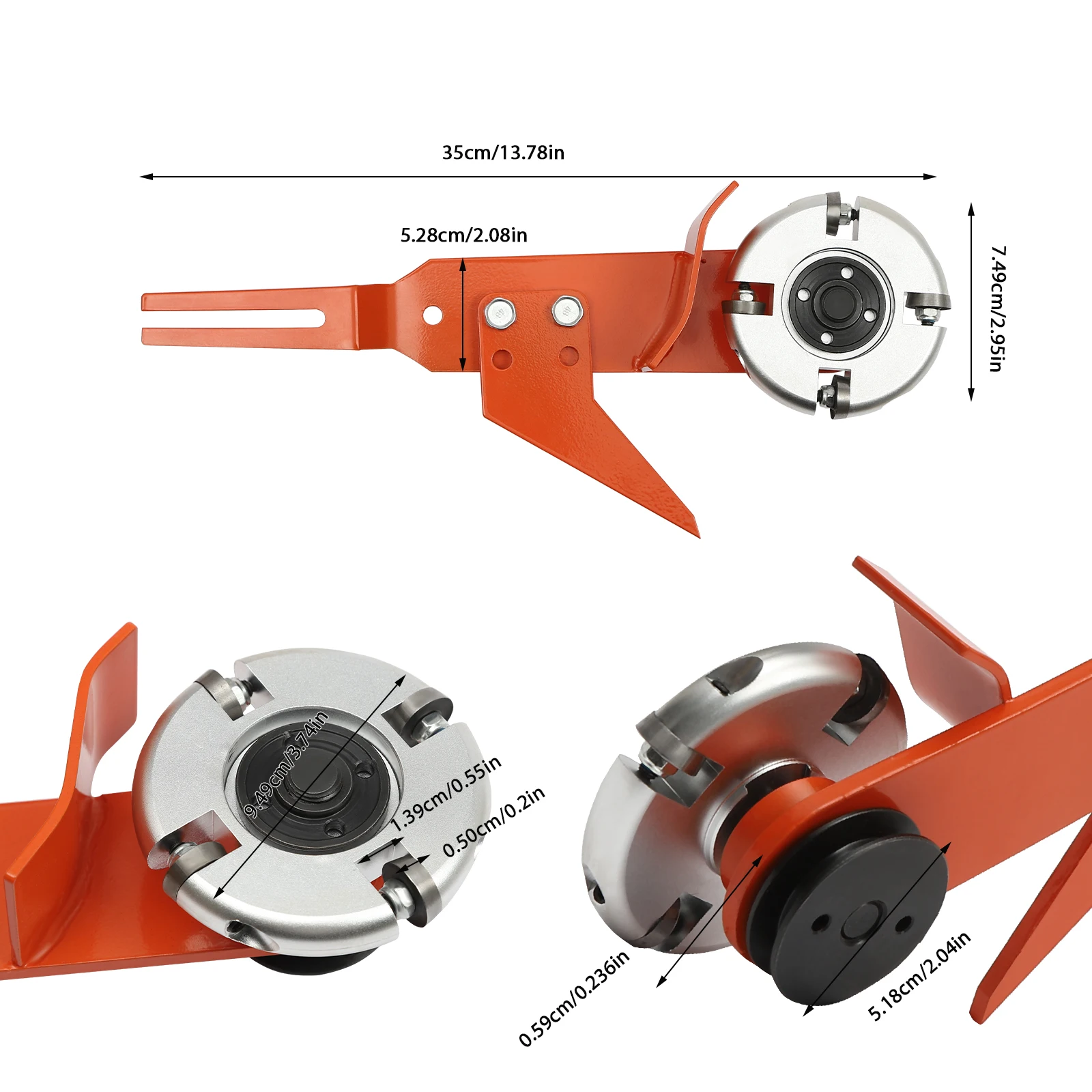

Product Size(L*W): 35*7.49 cm/ 13.78*2.95 in

Cutter Diameter: 9.49cm/3.74in

Bracket Thickness: 0.59cm/0.236in

Bracket Width: 5.28cm/2.08in

Back Drive Pulley Diameter: 5.18cm/2.04in

Package Size: 36*8*11 cm/ 14.17*3.15*4.33in

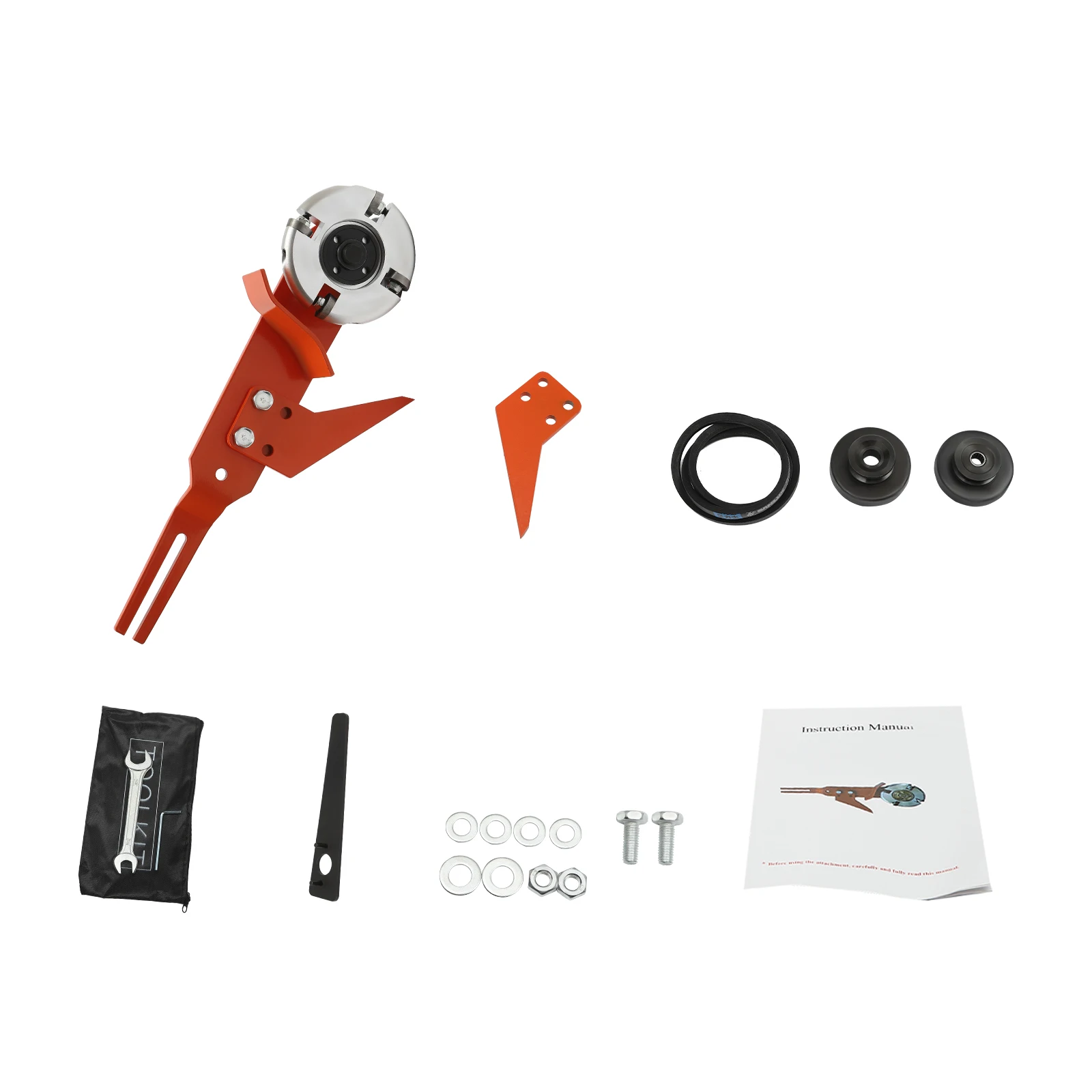

Package Included

1 * Chainsaw Carving Mill Attachment

2 * Drive Pulleys

1 * V-belt

1 * Carrying Bag

1 * Wrench

1 * English Manual

All Accessories for Installation

Notes

1. It is forbidden to work in the immediate vicinity of people and animals.

2. Only two hands can be used to operate a chainsaw with attachments.

3. The throttle stick should be in your right hand.

4. It is forbidden to stand in the plane of rotation of the cutting tool.

5. The attachment is not intended for use by children, persons with reduced physical, sensory or mental abilities, persons in a state of alcoholic or narcotic intoxication, by persons who have not studied this instruction manual.

6. Operation of the nozzle with loose (not tightened) wedges is not allowed.

7. It is not allowed to use cutting tools (knives) for attachments of improper quality, with visible defects, cracks and chips.

8. Repair and replacement of bearings in the nozzle should be performed by technicians. Wrong and unqualified repairs can pose a great threat to the health, life of the user and others.

9. Please do not develop the frequency of rotation of the crankshaft of the chainsaw in excess of 13500 rpm.

10. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

11. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
