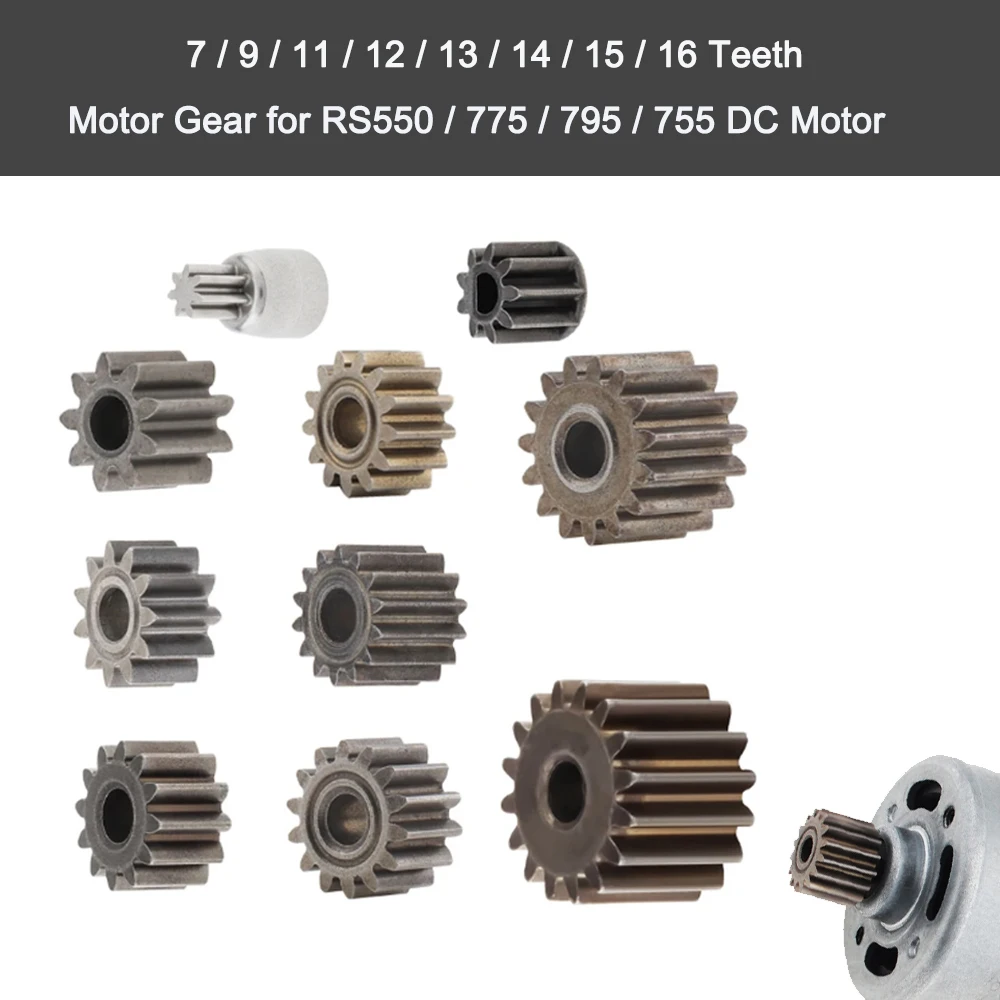

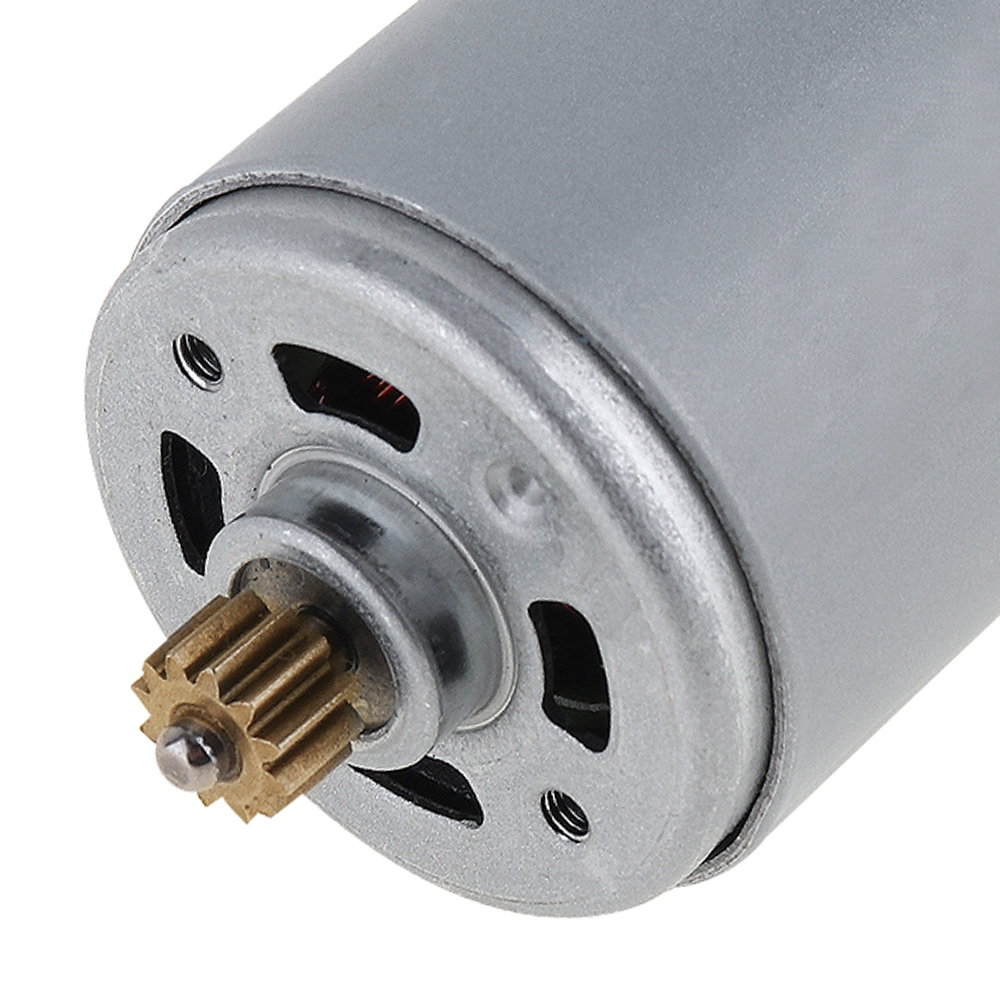

1pc Gear 7/ 9/11/12/13/14/15/16 Teeth Metal Gear for RS550/775/795/755 DC Motor For Fan Home Tool Toy

Description

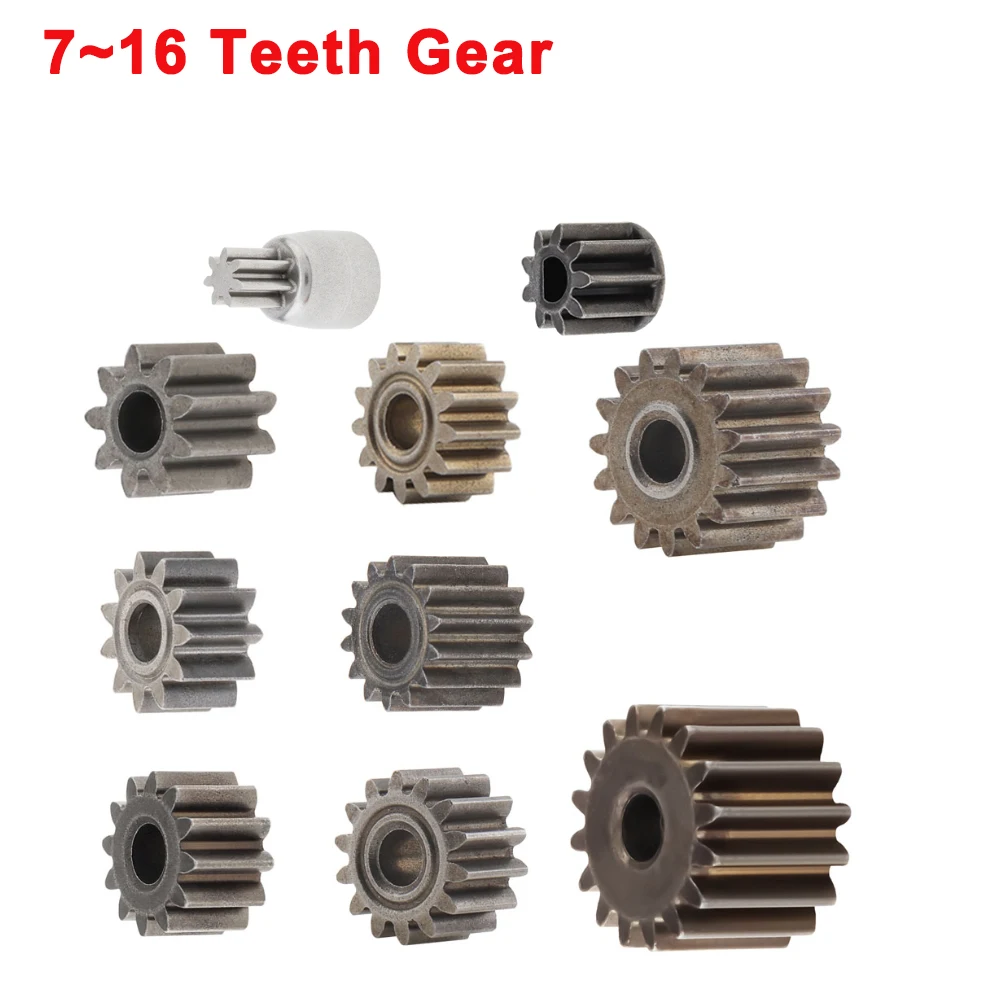

Features:

for RS550 DC Motor: 9 /11 /12/13/14/15/16 Teeth-11.2mm;

for 775 795 755 DC Motor: 7 teeth / 16 teeth-5mm hole;

for D Shaft RS550 DC Motor: 9 Teeth D-Hole;

for Angle Sander GWS6-100,S1M-FF03-100A:Angle Sander Gear Set;

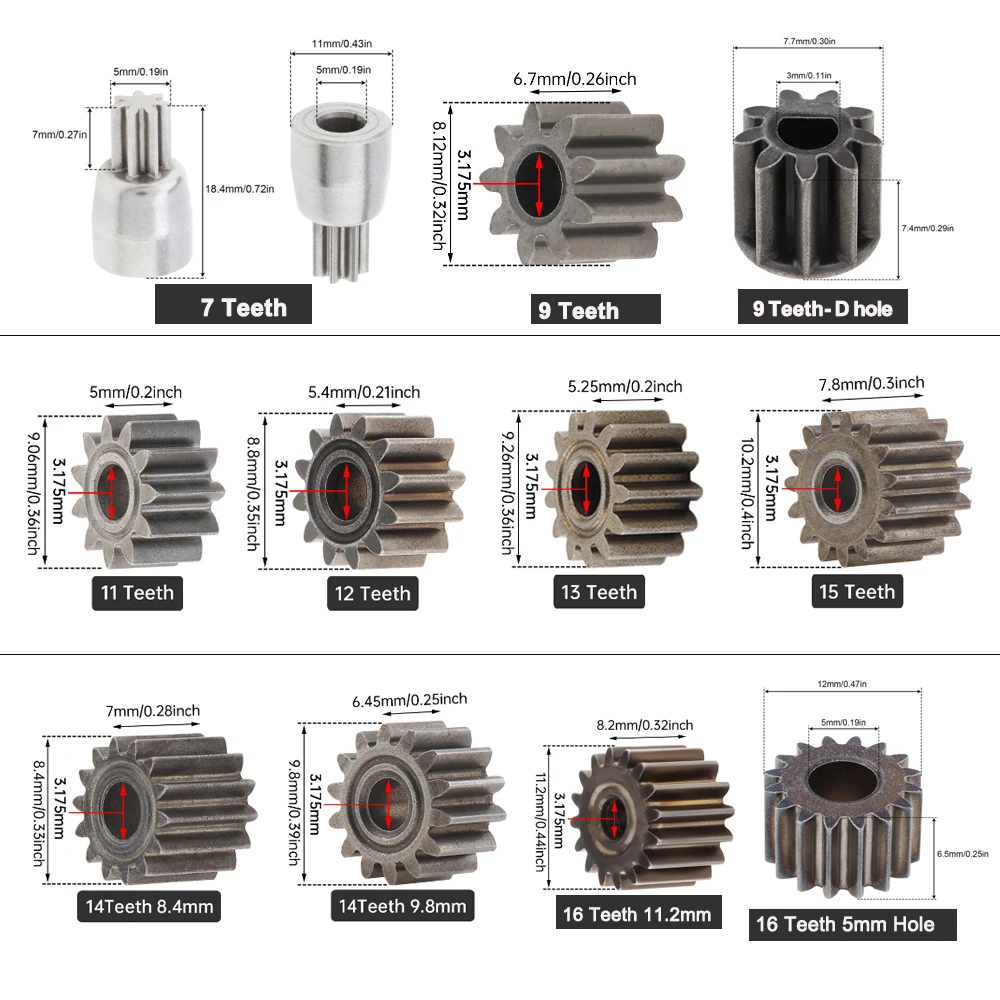

7 Teeth:

Tooth Diameter: Φ6mm
Inner Hole: Φ5(+0.01/-0.01)mm

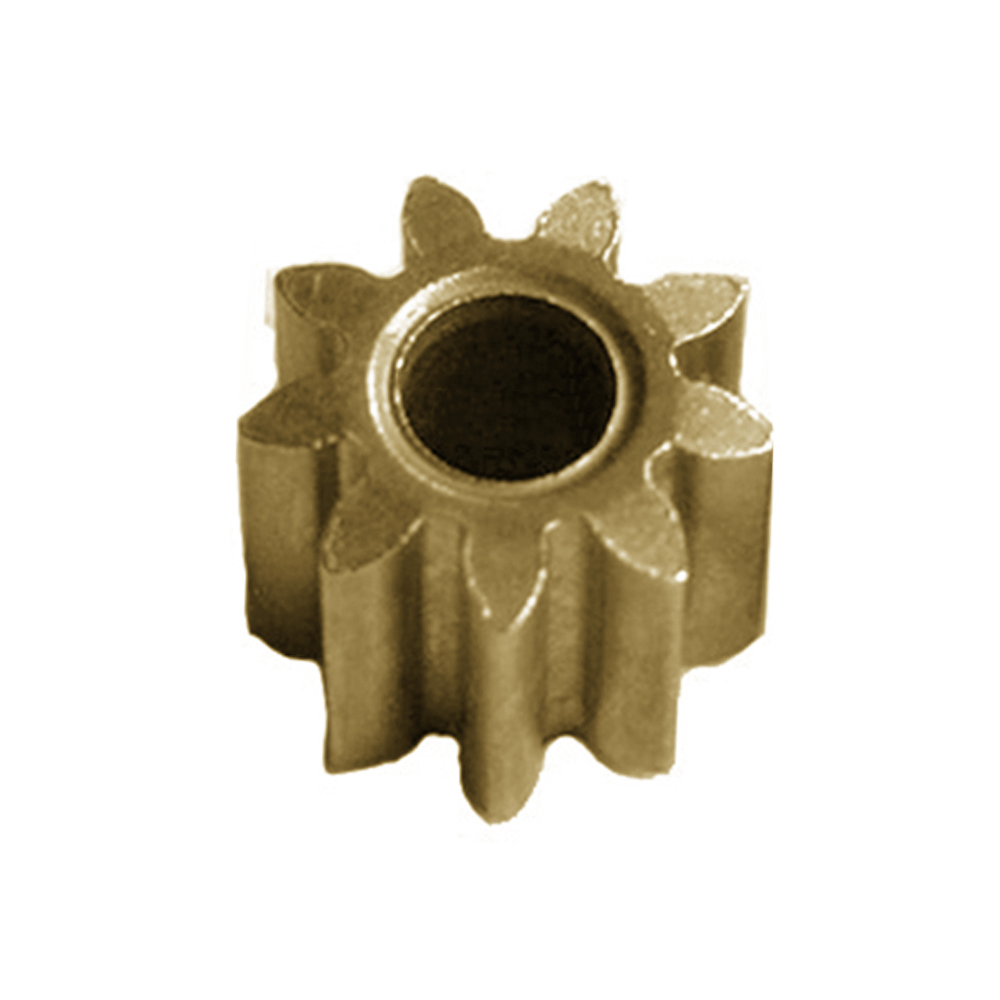

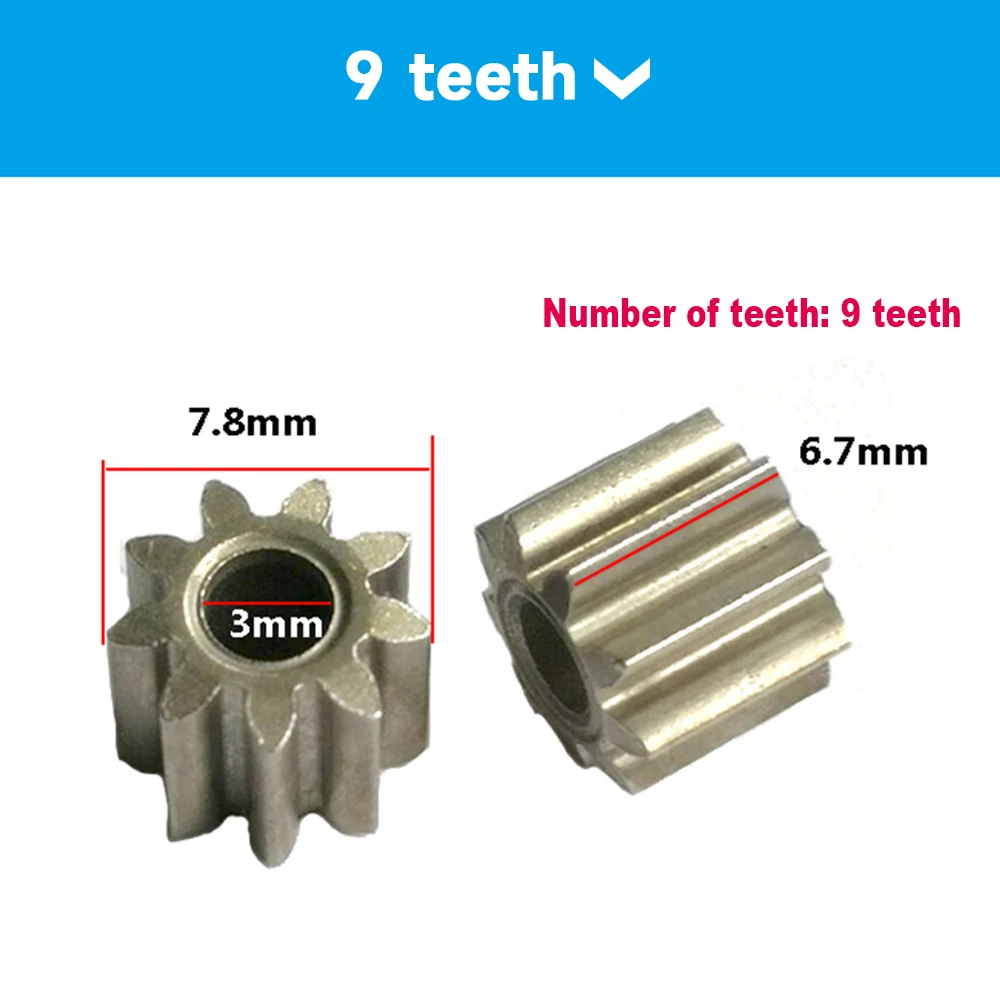

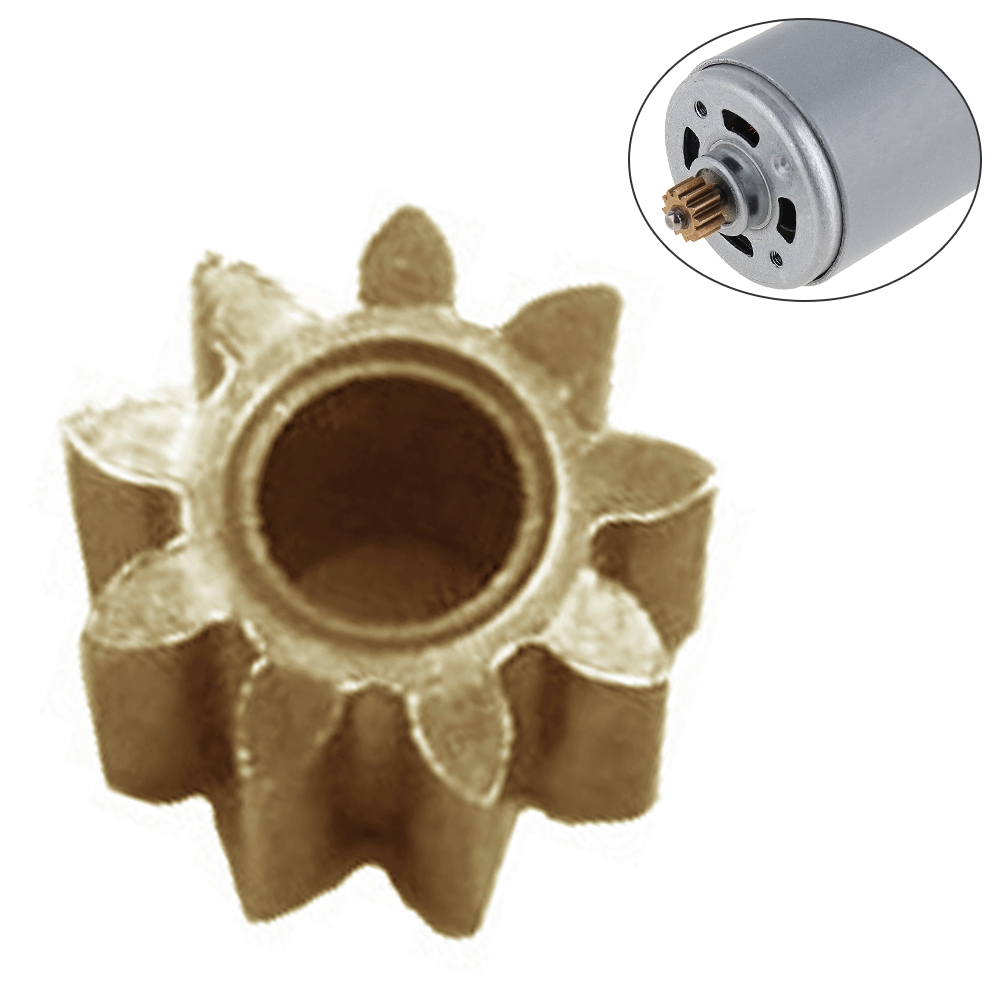

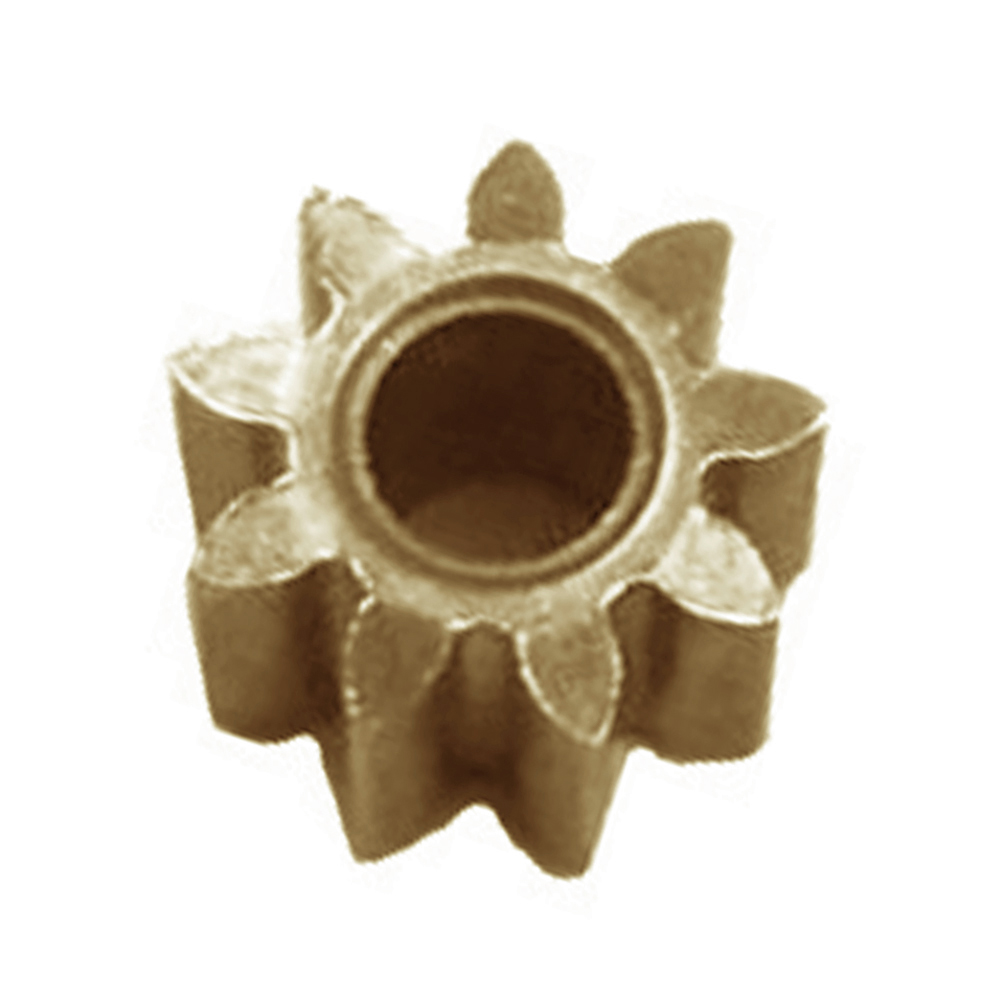

9 Teeth:

-For 3mm rod motor shaft.
Inner bore:Φ3(+0.01/-0.01)mm
Outside diameter:Φ7.8mm
Thickness :5.3mm

9 Teeth D-Hole:

Outside diameter:Φ7.7mm
Thickness :7mm

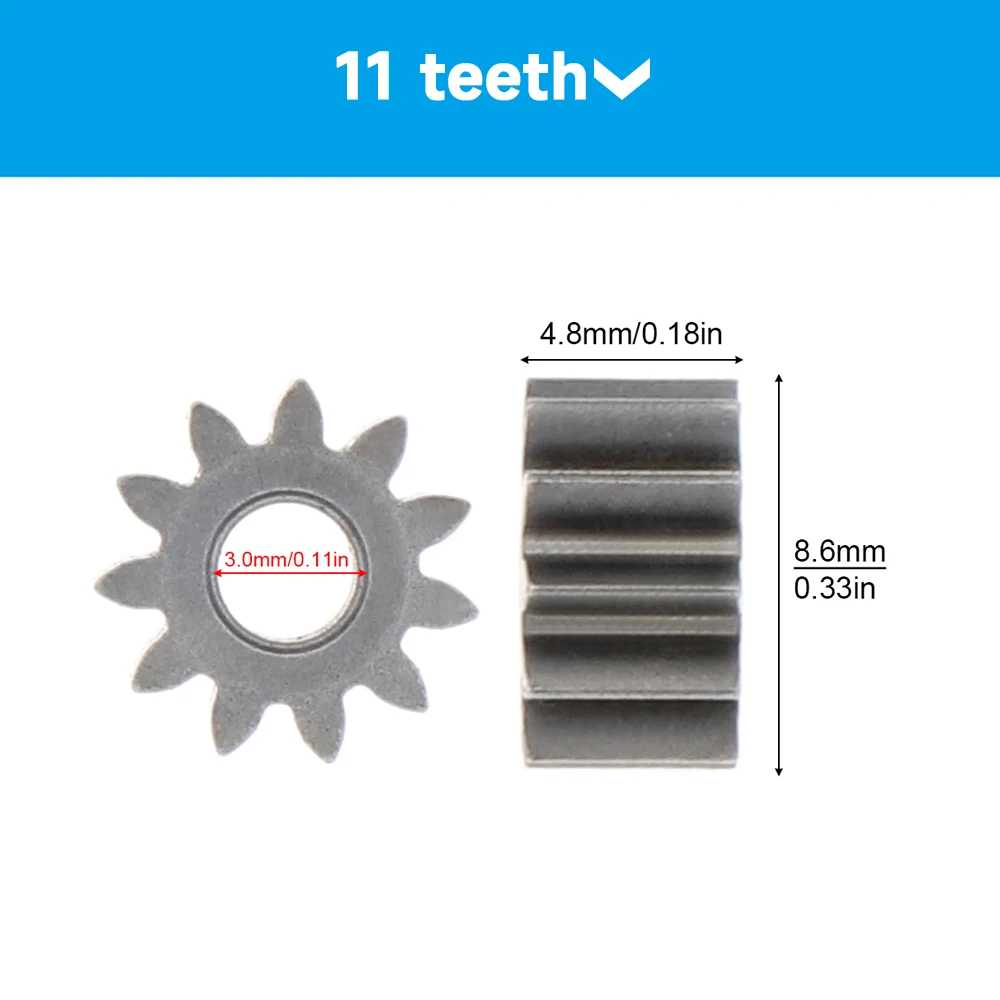

11 Teeth:

Inner Bore Diameter: 3.17(+0.01/-0.03)mm
Dividing Circle Diameter: About 7.15mm
Teeth Tip Circle Diameter: About 9.06mm
Thickness: About 5mm

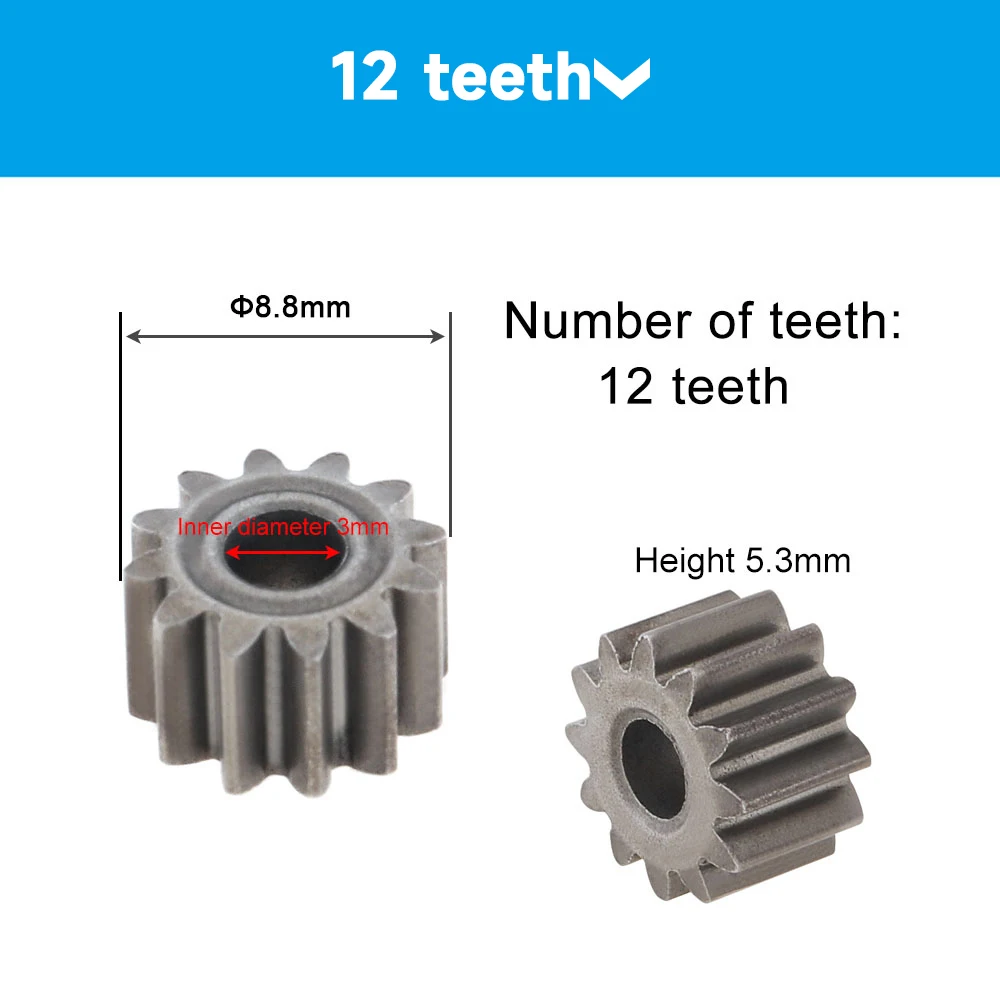

12 Teeth:

Inner Bore: Φ3(+0.01/-0.01)mm
Outside Diameter: Φ8.5mm
Thickness: 5.3mm

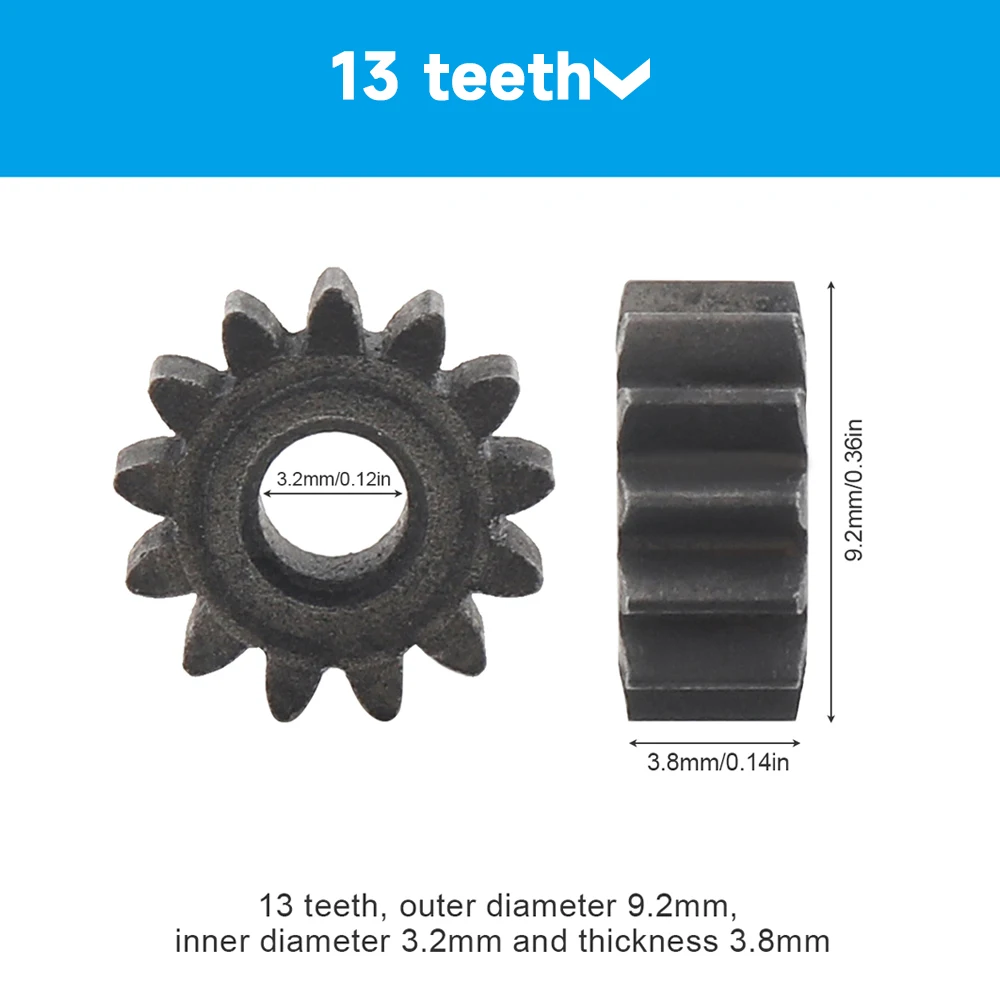

13 Teeth;

Inner Bore Diameter: 3.17(+0.01/-0.03)mm
Dividing Circle Diameter: About 7.8mm
Teeth Tip Circle Diameter: About 9.26mm
Thickness: About 5.25mm

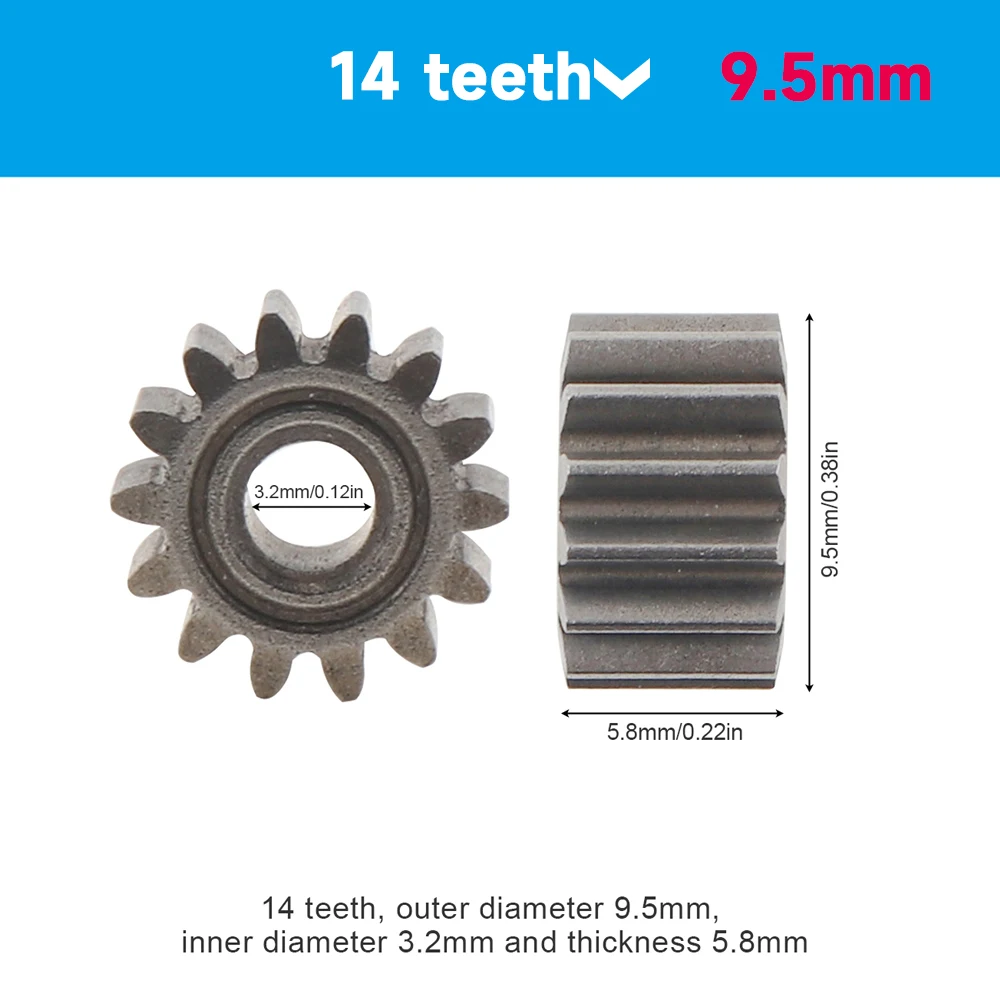

14 Teeth-9.8mm:

Inner Bore Diameter: 3.17(+0.01/-0.03)mm
Dividing Circle Diameter: About 8.4mm
Teeth Tip Circle Diameter: About 9.8mm

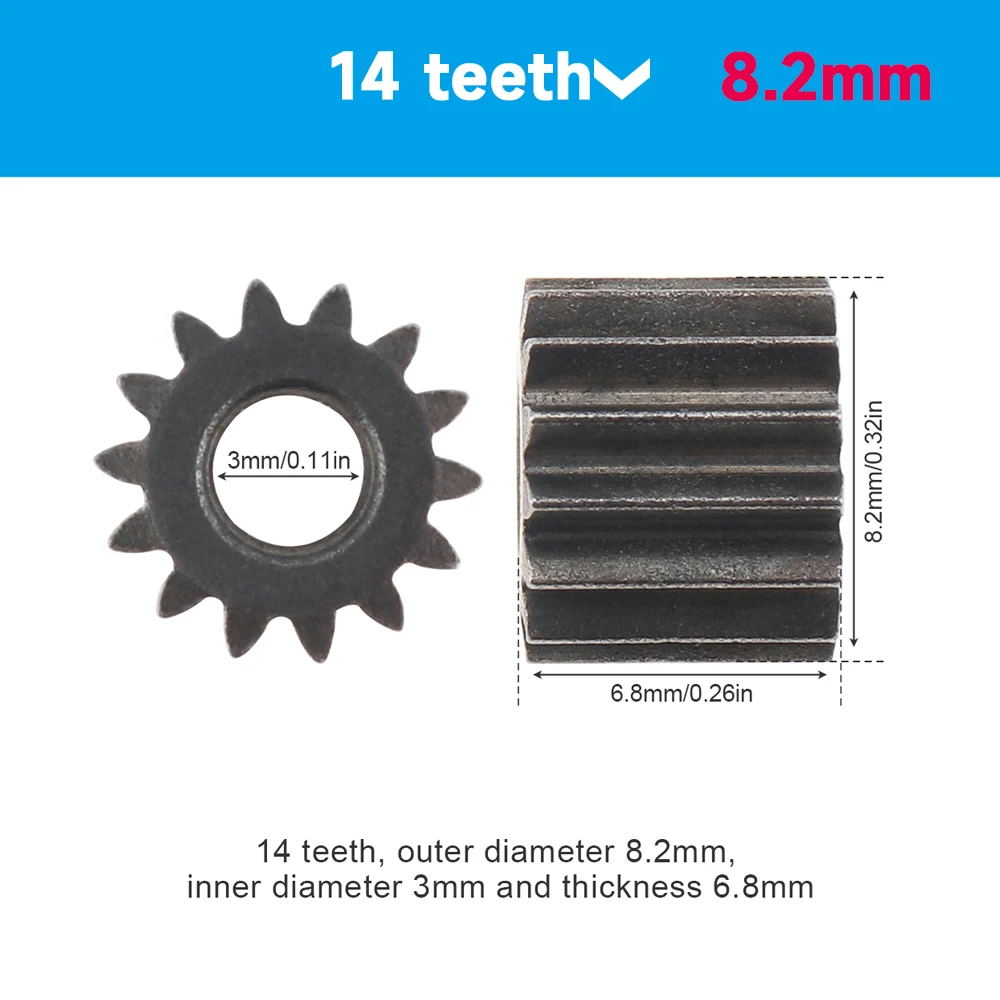

1​4 Teeth-8.2mm:

Inner Bore: Φ3(+0.01/-0.01)mm
Outside Diameter: Φ8.2mm
Thickness: 6.8mm

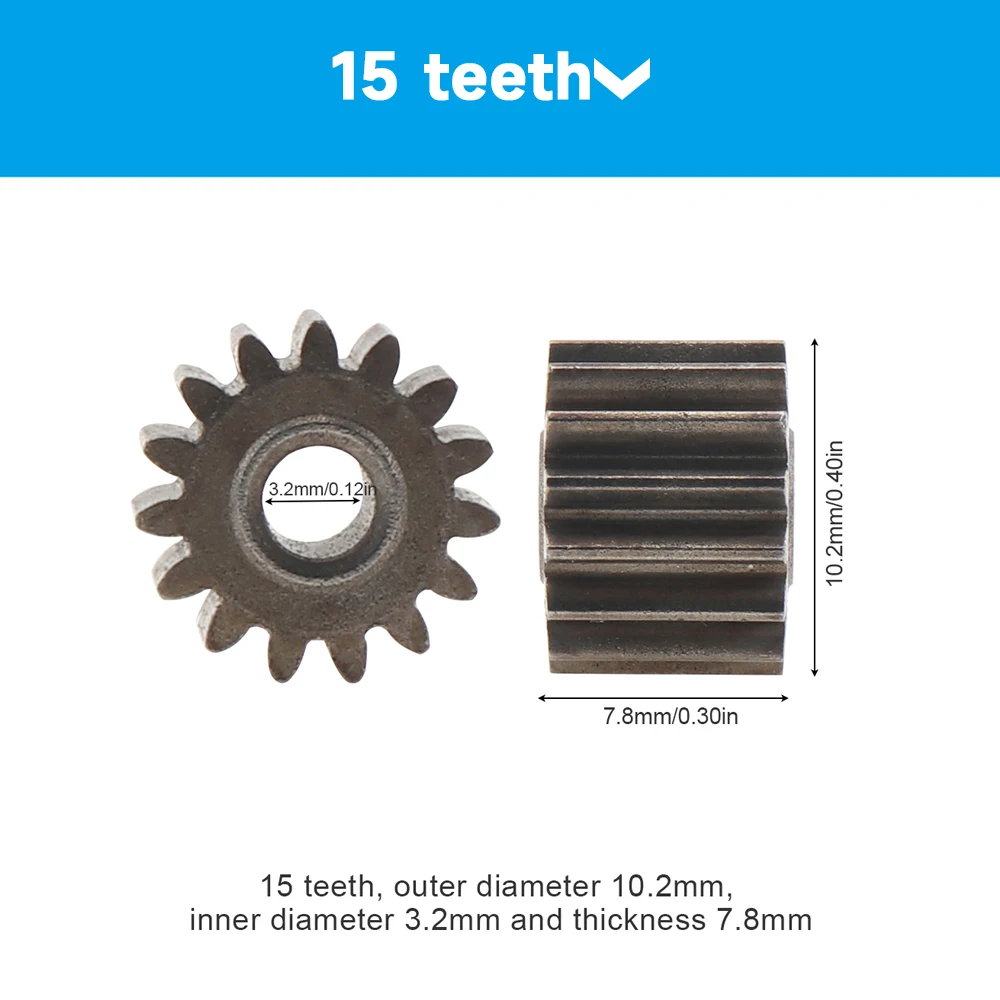

1​5 Teeth：

Inner Bore: Φ3(+0.01/-0.01)mm
Outside Diameter: Φ10.2mm
Thickness: 7.8mm

1​6 Teeth-11.2mm:

Inner Bore: Φ3.2(+0.01/-0.01)mm
Outside Diameter: Φ11.2mm
Thickness: 8.2mm1​6

16 Teeth-5mm Hole:

Inner Hole: Φ5(+0.01/-0.01)mm
Outside Diameter: Φ12mm
Thickness: 7mm

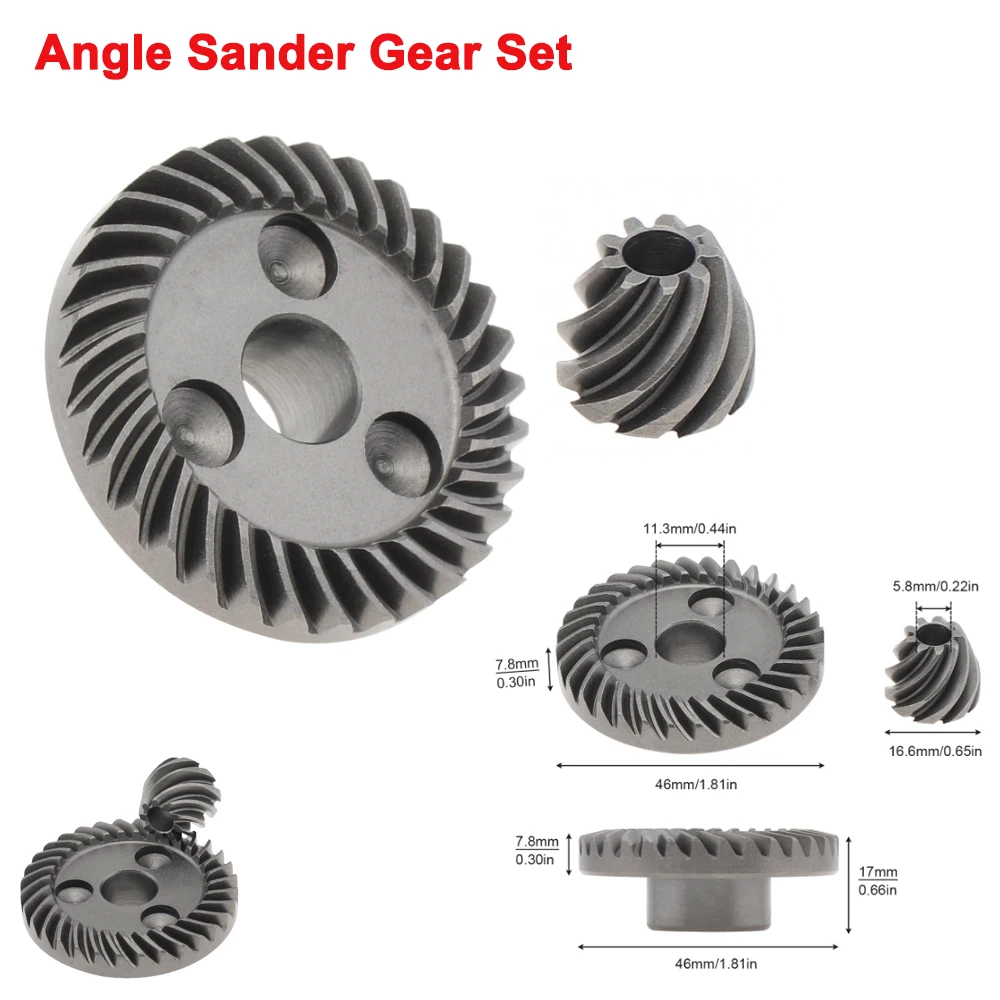

Angle Sander Gear Set:

Outer Diameter: 46mm
Inner Diameter: 11.5mm
Height: 17.7mm
Number of Teeth: 32 Teeth
Pinion Gear Size:
Inner Diameter: 6mm
Height: 14mm
Number of Teeth: 9 Teeth
Place of Application:
Fit for Bosch GWS6-100.
Fit for S1M-FF03-100A.
