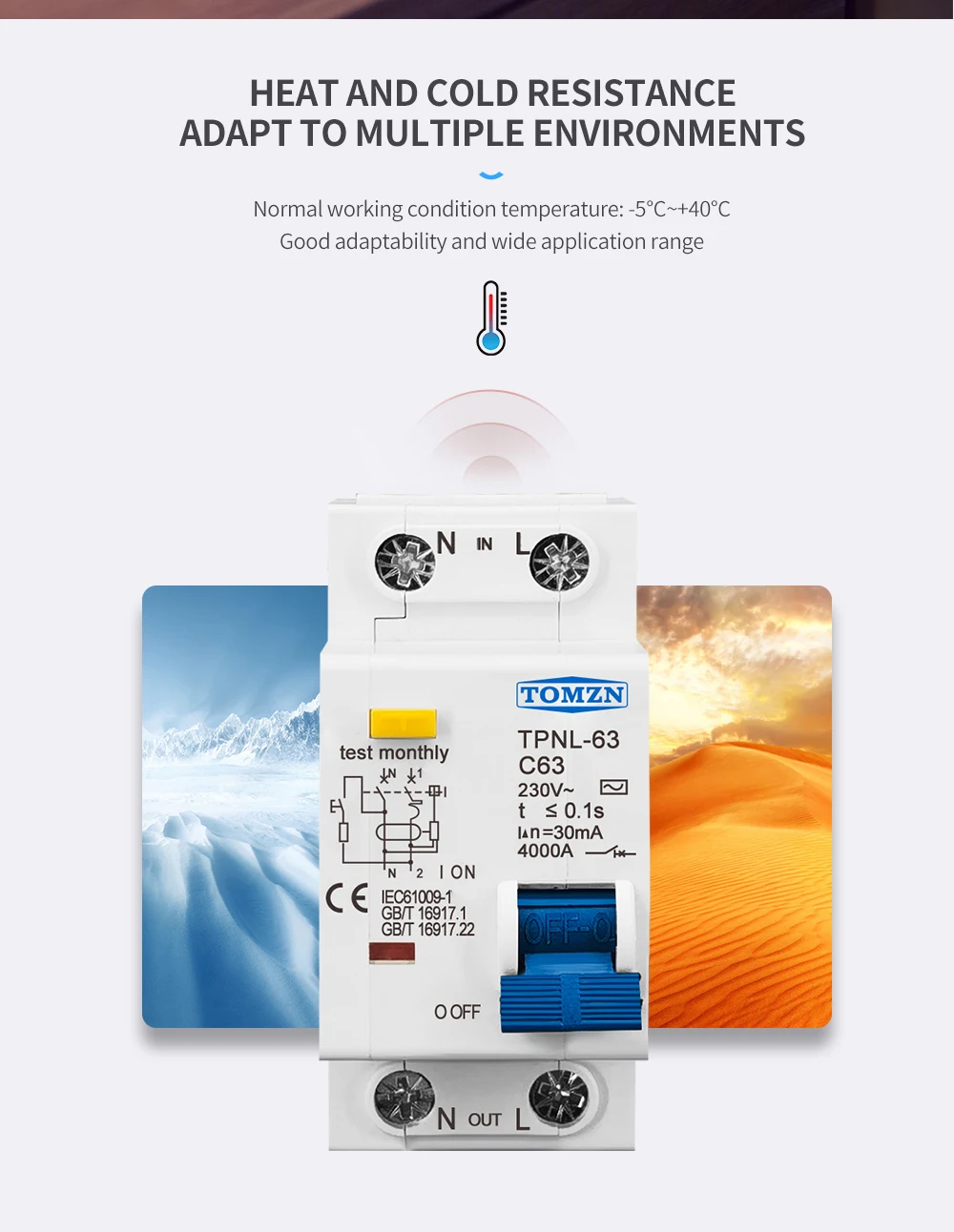

TOMZN TPNL DPNL 230V 1P+N Residual Current Circuit Breaker With Over And Short Current Leakage Protection RCBO MCB

General

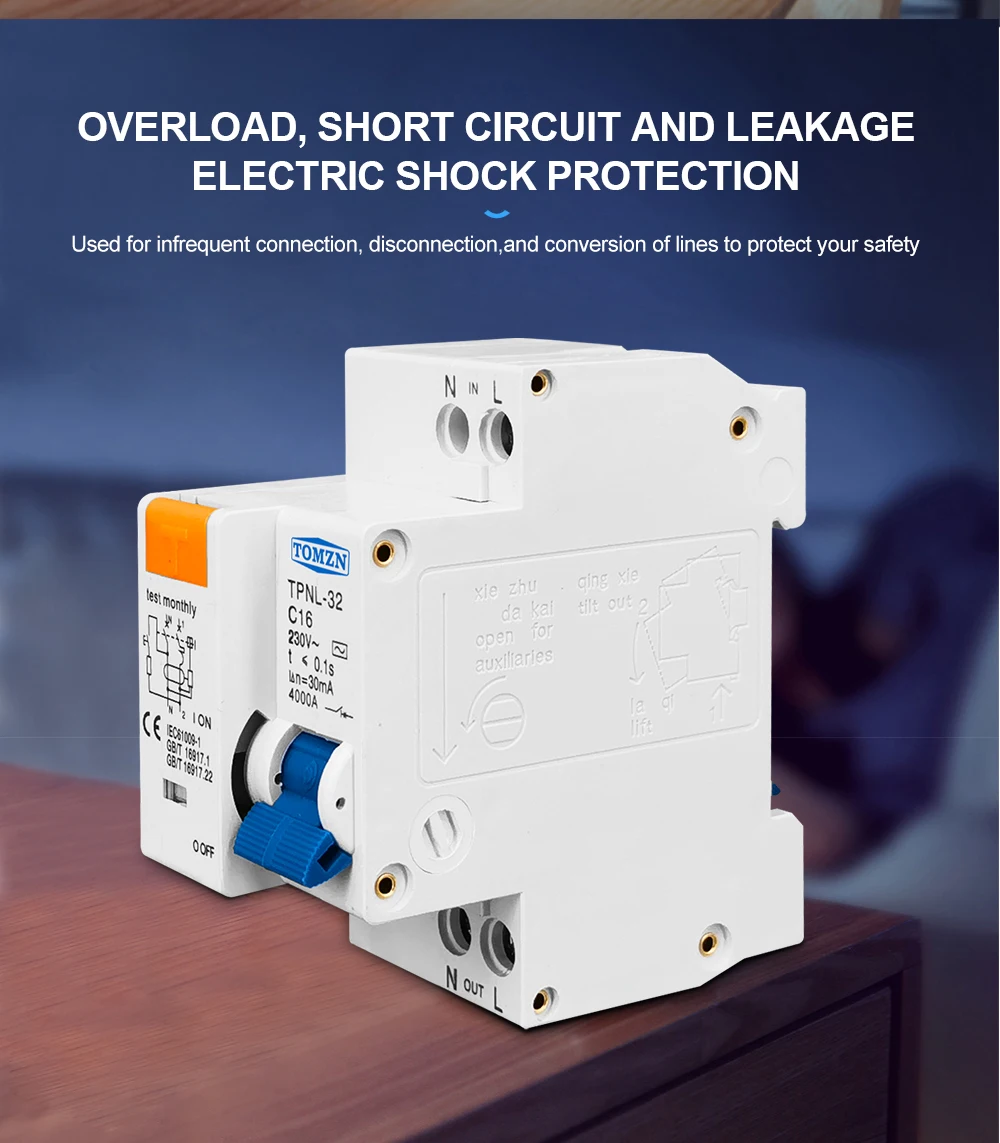

  The TOMZN TPNL-32/63 is a 1P+N RCBO for 230 V~ AC circuits, offering overload, short‑circuit, and earth‑leakage protection with a C‑curve, 30 mA sensitivity, ≤0.1 s trip time, and 4 kA breaking capacity. It is DIN‑rail mounted and CE certified. Note: TPNL‑32 and TPNL‑63 use different enclosures – specify when ordering.

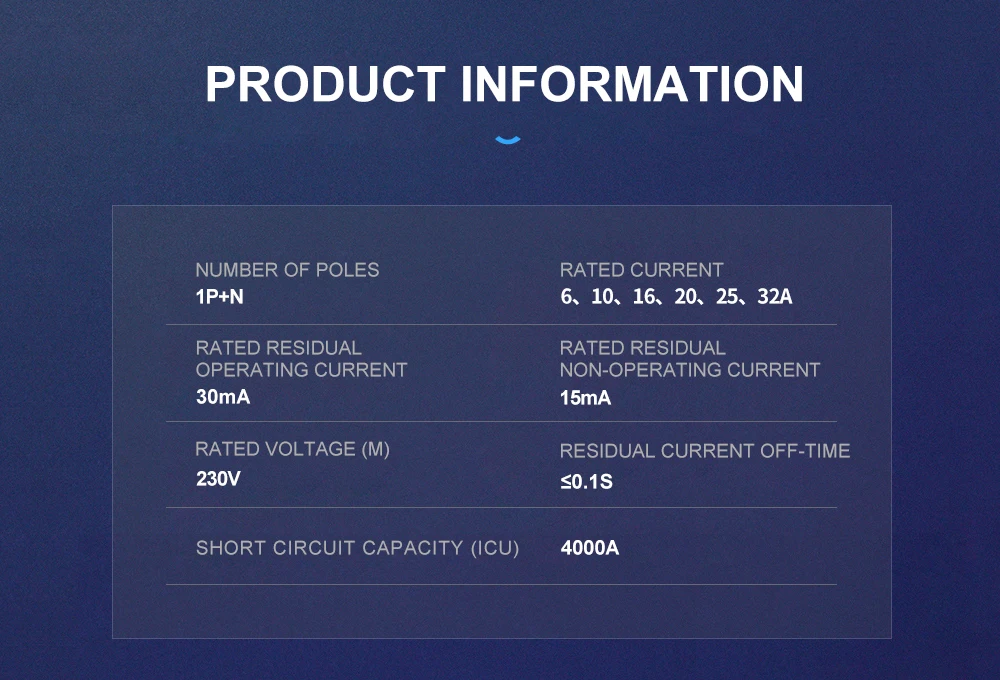

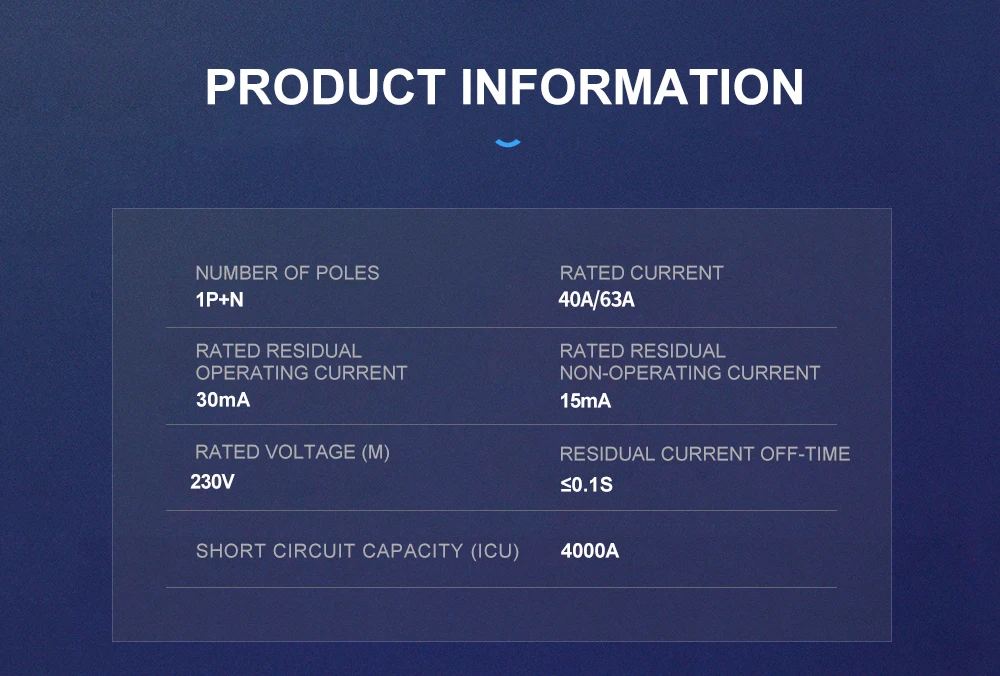

Product parameters

Brand: TOMZN

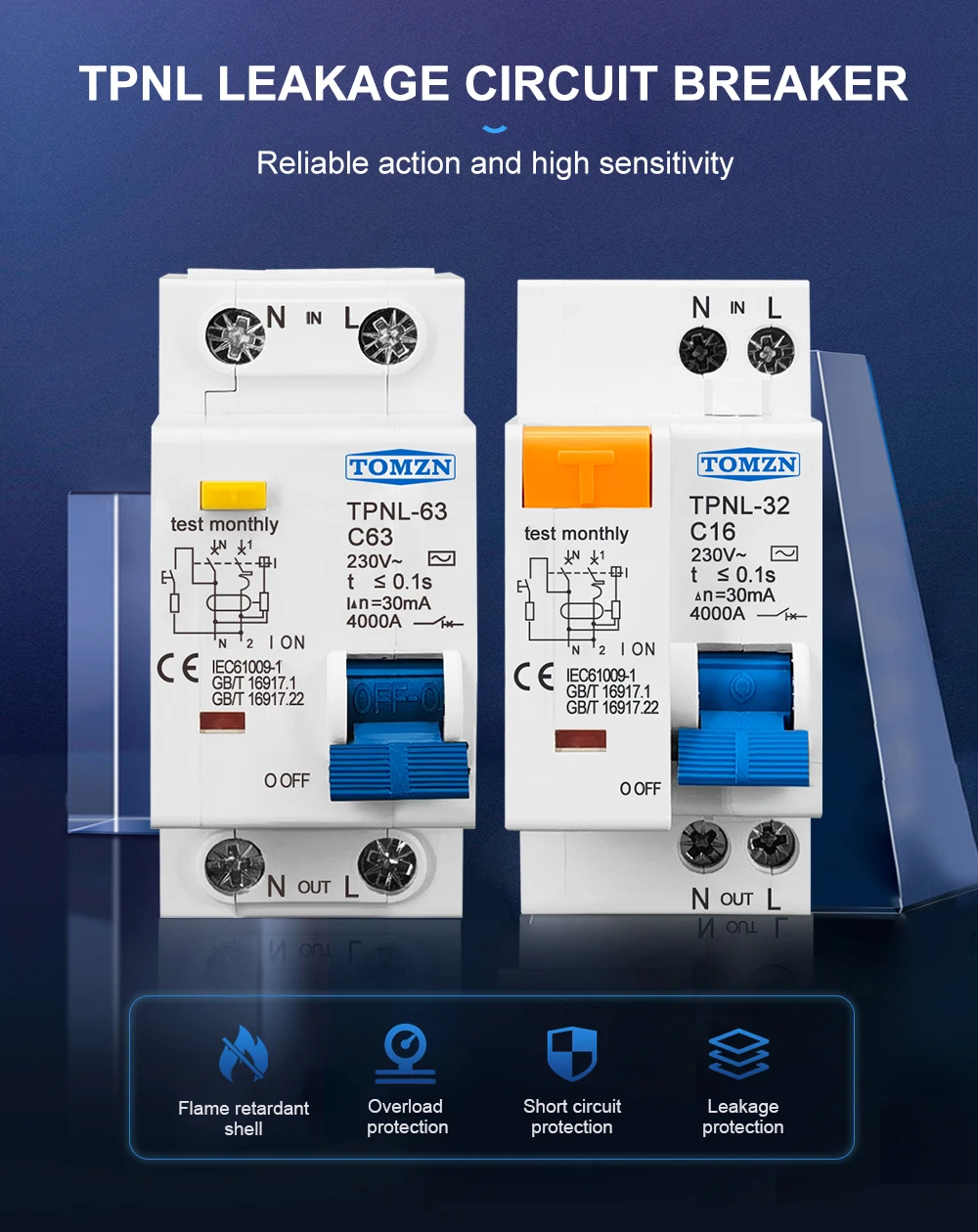

Model: TPNL‑32 / TPNL‑63 (different enclosures)

Type: RCBO, 1P+N, AC‑type residual current

Rated current: 6–63 A (model‑dependent)

Trip curve: C

Rated voltage: 230 V~, 50/60 Hz

Rated residual operating current (IΔn): 30 mA

Tripping time: ≤ 0.1 s

Short‑circuit breaking capacity: 4000 A

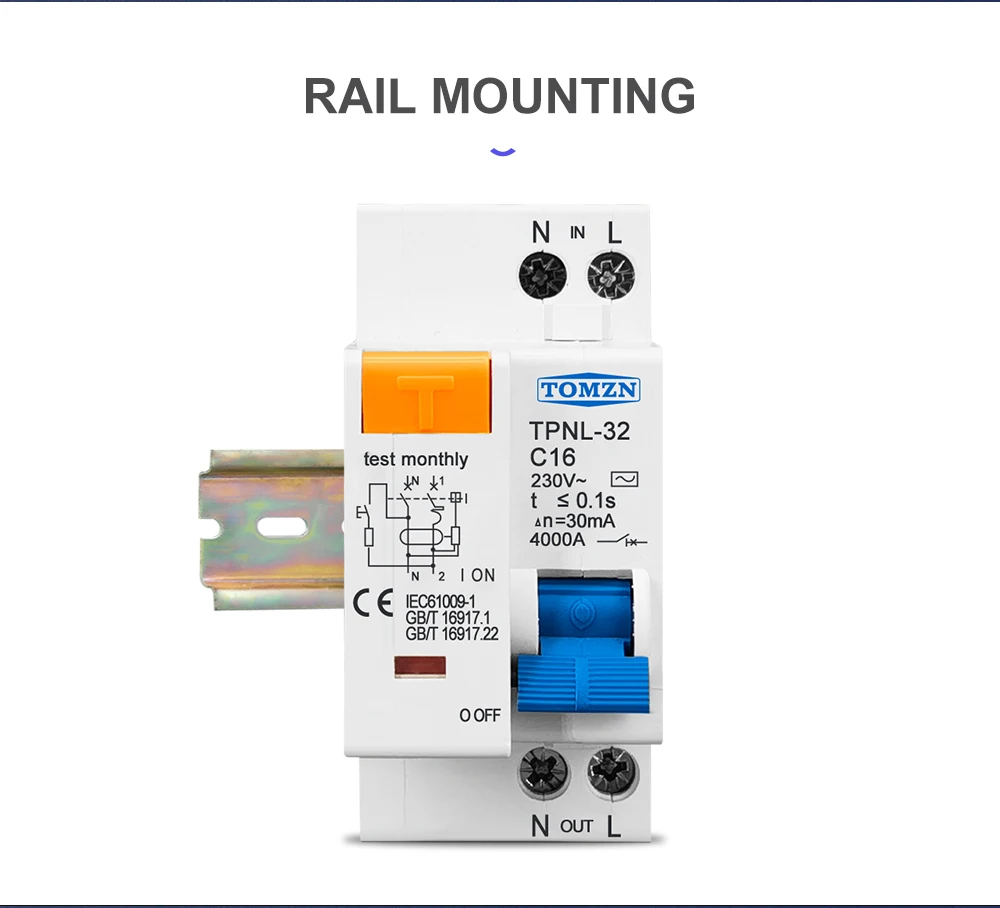

Mounting: 35 mm DIN rail

Standards: IEC 61009, GB/T 16917

Certification: CE

Note: TPNL‑32 and TPNL‑63 enclosures differ – order accordingly.
