Wireless Smart Switch Light 433Mhz RF 86 Wall Panel Switch with Remote Control Mini Relay Receiver 220V Home Led Light Lamp Fan

Wireless Smart Switch Light 433Mhz RF 86 Wall Panel Switch with Remote Control Mini Relay Receiver 220V Home Led Light Lamp Fan

There are various combinations in the options, which are convenient to use, please purchase according to actual needs.

Simple to use

--Simple wiring
--Perfect small size

Features:

1:Perfect small size (Note: Package included Screw and double-sided tape.)

Four different installation scenarios:
--Use double-sided tape to directly install and fix the receiver on the surface of the object;
--Use screws to fix the receiver on the surface of the object;

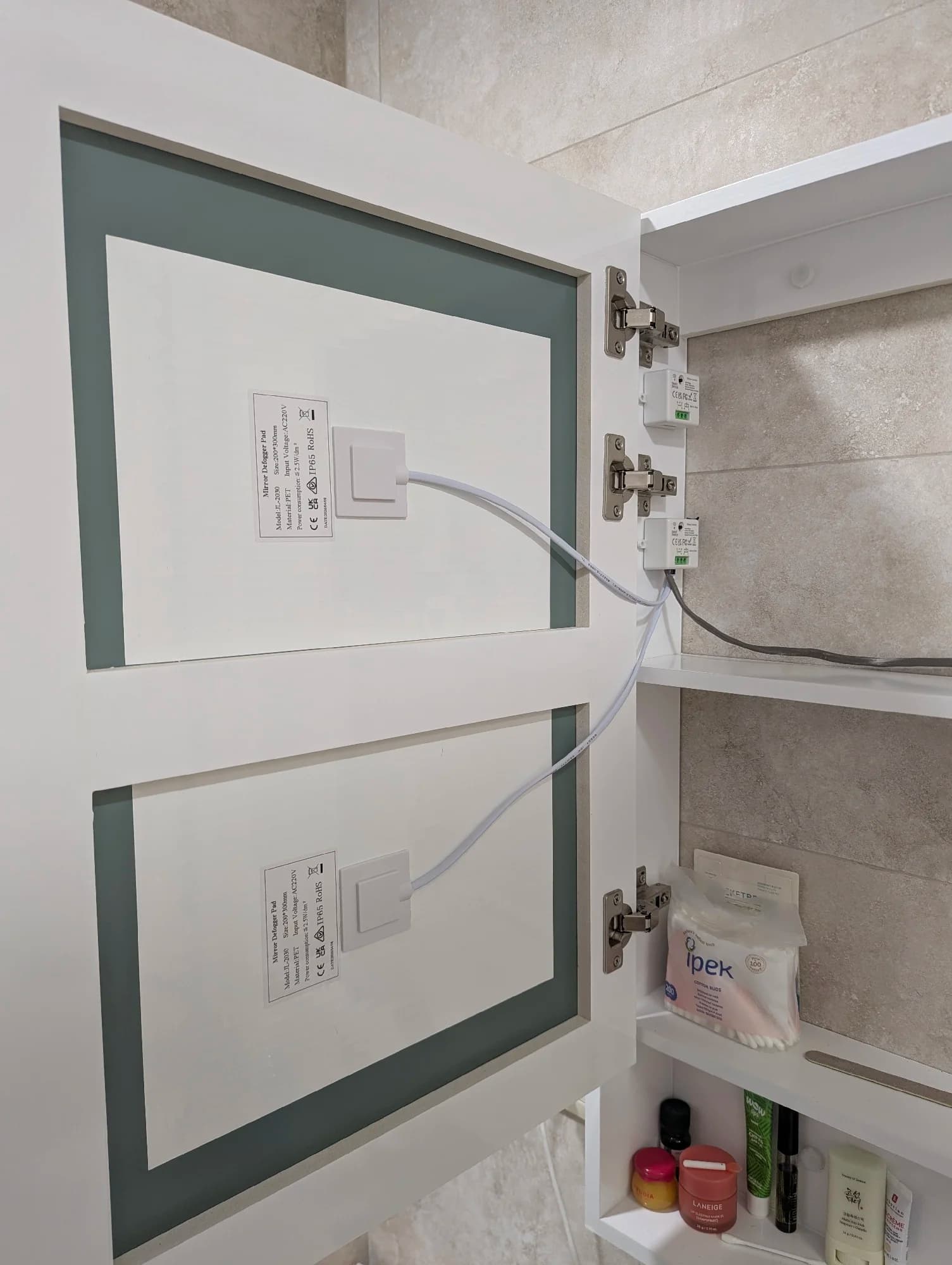

--Put the receiver install behind a power outlet;
--Install behind the suspended ceiling.

2:Flexible DIY control method

--Multi switches Control One/Multi Lights Receiver in the meanwhile

3:Multiple control modes to Save electricity

--At any time, you can either use the front panel or remote control.
--Set the remote control at different locations to quickly turn on or off the lights.
--Turn the lights on in advance to avoid darkness,
--Turn off the lights after leaving, save energy.

Product Application Area Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on

Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission
Remote control humidifiers, microwaves, coffee machines
Remote control Taking Care for the elderly, children

How to get the signal

Step 1: Press the learning button(on the Receiver) twice . Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signal
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;

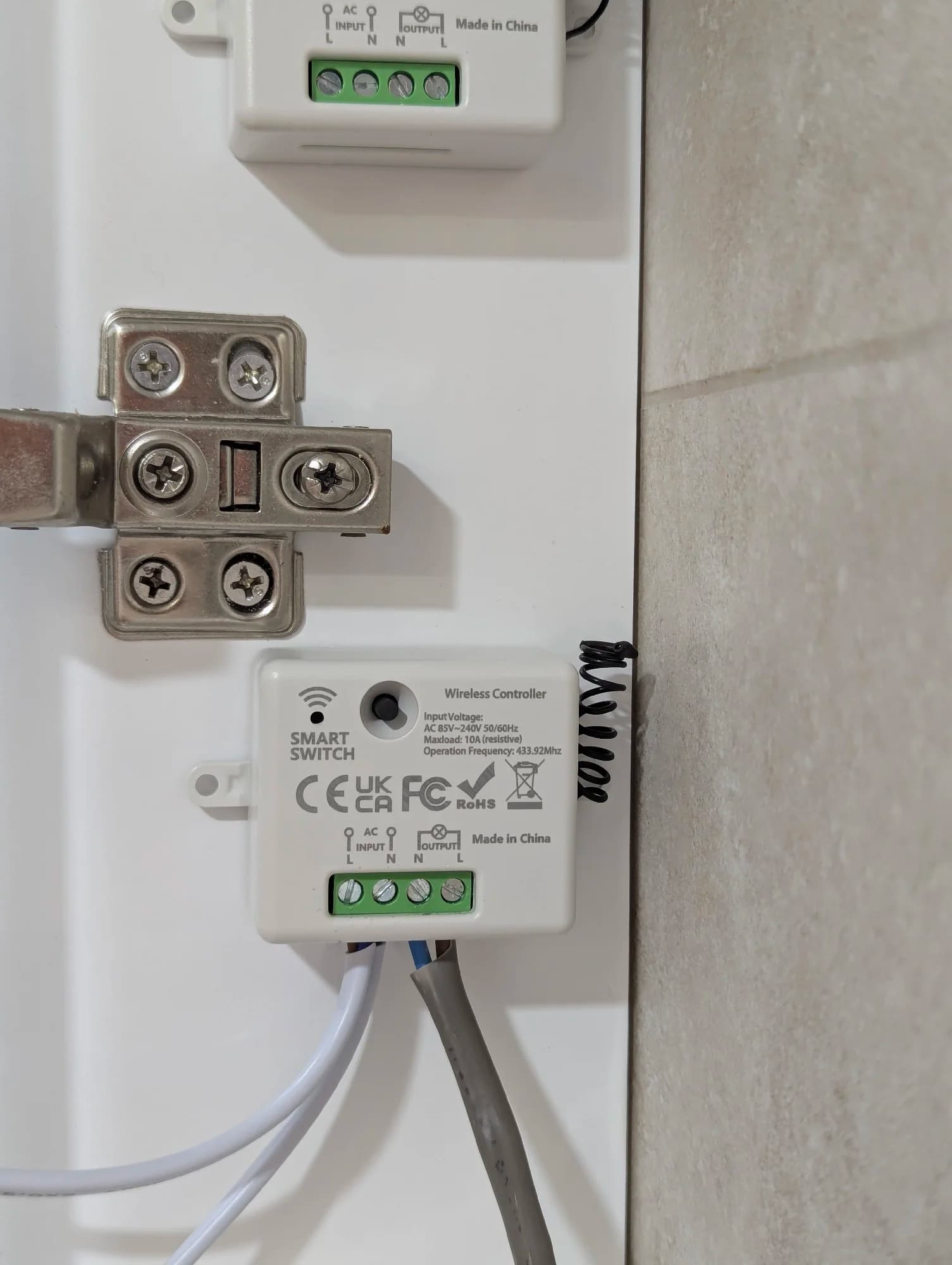

Relay Receiver Board Parameter

Encoding Type: Intelligent Learning Code 1527
Modulation Mode:ASK
RF Frequency: 433MHz
Input Voltage: AC 85V~240V
Max current: 10 Amp
Remote distance : up to 50m (theoretical distance)
Wired Connection Way: Fixed Wiring Pillar
Output Terminal: L /N
L : Living line
N : Neutral line
Size:42*48*23mmColor: White (Outside Shell)
--Screw: Include
--double-sided tape: Include

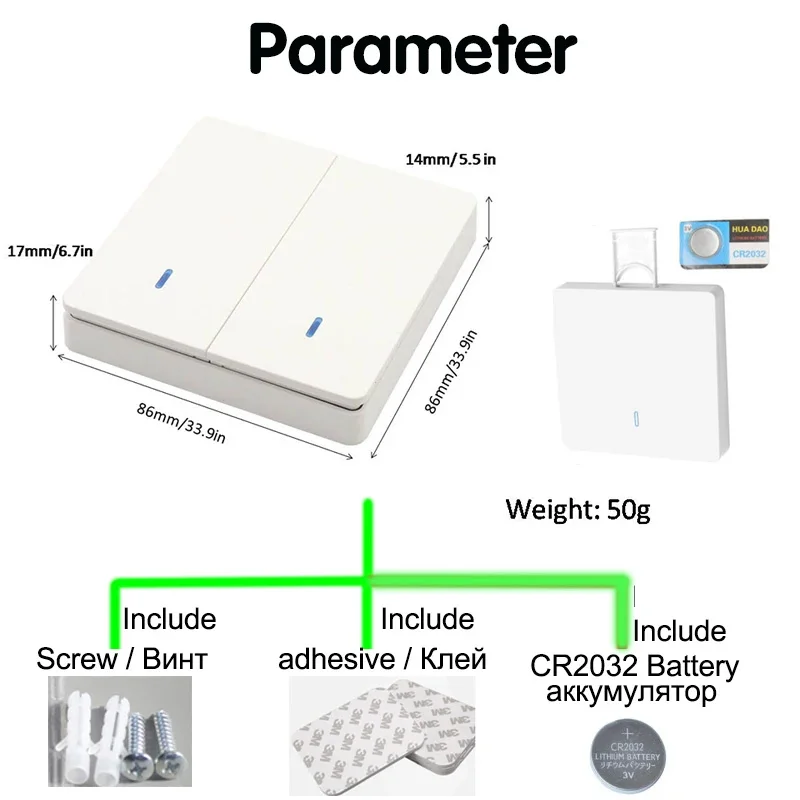

Wall panel Transmitter Parameter

--RF frequency : 433MHz
--Support encoding : 1527 Leaning code
--Remote distance : up to 50m (theoretical distance)
--Battery : CR2032( Include Battery include )
--Screw: Include
--double-sided tape: Include

Remote control switchParameter

--RF frequency : 433MHz--Support encoding : 1527 Leaning code
--Remote distance : up to 50m (theoretical distance)
--Battery : 23A 12V( Include Battery include )
--Screw: Include
--double-sided tape: Include

On this product detailed page, there is a demonstration video for your reference.
*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
The products are all producted by our own factory , Our factory can support OEM and ODM, welcome to consult.
