AHD 1080P CVBS Car Rear View Reverse Backup Camera For Chevrolet Equinox Captiva AVEO T250 Cruze Sedan Orlando Spark Epica

HD AHD 1080P 170 Degree Fisheye Lens Vehicle Rear View Camera

For Chevy Chevrolet Captiva/Holden Captiva/Daewoo Winstorm 2006~2018

For Chevrolet AVEO(T250) 2006-2011

For 2011-2014 Chevrolet Cruze/Holden Cruze sedan

For Daewoo Lacetti/Gentra/Nubira

For Chevrolet Lacetti/Optra/Nubira 2002-2009

For Chevrolet Orlando 2010-2018

For Chevrolet Spark 2005-2019

For Chevrolet Epica/Tosca/Daewoo Tosca/Holden Epica 2006 2007 2008 2009 2010 2011 2012 2013

* AHD technology produces High-definition video signal, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.

* Highly integrated 2053 HD chip, Max HD 1080P resolution. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.

* The Camera supports both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.

* Chip: OV2053HD

* Viewing Angle: 155~175 Degrees Visible Range .

* Effective Pixels: CVBS: 1280x720P (NTSC/30HZ), AHD: 1920x1080P (PAL/25HZ)

* Signal Format: NTSC or PAL

* Image Resolution: 92W/200W pixels

* Video Output: AHD Video Signal or CVBS Video Signal

* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.

* Night Vision Image: Automatic Gain Control, Auto White Balance, Auto Backlight Compensation

* Lens: 14/16MM Fisheye 6 glass Lens .

* Waterproof: IP68 /IP69

* Working Power Supply: DC 12V~24V, 2A

* Working Temperature: -30 °C ~ +70°C

* Maximum Power: 3W

Tips:

1. Because there may be slight differences between cars produced in different countries, please check the size before buying.

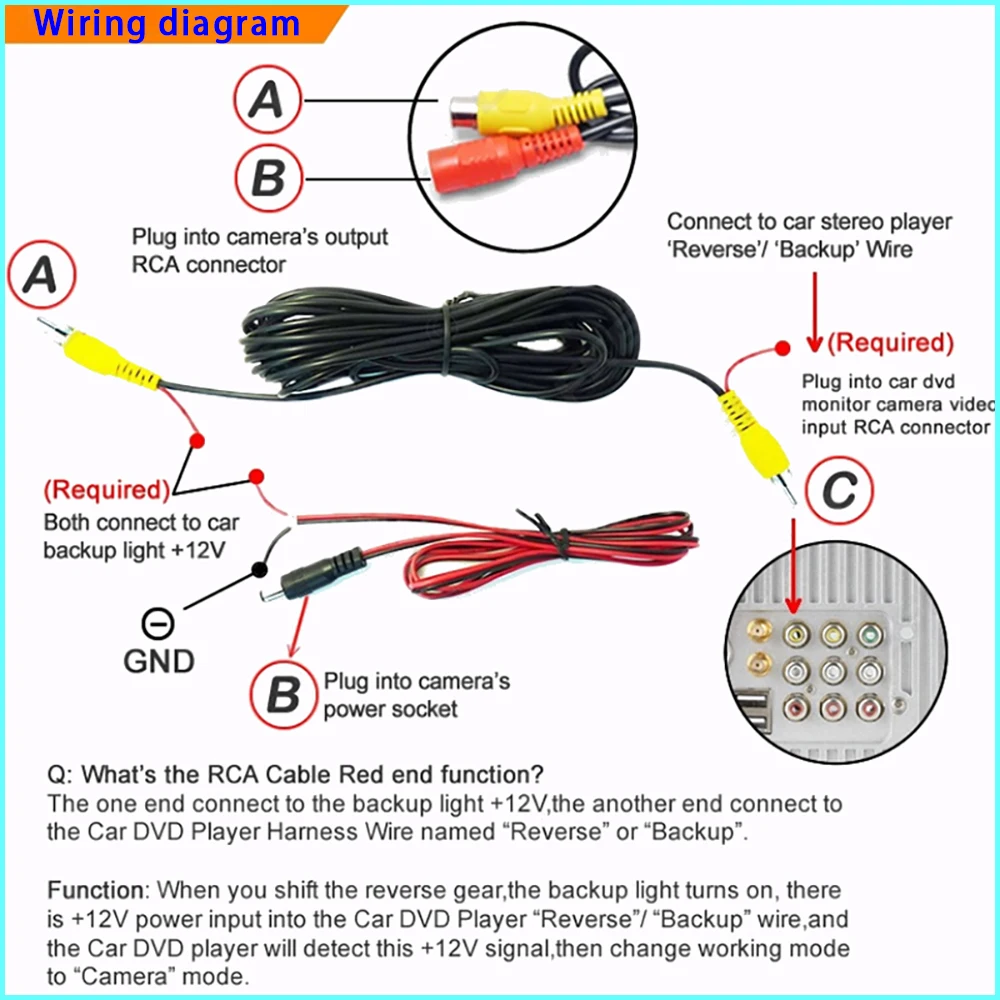

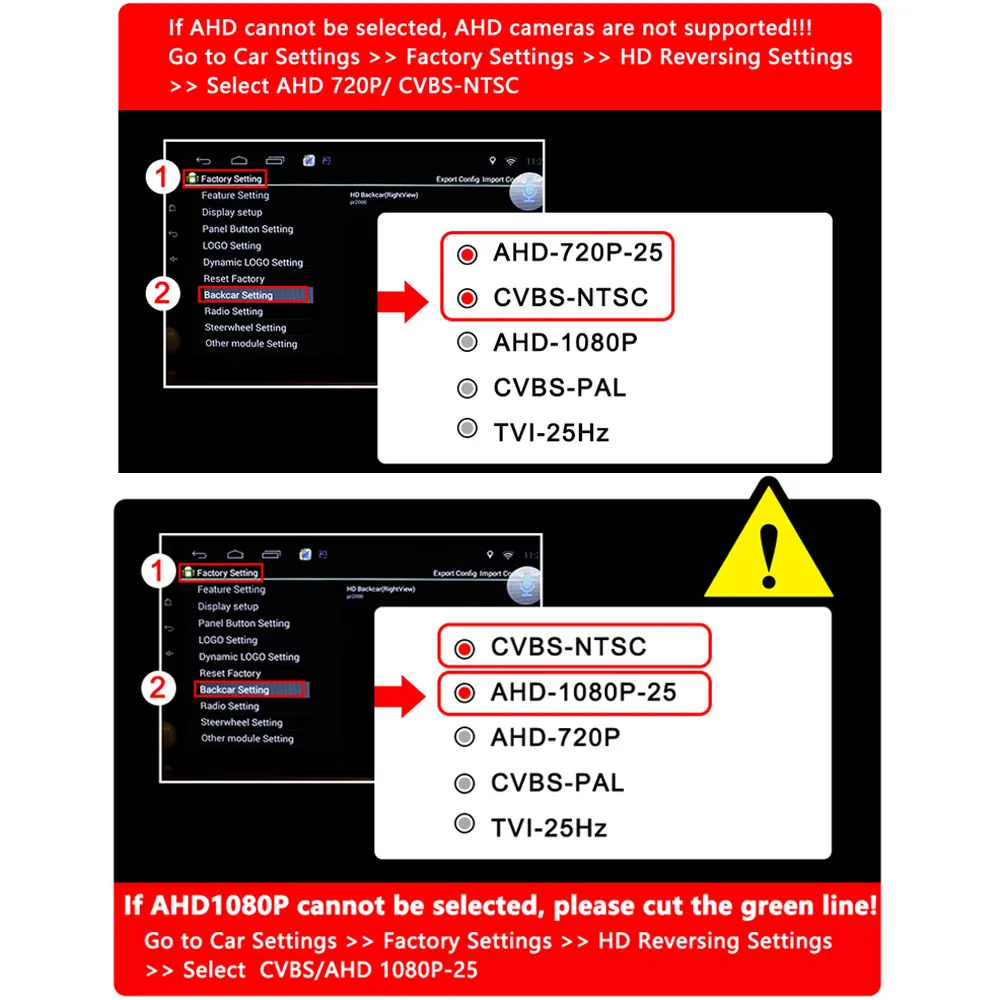

2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all cables.(The trajectory camera only supports AHD video signal)

3. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.
