AHD 1080P Waterproof Car Rear View Reverse Camera for BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 3/5 Series E88 E93 X6

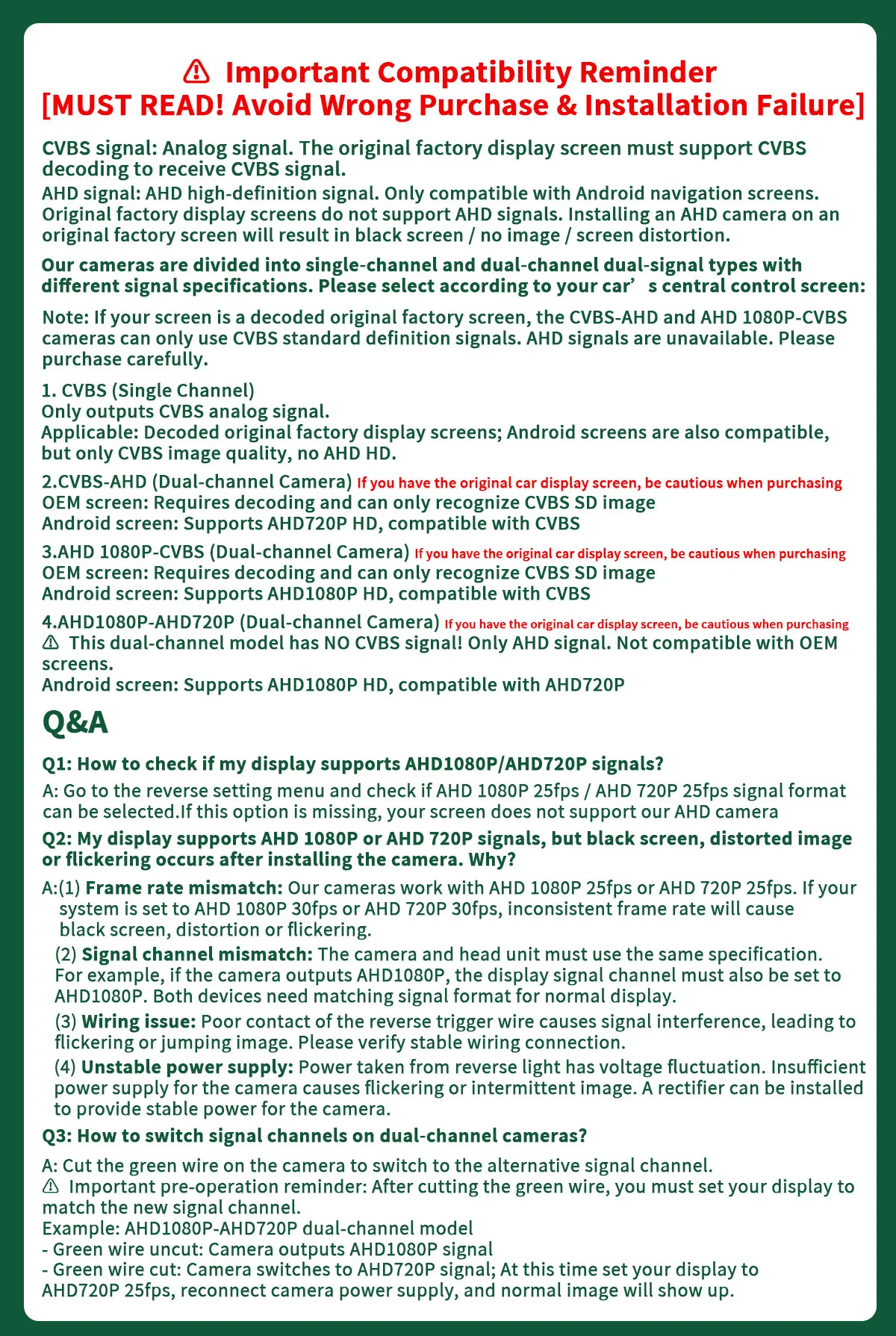

⚠️ Important Compatibility Reminder [MUST READ! Avoid Wrong Purchase & Installation Failure]

CVBS signal: Analog signal. The original factory display screen must support CVBS decoding to receive CVBS signal.

AHD signal: AHD high-definition signal. Only compatible with Android navigation screens. Original factory display screens do not support AHD signals. Installing an AHD camera on an original factory screen will result in black screen / no image / screen distortion.

Our cameras are divided into single-channel and dual-channel dual-signal types with different signal specifications. Please select according to your car’s central control screen:

Note: If your screen is a decoded original factory screen, the CVBS-AHD and AHD 1080P-CVBS cameras can only use CVBS standard definition signals. AHD signals are unavailable. Please purchase carefully.

1.CVBS (Single Channel)Only outputs CVBS analog signal.

Applicable: Decoded original factory display screens; Aftermarket Android screens are also compatible, but only CVBS SD image quality, no AHD HD.

2.CVBS-AHD (Dual-channel Camera) ※If you have the original car display screen, be cautious when purchasing

 OEM screen: Requires decoding and can only recognize CVBS SD image

Android screen: Supports AHD720P HD, compatible with CVBS

3.AHD 1080P-CVBS (Dual-channel Camera) ※If you have the original car display screen, be cautious when purchasing

OEM screen: Requires decoding and can only recognize CVBS SD image

Android screen: Supports AHD1080P HD, compatible with CVBS

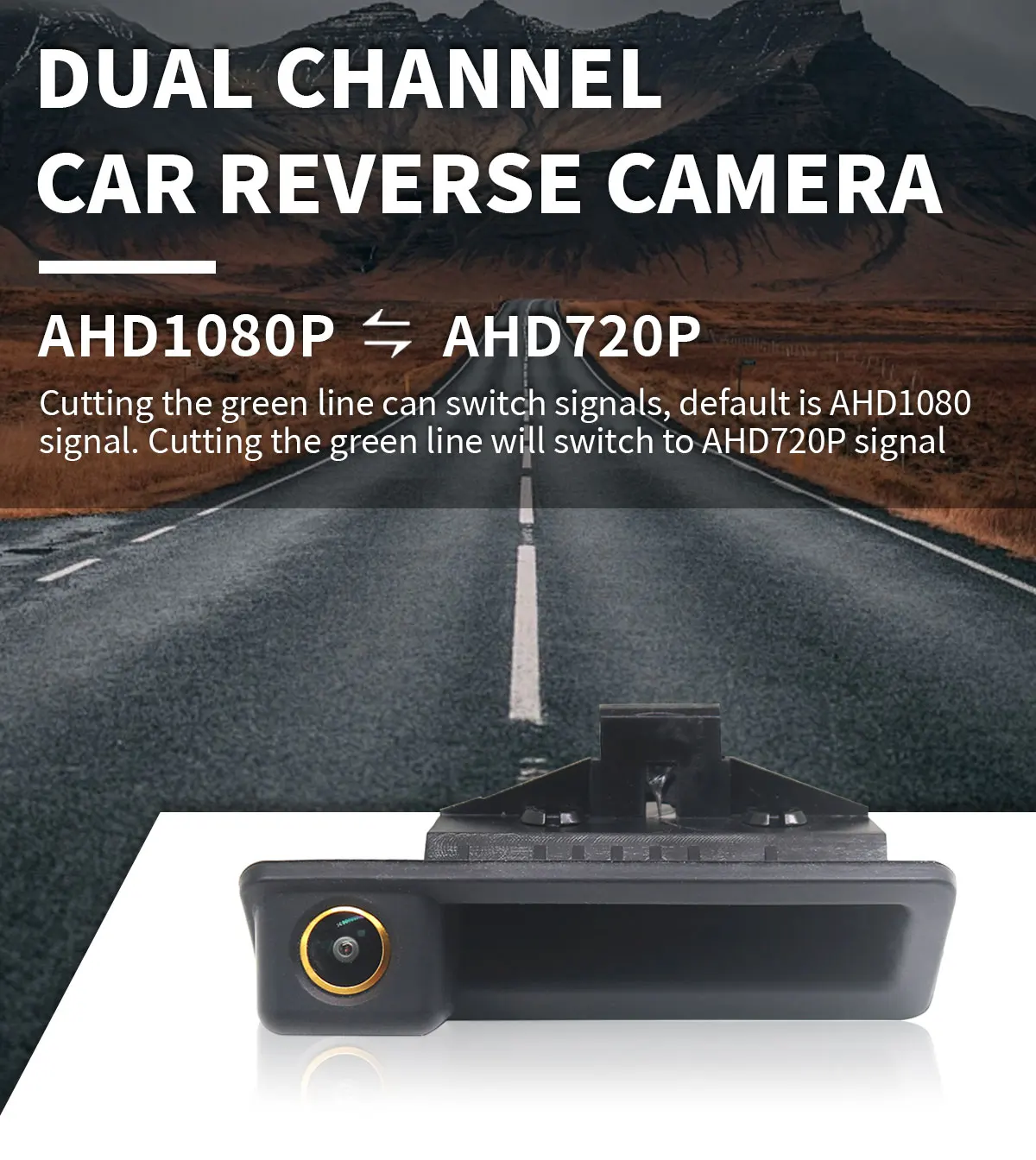

4.AHD1080P-AHD720P (Dual-channel Camera) ※If you have the original car display screen, be cautious when purchasing

⚠️This dual-channel model has NO CVBS signal! Only AHD signal. Not compatible with OEM screens.

Android screen: Supports AHD1080P HD, compatible with AHD720P

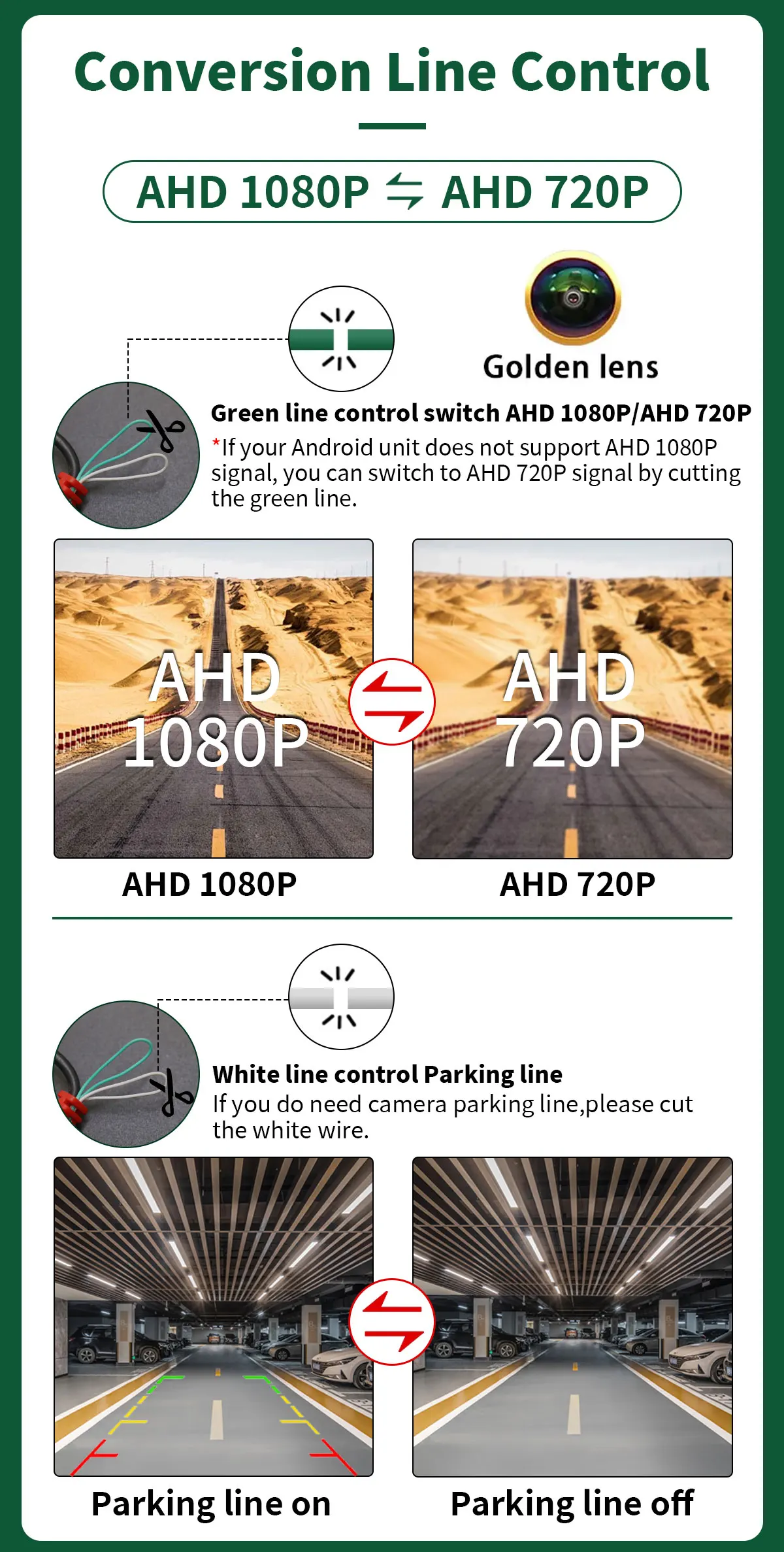

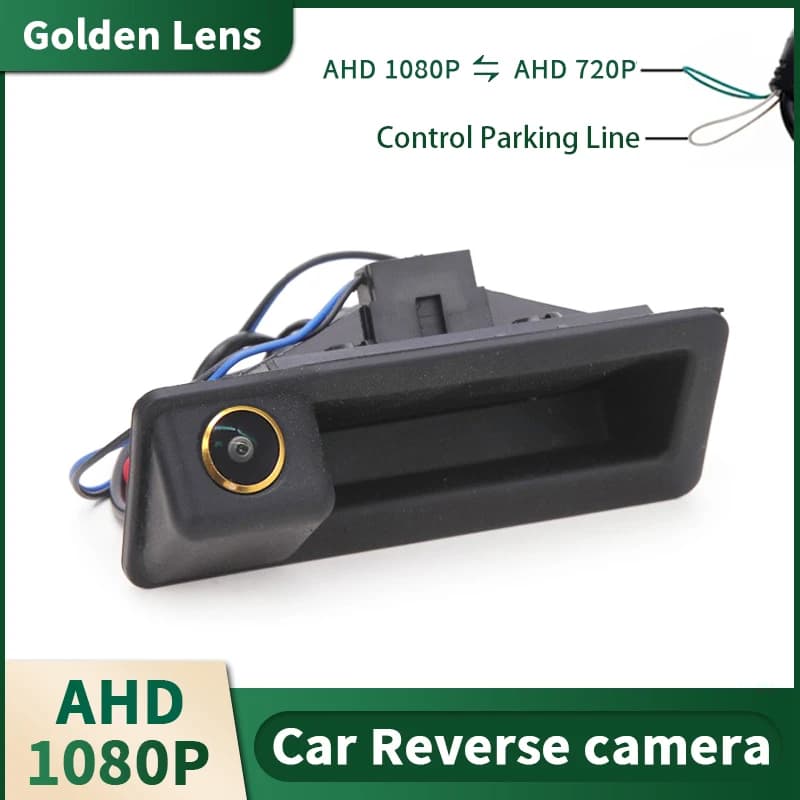

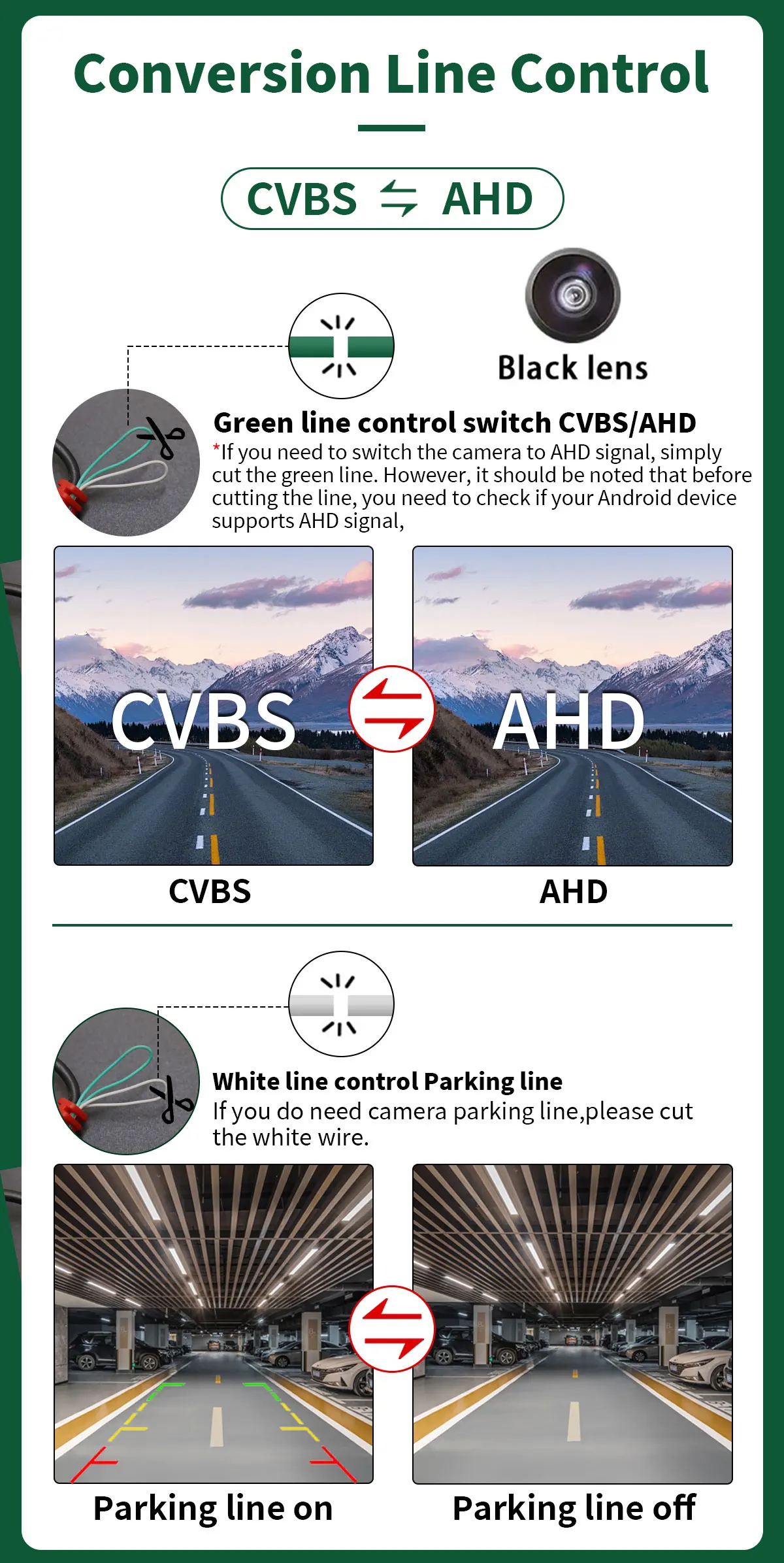

Conversion Line Control

AHD 1080P-AHD720P

*If your Android unit does not support AHD 1080P signal, you can switch to AHD 720P signal by cutting the green line.

CVBS-AHD

*If you need to switch the camera to AHD signal, simply cut the green line. However, it should be noted that before cutting the line, you need to check if your Android device supports AHD signal,

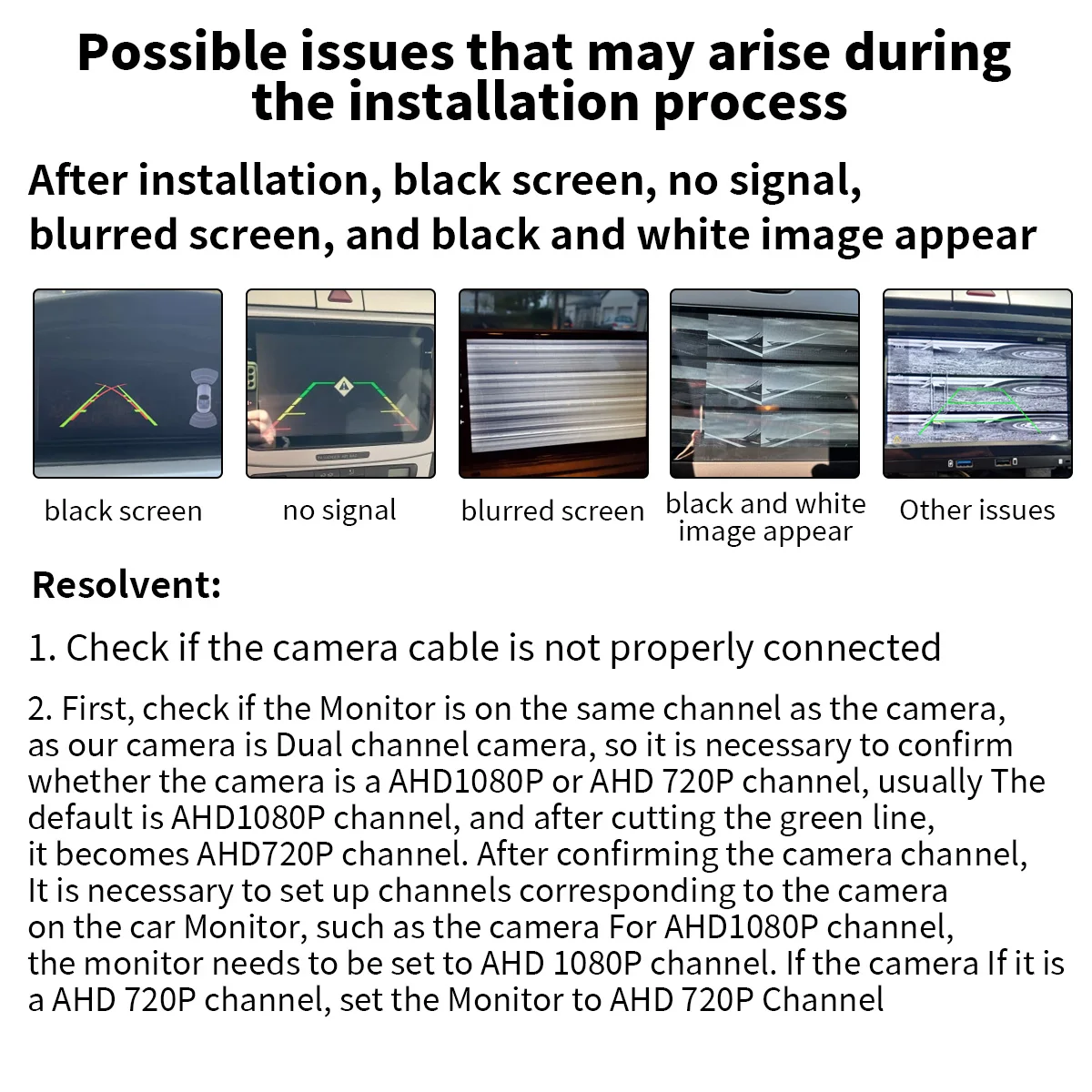

Possible issues that may arise during

the installation process

After installation, black screen, no signal,

blurred screen, and black and white image appear

Resolvent:

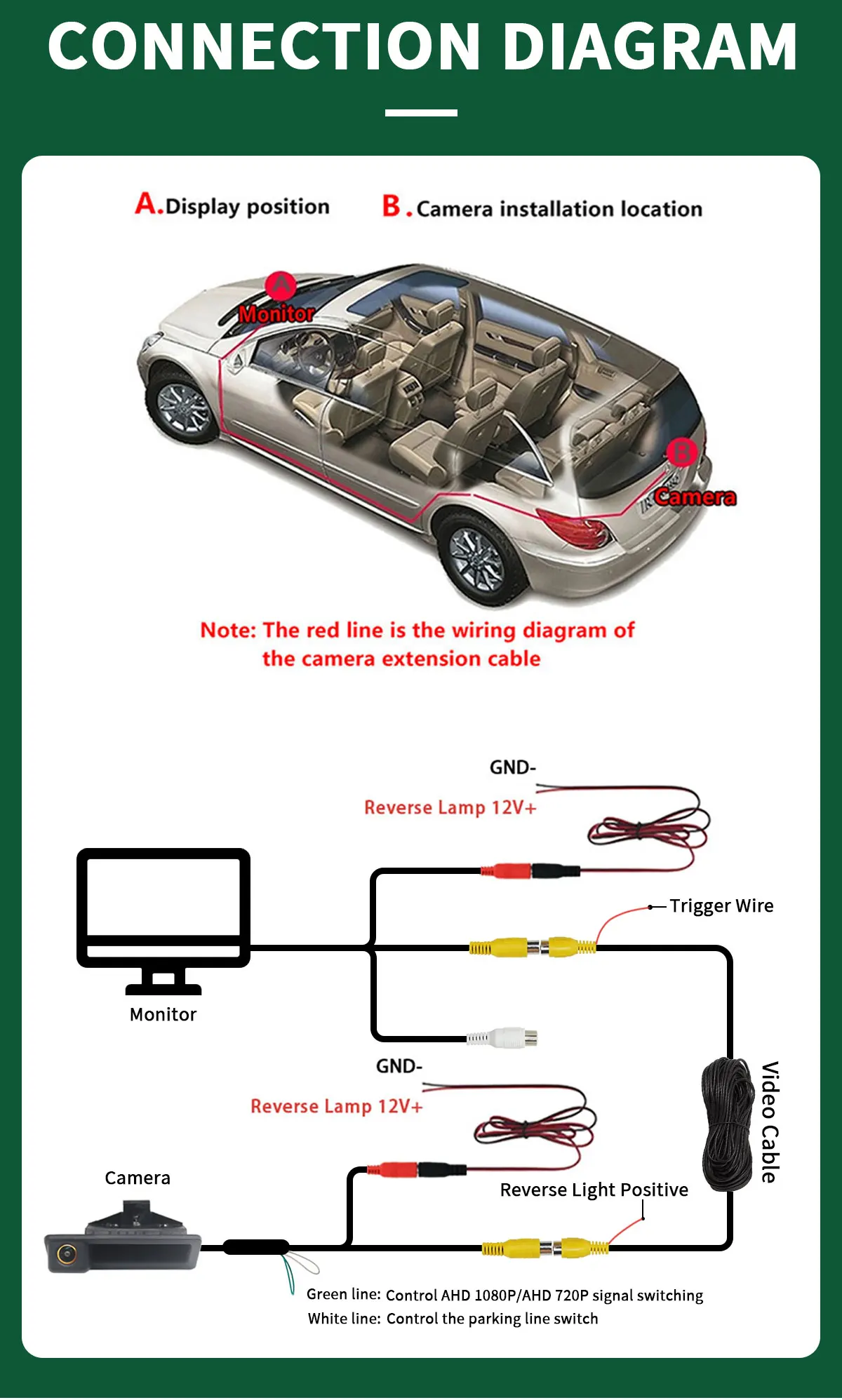

1. Check if the camera cable is not properly connected

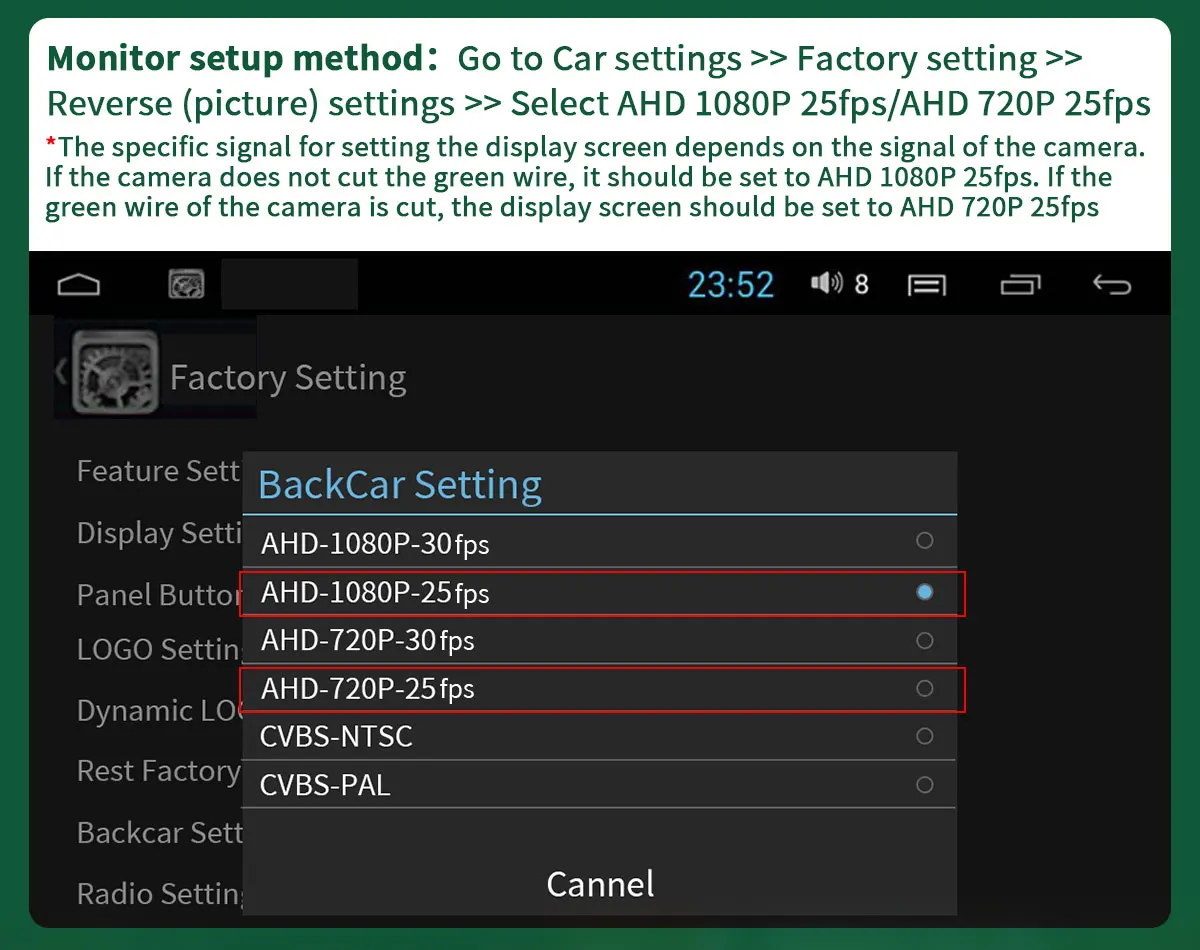

2. First, check if the Monitor is on the same channel as the camera,

as our camera is Dual channel camera, so it is necessary to confirm

whether the camera is a AHD1080P or AHD 720P channel, usually The

default is AHD1080P channel, and after cutting the green line,

it becomes AHD720P channel. After confirming the camera channel,

It is necessary to set up channels corresponding to the camera

on the car Monitor, such as the camera For AHD1080P channel,

the monitor needs to be set to AHD 1080P channel. If the camera If it is

a AHD 720P channel, set the Monitor to AHD 720P Channel
