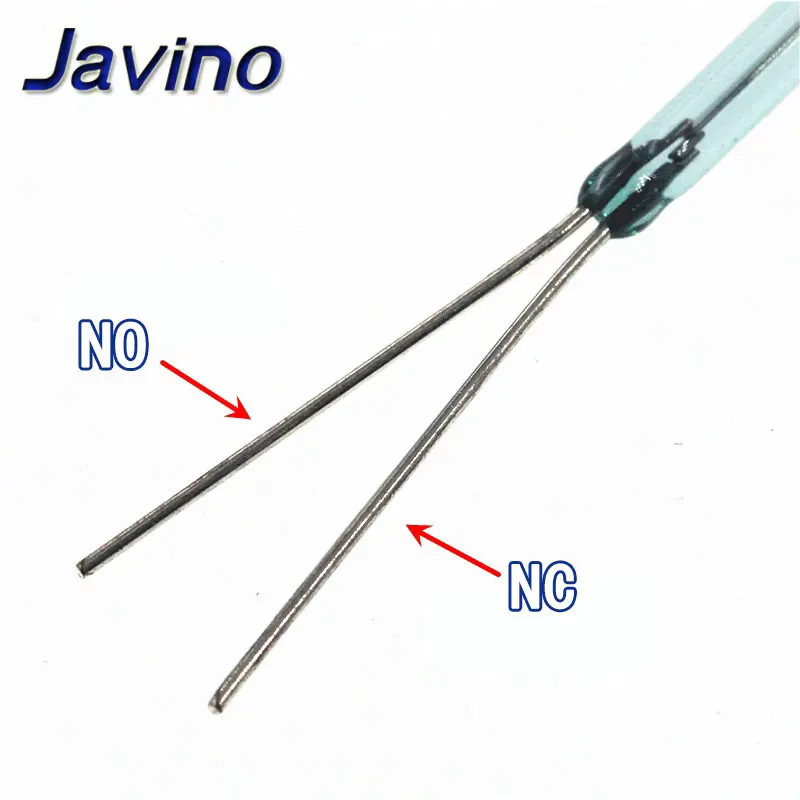

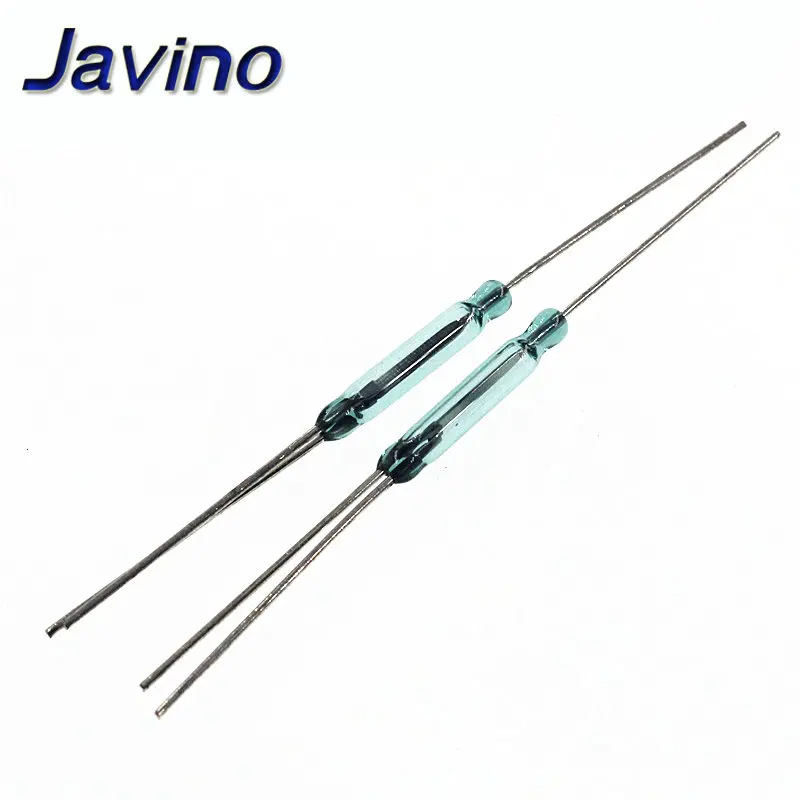

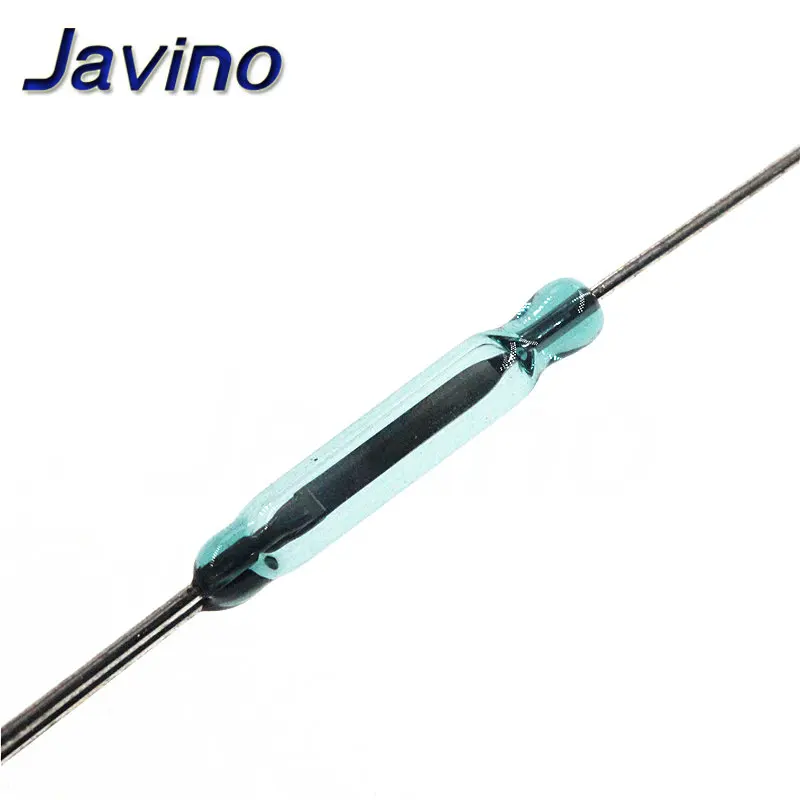

5Pcs Reed Switch 3 pin Magnetic Switch 2.5*14mm Normally Open Normally Closed Conversion 2.5X14MM NO/NC Conversion for Sensors

Parameter:

Contact method A

Maximum power 6W

Maximum switching voltage 60VDC/VAC

High pressure resistant 60VDC/VAC

Maximum switching current 0.25A

Maximum load current 0.5A

Maximum contact resistance 115M

Action time 0.25ms

Bouncing time 0.05ms

Response frequency 3000Hz

Sensitivity value 10~20AT

Minimum reset sensitivity 5FT

Maximum contact capacitance 2.0PF

Electrical life (load) 5x106 (50mV, 10mA)

Test coil turns / resistance 5000/600 ohms

Features and Applications:

The dry reed pipe is compact and lightweight, and can be installed in extremely limited space, making it ideal for miniaturized equipment.

The dry reed switch components are hermetically sealed in an inert gas atmosphere, never in contact with the outside environment, and have a long working life.

The dry reed pipe does not use sliding elements, so there is no metal fatigue associated with all metal degradation, ensuring virtually unlimited mechanical life.

The reed switch is very good in mobile phones, program-controlled switches, copiers, washing machines, refrigerators, cameras, disinfection cupboards, door magnets, window magnets, electromagnetic relays, electronic scales, liquid level gauges, gas meters, water meters, etc. application.

Precautions for use:

Extreme care must be taken when cutting or bending the lead legs of the reed switch to avoid undue stress and damage to the glass-to-metal seal. Proper clamping tools must be used.

Temperature and excessive exposure time can cause damage to the glass-to-metal seal (cracking, leakage, etc.), so fast and reliable welding techniques (processes) must be used. The recommended welding conditions are: 280-300 °C for hand welding and 250 to 300 °C for wave soldering.
