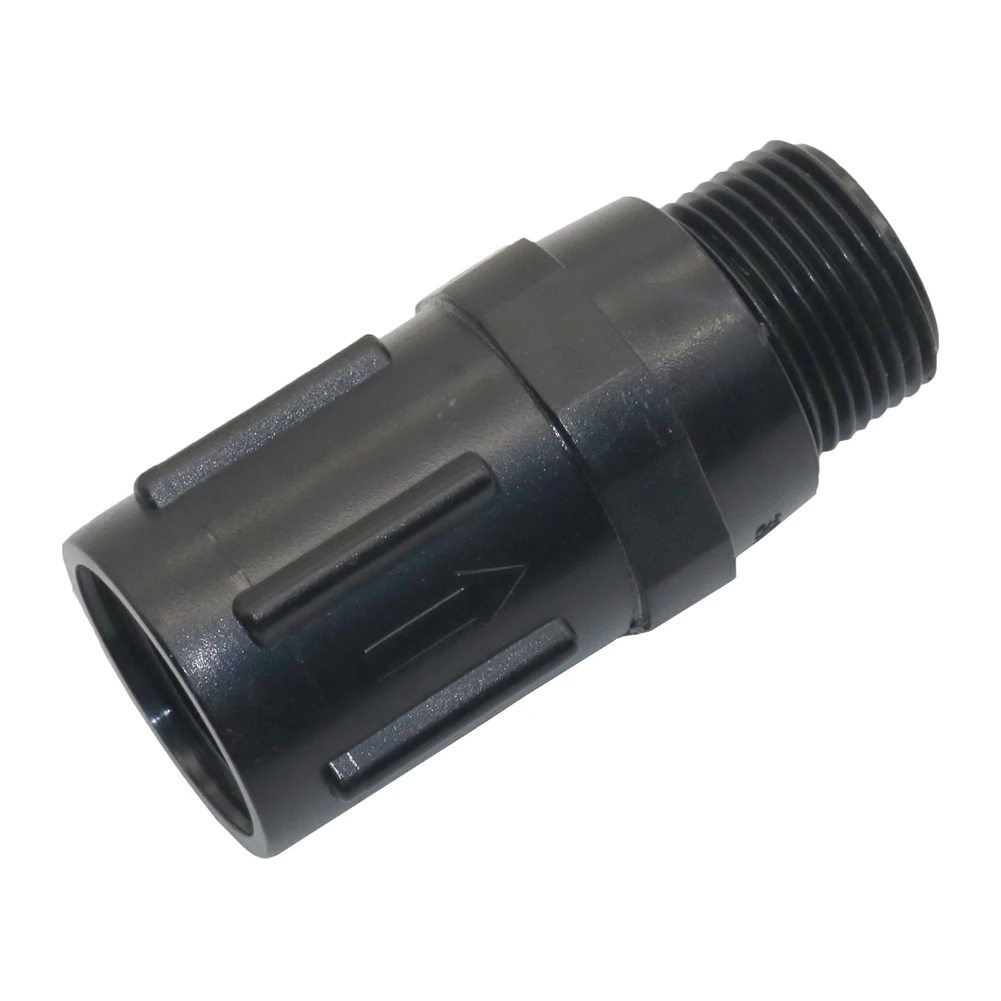

3/4" BSP Thread Low Velocity Pressure Regulating Valve Agricultural Drip Irrigation Pressure 15/20/25/30/45PSI Reducing Valves

Description：

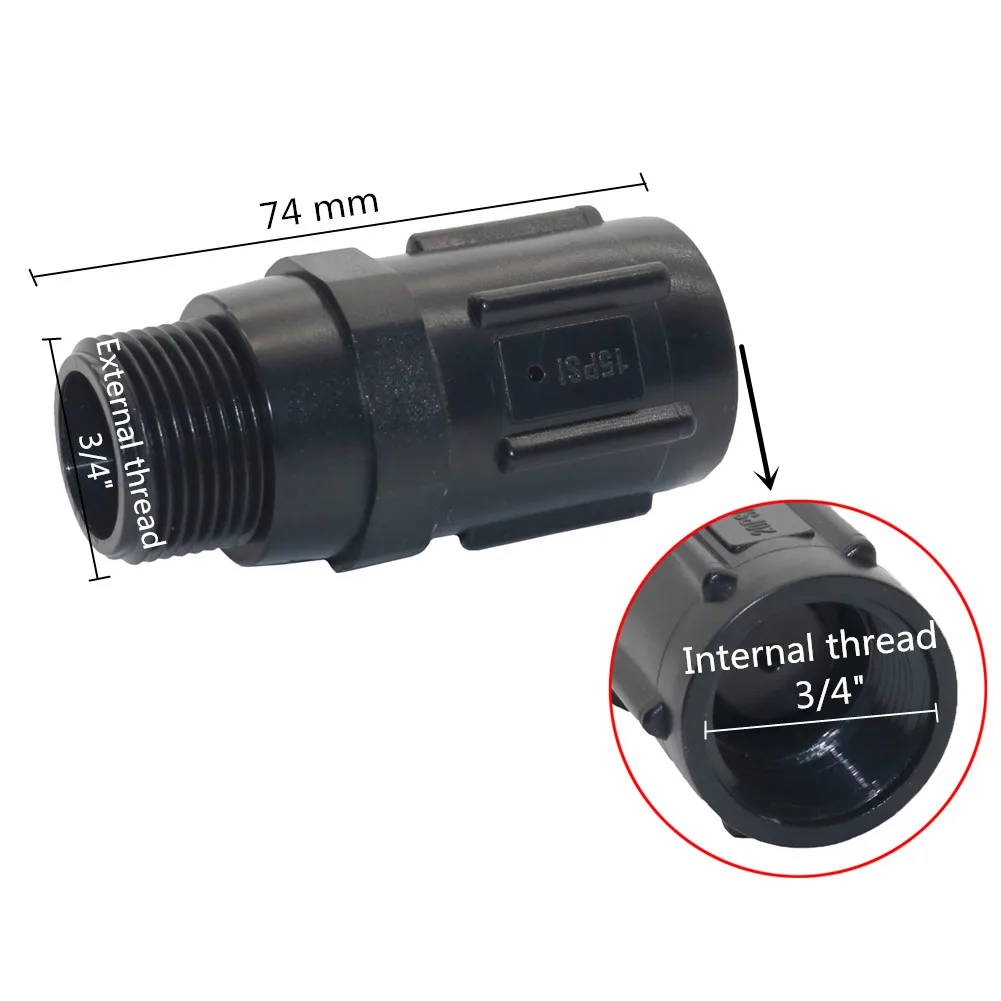

High-quality ABS main body, sturdy and durable, the size of the joint is 3/4" internal thread to 3/4" external thread, which is convenient to connect to the faucet of water supply. It is convenient to adjust the water pressure when the water supply pressure is high.

Pressure adjustment range: 20~100 PSI,maximum water inlet pressure: 120 PSI,pressure control valve : 2~9 GMP

Suitable for installation behind valves and timers to avoid damage from continuous high water pressure

Product details:

Name : 3/4" Thread Low Pressure Regulator

Material: ABS

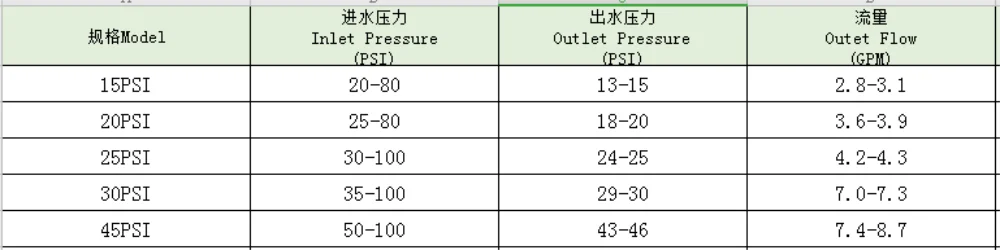

Inlet Pressure(PSI) : 20~100 PSI (1.4~6.9bar)

Out let Pressure(PSI) : 13~46 PSI(0.9~3.2bar)

Flow Range (GPM) : 2.8~8.7 GPM

Connection size: 3/4'' BSP

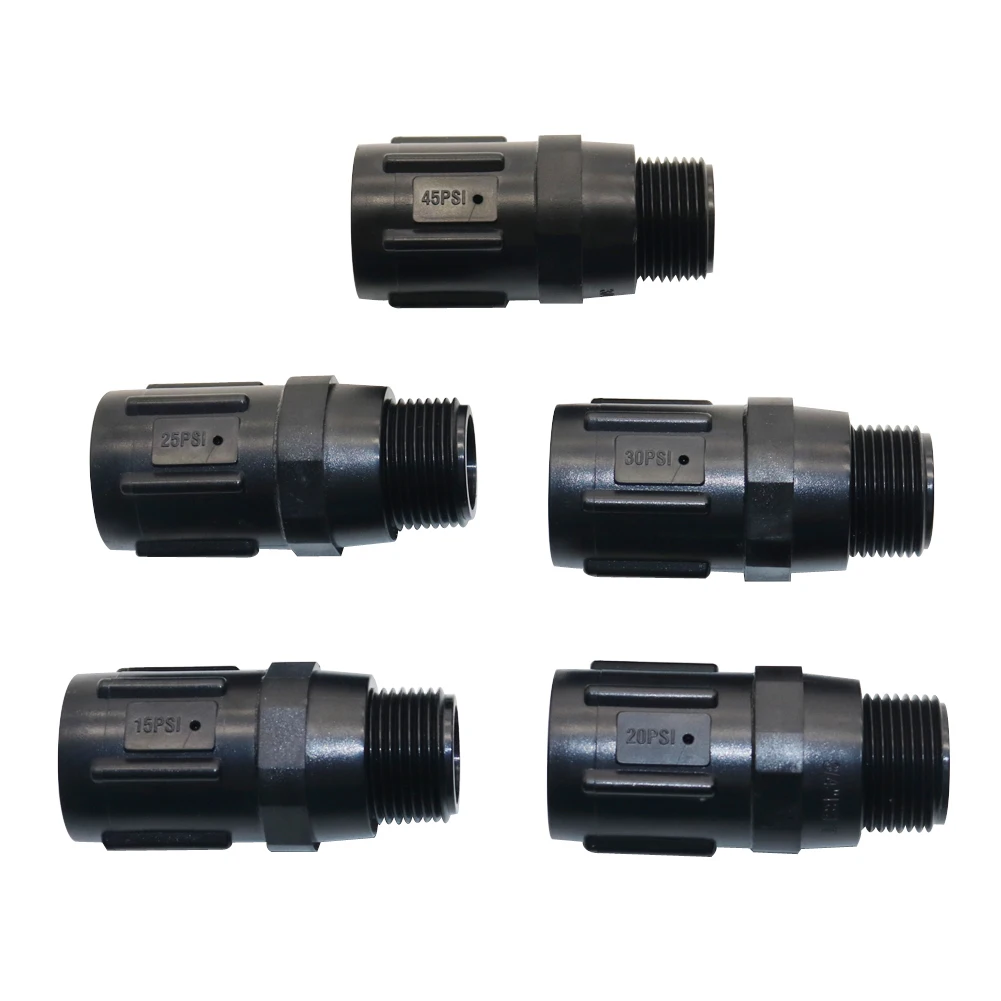

Specification: 15 PSI (1.0bar),20 PSI (1.3bar),25 PSI (1.7bar),30 PSI (2.0bar),45 PSI(3.1bar)

Drive mode: water velocity control

Color : Black

Package content:

1Pc x 3/4" Thread Low Flow Pressure Regulator(choose the size and type you need)
