6V 12V 24V customized Micro Linear Actuator motor actuador lineal 10/30/50/100mm stroke for Remote Controls Robotics Automation

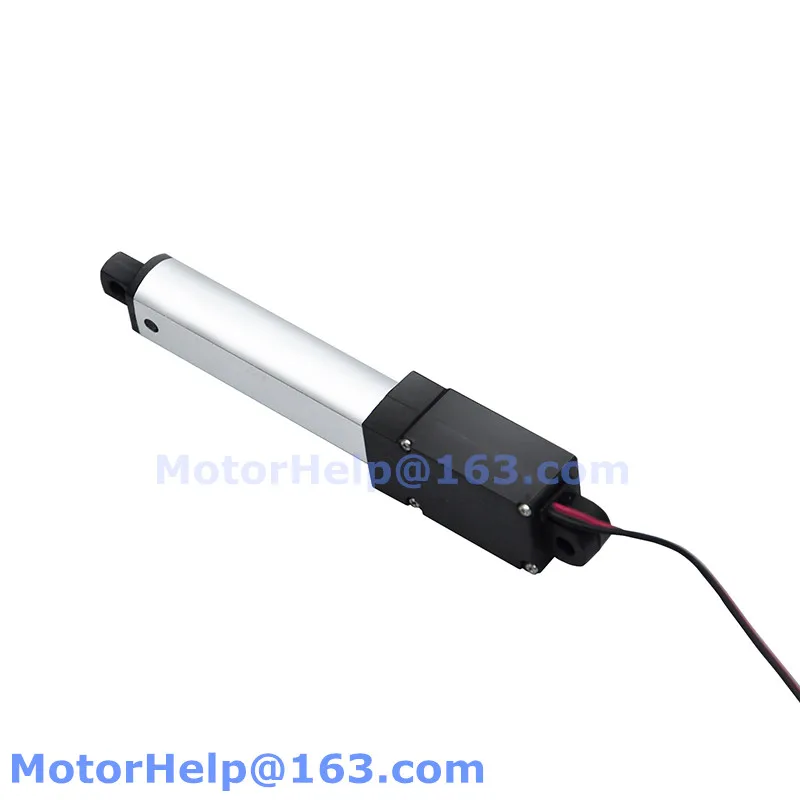

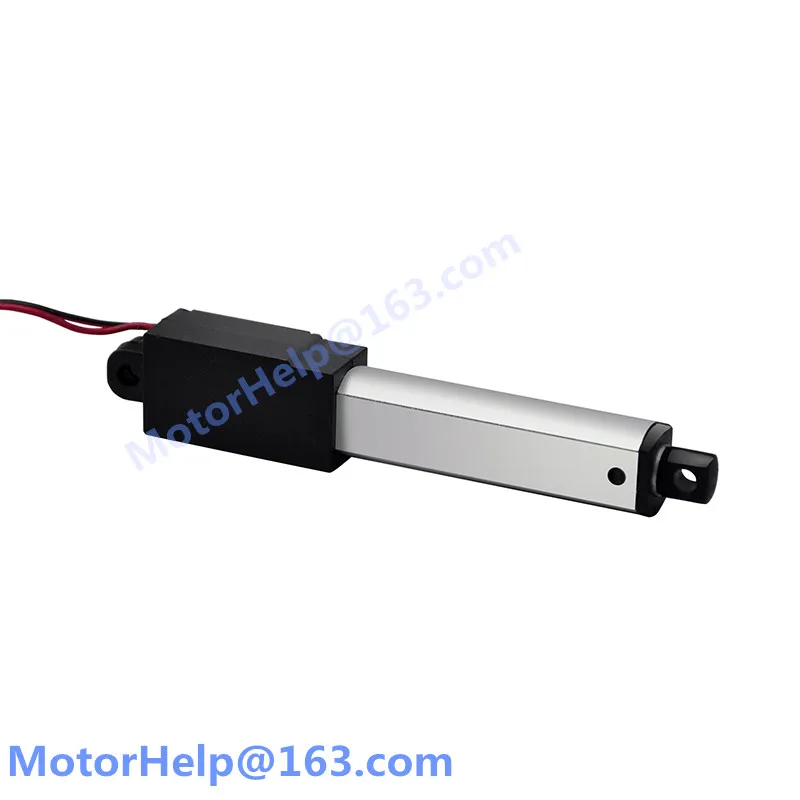

OK03 is mini linear actuator. Although it is smaller,great ideal for any project where space or weight is at a premium.

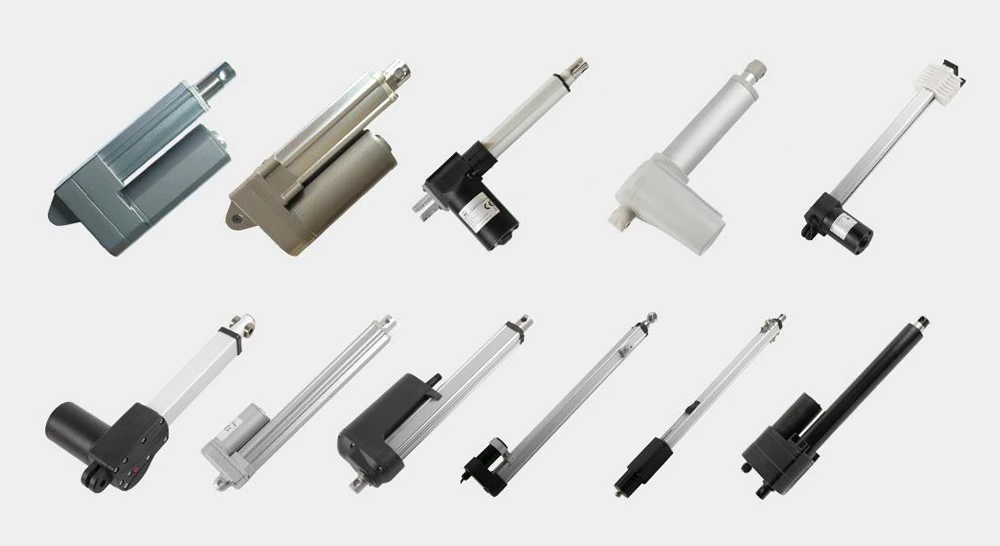

We produce linear actuator,tv lifts,control box,handset,lifting column,electric desk. The spare part suppliers work with us for many years,with rich experienced team and ISO good quality control system that is why our quality and service makes customer happy.

We deeply appreciate your interest to our company.

Linear actuator spec:

1 Type                                       OK03 linear actuator

2 Input                                      6V 12V 24V DC

3 Max Load                                188N=18KG=44LBS

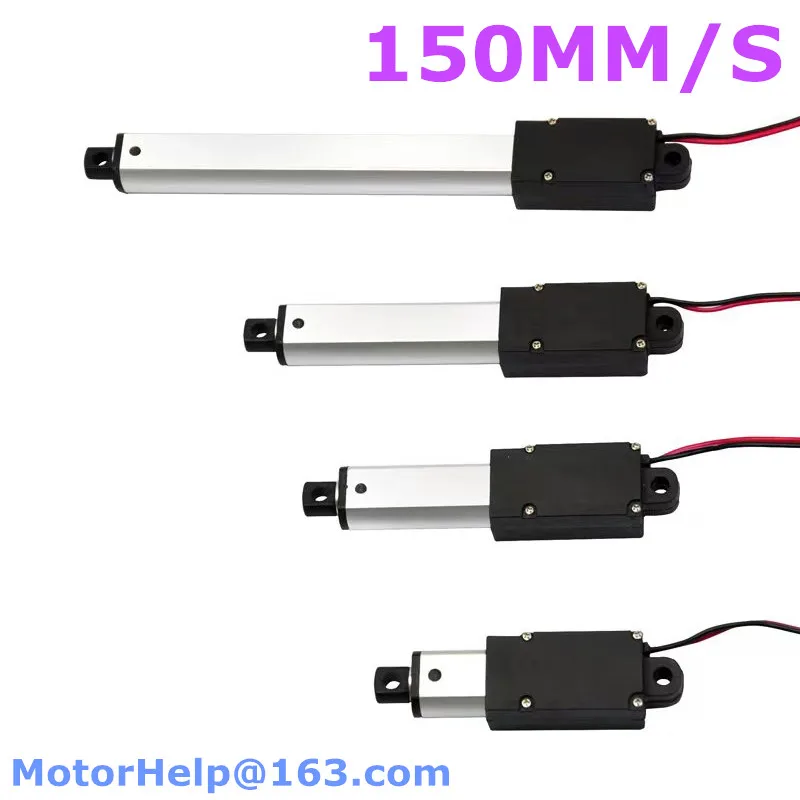

4 Max Speed                              150mm per second

5 Limited switch                         With

6 Duty cycle                               25%

7 Inner tube material                  Aluminum alloy

8 Stroke length                           Max 150mm

9 Lmin and Lmax                        Normal Lmin=Stroke+54.5

10 Color                                     Black

11 Operation temperature            -26 ~ +65 degree

12 Internal potentiometers options,needs extra cost

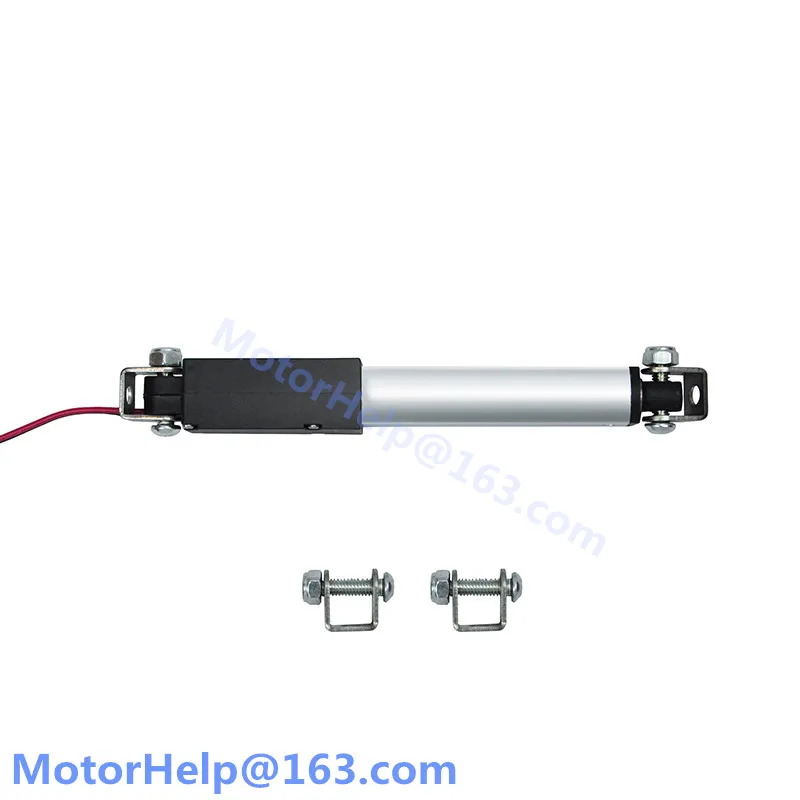

13 It includes a pair of mounting brackets

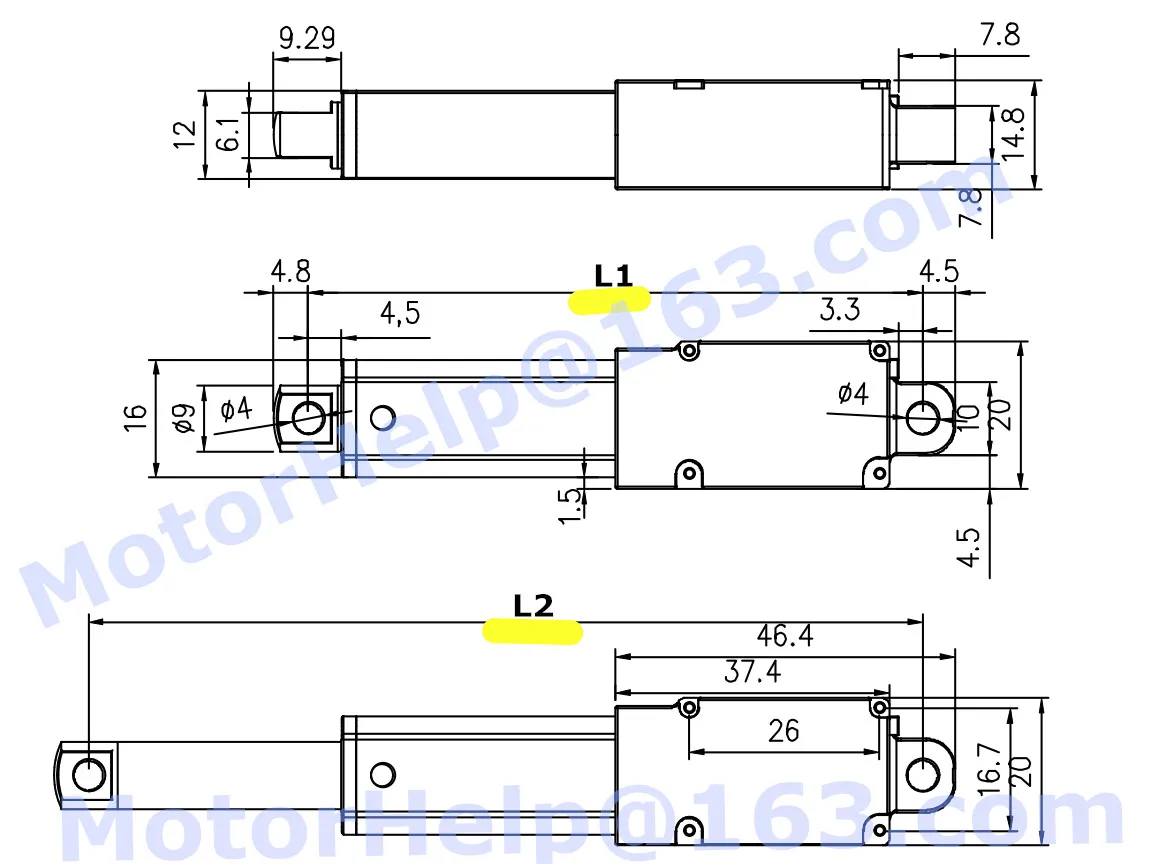

Normal size

1 L1=100% fully close length

Lmin means the length when linear actuator 100% fully closed, meanwhile,it will touch the tail limited switch and stop automatically.

2 Stroke means the movement length of linear actuator.

3 L2=100% fully open length

Lmax means the length when linear actuator 100% fully open, meanwhile,it will touch the head limited switch and stop automatically.

Stroke 10MM    L1=64.5MM,  L2=74.5MM

Stroke 17.5MM L1=72MM,     L2=89.5MM

Stroke 21MM    L1=75.5MM,  L2=96.5MM

Stroke 25MM    L1=79.5MM,  L2=104.5MM

Stroke 30MM    L1=84.5MM,  L2=114.5MM

Stroke 50MM    L1=104.5MM,L2=154.5MM

Stroke 75MM    L1=129.5MM,L2=204.5MM

Stroke 100MM  L1=154.5MM,L2=254.5MM

Stroke 150MM  L1=204.5MM,L2=354.5MM

Why US

1 Rich experience engineer team

2 Spare parts 100% check before production

3 Product 100% check before shipping

4 We have patent and brand

5 Good service

Normal service

1 We supply customized head and tail connector size,Lmin and Lmax size,cable and control system.

2 We supply OEM and ODM service

3 We supply discount for bulk order.

4 For bulk order,we supply ocean and air cargo shipping service,it is much cheaper.

5 If you have partner in China,we can send product to them.

Warranty

1 If you do not receive product or meet quality problem, we will send you new one.

2 We accept paypal, Escrow,Western union and bank transfer.

3 Please make sure your address and contact info is correct.
