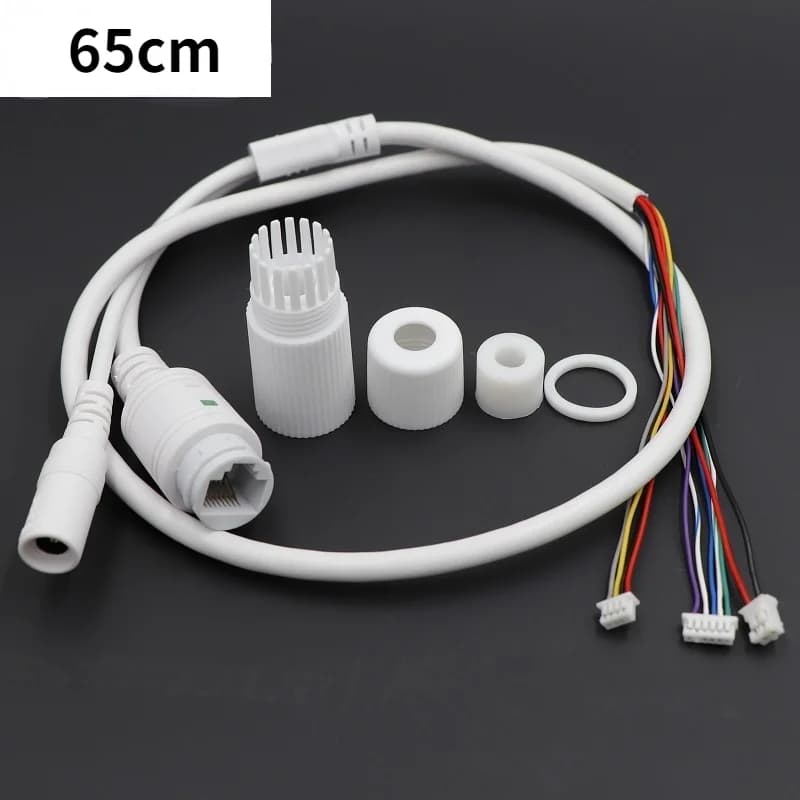

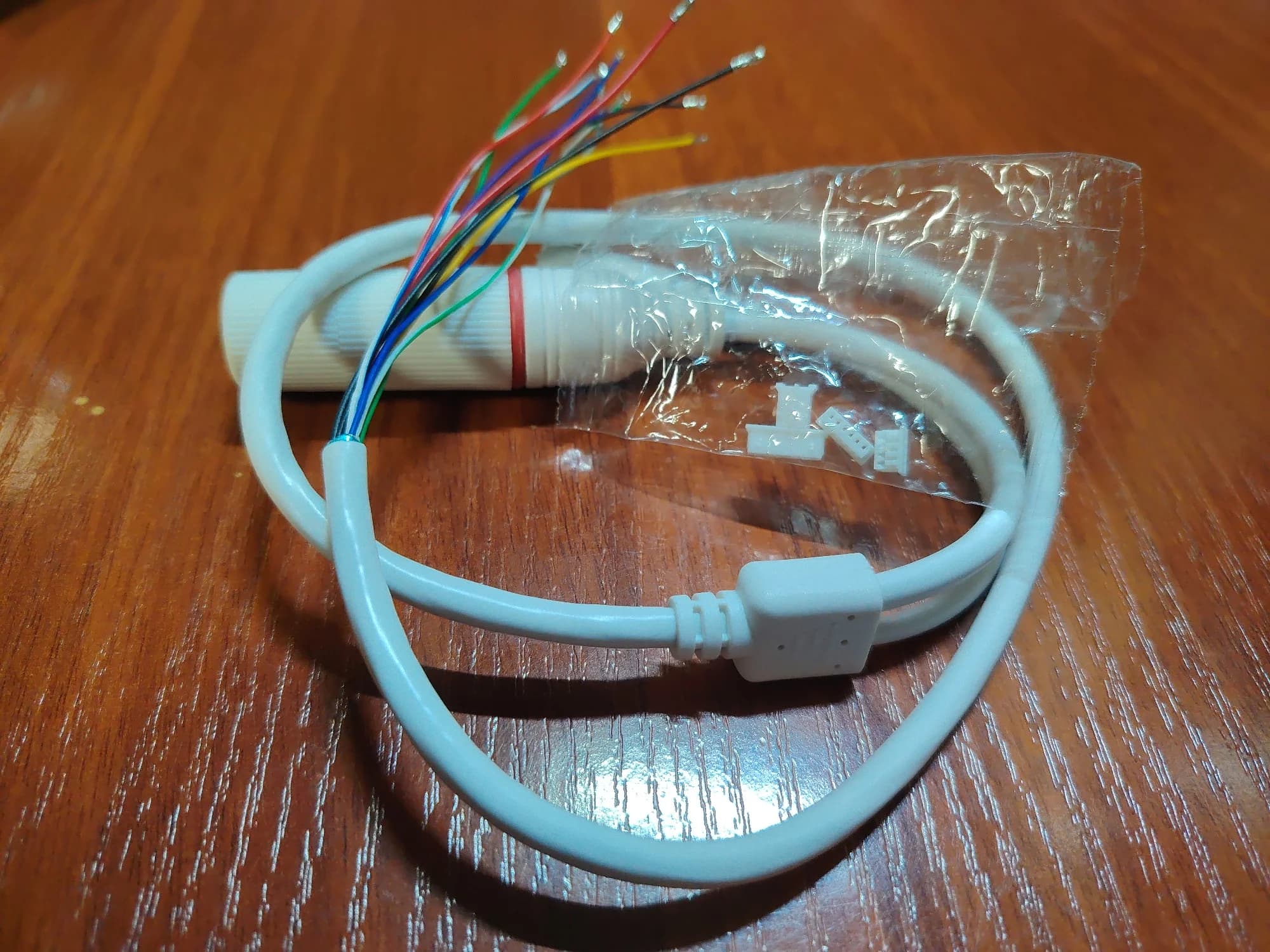

CCTV POE IP network Camera PCB Module video power cable Withe, 65cm long, RJ45 female connectors with Terminlas,waterproof cable

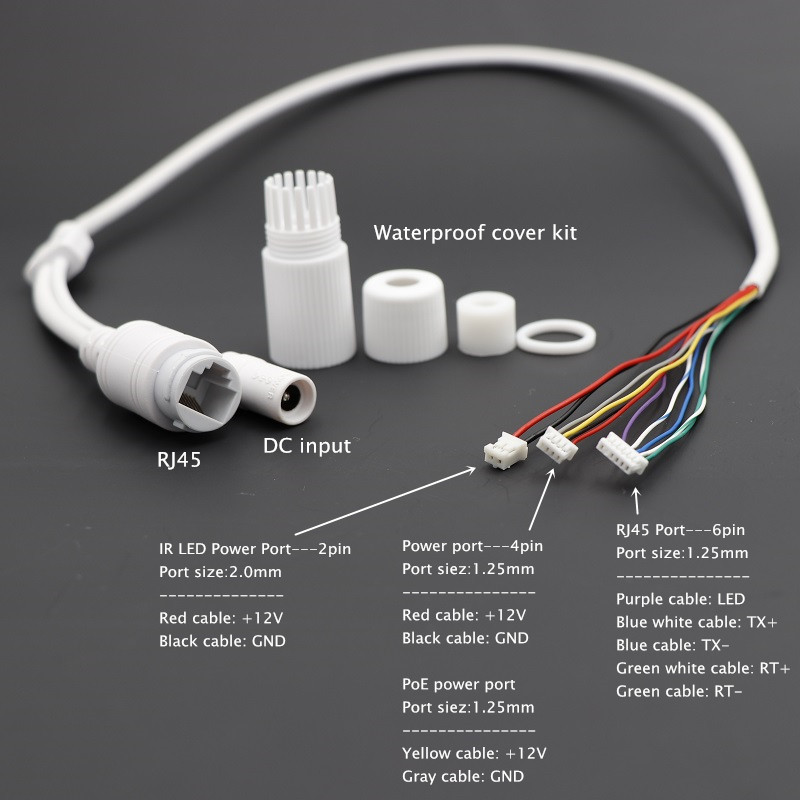

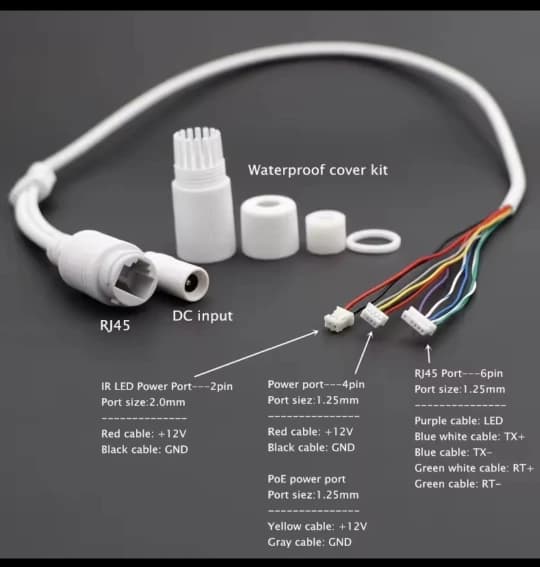

Size: length 700mm,Φ5mm
Cable color: Withe
-----------------------------------------------------------------------------------
2 PIN---2.0mm
Red: + 12V
Black: GND
2 PIN---1.25mm
Red: + 12V
Black: GND
2 PIN---1.25mm
Yellow: PoE +12V (4/5 of RJ-45)
Gray: PoE GND (7/8 of RJ-45)
5 PIN---1.25mm
Blue: TX-
Blue+White: TX+
Green: RX-
Green +White:RX+
Purple: LED
-----------------------------------------------------------------------------------
Packing list:
1 pcs network video cable
1 pcs 2pin port(2.0mm)
1 pcs 4pin port (1.25mm)
1 pcs 6pin port (1.25mm)
Please note: 1 pcs 2pin port (2.0mm), 1 pcs 4pin port (1.25mm), 1 pcs 6pin port (1.25mm) and cable are separate,Please according to their own needs,Arrange the cable sequence.
-----------------------------------------------------------------------------------
Customer Reviews
99 ratings
works great (7)
fast delivery (4)
good quality (4)
loose cables (3)
timely delivery (2)
works perfectly (1)
Customer photos (11)
J***R
November 21, 2025
It works great, thank you! !
Translated by AliExpress ·
R***n
October 5, 2026
bad
Translated by AliExpress ·
Ш***ч
October 5, 2026
Everything is as described, thank you.
Translated by AliExpress ·
Buyer from European Union
August 31, 2026

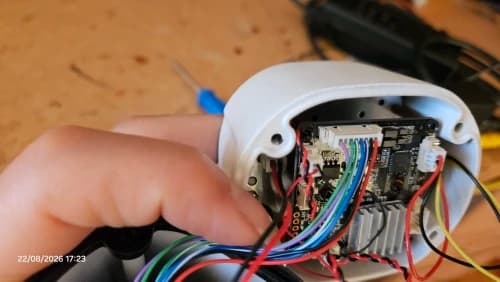

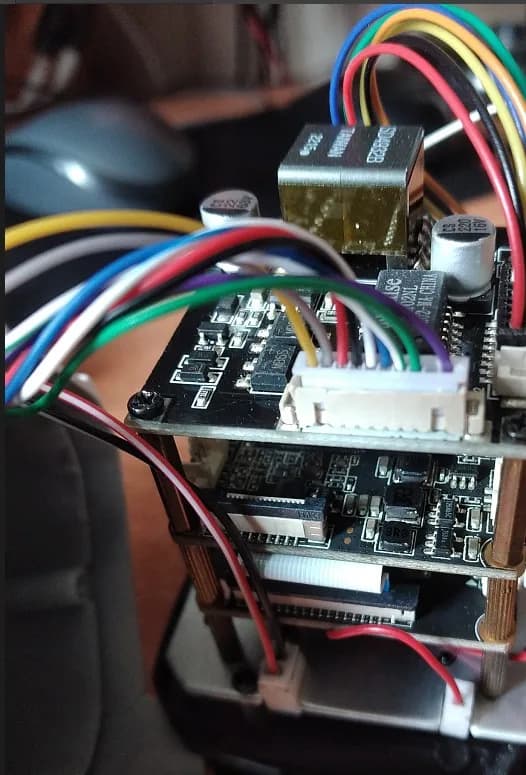

Received quickly, easy replacement with the provided connectors, my camera worked immediately.
Translated by AliExpress ·
Buyer from Brazil
August 25, 2026

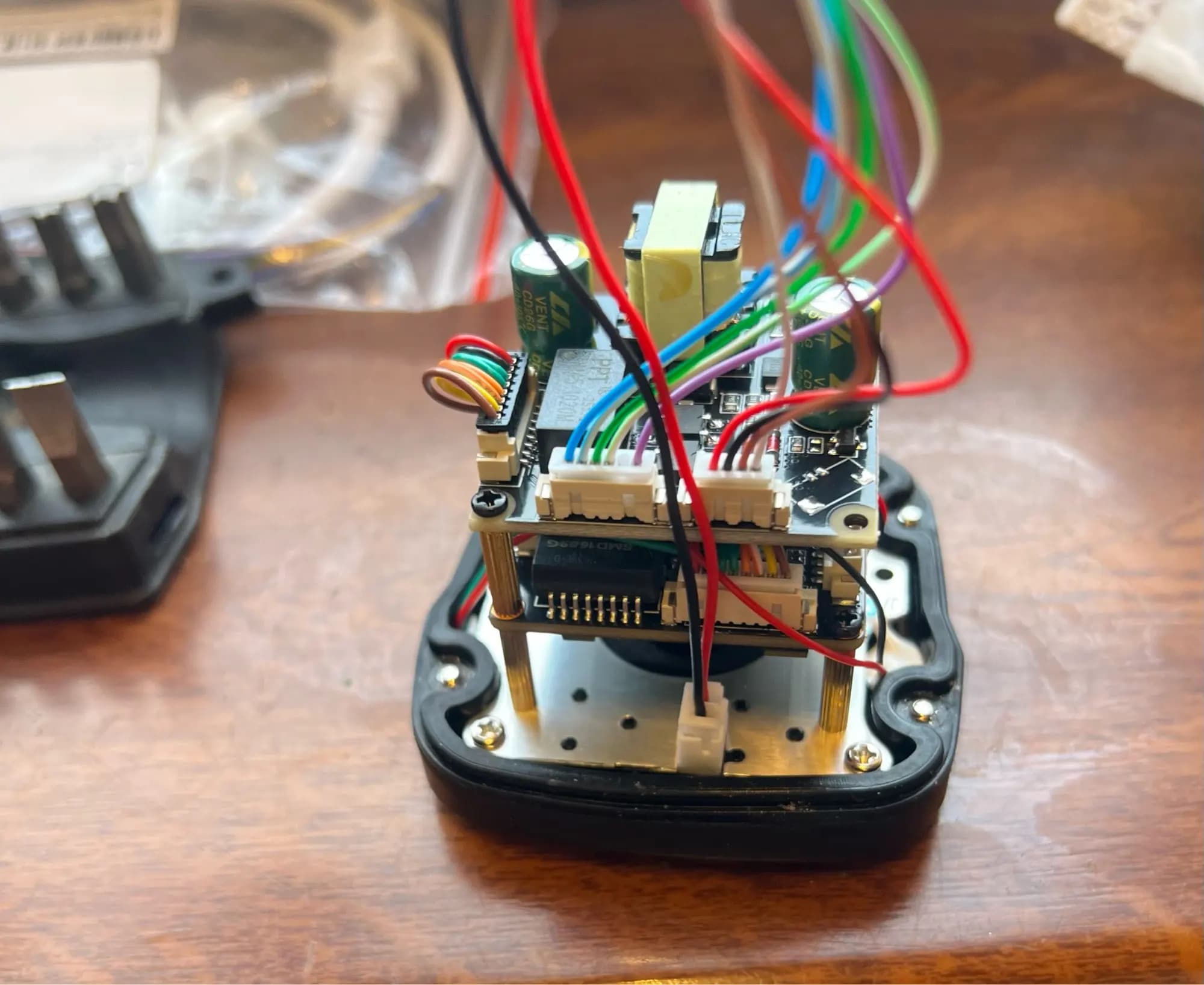

This model does not have a source for 12V output, it supplies 48V to pins 45 and 78. It requires a camera with an internal step-down board from 48V to 12V.
Translated by AliExpress ·
D***i
August 13, 2026

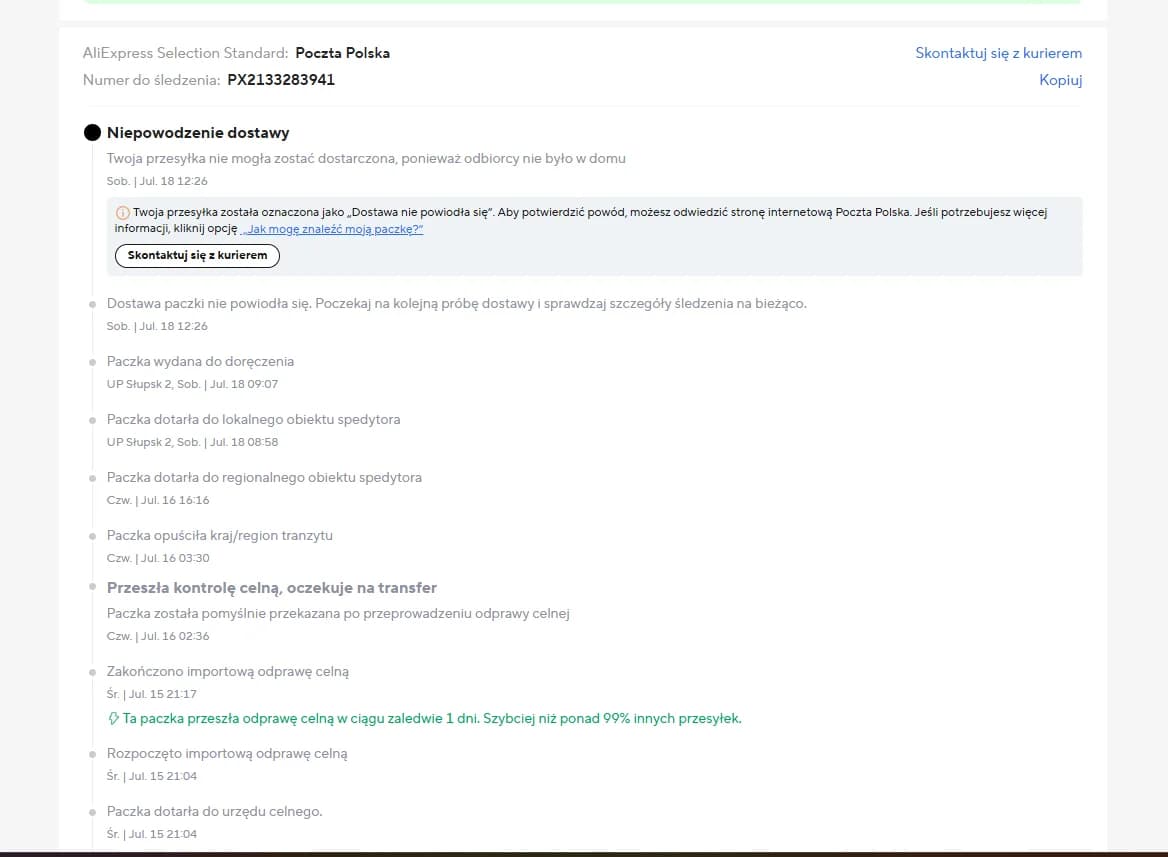

The package hasn't arrived, AliExpress is not helpful, and the seller doesn't want to refund the money.
Translated by AliExpress ·
