MKS DLC32 V2.1 Offline Controller Board 32bits ESP32 WIFI GRBL Motherboard For Laser Engraving Machine TS35 Touch Screen Display

Attention: MKS DLC32 V2.0 has been upgraded to MKS DLC32 V2.1

MKS TS24/TS35 V2.0 Laser Engraver Offline Control Display For MKS DLC32 V2.1 32Bit Motherboard For Laser Engraving Machine

Please note: For purchasing the DLC32+TS24 display, the TS24 firmware needs to be flashed separately, as the default factory firmware for the DLC32 motherboard is TS35 firmware

【POWERFUL REPLACEMENT CAPABILITIES: 】

Makerbase laser CNC engraver machine mainboard kit can work for laser engravinge machine and CNC cutting mahcine both which is an offline engraving master control kit developed for desktop engraving machines. The hardware is equipped with a 32-bit high-speed ESP32 module, integrated WIFI function, and directly drives a 3.5-inch touch color screen; it can realize fast engraving and WEB web pages. Control, mobile phone APP control and other functions.

【FLEXIBLE ADAPTATION CAPABILITIES: 】

Makerbase laser CNC engraver machine control board can be used on all the desktop laser CNC engraver for homeuse. The MCU ES which is built-in ESP32-WROOM-32U 32 bits DOWD-V3 chip, support clock frequency up to 240MHZ. 8192KBytes flash and 520KBytes ram DC12v/24v powerinput.

【ULTRA-HIGH SPEED OPERATION CAPABILITY: 】

The laser speed for Makerbase wood laser CNC engraver machine motherboard upgrade tool accessories for beginners can reach 8000mm/min, due to the high-speed IO flip speed of the main control module and a powerful timer, MKS DLC32 can achieve a very high-speed engraving speed.

【WIDE RANGE OF COMPATIBILITY: 】

Makerbase MKS DLC32 Offline Controller can support GRBLLASER and Lightburn software both, which is very easy to use for all laser engraver users

【MOBILE PHONE APP AND WEB SUPPORT: 】

Makerbase laser CNC engraving machine mother board also have the phone app function, which can connect to MKS DLC32, control movement, edit image, upload files and so on. Android verison has been uploaded to Google Play. For IOS, please search "MKSLaser" on APPLE App Store. By the way, If you are connected to 5G WiFi, this may cause the APP to fail to upload files, so please do not connect to 5G WiFi

【STRONG Engraving effect: 】

The PWM frequency of MKS DLC32 can be as high as tens of KHz (the traditional scheme is lower than 980Hz), which fully meets the needs of various semiconductor laser heads. The engraving effect is more delicate than the traditional desktop engraving scheme, and the grayscale expression is smoother.

【WEB CONTROL: 】

MKS has developed the WEB page of DLC32. As long as you log in the IP address of the motherboard with a browser on the LAN, you can perform various engraving operations, file transfers, etc

Github:

https://github.com/makerbase-mks/MKS-DLC32

Introduction video：

https://youtu.be/U_OzlMxwms8

TS24 TS35 3.5 inch color touch screen display with knob/without knob

Open source files/instructions:

https://github.com/makerbase-mks/MKS-TFT/tree/master/MKS-TFT3.5

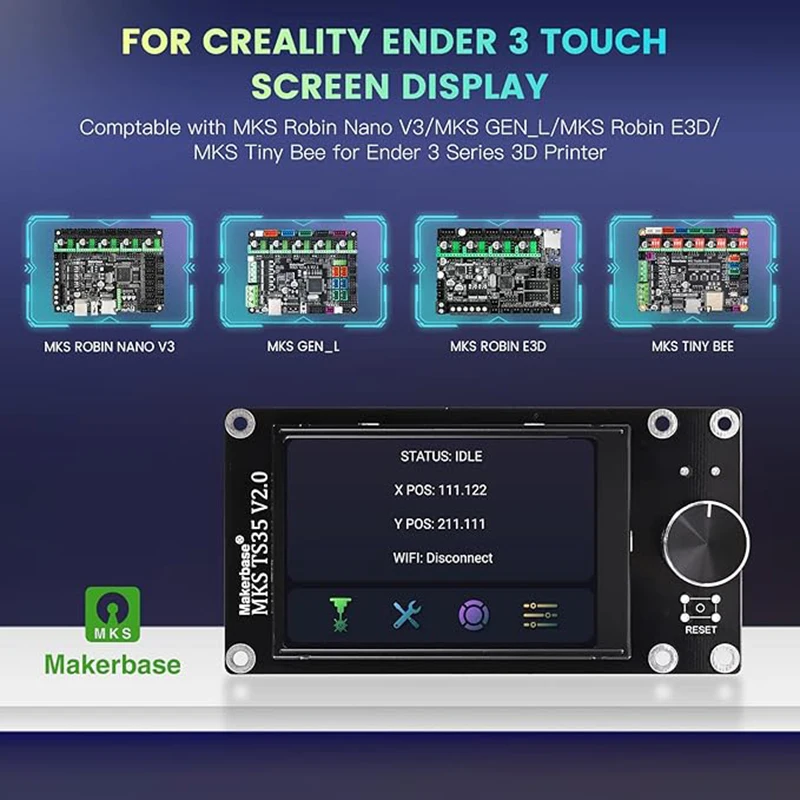

MKS TS35 Product Introduction:

1. MKS TS35 is compatible with MKS Robin Nano and other motherboards.

2. MKS TS35 can monitor the printing or processing process in real-time, displaying status, progress, and other related information on the screen.

3. MKS TS35 allows users to print from an SD card without the need for a computer.

4. MKS TS35 has a customizable interface that allows for adding logos, icons, and backgrounds.

5. MKS TS35 is easy to install and can be installed on the front of the machine

The MKS TS35 has a compact design that takes up minimal space on the machine

7. Responsive touch screen: MKS TS35 55 5 touch screen is responsive, easy to operate, and easy to operate.

MKS TFT35 Features:

1. It can switch between 7 languages online.

2. You can preview the gcode model and display the model during the printing process.

3. Run Cortex-M4 processor with a frequency of 168M and higher clarity.

4. Support WIFI module.

5. Configure through SD card *.

6. Boot logo and all buttons can be designed.

7. You can add 13 command functions.

8. Support breakpoint printing, power outage printing, filament shutdown detection, and automatic shutdown functions.

9. Supports Marlin, Repeat, and Frostbite firmware.

How to use:

After decompressing the compressed package, copy all internal files and folders to the root path of the SD card, insert TFT35, and restart it, which will automatically update.
