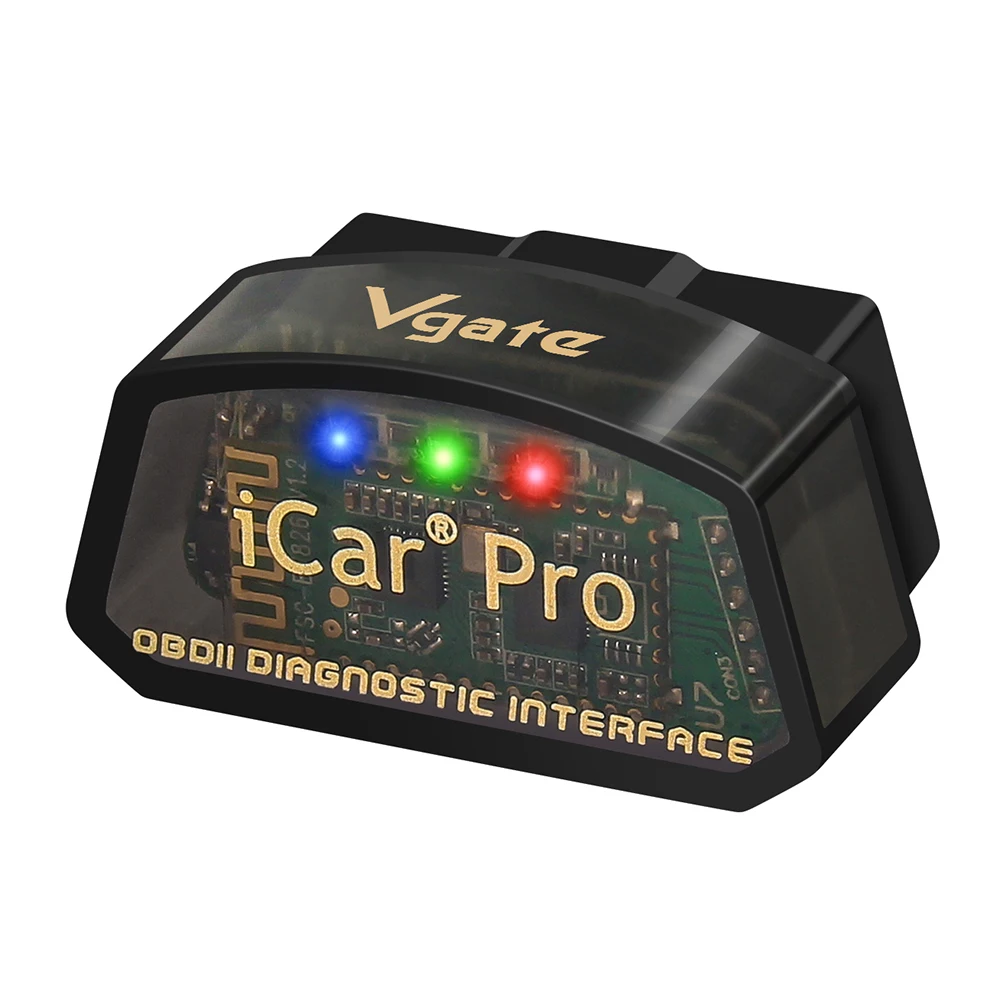

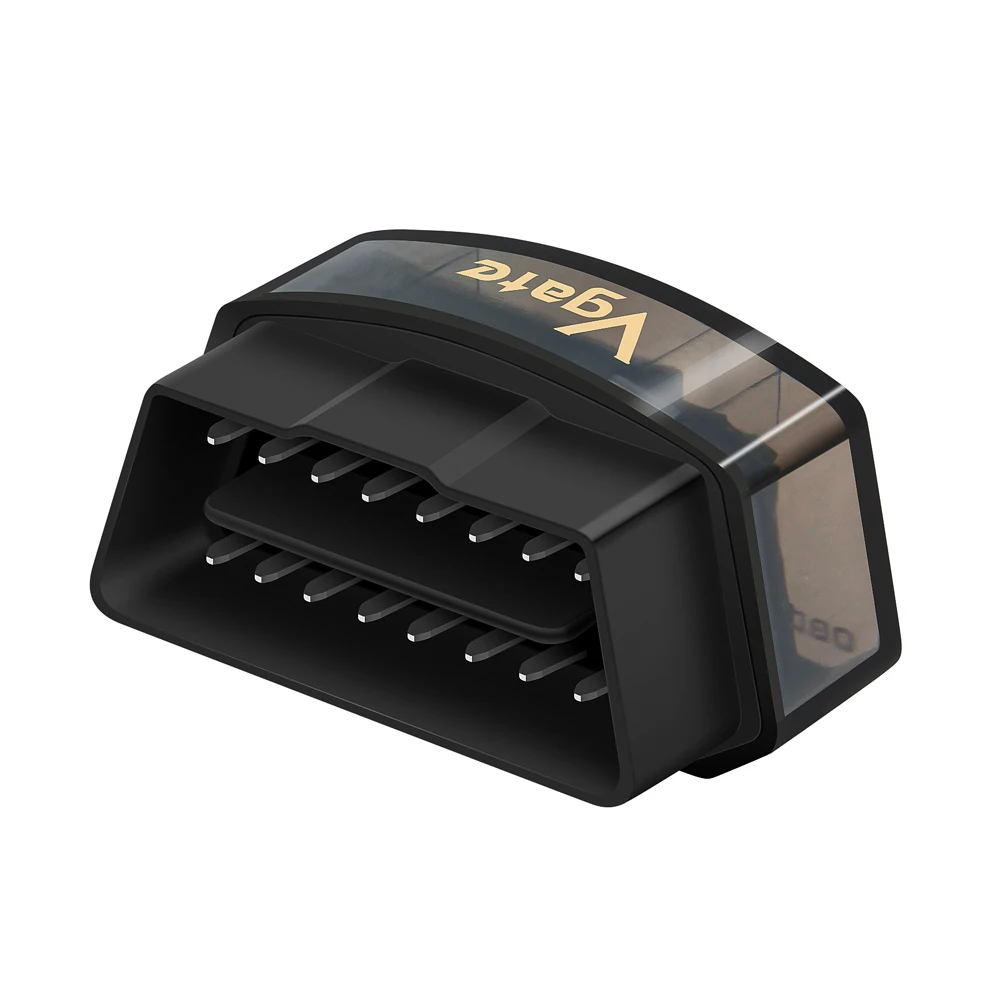

2026 Vgate iCar Pro ELM327 OBD2 Scanner Bluetooth 3.0/4.0/WIFI for Android iOS Car Diagnostic Tool Scan tool Code Reader

2026 Vgate iCar Pro ELM327 OBD2 Scanner Bluetooth 3.0/4.0/WIFI for Android iOS Car Diagnostic Tool Scan tool Code Reader

Notice:

Please choose BT3.0/BT4.0/WIF according to your needs. BT3.0 only supports Android. BT4.0/WIFI supports Android and iOS

If you use the IOS phone to work with iCar pro Bluetooth 4.0，please just open the phone bluetooth，not make connect!!! Then Open the APP，find and connect the bluetooth in APP

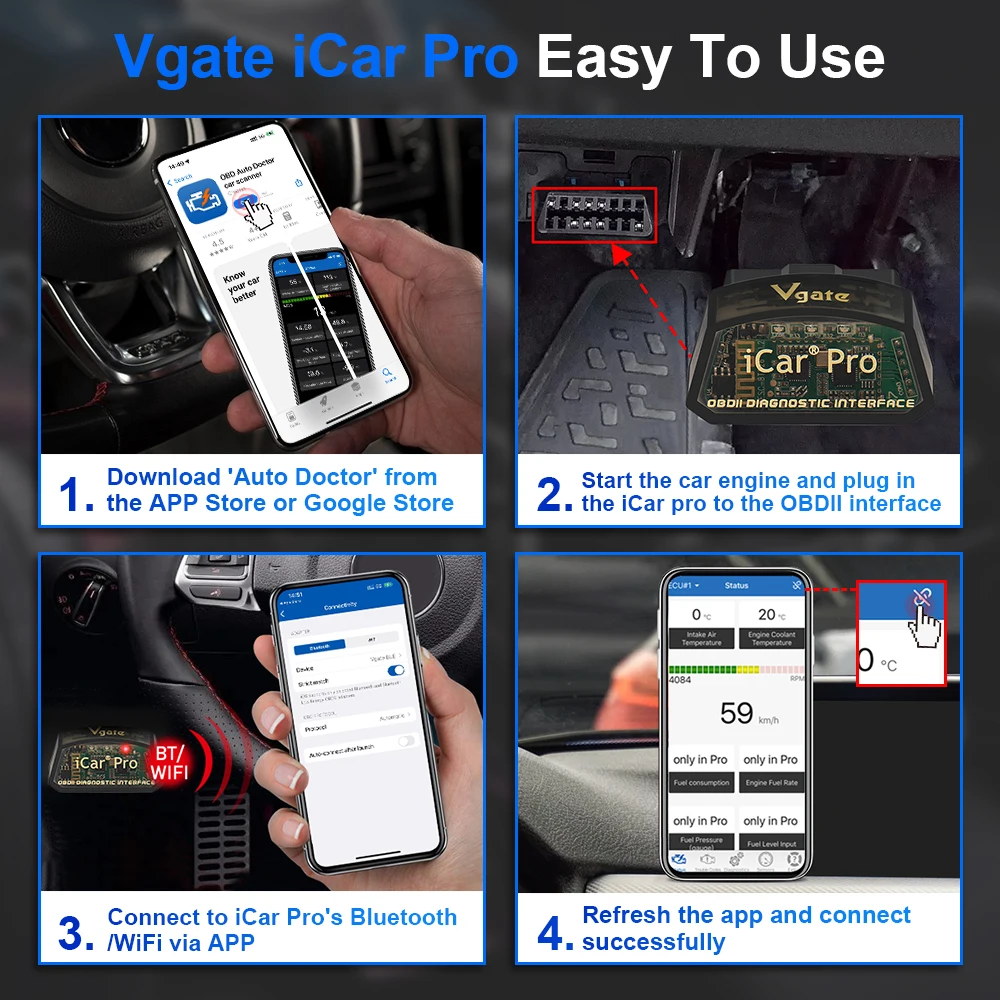

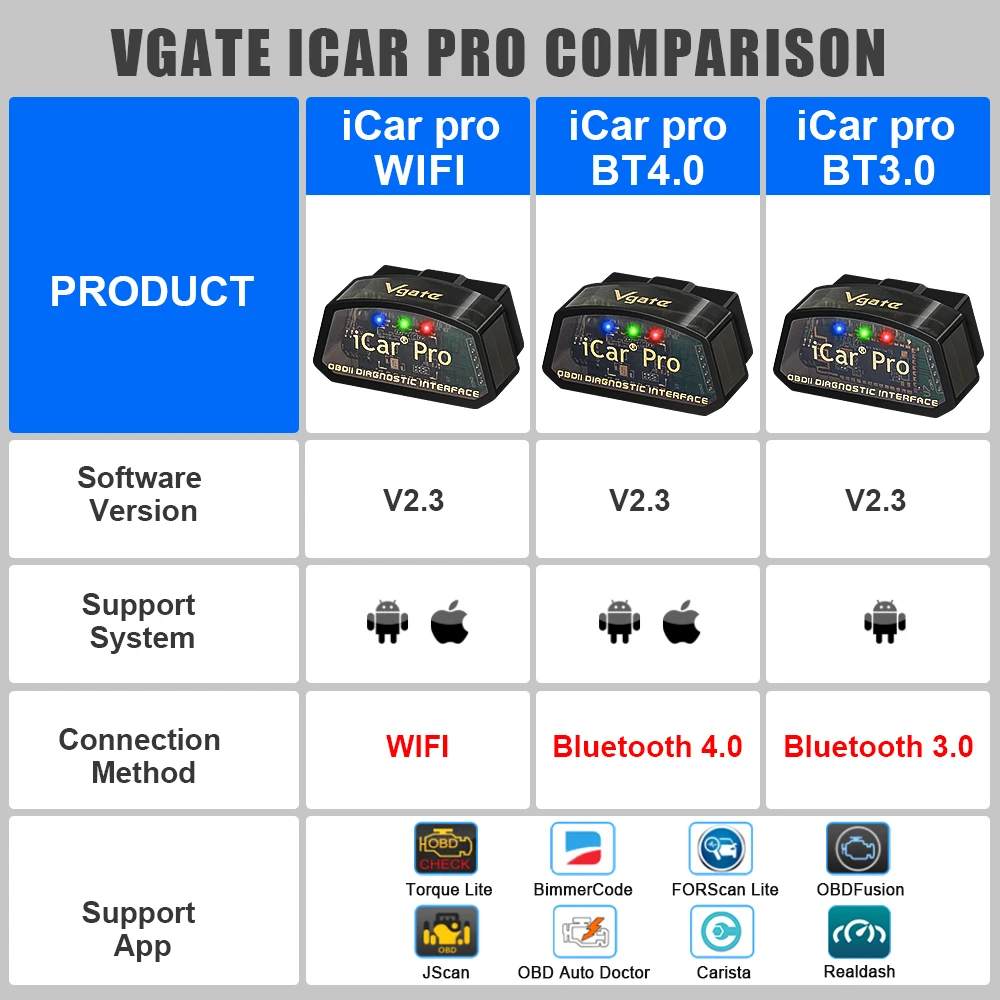

Vgate official iCar Pro Connection Method：

1.BT3.0 for Android

2.BT4.0 for Android/IOS

3.WIFI for Android/IOS

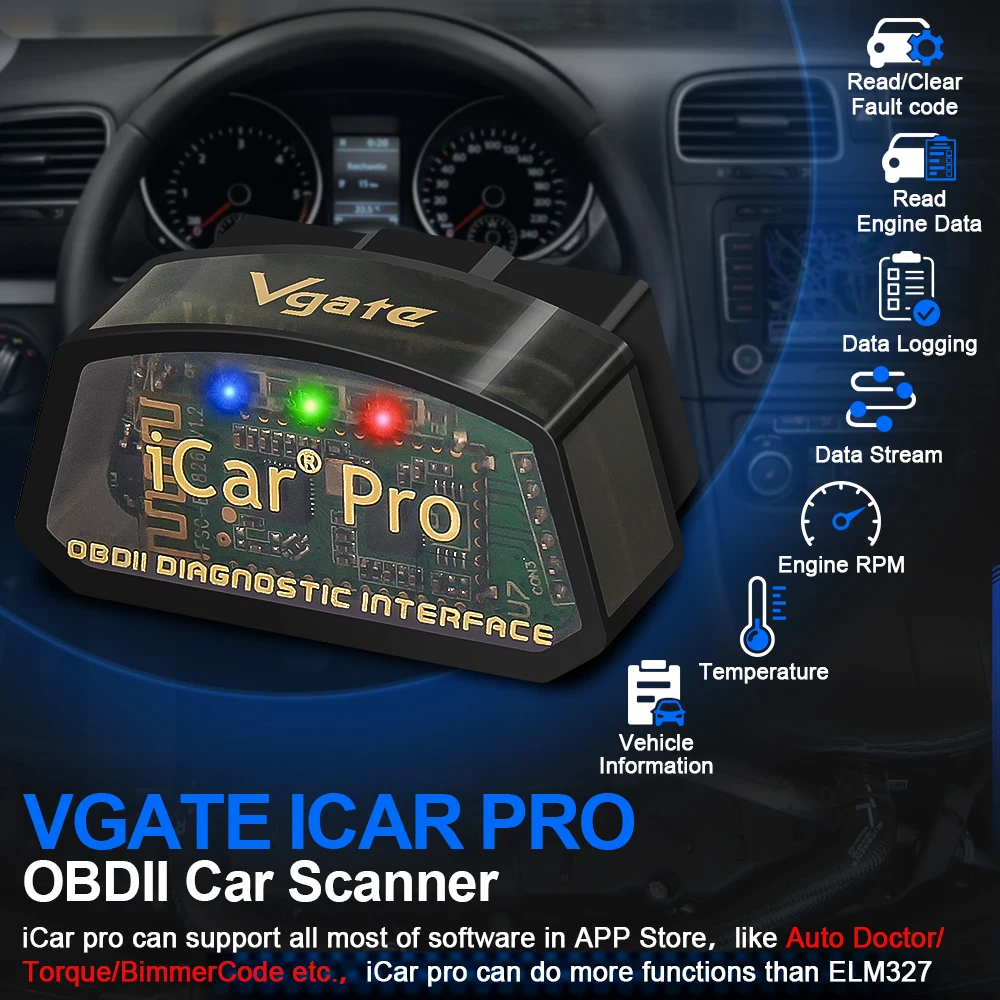

Vgate iCar Pro Features:

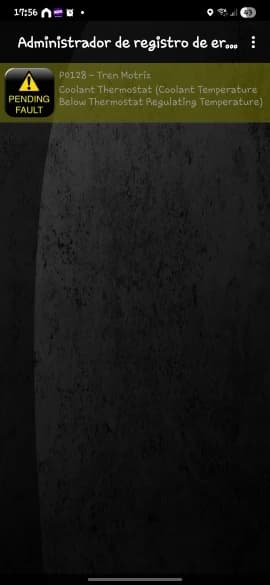

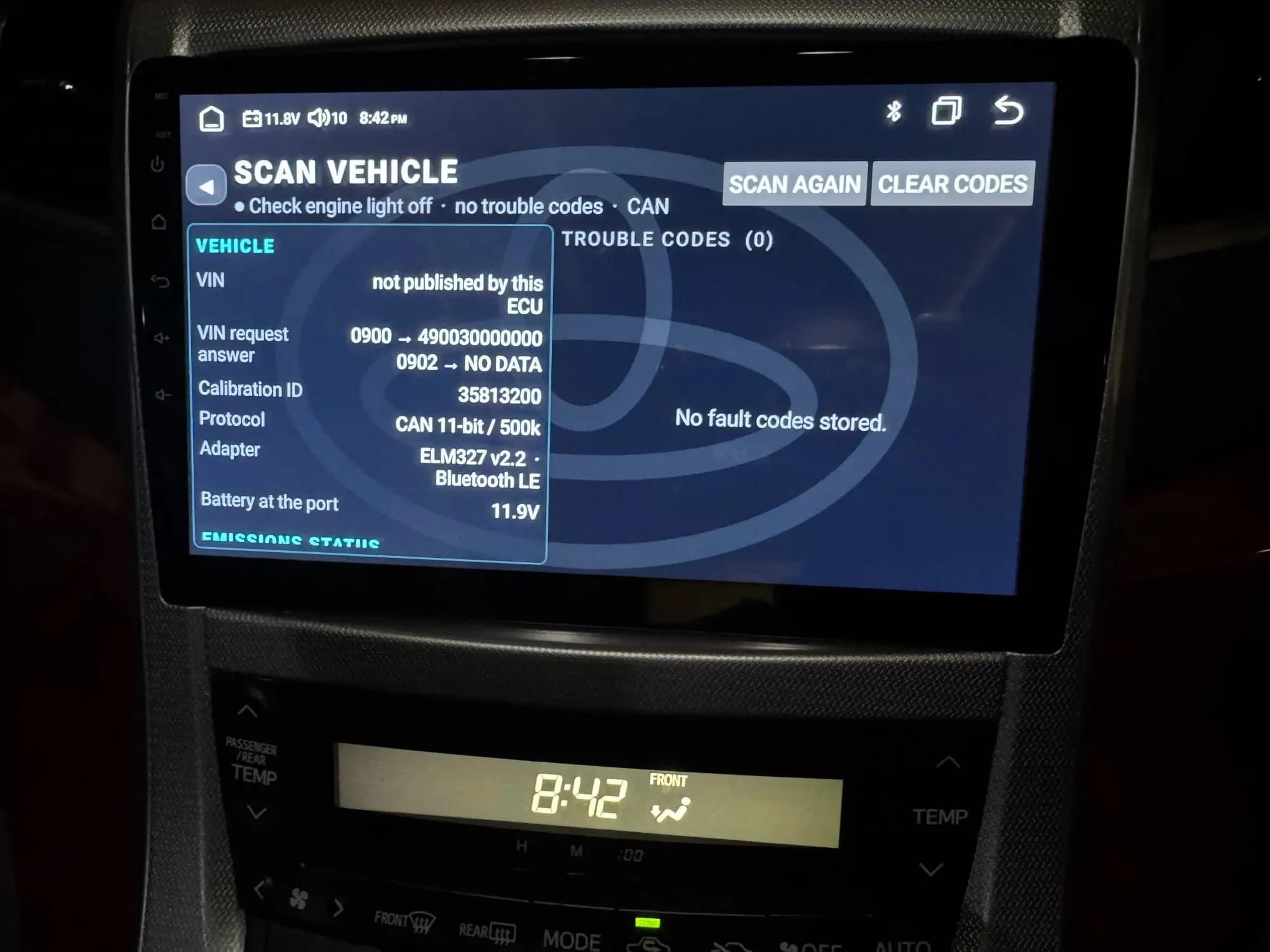

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

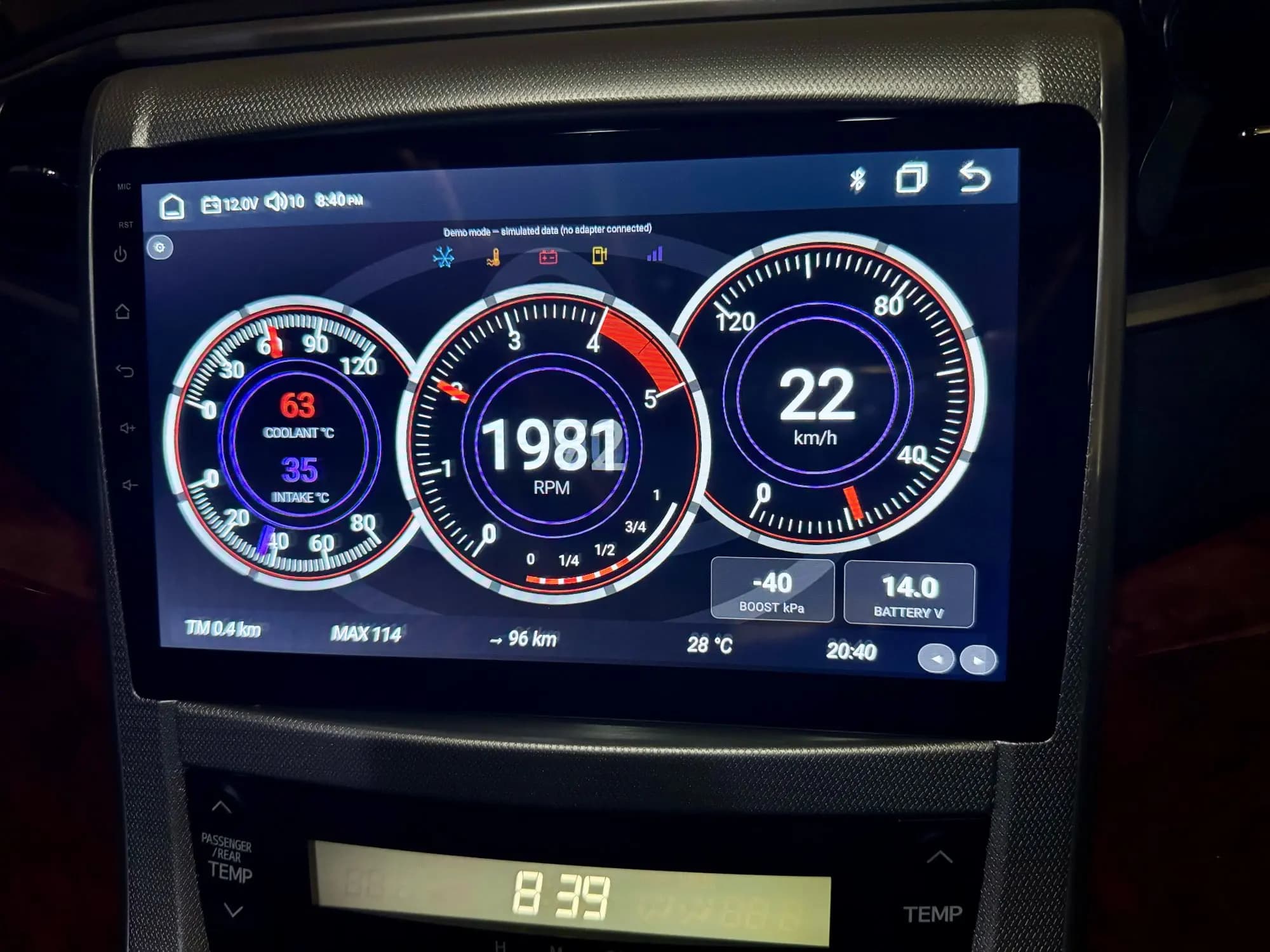

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many othershellip

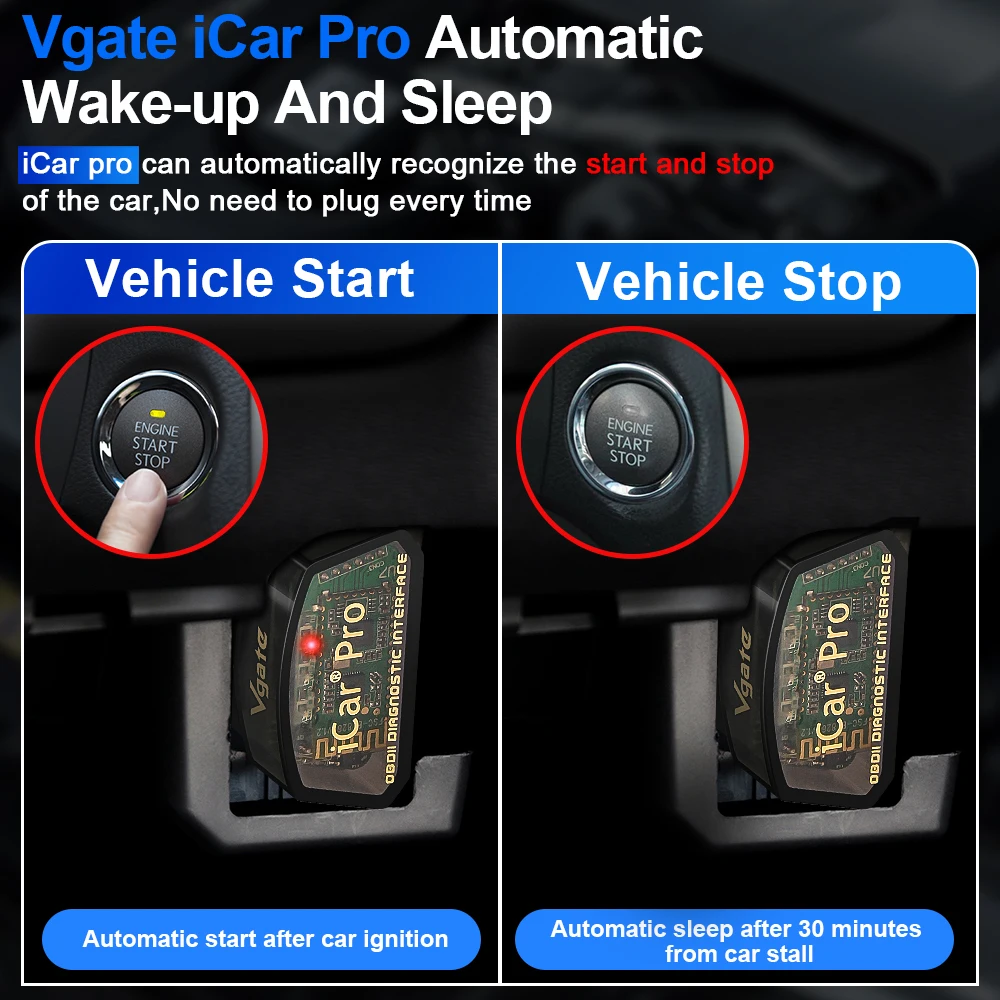

Vgate iCar Pro Support Automatic Start/Sleep（Electric vehicles are not supported this function）：

1.When the car is ignited, iCar Pro will automatically start

2.30 minutes after the car stalls, iCar Pro will automatically sleep

Vgate iCar Pro Specification:

Supply Voltage: 11.5V-15V

Supply Current: <200Ma

Standby Current: <30Ma (TONWON Pro = <3Ma)

Operating temperature: -40 ℃ - 85 ℃

Operating Humidity: 5% - 95% RH Non-Dewfall

Hardware version：V2.3

Supported systems：Android/IOS

Connection method：BT3.0/4.0/WIFI

Vgate iCar Pro OBD II adpater is a High-quality automotive scanning tool, Supports all OBD-II protocols:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

SAE J1939 CAN (29bit ID, 250 * Kbaud)

USER1 CAN (11 * bit ID, 125 * Kbaud)

USER2 CAN (11 * bit ID, 50 * kbaud)

* Default Settings (User Adjustable)

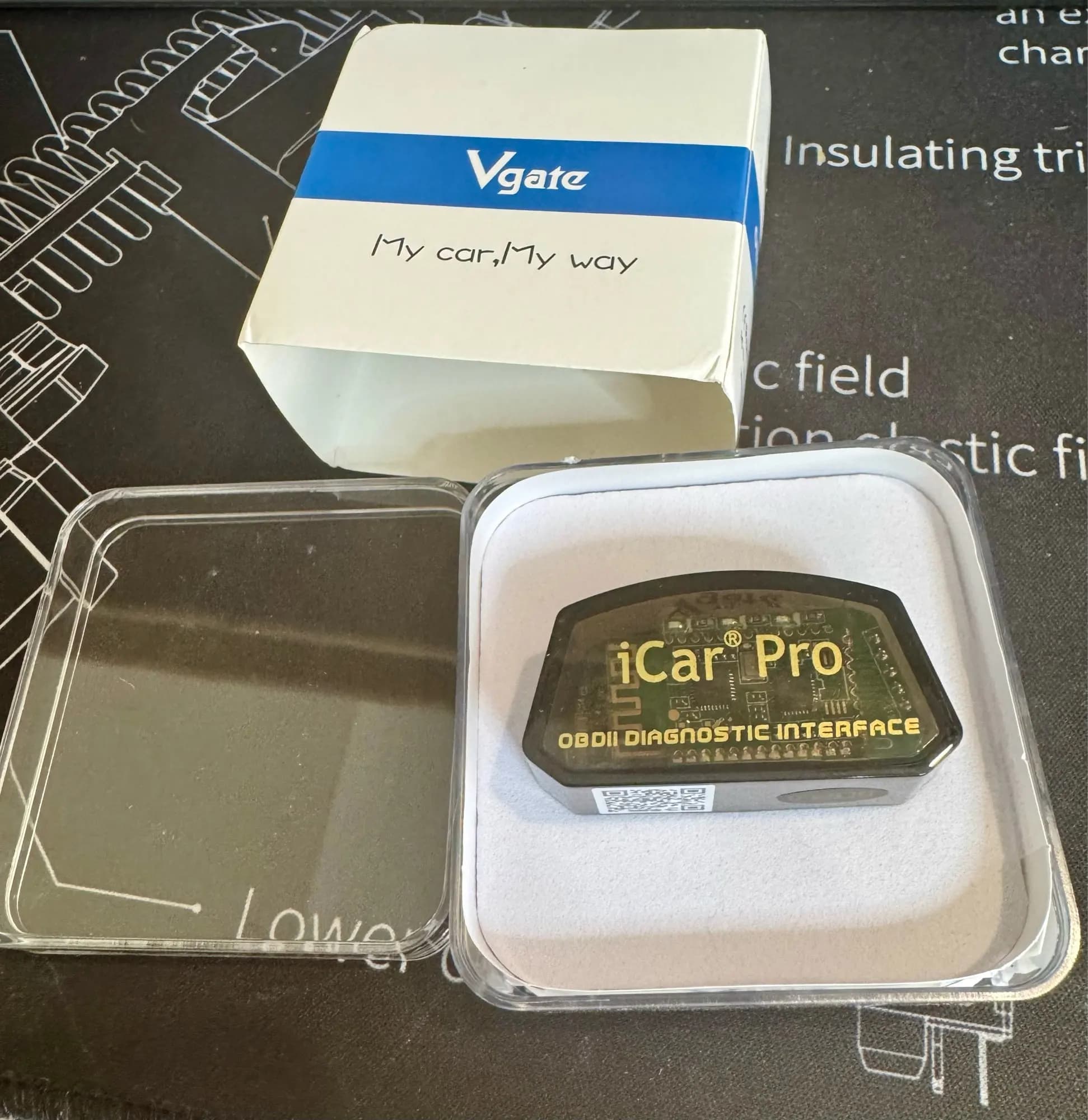

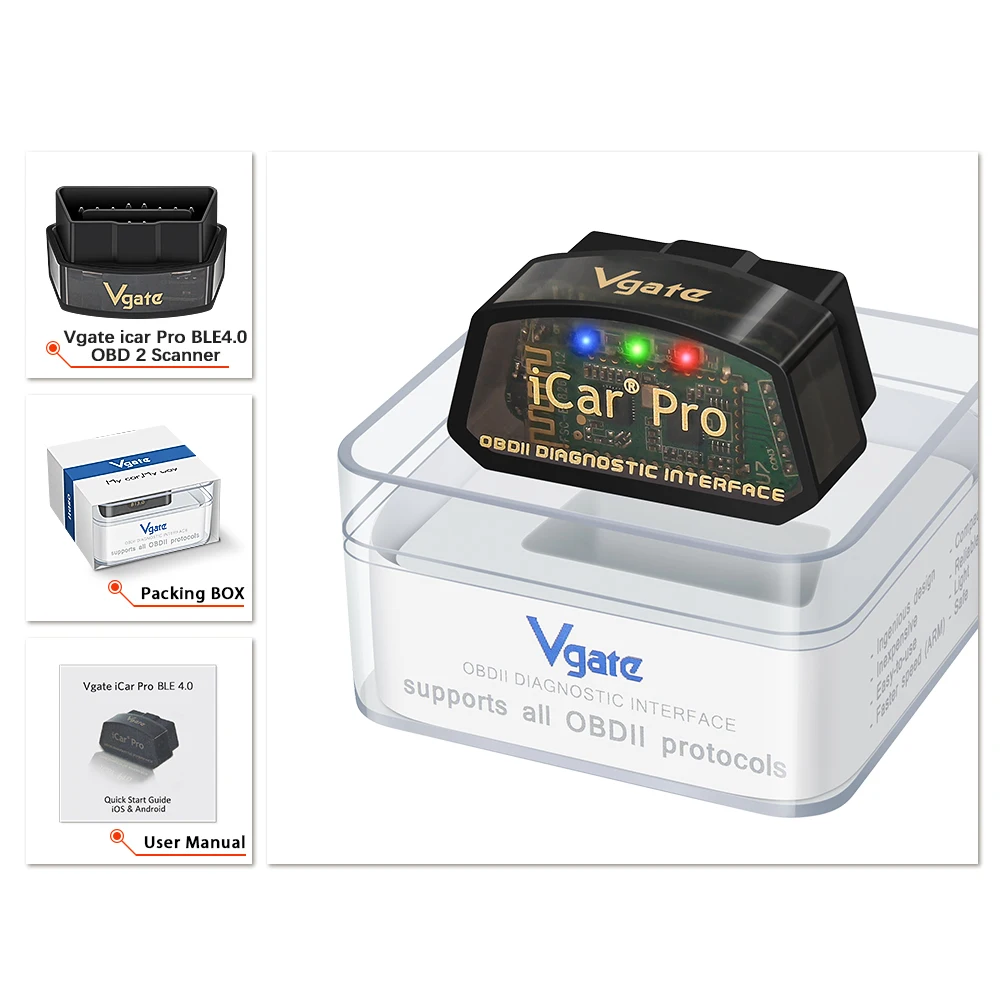

1 x Vgate iCar Pro OBDII

1 x User manual
