For Honda VFR800 interceptor VFR800X VFR 800 X VFR 800X NT 700 V NT700V Deauville Motorcycle Accessories Gear Indicator Display

▲Fitment:

For Honda CB250F(with digital trip/odo) 2015

For Honda CB300F 2015 - 2018

For Honda CB400SF 2008 - 2017

For Honda CB400X 2013 - 2016

For Honda CB400F 2013 - 2015

For Honda CB500F 2013 - 2018

For Honda CB500X 2013 - 2018

For Honda CB600F Hornet 2007 - 2013

For Honda CB650F 2014 - 2018

For Honda CB1000R 2008 - 2018

For Handa CBR1000RR 2004 - 2018

For Honda CB1100 (non-ABS) 2010 - 2013

For Honda CB1100 (ABS) 2010 - 2013

For Honda CB1300 S/F 2003 - 2015

For Honda CBF600 2008 - 2012

For Honda CBF1000 F/FA 2006 - 2009

For Honda CBR250 2015

For Honda CBR300R 2015 - 2018

For Honda CBR400R 2013 - 2015

For Honda CBR500R 2013 - 2018

For Honda CBR600F 2011 - 2013

For Honda CBR600RR 2003 - 2018

For Honda CBR650F 2014 - 2018

For Honda CMX300 Rebel 2017

For Honda CMX500 2017

For Honda CRF250L/M All Years

For Honda Crossrunner All Years

For Honda CTX700 (w/o DTC) 2014 - 2017

For Honda Fury 2010 - 2018

For Honda Interstate 2010 - 2016

For Honda NC400X 2013 - 2015

For Honda NC700 S/X 2012 - 2017

For Honda NC750 S/X 2014 - 2018

For Honda NT700V Deauville 2006 - 2015

For Honda Sabre 2010 - 2012

For Honda Stateline 2010 - 2017

For Honda VFR800 interceptor 2006 - 2013

For Honda VFR800X All Years

For Honda VT400 (FI model) 2009 - 2014

For Honda VT750C (FI model) 2007 - 2017

For Honda VT750S (FI model) 2007 - 2009

For Honda VT1300 (All) 2010 - 2016

For Honda VTX1800 2005 - 2012

For Honda XL125V Varadero 2007 - 2014

For Honda XL700V Transalp (non-ABS) 2008 - 2014

For Honda XL700V Transalp (ABS) 2008 - 2014

For Honda XL1000V Varadero 2003 - 2012

For Honda TRX ATVs (FI model) All Years

For Honda CB300R 2018 - 2019

For Honda CTX1300 2014 - 2015

For Honda ST1300 2008 - 2015

For Honda VTR250 2009 - 2014

(If you encounter any questions, please be sure to contact me first, please do not leave negative comments first, I very much hope to answer your questions, thank you)

▲Description:

Condition:100% Brand New

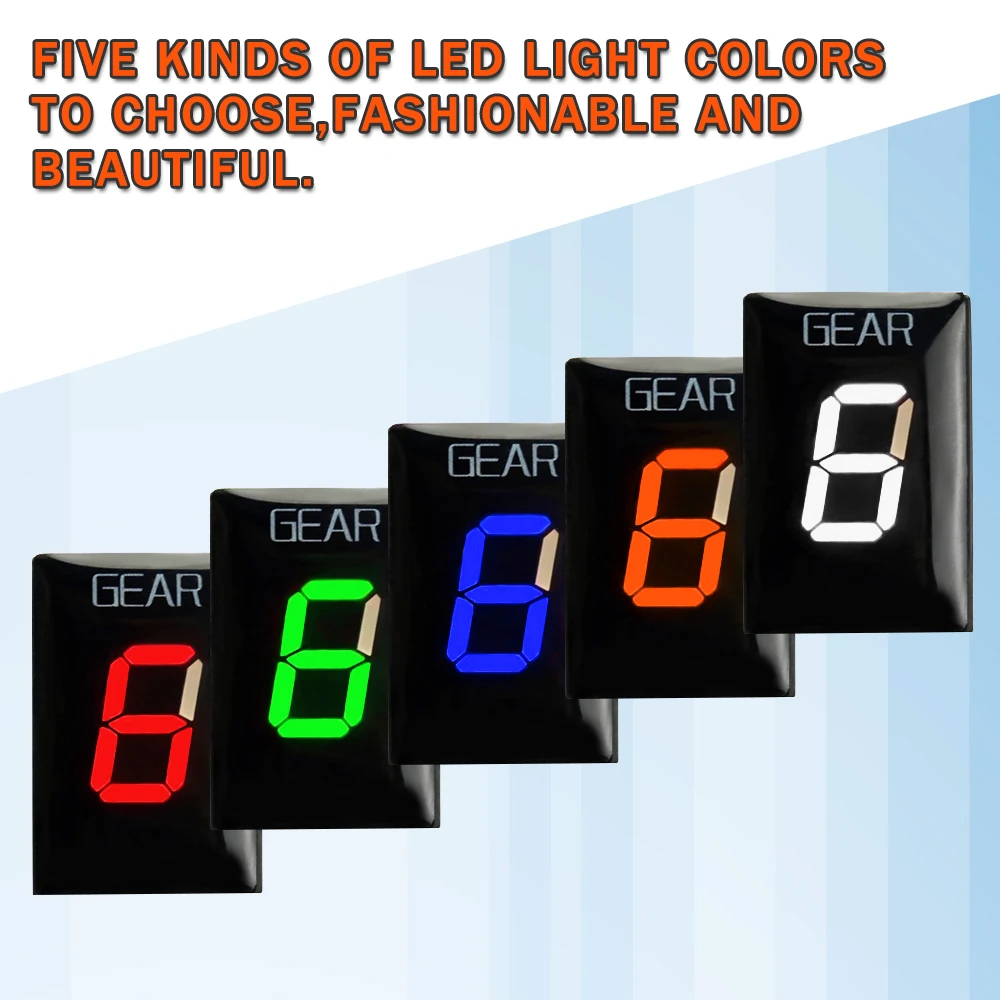

Color of Light Source:Red/Blue/green/white/orange

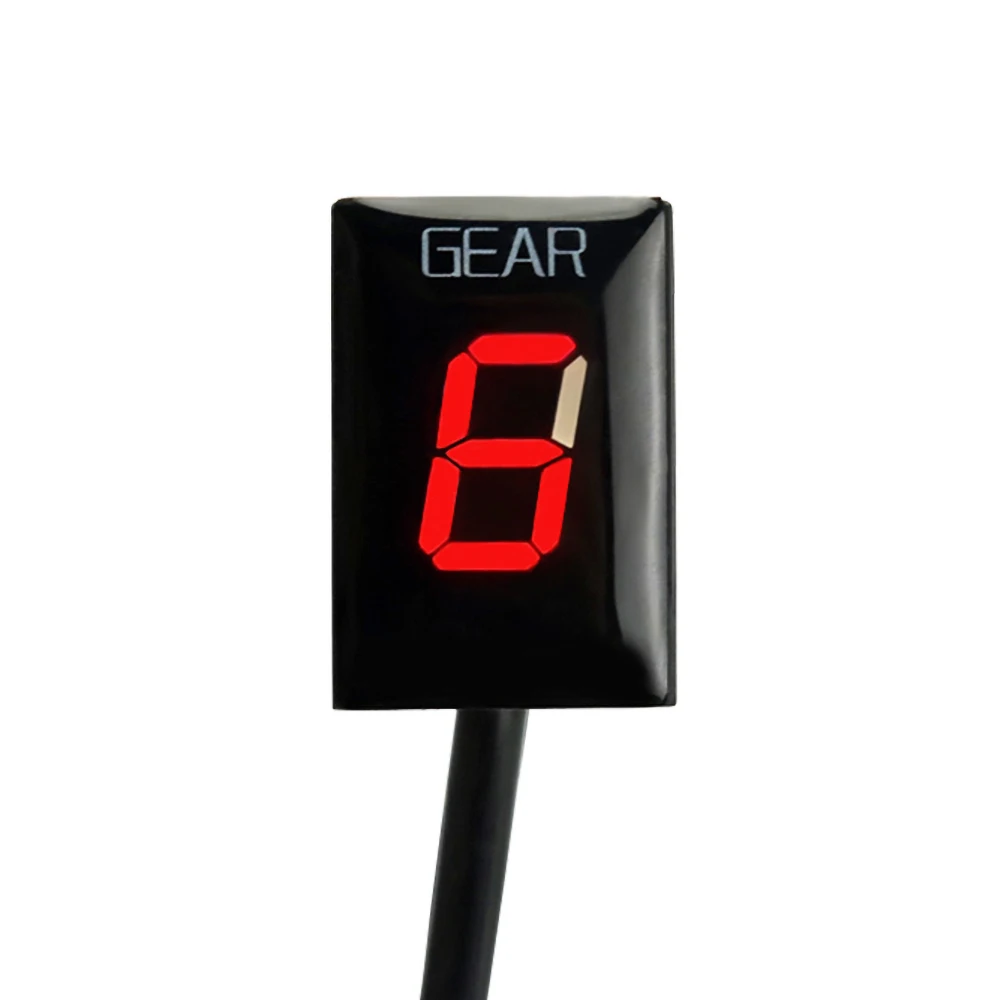

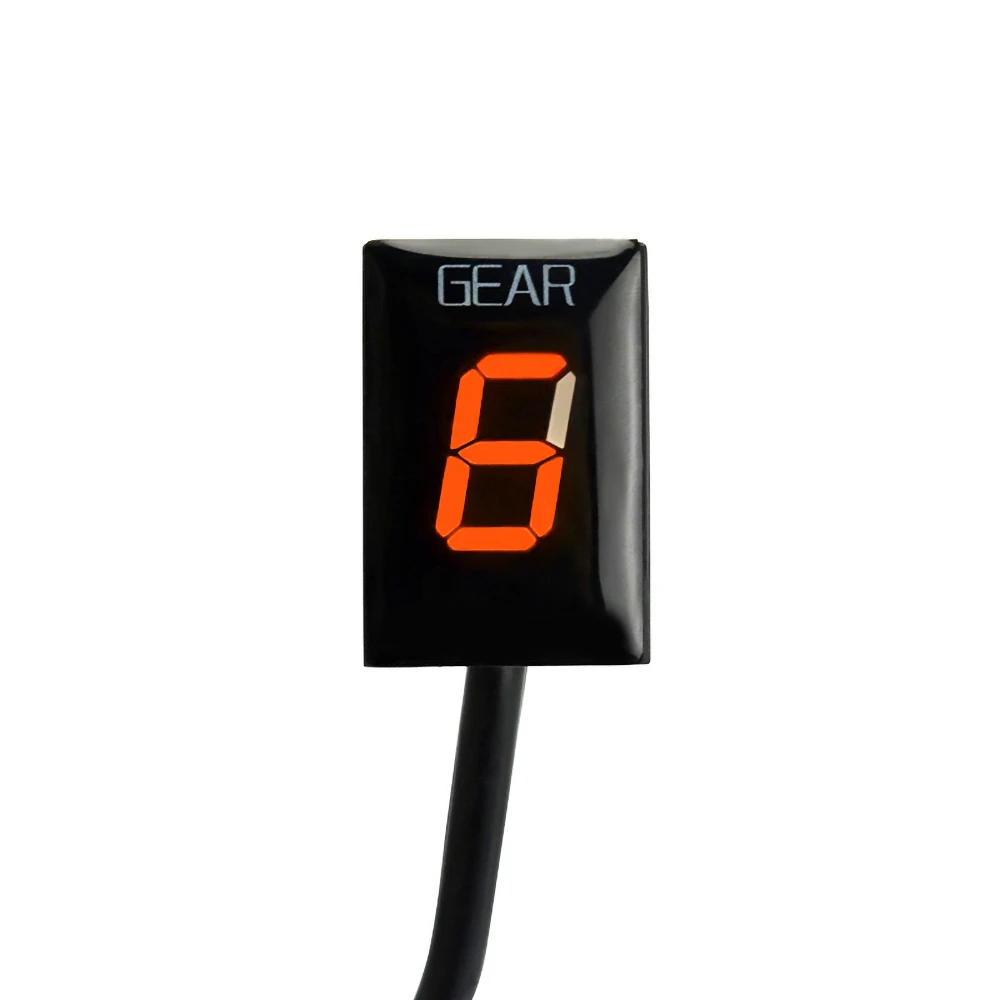

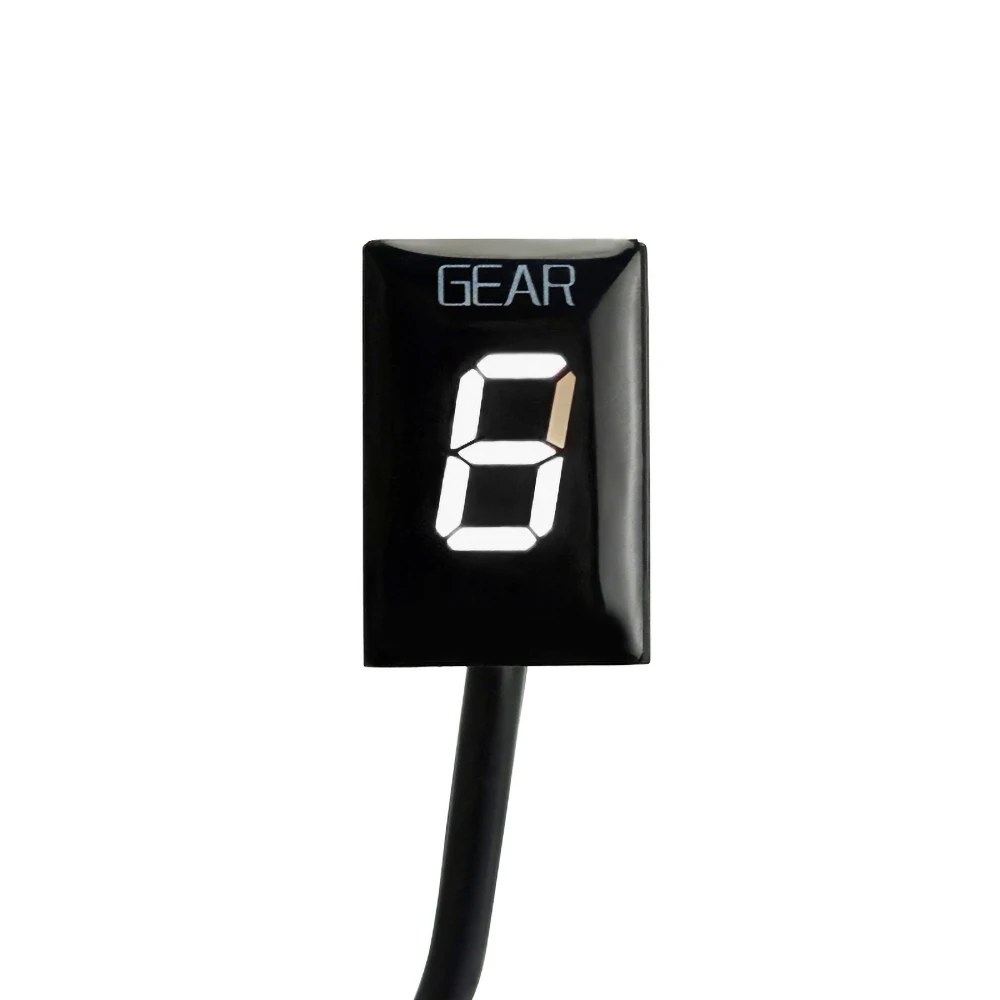

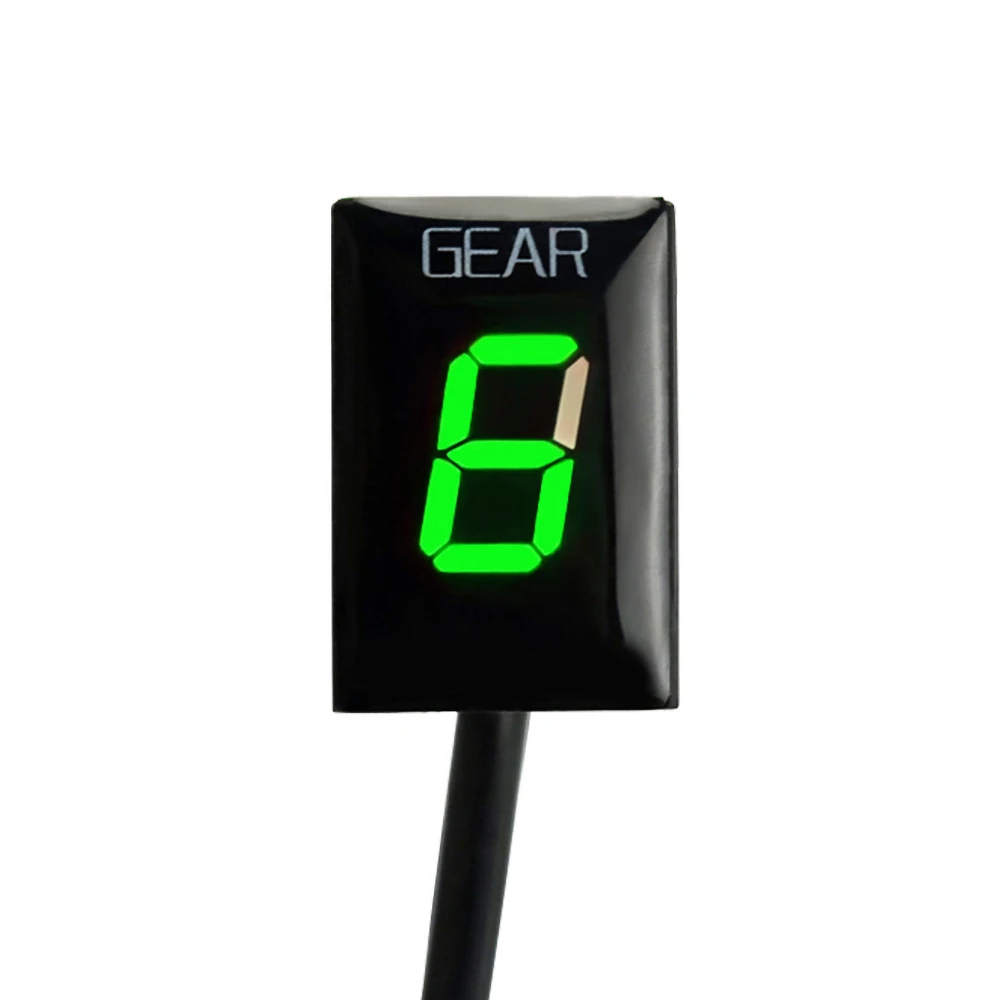

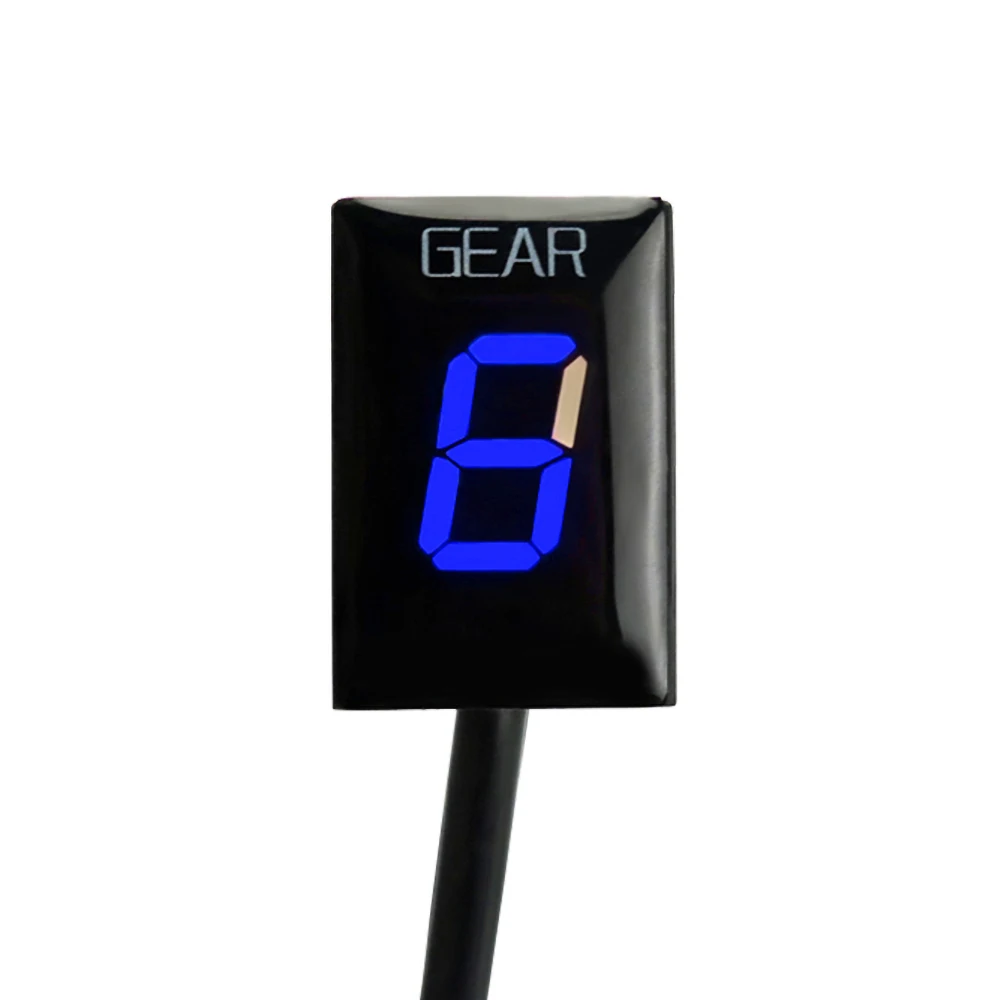

Item Name:Speed Gear Display Indicator

Size:4cm*4cm*4cm/1.57inch*1.57inch*1.57inch

▲Feature:

Shows current gear number

Indicates current gear from 1 to max of 6. as well as a neutral indicator.

Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.

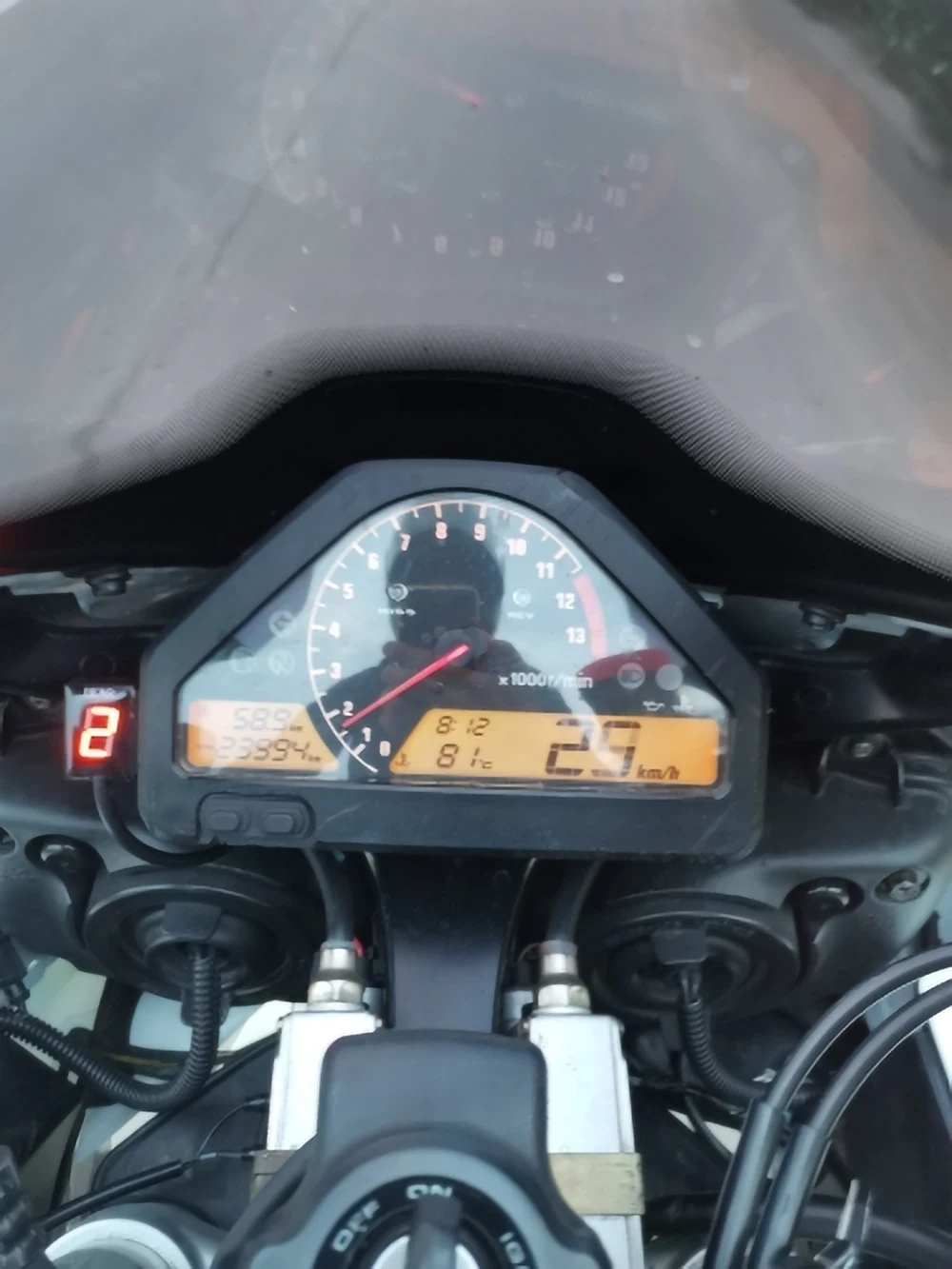

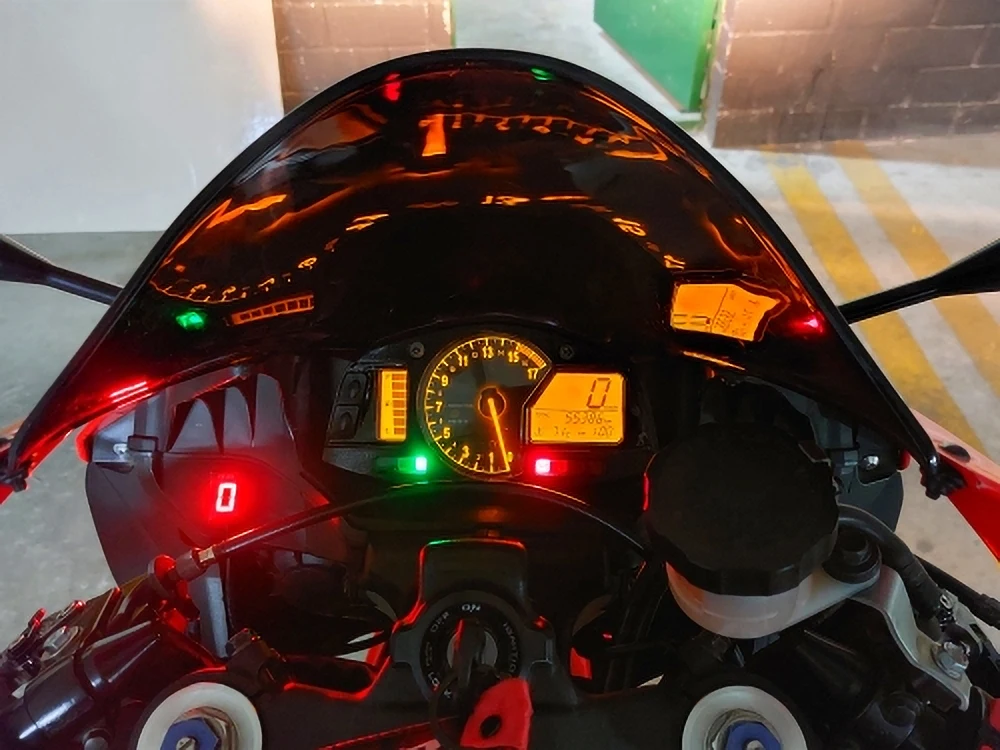

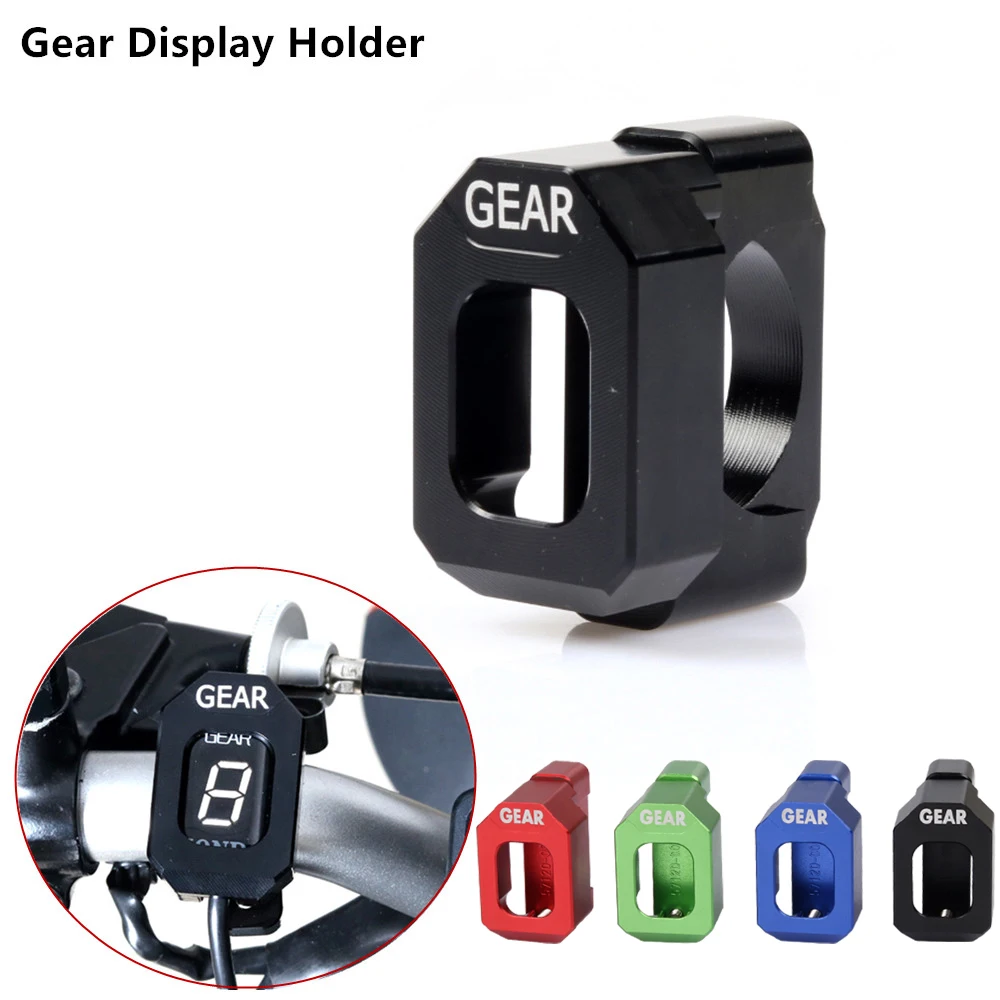

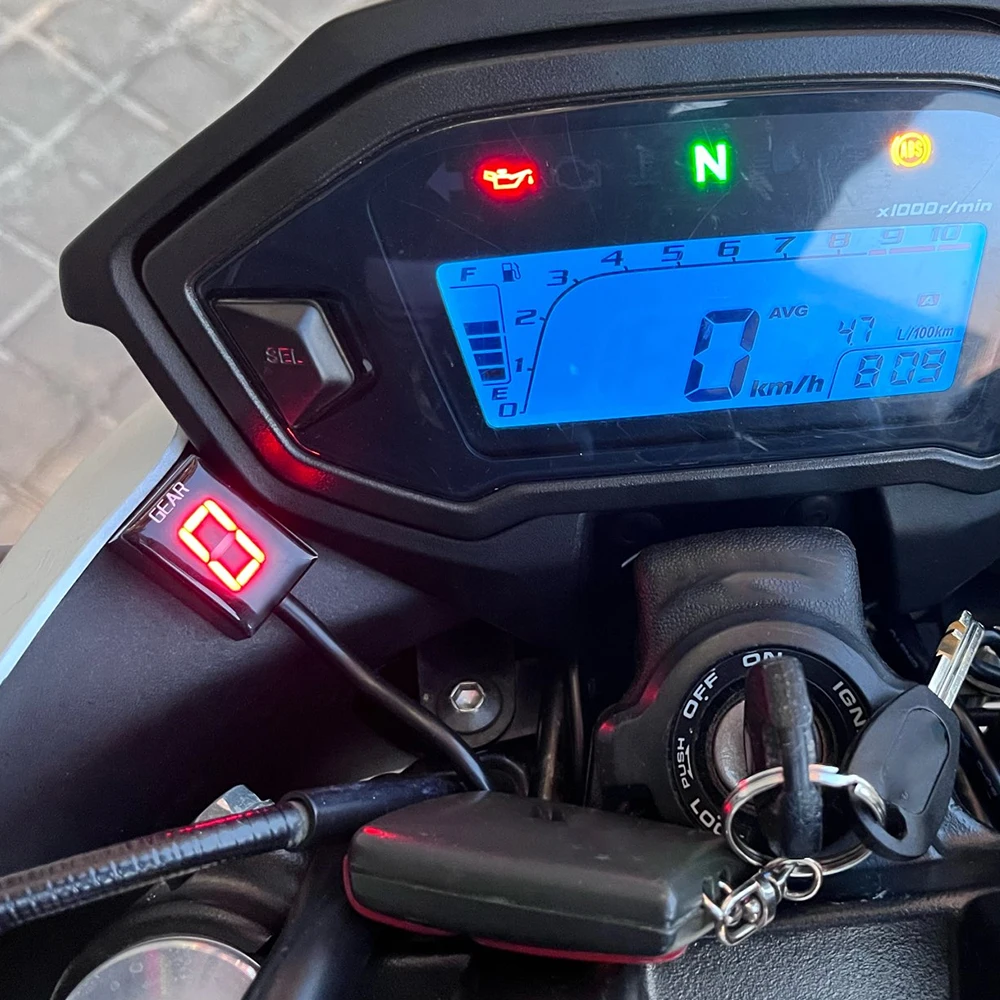

Display can be mounted anywhere

▲Installation:

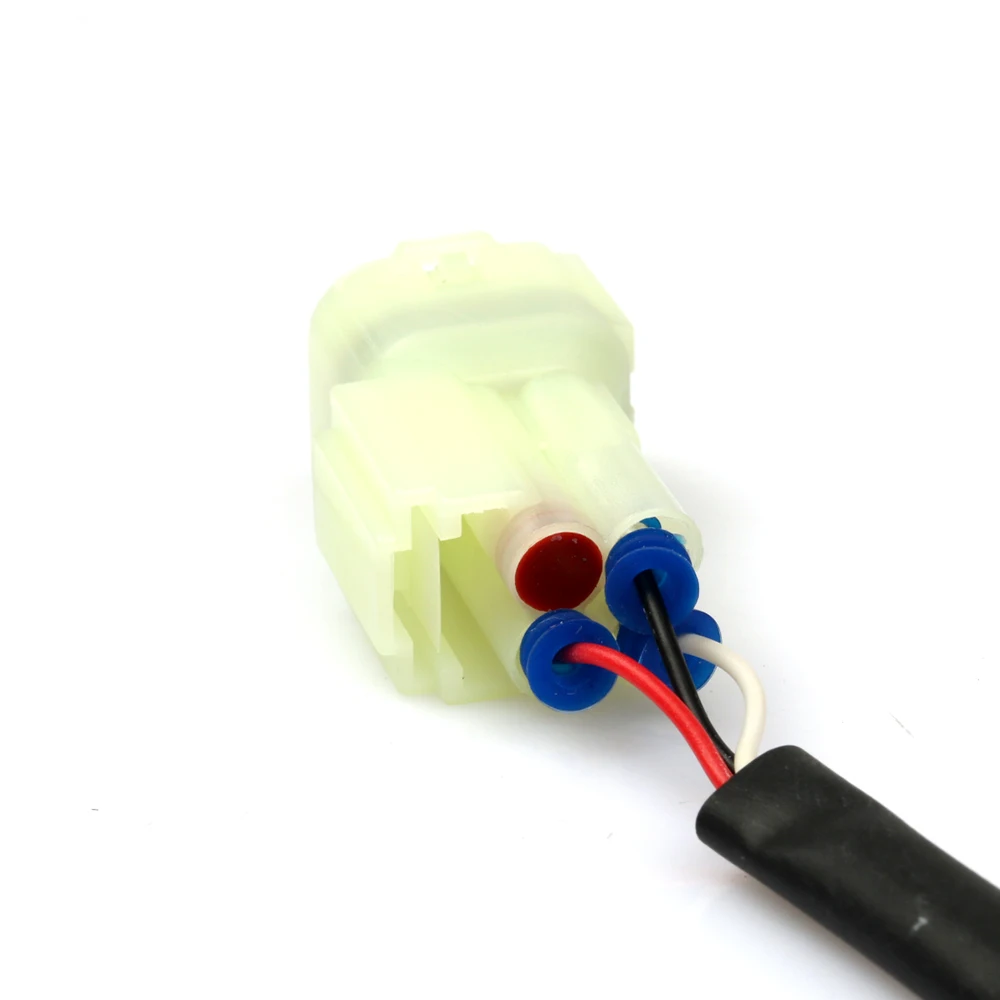

Find the RED,4-pole male diagnostic connector(DLC), usually near the ECU box,It may have a removable cap and may be partially covered by black tape.

▲Steps:

-You need to setup the module after installation. When ignition is turned on, the display counts backwards (6 to 1) indicating that the memory is clear.

-Raise the rear wheel off the ground by using a stand, and start the engine in Neutral. (If you do not have a stand, you may setup the unit while riding. Find a long, straight road with light traffic.)

-the screen displays L, indicating that learning is started.

- The screen displays L, select first gear, release the clutch, and keep the speed higher than the idle speed.

- The display will flash "1";. Continue to maintain the first gear, accelerate. When the device is learning a gear, the display flashes faster.

- When the display shows n, relax the handlebar accelerator.When the gear indicator changes from "n" to "2", the motorcycle immediately shifts into "2" gear, then continue to to refuel and accelerate slowly.

- When the display shows n again, relax the handlebar accelerator again.When the gear indicator changes from "n" to "3",the motorcycle immediately shifts into "3" gear, then continue to refuel and accelerate slowly.

Repeat this process until all gears are thought.

In the highest gear, when learning sixth gear, the display will flash 6, accelerate until o is displayed, and then 6 will stay on and stop flashing. Indicates that the configuration is complete.

The unit is programmed and should indicate the gears correctly.

Now, when ignition is turned on, the display counts forward (1 to 6) indicating that it is fully functional.

▲Note:

If your motorcycle model and year are within the above applicable model range, and it has 5th gear, you can directly refer to the above configuration method to perform the previous configuration until the gear indicator displays 6, and you do not have 6th gear. Can enter. You directly stay in 5th gear, and then continue to accelerate until the number 6 on the gear indicator is constantly lit, and that's it. If you have any questions, you can contact store customer service.

▲Rest:

If some gears are not indicated correctly, reset the unit and set it up again.If you change your gearing (install new front or rear sprocket),or you install a speedometer (or other speedometer calibrator),probably you will have to reset it and set it up again. Cut off the power of the unit 6 times in a row,while the display is counting up and shows3 ,4 or 5. You can power on/off the display by turning the ignition key on/off.On the next power up,the display will count backwards(6 to 1). The memory is clear now and you can perform the Setup procedure.

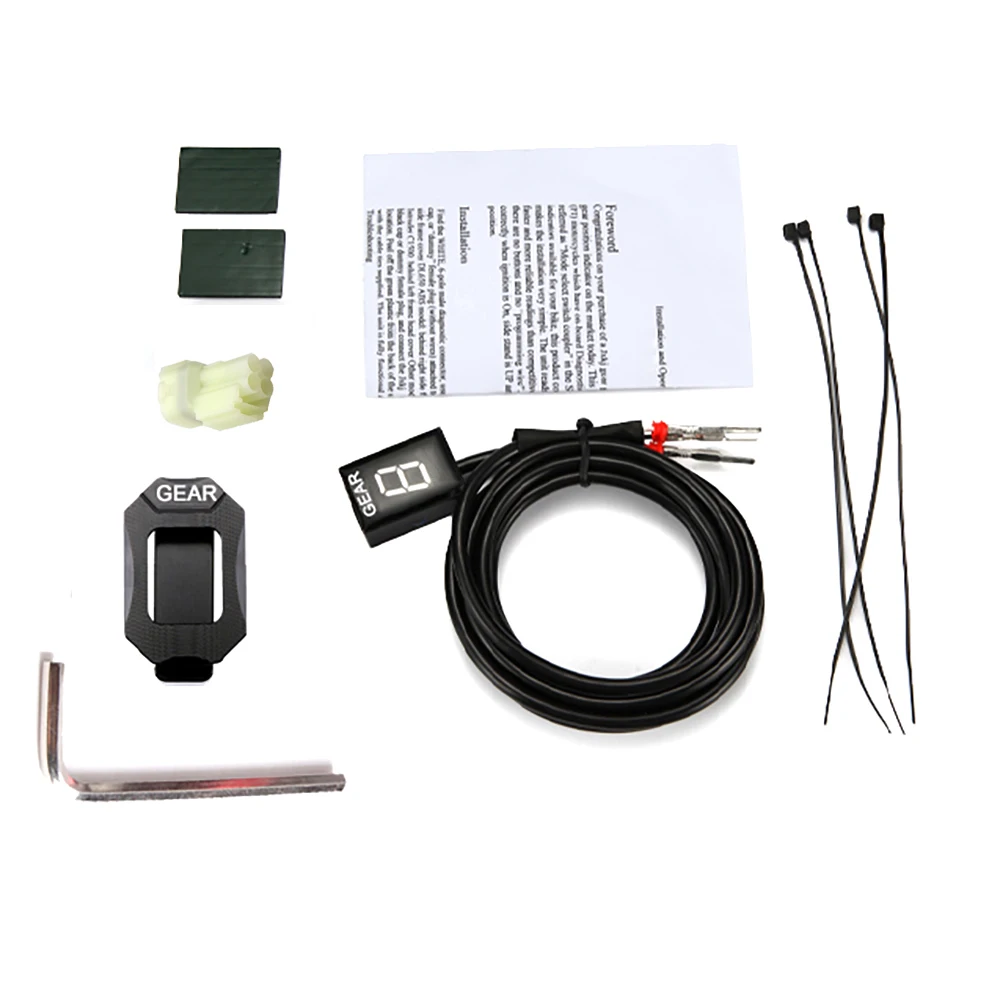

▲Package List:

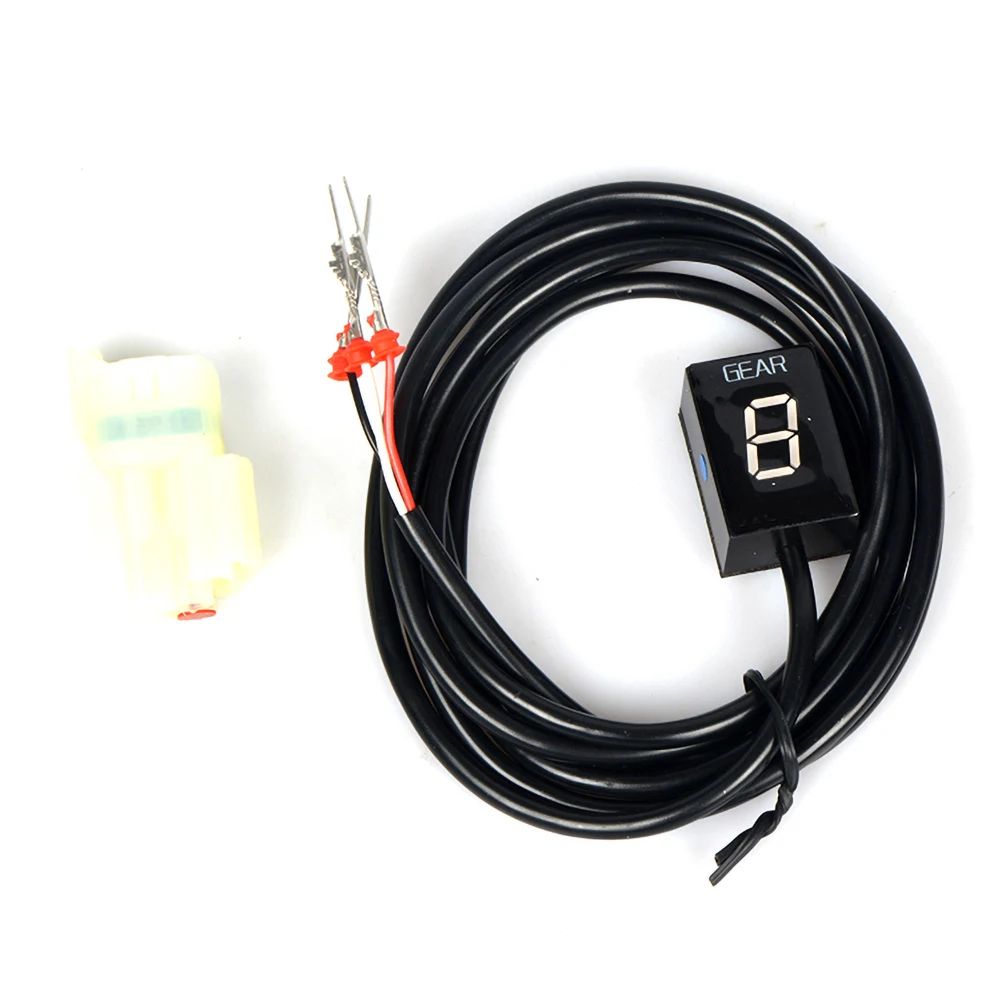

1 x Motorcycle Speed Gear Display
