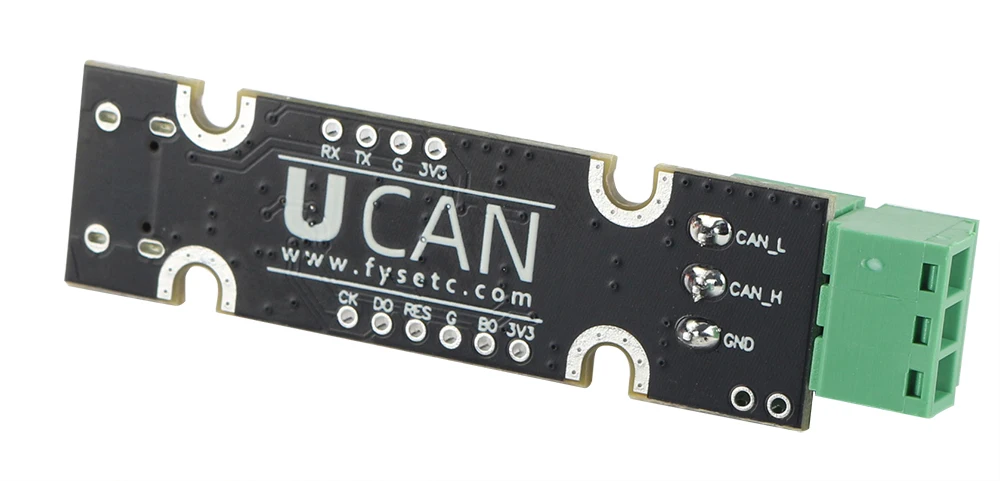

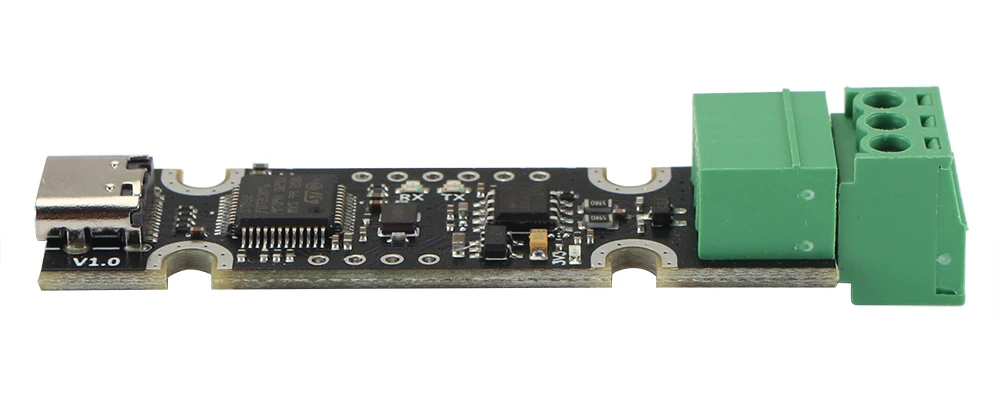

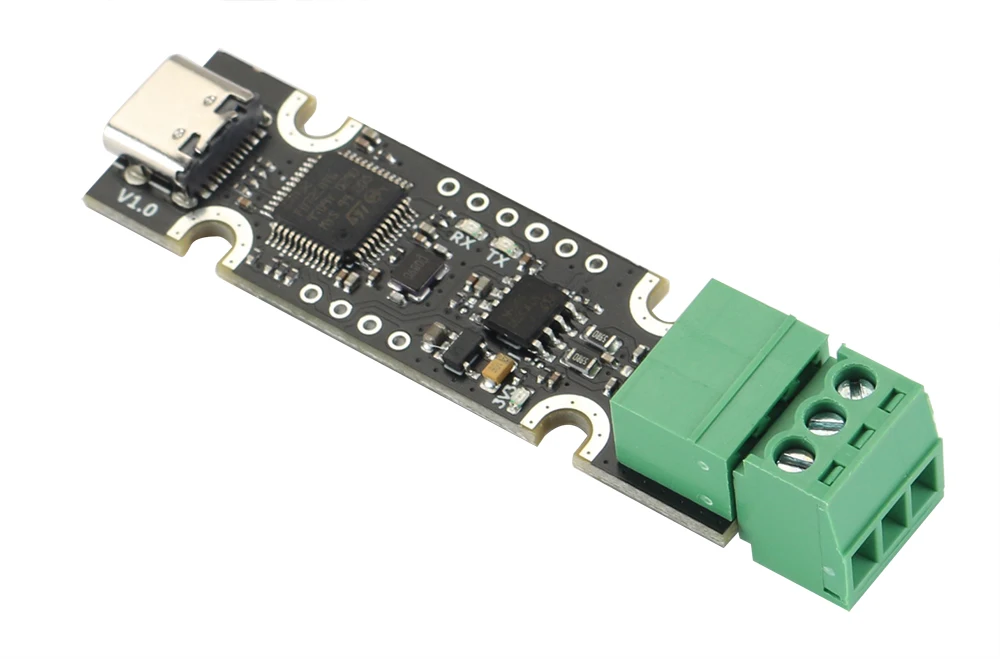

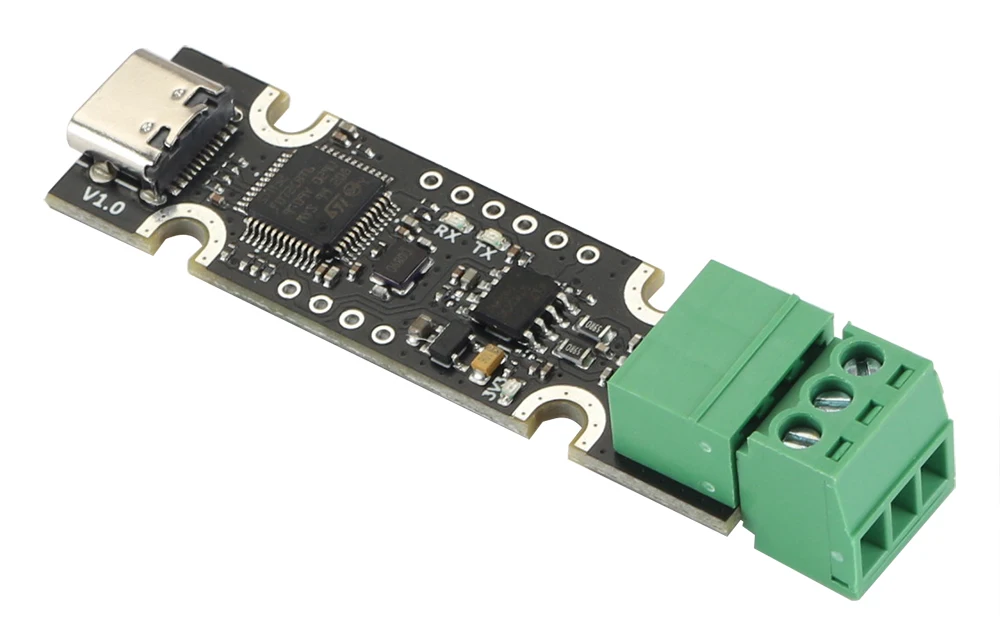

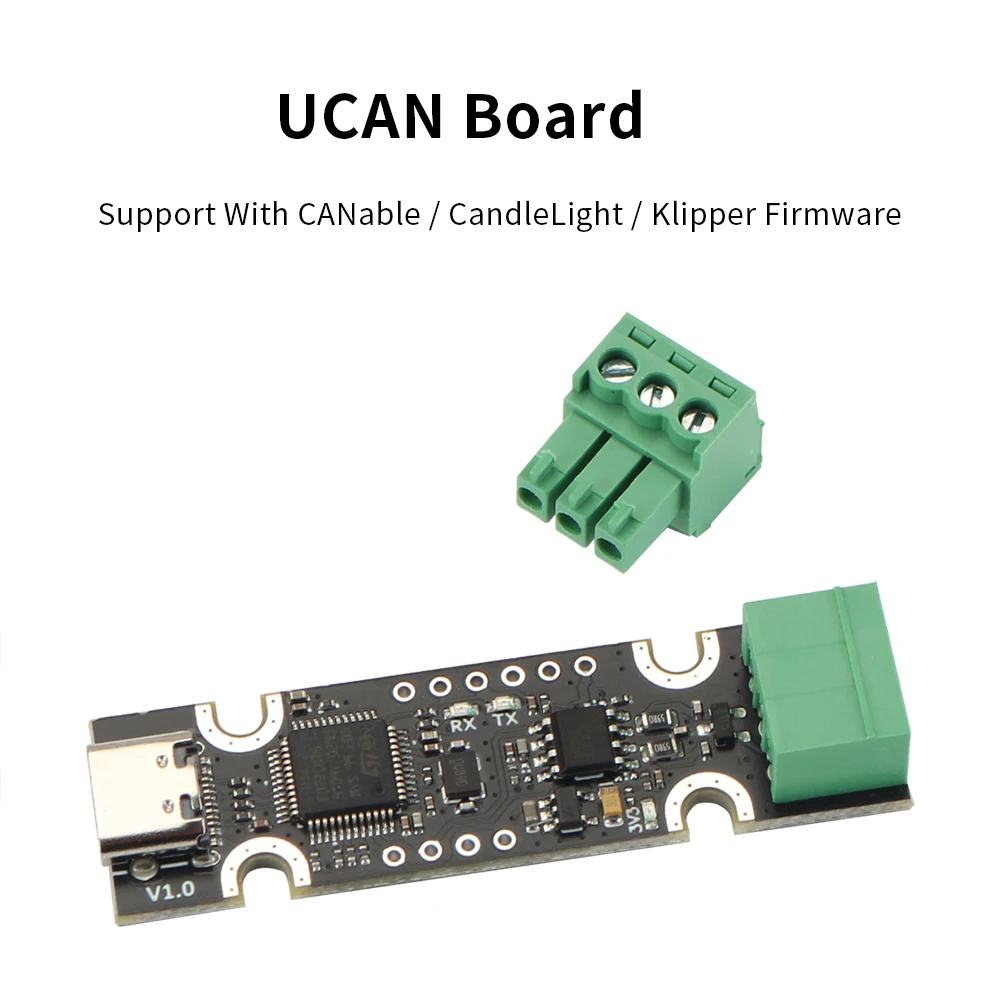

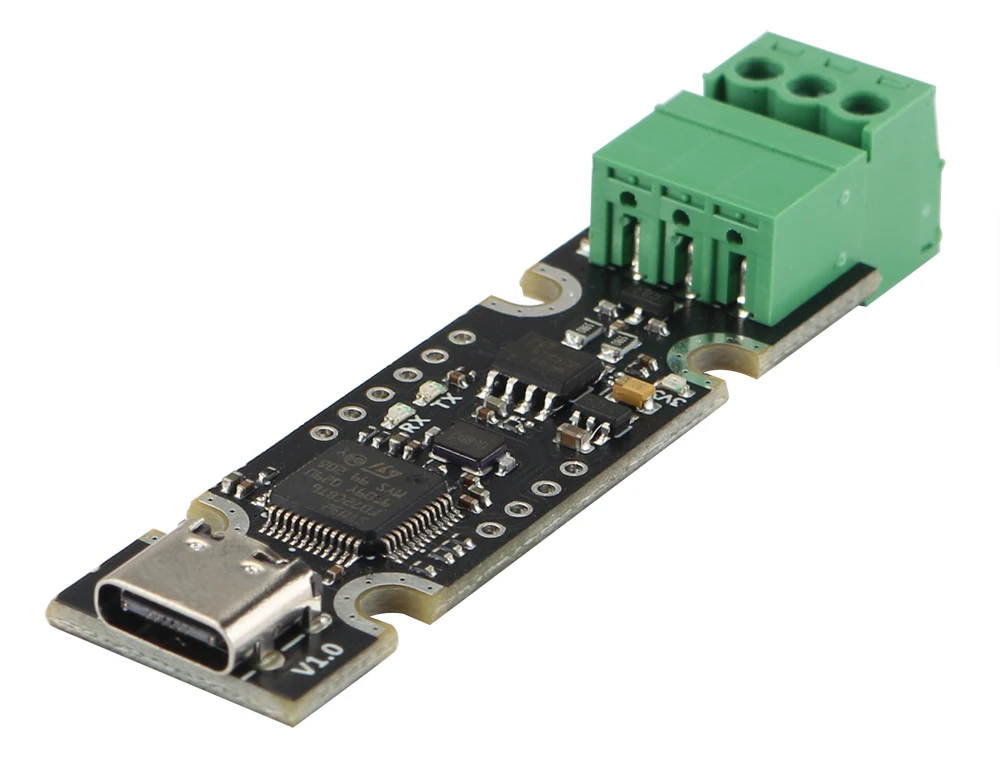

Toaiot UCAN Board Support with CAnable / CandleLight / Klipper Firmware Based on STM32F072 USB to CAN Adapter 3D Printer

Toaiot UCAN Board 3D Printer Support with CAnable / CandleLight / Klipper firmwaren Based on STM32F072 USB to CAN Adapter

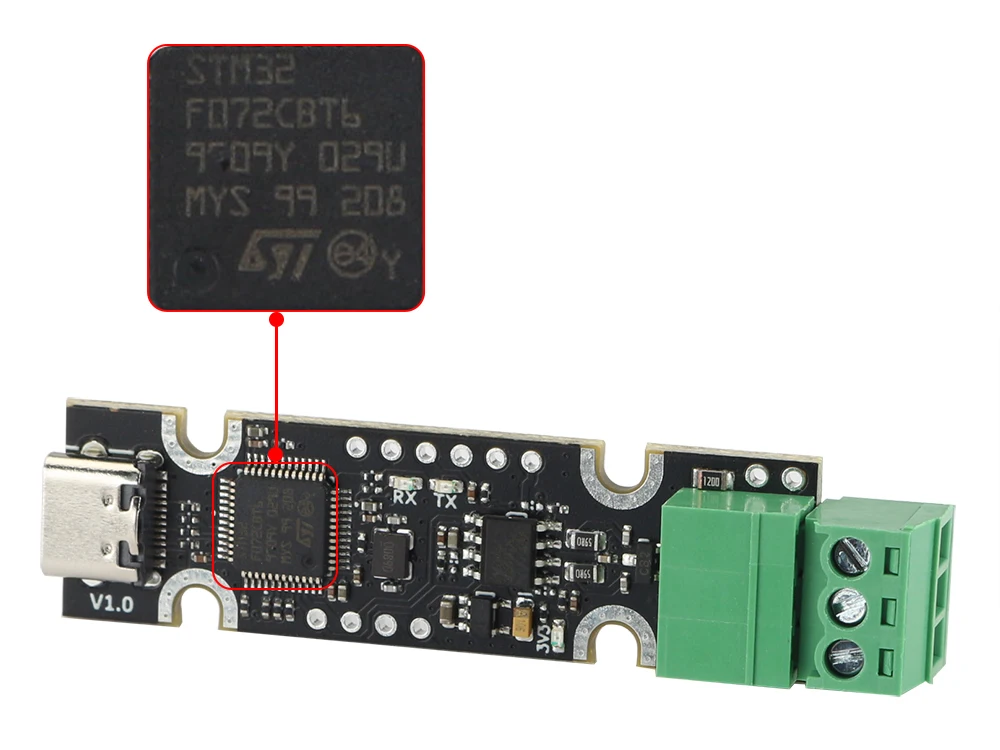

- Based on STM32F072

- Type-C USB socket

- Supports CAN2.0A and B, baud rates up to 1M

- Compatible with CANable

- Support with CAnable / CandleLight / Klipper firmware

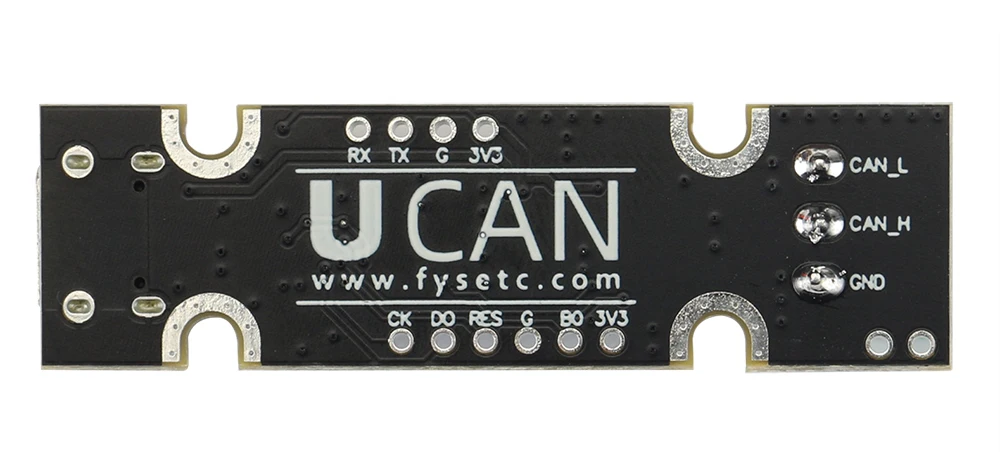

- 3-pin screw terminal: CANH, CANL, GND

- Jumper to enter bootloader for firmware updates

- Onboard 120R termination default or Jumper to enable/disable termination

UCAN is a small low-cost open source USB to CAN adapter, compatible with CANable hardware. The UCAN enumerates as a virtual serial port on the computer and acts as a serial-line for the CAN bus interface. With the alternative Candlelight firmware, UCAN is enumerated as the native CAN interface on Linux. The UCAN adapter is compatible with ARM-based embedded platforms such as Raspberry Pi, Raspberry Pi Zero, ODROID, BeagleBone, etc. At the same time, it can also be used as USB to CAN application on Klipper.
