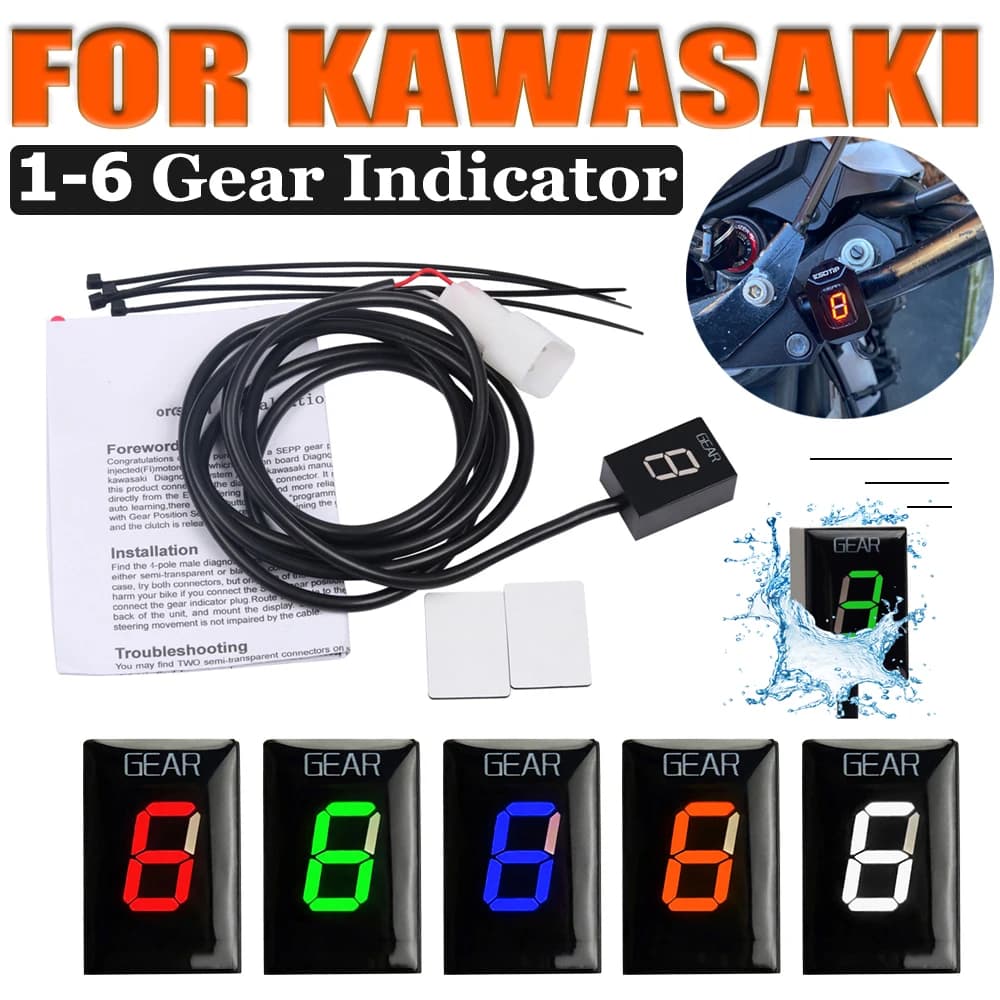

Gear Indicator For Kawasaki ZX6R ZX-6R ZX6RR ZX-6RR ER-6N ER-6F Z750 Z1000 Z 750 1000 ER-6N ER6N Motorcycle Gear Display Meter

Fitment:

For Kawasaki ZX-6R (2003-2008)

For Kawasaki ZX-6RR (2003-2006)

For Kawasaki Z750 (2004-2006)

For Kawasaki Z1000 (2003-2006)

For Kawasaki ER-6N (2006-2011)

For Kawasaki ER-4N(2010-2014)

For Kawasaki ER-4F(2010-2012)

For Kawasaki ER-6F (2006-2011)

For Kawasaki Ninja 250R [FI only, not in USA] (2008-2012)

For Kawasaki Ninja 400R 2010-2012

For Kawasaki Ninja 650R (2006-2011)

For Kawasaki KLE650 (2006-2009)

For Kawasaki Versys650 (2006-2009)

For Kawasaki ZRX1200 DAEG(2009-2010)

For Kawasaki Vulcan 900 (2006-2010)

For Kawasaki VN900 (2006-2010)

For Kawasaki Vulcan 1700 (2009-2010)

For Kawasaki VN1700 (2009-2010)

For Kawasaki KFX450R [ATV] (2008-2010)

For Kawasaki Vulcan 2000 (2004-2010)

For Kawasaki VN2000 (2004-2010)

For Kawasaki KVF 750 [ATV] (2008-2010)

(If you encounter any questions, please be sure to contact me first, please do not leave negative comments first, I very much hope to answer your questions, thank you)

Description:

Condition:100% Brand New

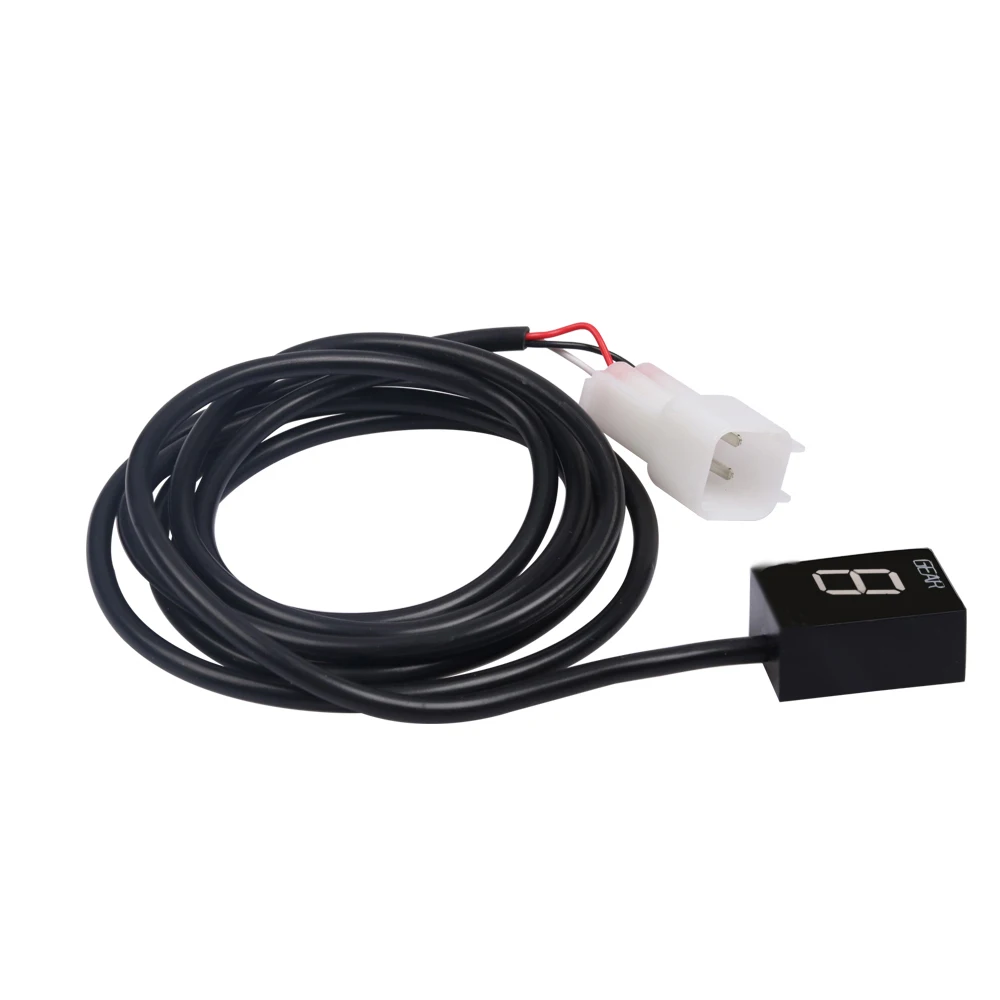

Item Name:Speed Gear Display Indicator

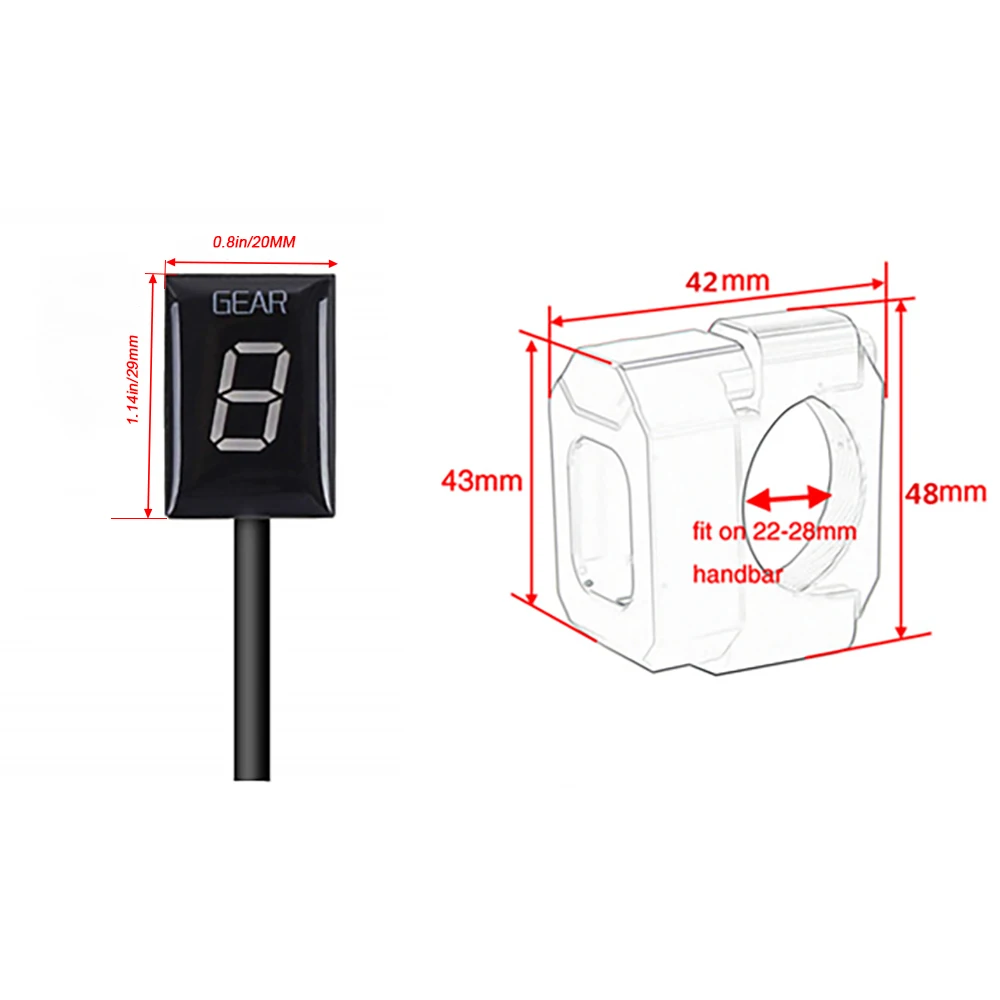

Size:4cm*4cm*4cm/1.57inch*1.57inch*1.57inch

Feature:

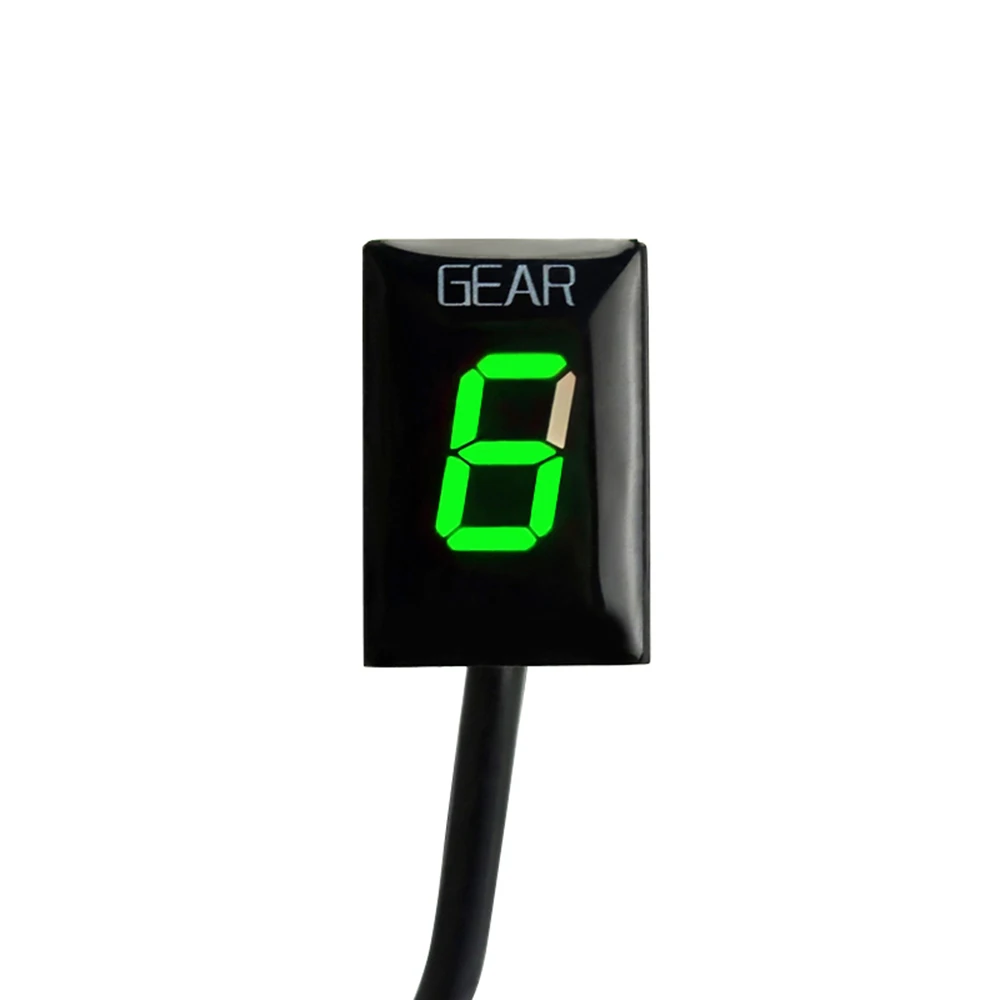

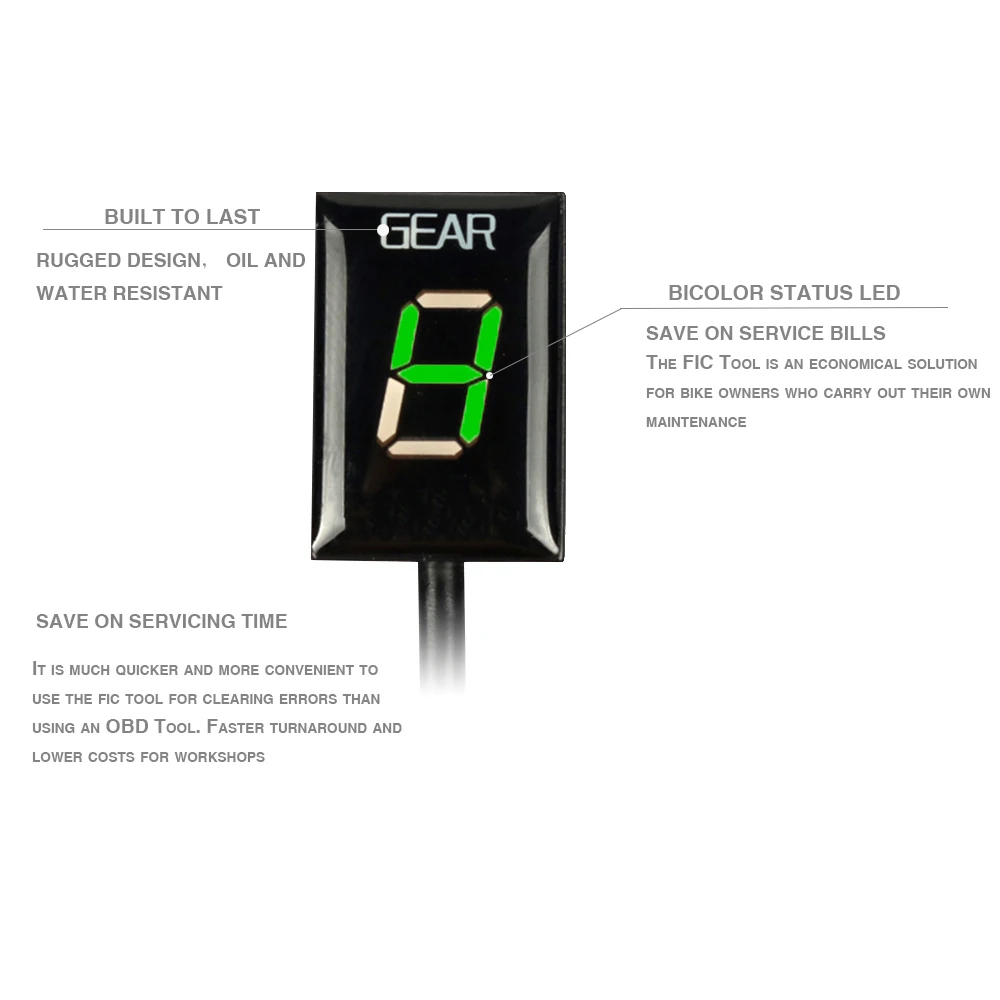

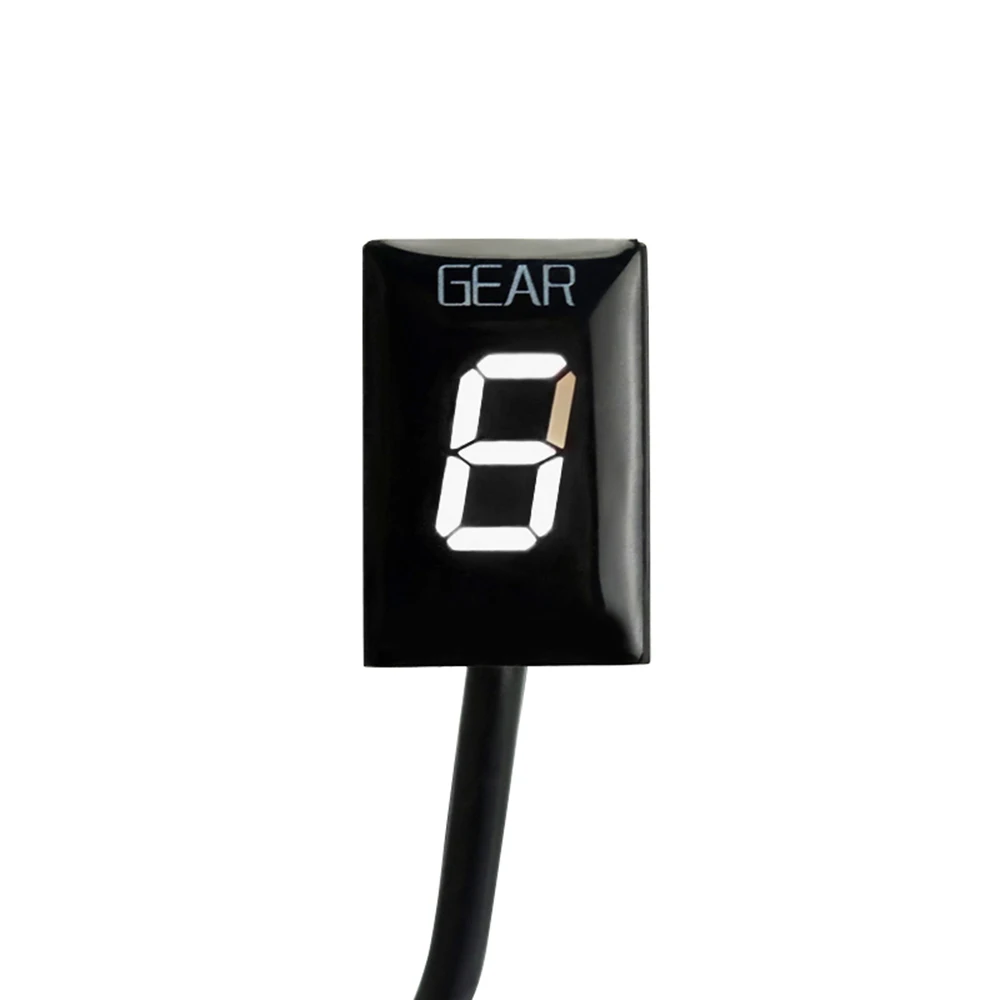

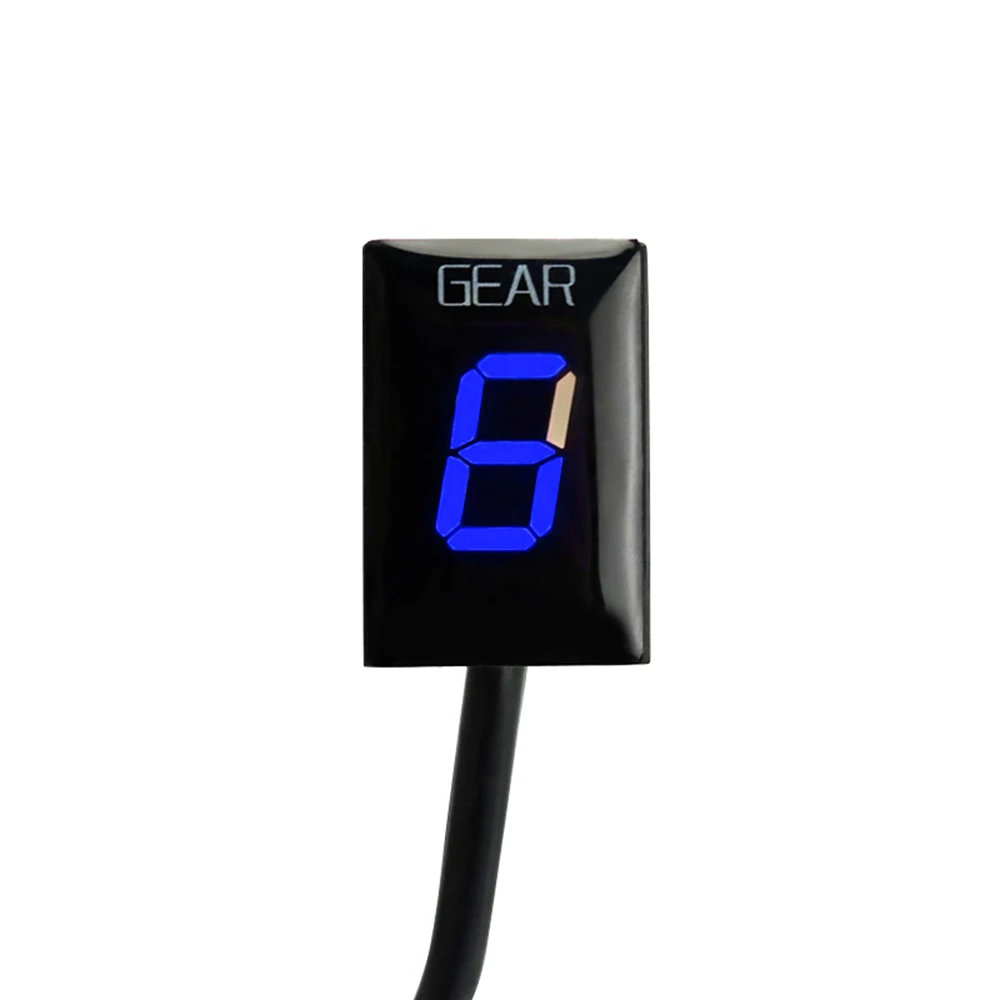

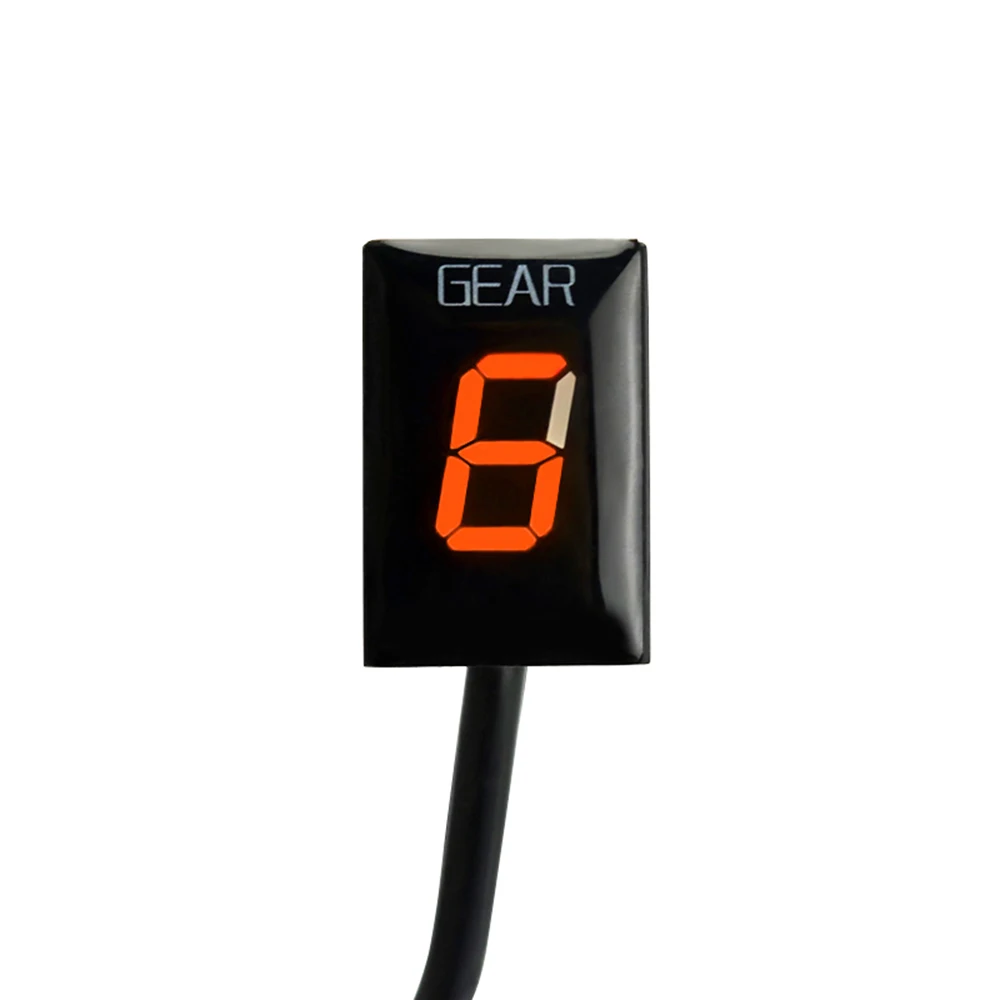

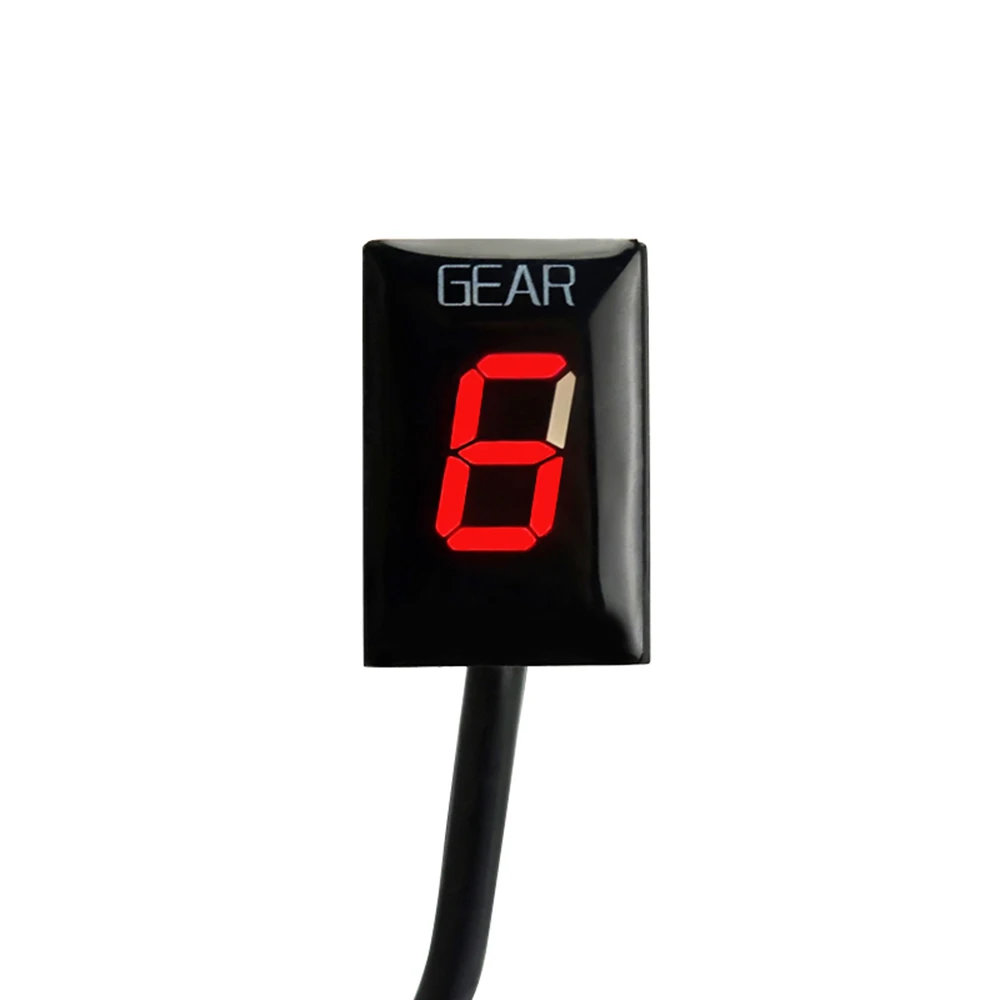

Shows current gear number

Indicates current gear from 1 to max of 6. as well as a neutral indicator.

Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.

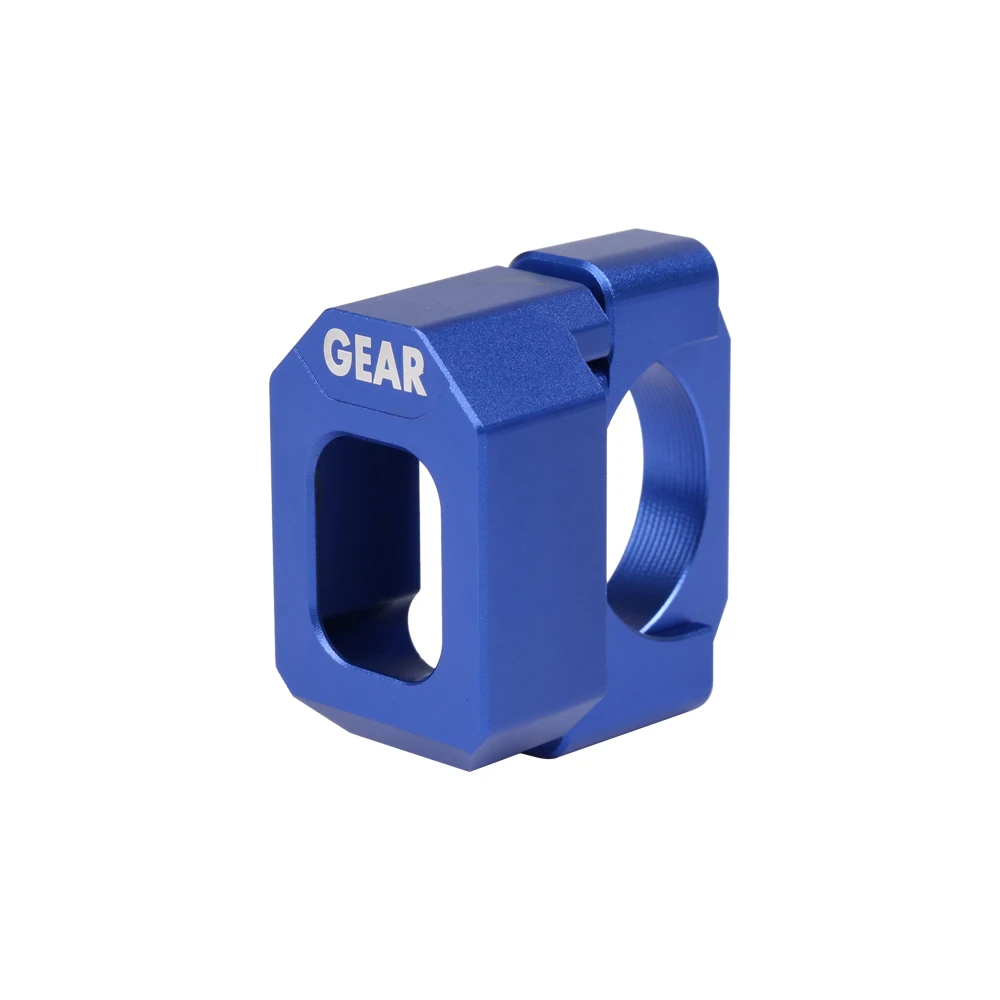

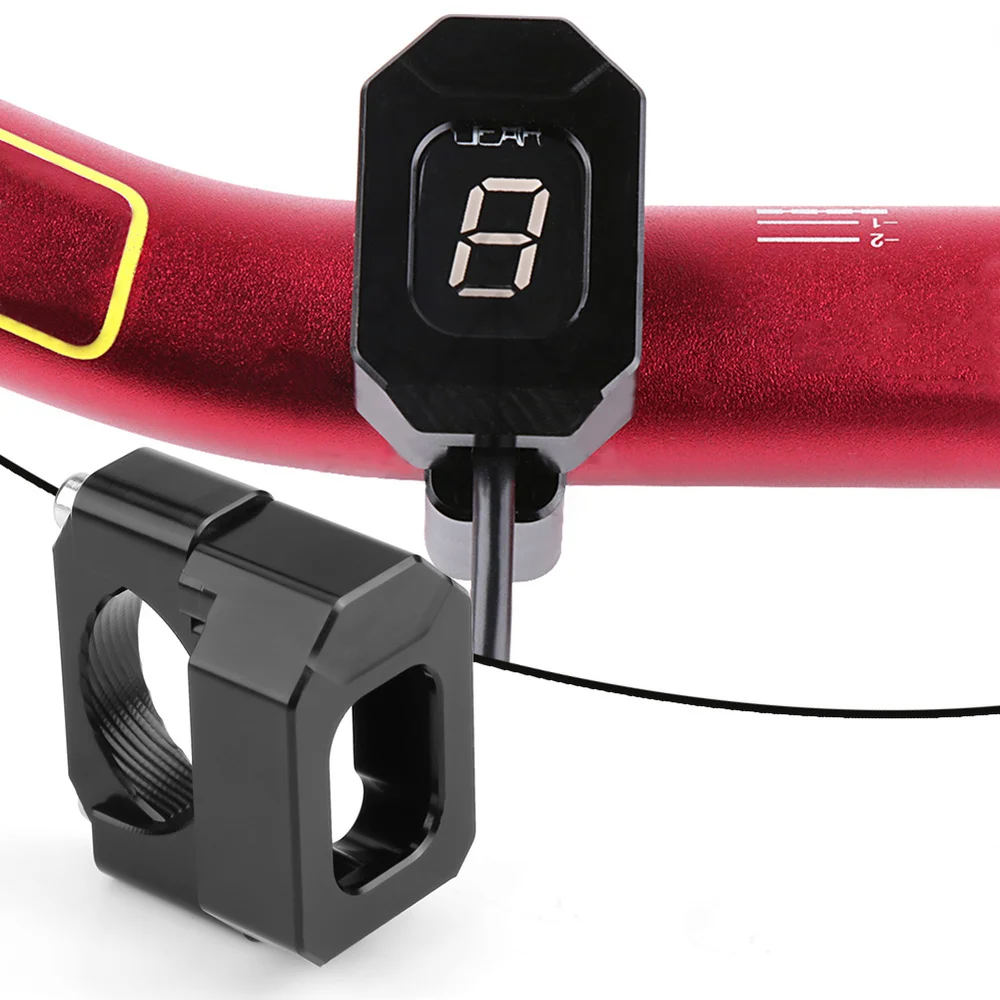

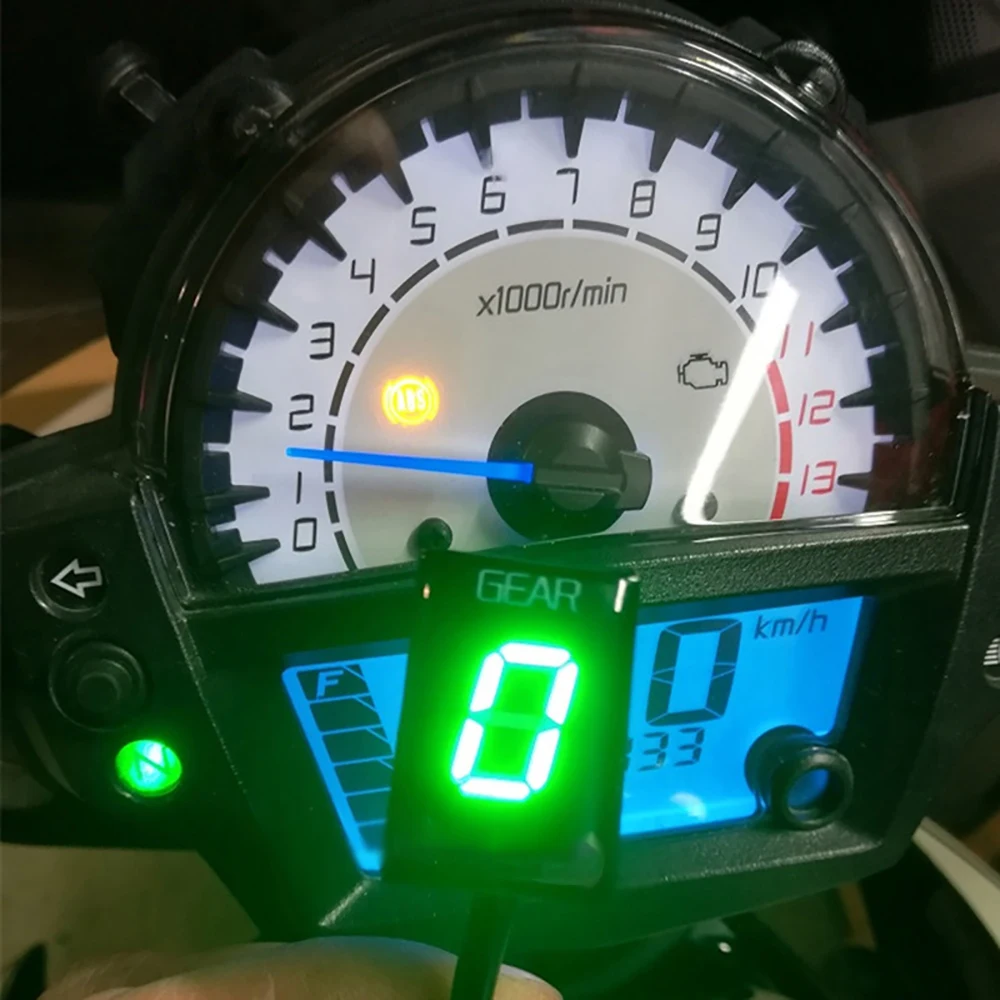

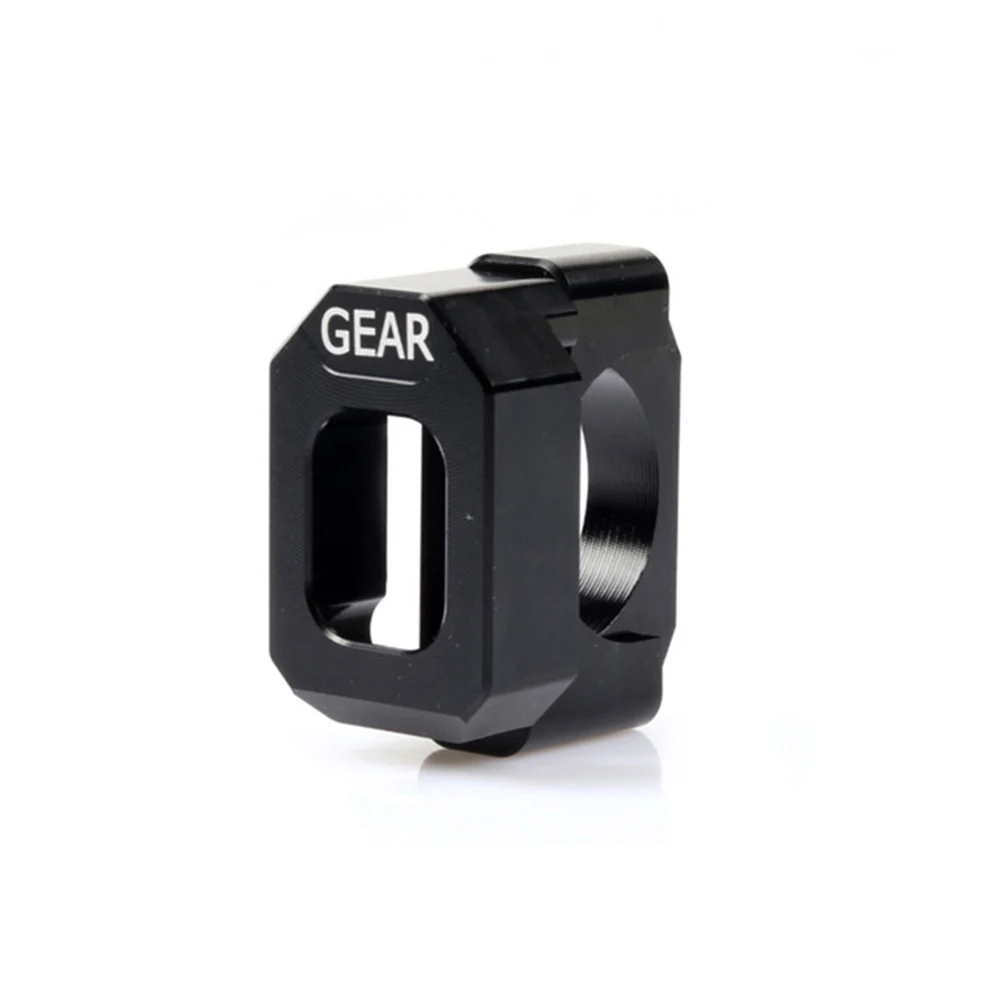

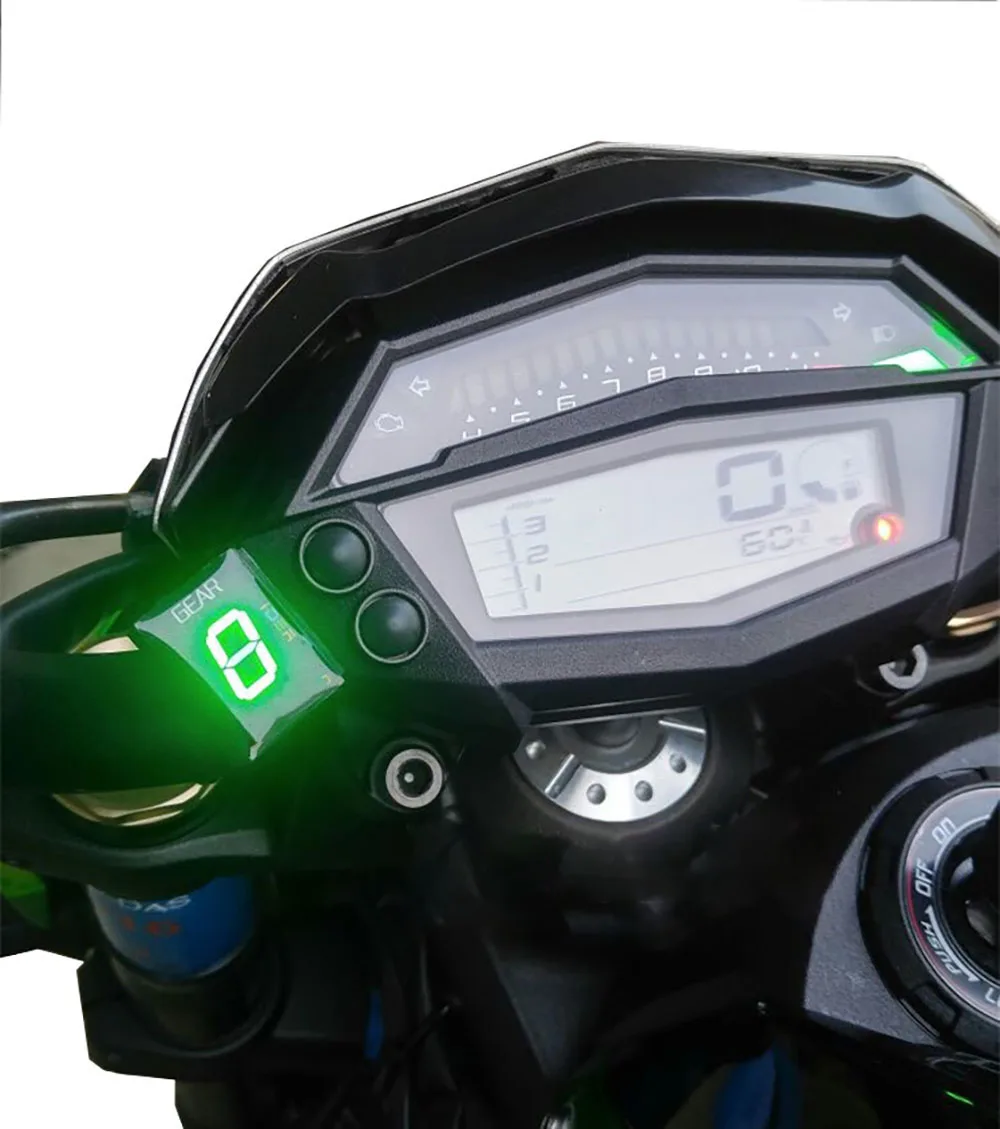

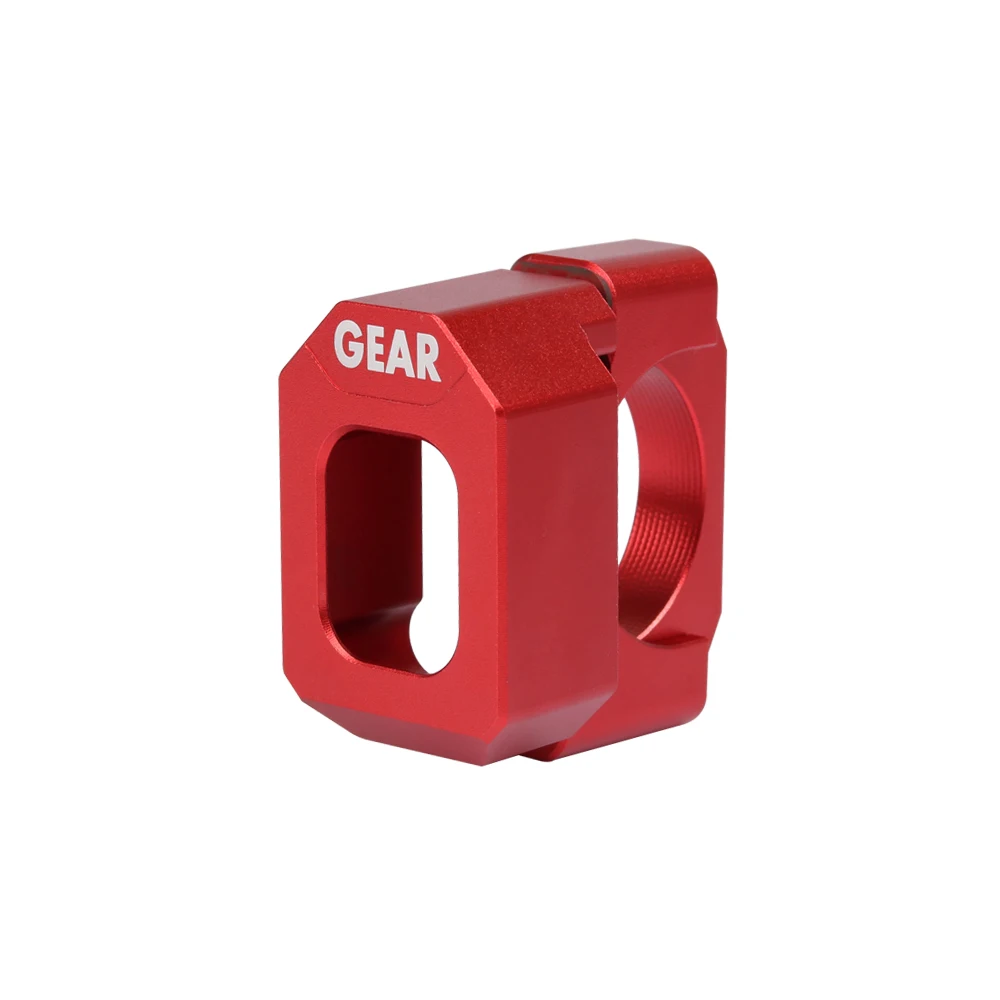

Display can be mounted anywhere

Installation:

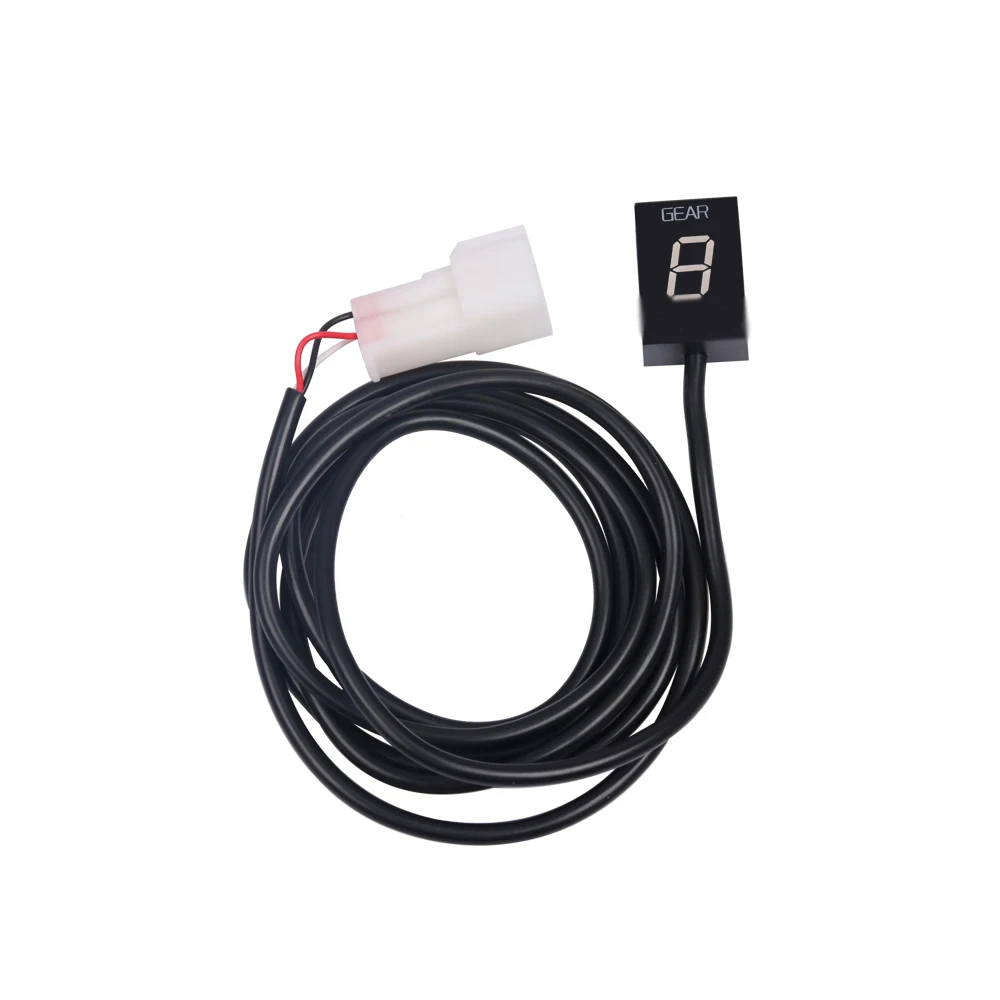

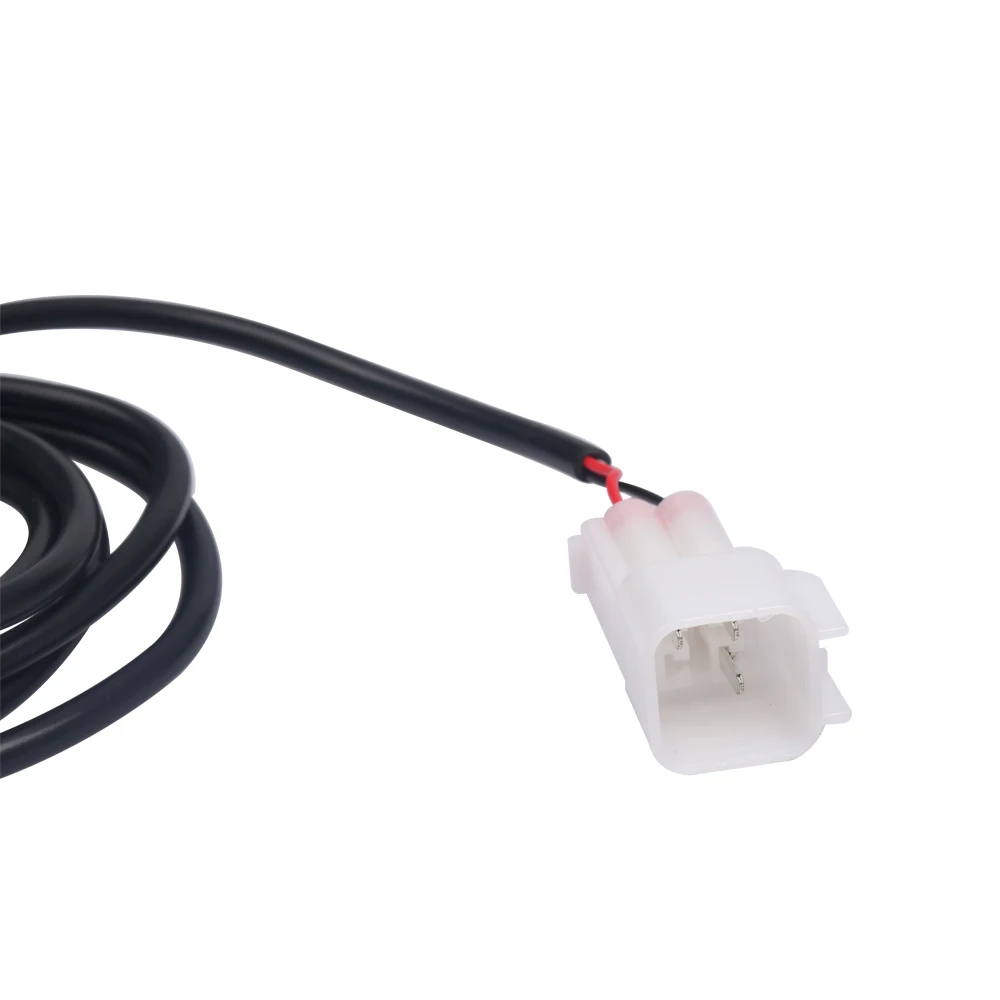

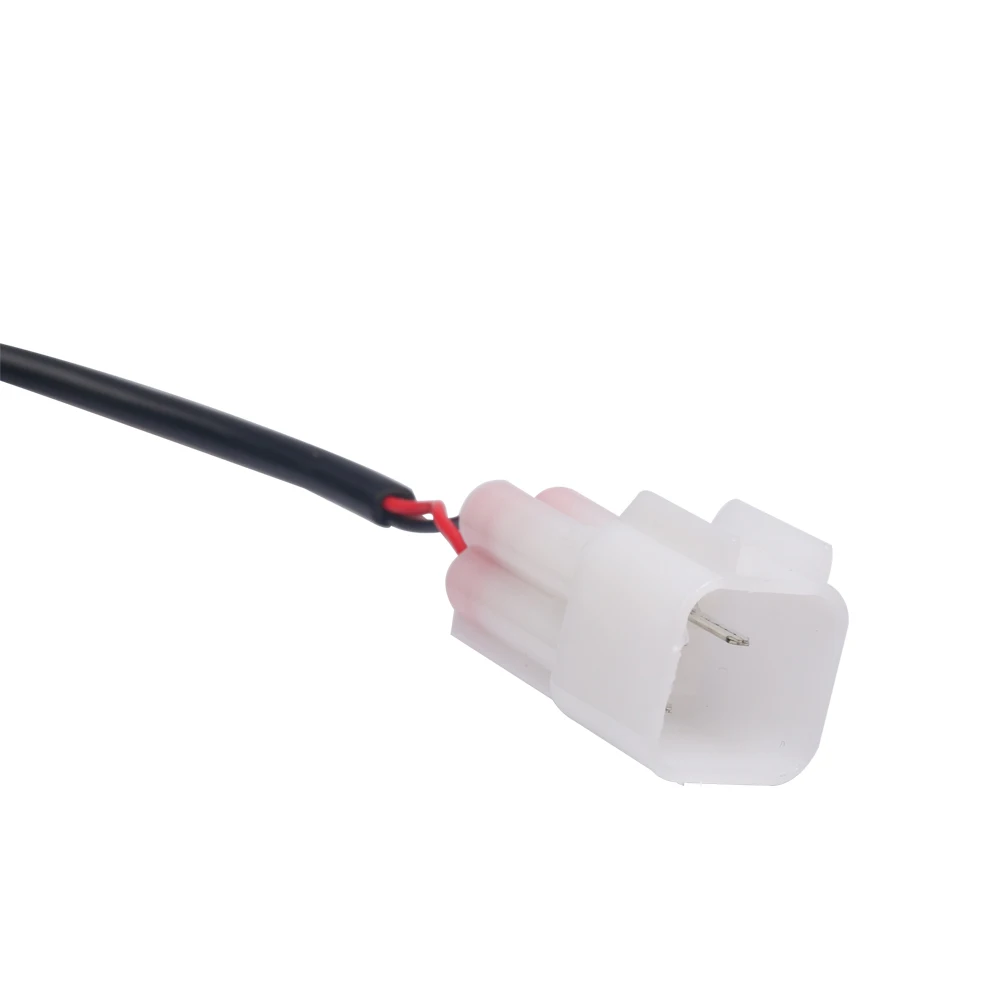

Find the 4-pole male diagnostic connector(DLC), usually near the ECU box,It may have a removable cap and may be partially covered by black tape.

Set up:

-You need to setup the module after installation. When ignition is turned on, the display counts backwards (6 to 1) indicating that the memory is clear.

-Raise the rear wheel off the ground by using a stand, and start the engine in Neutral. (If you do not have a stand, you may setup the unit while riding. Find a long, straight road with light traffic.)

the screen displays L, indicating that learning is started.

accelerate through the handle throttle slowly

-The display will blink “1”.Select first gear, release the clutch, and keep the RPM above idle speed. The display is blinking faster while the unit is learning the gear.

-When the display shows “2”, select second gear.

Repeat this process until all gears are thought (5 or 6).

The unit is programmed and should indicate the gears correctly.

Now, when ignition is turned on, the display counts forward (1 to 6) indicating that it is fully functional.

(If there is an error in the learning process, please reset gear indicator, thank you)

Reset:

If some gears are not indicated correctly, please reset gear indicator.turn on the key switch of the switch lock. When the gear indicator shows 5.4.3, turn off the key switch of the switch lock immediately, and then turn on the key switch of the switch lock immediately. According to the above operation, turn on and turn off the key switch of the switch lock five times in a row to see if the reset is complete. Thank you
