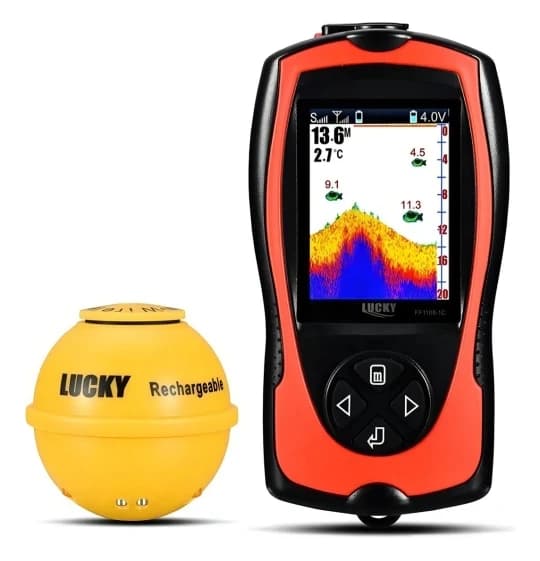

LUCKY FF1108-1CWLA Rechargeable Wireless Sonar for Fishing 45M Water Depth Echo Sounder Fishing Finder Portable Fish Finder

PRODUCT SPECIFICATION:

1) Display:2.4inch TFT color LCD

2)Back lighting: On/off White LED

3) Depth Capability: 147feet(45m)

4) Sonar Coverage: 90 degrees beam angle in 125Khz

5) Wireless operational Range: 1108-1CW:328feet(100m); 1108-1CWLA:(60m)

6) Power: 3.7V rechargeable lithium batteries

7) Waterproof design: level-4(spray-water-proof)

8) Water depth,water temperature, fish location, bottom contour can be constantly obtained from the water

9) User selectable sensitivity zoom,units,depth range,shallow alarm,fish icon,fish alarm,and chart speed setting

10) Built in memory stores sonar setting when the fish finder is turned off

11)It's better to charge the device before use.

12)Operational Temperature: 14degF to 122degF(-10degC to 50degC)

Detection depth of 45m/147ft

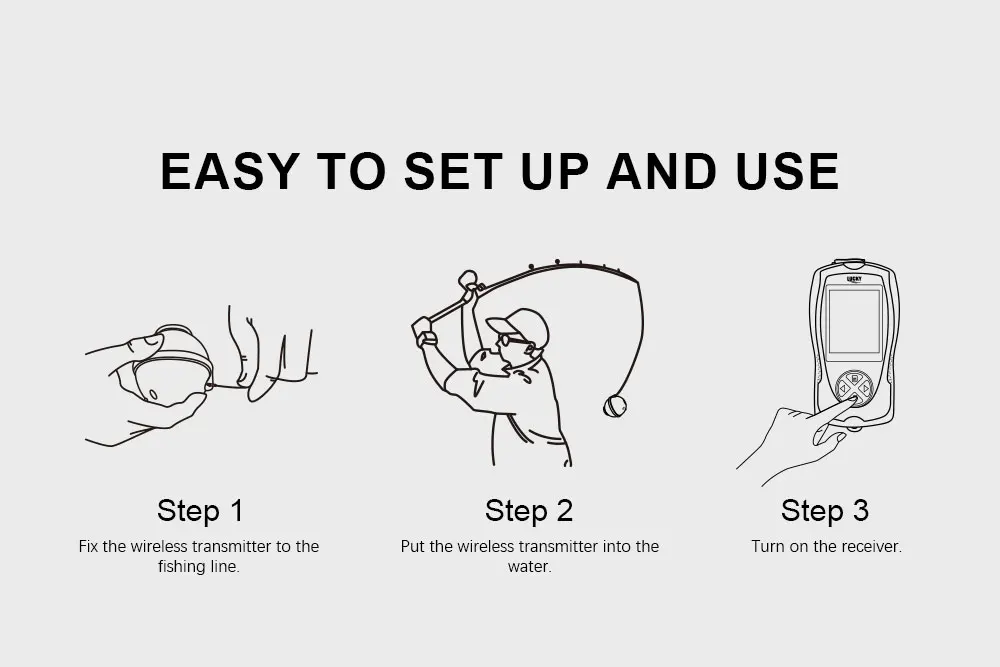

1.Fix the wireless transmitter to the fishing line.

2.Put the wireless transmitter into the water.

3.Turn on the receiver.

wireless OPERATING RANGE 150M

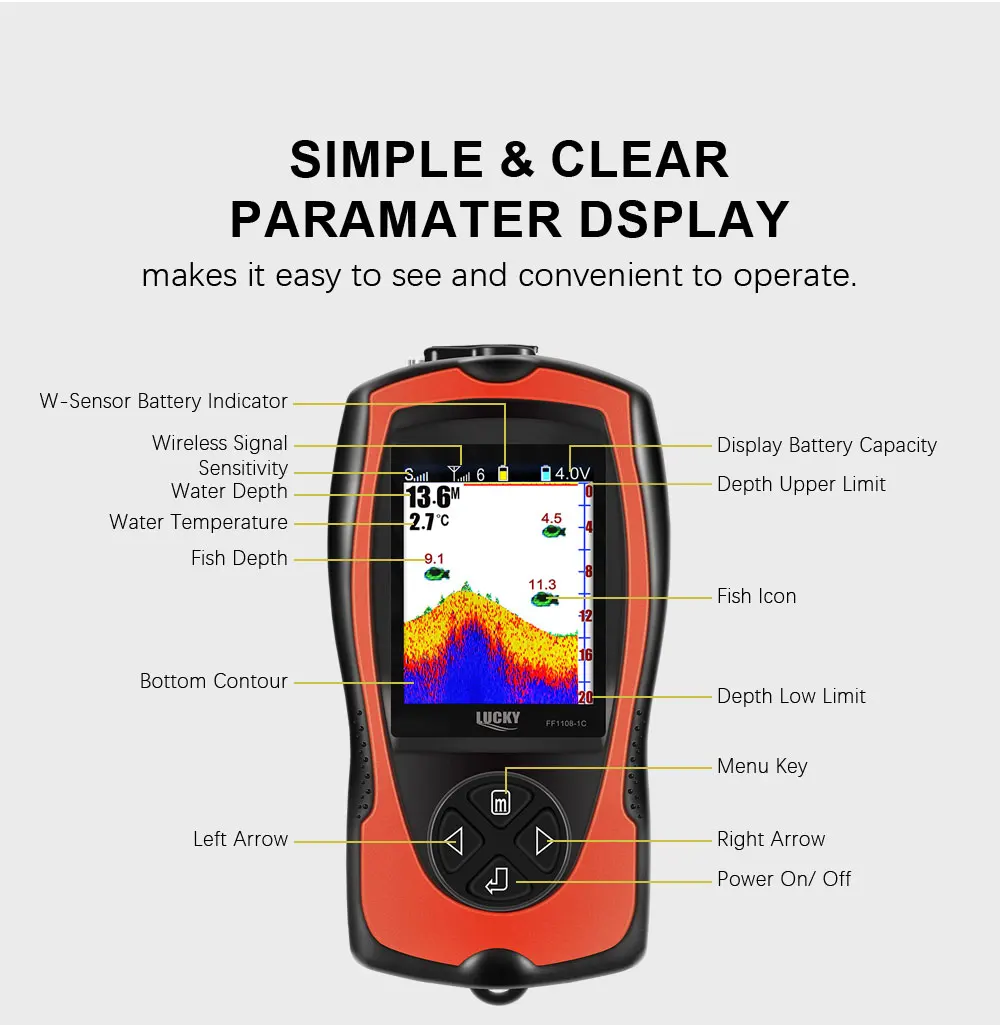

1.W-Sensor Battery Indicator

2.Wireless signal

3.Sensitivity

4.Water Depth

5.Water Temperature

6.Fish Depth

7.Bottom Contour

8.Left Arrow

9.Display Battery Capacity

10.Depth Upper Limit

11.Fish Icon

12.Depth Low Limit

13.Menu Key

14.Right Arrow

15.Power On/ Off

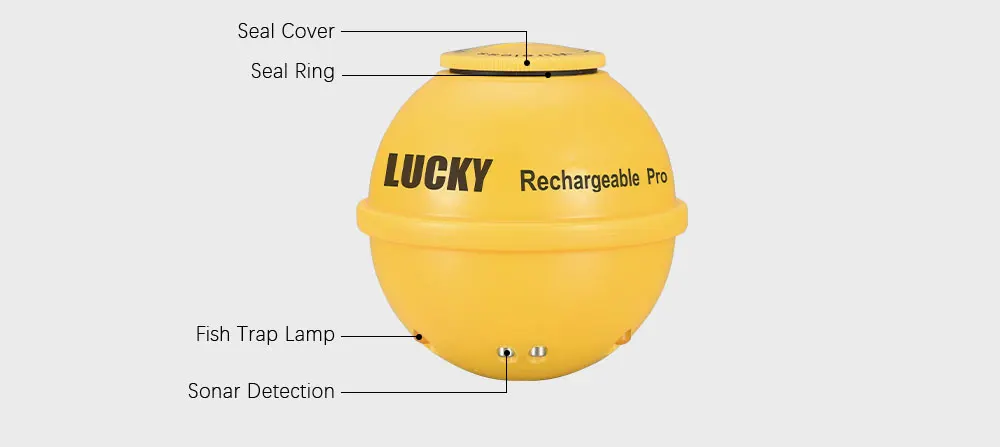

1.Seal Cover

2.Seal Ring

3.Fish Trap Lamp

4.Sonar Detection

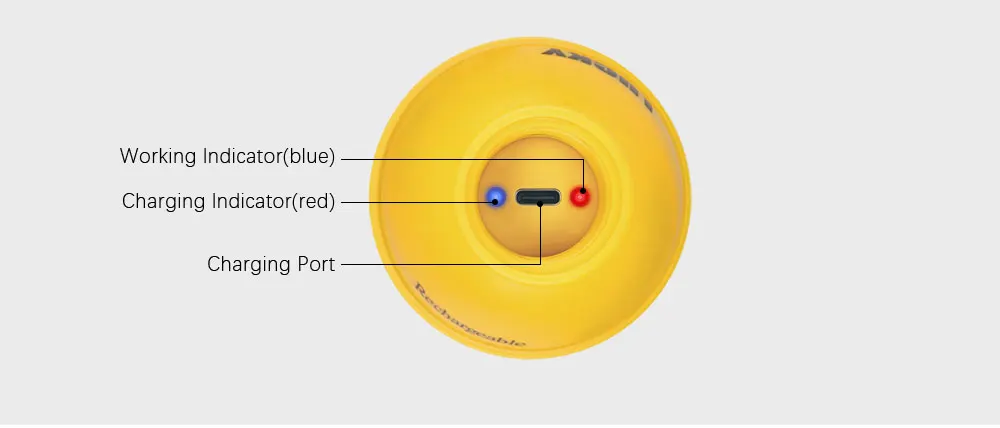

1.Working lndicator(blue)

2.Charging lndicator(red)

3.Charging Port

Find fish in lakes, ponds and rivers. Cast from dock, shore, bank or kayak.

View water depth, water temperature, and bottom profile through a receiver.

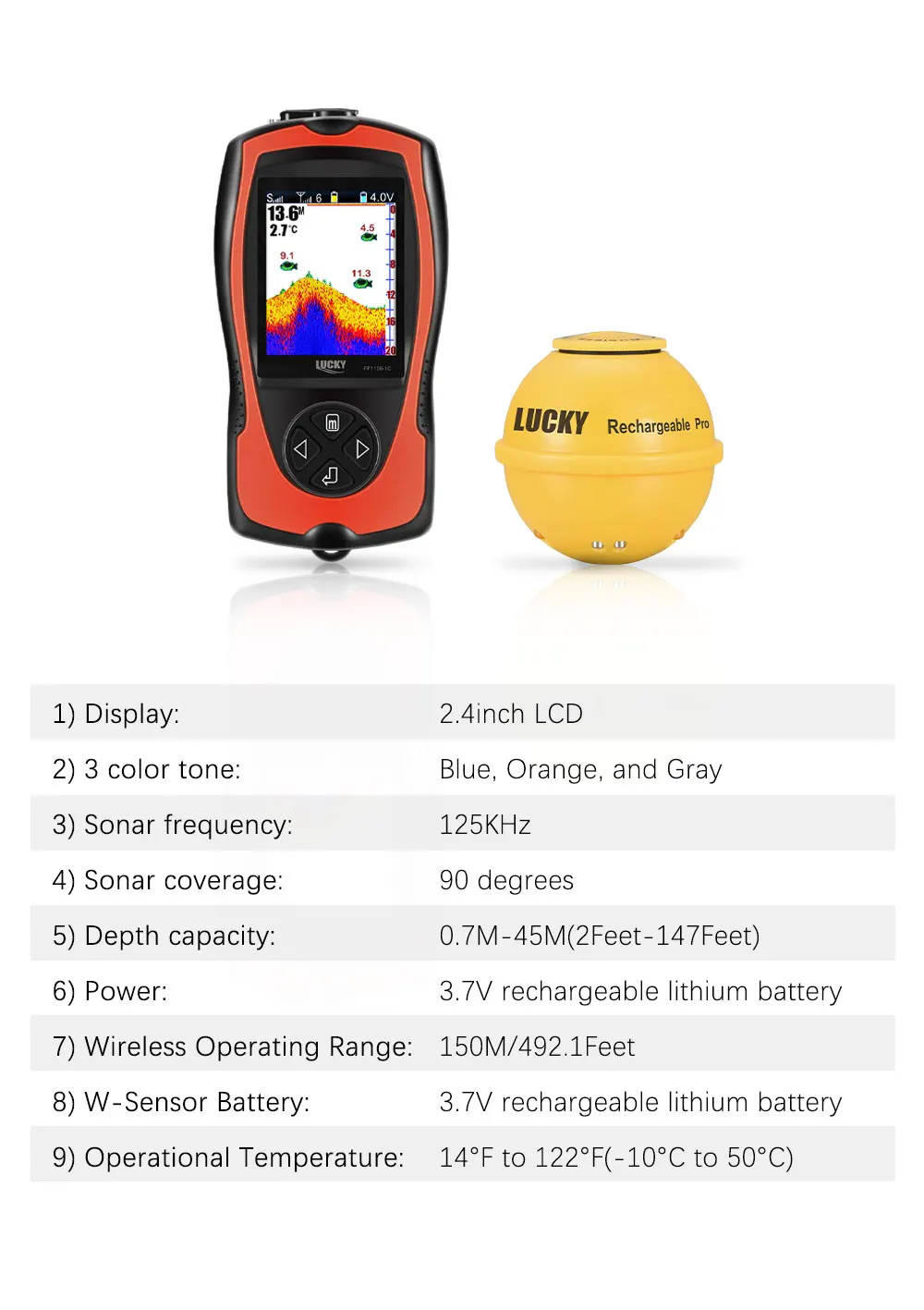

1) Display: 2.4inch LCD

2) 3 color tone: Blue, Orange, and Gray

3) Sonar frequency: 125KHz

4) Sonar coverage: 90 degrees

5) Depth capacity: 0.7M-45M(2Feet-147Feet)

6) Power: 3.7V rechargeable lithium battery

7) Wireless Operating Range: 150M/492.1Feet

8) W-Sensor Battery: 3.7V rechargeable lithium battery

9) Operational Temperature: 14°F to 122°F(-10°C to 50°C)

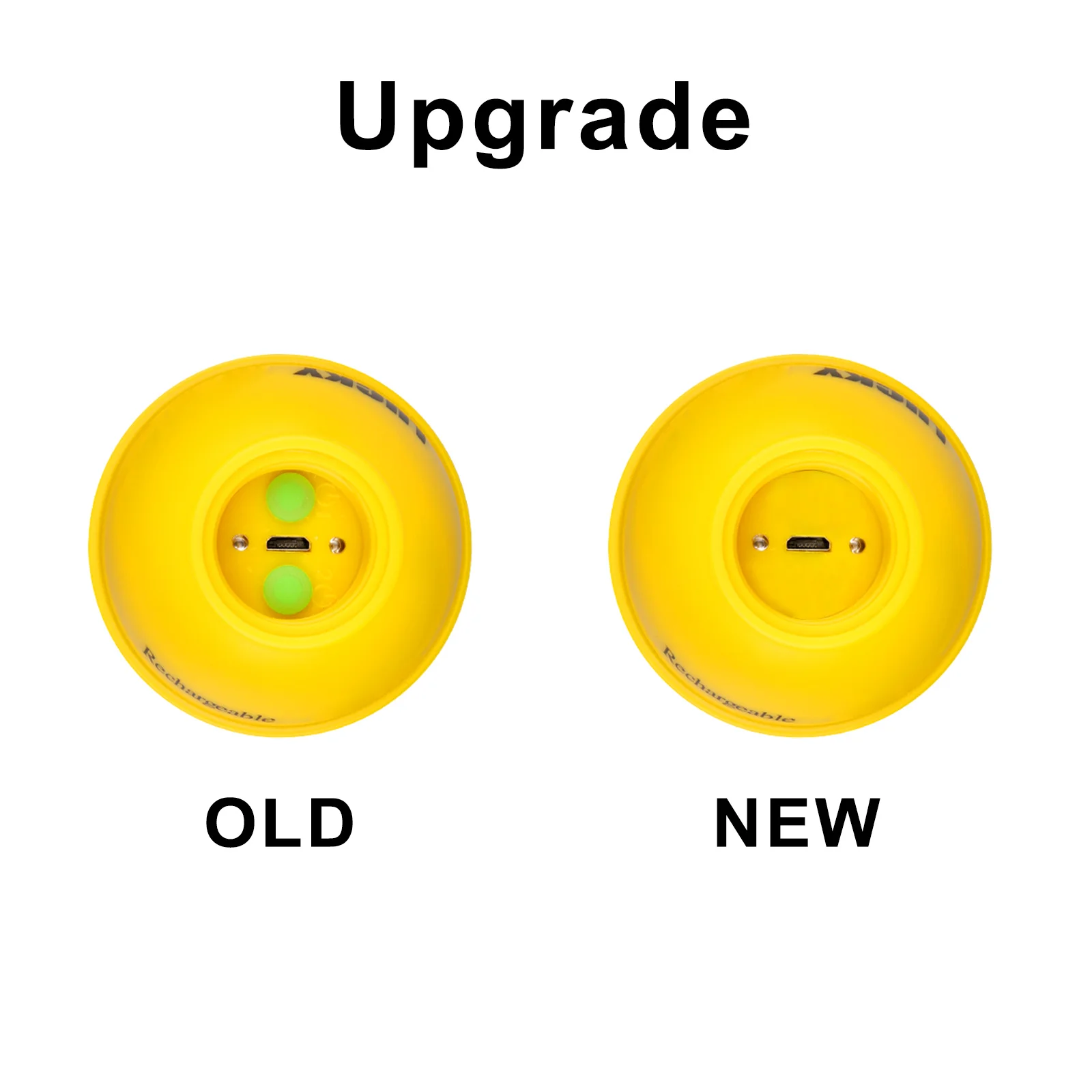

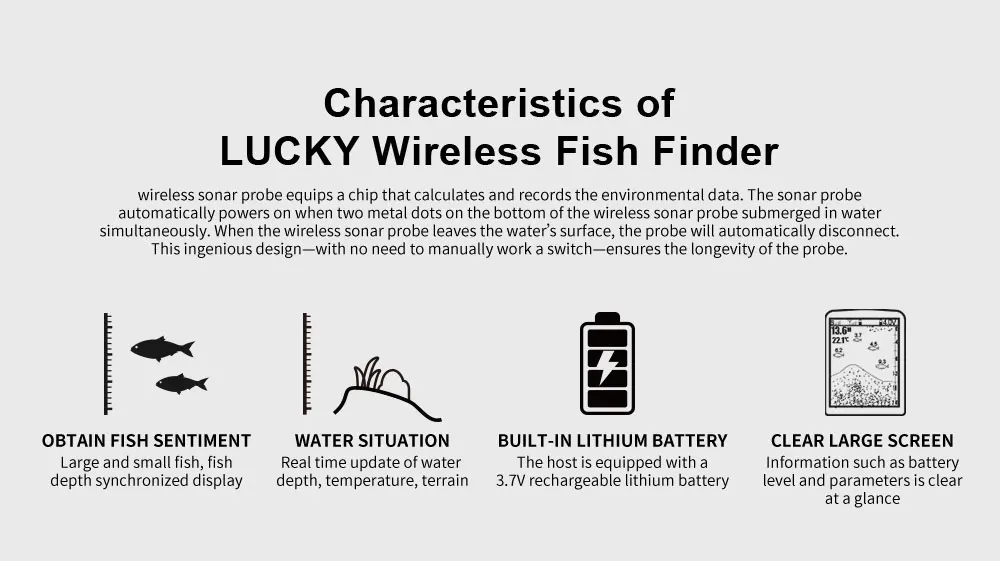

Upgraded new version:

No need to screw down the cover.

Turn on when put into water,

 turn off when out of water.

New and old models are shipped randomly

New and old models are shipped randomly

New and old models are shipped randomly

Attention:

1.Default power adapter is European. For UK or USA, please contact customer service.

2.Language menu:

English/German/Russian/Italian/Spanish/French/Chinese/Japanese/Korean/Hungarian/Portuguese/Finnish/Polish/Dutch/Greek/Swedish/Czech/Danish/Romanian/Slovak

3.If wireless sensor is not put into water, it will switch to resting state automatically and sonar stops work.

Only after put into water, it will work.

4.Use fish finder in smooth and hard place (like water tank, swimming pool, water bucket, or fish pond) will cause repeatedly sonar reception, or the the detection can be inaccurate.Please test in outdoor deep water.
