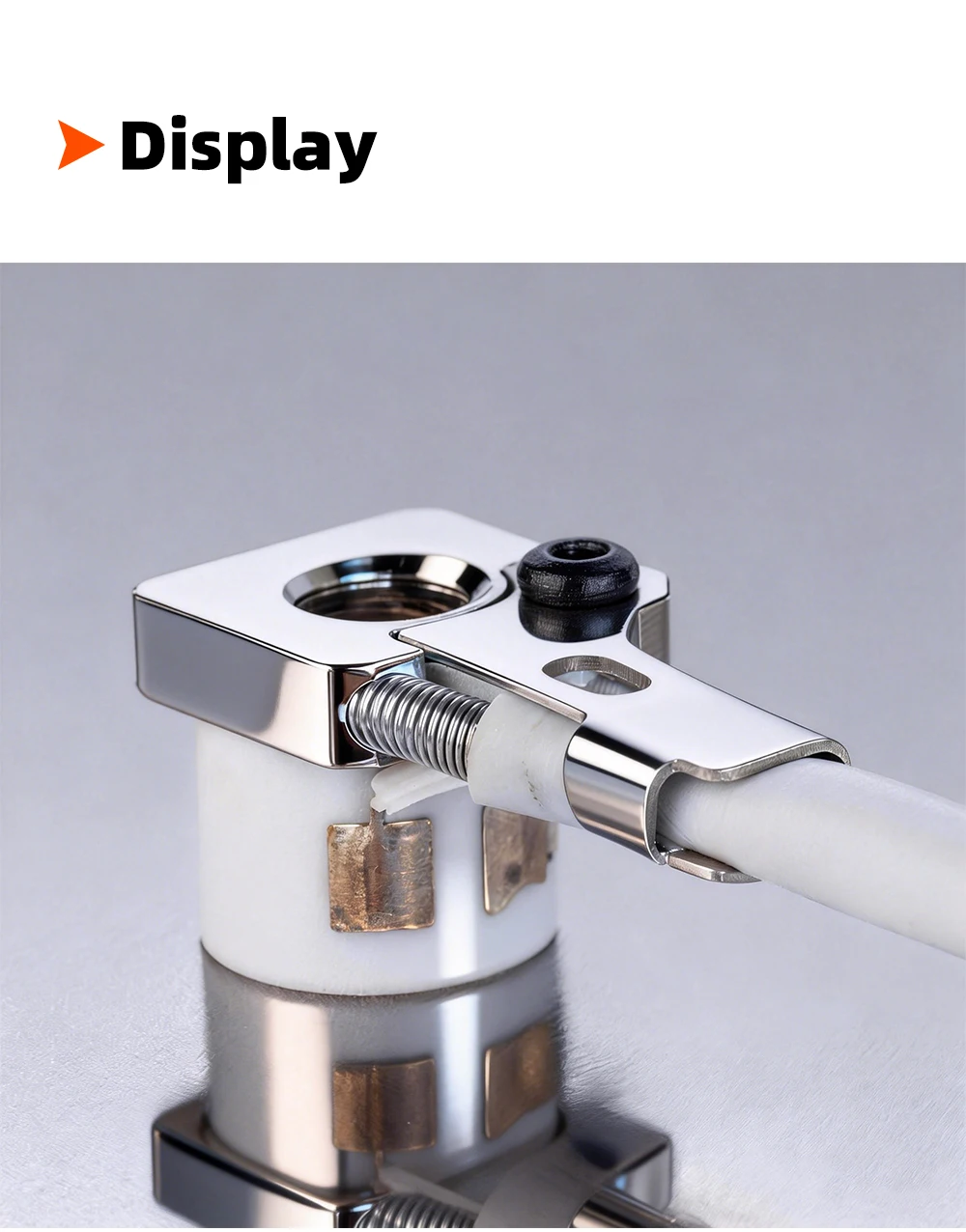

RS TriangleLab CHC® KIT Ceramic Heating Core Quick Heating Mini for Ender 3 V6 Hotend CR10 CR-10 CR-6 SE MK3S 3D Printer Hotend

Name: CHC® (Ceramic Heater Core)

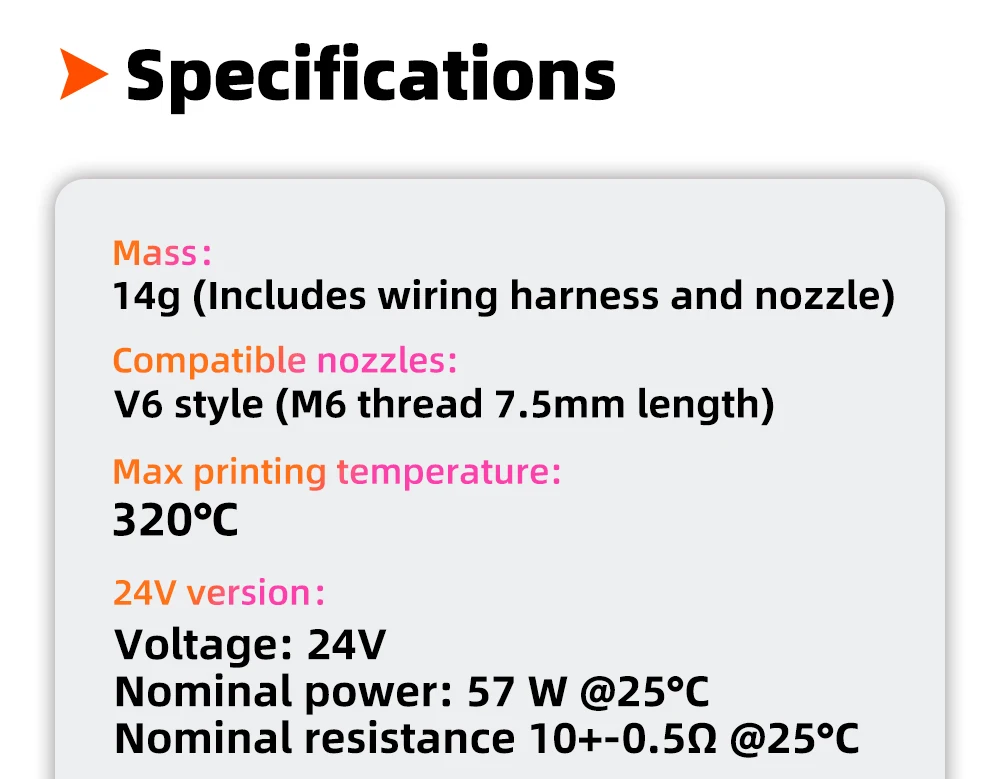

Specifications

Mass: 14g (Includes wiring harness and nozzle)
Compatible nozzles: V6 style (M6 thread 7.5mm length)
Max printing temperature: 320°C
24V version：
Voltage: 24V

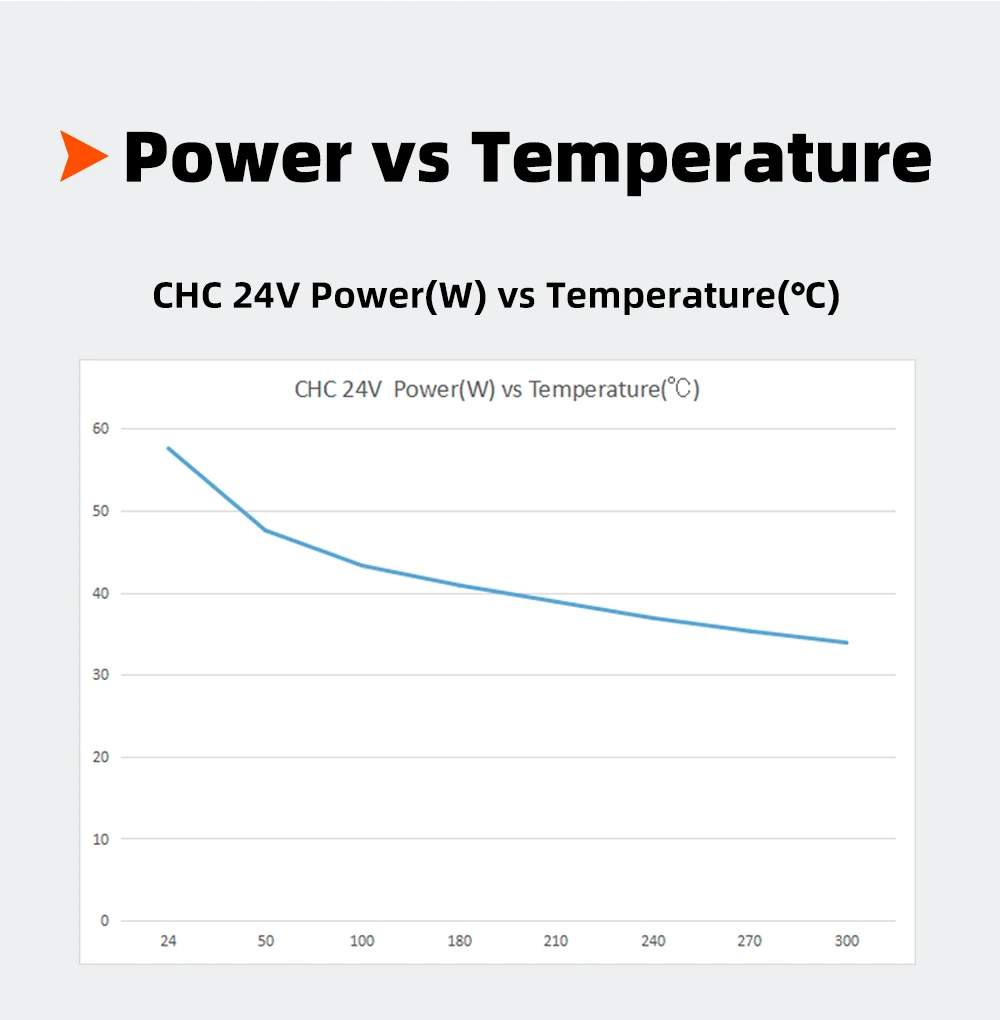

Nominal power: 57 W @25°C
Nominal resistance 10+-0.5Ω @25°C

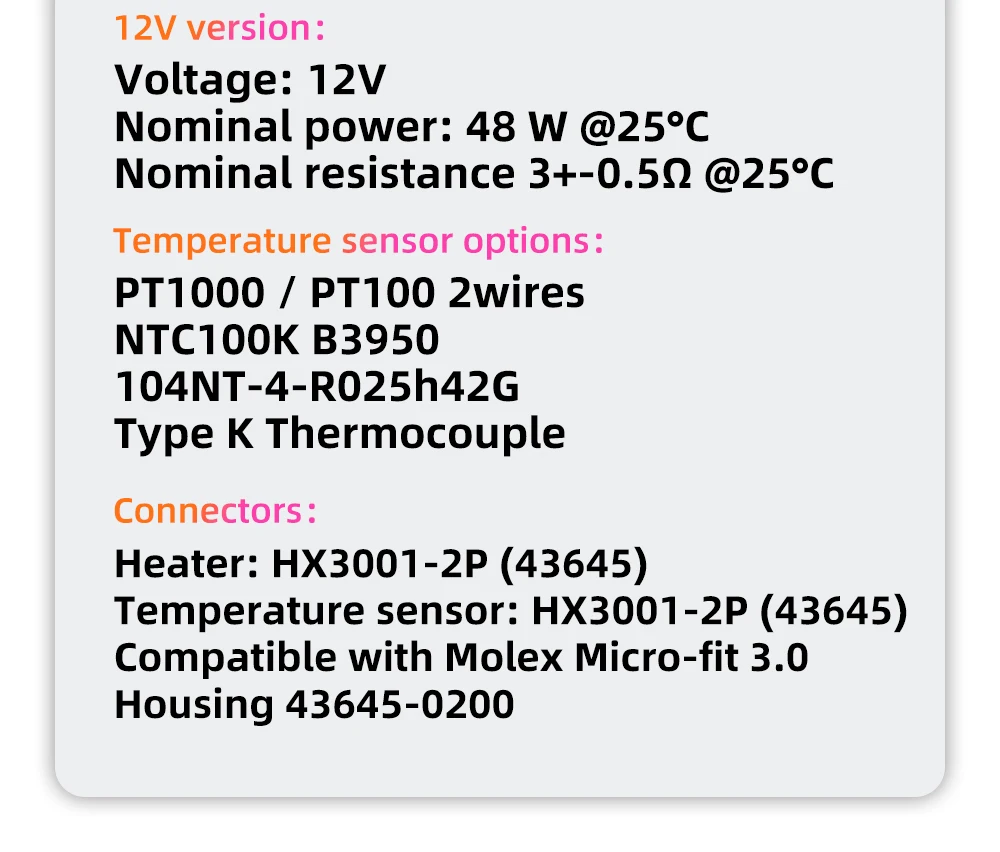

12V version：
Voltage: 12V
Nominal power: 48 W @25°C
Nominal resistance 3+-0.5Ω @25°C

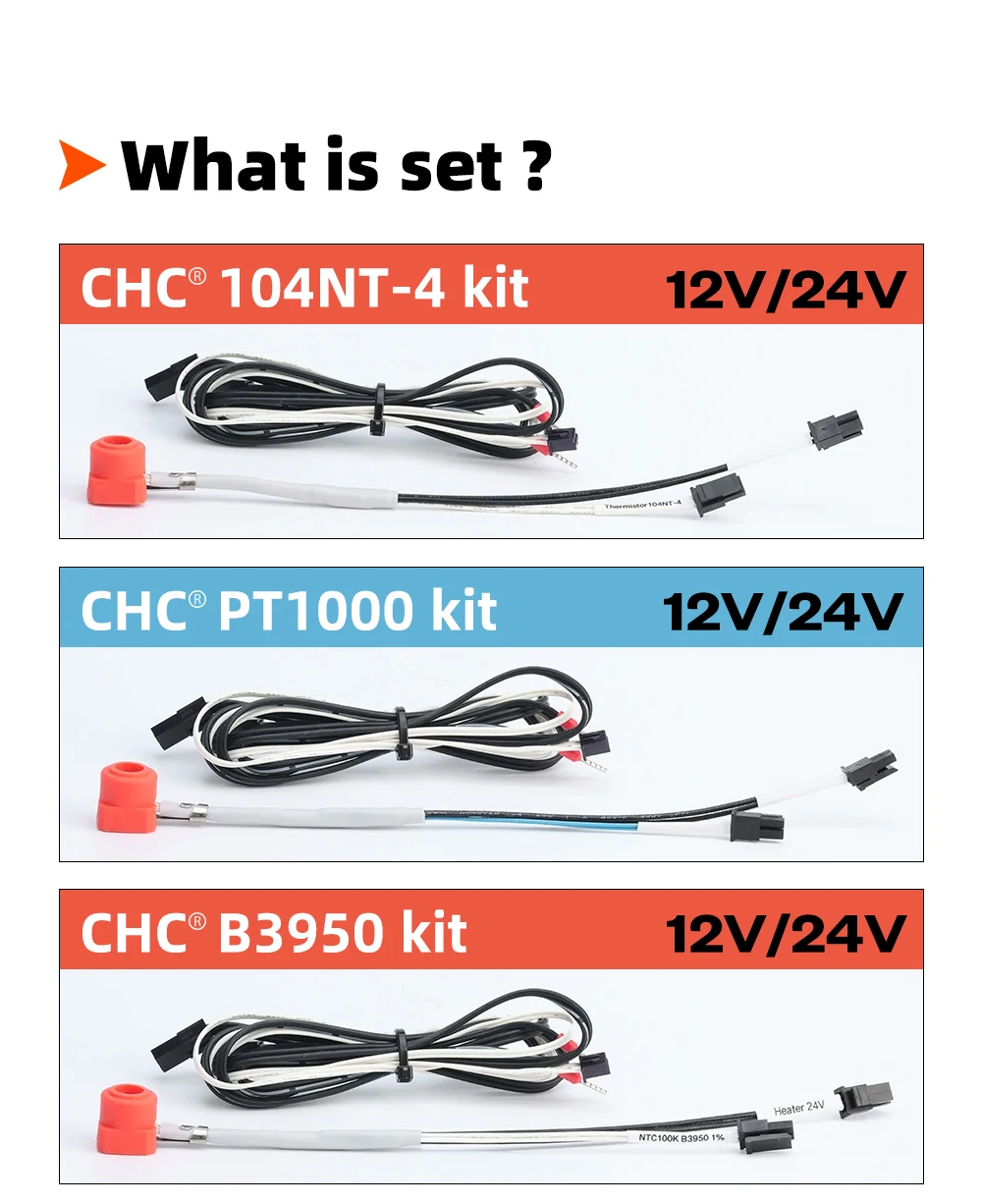

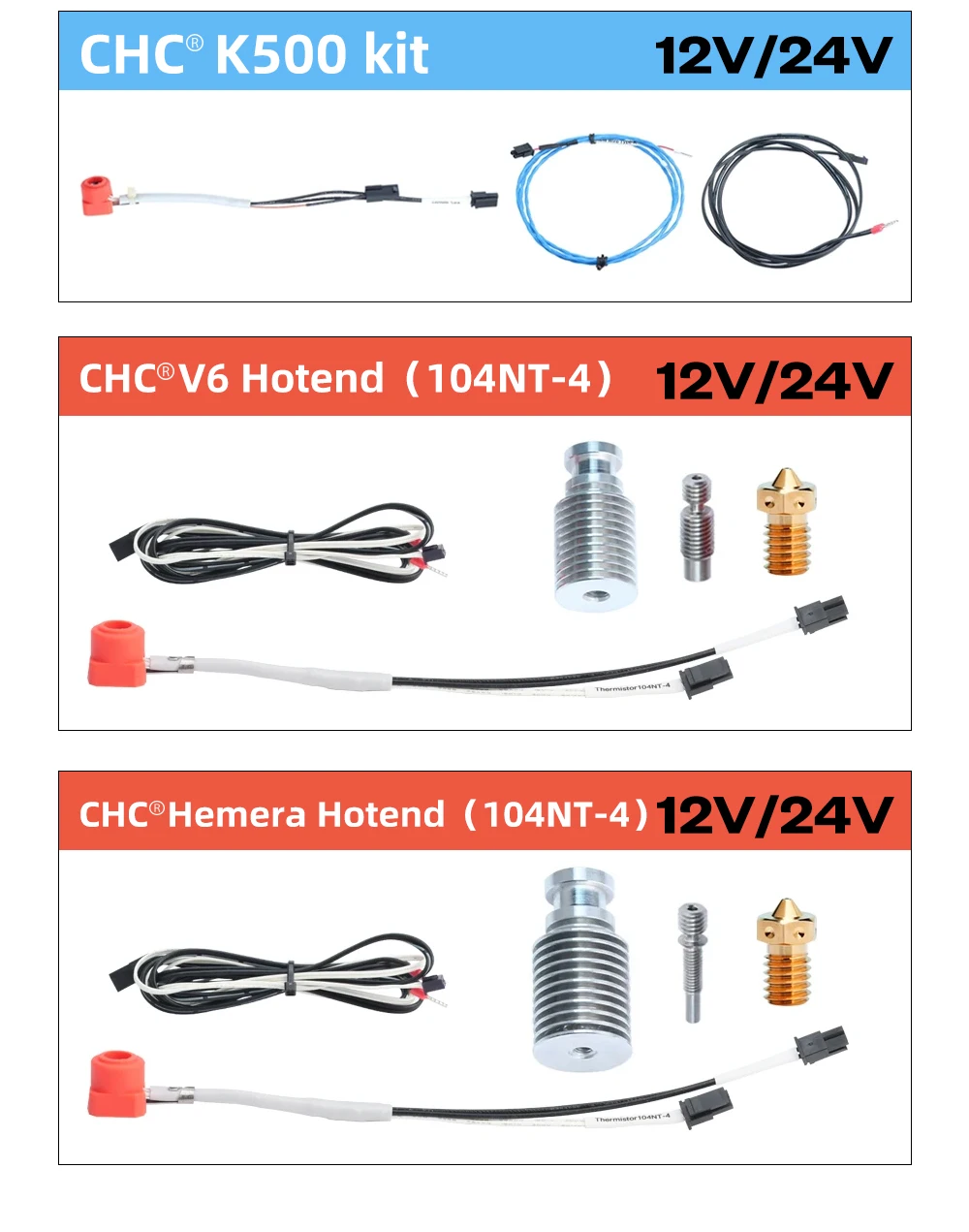

Temperature sensor options:
PT1000 / PT100 2wires
NTC100K B3950
NTC100K B3950
104nt-4-r025h42g
Type K Thermocouple

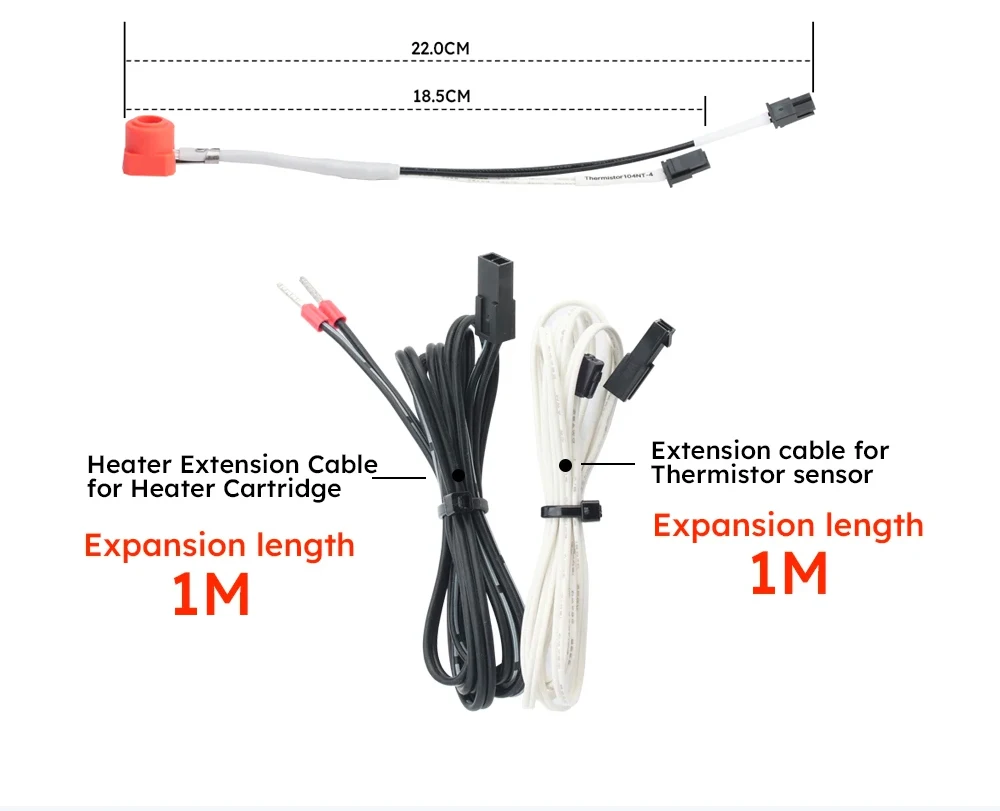

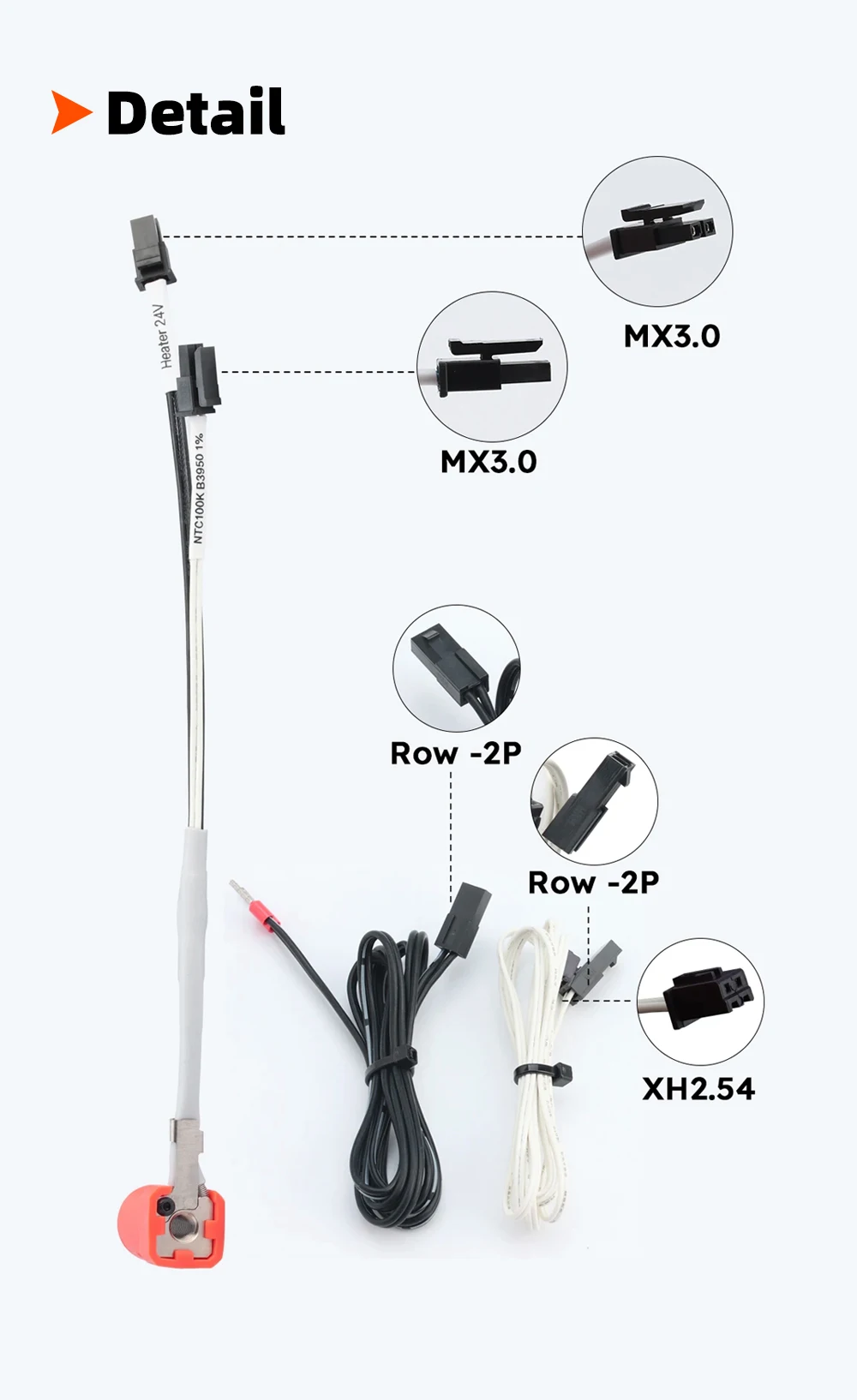

Connectors
Heater: HX3001-2P (43645)
Temperature sensor: HX3001-2P (43645)
Compatible with Molex Micro-fit 3.0 Housing 43645-0200

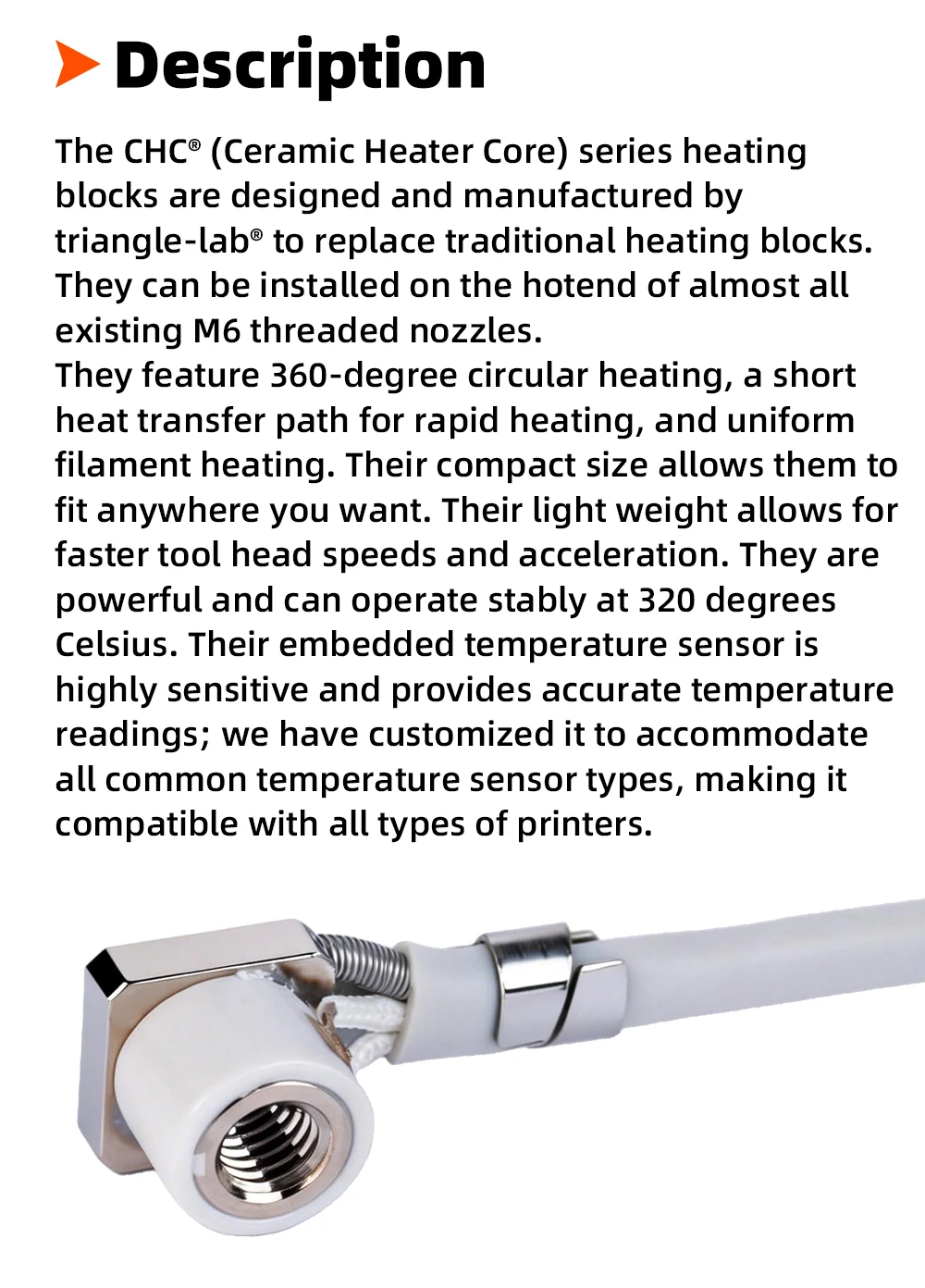

Description

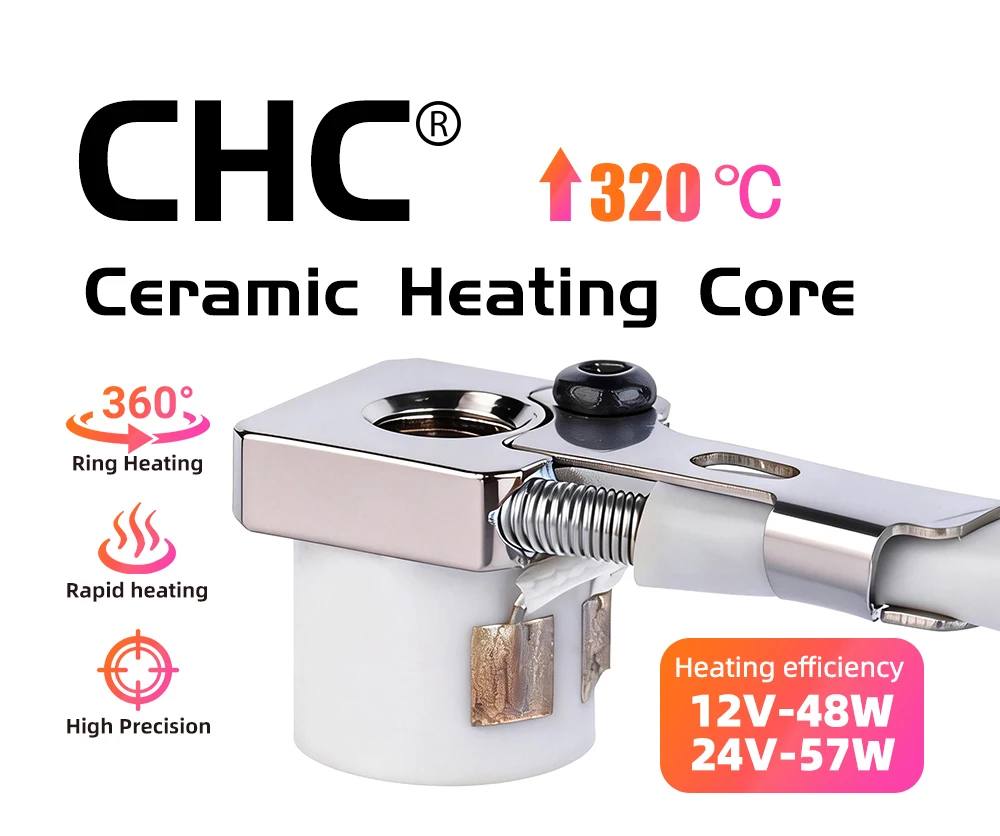

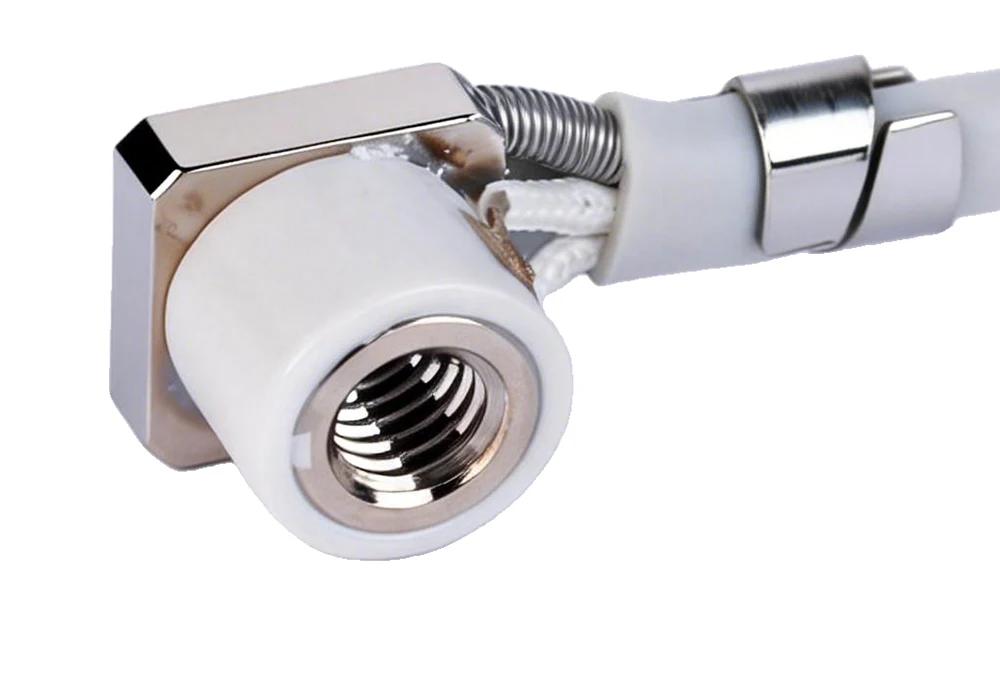

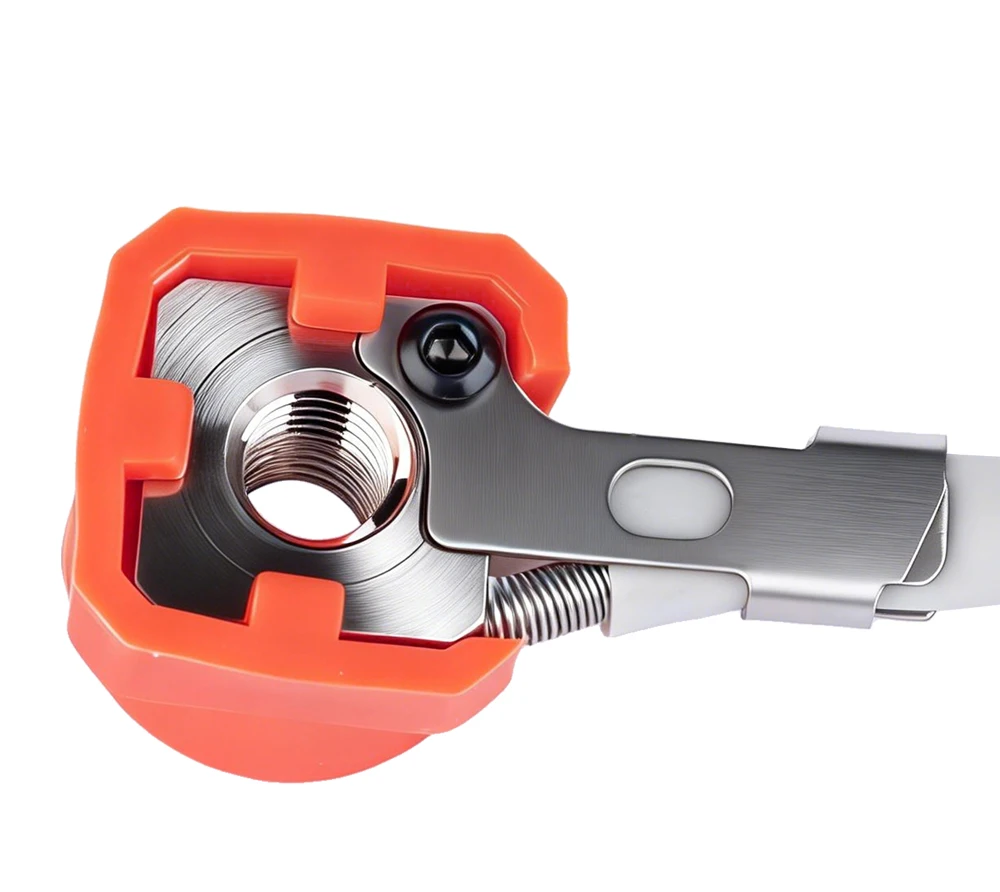

The CHC® series heating blocks are designed and manufactured by triangle-lab® to replace traditional heating blocks. They can be installed on the hotend of almost all existing M6 threaded nozzles. They feature 360-degree circular heating, a short heat transfer path for rapid heating, and uniform filament heating. Their compact size allows them to fit anywhere you want. Their light weight allows for faster tool head speeds and acceleration. They are powerful and can operate stably at 320 degrees Celsius. Their embedded temperature sensor is highly sensitive and provides accurate temperature readings; we have customized it to accommodate all common temperature sensor types, making it compatible with all types of printers.

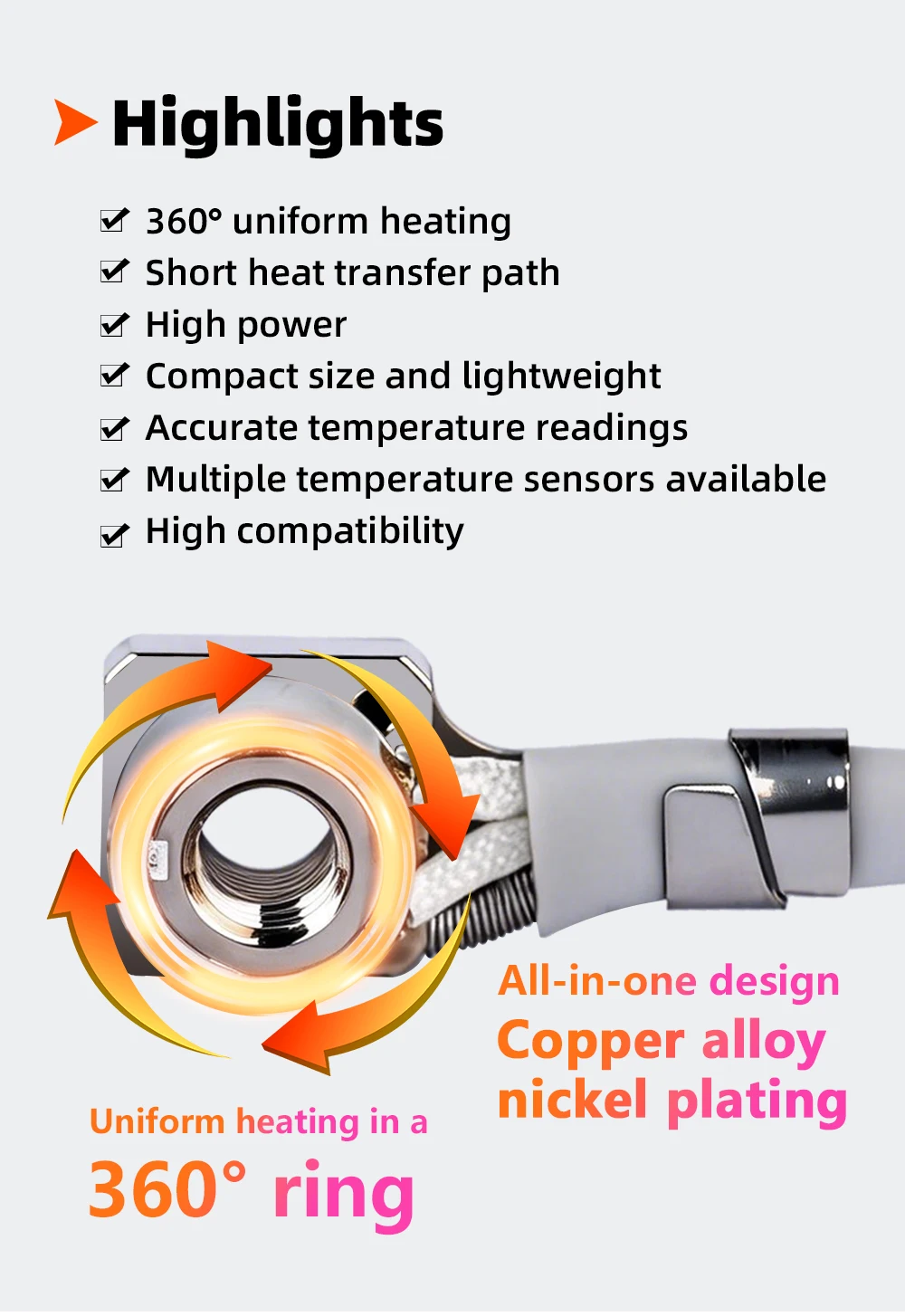

Highlights

360° uniform heating
Short heat transfer path
High power
Compact size and lightweight
Accurate temperature readings
Multiple temperature sensors available
High compatibility
