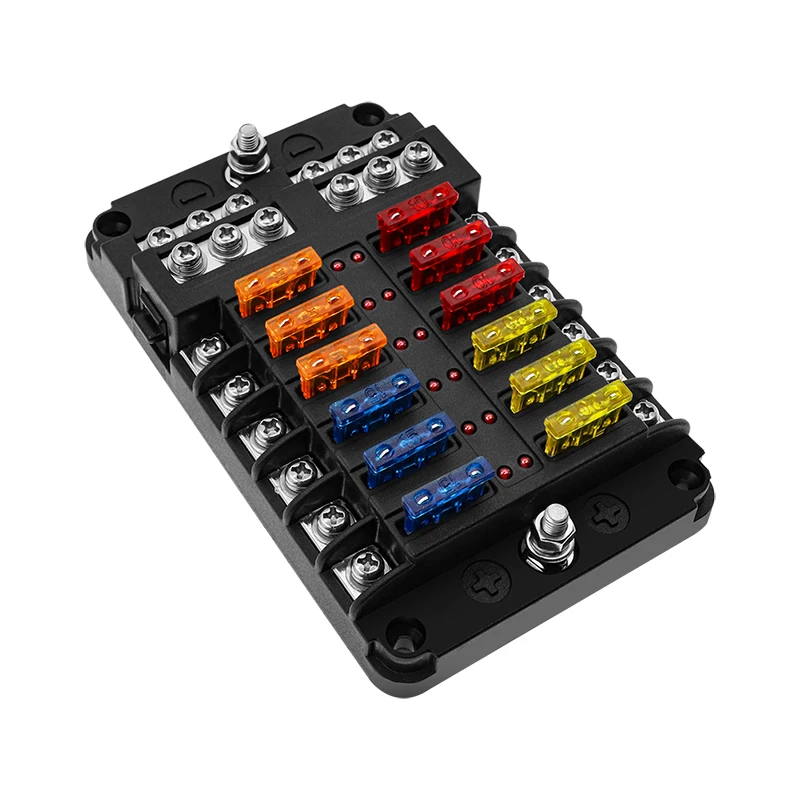

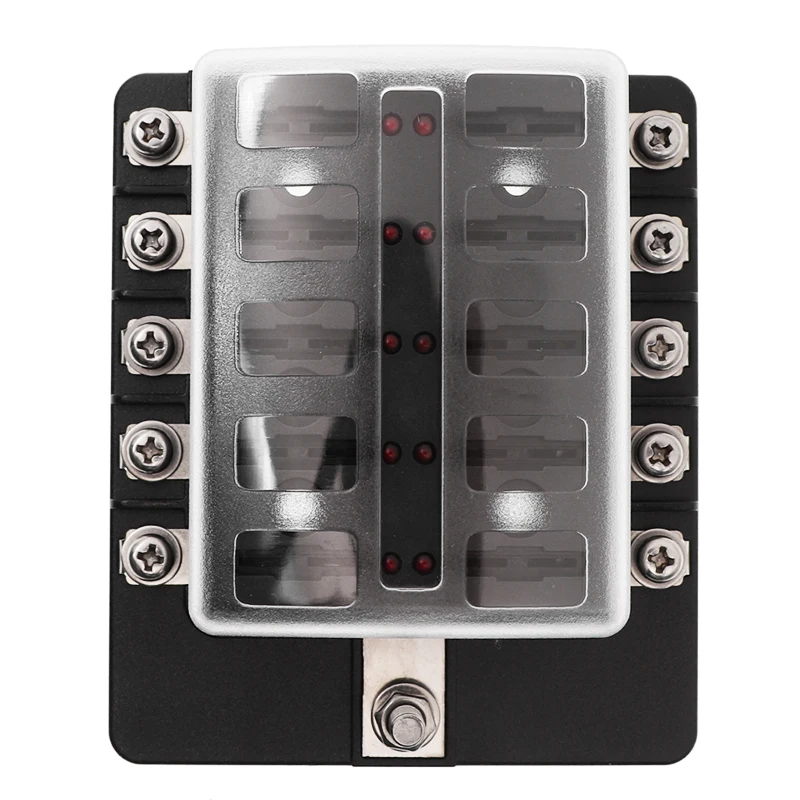

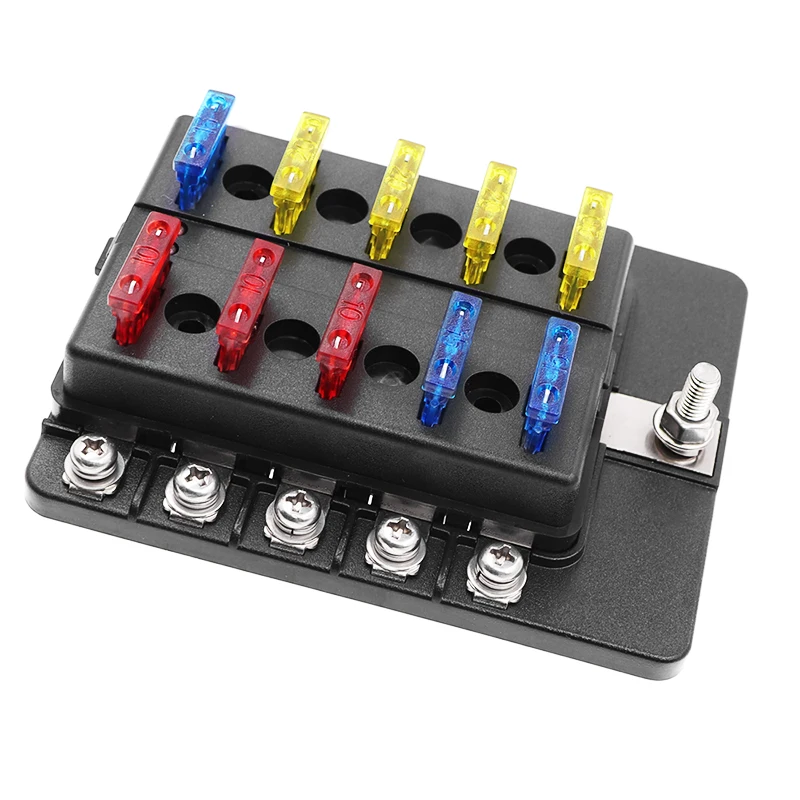

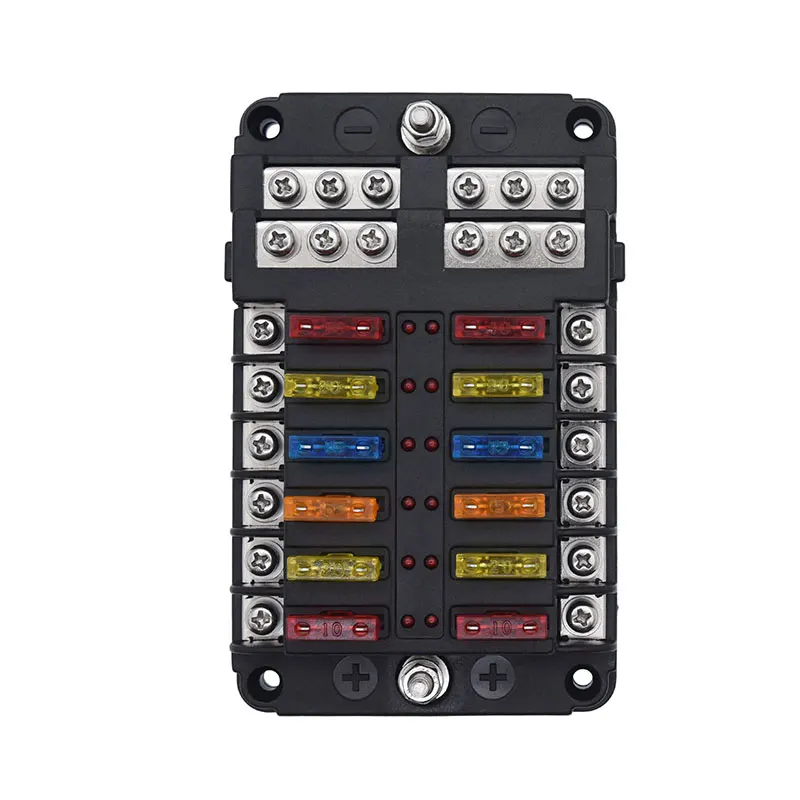

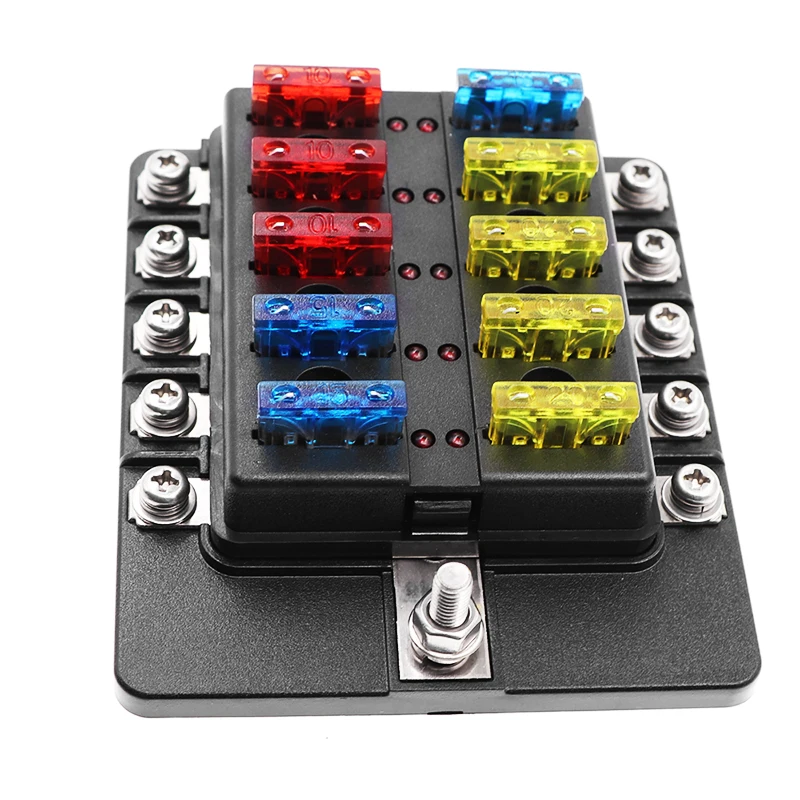

Car Boat Fuse Box Holder With 12 Way Blade Fuse Holder Block & Warning Indicator 12V~24V Power Distribution Panel Board

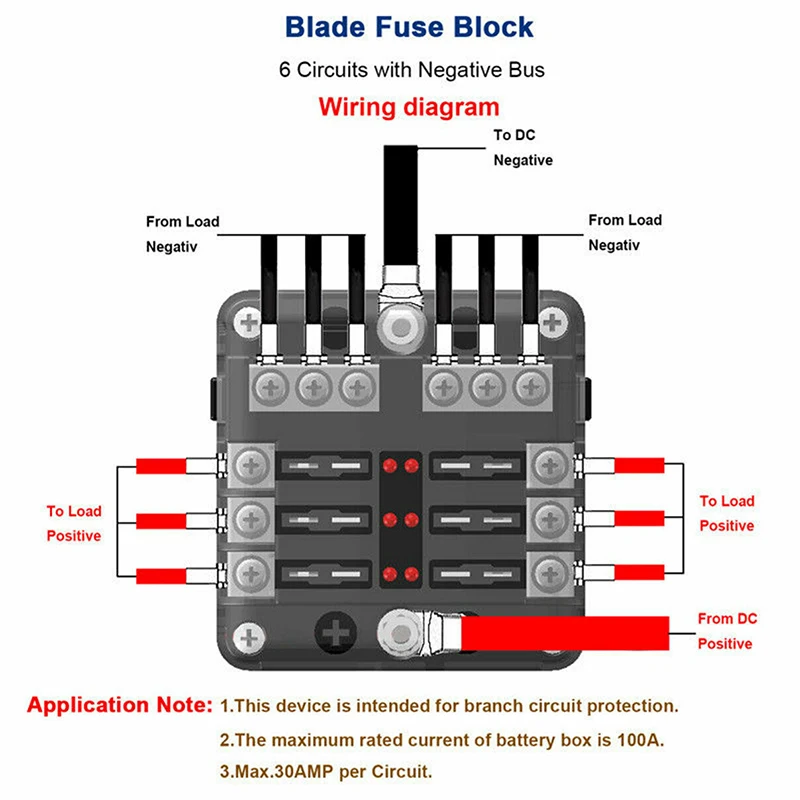

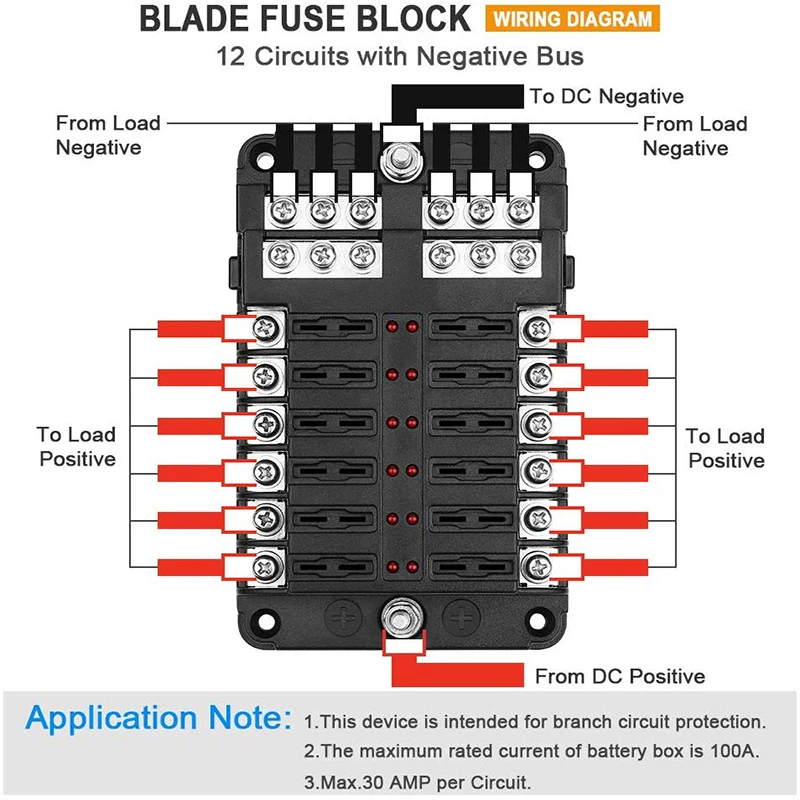

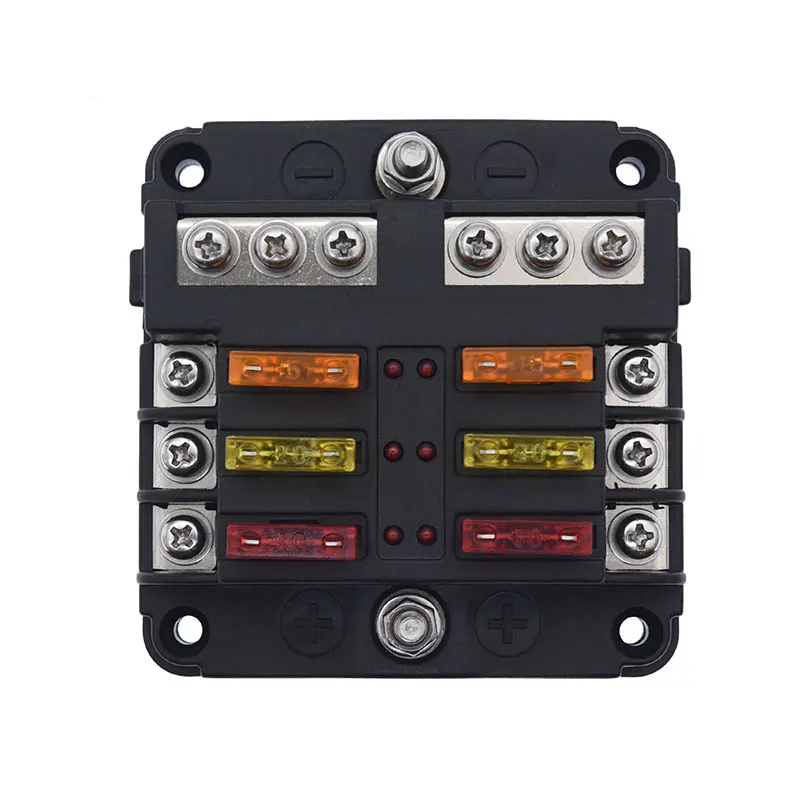

Type 1 : Fuse box with negative pole

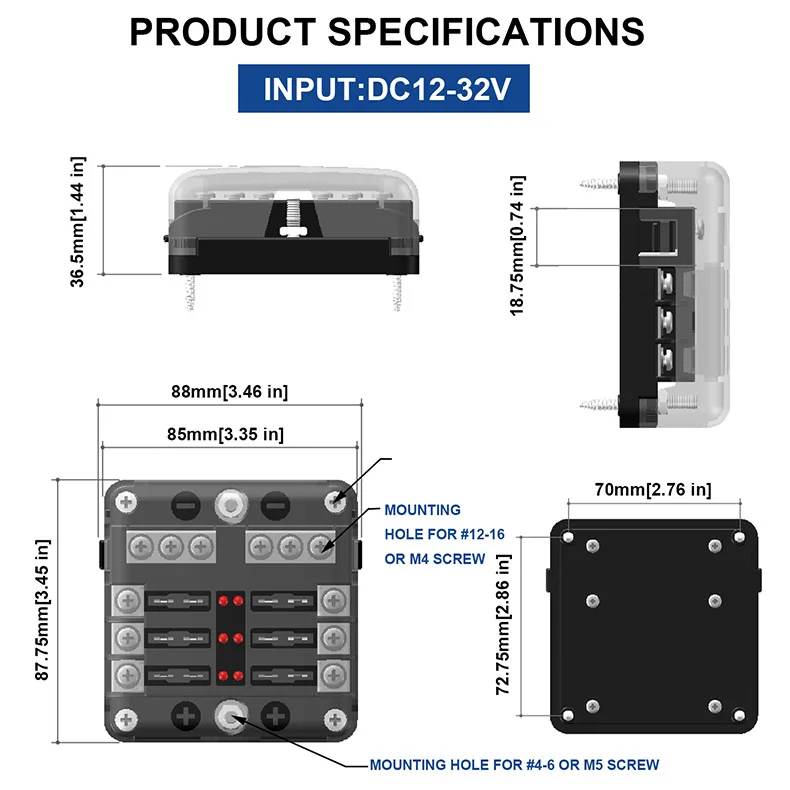

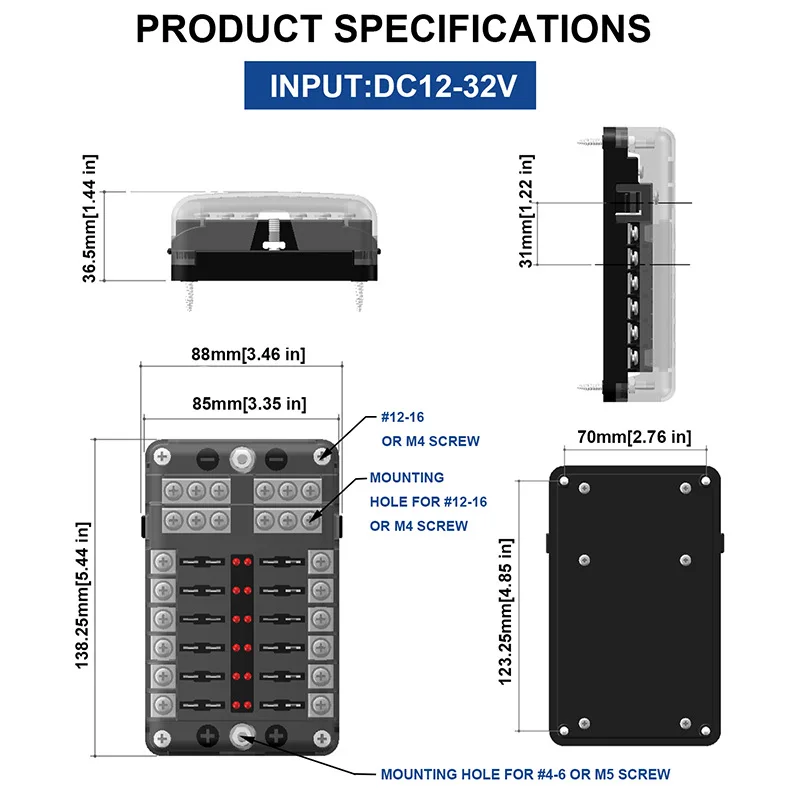

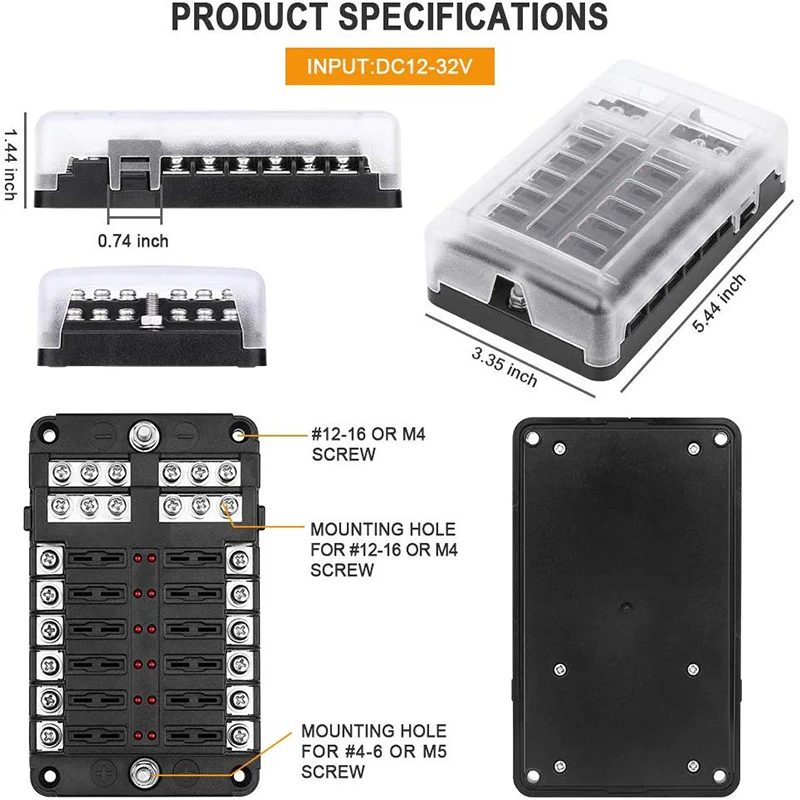

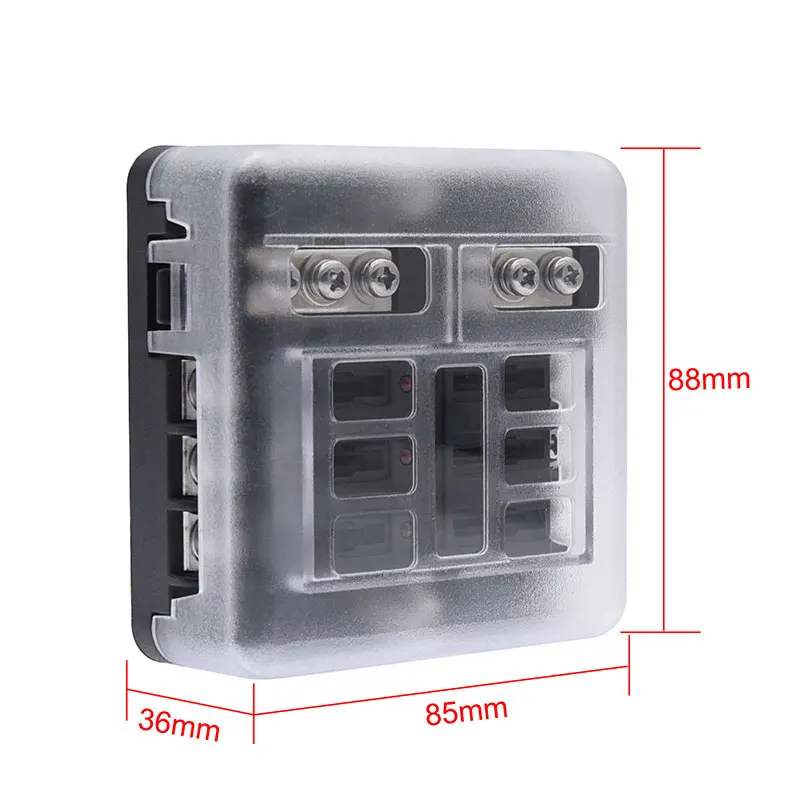

Product size:

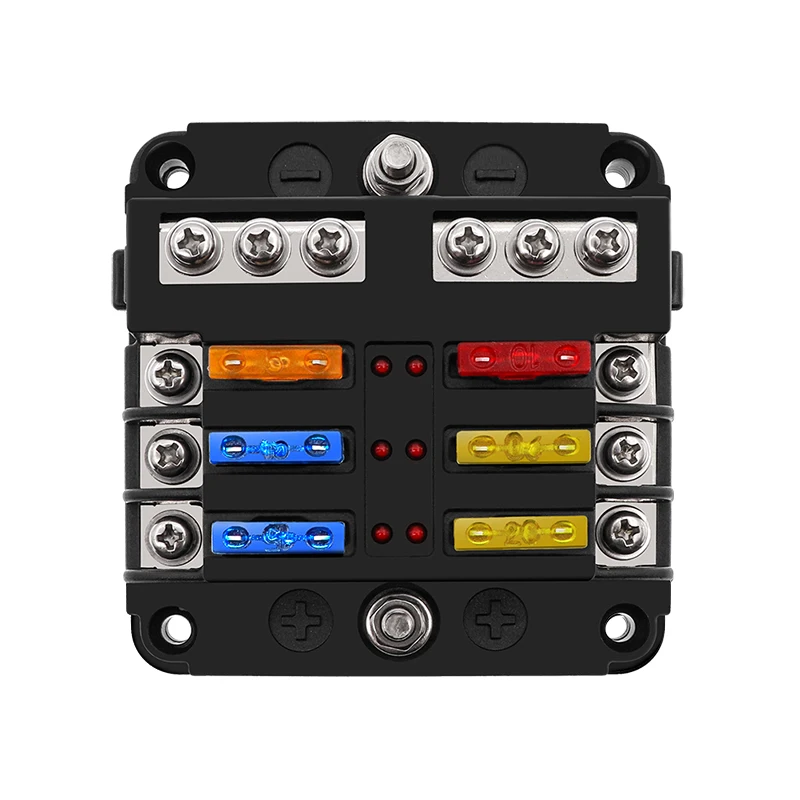

6 Ways:87.75*85*36.5mm

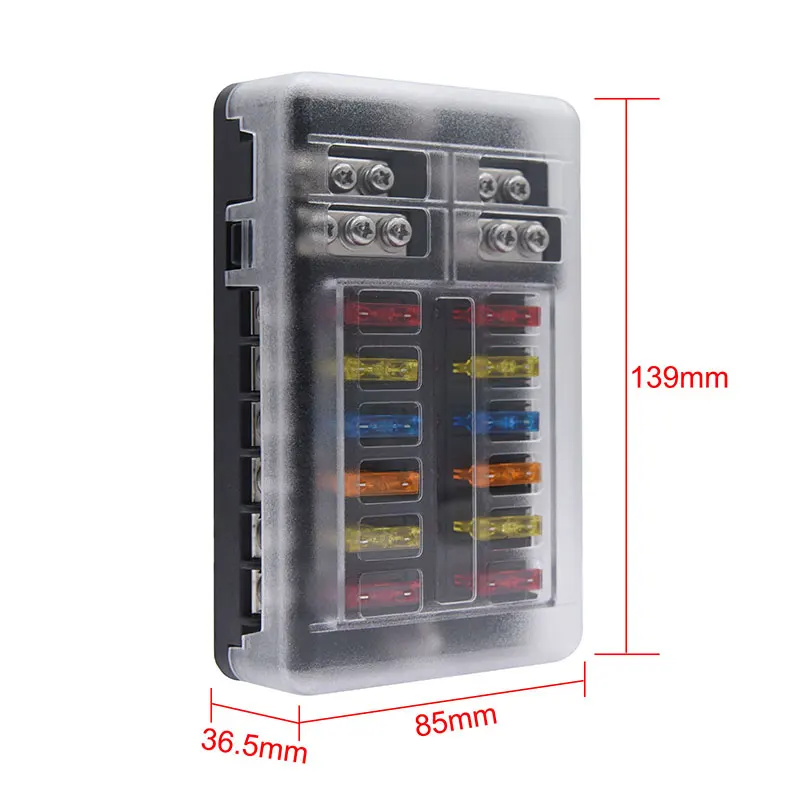

12 Ways: 138.25*85*36.5mm

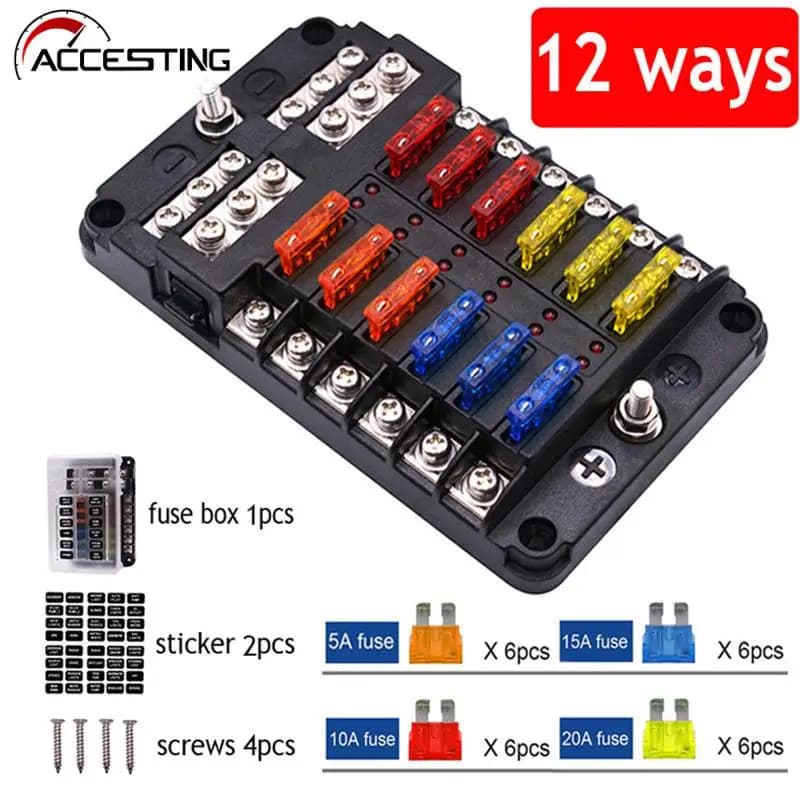

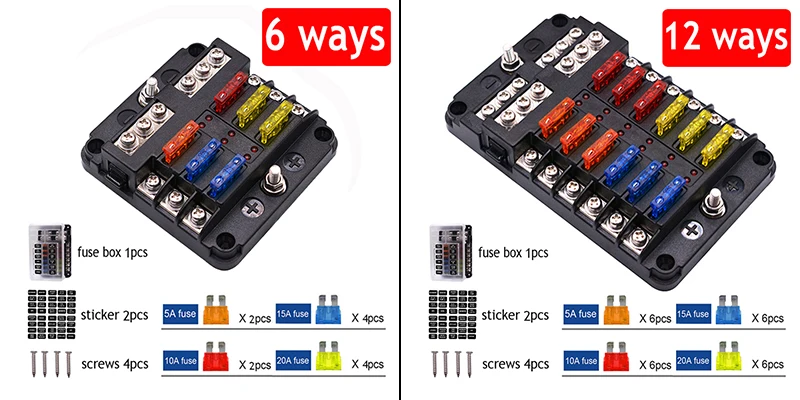

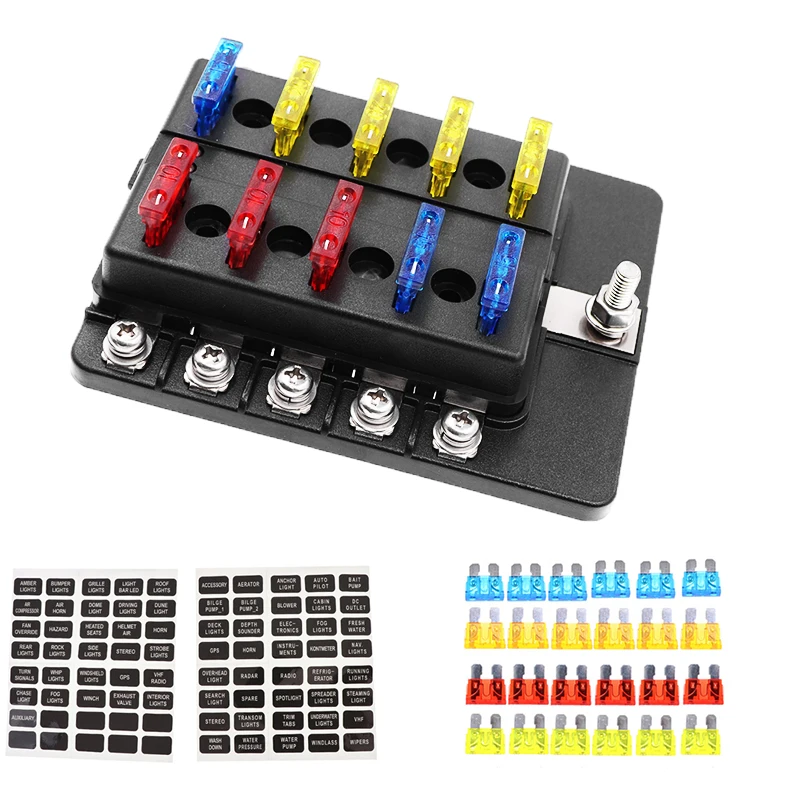

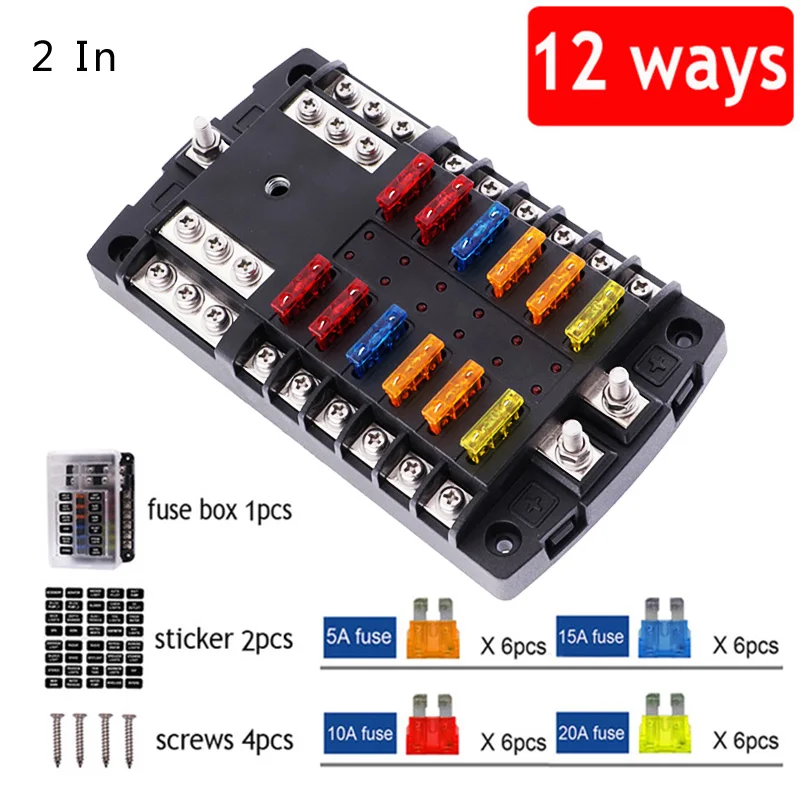

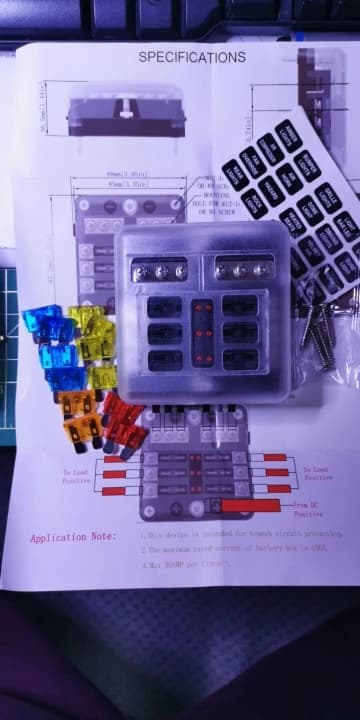

12 Ways Product List:

Sticker X1;

Self-tapping screw X4;

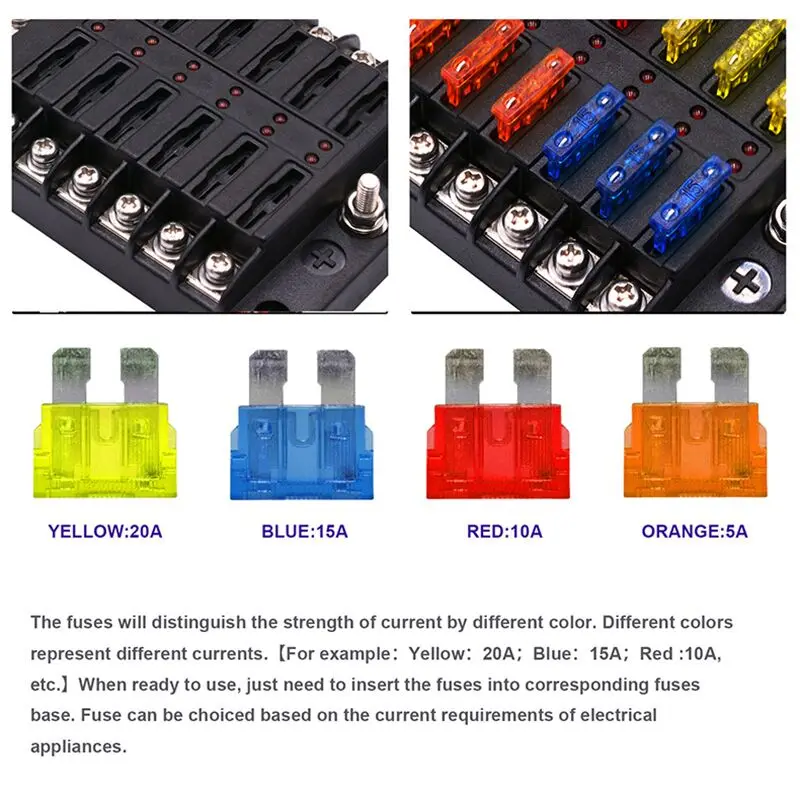

20A fuse X6;

15A fuse X6;

10A fuse X6;

5A fuse X6

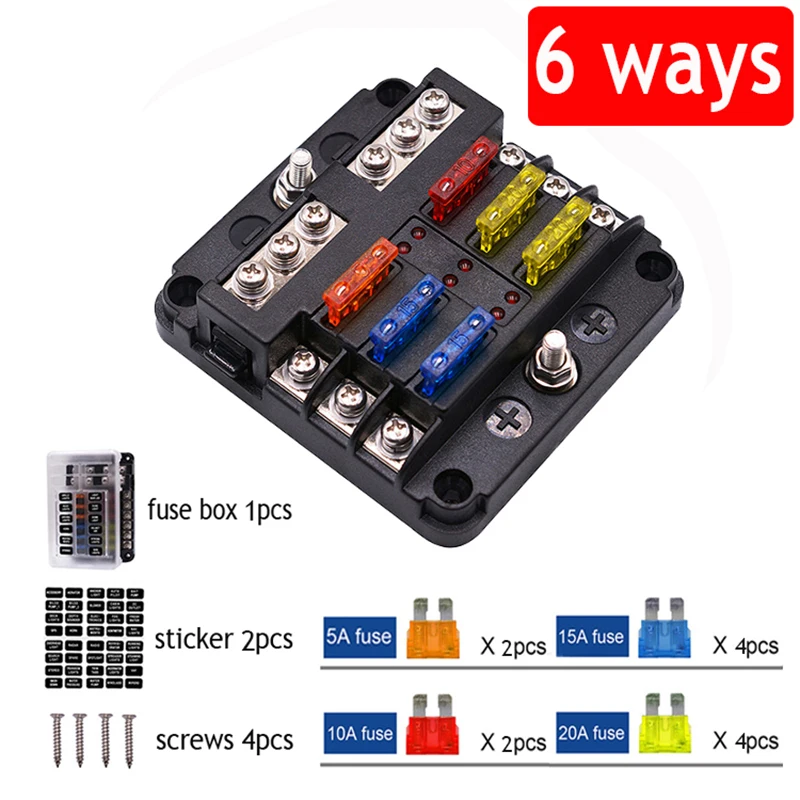

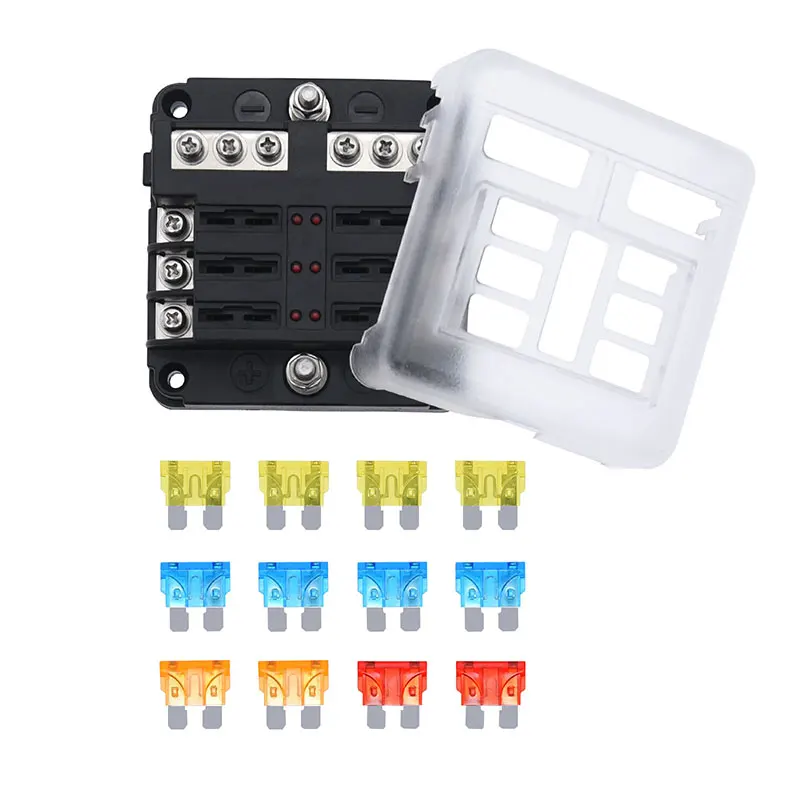

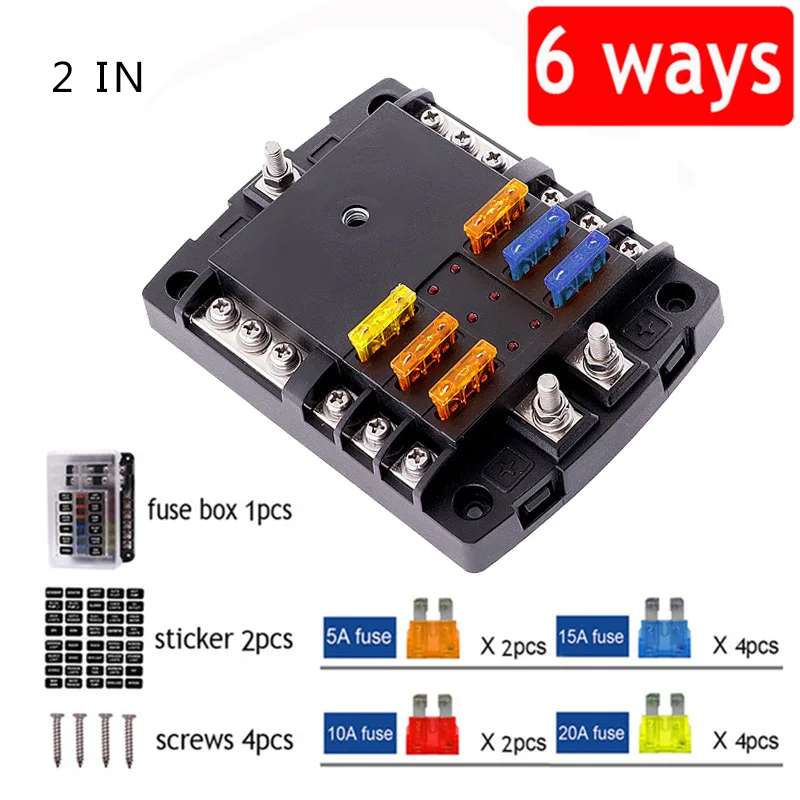

6 Ways Product List:

Sticker X1;

Self-tapping screw X4;

20A fuse X4;

15A fuse X4;

10A fuse X2;

5A fuseX2

Specifications

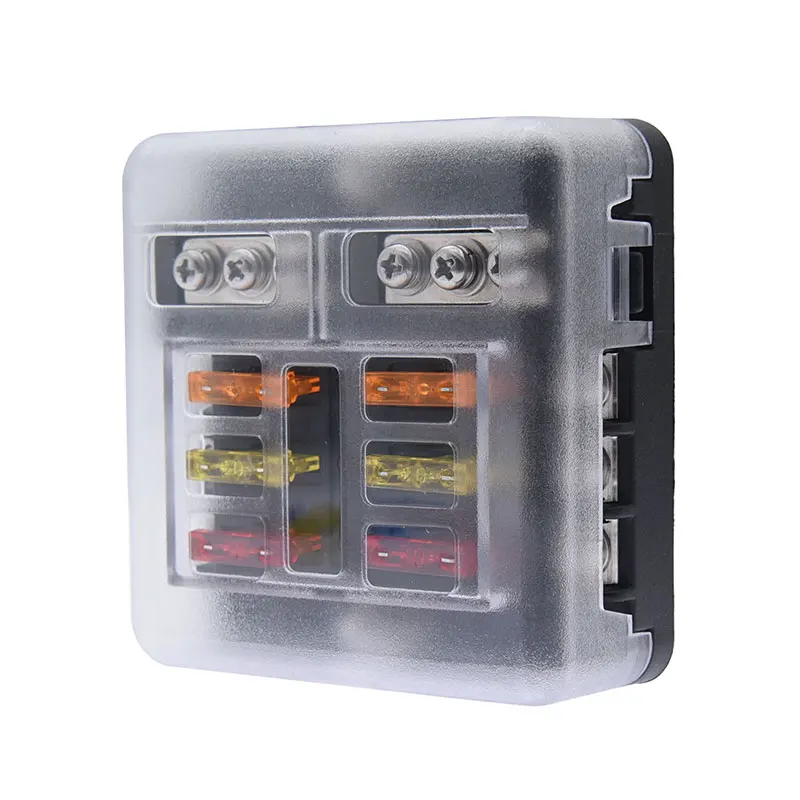

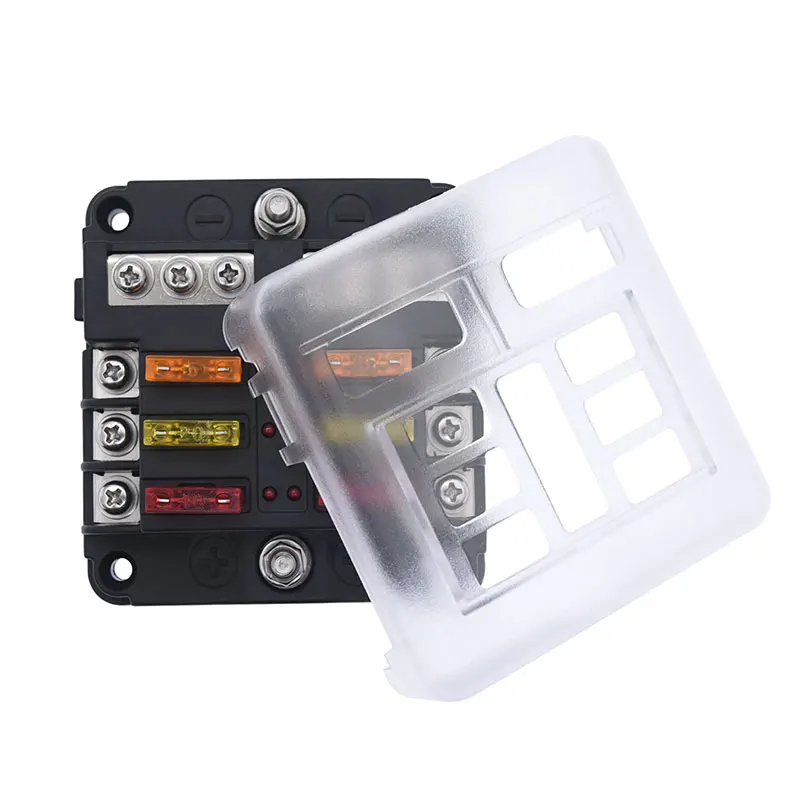

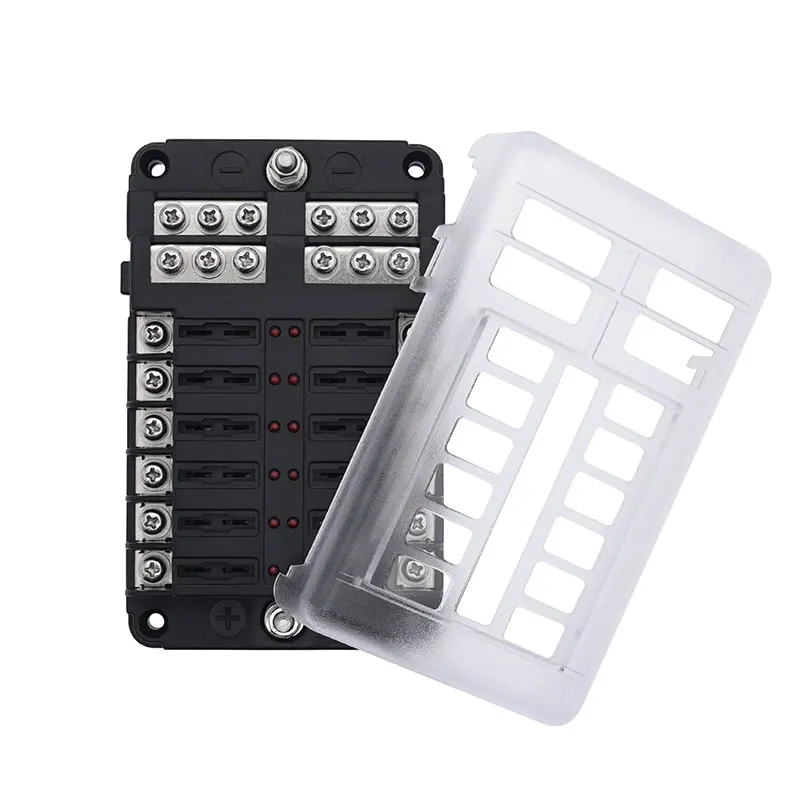

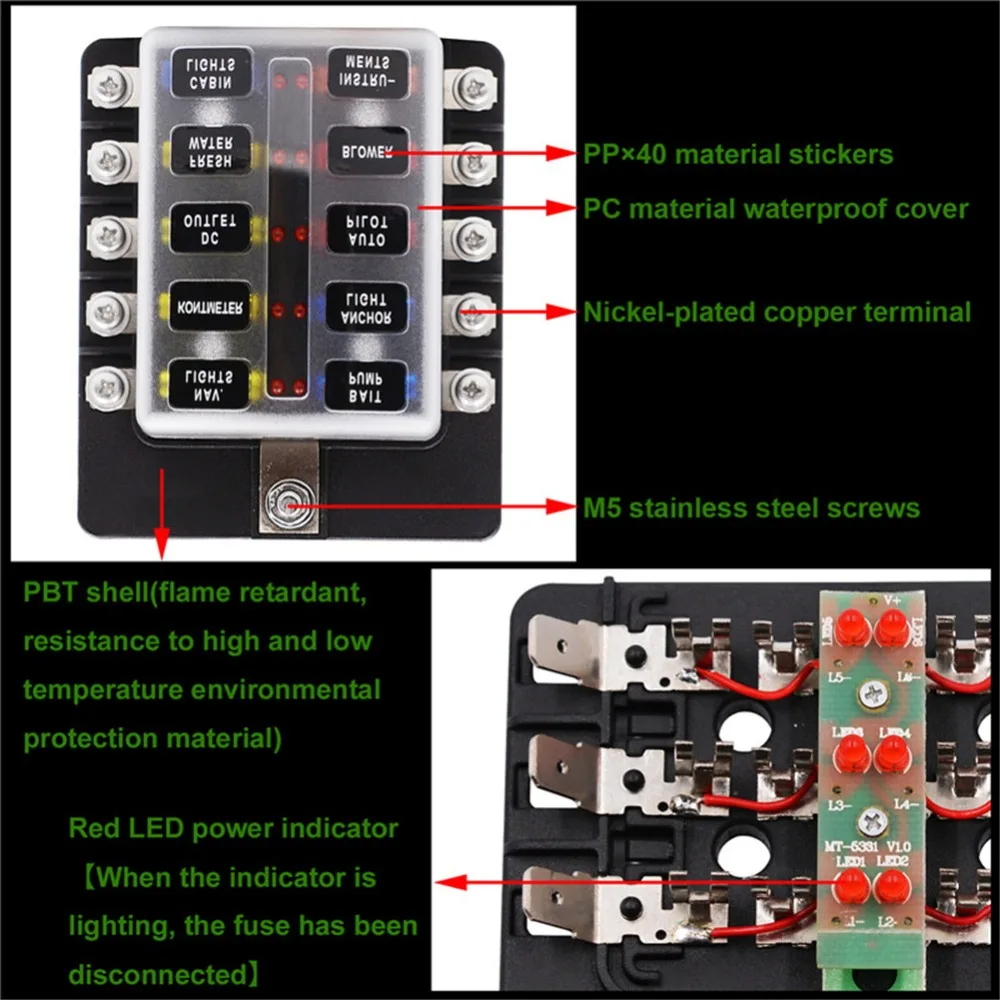

Product material: PBT body, PC waterproof and dustproof cover, nickel-plated copper connector, PPX40 sticker

Input rated voltage: 32V

input rated current: 100A

output maximum current: each circuit is 30A

Main thread terminal: M5 threaded stud

Single thread terminal: M4 threaded stud

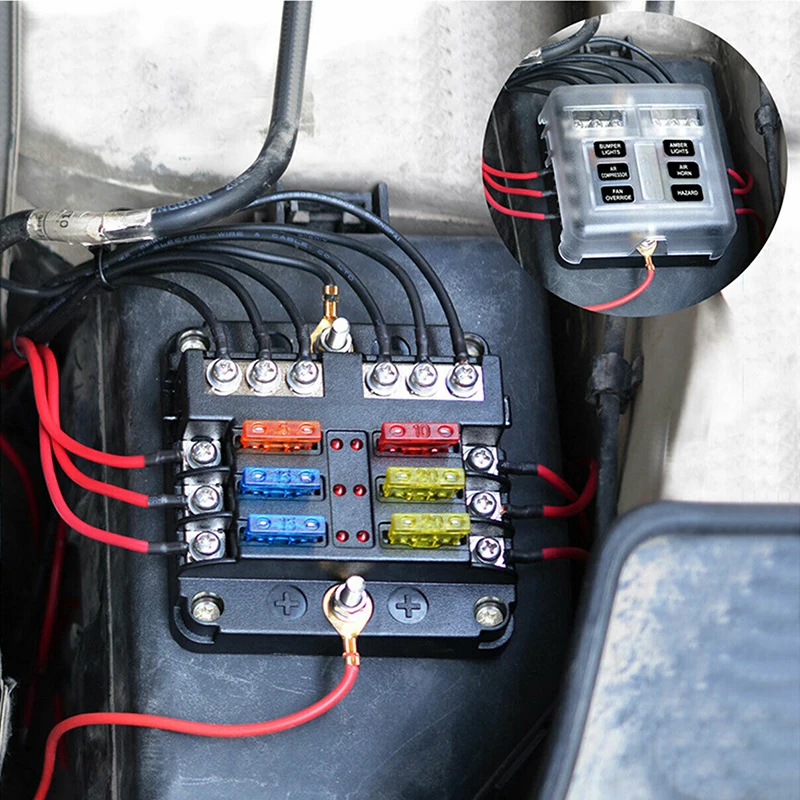

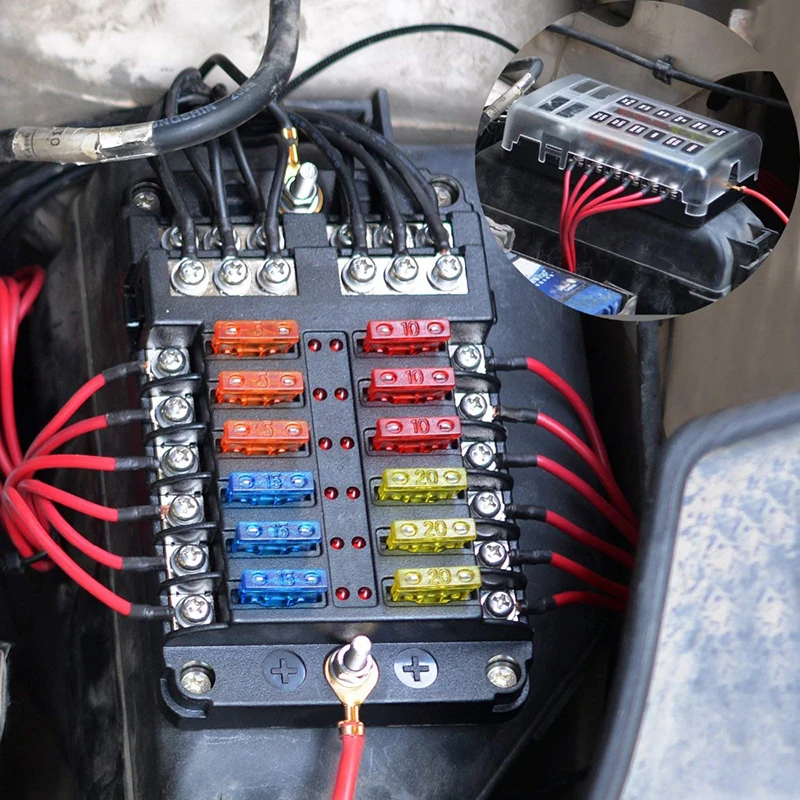

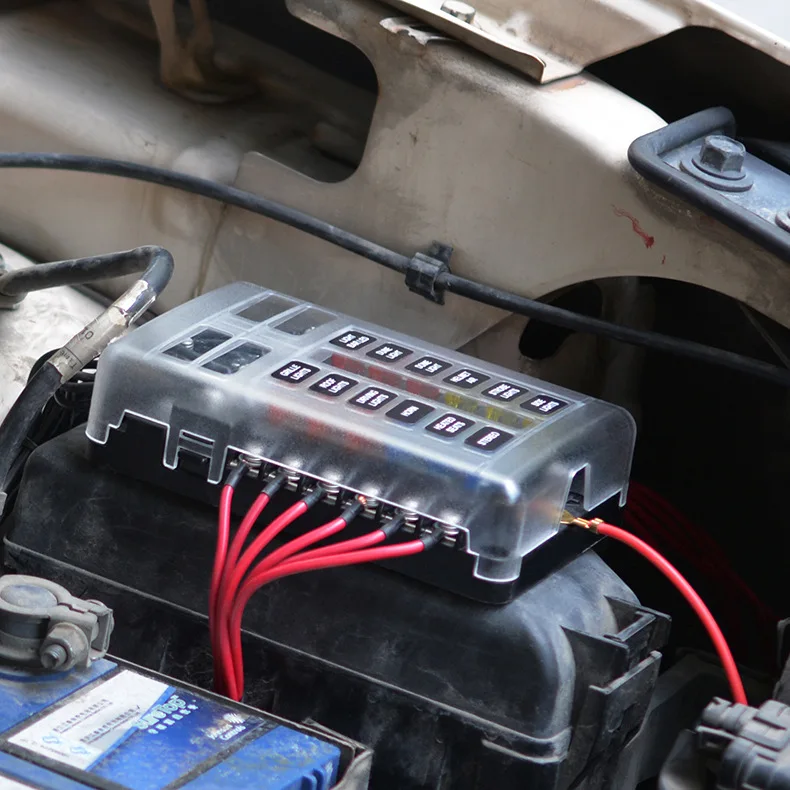

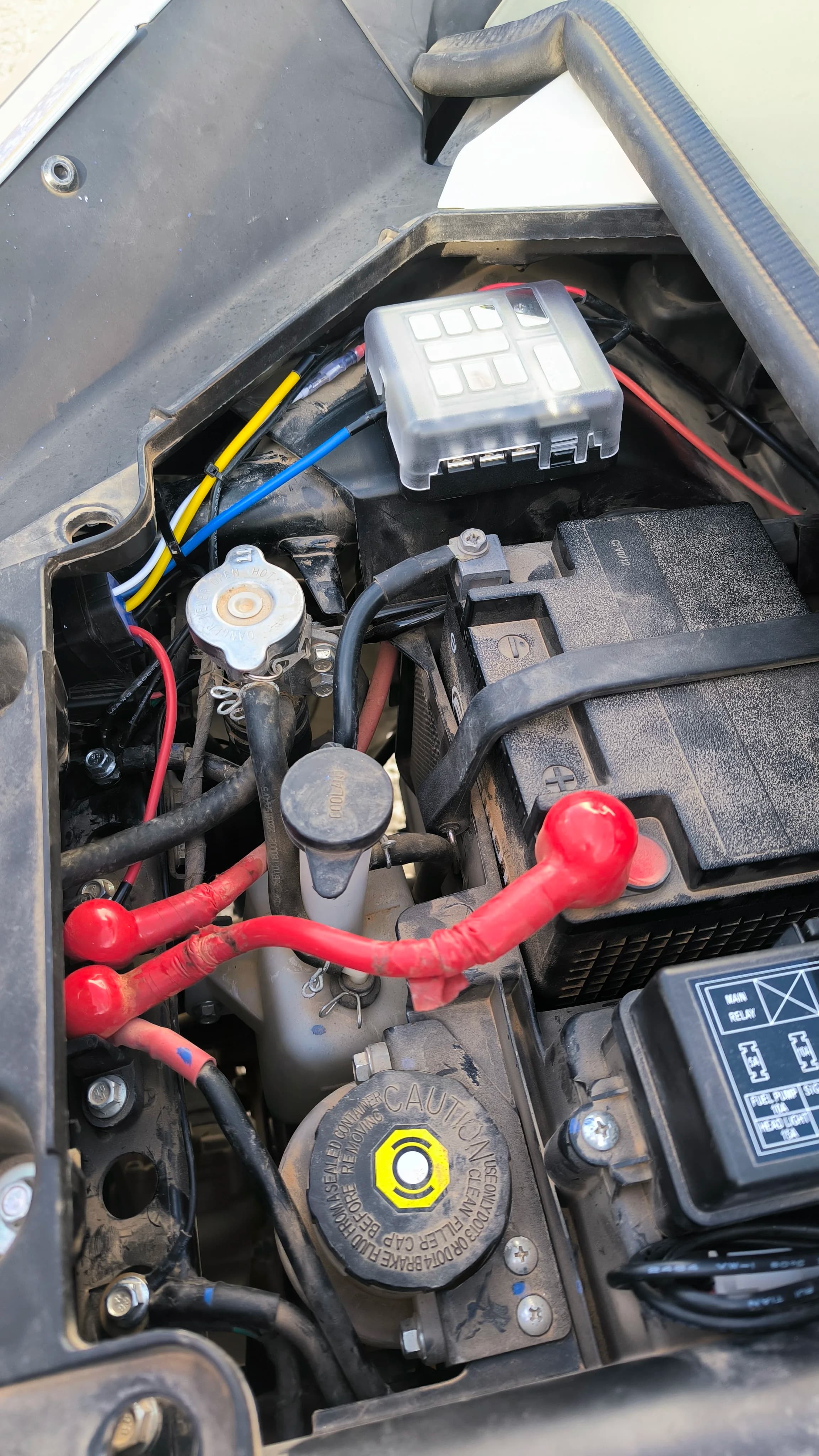

product installation: cars, houses, RVS, buses, yachts, boats, etc

Type 1 :

Product Advantages:

The product adopts PBT anti-fire material

All bus and fuse clips are nickel-plated copper with corrosion resistance

All fasteners are stainless steel.

Specifications:

Accepting fuse: Standard blade fuse (ATO / ATC)
Quantity of circuits / fuse slots:4
Positive connection: M5 stud (5mm bolt)
Output connections: Standard 6.3mm spade terminals
Current rating per circuit / fuse: 30 amp (Max.)

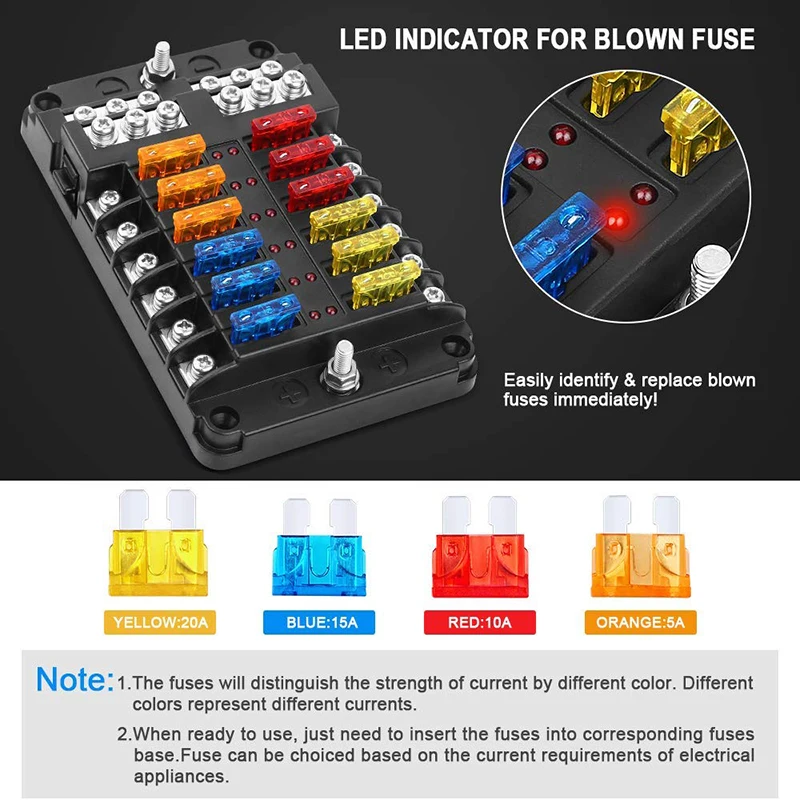

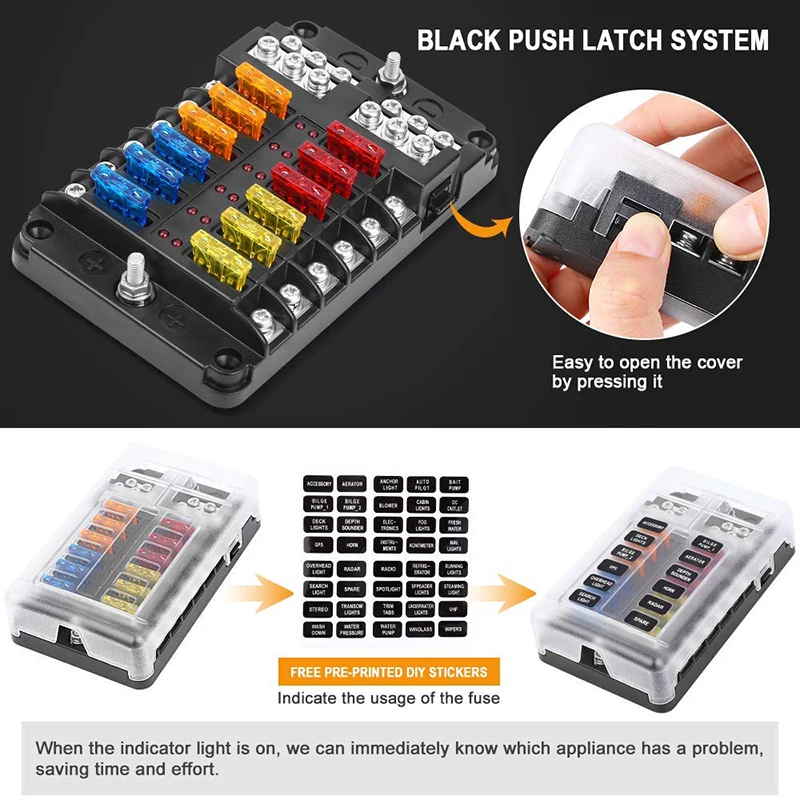

Indicator light color: Red
Volt rating: 32V DC (Max.)
Dimension: approx. 10 * 4.5 * 5cm
Package size: 11 * 8 * 5cm / 4.3 * 3.1 * 2in
Package weight: 84g / 3oz

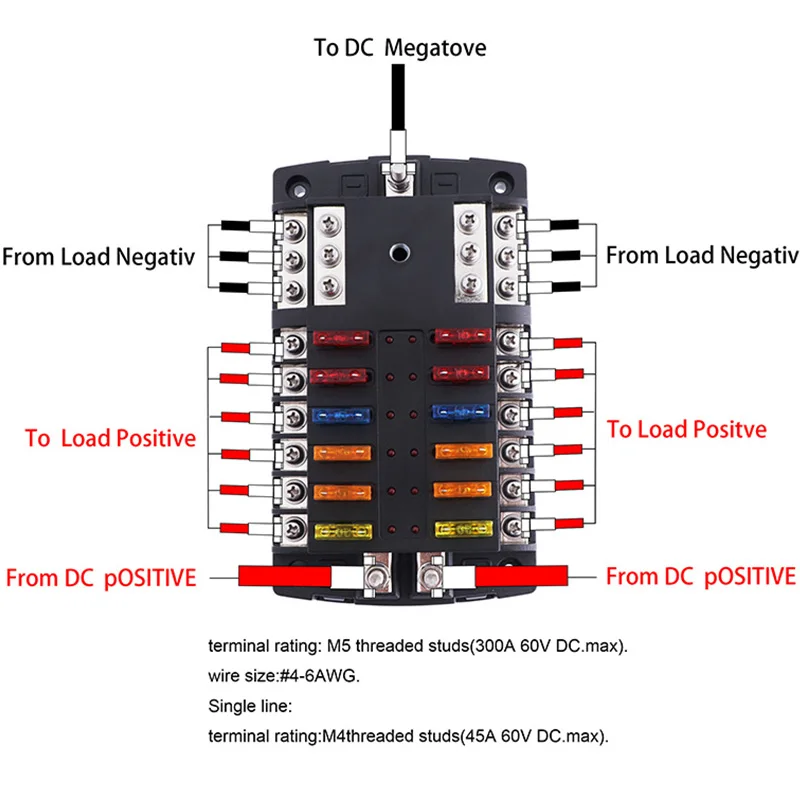

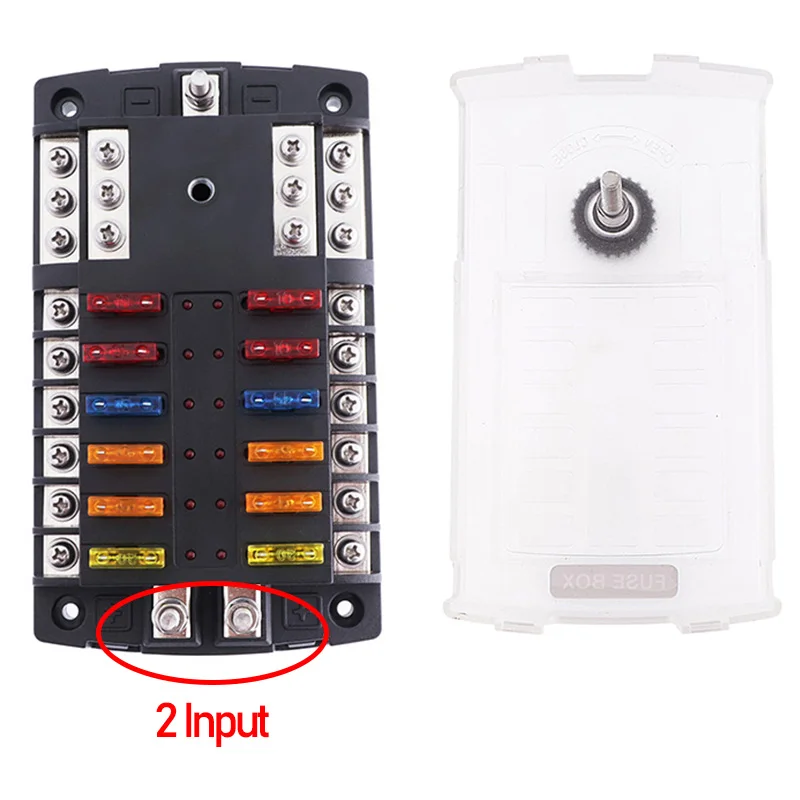

Twin Input Fuse Box
