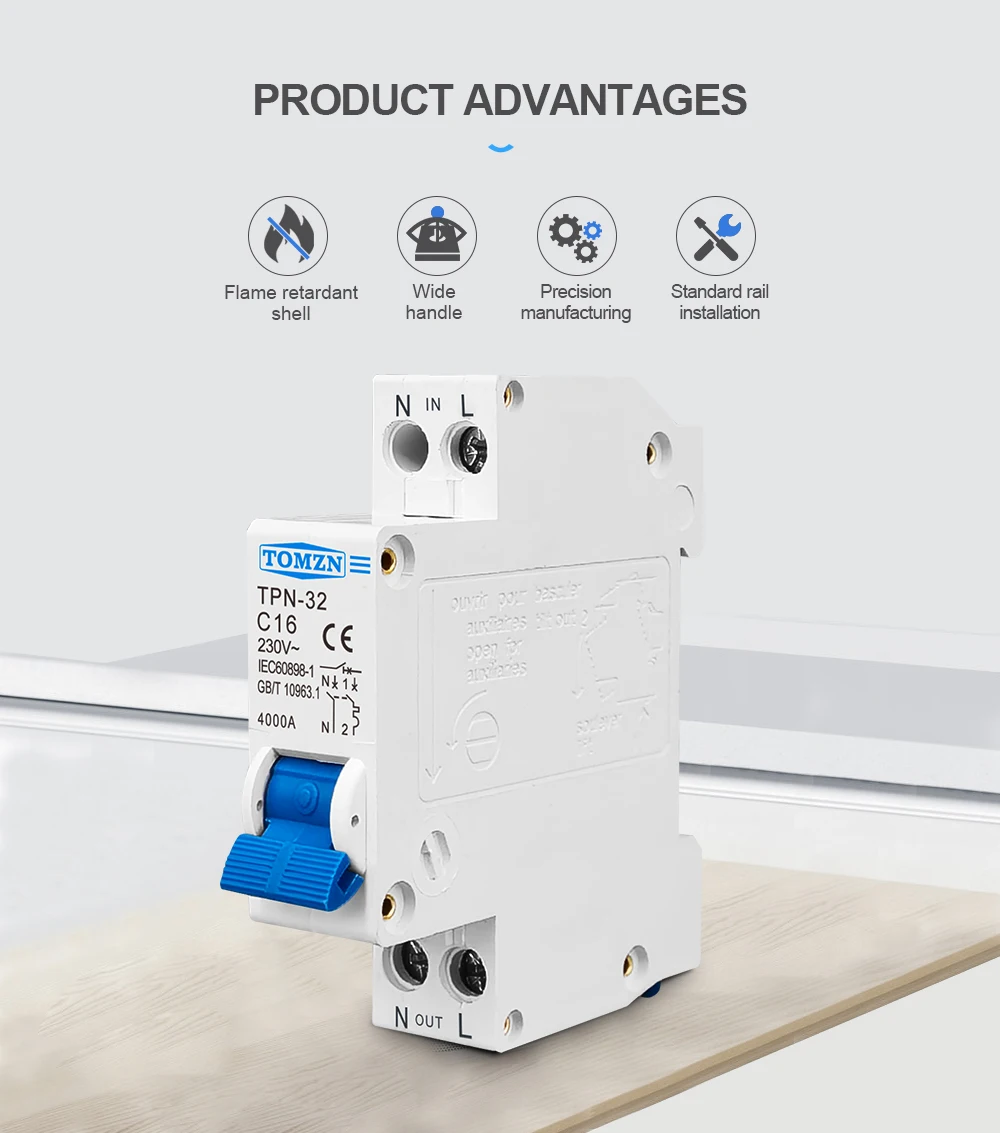

TOMZN TPN 1P+N Mini Circuit Breaker MCB 6A 10A 16A 20A 25A 32A Din Rail Mounting Miniature Household Air Switch

General

  The TPN-32 is a 1P+N AC miniature circuit breaker (MCB) designed for single‑phase residential and commercial distribution systems. Rated at 230V with current ratings from 6A to 32A, it provides reliable overcurrent and short‑circuit protection. The 1P+N configuration allows the device to switch the live conductor while the neutral remains continuously connected, ensuring safe and convenient circuit control. Compact, DIN‑rail mountable, and built to IEC 60898 standards, the TPN‑32 is an ideal choice for lighting, socket, and general power circuits.

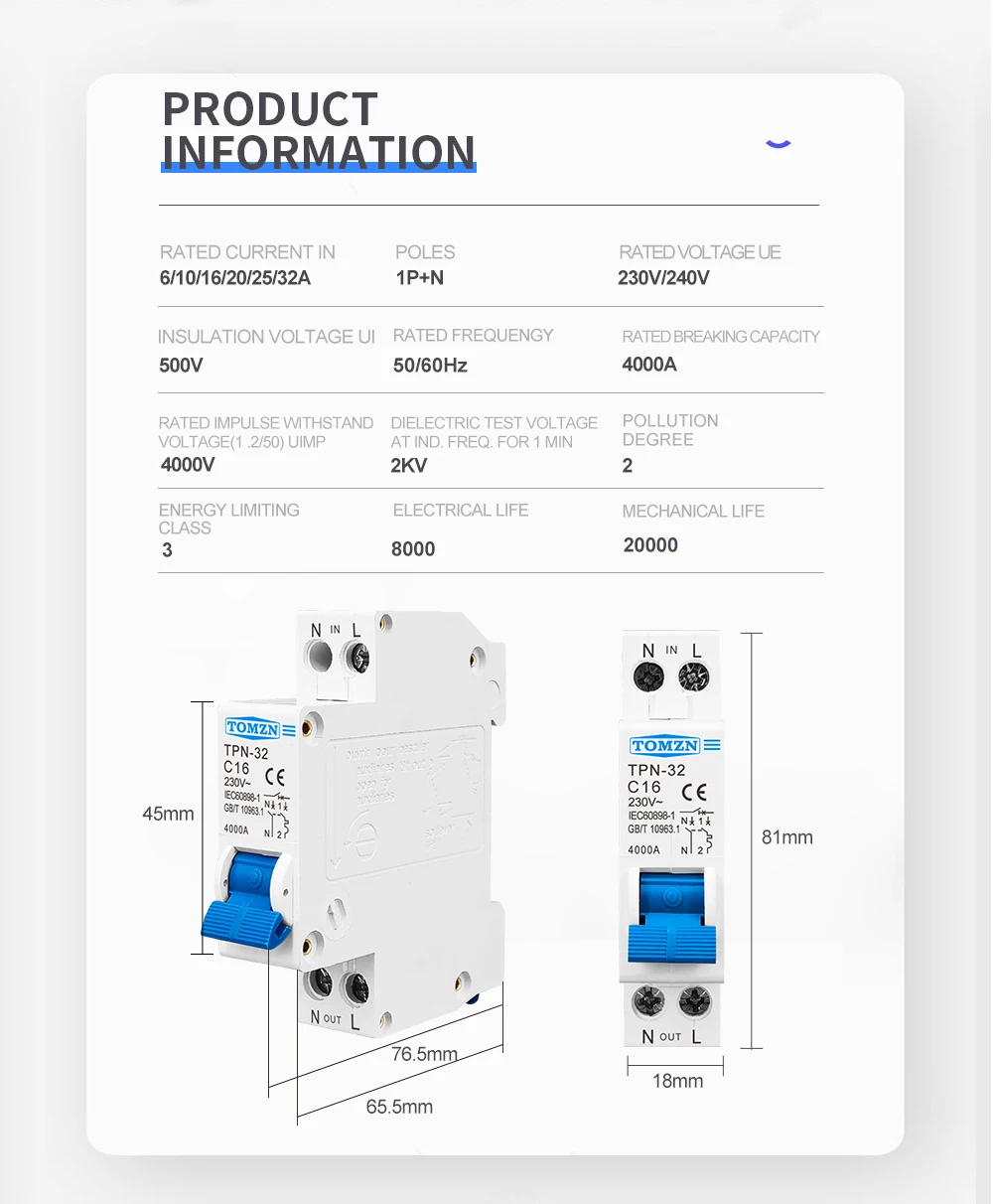

Product parameter

Product Model: TPN‑32

Product Type: 1P+N AC miniature circuit breaker (MCB)

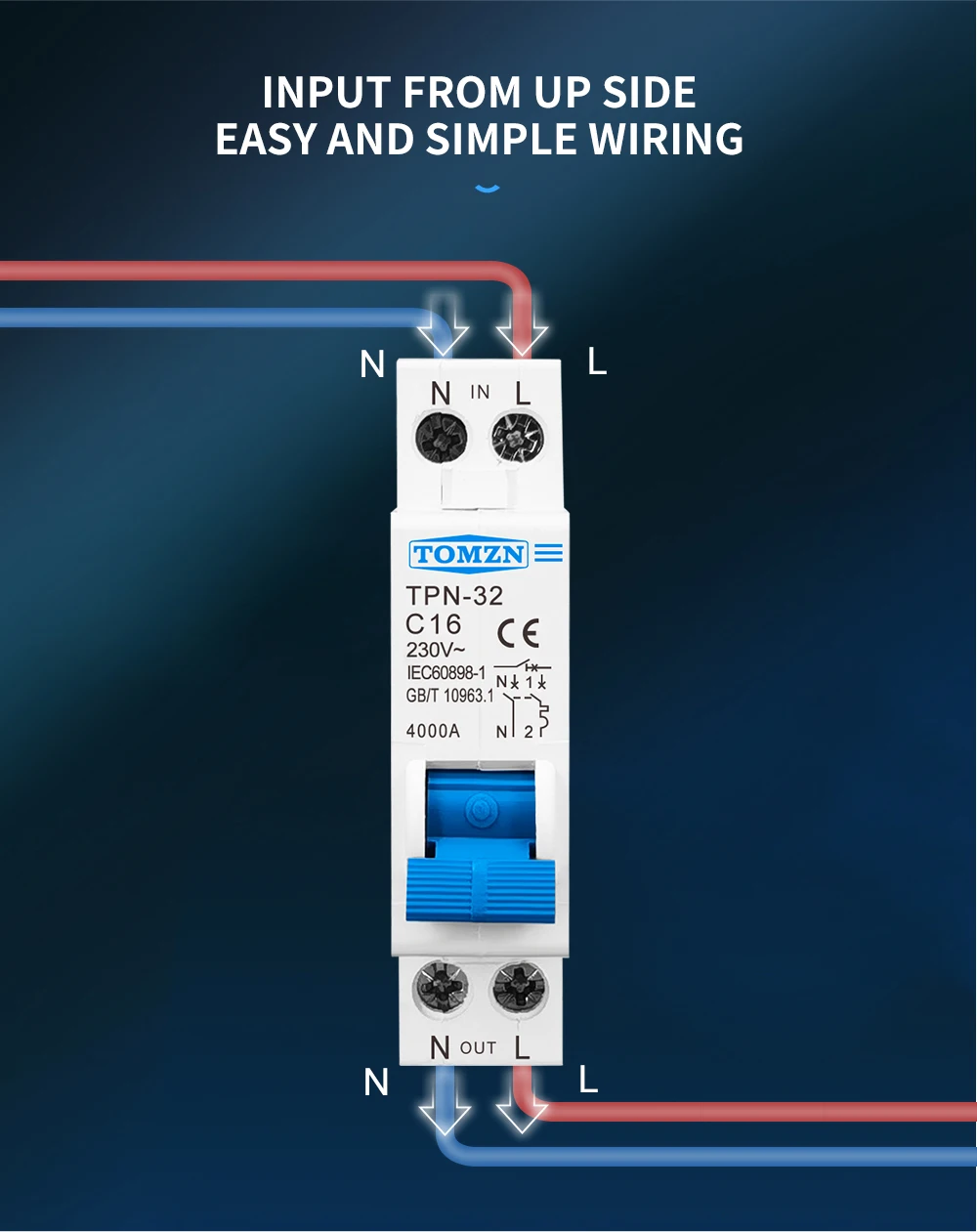

Number of Poles: 1P+N (switches L, N continuously connected)

Rated Voltage: AC 230V

Rated Current: 6A, 10A, 16A, 20A, 25A, 32A

Tripping Curve: C curve (standard, 5‑10 × In)

Rated Breaking Capacity: 6kA (IEC 60898)

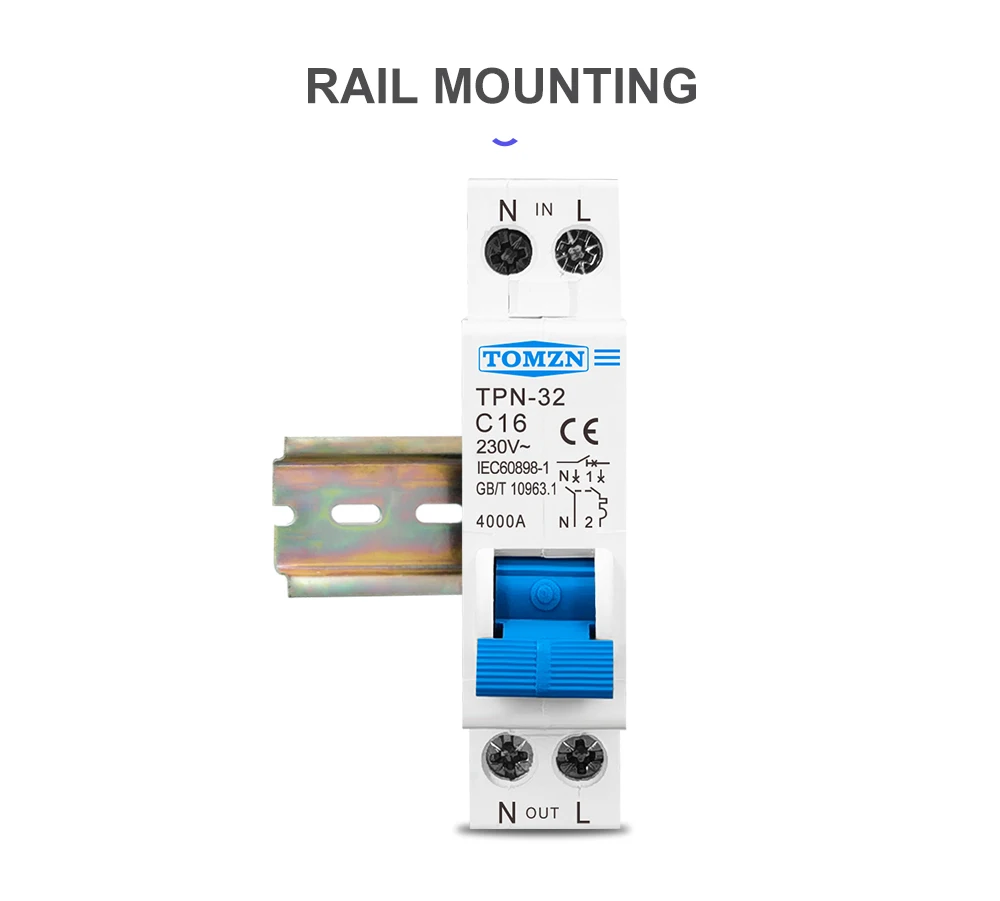

Installation: 35mm DIN rail

Terminal Type: Tunnel type, suitable for 1‑25mm² conductors

Standards: IEC 60898‑1, EN 60898‑1

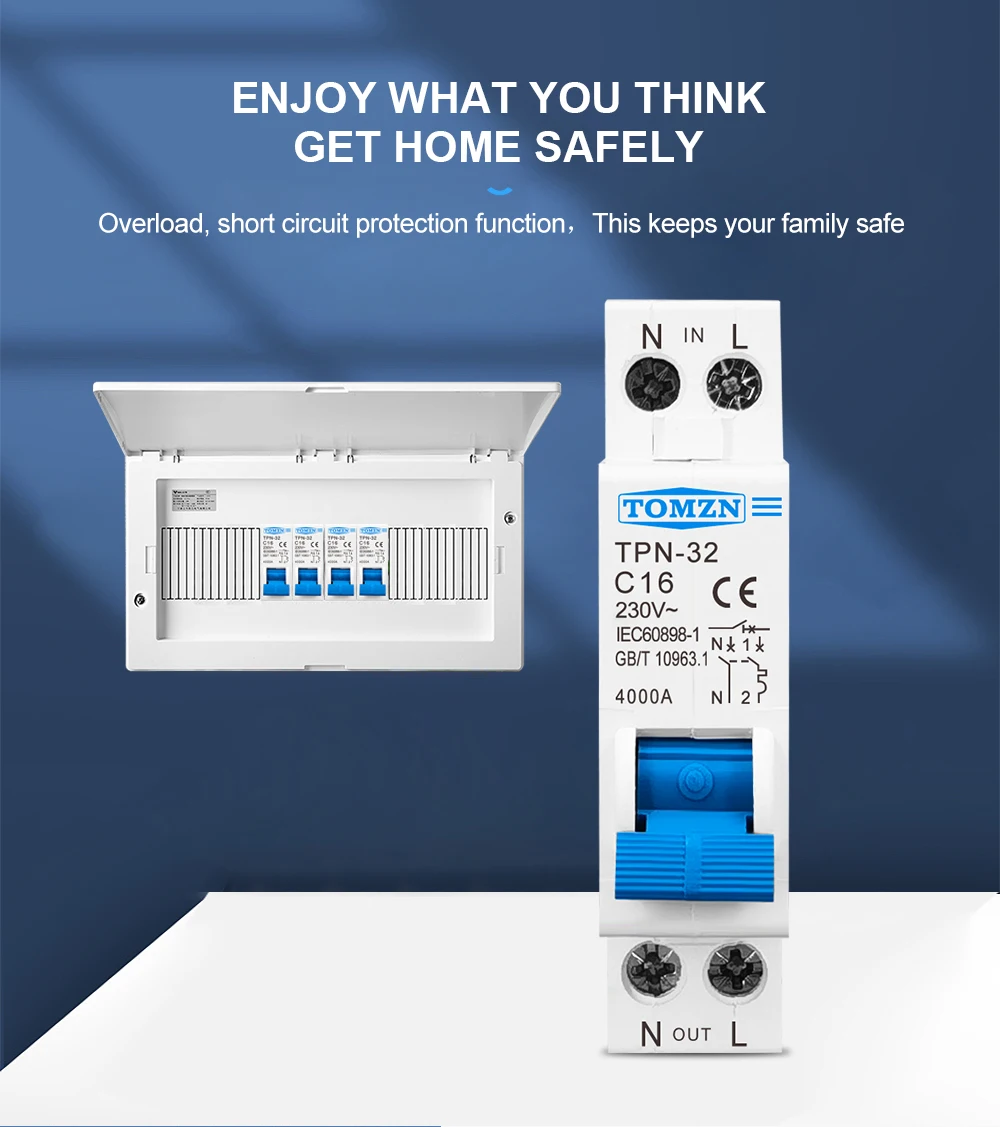

Application: Lighting, socket outlets, and general single‑phase circuits
