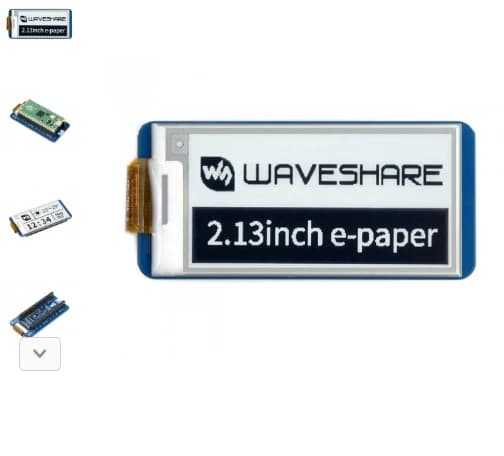

Raspberry Pi 2.13inch e-Paper E-Ink Display HAT SPI Interface 250x122 2.13 inch
22.25$
22.25$
Quantity:
1
Availability:
Bundle
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Do not include Raspberry Pi
Overview
This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
Operating voltage: 3.3V/5V
Interface: SPI
Outline dimension: 65mm × 30.2mm
Display size: 23.71mm × 48.55mm
Dot pitch: 0.194 × 0.194
Resolution: 250 × 122
Display color: black, white
Grey level: 2
Partial refresh time: 0.3s
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°
Interface

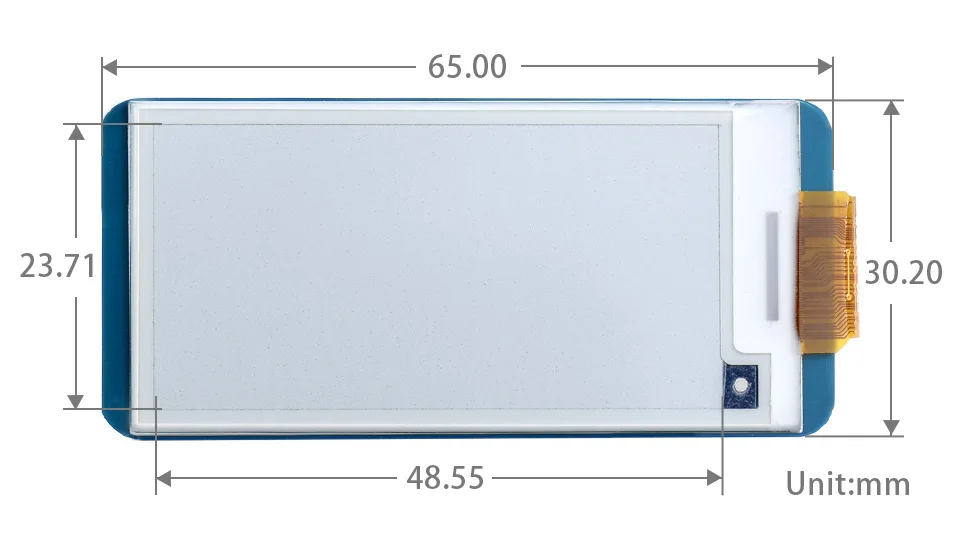

Dimensions
Package Contains

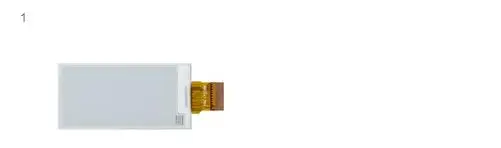

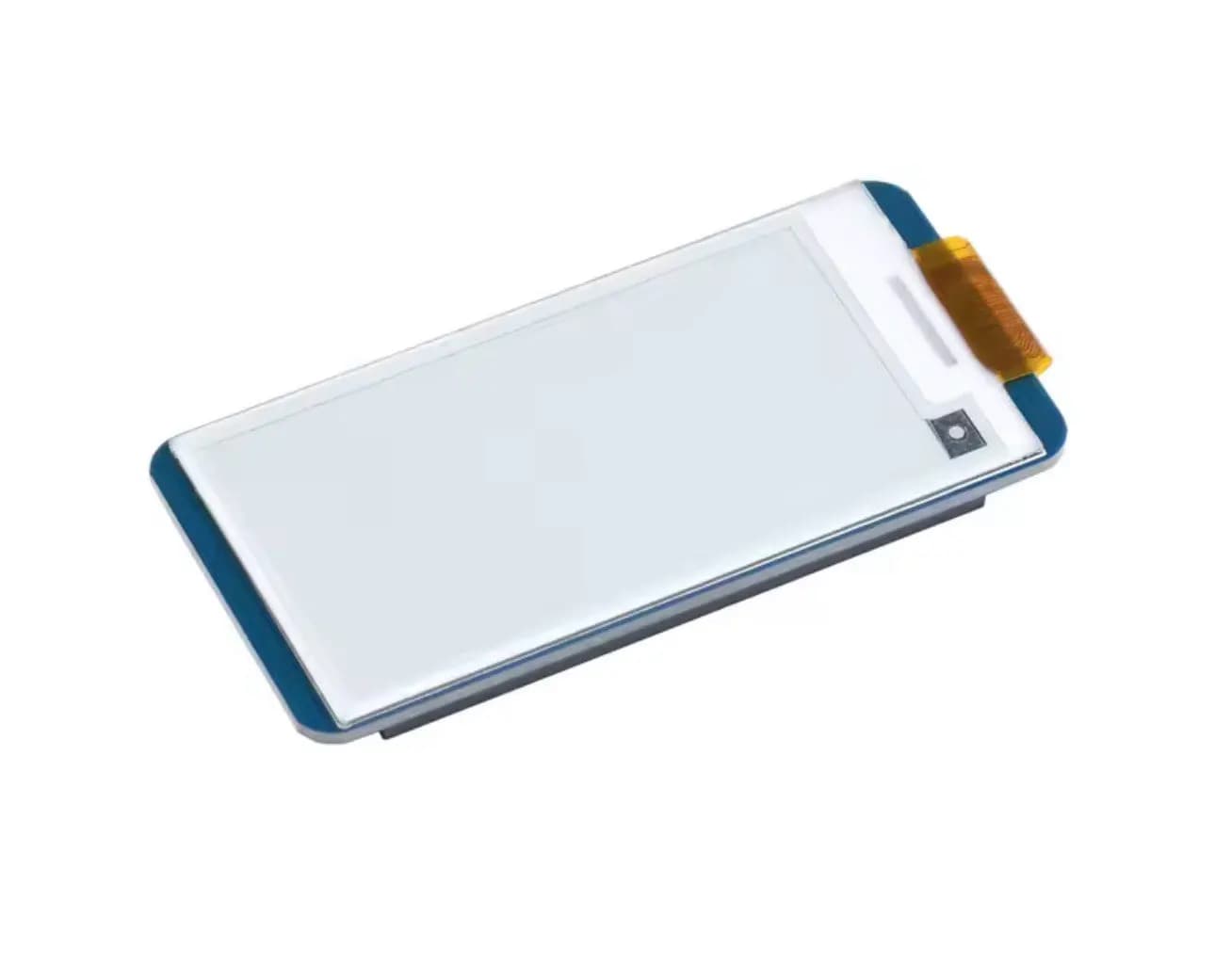

2.13inch e-Paper（Without PCB）
Note: This is a raw display, you may also want to buy the assembled variant for easy testing and comparing: 2.13inch e-Paper HAT

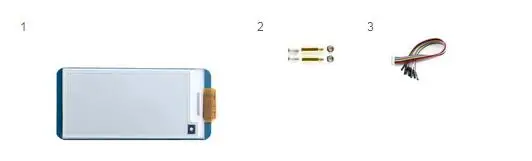

2.13inch e-Paper x1

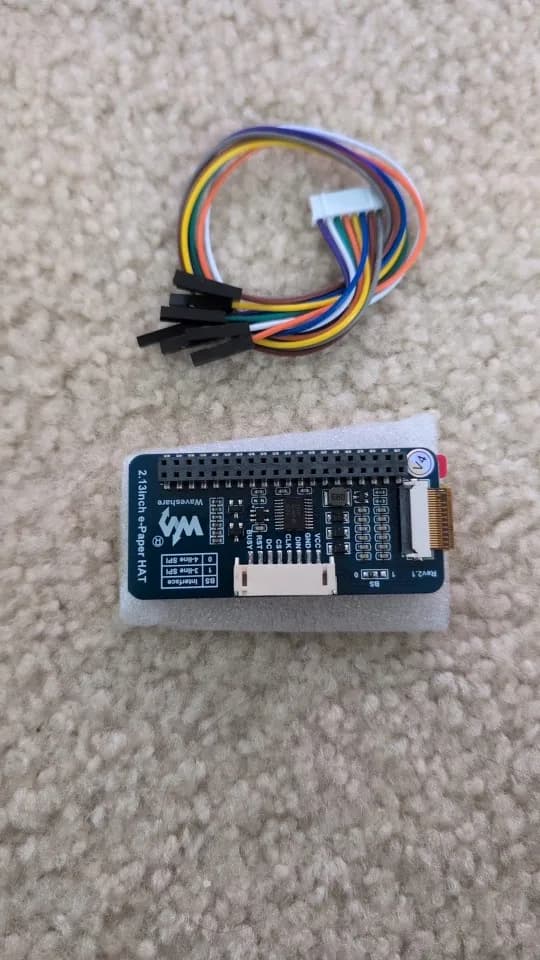

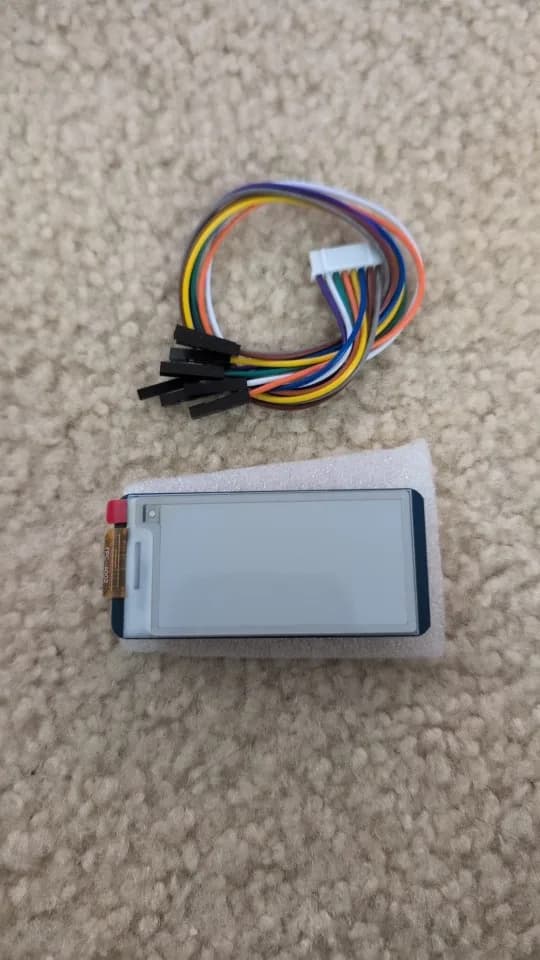

2.13inch e-Paper HAT（With PCB）
2.13inch e-Paper HAT x1
RPi screws pack (2pcs) x1
PH2.0 20cm 8Pin x1
Customer Reviews
138 ratings
works as expected (15)
fast delivery (14)
well packaged (14)
as described (8)
excellent (6)
works properly (4)
Customer photos (30)
n***r
June 20, 2026
Variant: Bundle:With PCB

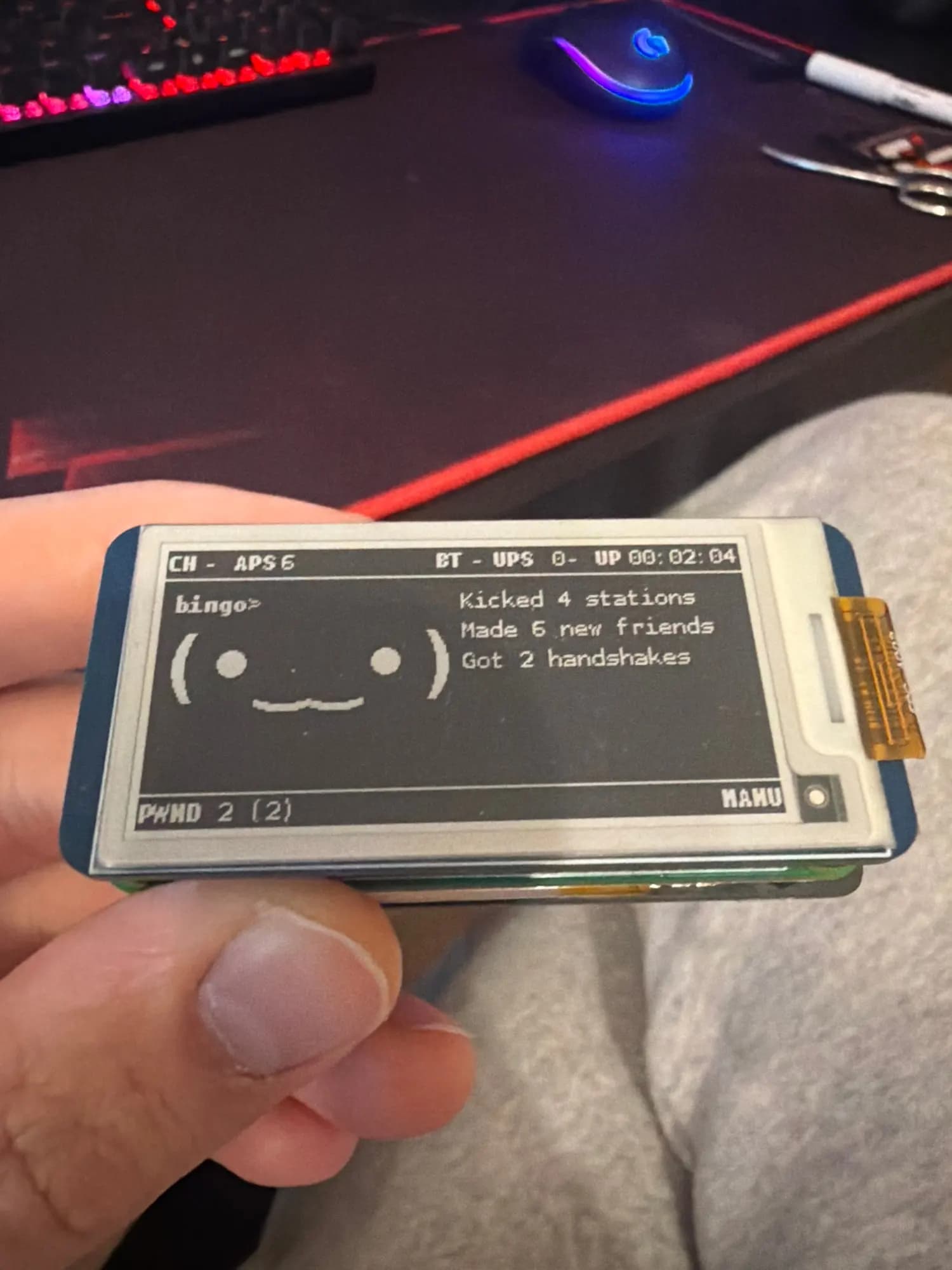

I’m extremely impressed with this e-ink display. The screen quality is excellent, with sharp text, great contrast, and a paper-like viewing experience that is easy on the eyes. It uses very little power, making it perfect for long-term projects and everyday use. The build quality feels solid, setup was simple, and the display is responsive and reliable. It’s a fantastic choice for anyone looking for a clean, efficient, and modern display solution.
Buyer from United States
June 2, 2026
Variant: Bundle:With PCB
came fast and on time exactly what I wanted and read just like the description not damaged or nothing I would highly recommend
n***r
May 23, 2026
Variant: Bundle:With PCB

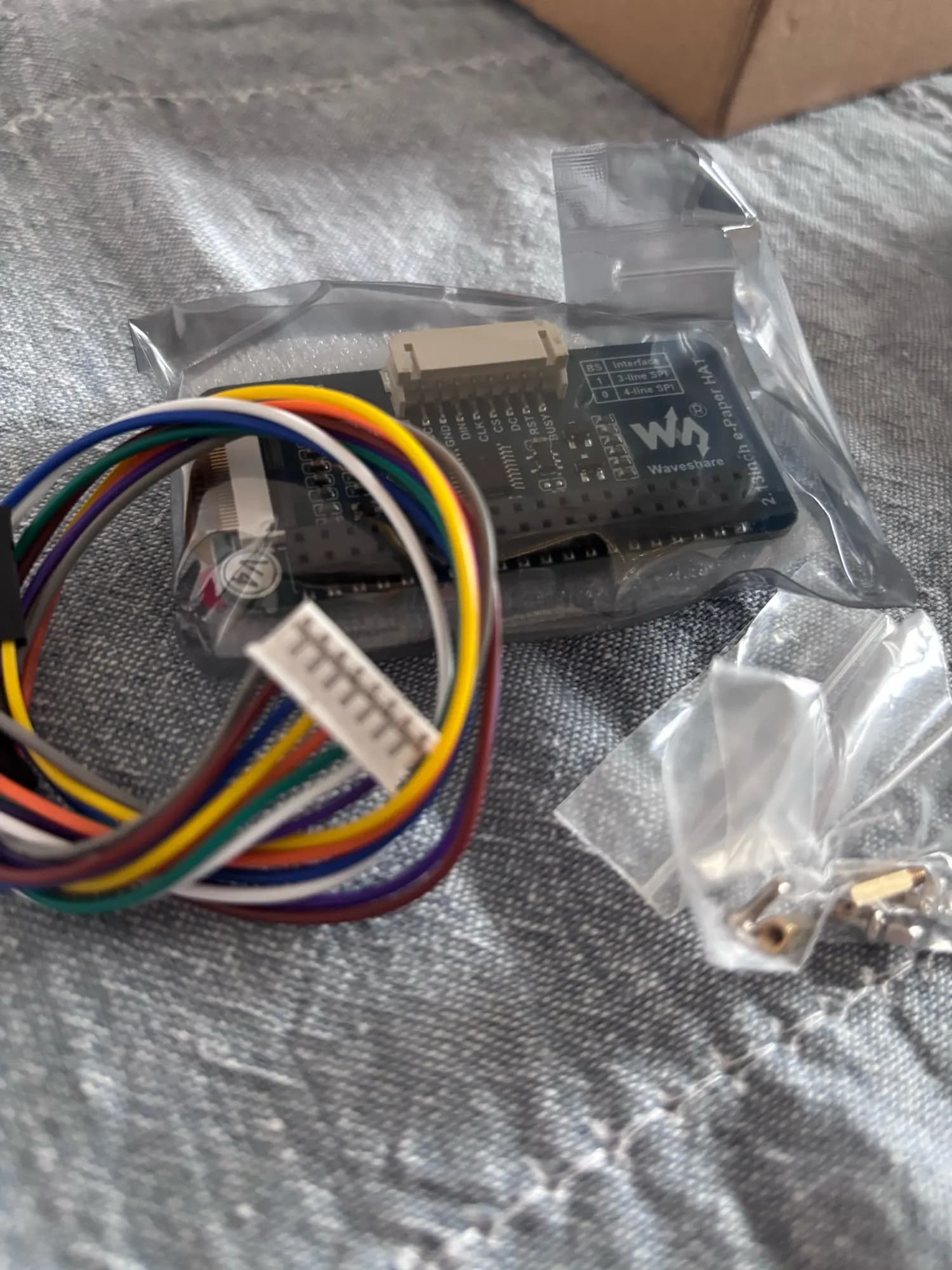

Arrived quickly from Ali. Box was not damaged, and was in new condition. Need to test it still, but I’m confident it’ll work great. Waveshare quality is always top notch with clean solder, good design, good silk screen on the PCB, etc. glad it came with stand offs and cable to connect to microcontroller pins.
Buyer from United States
May 12, 2026
Variant: Bundle:With PCB
Got exactly what I ordered Great product fast shipper .
r***n
March 27, 2026
Variant: Bundle:With PCB
Arrived neatly packaged and exactly as advertised.
Translated by AliExpress ·
M***a
February 25, 2026
Variant: Bundle:Without PCB
All good, but unfortunately I ordered the wrong part; I wanted the one with a PCB. I will order again.
