5m-100m 2 Pin Electrical Wires UL2468 28/26/24/22/20/18/16 AWG Red Black Cable Speaker Wire For LED Car Audio 12V JST Connector

Promise

● All product parameters are real data.

● You don't have to worry about buying products with unsafe and false parameters.

● UL Certificate Number:
20170321-E365423

● CE Certificate Number:
0B181030.SDEQU25

▋ Store promotions :

● The store CODE can be stacked with the full discount event, if your order amount reaches the threshold for using the store CODE, please don't forget to collect the store CODE and use the store CODE.

● Full Discount will automatically reduce the amount to be paid according to the amount of your order; The store CODE needs to be actively collected and used by you to reduce the amount you need to pay.

● Each store CODE, each ID can only receive one during the campaign period; In the next campaign period, the number of store code pickups will be automatically reset.

▋ Ordering notes :

● Wire length may have 1% error, may be long or short, please understand, thank you!

● For combined purchases, we will ship according to the order quantity. For example, if you buy 30 meters and 20 meters at the same time, you will receive a cable with a length of 30 meters and a cable with a length of 20 meters.

▋ About express delivery :

● Item are shipped within 2 business days once full payment is settled.

● It is suggested to choose the traceable logistics mode, which is safer and faster.

● The weight > 2kg,we may change the mode of transportation according to your country and use other logistics methods with faster and safer timeliness, which does not require you to pay extra.

▋ About after-sales :

● 100% meet CE standard, UL standard, RoHS standard.

● If the goods are lost in the process of logistics transportation, or exceed the specified transportation time, then please contact us, we will refund you the first time to ensure your shopping experience.

● If you have any questions, please contact us, we will help you.

● If you satisfied with us, Please give us Five-Star Feedback!! Thank you :)

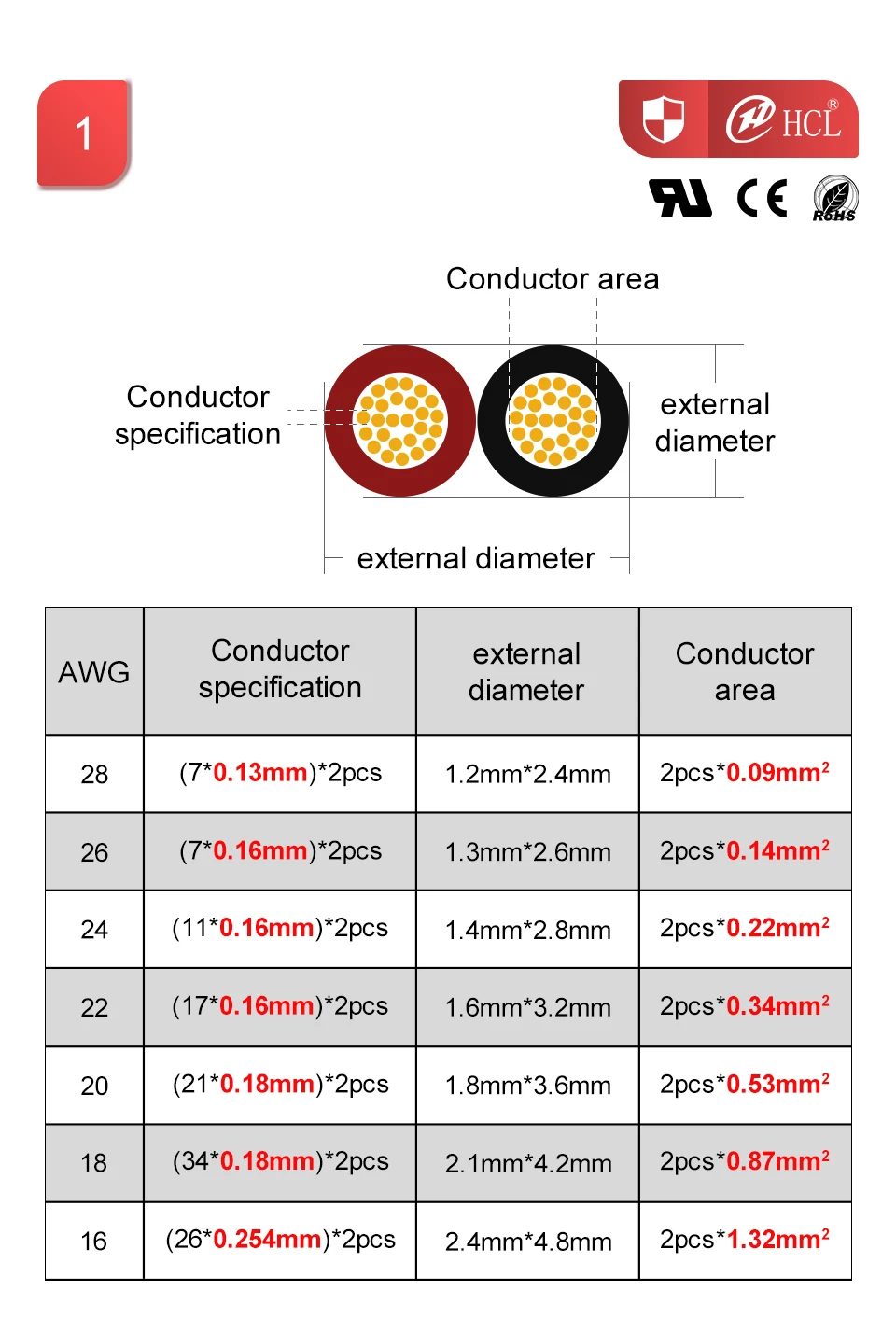

▋ Specification description

● 16 AWG
Temperature: -30 degrees to +80 degrees
Each copper wire diameter: 0.254mm
Core: 26 shares * 2 pcs
Conductor area: 1.32mm² * 2 pcs
((0.254 / 2)² * 3.14 * 26=1.32mm²)
Outer diameter: 2.4mm * 4.8mm

● 18 AWG
Temperature: -30 degrees to +80 degrees
Each copper wire diameter: 0.18mm
Core: 34 shares * 2 pcs
Conductor area: 0.87mm² * 2 pcs
((0.18 / 2)² * 3.14 * 34=0.87mm²)
Outer diameter: 2.1mm * 4.2mm

● 20 AWG
Temperature: -30 degrees to +80 degrees
Each copper wire diameter: 0.18mm
Core: 21 shares * 2 pcs
Conductor area: 0.53mm² * 2 pcs
((0.18 / 2)² * 3.14 * 21=0.53mm²)
Outer diameter: 1.8mm * 3.6mm

● 22 AWG
Temperature: -30 degrees to +80 degrees
Each copper wire diameter: 0.16mm
Core: 17 shares * 2 pcs
Conductor area: 0.34mm² * 2 pcs
((0.16 / 2)² * 3.14 * 17=0.34mm²)
Outer diameter: 1.6mm * 3.2mm

● 24 AWG
Temperature: -30 degrees to +80 degrees
Each copper wire diameter: 0.16mm
Core: 11 shares * 2 pcs
Conductor area: 0.22mm² * 2 pcs
((0.16 / 2)² * 3.14 * 11=0.22mm²)
Outer diameter: 1.4mm * 2.8mm

● 26 AWG
Temperature: -30 degrees to +80 degrees
Each copper wire diameter: 0.16mm
Core: 7 shares * 2 pcs
Conductor area: 0.14mm² * 2 pcs
((0.16 / 2)² * 3.14 * 7=0.14mm²)
Outer diameter: 1.3mm * 2.6mm

● 28 AWG
Temperature: -30 degrees to +80 degrees
Each copper wire diameter: 0.13mm
Core: 7 shares * 2 pcs
Conductor area: 0.09mm² * 2 pcs
((0.13 / 2)² * 3.14 * 17=0.09mm²)
Outer diameter: 1.2mm * 2.4mm

▋UL 2468

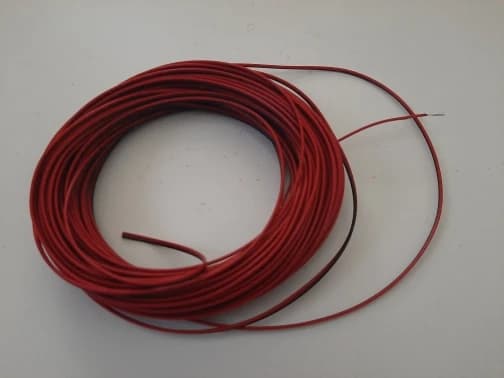

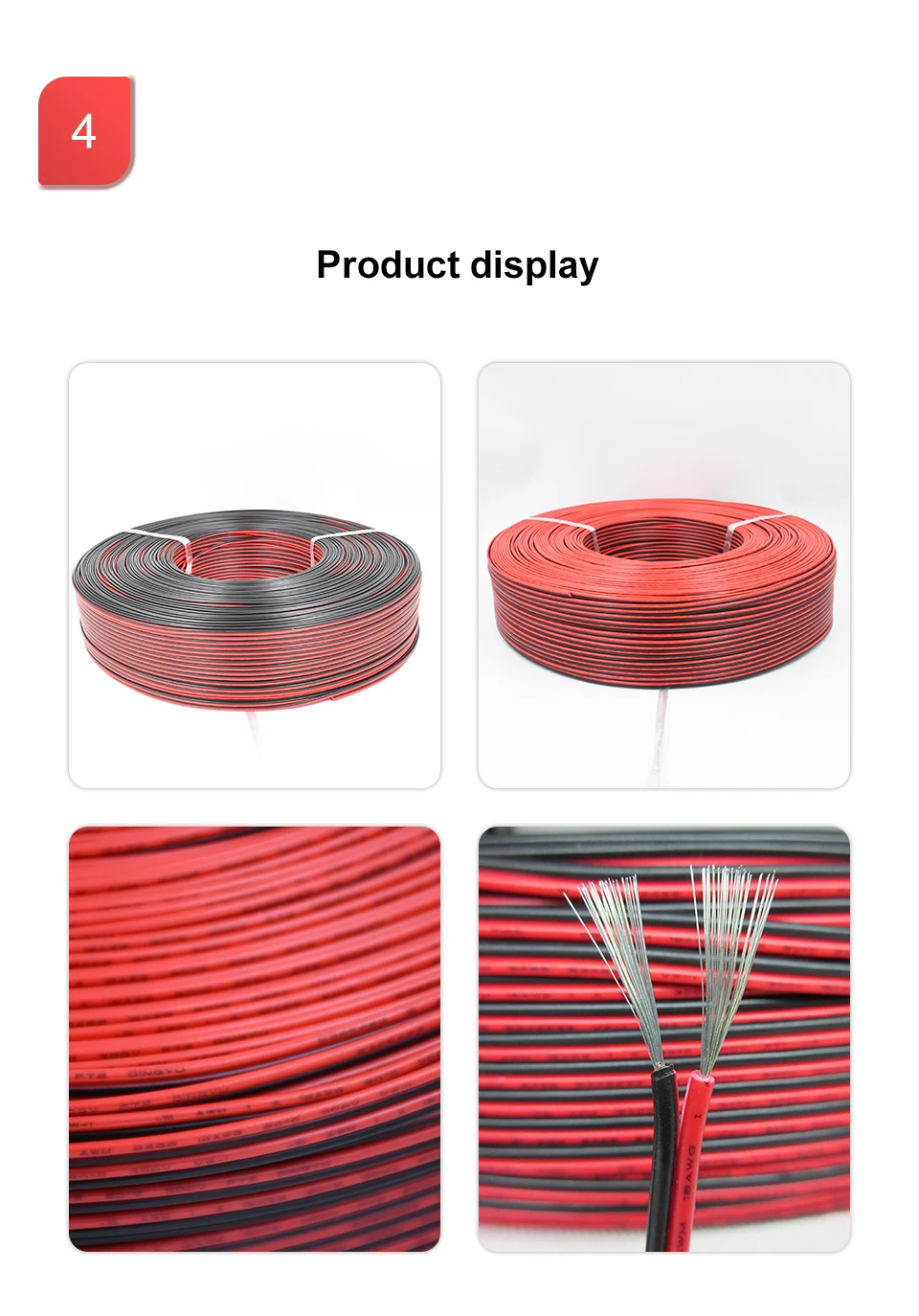

● 2 pin Tinned Copper wire

▋ INTRODUCTION

● Specifications : 28/26/24/22/20/18/16 AWG

● Product color : Red and Black

● Flame retardant grade : VW-1 / FT1

● Certification : UL, RoHS, CE

● Insulation material : PVC

● Conductor material : Tinned copper wire

● Temperature range : -30℃ ~ +80℃

● Rated voltage : 300V

● Testing voltage : 1500V

● Insulator : PVC

● Cable length : 5m - 16.4ft / 10m - 32.81ft / 20m - 65.62ft / 30m - 98.43ft / 50m - 164.04ft / 100m - 328.08ft optional

● Application : Suitable for all kinds of household appliances, lighting, automotive wiring, electronic equipment, temperature sensing equipment, Solar Panel, Speaker, Audio...

▋ HCL adopts high-quality PVC particles

● Antioxidant

● Anti aging

● Flame retardant and wear resistant

● Safe and odorless

● Sun proof

▋ Product application

● Temperature sensor

● LED Strip

● Automotive wires

● Audido video cable

● Solar Panel

● Internal connecting wire of electronic products

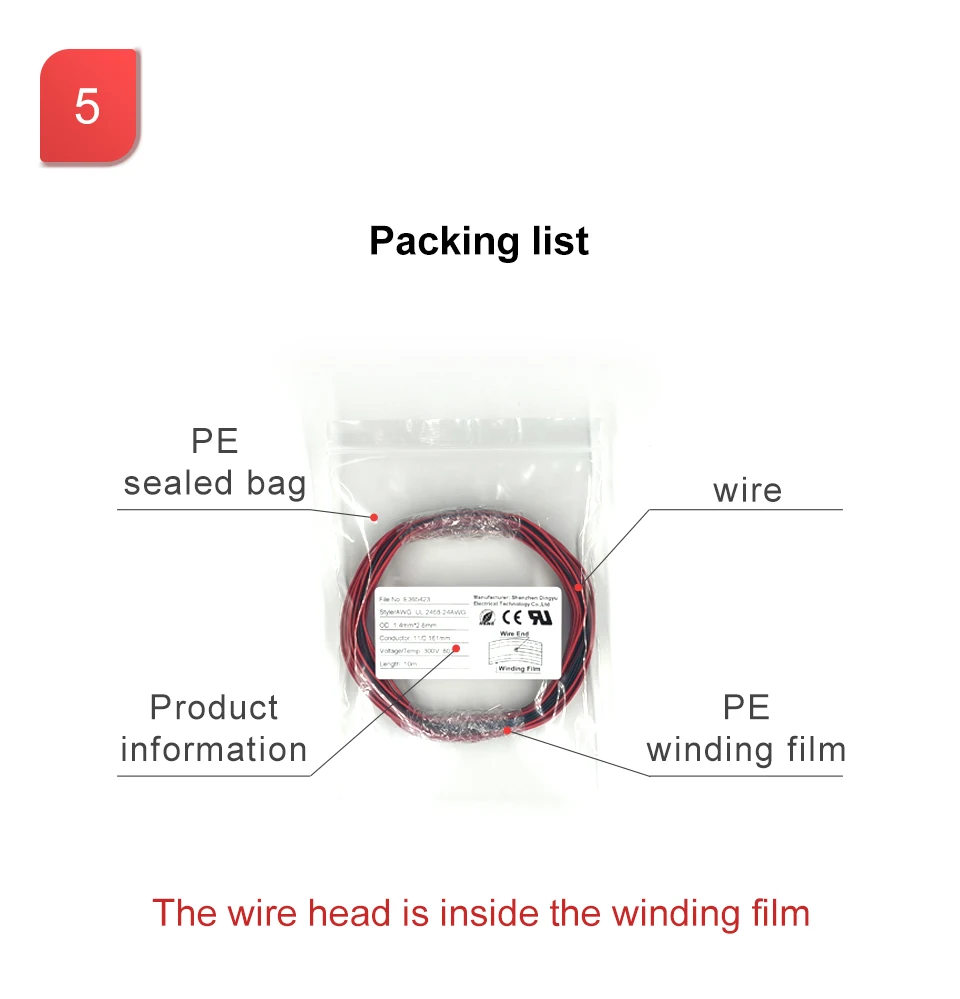

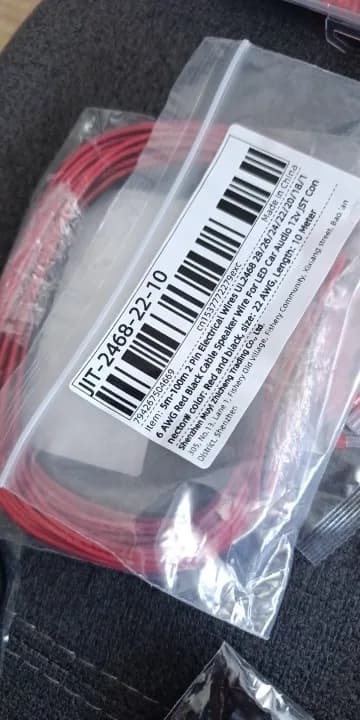

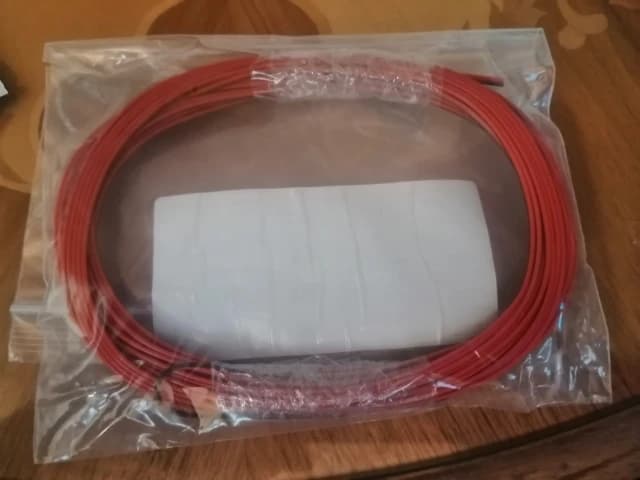

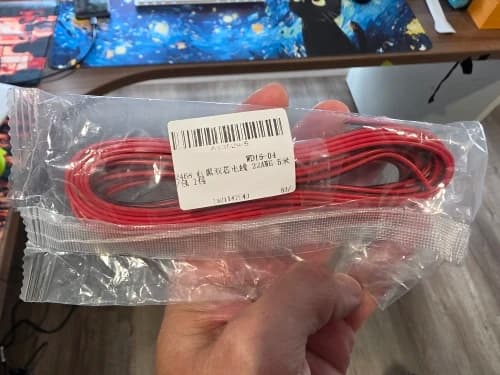

▋ Packing list

● PE sealed bag x 1

● wire x 1

● Product information x 1

● The wire head is inside the winding film
