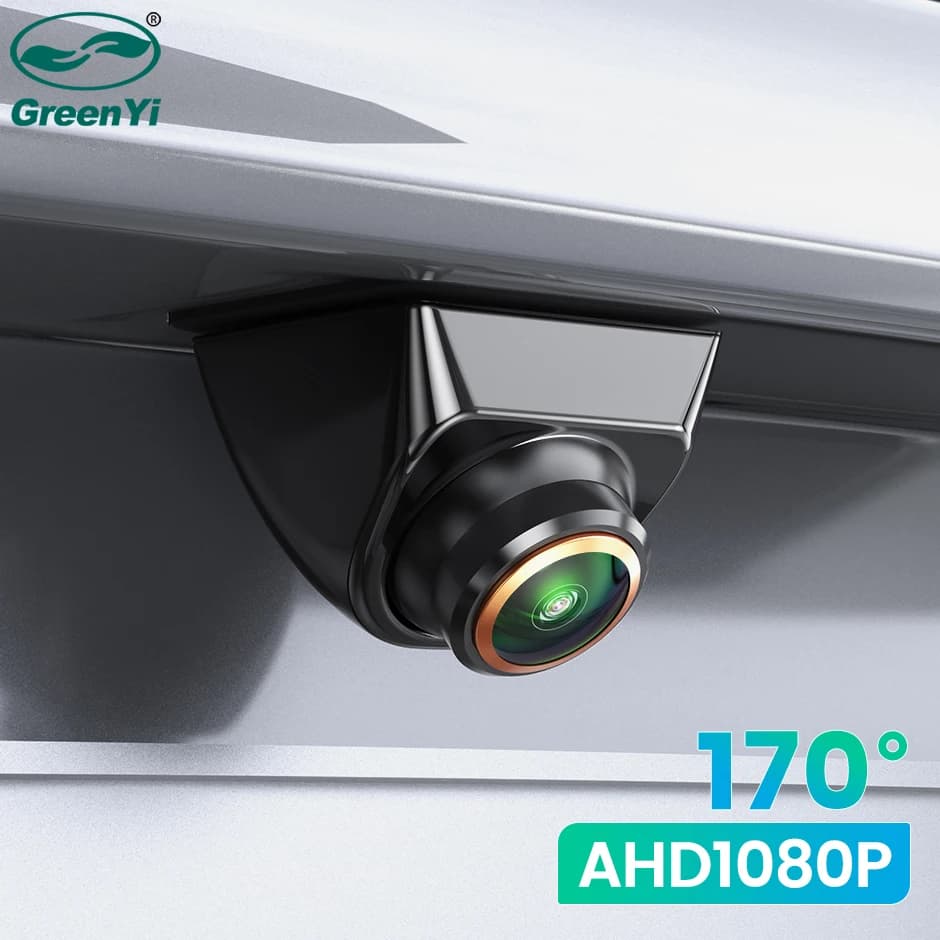

GreenYi AHD 1920x1080P Car Rear View Camera 170° Fisheye Golden Lens Full HD Night Vision Vehicle Reversing Front Cameras G899

2 Cameras Style Optional

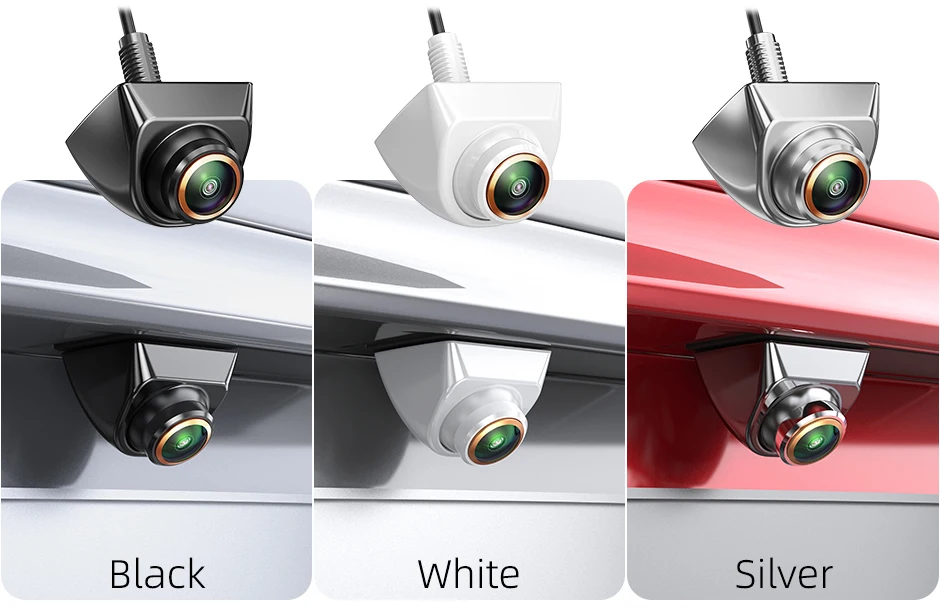

3 colors to choose

Tips, About AHD1080P Style:

Please check whether the Android unit supports AHD1080P camera!

If AHD1080P cannot be selected, AHD1080P cameras are not supported!

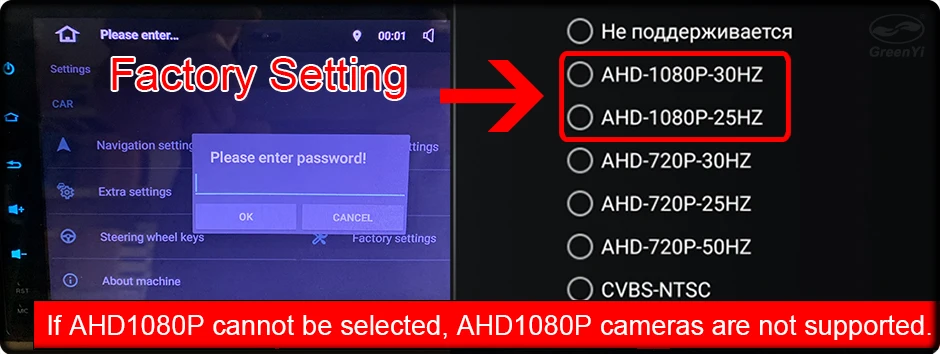

Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P

Cameras with CVBS video signal is universal for all monitors, but AHD will only work with AHD monitor!

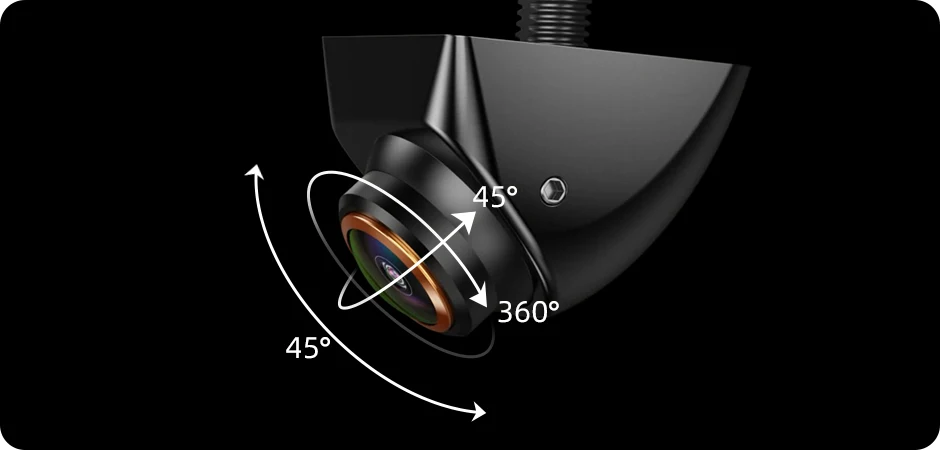

Adjustable Angle

You can adjust the camera angle, can also rotate the camera. (Use the inside corner wrench to loosen the screw)

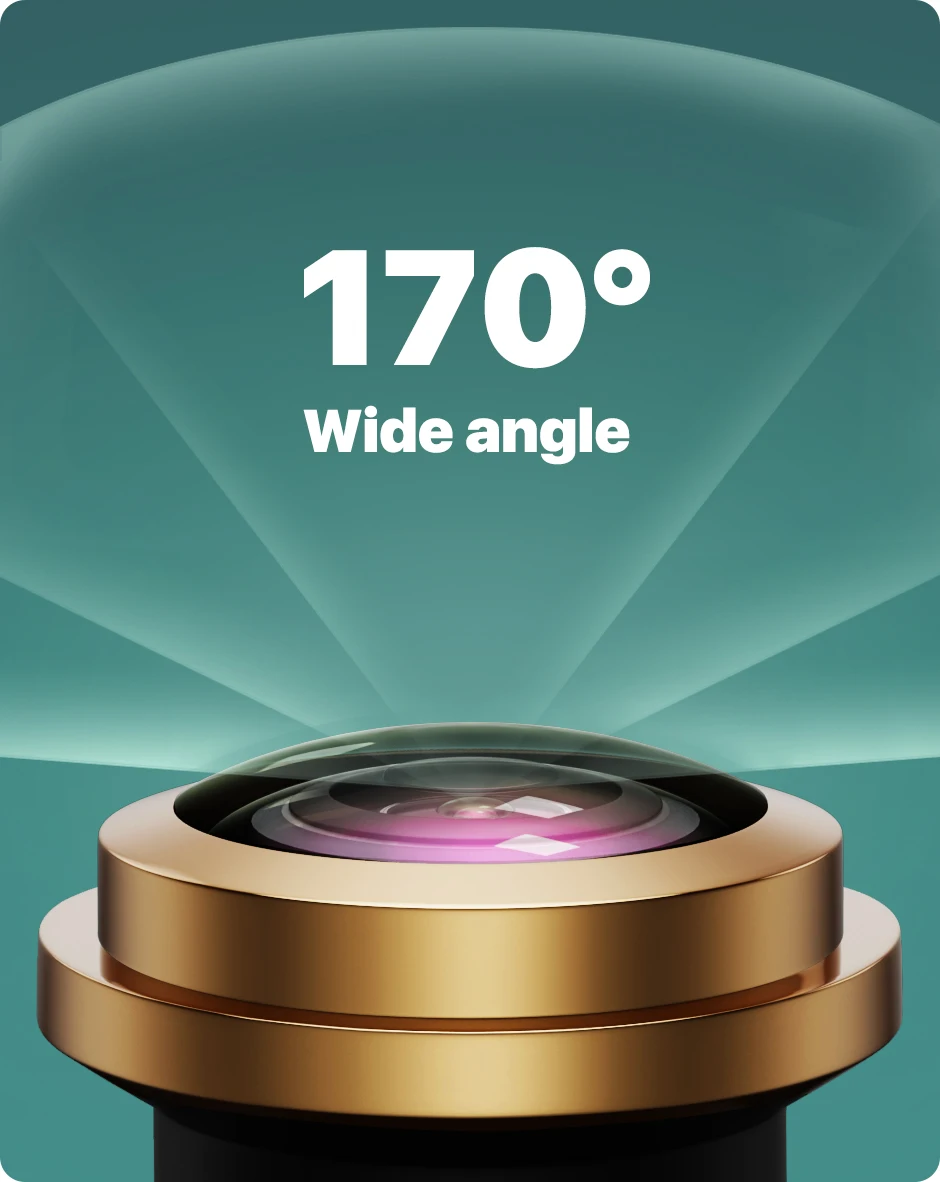

170° Wide Angle

Golden Fisheye Lens - Real 170°

AHD1080P Camera

Analog High Definition Technologie

Top Starlight Night Vision

Starlight night vision function allows the camera to be used properly even at night

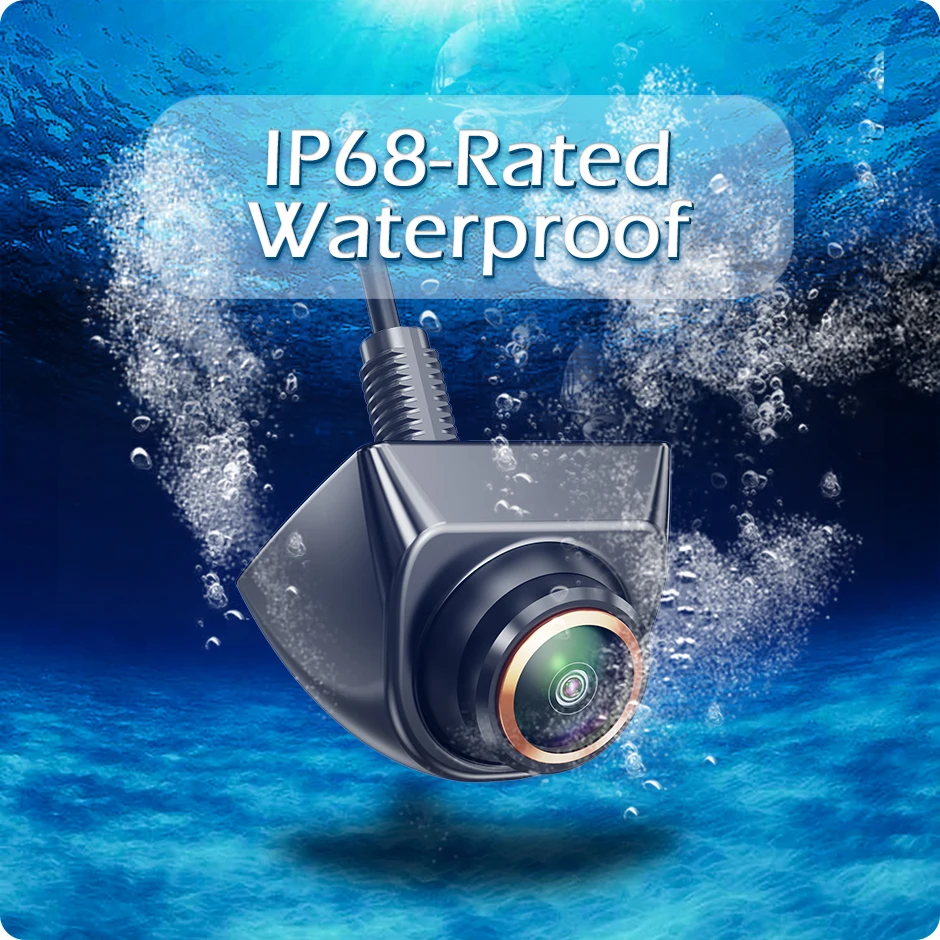

Waterproof

The camera is filled with waterproof silicone, Effective chip protection,
IP68-Rated for Use in Extreme Conditions

Suitable For All Cars

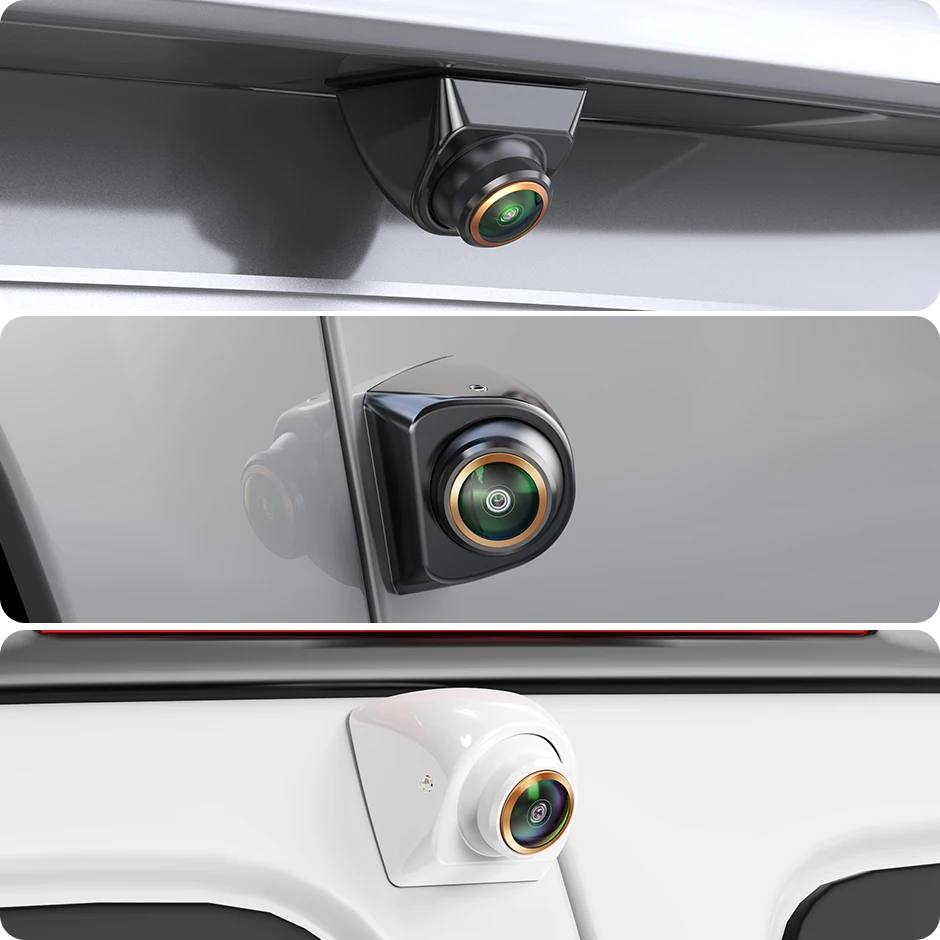

Support multiple installation methods: Horizontal / Inverted / Side Mount
Available for rear / front / side view cameras
Please contact us for any installation questions

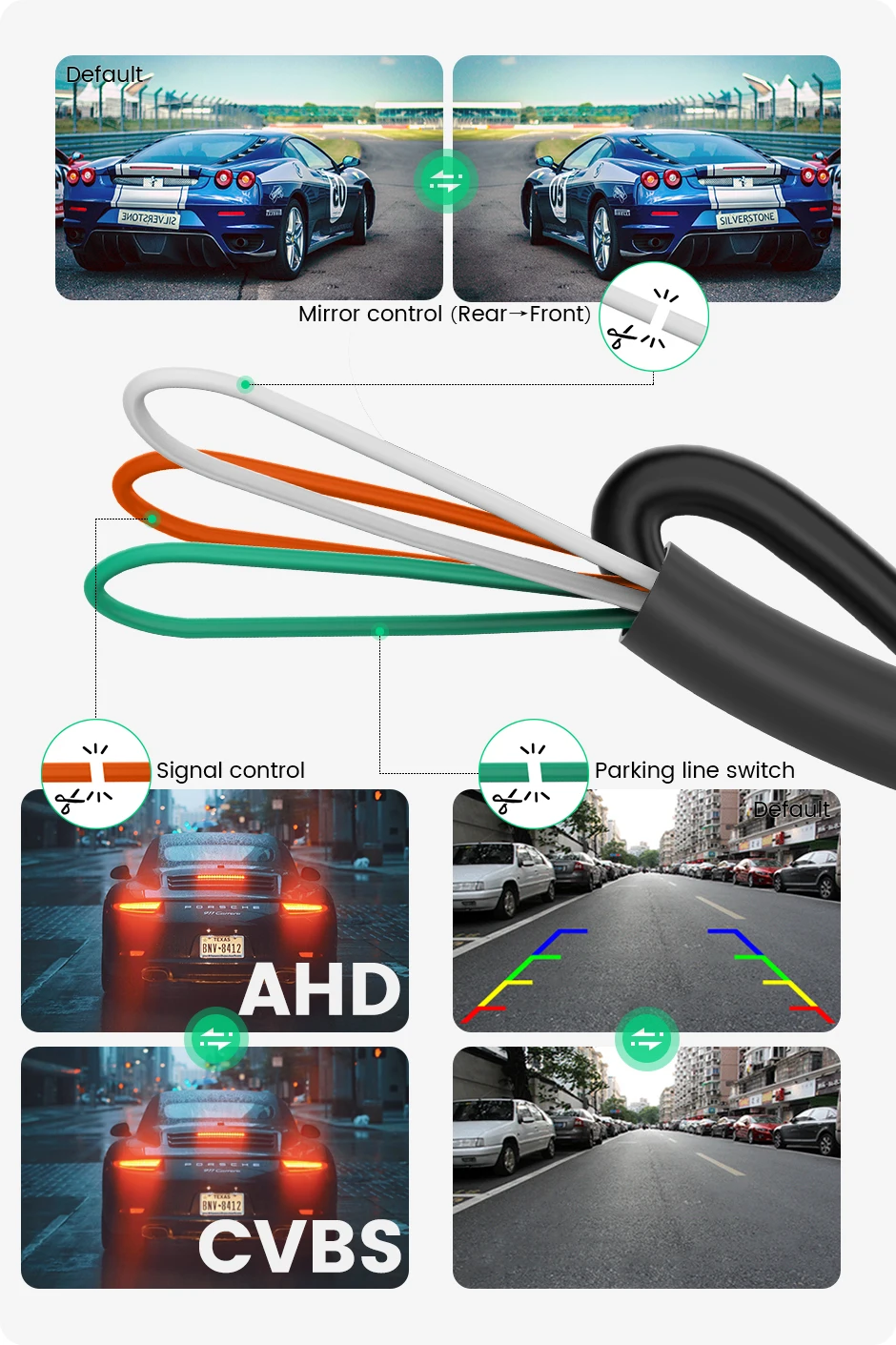

Conversion Line Control

White: Mirror control
Brown: Signal control
Green: Parking line switch

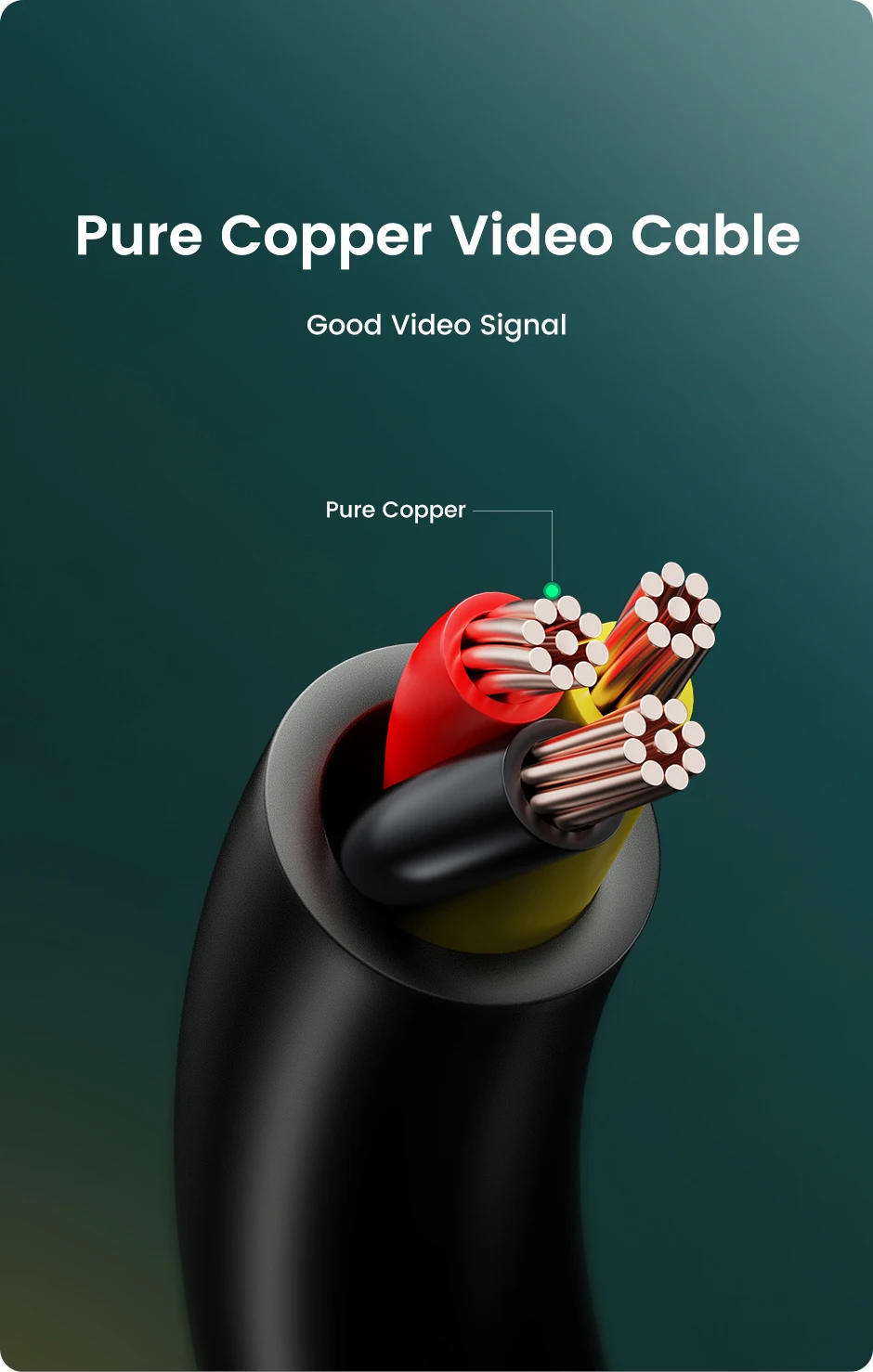

Pure Copper Cable

The video cable is made of high quality pure copper, which provides better video transmission quality than cables that can be attracted by magnets.

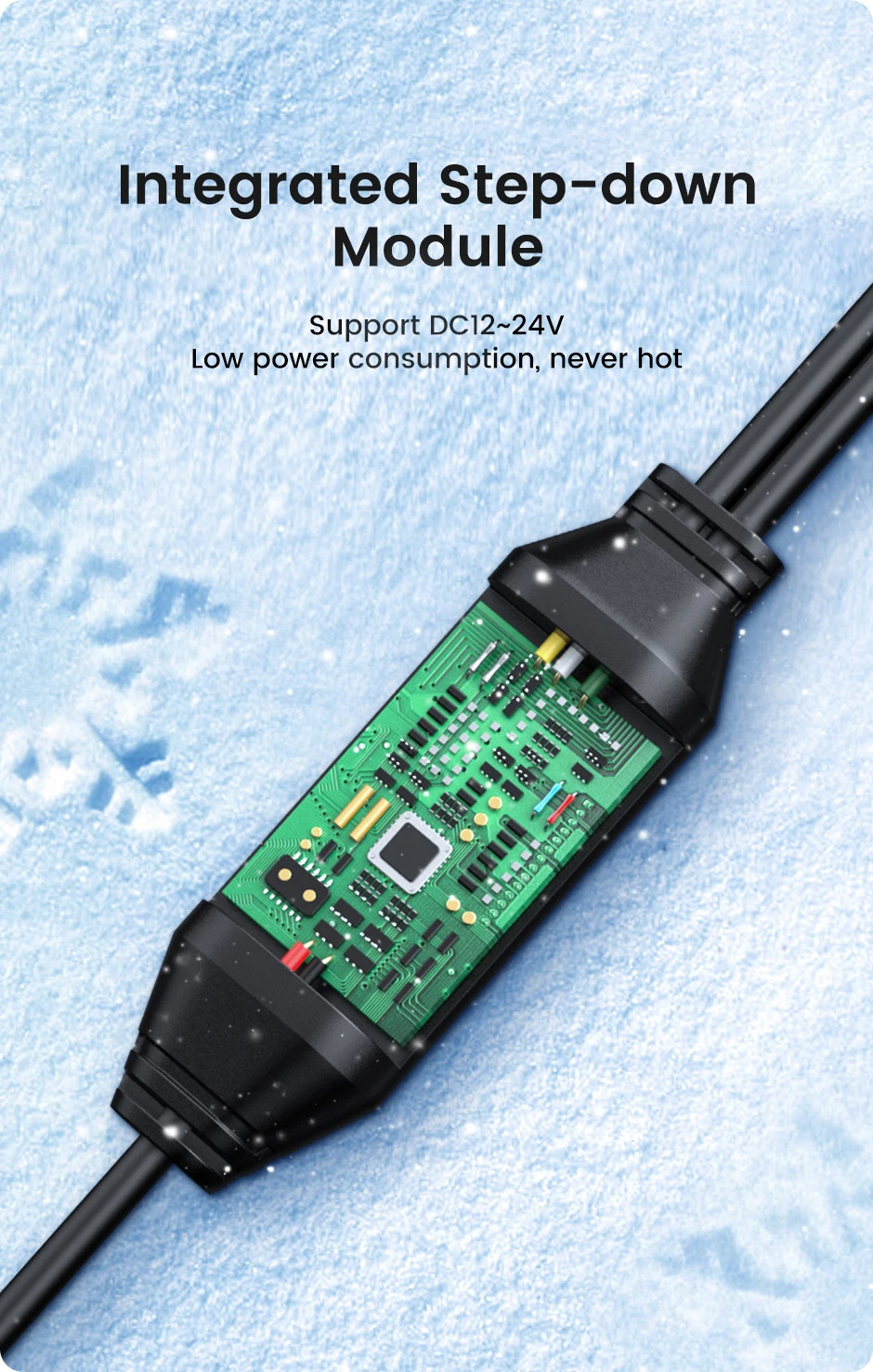

Integrated Step-down Module

Support DC12V~24V
Low power consumption, cable never hot.

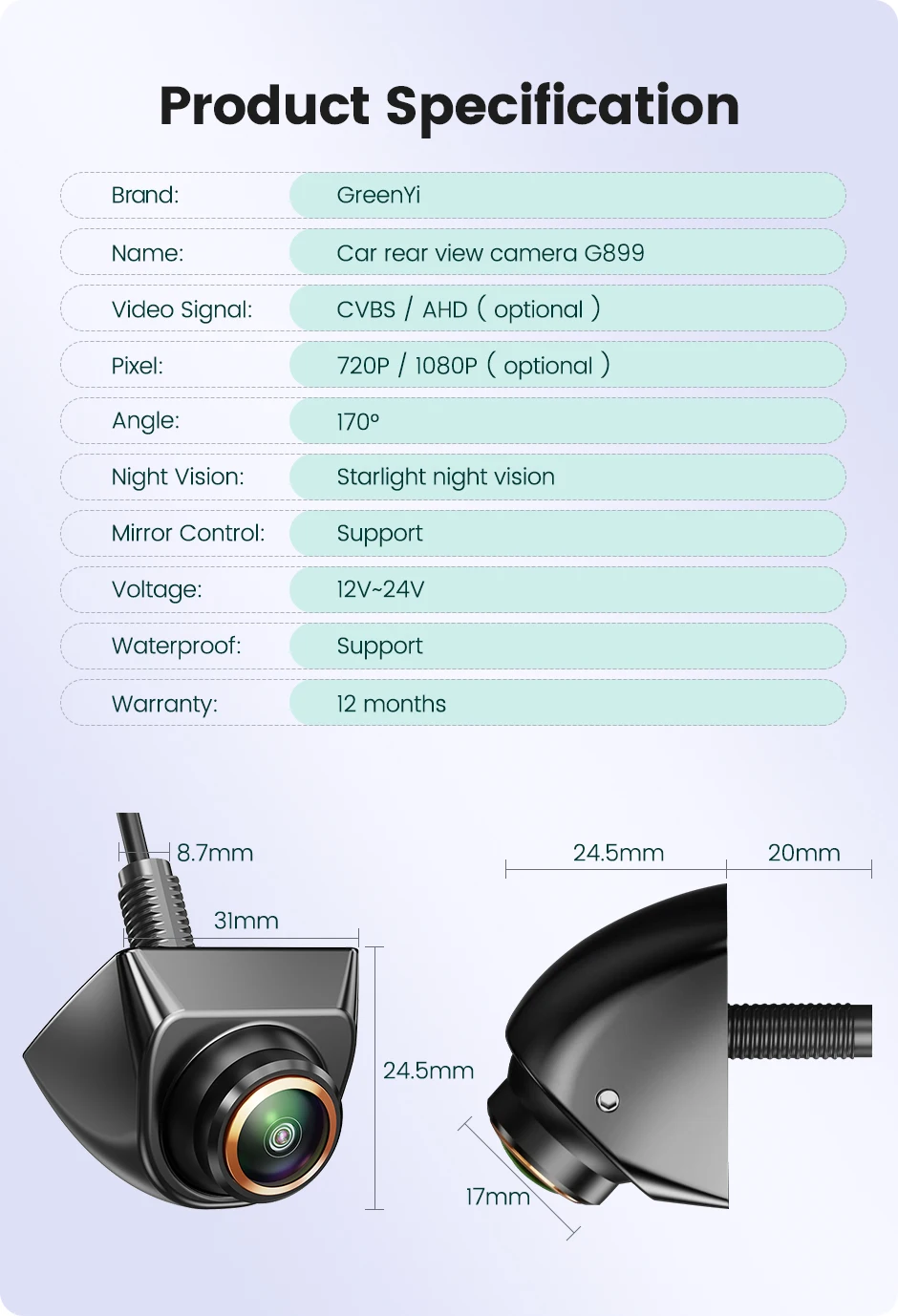

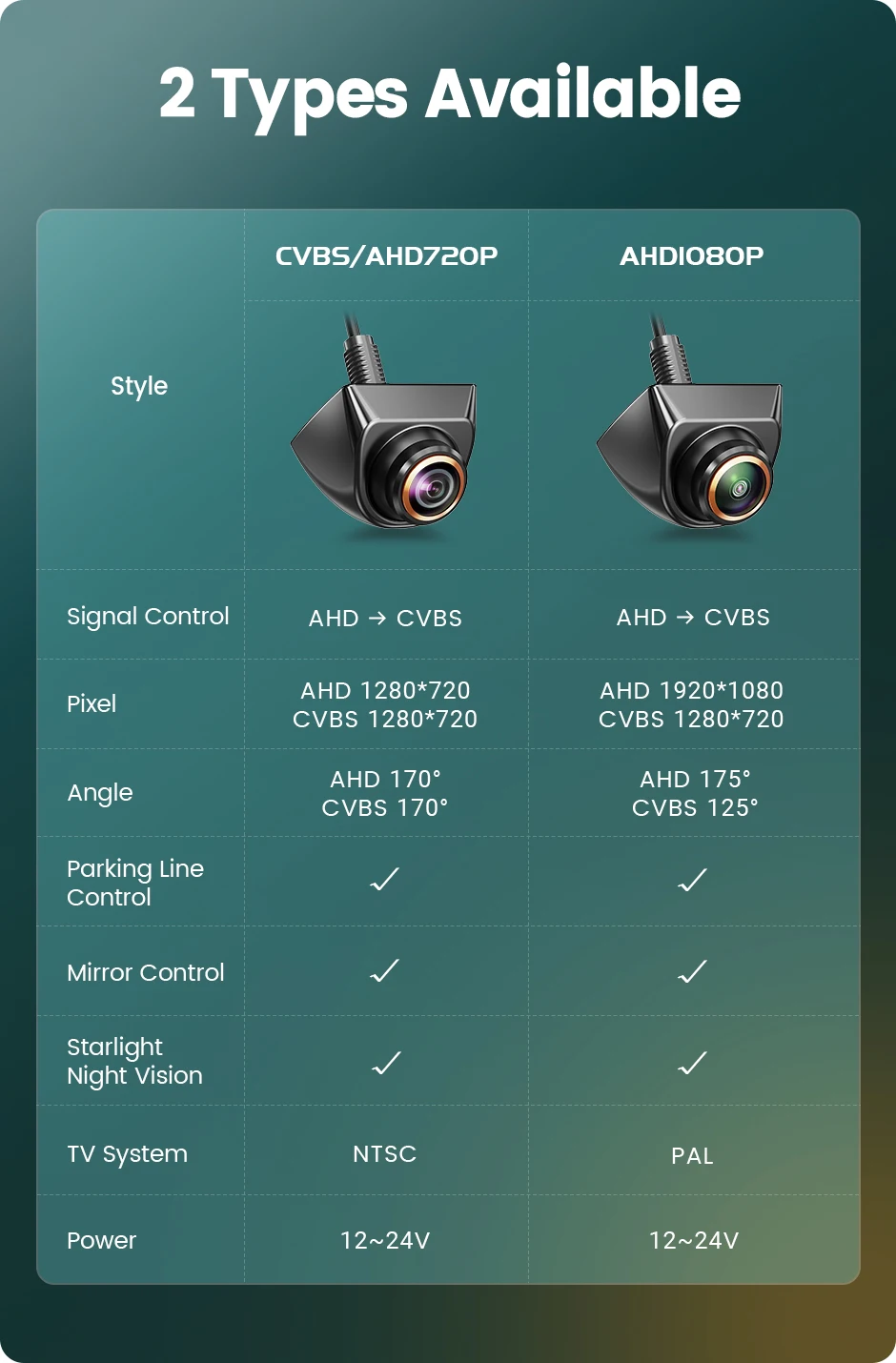

Product Specification

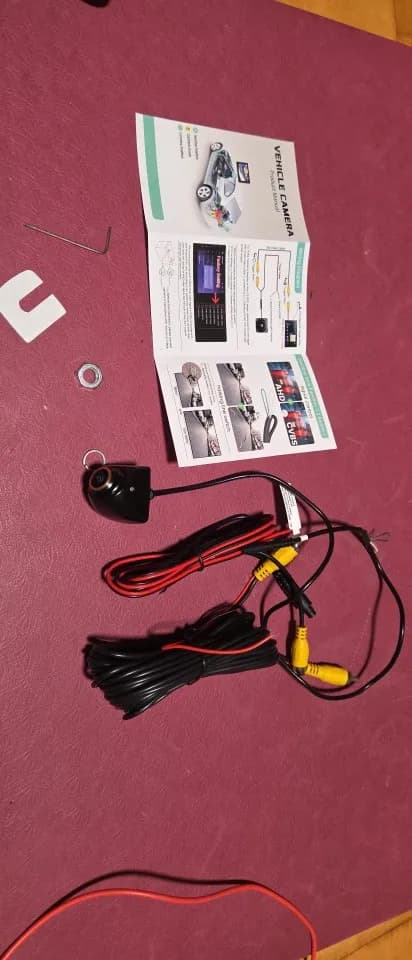

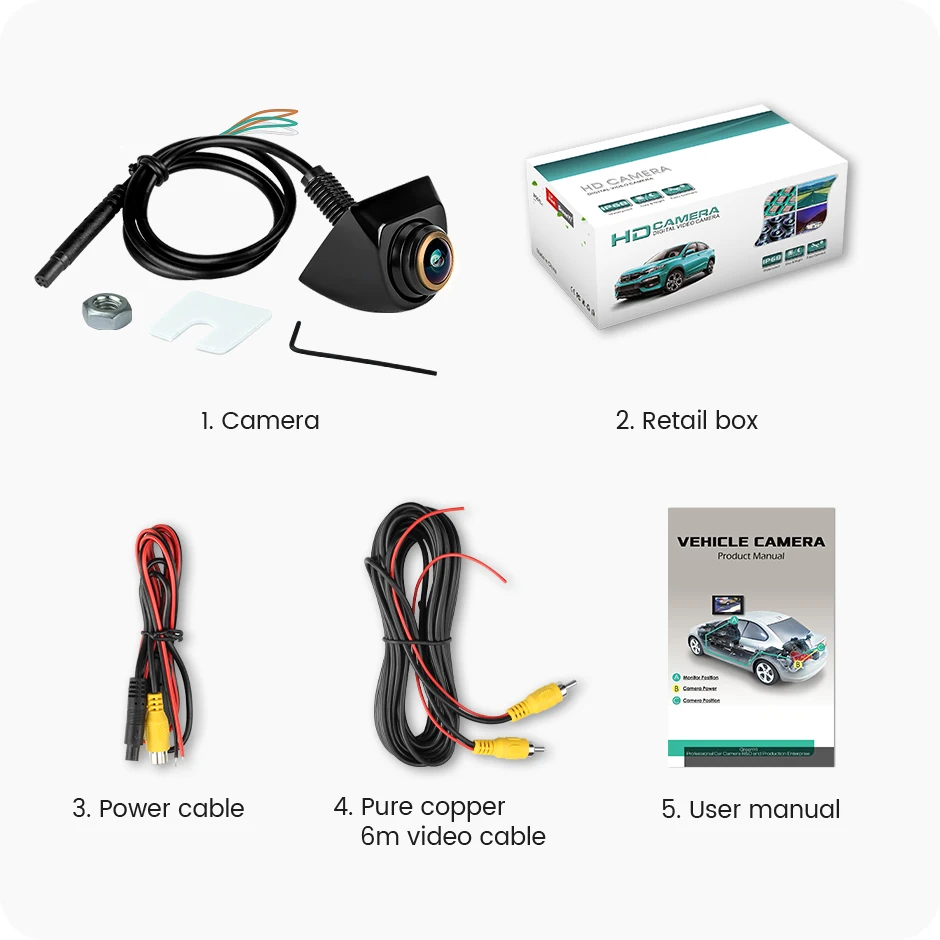

Package

1. GreenYi car camera
2. Retail box
3. Power cable
4. Pure copper 6m video cable
5. User manual

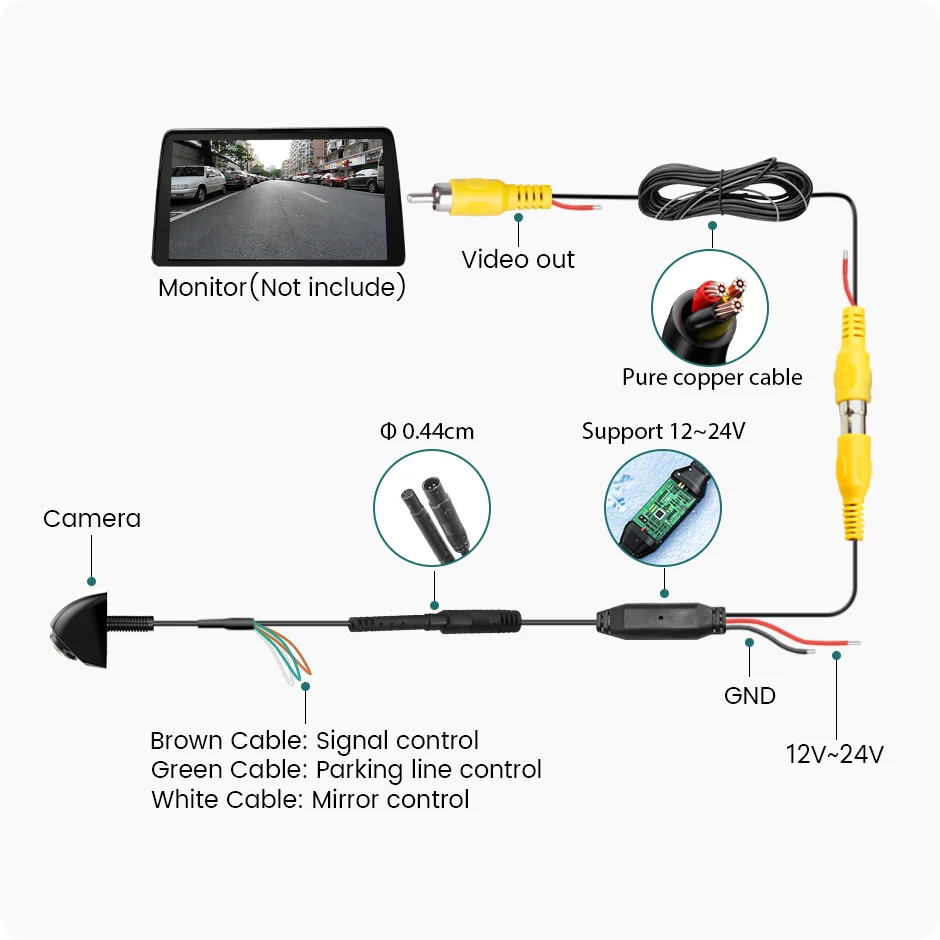

Installation Diagram

FAQ：

After connecting the rear view camera, the screen shows no signal, black screen and no picture, what should I do?

A) Please check your signal format (AHD/CVBS), choose right signal to run the camera.
B) Please check your connection, red trigger line should connect to your reverse light and monitor reverse-in cable.
C) If your monitor has AUX-IN function, you can connect to the AUX-IN.
Tip: CVBS cameras can test the performance on the TV. Universal cameras with 4Pin plugs can only be installed with our cables. You can consult customer service if you encounter any problems during the installation process.

After connecting the rear view camera, the screen shows black and white, what should I do if there is no color?

A) Choose wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is NTSC system, AHD1080P camera is PAL system.
B) Please check whether the 6M line is normal, please replace with another 6M cable to test the camera.

What functions are controlled by each of the 3 cables of the rear view camera?

Brown Cable: Video Signal Control
​• CVBS-AHD720P Camera:
​Default ​( AHD )+( 1280x720 )+( 170° )
​Cut the brown cable→
( CVBS )+( 1280x720 )+( 170° )
​• AHD1080P Camera:
​Default ( AHD1080P )+( 1920x1080 )+( 175° )
​Cut the white cable→
​( CVBS )+( 1280x720 )+( 125° )

White Cable: Mirror Control
• The default is the rear view camera (Mirroring).
Cut the white cable→
Front view camera ( Non-mirroring )
You can also manually rotate the sphere angle 90 °, to achieve the effect of the side camera

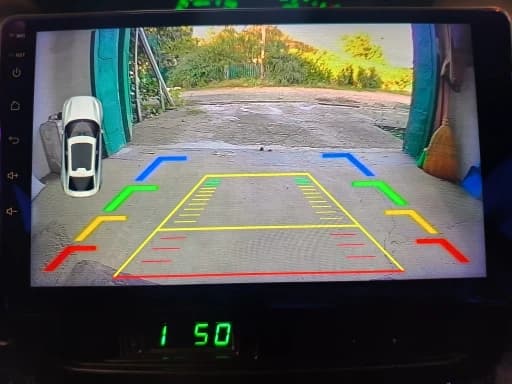

Green Cable: Parking Line Control
• Camera with parking line/camera does not display parking line, you can cut the green cable, then reconnect the camera's power supply, that can change the parking line.

Does it support customized products?

Yes, we can customize all kinds of chips, lenses, colors, accessories, and appearance, please contact us for any interest.
