wireless multi-function Steering Wheel Control for android Car Radio DVD GPS multimedia Remote Control Buttons 2 din universal

Внимание российским клиентам

В некоторых регионах продукты могут быть отправлены на почтовый ящик или в местное почтовое отделение. Судоходная компания сообщит вам по СМС. Пожалуйста, обратите внимание на информацию на телефоне или быстро продайте информацию на планшете.

If you want to buy the drill bit together, please click the above picture to go to another link to buy.

If you want the buy the blue backlight of the buttons , you can open this link to pay

The  below item built in Rechargeable Lithium Battery

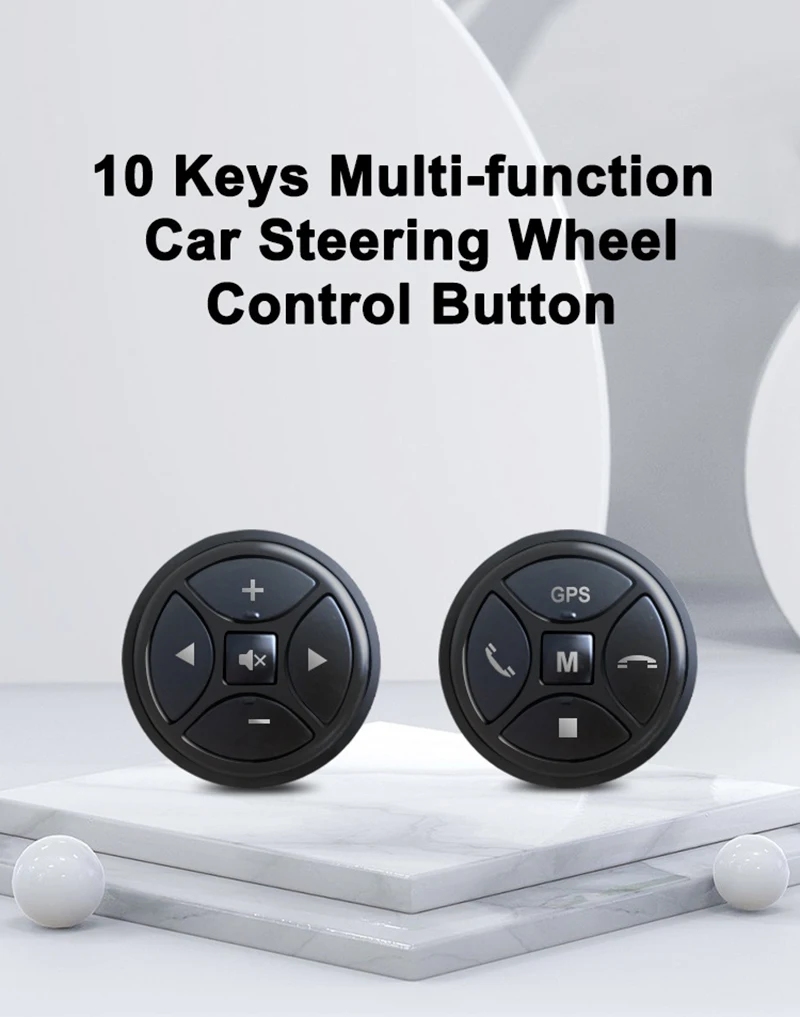

Universal Car Steering Wheel Control Button (Red Light)

Function :

1. Support Various Android / Wince Car Multimedia Player With Steering wheel Control Function

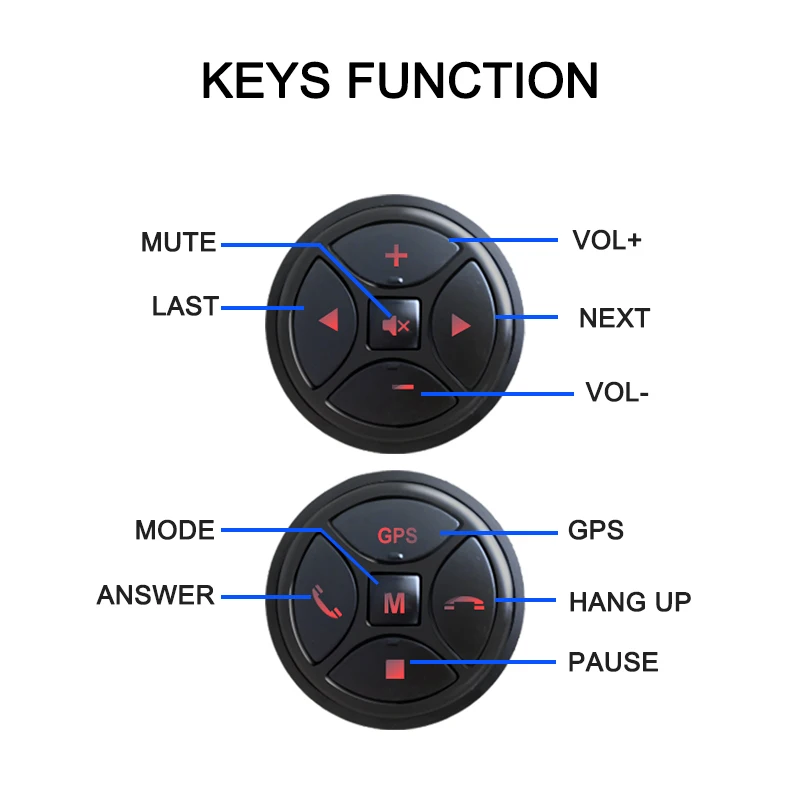

2. Key controllers - GPS, Phone off/on, Mute , Volume + - , Mode , and Last/Next program ( Music, video, Radio,bluetooth,GPS ... )

3. Easy installation

Specifications:

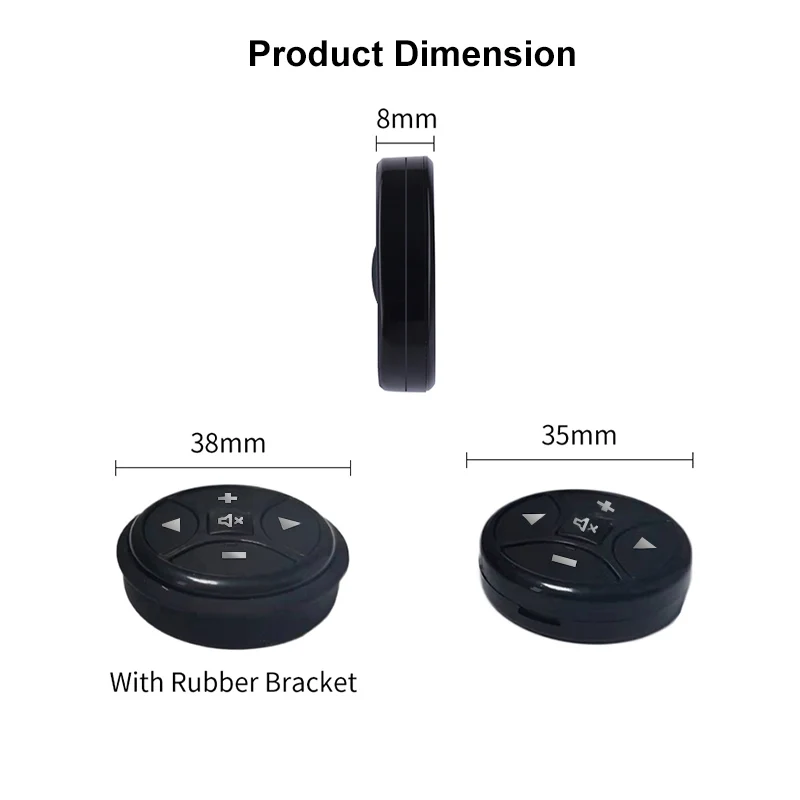

- Product Width Dimmession : 3.5CM ; Height/Thickness : 0.80CM

- Material: ABS, PE

- Power: 1W

- Voltage: 3-5V

- SNR: 96dB

- Transmission distance: about 5m

- Battery: 2pcs CR2025 button cell (included, normally ,it could work for 2-3 years )

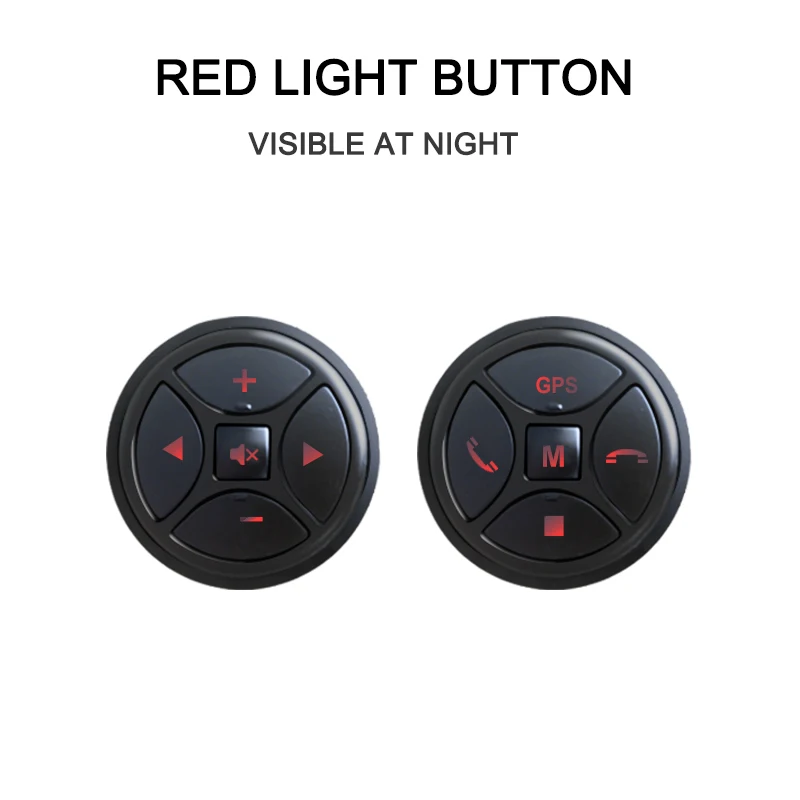

- with Red light on buttons ( click the physical button, the button light will be on for 2-3 seconds )

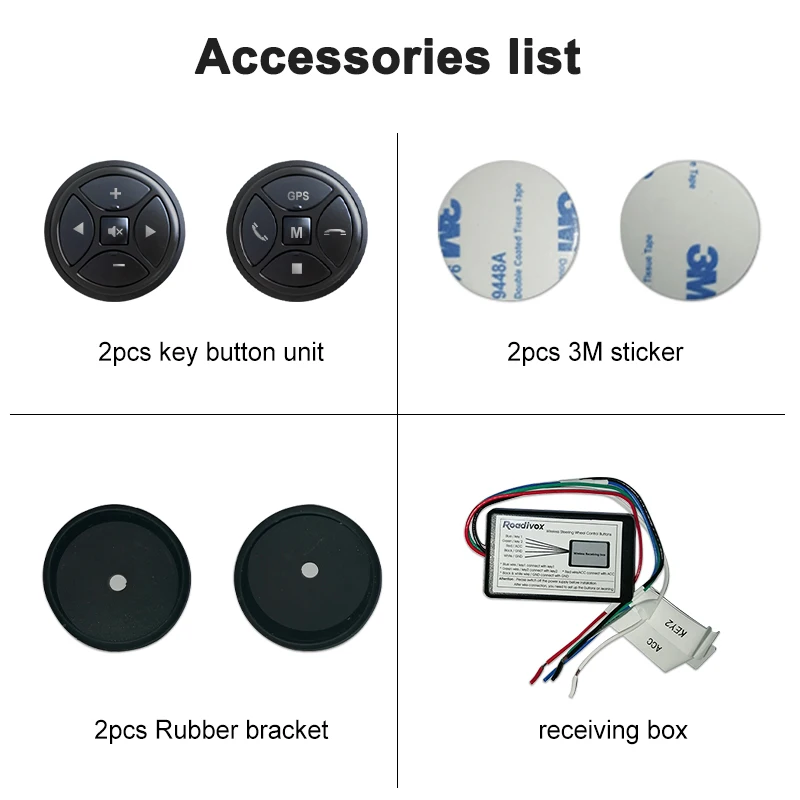

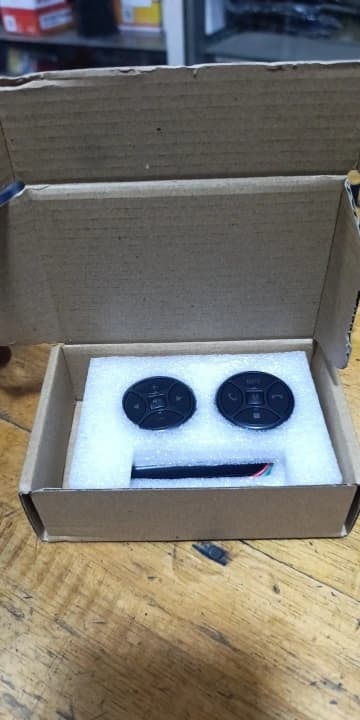

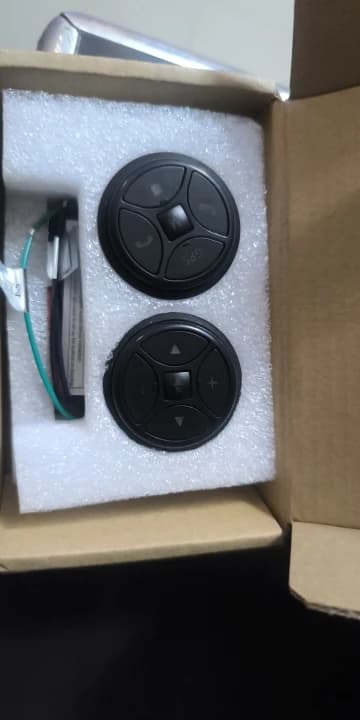

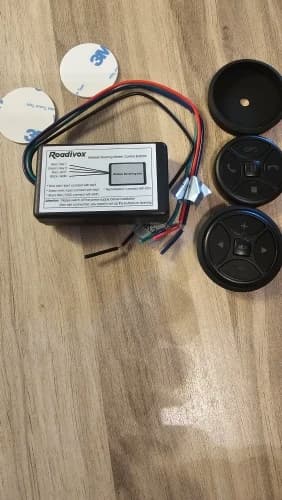

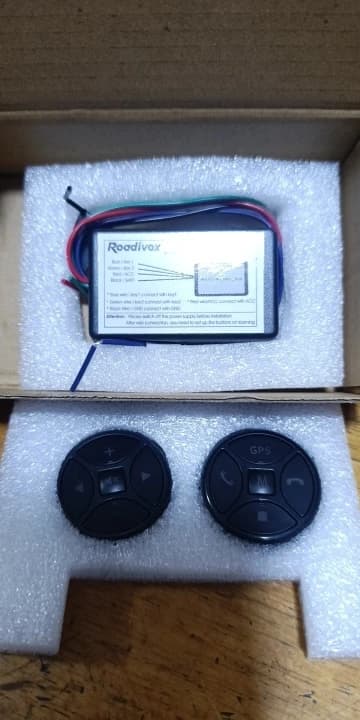

Package list :

2 x Controller Key (with built-in button battery)

1 x Receiver Box

2 x Strong Sticker

2 x Rubber bracket

Attention for pre-order:

* The product could not work with any tablet PC , Home TV , or car headrest , roof mount monitor ...

* if your car radio player has key 1 wire , no key 2 wire , , Please do not buy , our product could not work with the car radio completely .

* the product can work with android car radio player , or wince car radio player with key 1 ,and key 2 wires .

Knowledges for installation:

* before installation , please switch off your car power ,and avoid to burn the electronics board when making wrong wire connection

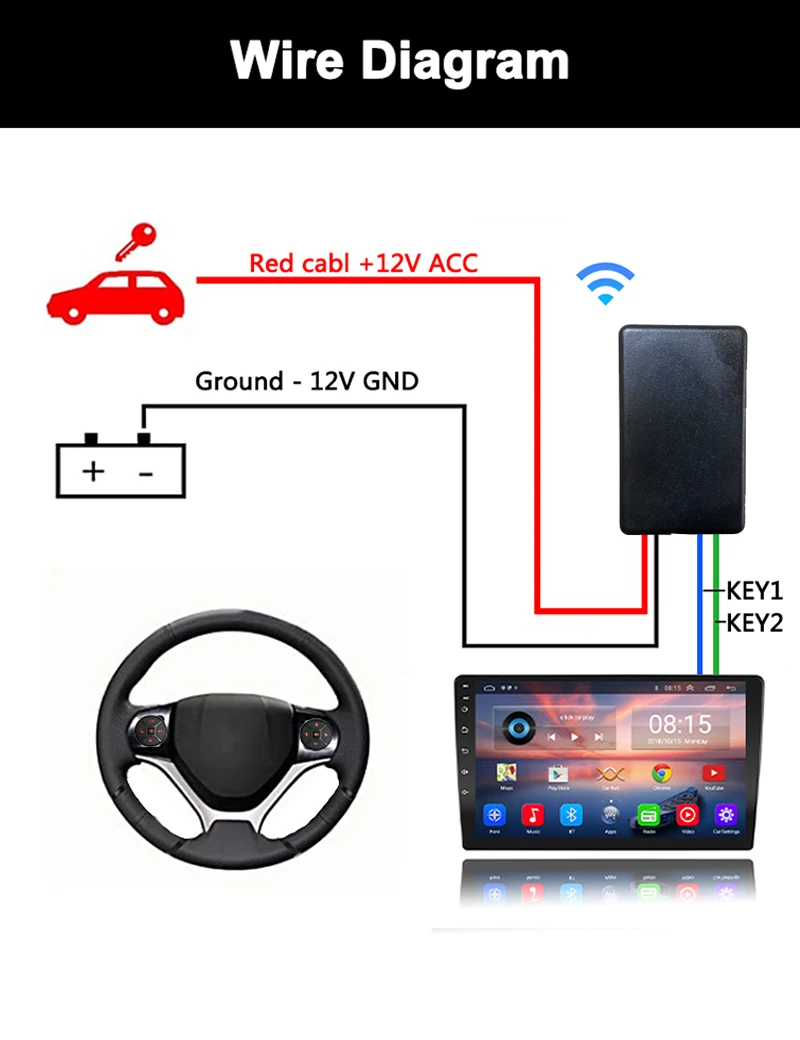

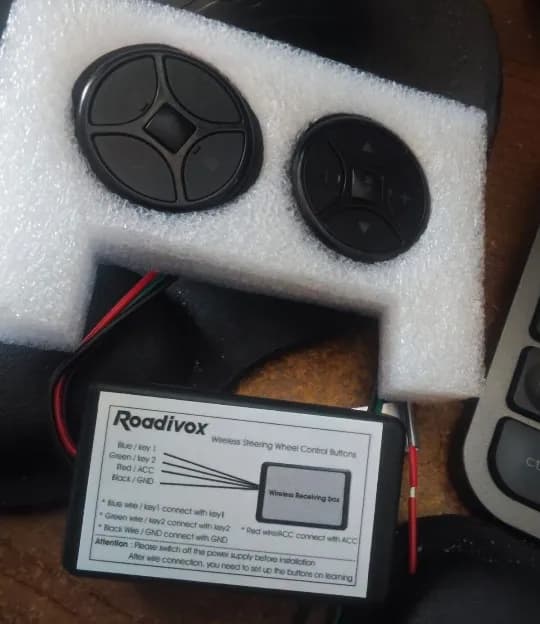

* please make the wire connection according to wire diagram ( see the below wire diagram )

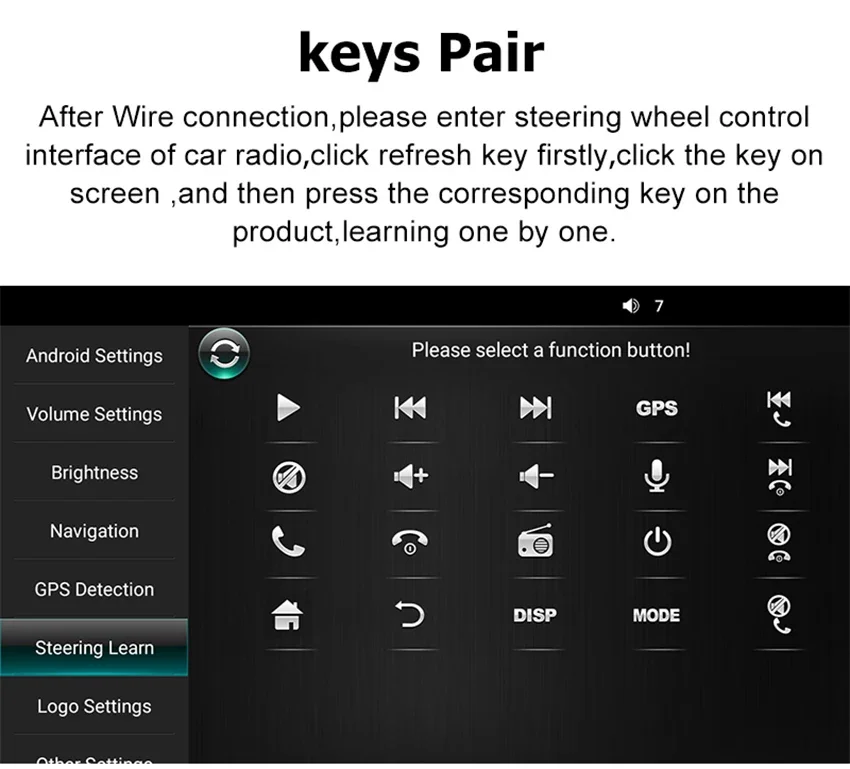

* after wire connection , please enter in the menu interface of steering wheel control on car radio screen,and set up these soft buttons on learning , click the soft button on car radio screen ,and then press the corresponding physical button on steering wheel control button . repeat to pair the buttons one by one .
