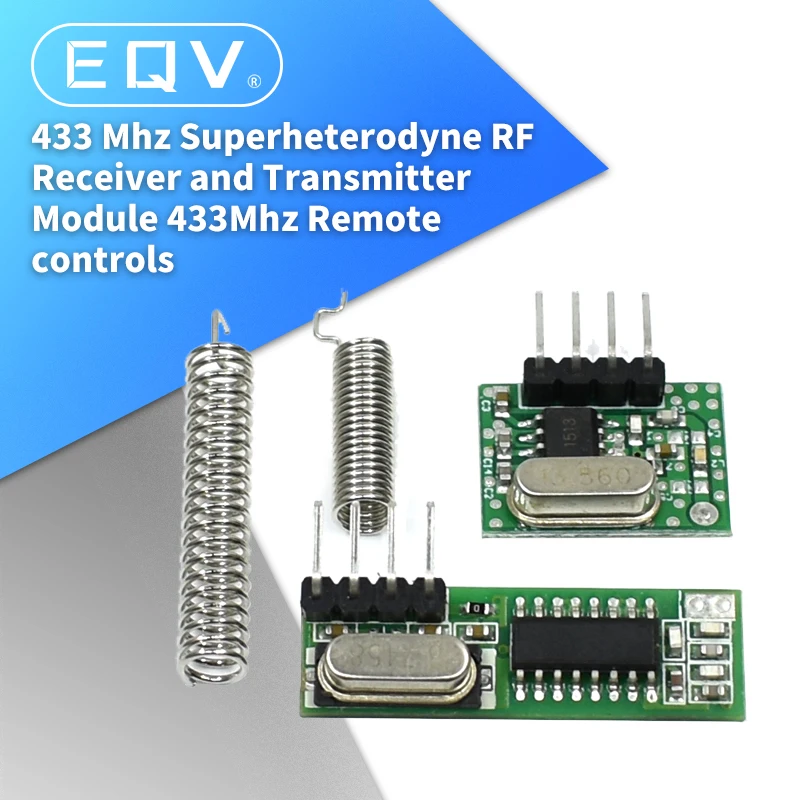

433 Mhz Superheterodyne RF Receiver and Transmitter Module 433Mhz Remote controls For Arduino uno Wireless module Diy Kits

433 Mhz Superheterodyne RF Receiver and Transmitter Module 433Mhz Remote controls For Arduino uno Wireless module Diy Kits

Applications:

1.wireless power switch, socket, remote control switch, receiver module,

2. access control, electric cars, motorcycles, automobile anti-theft products, remote door openers, closers control system

3. security, surveillance systems, home security products, electric doors, alarm host, alarm

4. rooms controls, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote rolling gates, sliding door

5. smart home products, remote control curtains, remote MP3, audio.

Specifications:

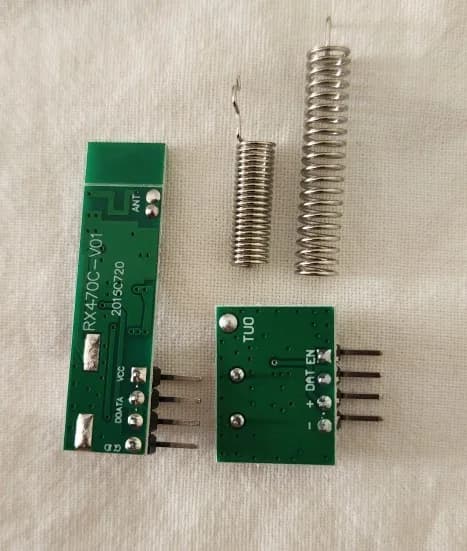

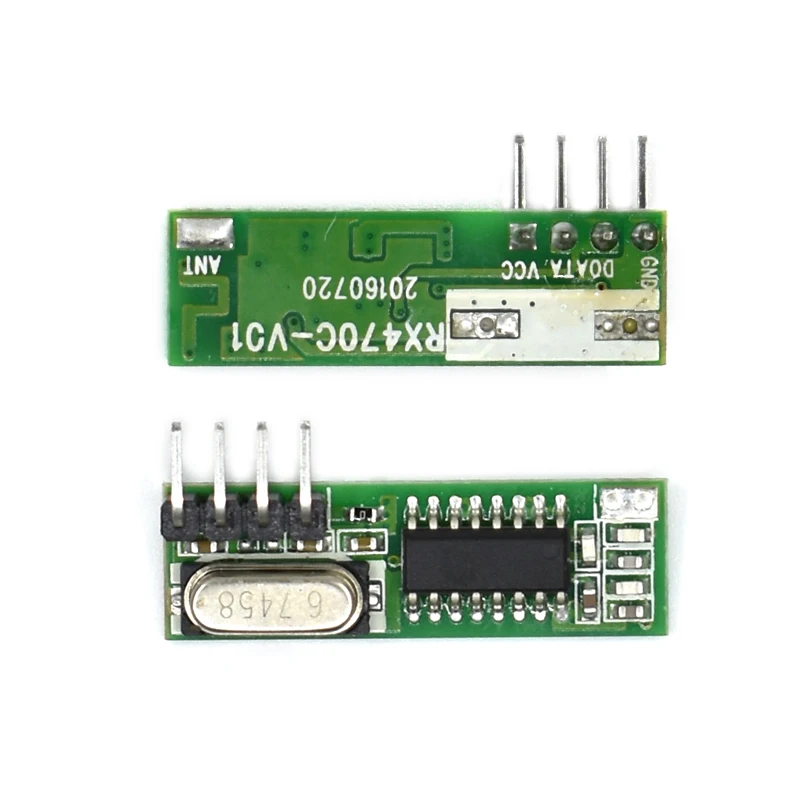

Model: RX470-4 (RX470-4 is WL101-341 upgraded version, more stable performance, faster data transfer)

Material: Plastic + Metal

Color: shown as pictures

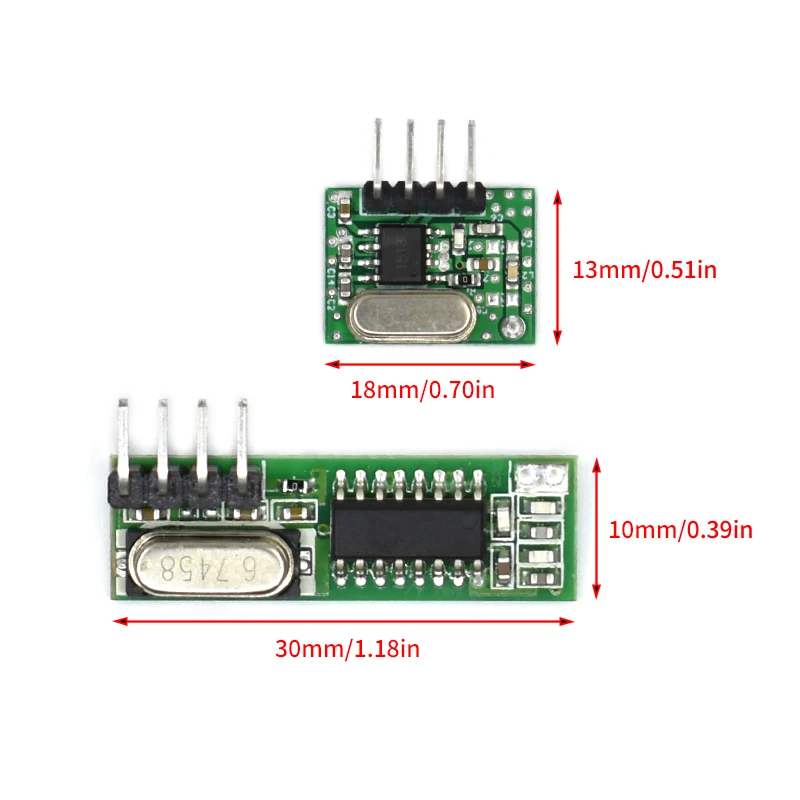

Size: 30×9×1mm

Operating frequency: 433.92 MHz

Mains input voltage range: 2.2V-5V

Working current: Type: 2.1mA (Requirement:VDD=5V) ; Type: 2.1mA (Requirement:VDD=3V)

Quiescent Current: 1uA

Temperature range: -40℃～85℃

External antenna: 32cm single core wire, wound into a spiral

Specifications:

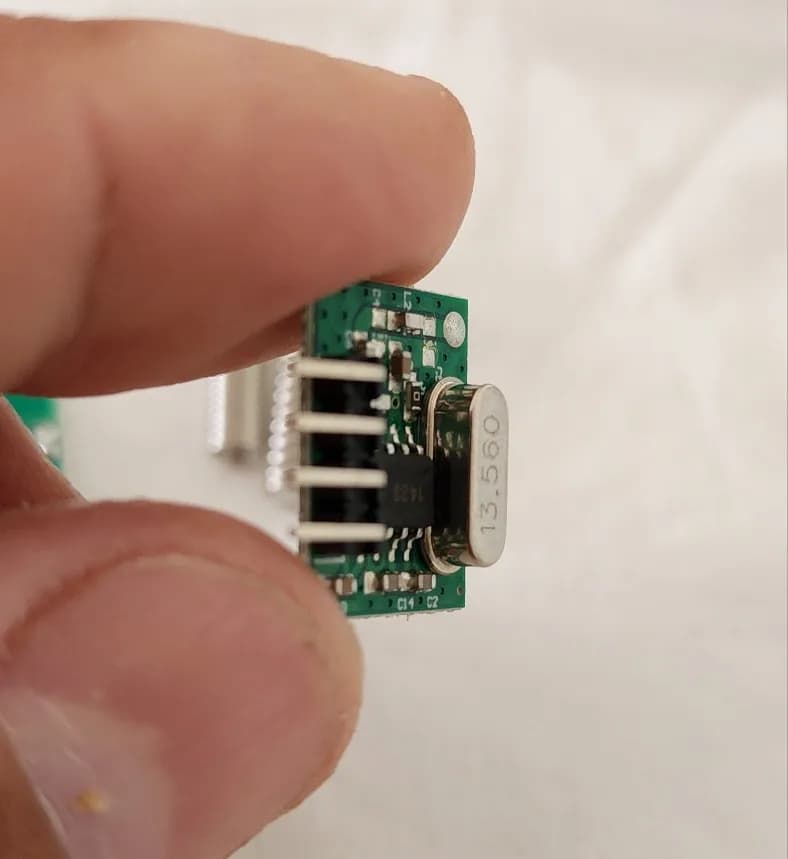

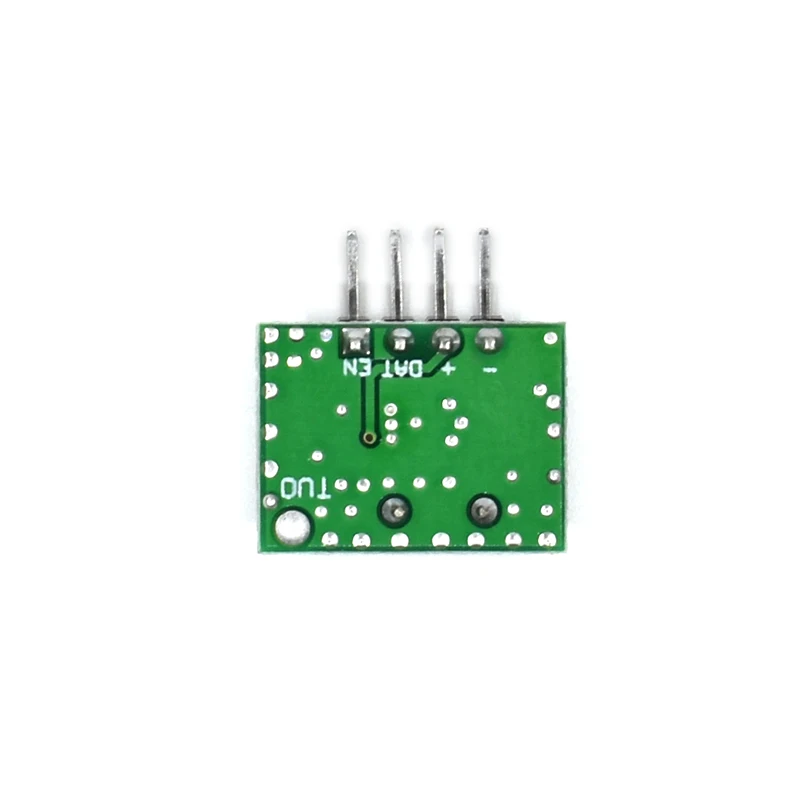

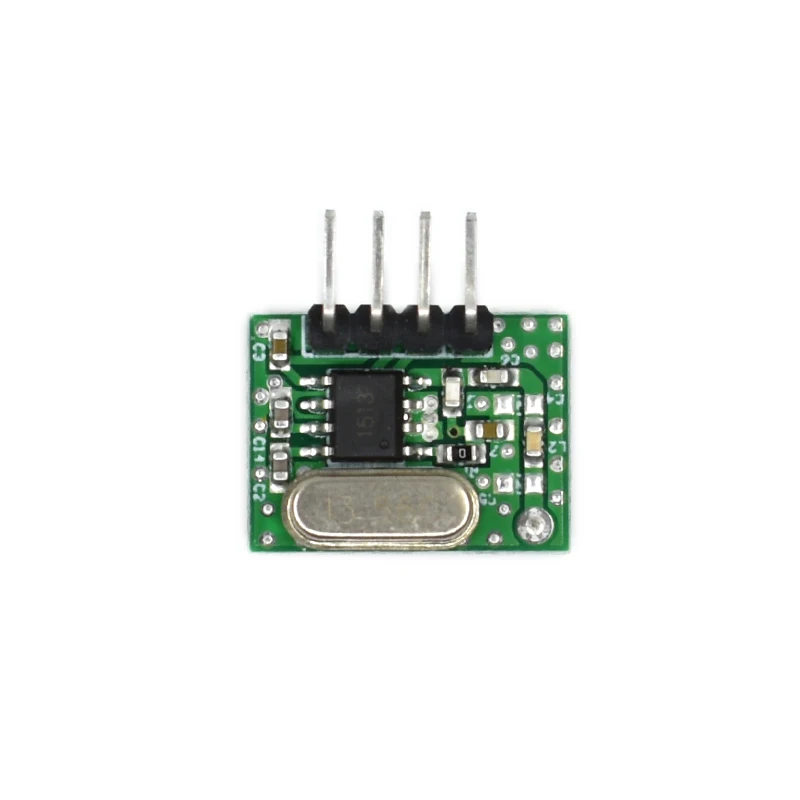

Model: WL102-341

Material: Plastic + Metal

Color: shown as pictures

Size: 16×12×1mm

Operating frequency: 433.92 MHz

Mains input voltage range: 2.0V-3.6V

Shutdown mode current is less than 1uA

Transfer rate: up to 20KHz

Launch distance: 20-100 meters

External antenna: 25cm ordinary multi-core or single-core line

Temperature range: -45℃～85℃

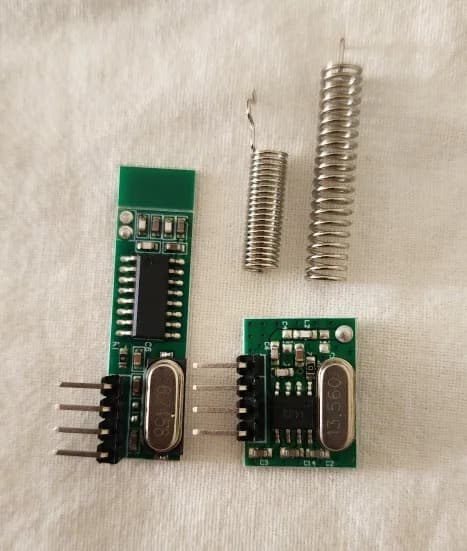

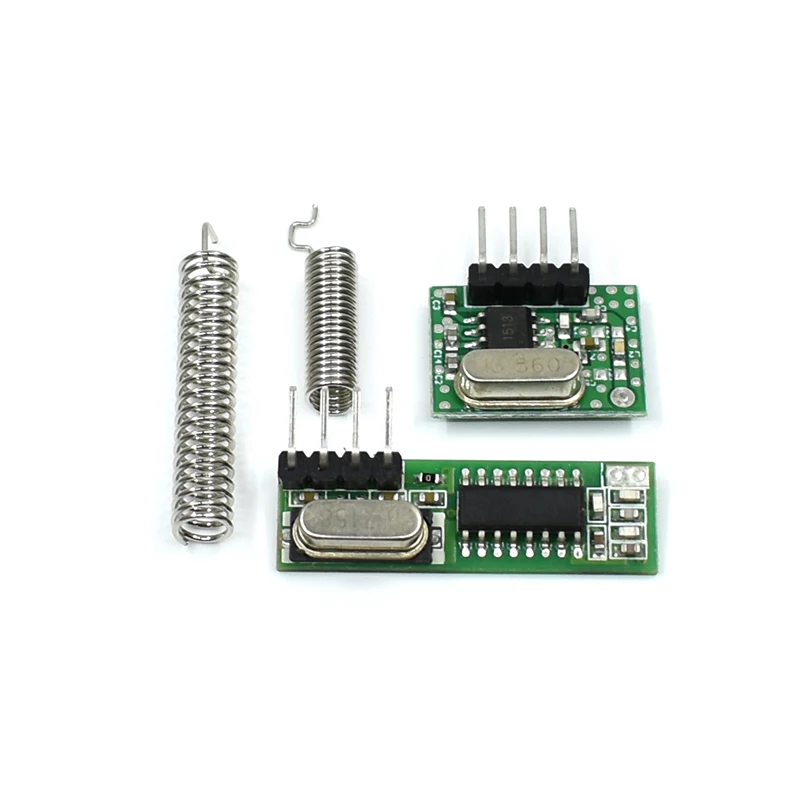

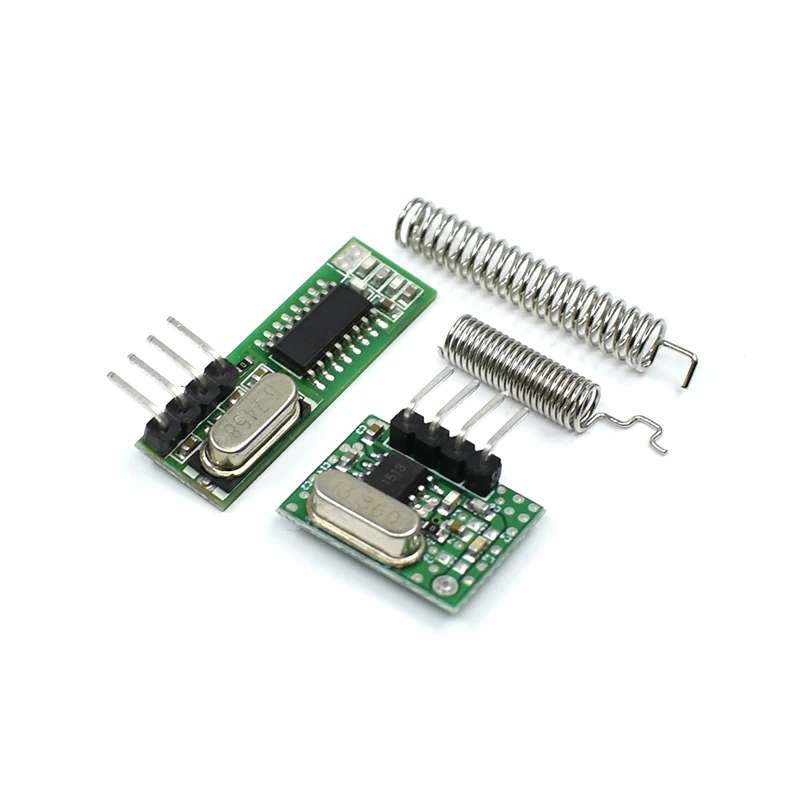

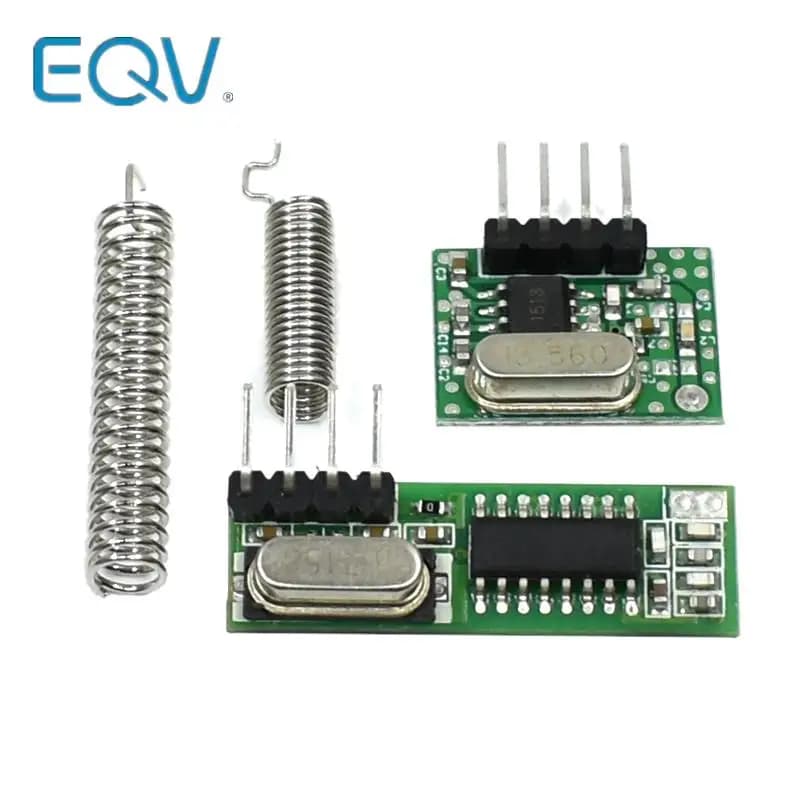

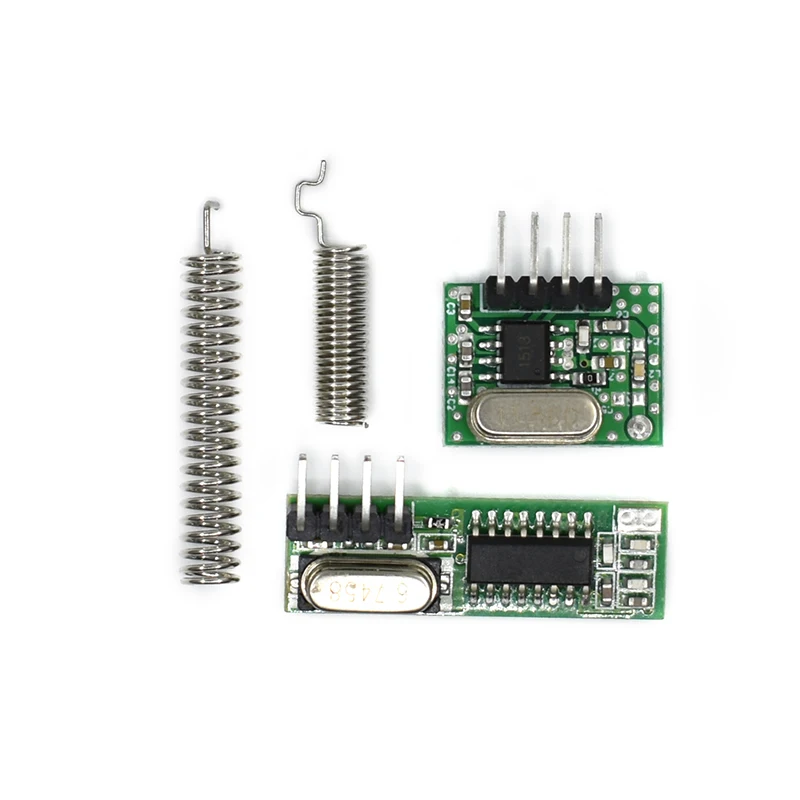

Package Included:

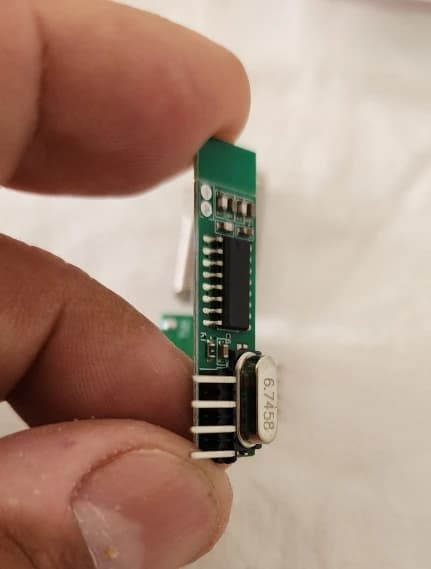

1 X Receiver module (RX470-4)

1 X Transmitter module (WL102-341)

2X Antenna (Short antenna for Transmitter; long antenna for Receiver.)
