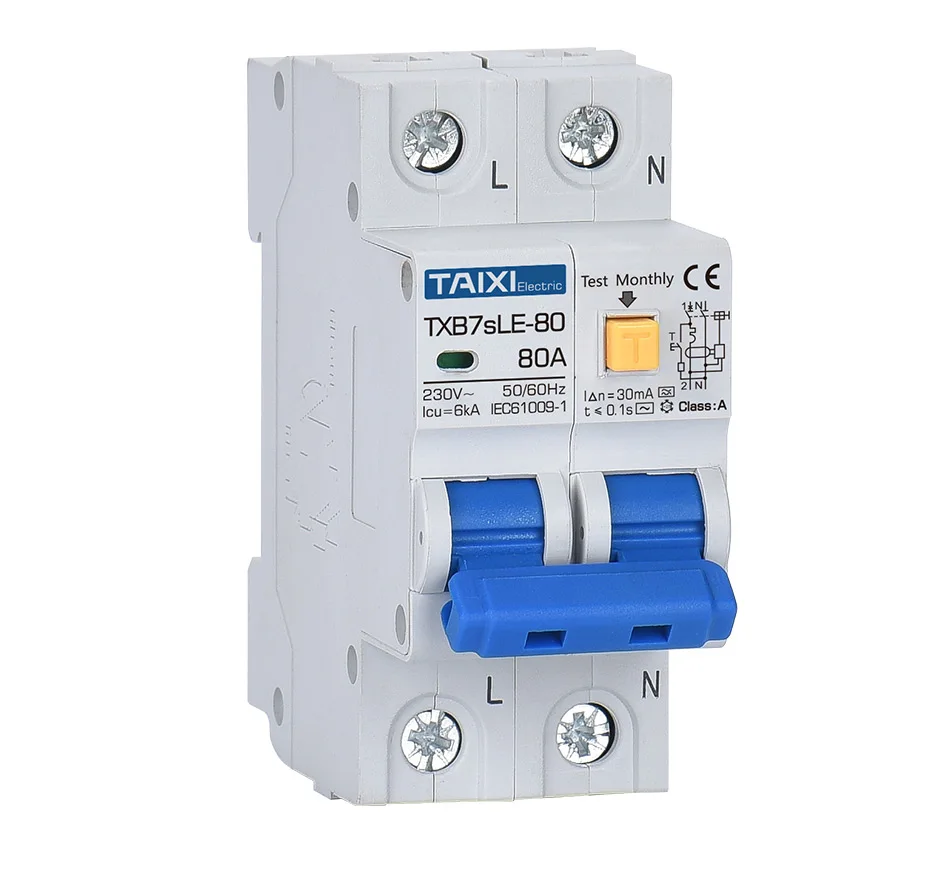

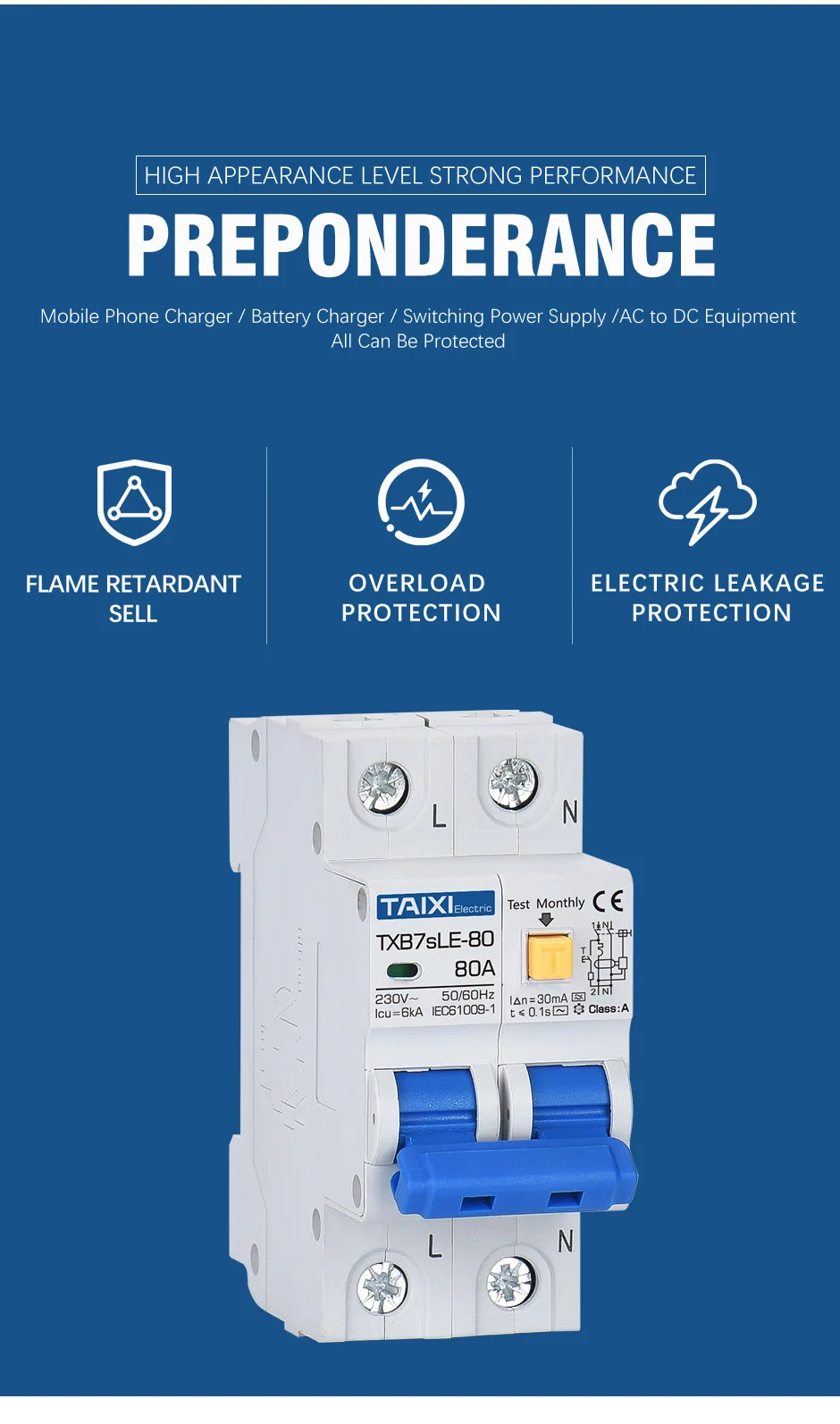

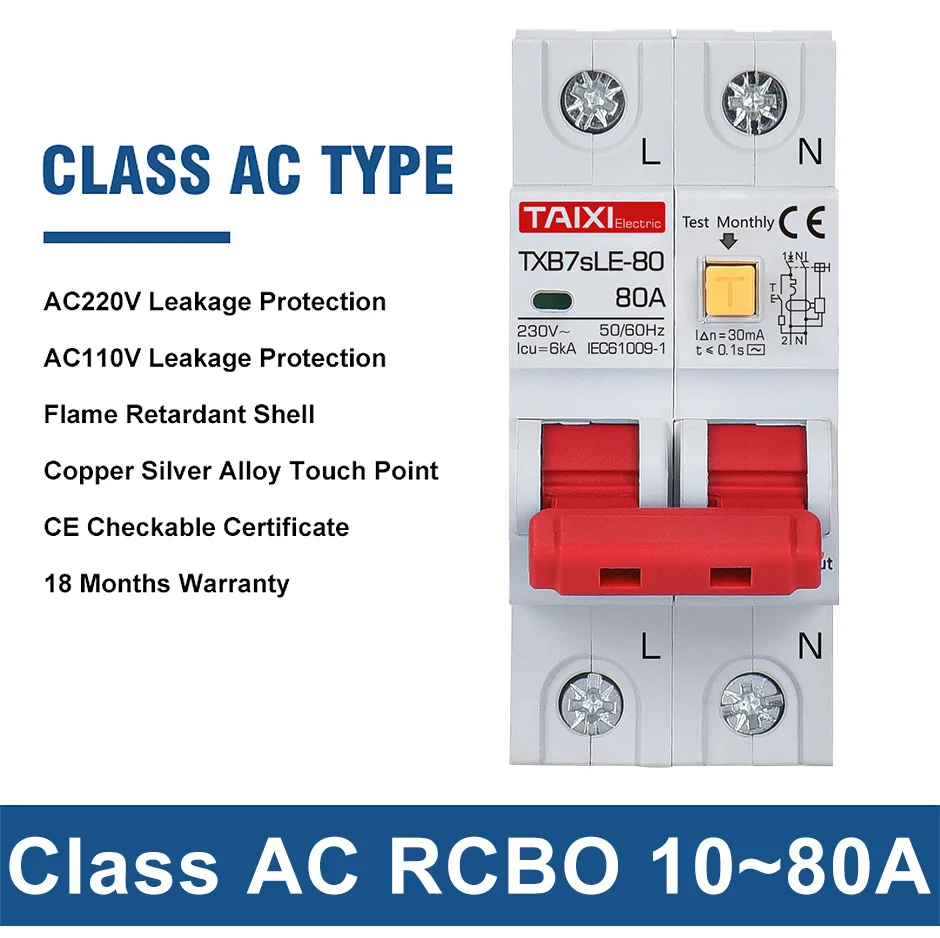

TAIXI RCBO RCCB Type A / AC Residual Current Circuit Breaker MCB 220V 110V 10A 16A 20A 32A 40A 63A 30mA 15mA Leakage Protection
11.61$
11.61$
Quantity:
1
Availability:
Rated Current
Ships From
Poles Number
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Technical Parameters
■ Rated current: 6,10,16,20,25,32,40,50,63,80A
■ Rated operating voltage: 230 / 110 AC
■ Rated insulation voltage: 500V
■ Rated residual operated current: 30mA
■ Breaking capacity: 6kA

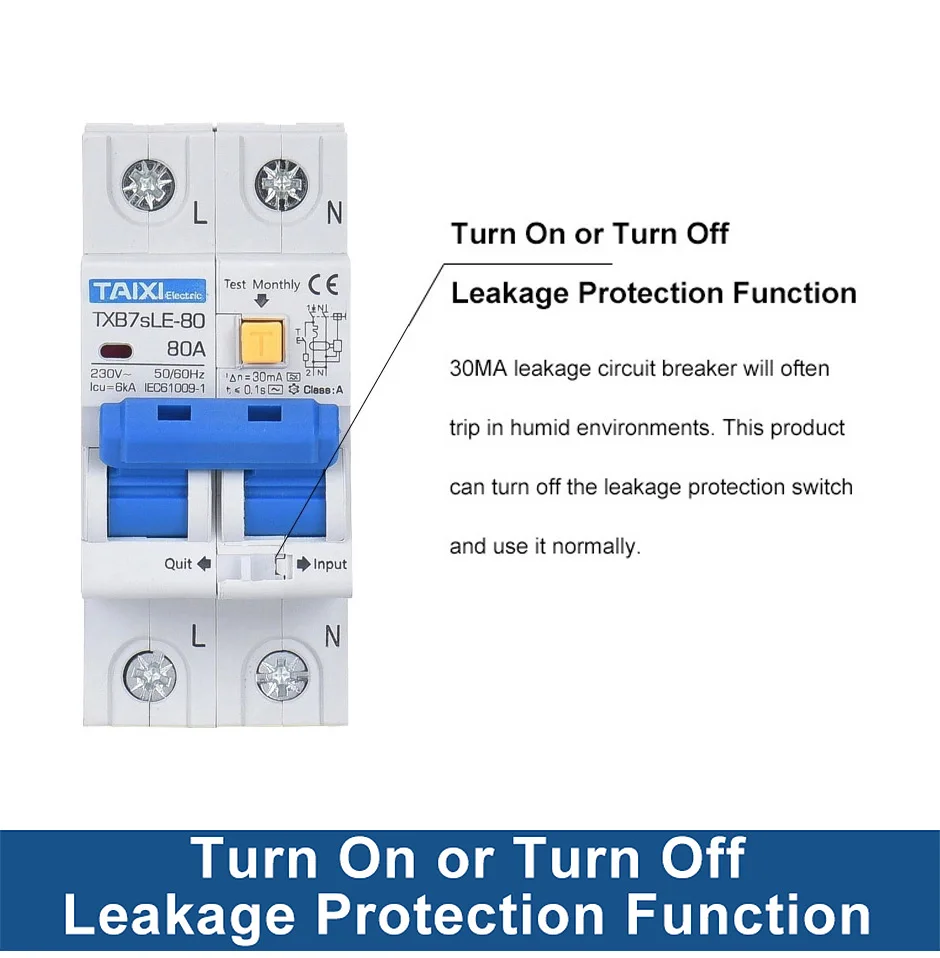

■ Trip indicator: TXB7sLE electric leakage circuit breaker has residual current operated trip indicator window, when leakage fault trip, the window changes from colorless to red
■ Mechanical life: 8000 times
■ Electrical life: 2000 times
■ Wiring: 6 ~ 80A, can be connected to wires of 25mm ⊃2; and below
■ Standard: IEC61009-1 / GB16917.1
■ Certification: CCC, CB,CE
■ Tripping characteristics: C-type curve, protection of conventional load and distribution cables, instantaneous trip range (5 ~ 10) In

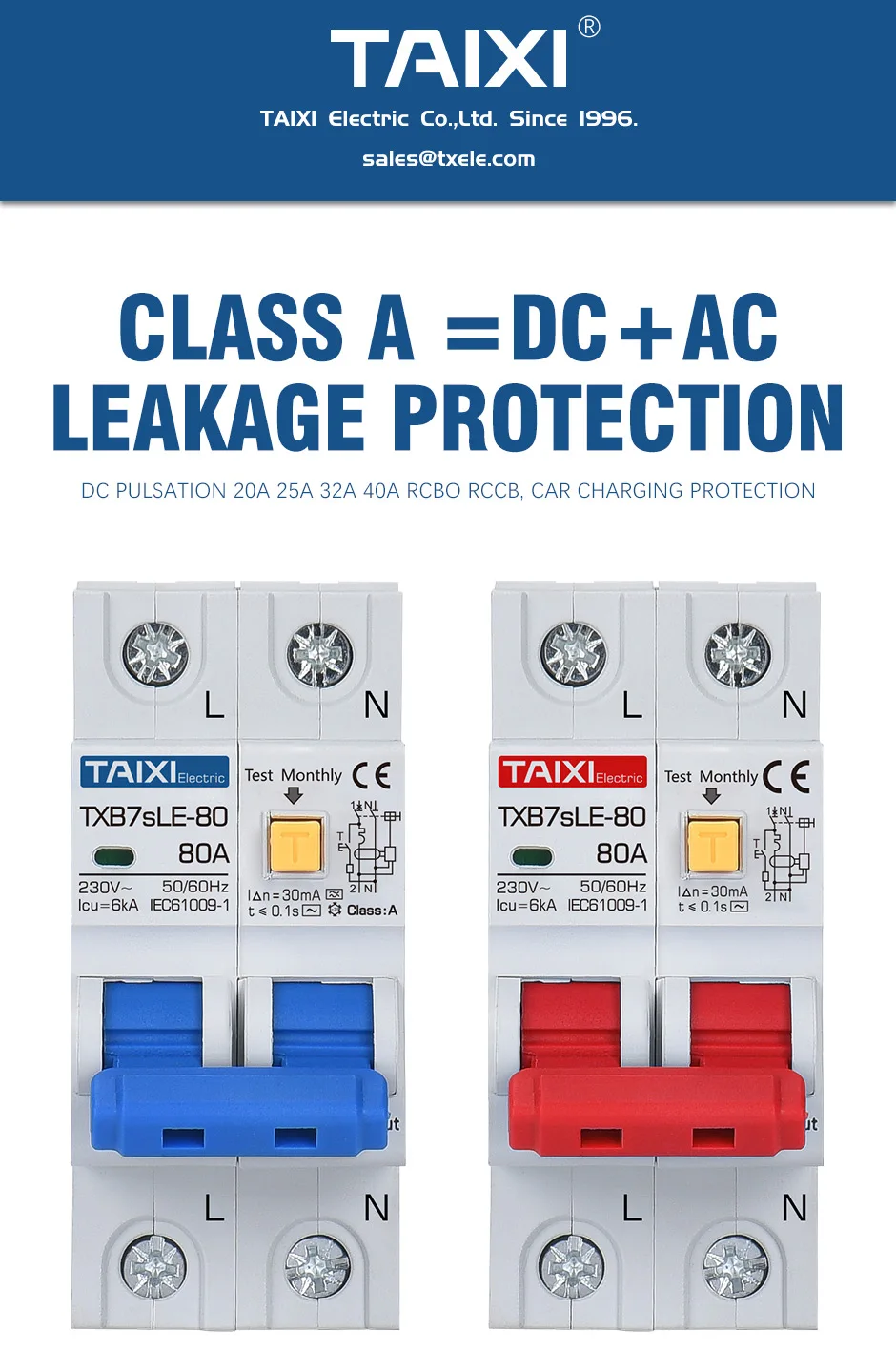

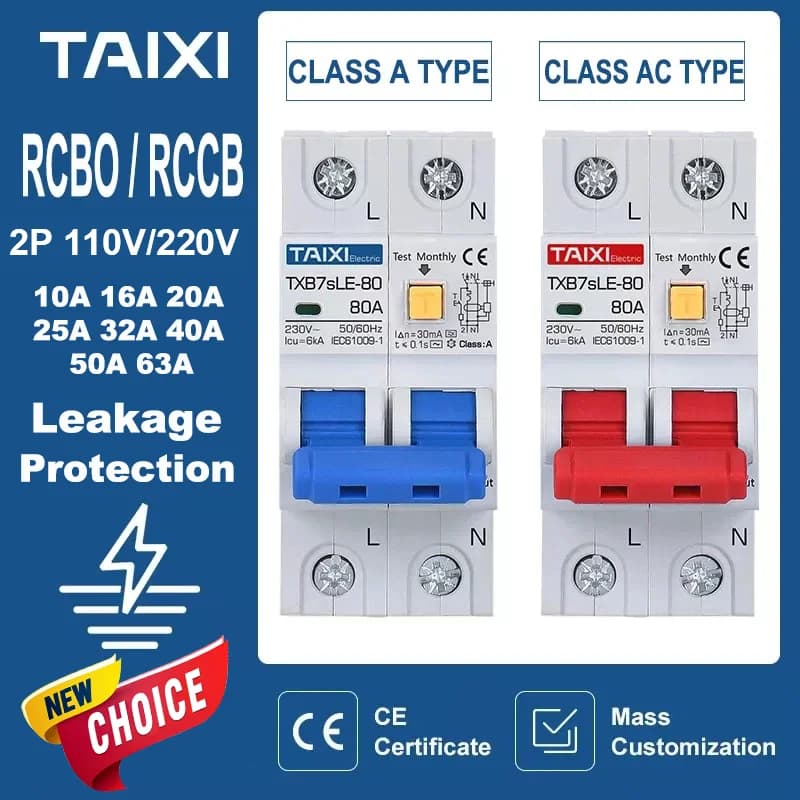

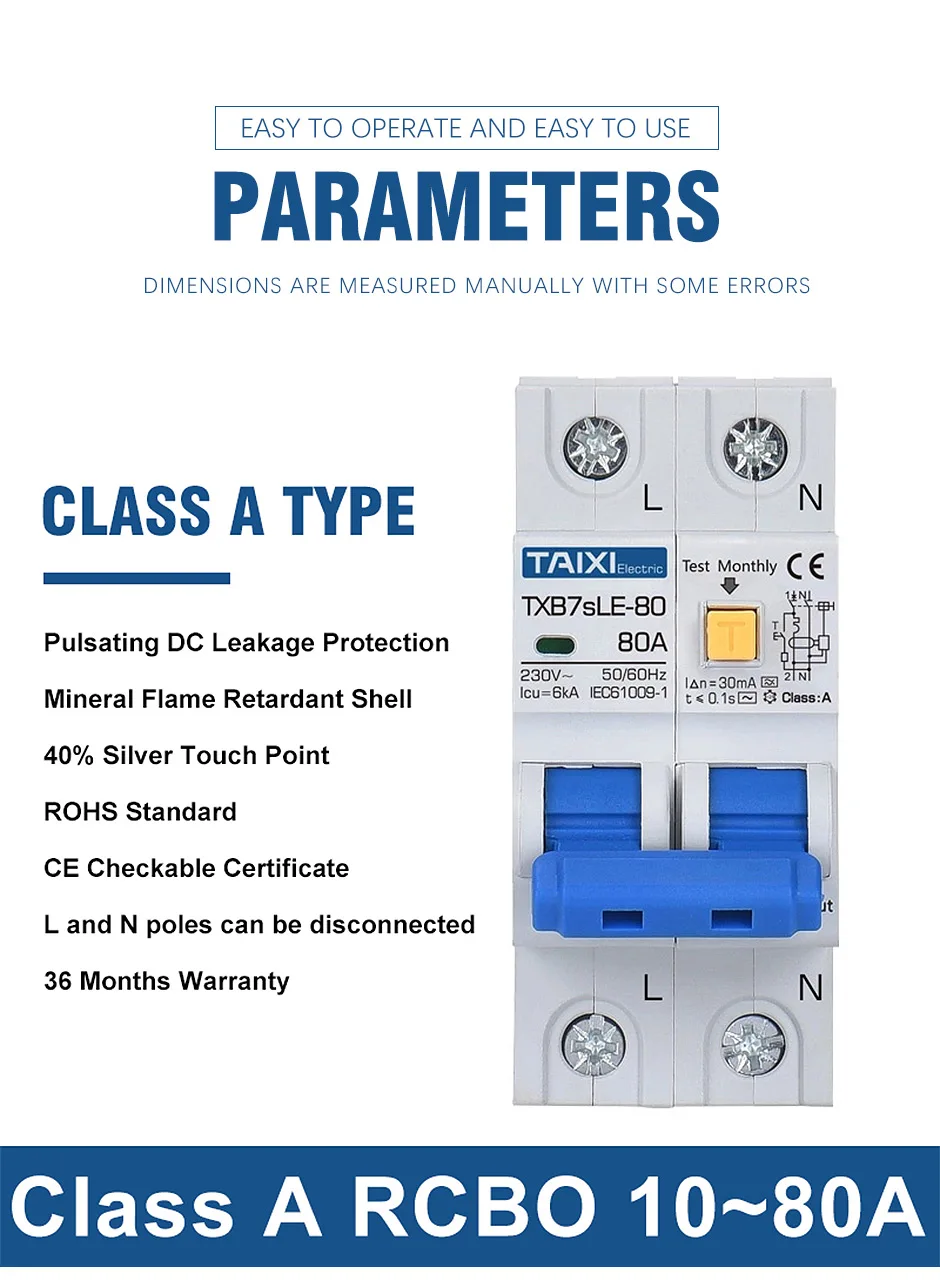

Type A RCCB/RCBO

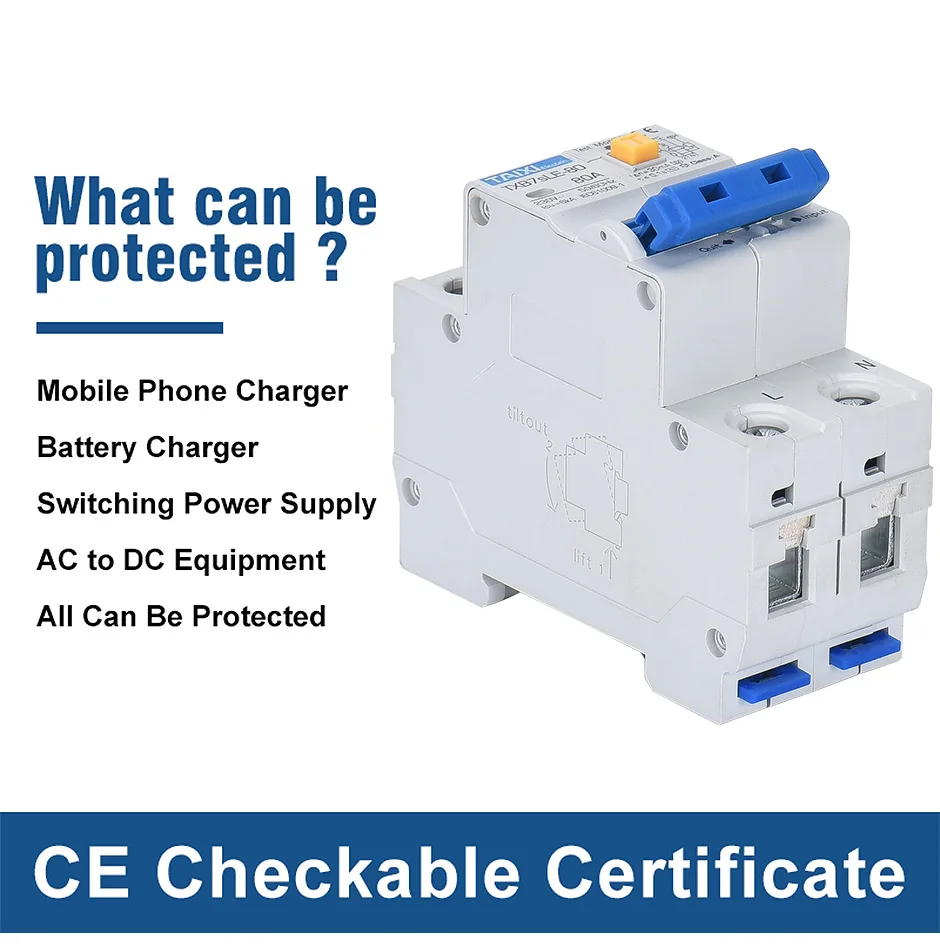

Type A RCCB/RCBO not only cover the functions of traditional AC leakage protector, but also provide adequate protection against faults with pulsating DC components in residual current. Common electrical equipment that can easily cause pulsating DC residual current components in life include notebook computers, tablet computers, mobile phones, microwave ovens, induction cookers, refrigerators, washing machines, air conditioners, charging piles, etc.
Customer Reviews
198 ratings
well packaged (10)
fast delivery (8)
functions correctly (8)
suitable for domestic requirements (5)
high quality (4)
good quality (4)

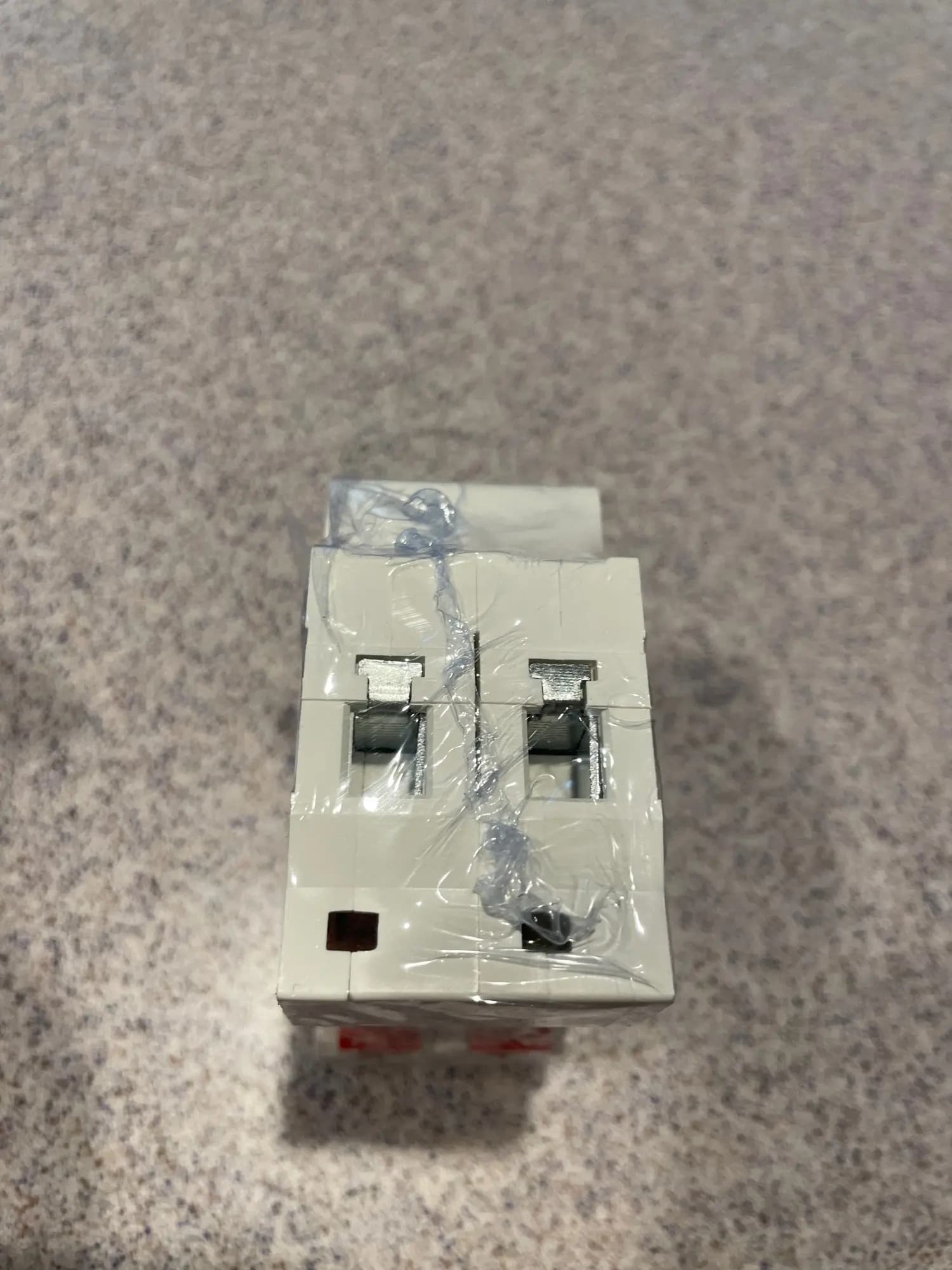

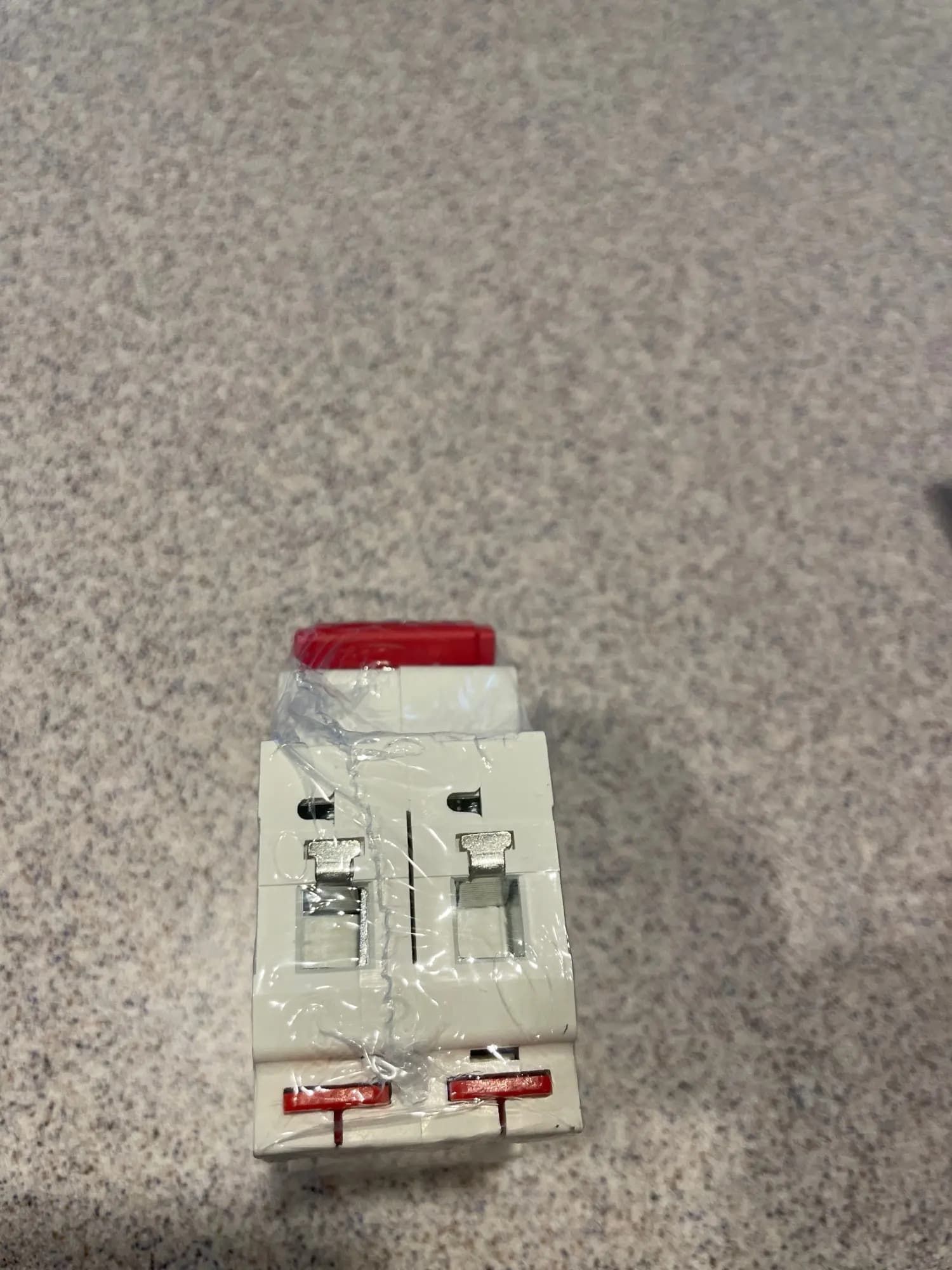

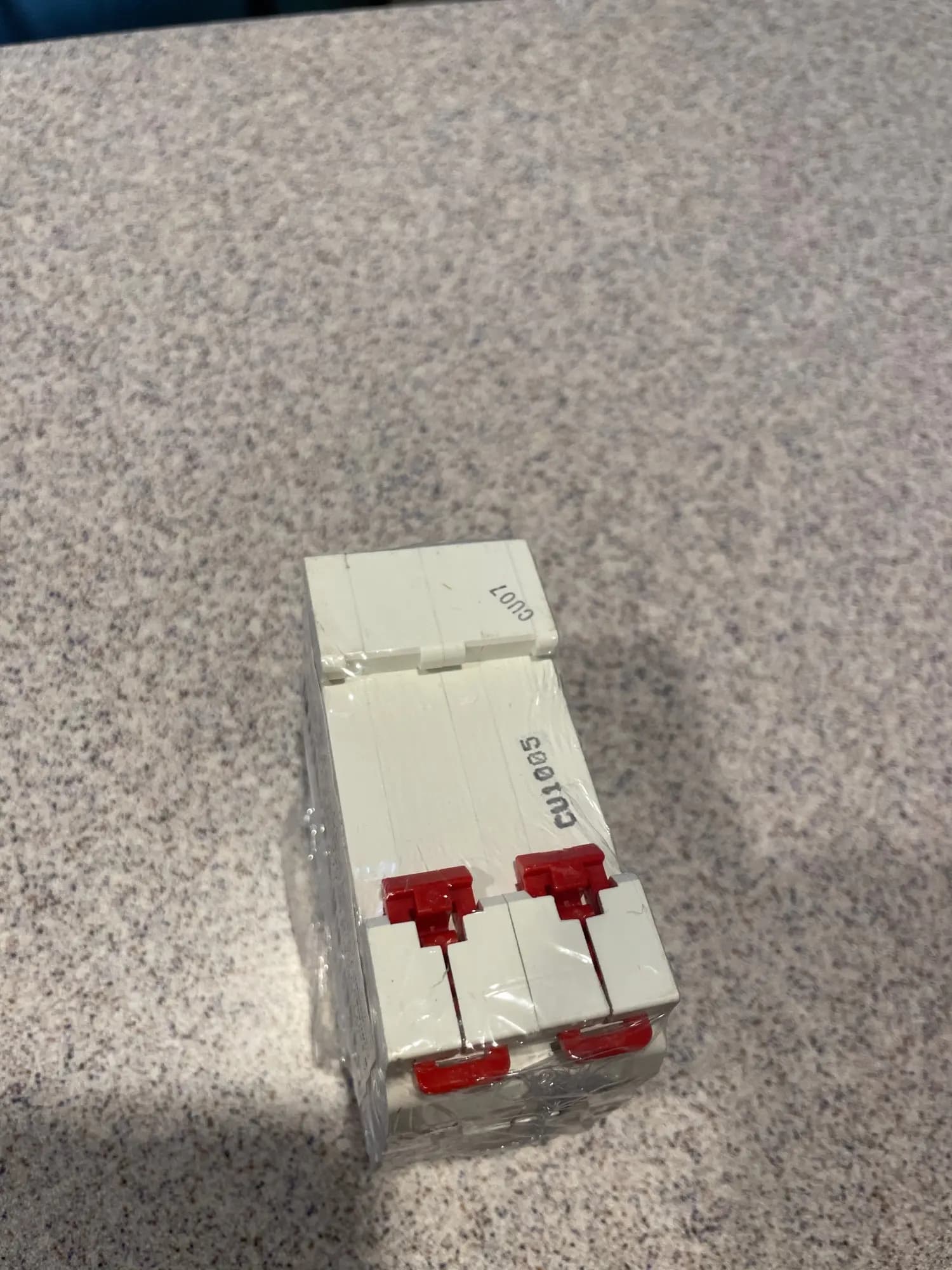

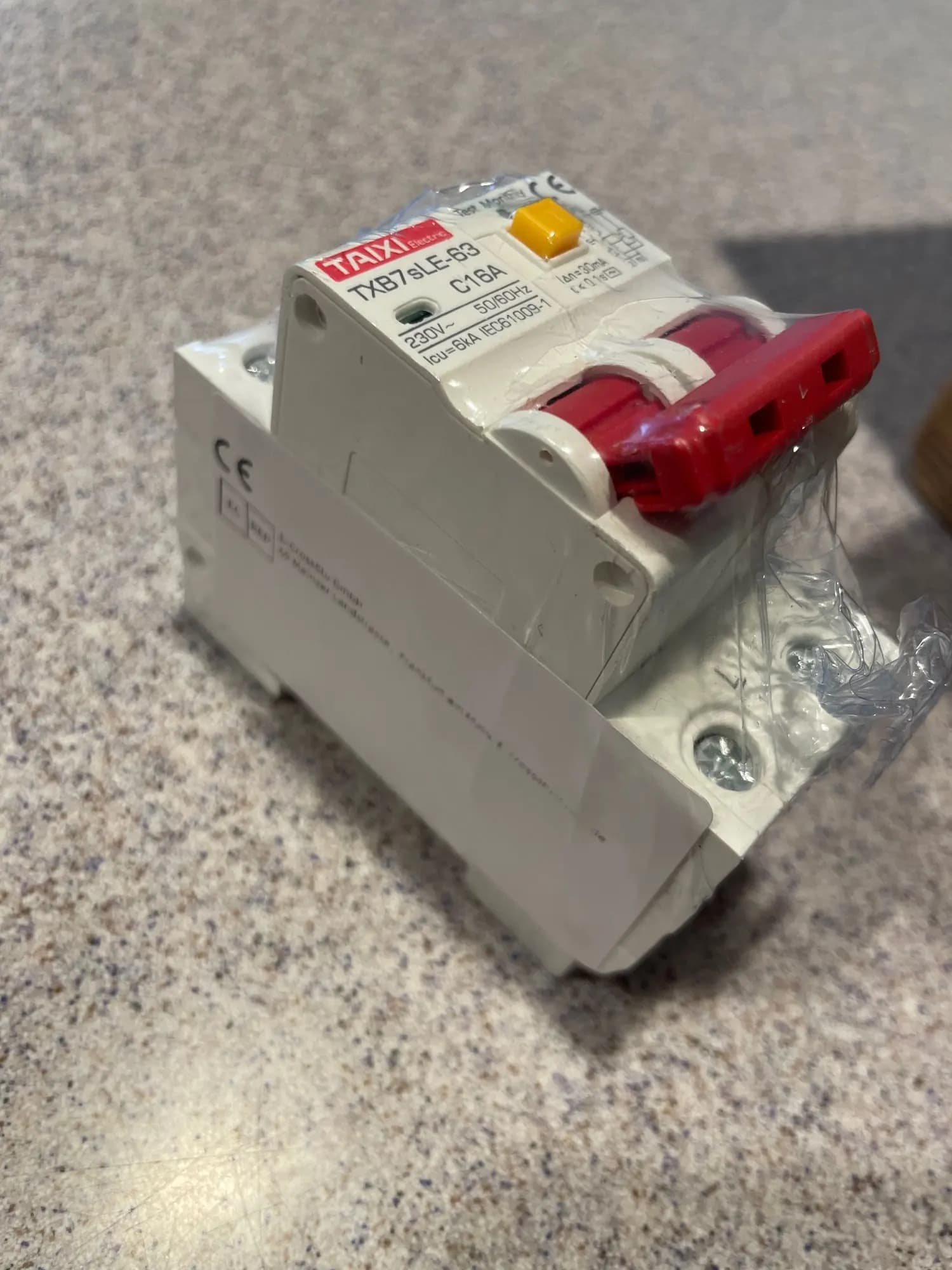

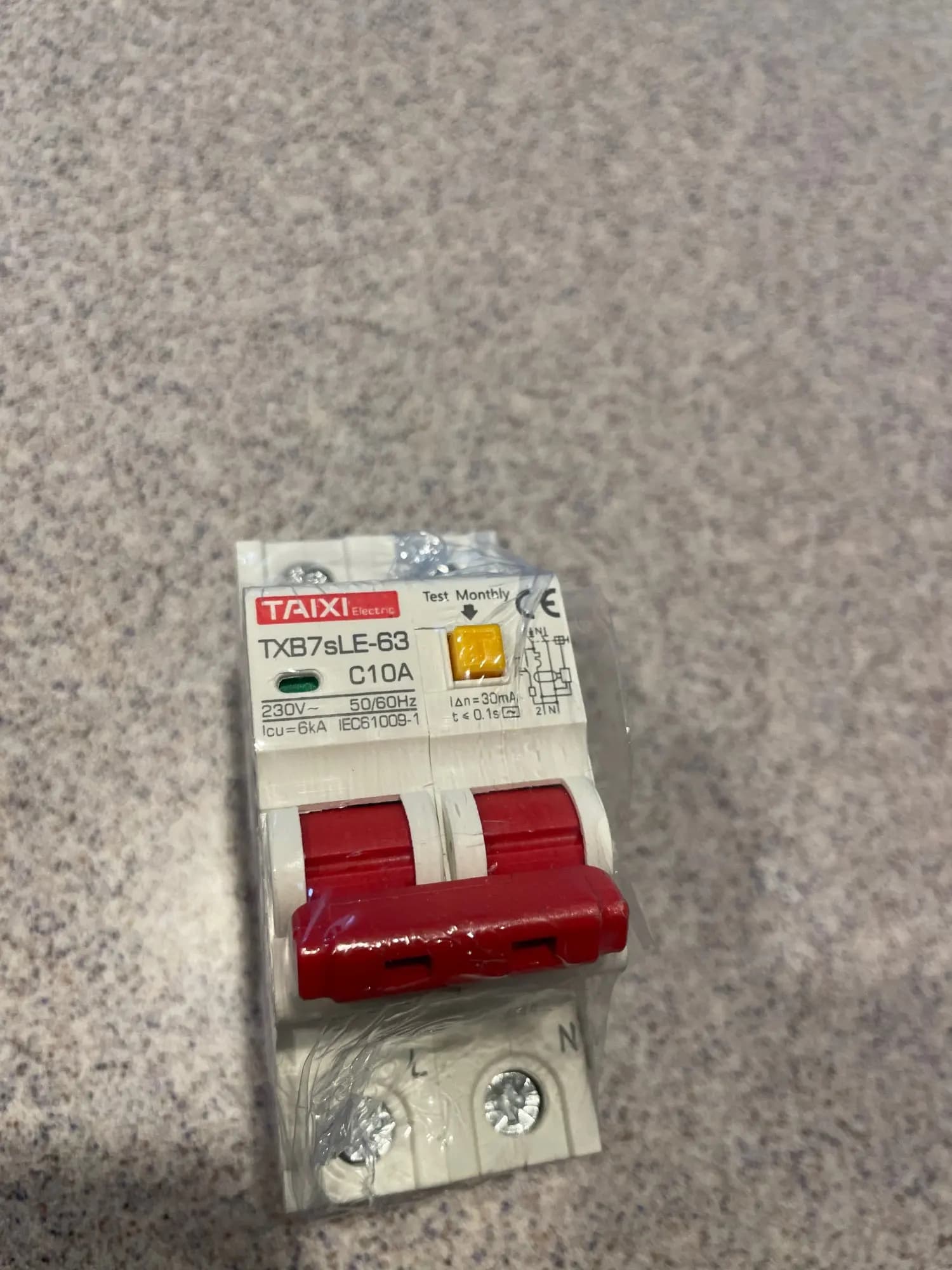

Customer photos (30)
Buyer from United States
July 14, 2026
Variant: Rated Current:40A Ships From:China Mainland Poles Number:AC Type AC110V 30mA
very good 👌
Translated by AliExpress ·
Buyer from United States
June 26, 2026
Variant: Rated Current:40A Ships From:China Mainland Poles Number:A Type AC110V 30mA
It arrived ahead of schedule, just need to test it.
Translated by AliExpress ·
Buyer from United States
June 17, 2026
Variant: Rated Current:40A Ships From:China Mainland Poles Number:A Type AC110V 30mA
The item is exactly as shown in the purchase photo, the delivery was on time with no problems, I just need to test it.
Translated by AliExpress ·
A***s
May 12, 2026
Variant: Rated Current:16A Ships From:China Mainland Poles Number:AC Type AC220V 30mA

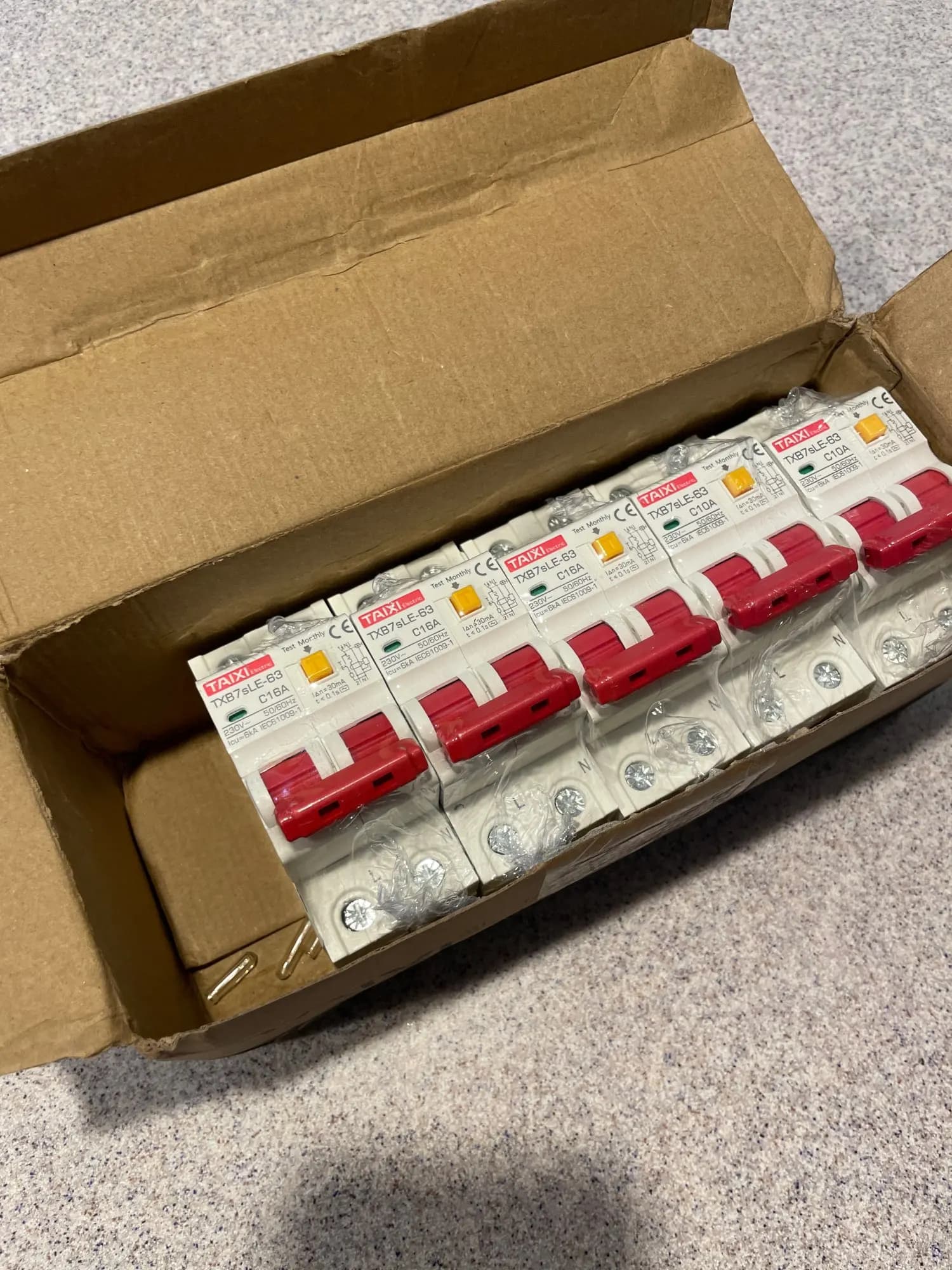

Everything matches the description. Delivery was timely. Excellent packaging for each machine individually as well as for the entire package as a whole.
Translated by AliExpress ·
A***s
May 12, 2026
Variant: Rated Current:10A Ships From:China Mainland Poles Number:AC Type AC220V 30mA
Everything matches the description. Delivery was timely. Excellent packaging for each machine individually as well as for the entire package as a whole.
Translated by AliExpress ·
T***e
January 25, 2026
Variant: Rated Current:16A Ships From:China Mainland Poles Number:AC Type AC220V 30mA
Product matches the description
