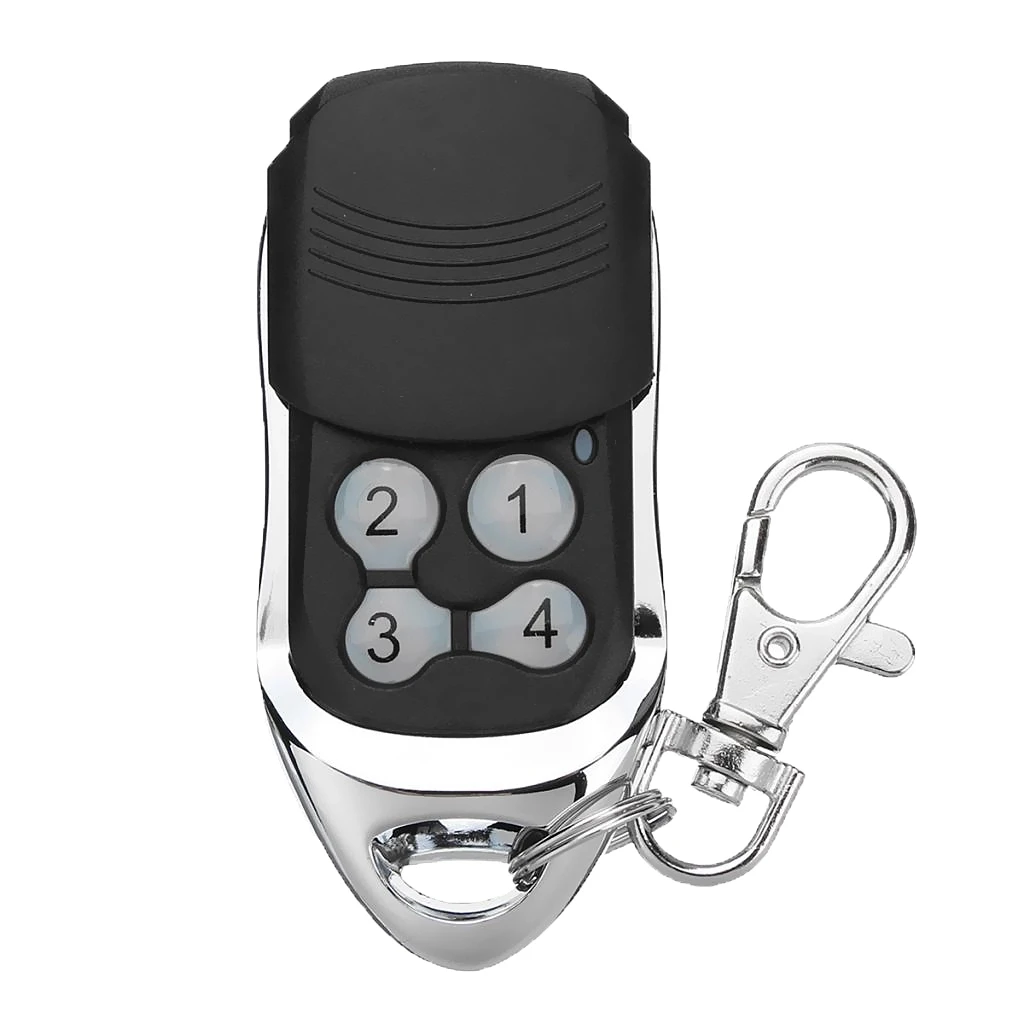

ATA PTX-4 Securacode Garage/Gate Door Replacement Remote Control Transmitter For ATA PTX4 433.92 MHz

ATA PTX4 garage door remote control 433.92 MHz

Specifications

1. Type : Programming with the receiver
2. Frequency : 433.92MHz
3. Code: Rolling Code
4. Battery : Include Battery
5. Buttons : 4

Features

When your remote control is lost, you can buy our remote control and pair it with your receiver, after the remote control is programmed successfully, you will get a new remote control

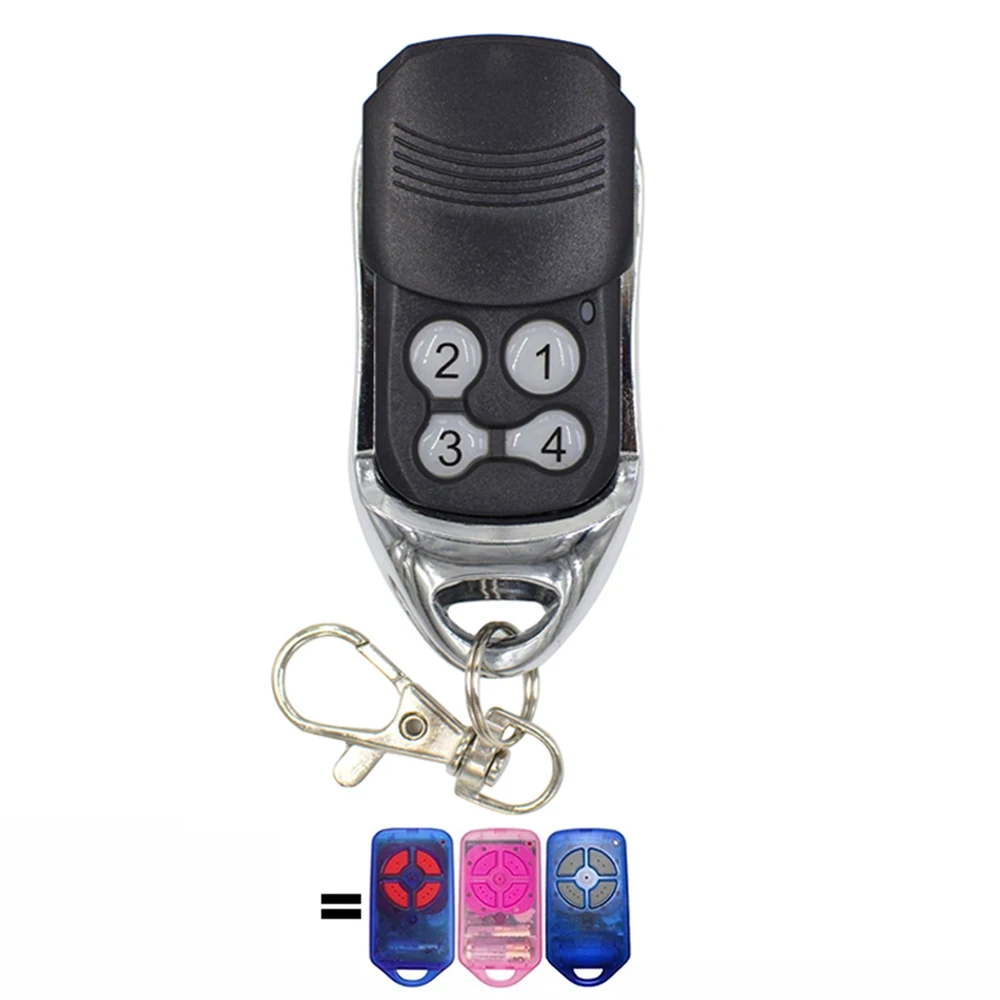

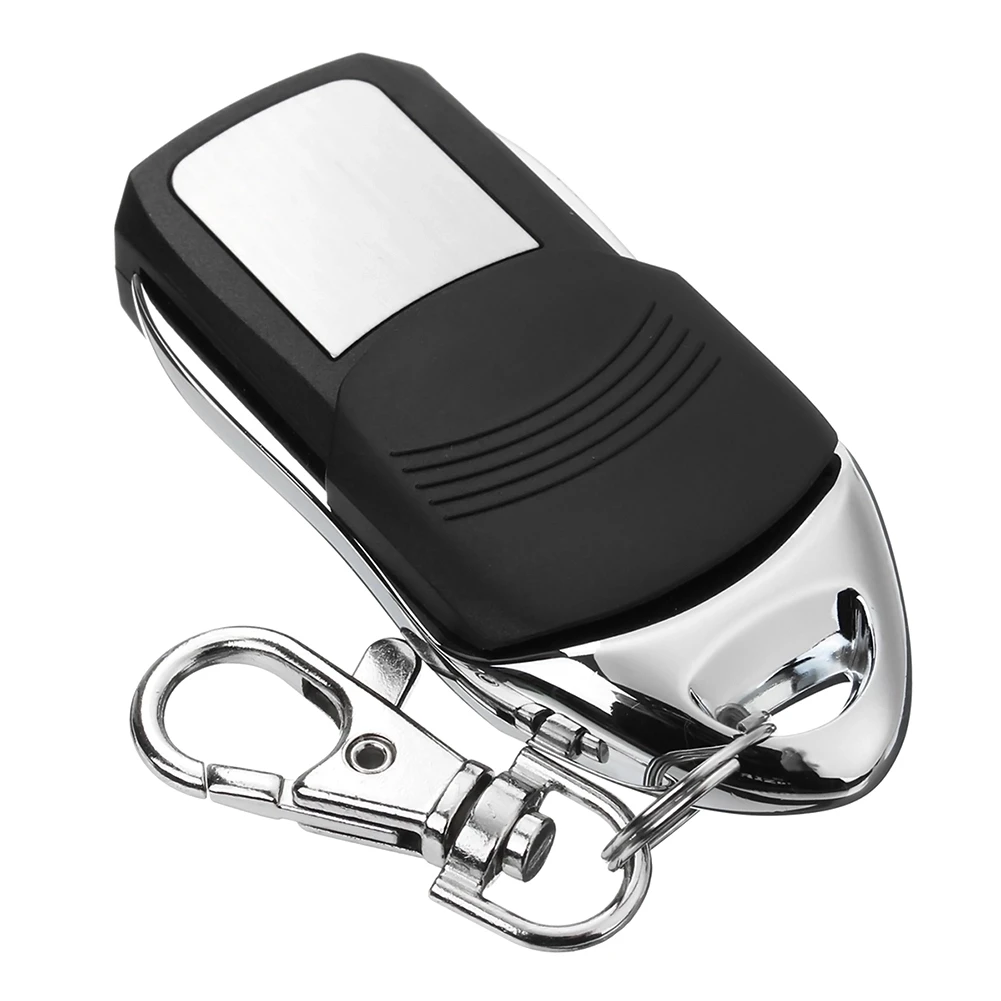

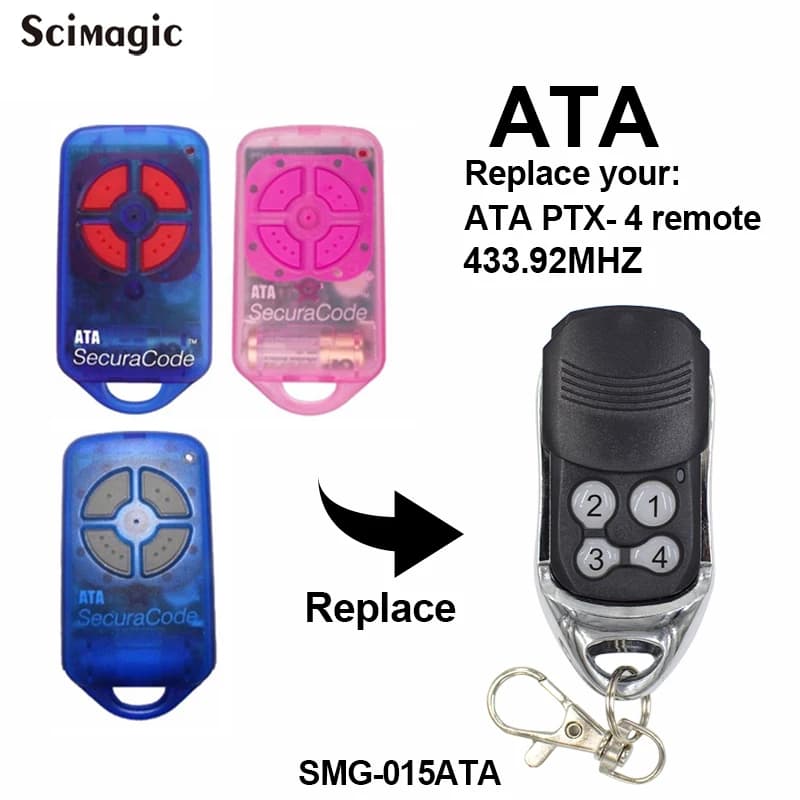

The product that you will receive is the item that is being pointed to by the arrows which is an aftermarket compatible remote.

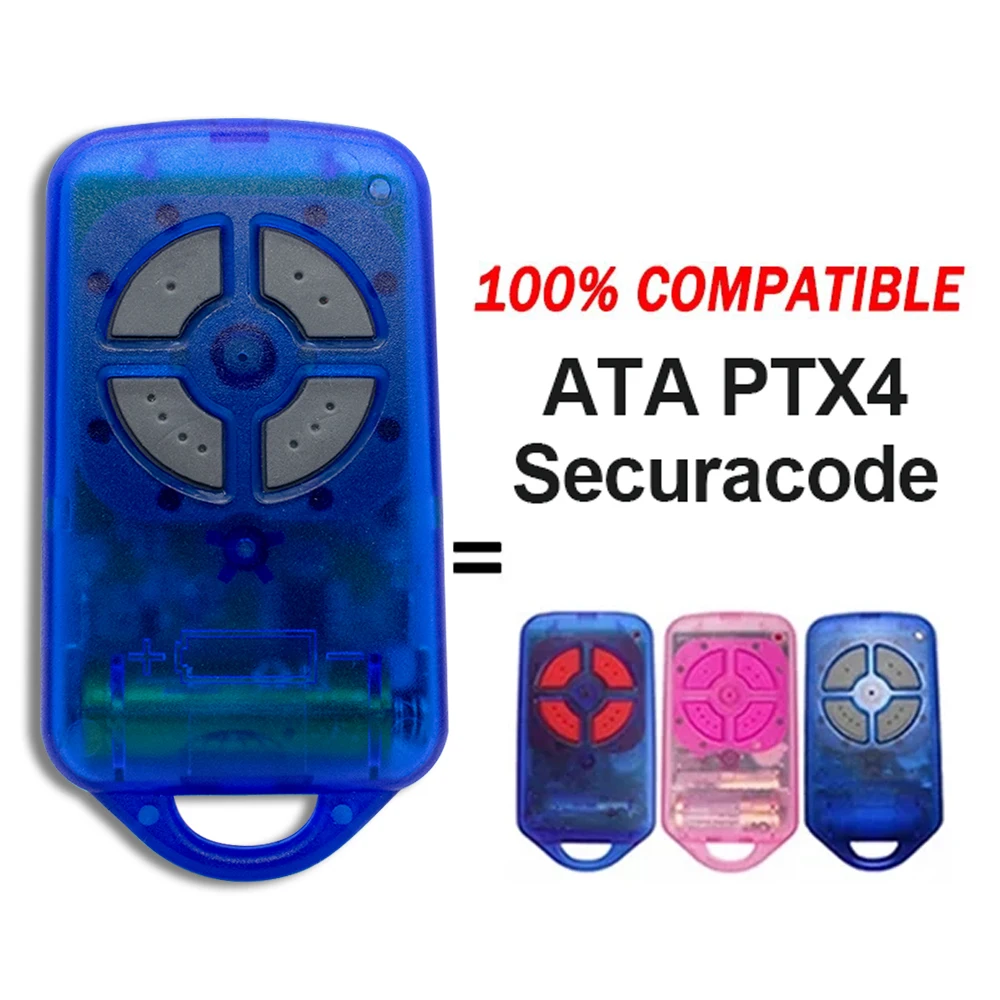

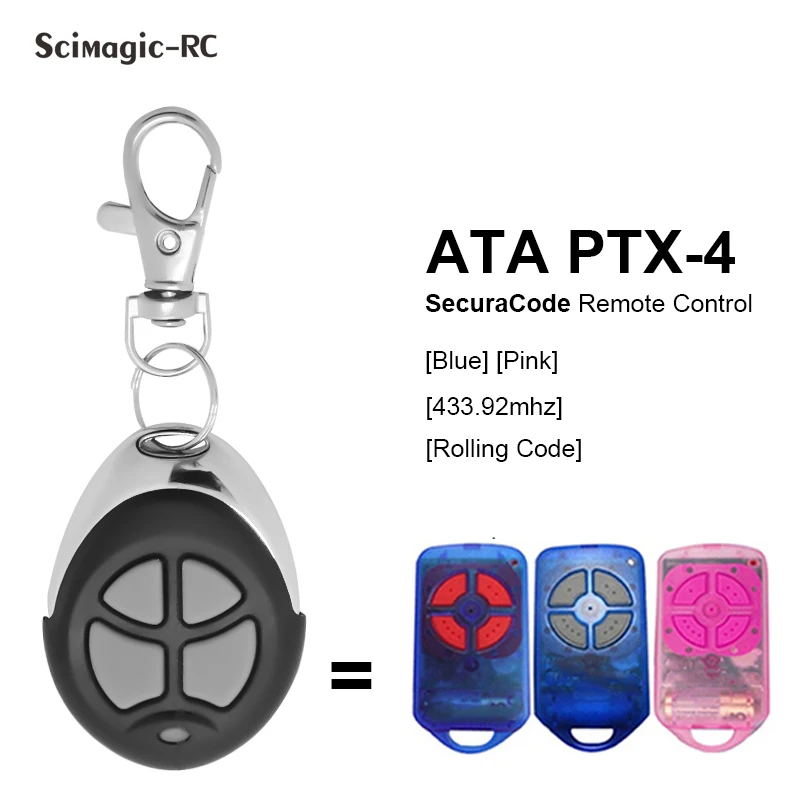

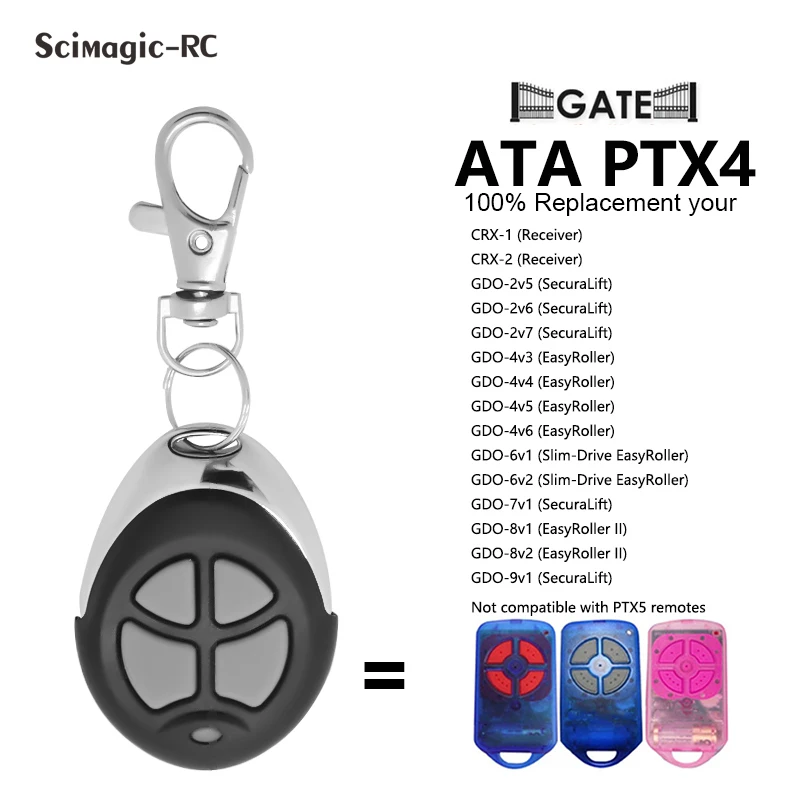

Compatibility:

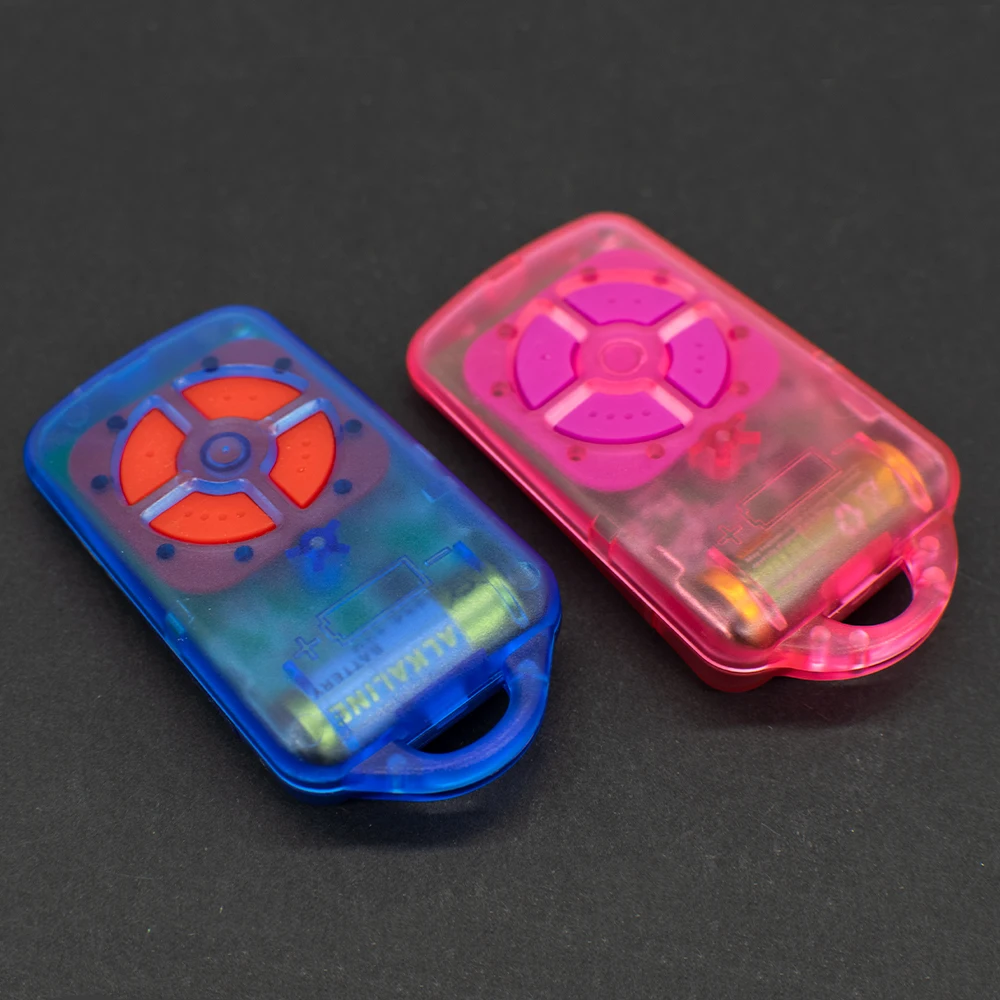

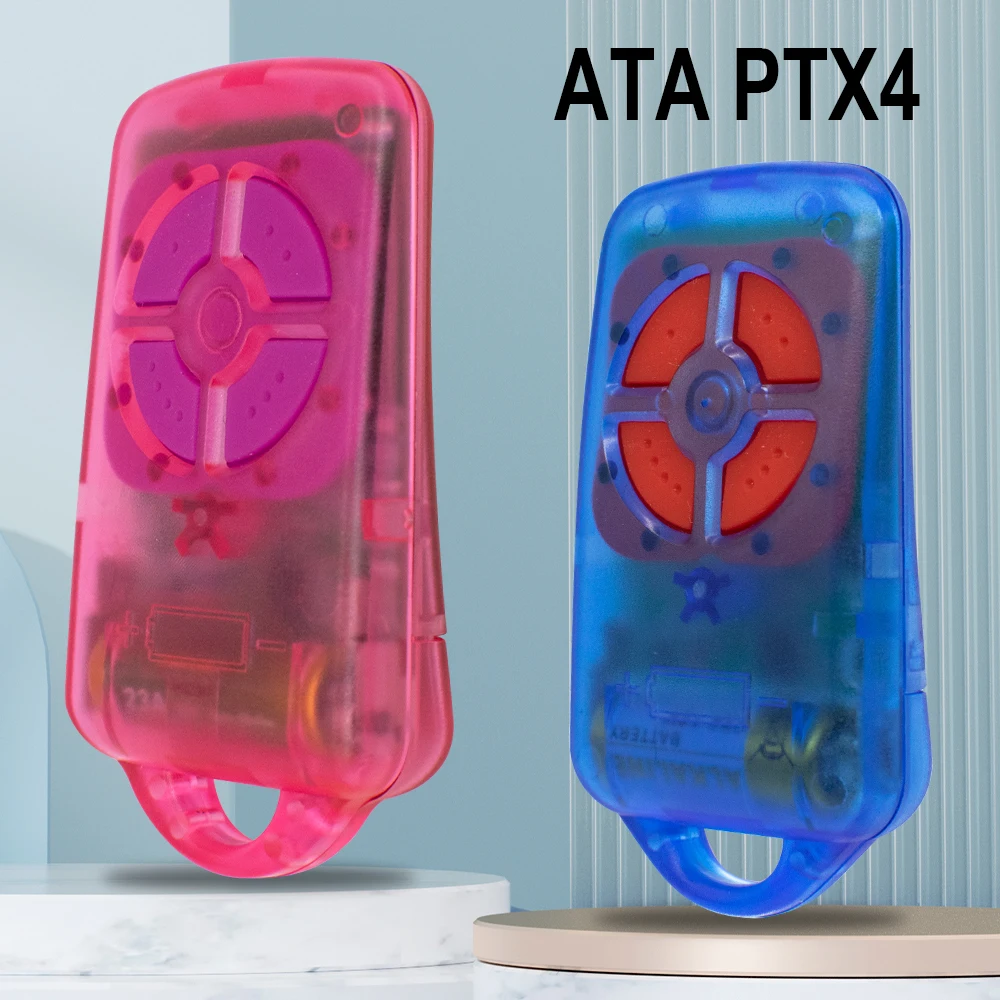

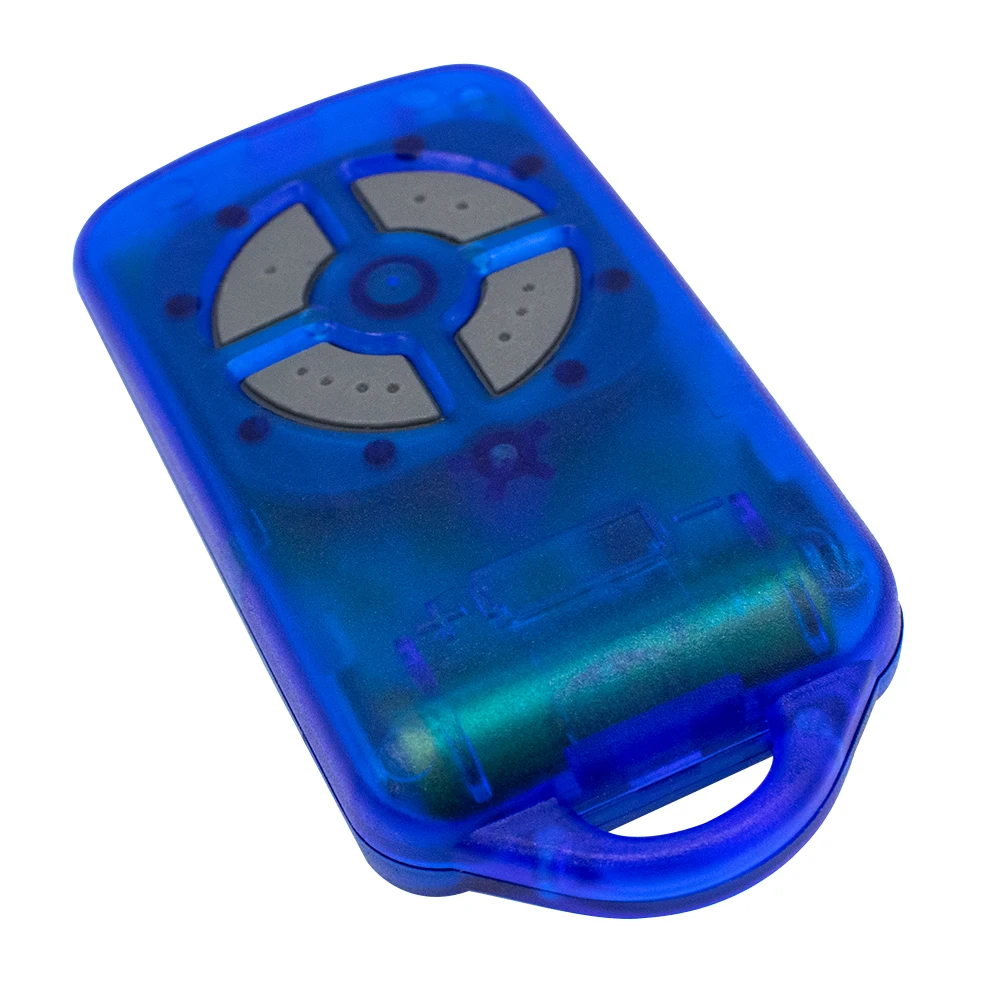

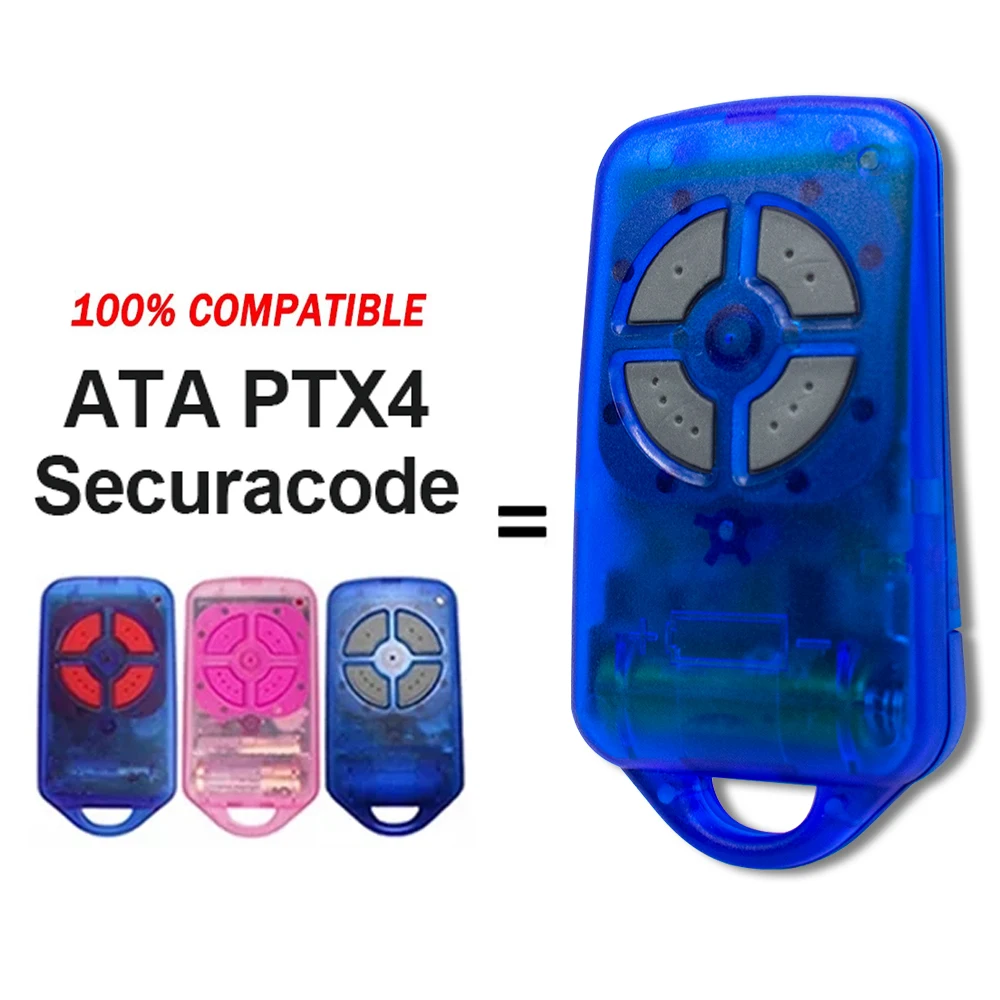

ATA PTX4 (remote control)

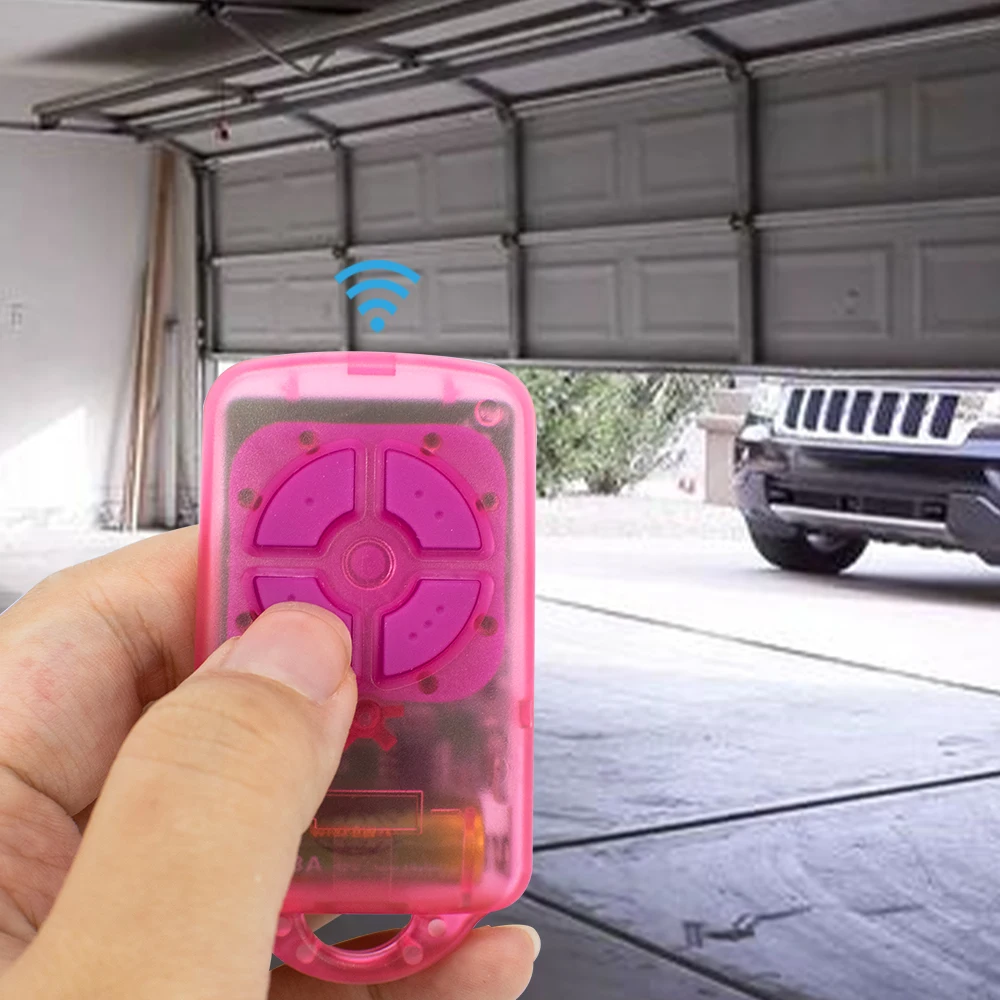

ATA PTX4 Pink (remote control)

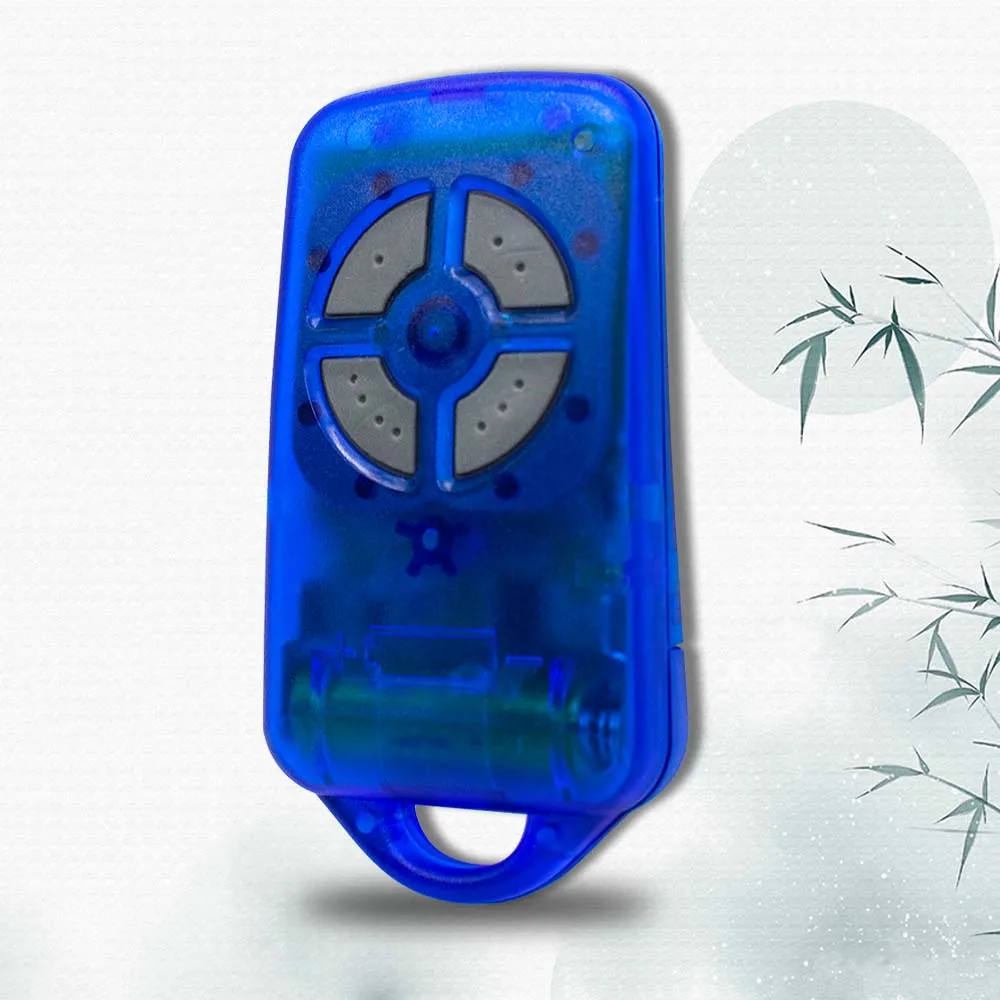

ATA PTX4 Blue (remote control)

CRX-1 (Receiver)
CRX-2 (Receiver)
GDO-2v5 (SecuraLift)
GDO-2v6 (SecuraLift)
GDO-2v7 (SecuraLift)
GDO-4v3 (EasyRoller)
GDO-4v4 (EasyRoller)
GDO-4v5 (EasyRoller)
GDO-4v6 (EasyRoller)
GDO-6v1 (Slim-Drive EasyRoller)
GDO-6v2 (Slim-Drive EasyRoller)
GDO-7v1 (SecuraLift)
GDO-8v1 (EasyRoller II)
GDO-8v2 (EasyRoller II)
GDO-9v1 (SecuraLift)

AM receiver SecuraCode CRX-1 CRX-2 UHF stand-along receivers. And we make the PTX-4 replacement remote which can replace PTX-4BR,PTX-4BG,PTX-4PP.and for HERCULIFT Replaces: Hc101 Hc102 Hc103 Hc104 Hc105 , Compatible with Herculift Motors: 1000N 800N, 600N, SDO V8, SDOV8E, SDOV10E, RDO, RDO V10, RDO V12, SGO 500 ect,
dominator cobra /ptx-4

Note: Not compatible with PTX5 remotes

Access to receiver required. Please make sure you got access to your receiver/opener before purchase.

Disclaimer: Your remote control must be the same as the picture and your model must be in the list, we will not be responsible for wrong purchase

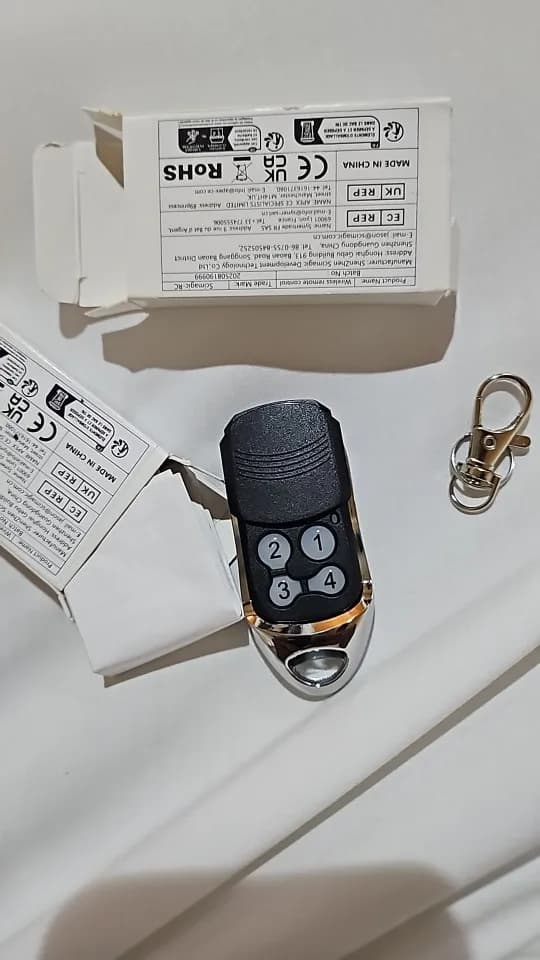

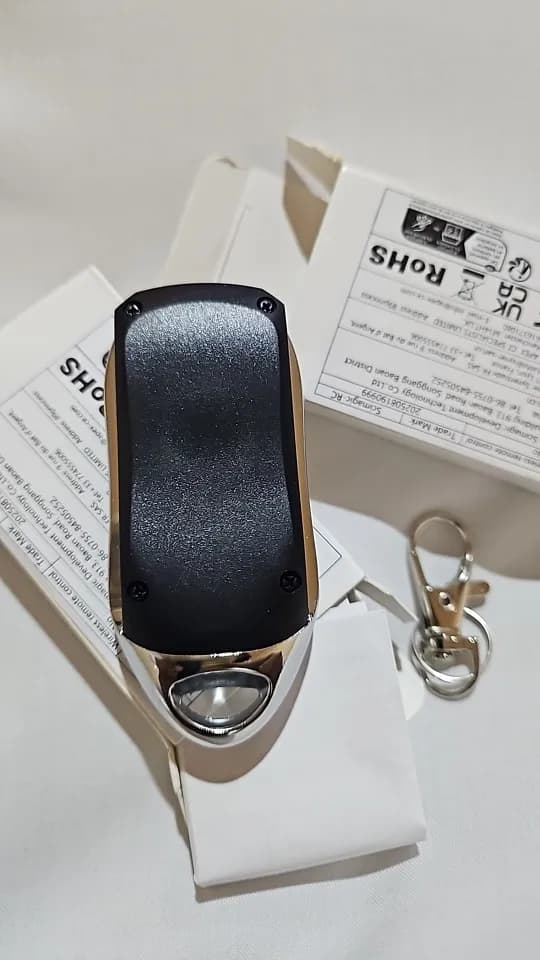

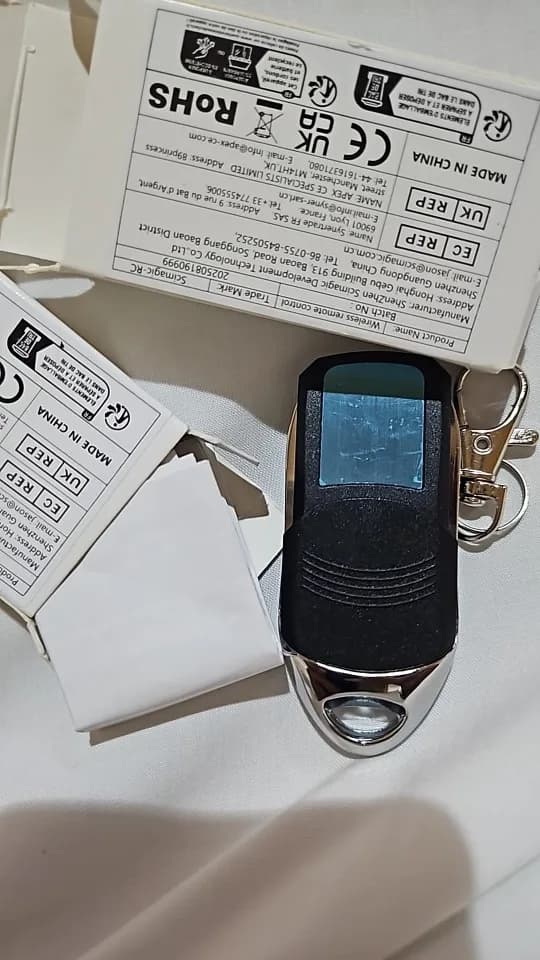

Package Include

* Compatible Remote Control

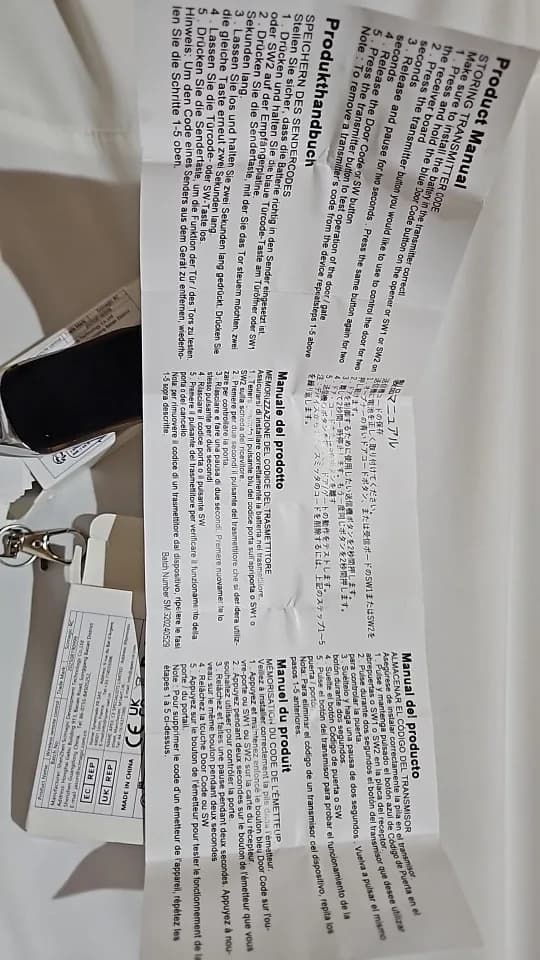

* English Manual
* Battery
* Keychain

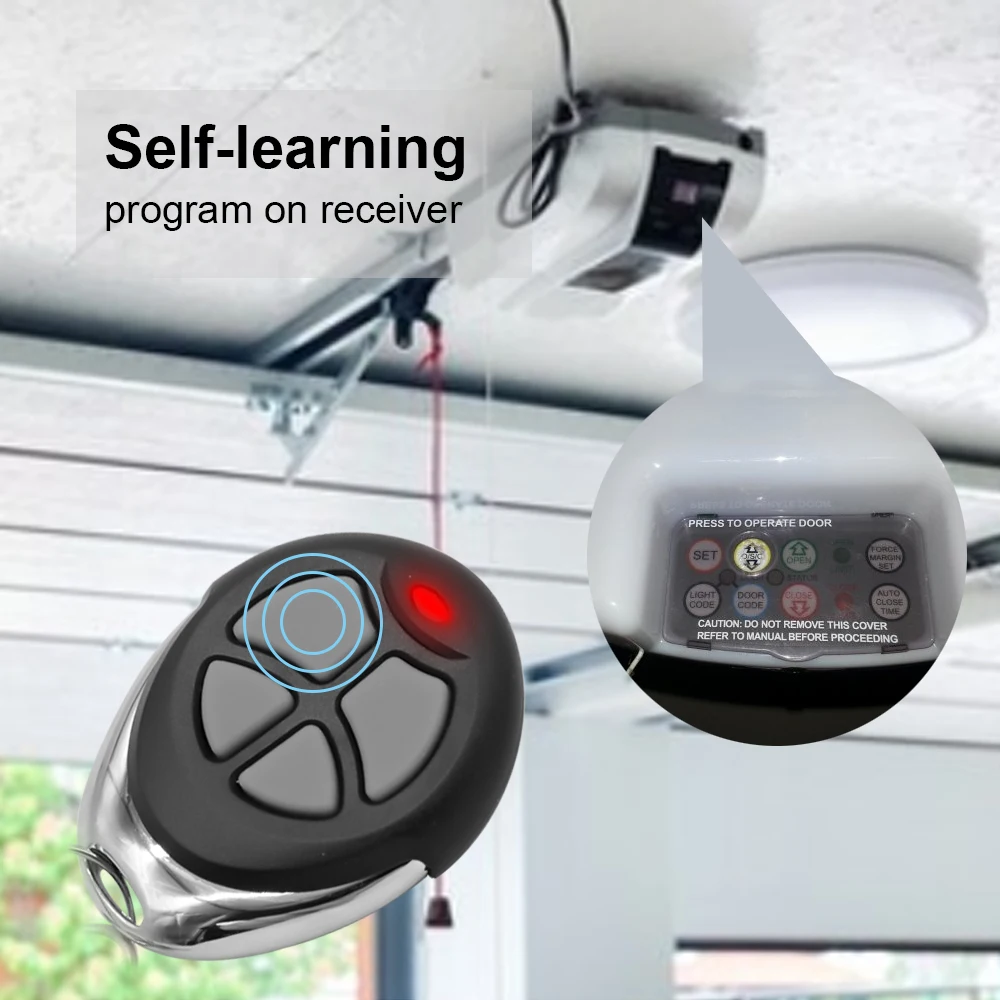

How to program?

To open a door or gate using the transmitter simply press one of the programmed channel buttons for two seconds. Each press of the button will cycle through an open, stop or close action.
STOR ING TR ANSMITTER CODE
Make sure to install the battery in the transmitter correctly.

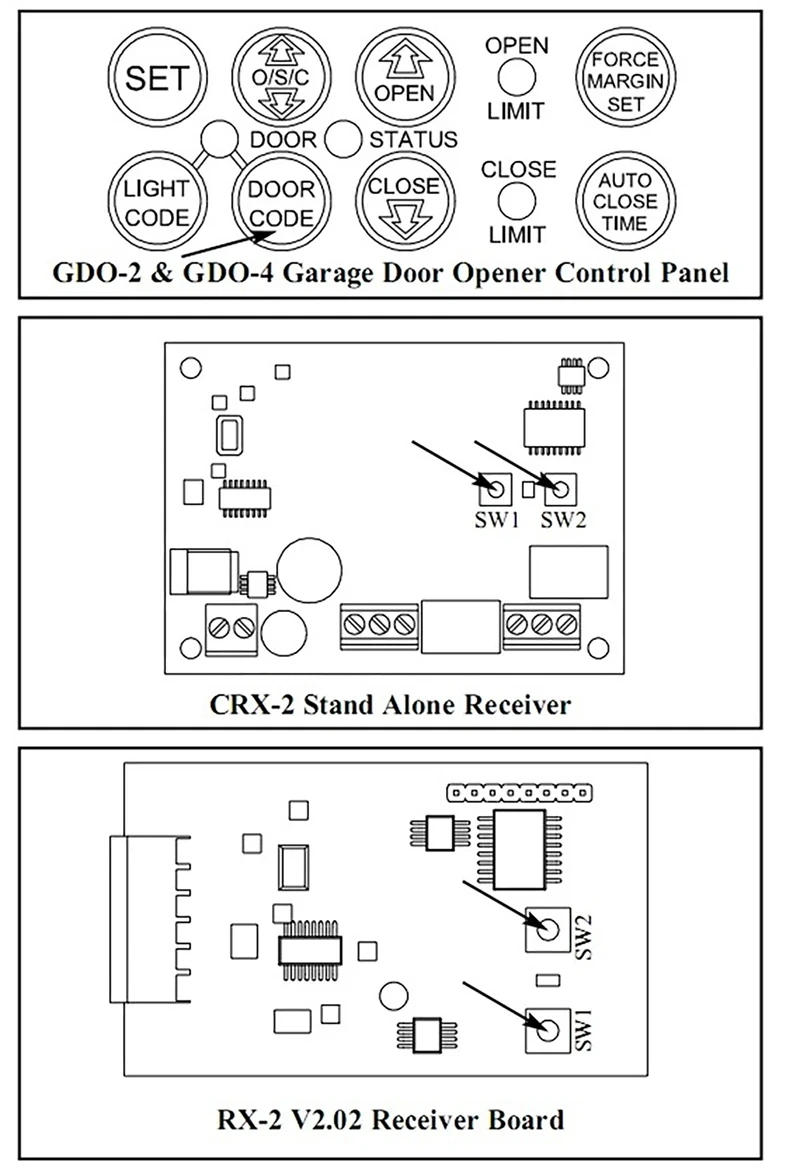

1. Press and hold the blue Door Code button on the opener or SW1 or SW2 on the receiver board.
2. Press the transmitter button you would like to use to control the door for two seconds.
3. Release and pause for two seconds. Press the same button again for two seconds.
4. Release the Door Code or SW button.
5. Press the transmitter button to test operation of the door/gate etc.

Note: To remove a transmitter's code from the device repeat steps 1-5 above .
DELETING ALL STORED TRANSMITTER CODES
1. Turn the power off to the opener.
2. Press and hold Door Code or SW 1 button.
3. Turn the power on again, while holding the button. The Coding LED will illuminate to indicate that the receivers memory has been deleted.
4. Release the button. All the stored codes including the courtesy light codes should now be deleted. Confirm this by pressing the transmitters previously used to operate the device.There should be no response.
