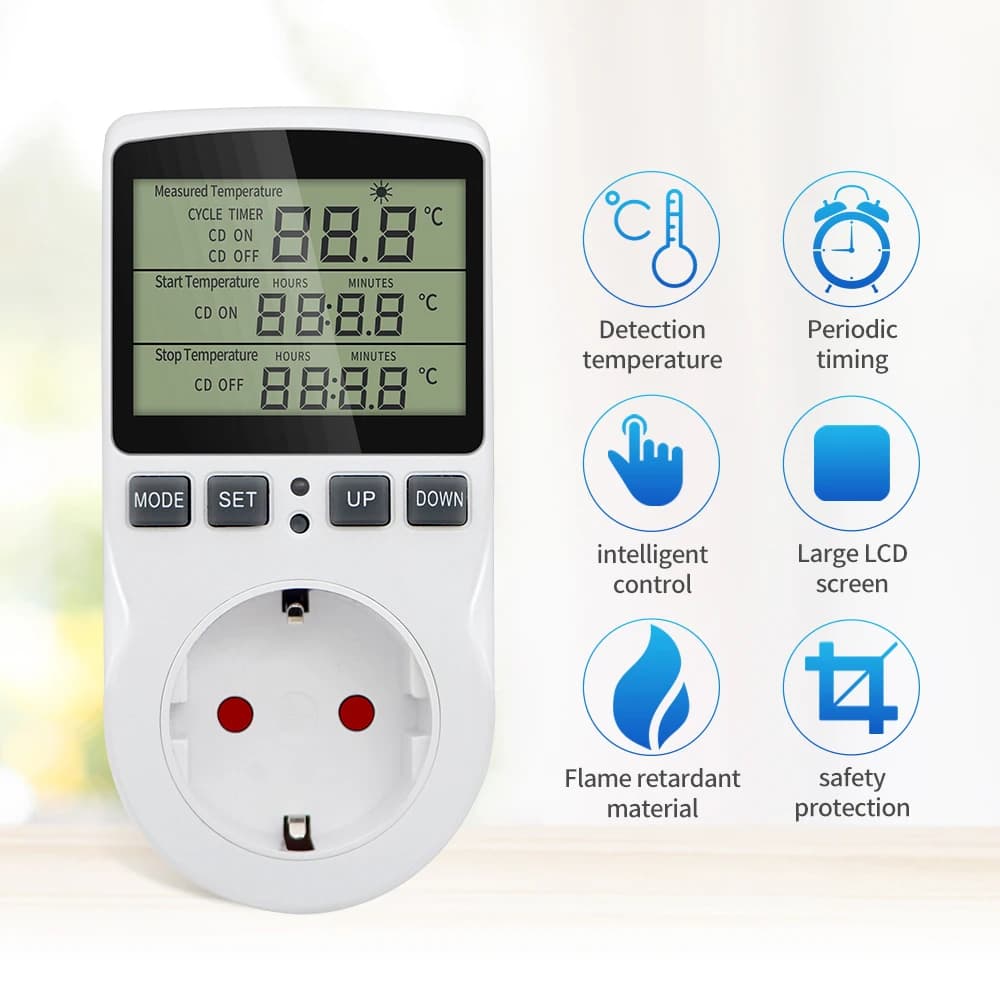

Timer Socket Thermostat KT3100 Multi-Function Temperature Controller Outlet with Timer Switch Sensor Probe Heating Cooling

The external temperature detector can detect the temperature

Set the start and stop temperature

Cycle timing, start and stop time, timer switch

It is widely used in intelligent control, such as carbon heating, aquaculture,greenhouse, home life and other places.

Screen lock protection function

Press the RESET to restore the screen for one second, and restore the factory settings.

Memory function after power off

Technical parameters

Voltage 110V~230V AC 50Hz/60Hz

Max Load:

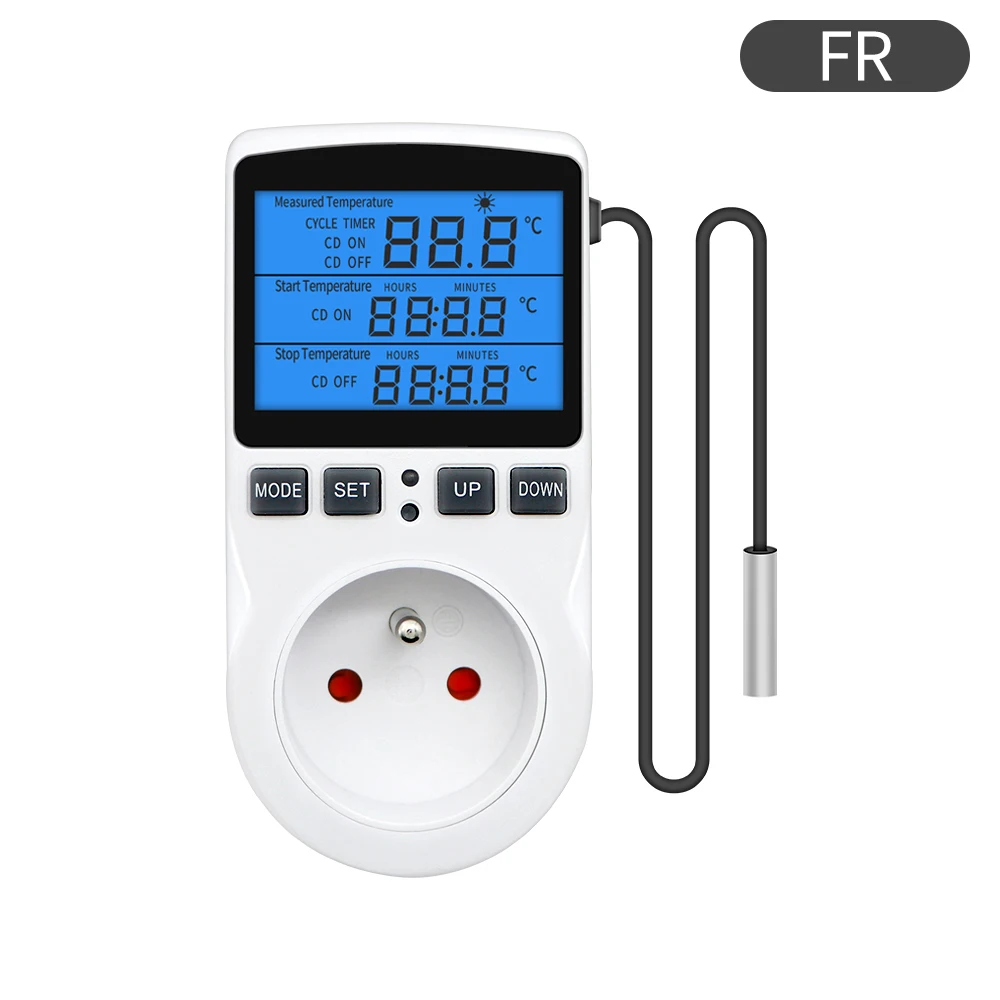

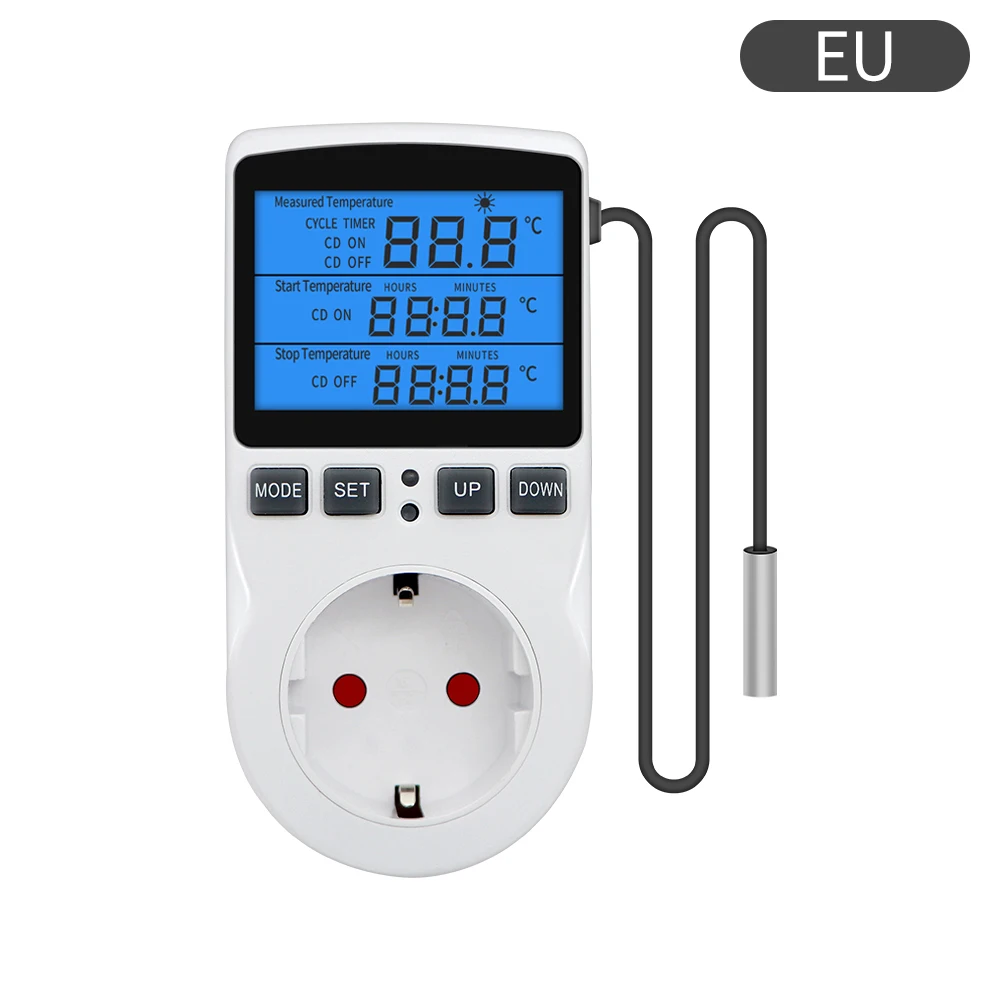

EU FR Plug:16(2)A 230V~ max. 3680W.u

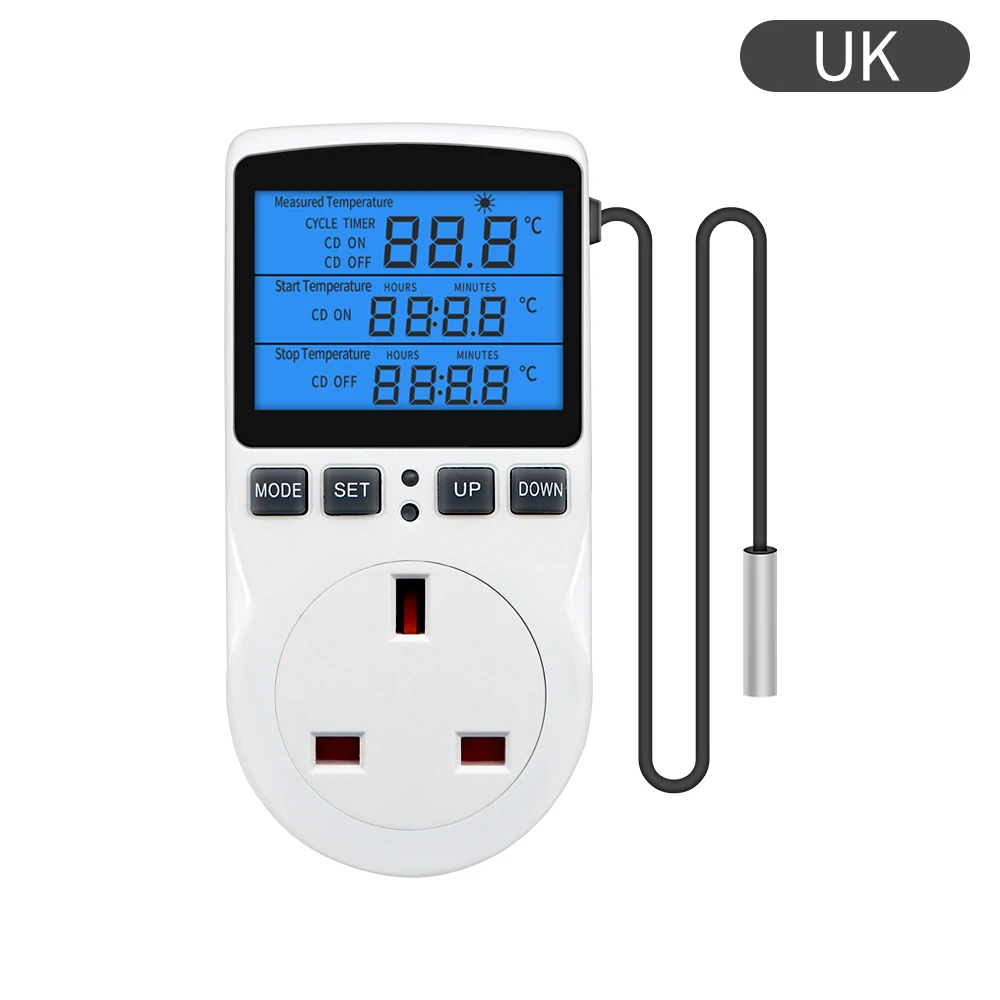

UK Plug:13(2)A 230V~ max. 2900W.u

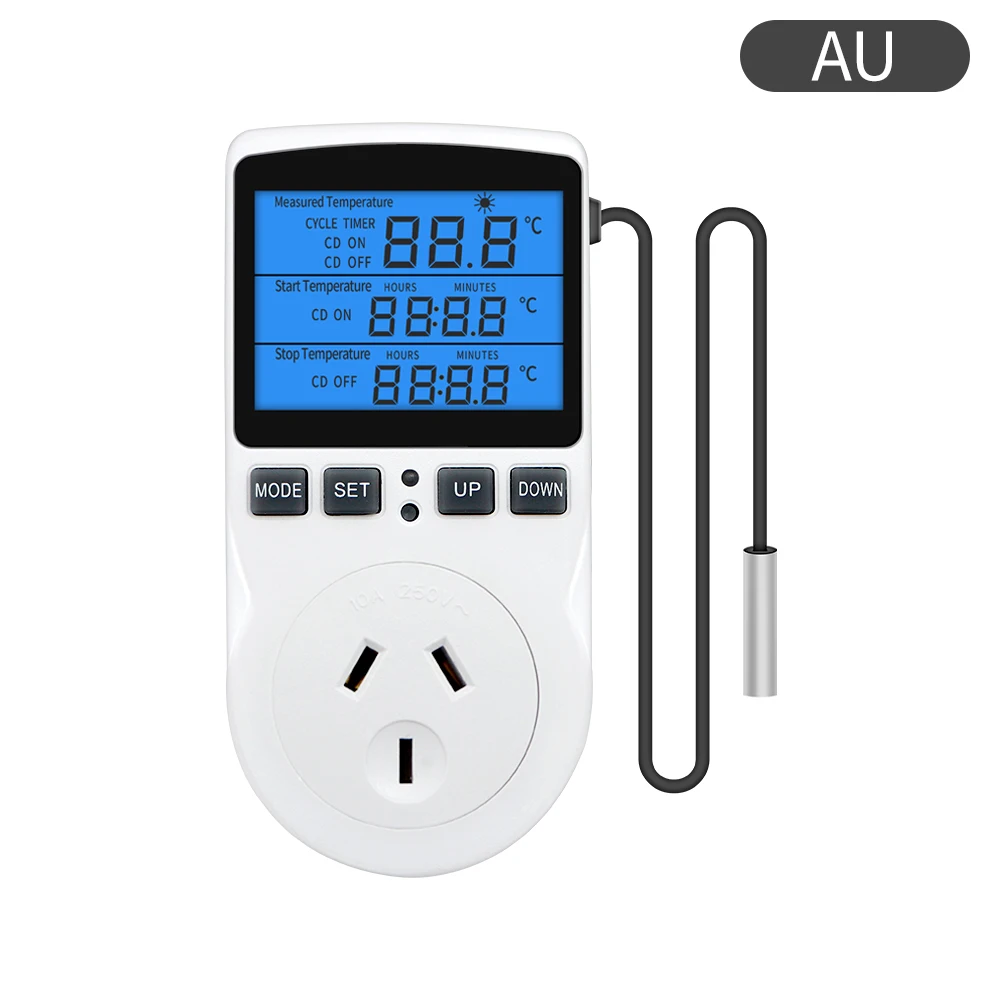

AU Plug:10(2)A 240V~ max. 2400W.u

US Plug:15(2)A 120V~ max. 1800W.u

Temperature Range: -40~120°C

Accuracy: +/- 1%

Timing Accuracy: MAX 10 minutes

Open circuit (or less than -40°C), the first row of the screen flashes display ''E1'', -40~-45°C, display -40°C

Short circuit( or more than 120°C ), the first row of the screen flashes displaty ''E2'', 121-129°C display 120°C

Lower than -10°C, or higher than 100°C, it will not display value behind the decimal point

Refrigeration mode, start temperature > Stop temperature

Heating mode, start temperature < stop temperature

Mode button

Press MODE. LCD display: temperature control mode

Timing mode F01-F04

F01 Cycling timing mode, start time(ON)/stop time(OFF) cycling timing.

F02 Count down ON mode, now Ti.s OFF, delayed(start time) ON

F03 Count down OFF mode, now Ti.s ON, delayed(stop time) OFF, countdown completion, turn off the output and exit the run

F04 Count down ON Count down OFF mode, now Ti.s OFF, delayed(start time) ON, After starting delayed ( Stop time )OFF, Stop the time to finish the countdown, close out the output and exit the operation

Temperature correction function

Long press mode button on electricity, real time temperature calibration after 2 seconds

Real time temperature correction range: -9.9~9.9°C

Long press the SET for 5 seconds to automatically exit, do not save modification

Long press MODE button to exit, save the cuttent correction modification

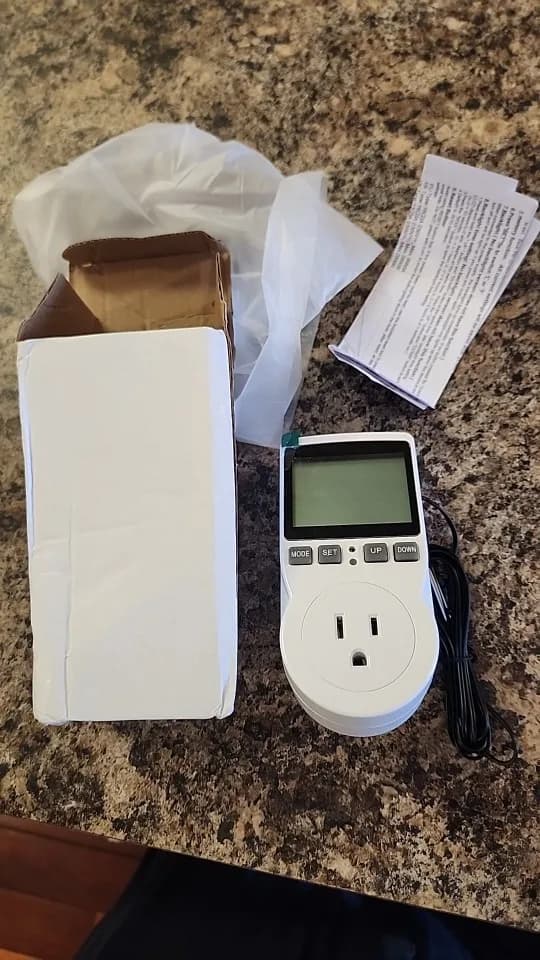

Package Content:

1 x Thermostat Timer Socket with temperature sensor
1 x Box
