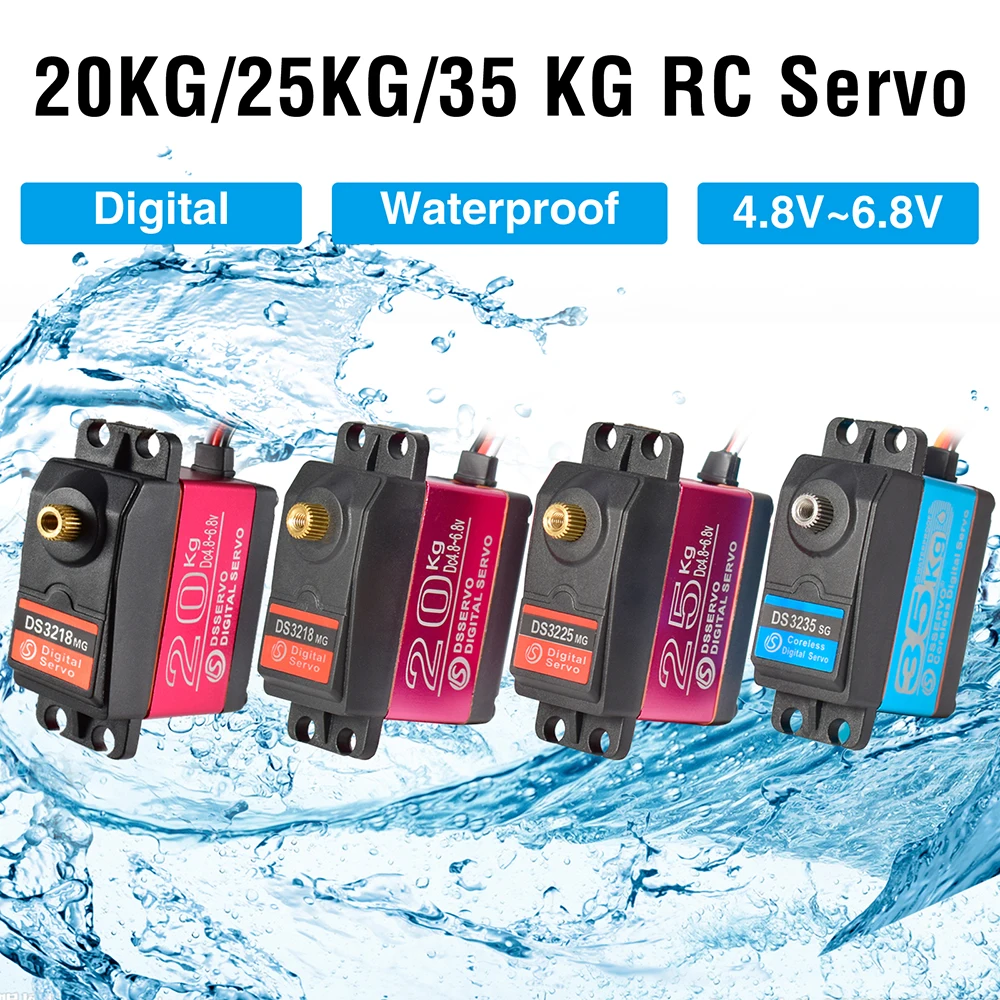

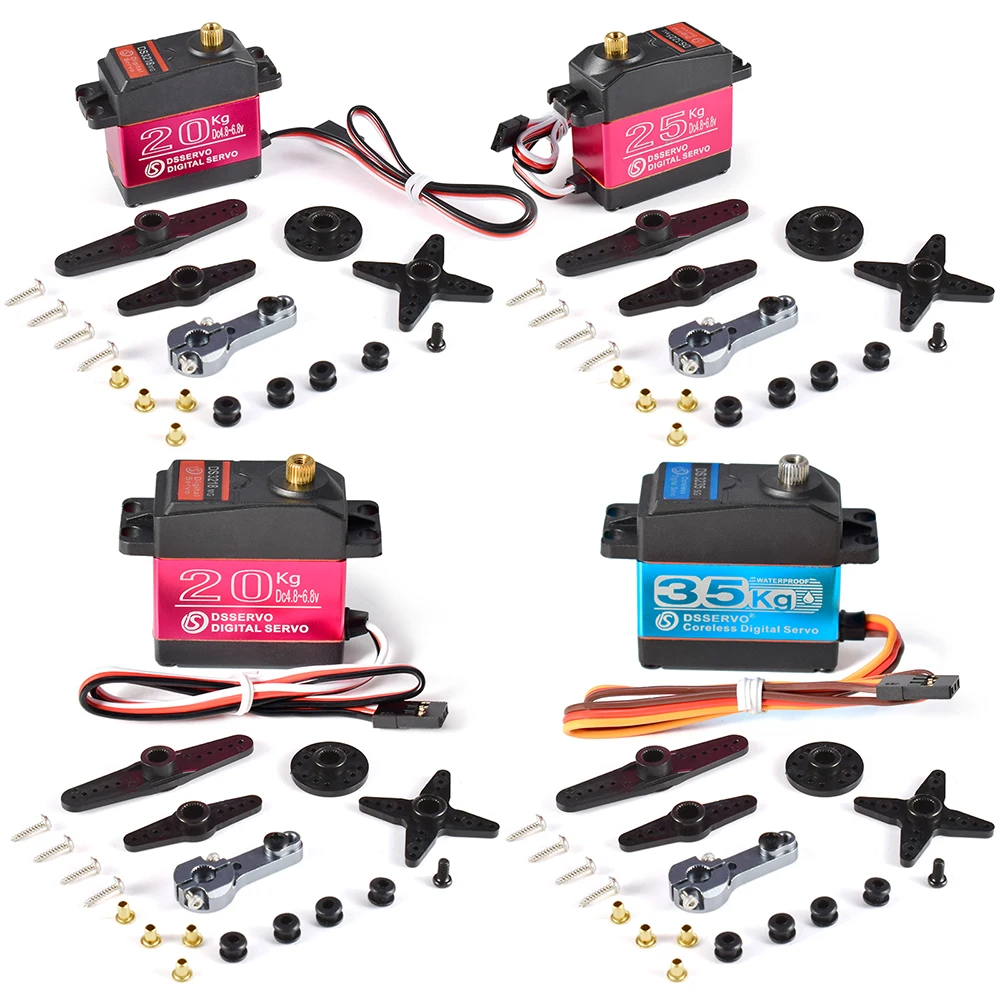

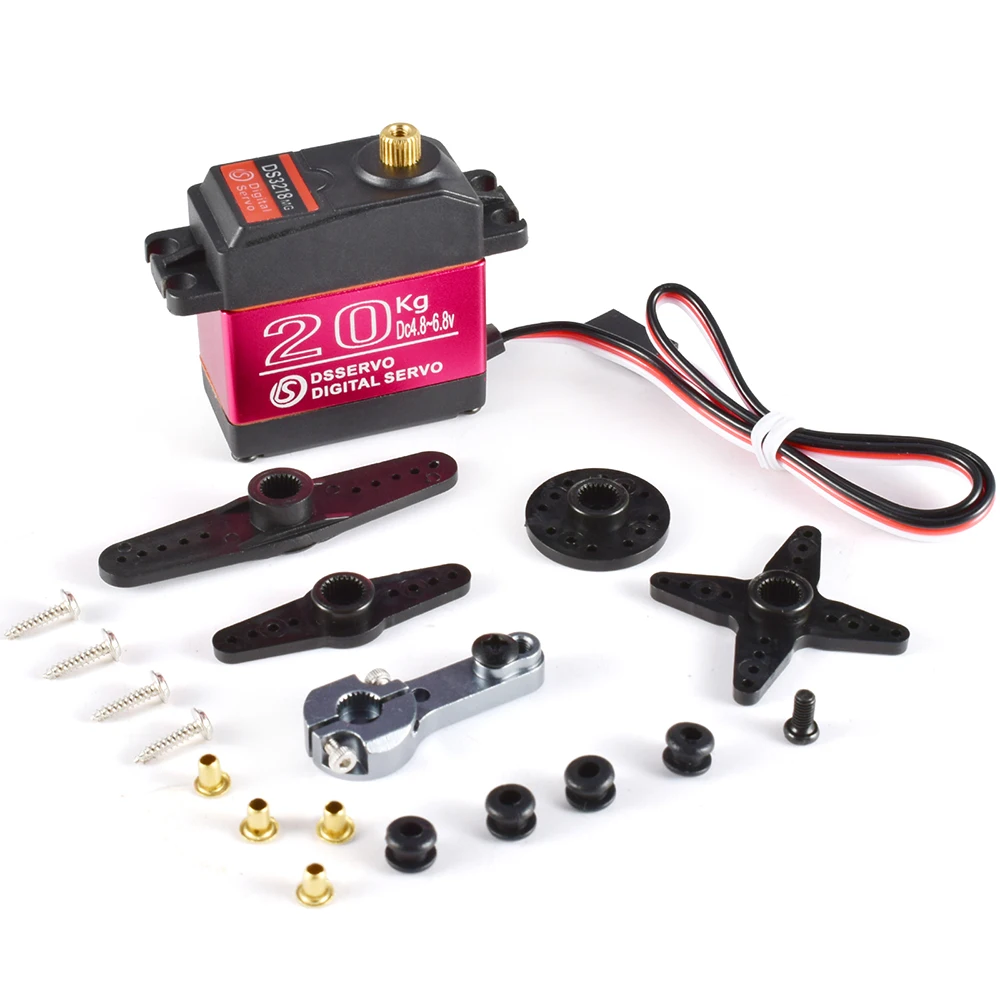

Dsservo Waterproof RC Servo DS3218 20KG DS3225 25KG DS3235 35KG 180/270 Degree for 1/8 1/10 1/12 RC Car Metal Gear Digital Servo

Features:

1.High performance digital standard servo.

2.High-precision metal gears with hard anodizing.

3.CNC aluminium middle Shell.

4.Dual ball bearings .

Description:

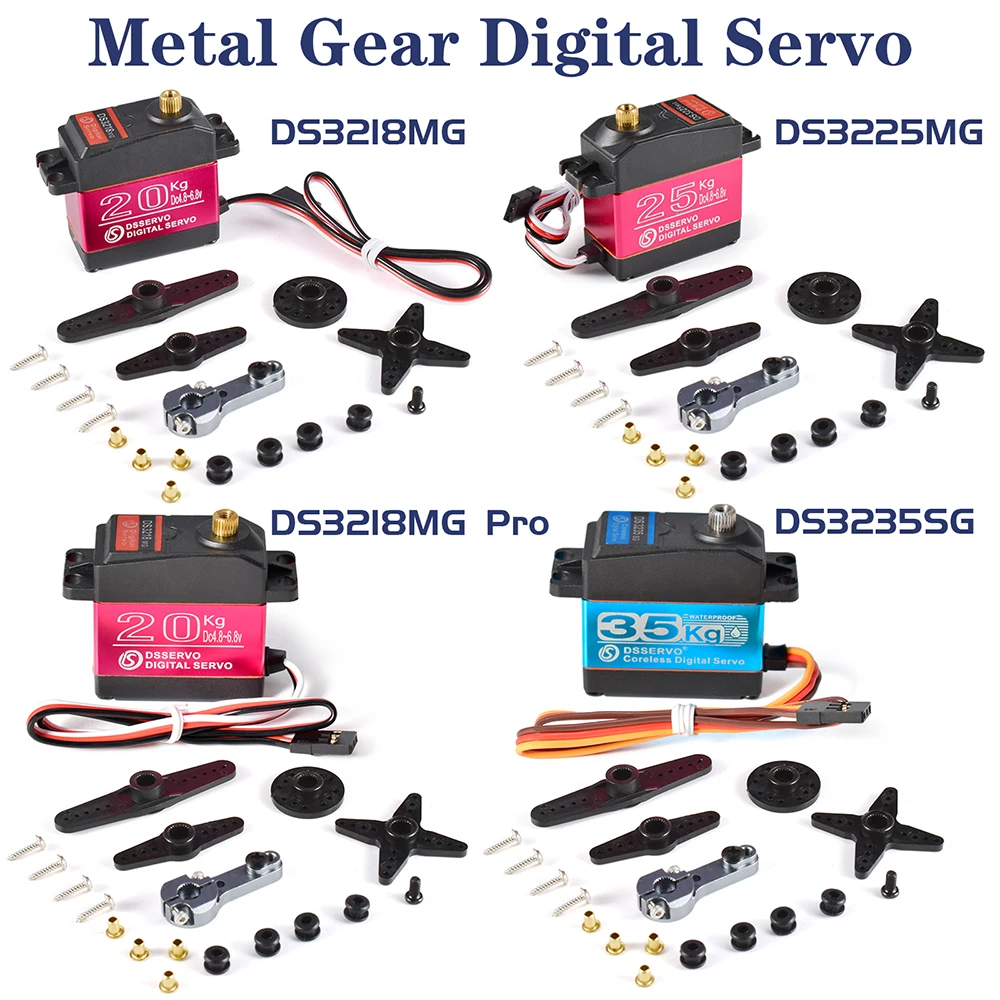

Dsservo Waterproof Servo DS3218 20KG DS3225 25KG DS3235 35KG 180/270 Degree Metal Gear Digital Servo for 1/8 1/10 1/12 RC Cars Robotic DIY.

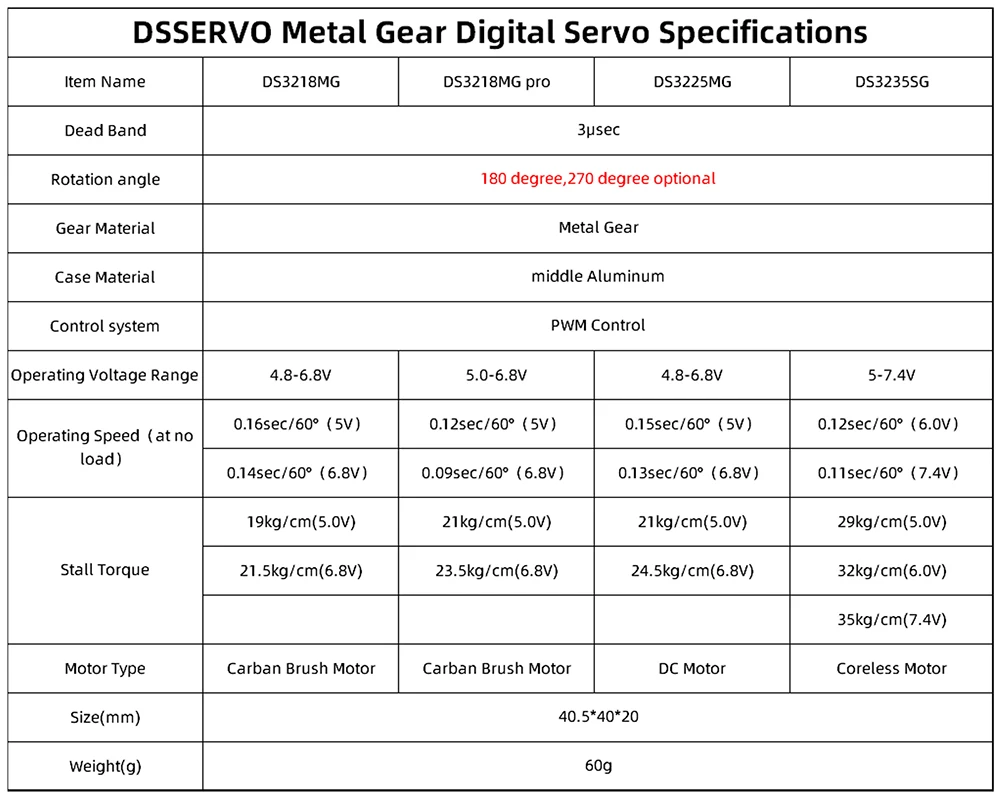

Specifications:

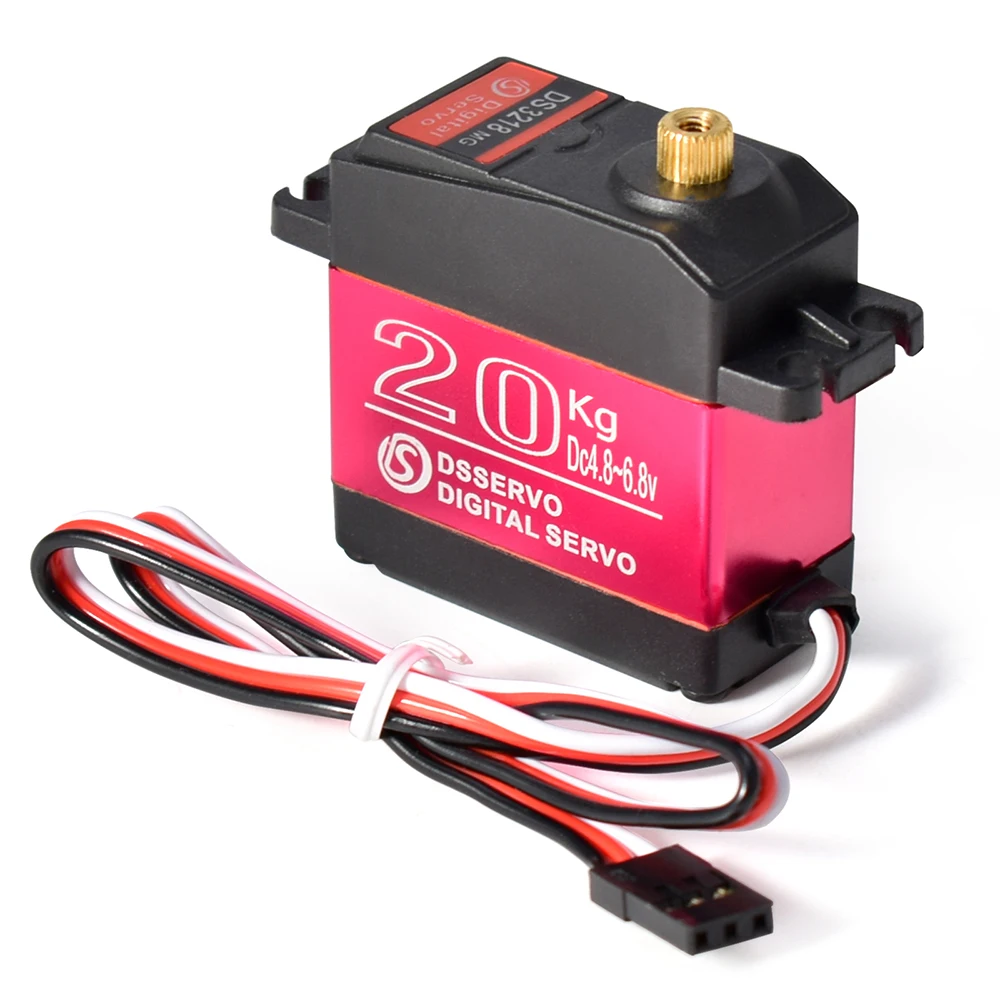

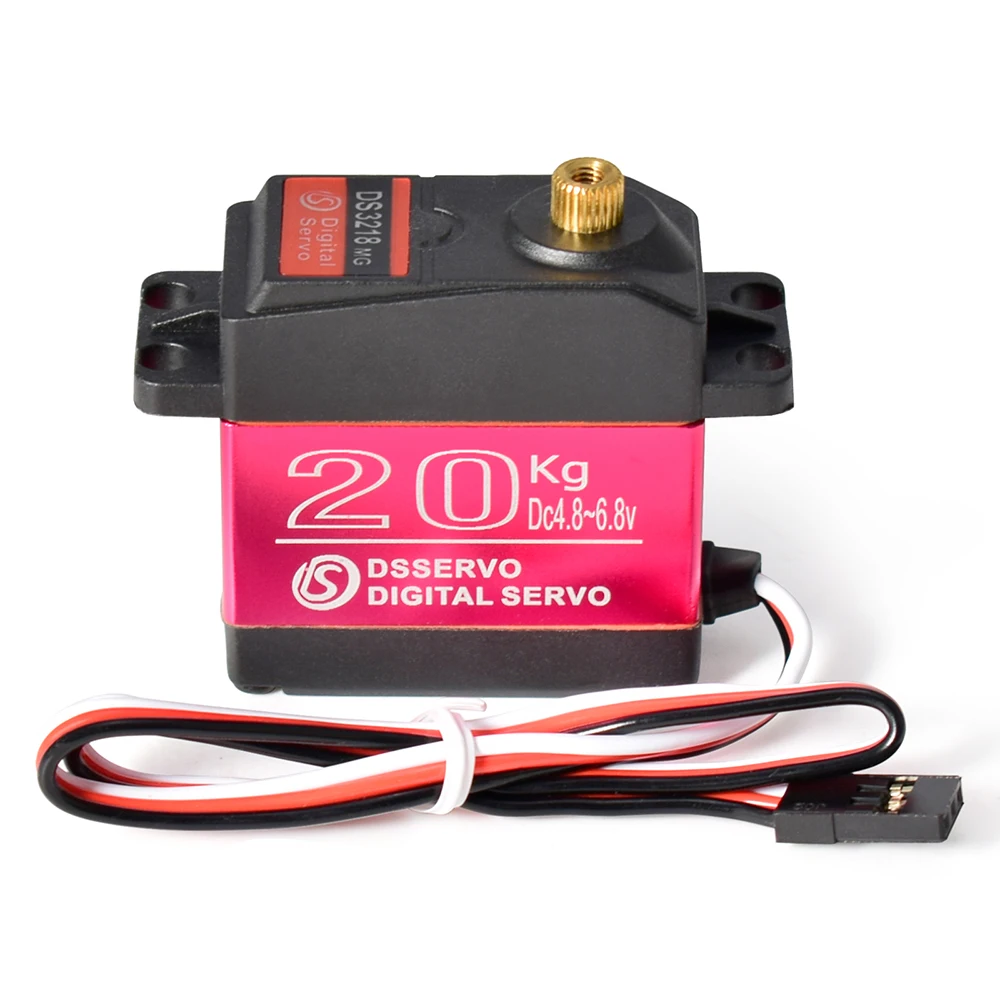

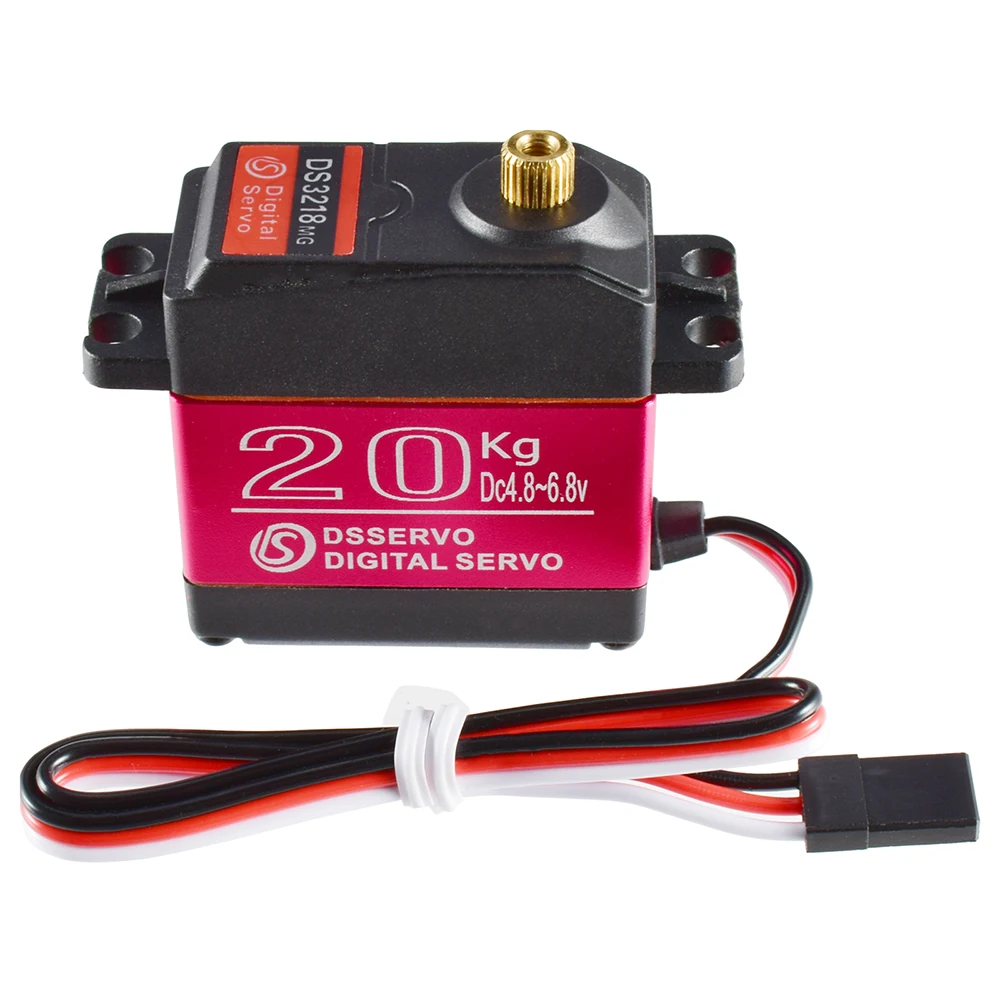

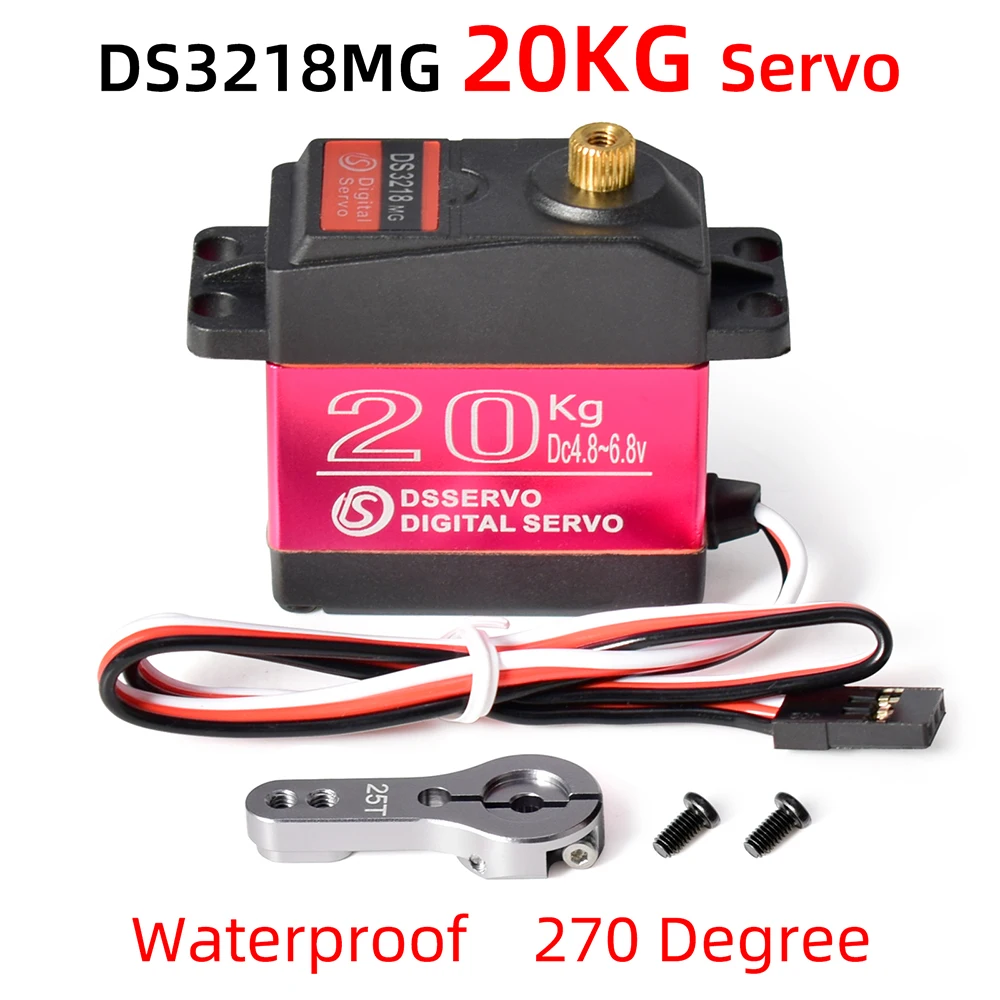

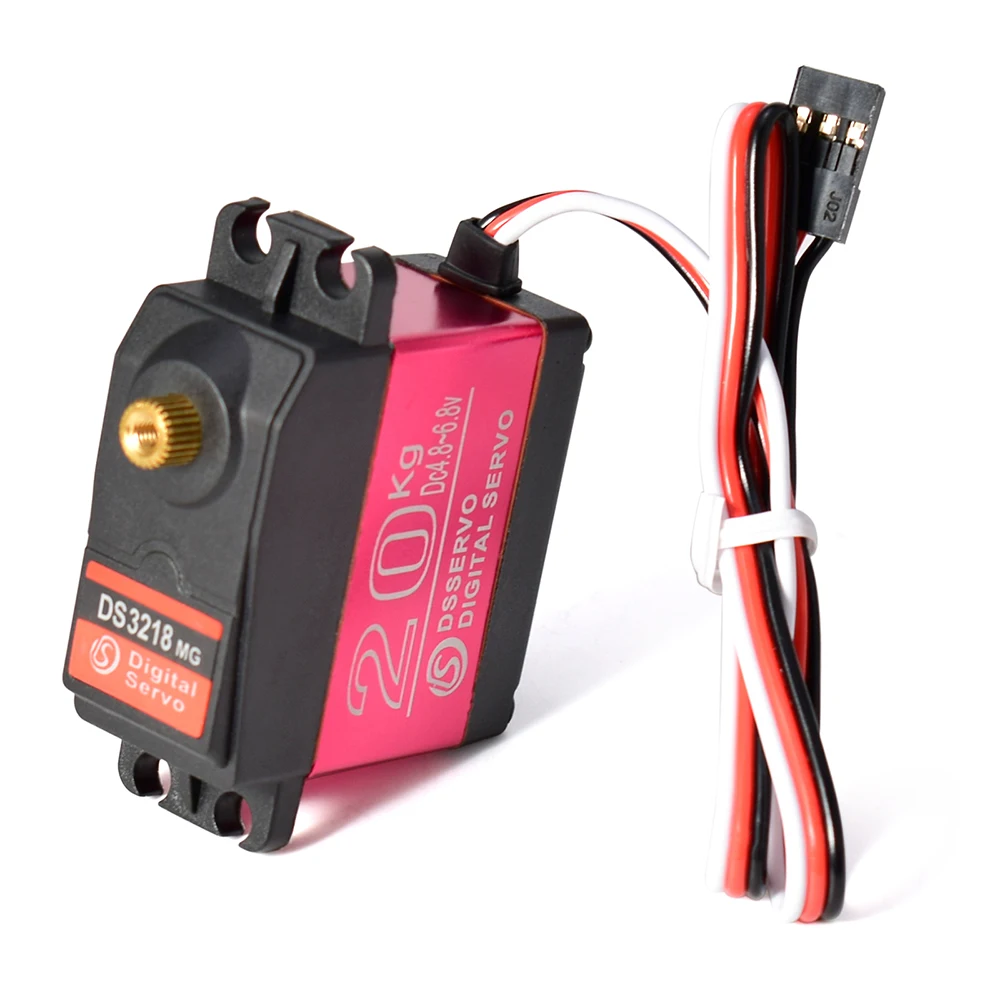

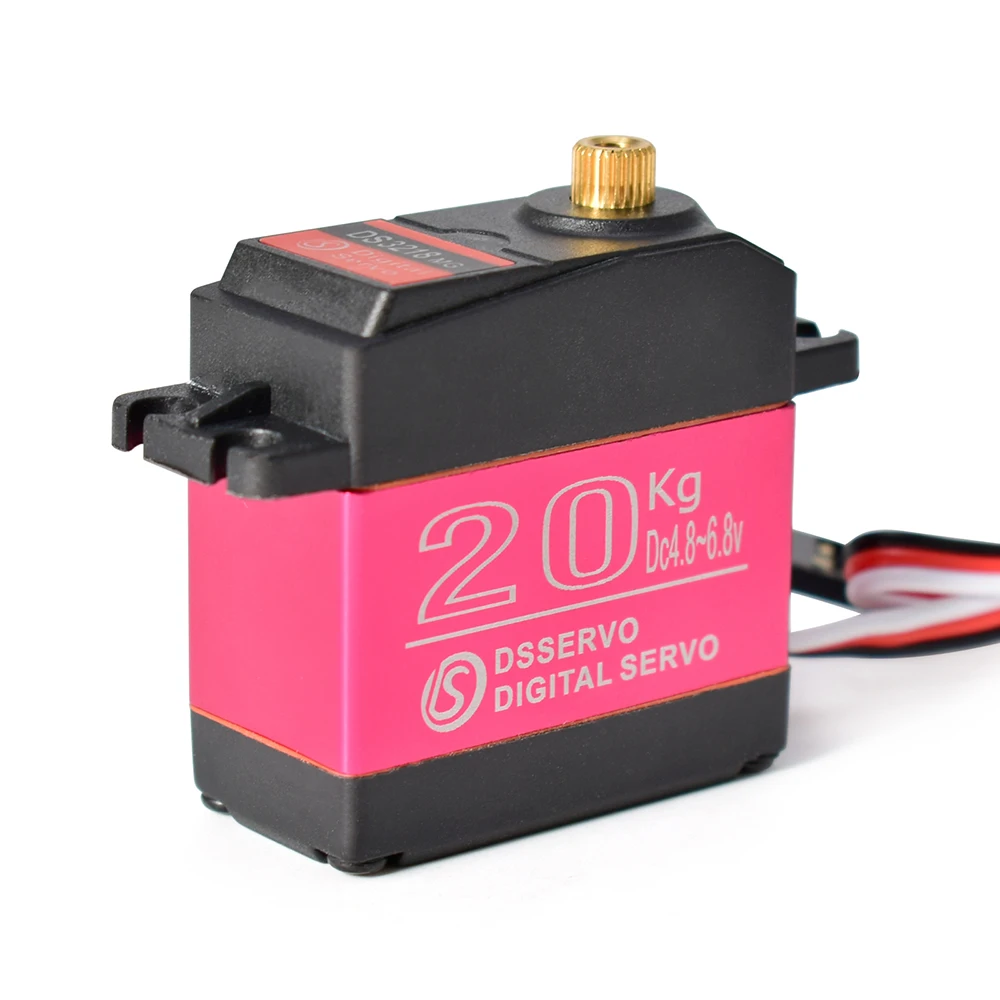

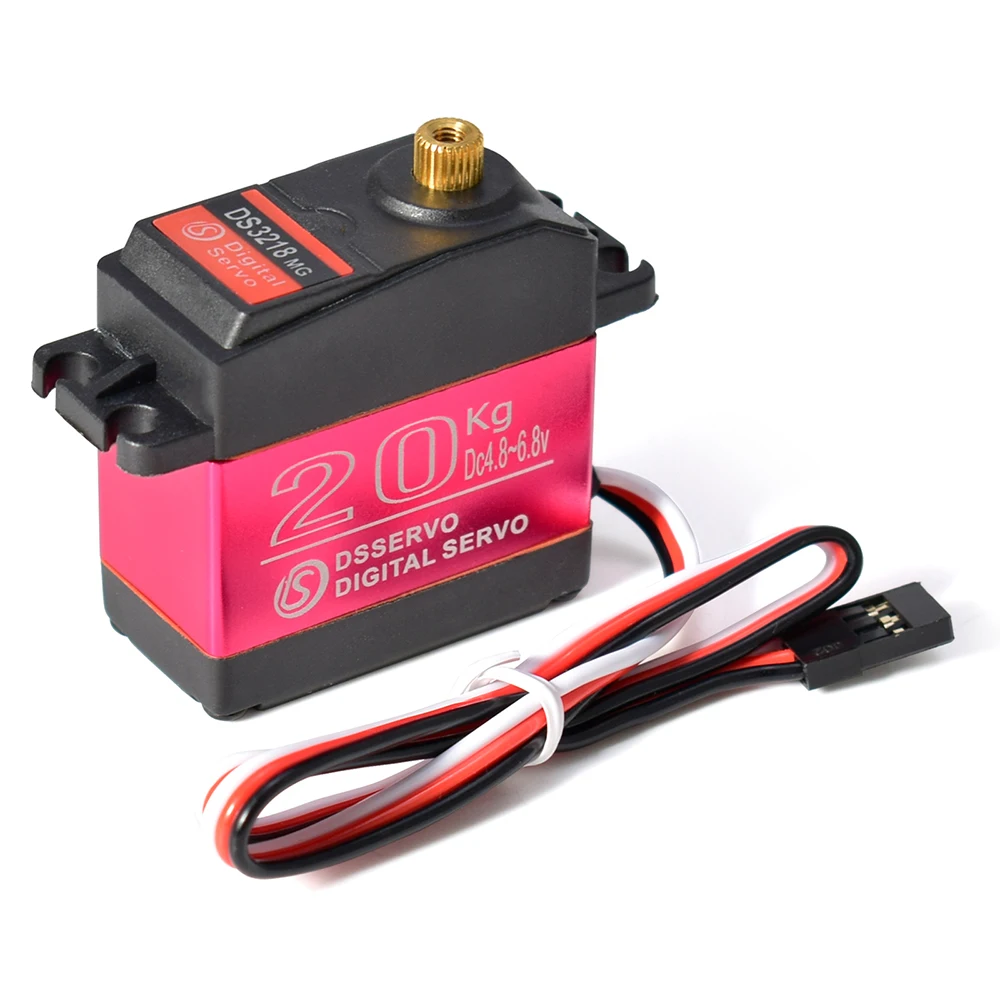

Model: DS3218MG

Item Name: DS3218MG Digital Servo

Rotation angle:180 degree,270 degree optional

Dead Band: 3μsec

Operating Voltage: 4.8V~6.8V

Operating Speed (5V): 0.16sec / 60° at no load

Operating Speed (6.8V): 0.14sec / 60° at no load

Stall Torque (5V): 19 kg/cm (263.8oz/in)

Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)

Motor Type: Carban Brush Motor

Gear Type: Copper & Aluminum

Working Frequency: 1520μs / 333hz

CE Certification: Yes

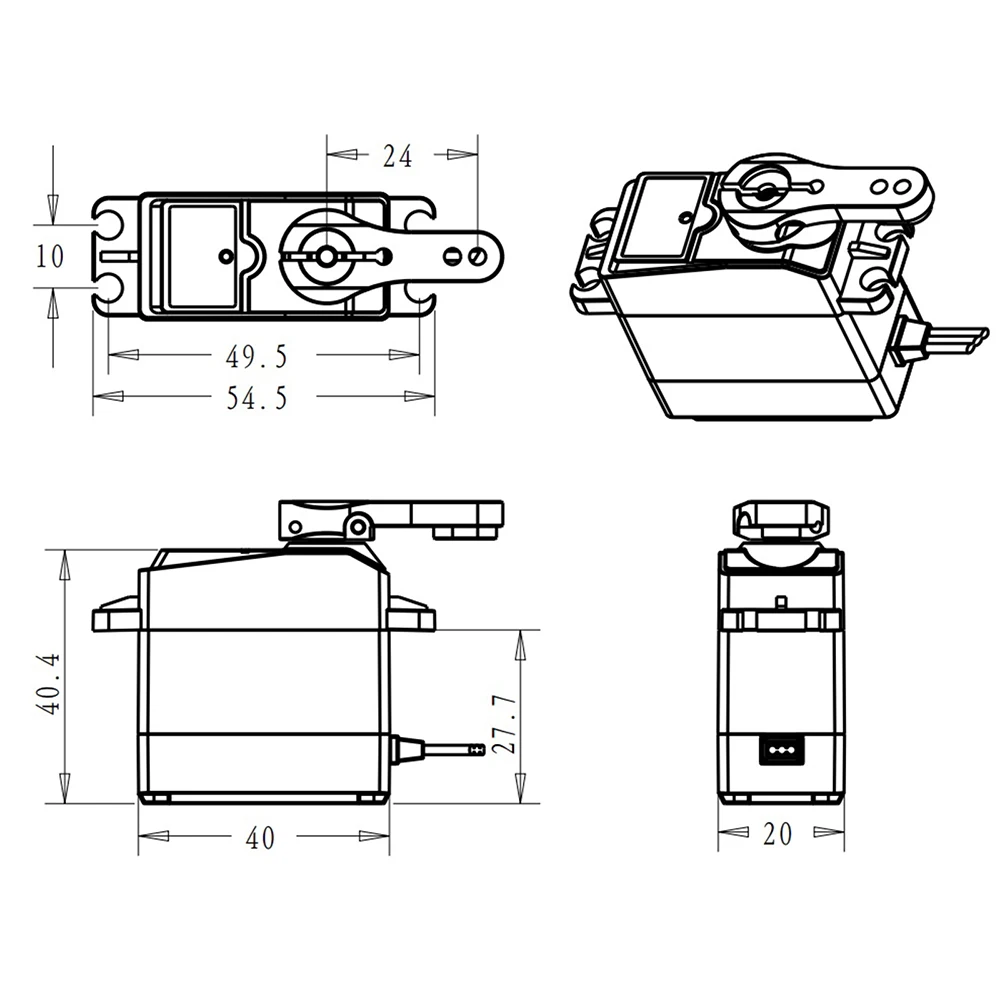

Size: 40.5 * 40 * 20mm

Weight: 60g

Model: DS3218MG pro

Item Name: DS3218MG pro Digital Servo

Rotation angle:180 degree,270 degree optional

Dead Band: 3μsec

Operating Voltage: 5.0V~6.8V

Operating Speed (5V): 0.12sec / 60° at no load

Operating Speed (6.8V): 0.09sec / 60° at no load

Stall Torque (5V): 21 kg/cm

Stall Torque (6.8V): 23.5 kg/cm

Motor Type: Carban Brush Motor

Gear Type: Copper & Aluminum

Working Frequency: 1520μs / 333hz

CE Certification: Yes

Size: 40.5 * 40 * 20mm

Weight: 60g

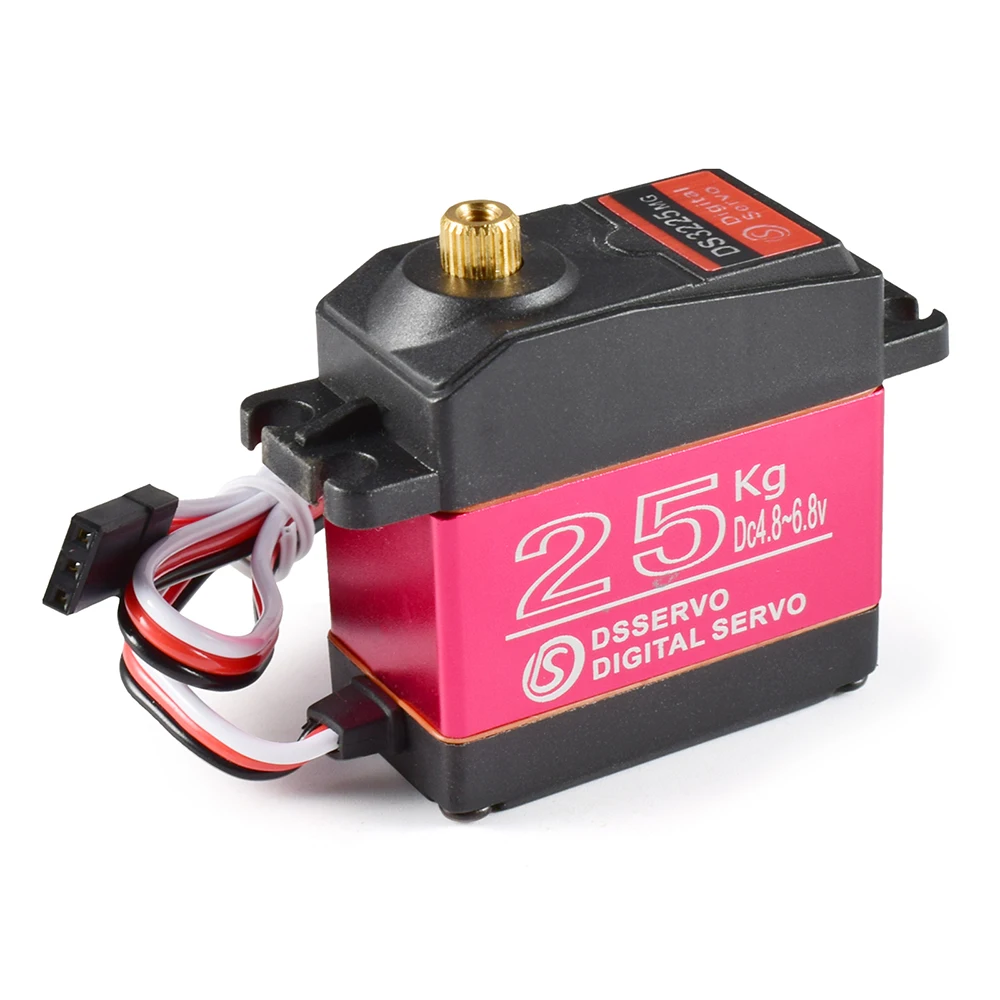

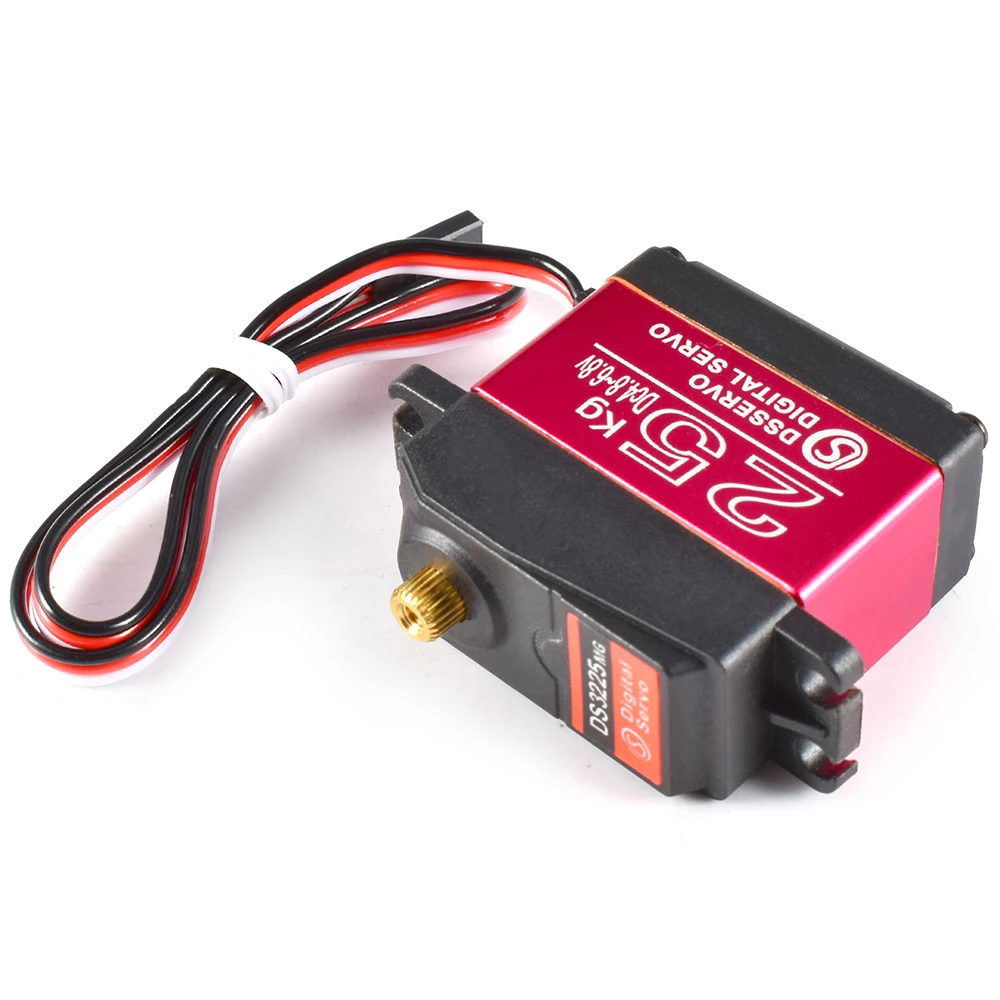

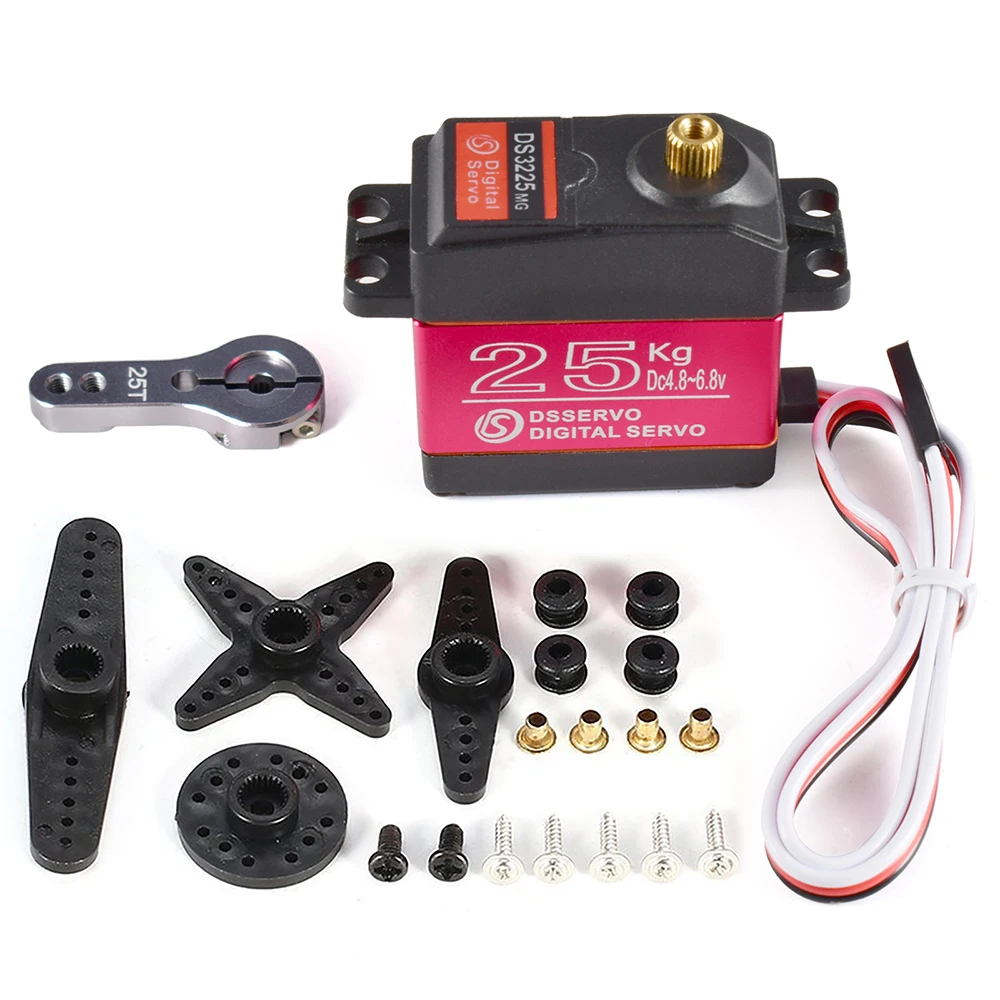

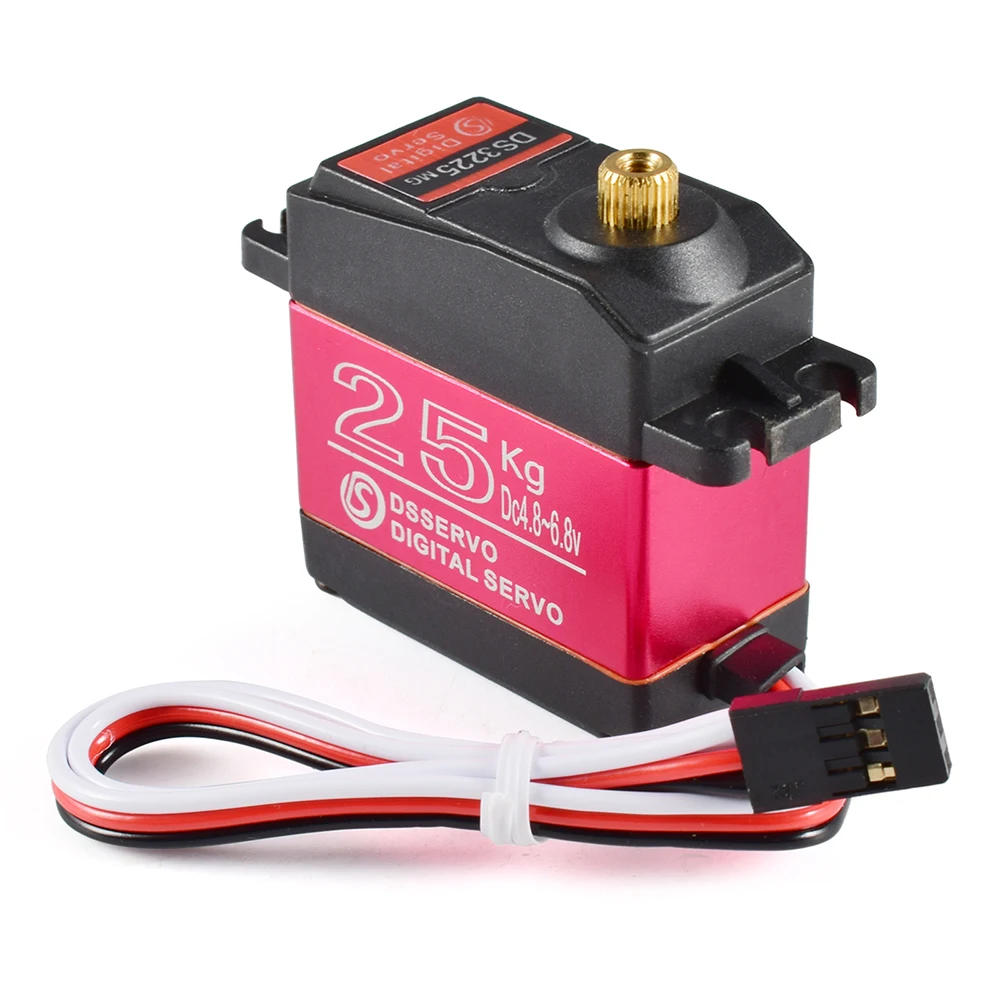

Model: DS3225MG

Item Name: DS3225MG Digital Servo

Rotation angle:180 degree,270 degree optional

Dead Band: 3μsec

Operating Voltage: 4.8V~6.8V

Operating Speed (5V): 0.15sec / 60° at no load

Operating Speed (6.8V): 0.13sec / 60° at no load

Stall Torque (5V): 21 kg/cm (263.8oz/in)

Stall Torque (6.8V): 24.5 kg/cm (298.5 oz/in)

Motor Type: DC Motor

Gear Type: Copper & Aluminum

Working Frequency: 1520μs / 333hz

CE Certification: Yes

Size: 40.5 * 40 * 20mm(1.58 x 0.79 x 1.60 in)

Weight: 60g

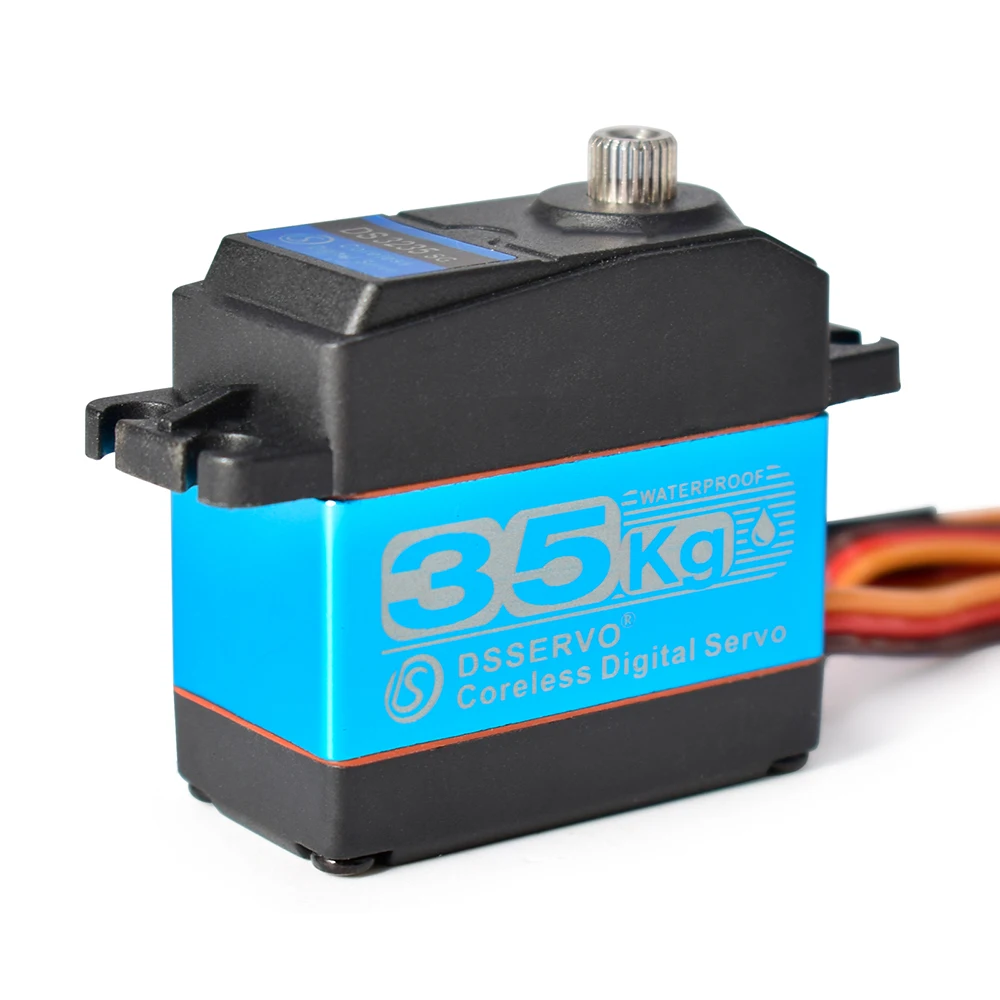

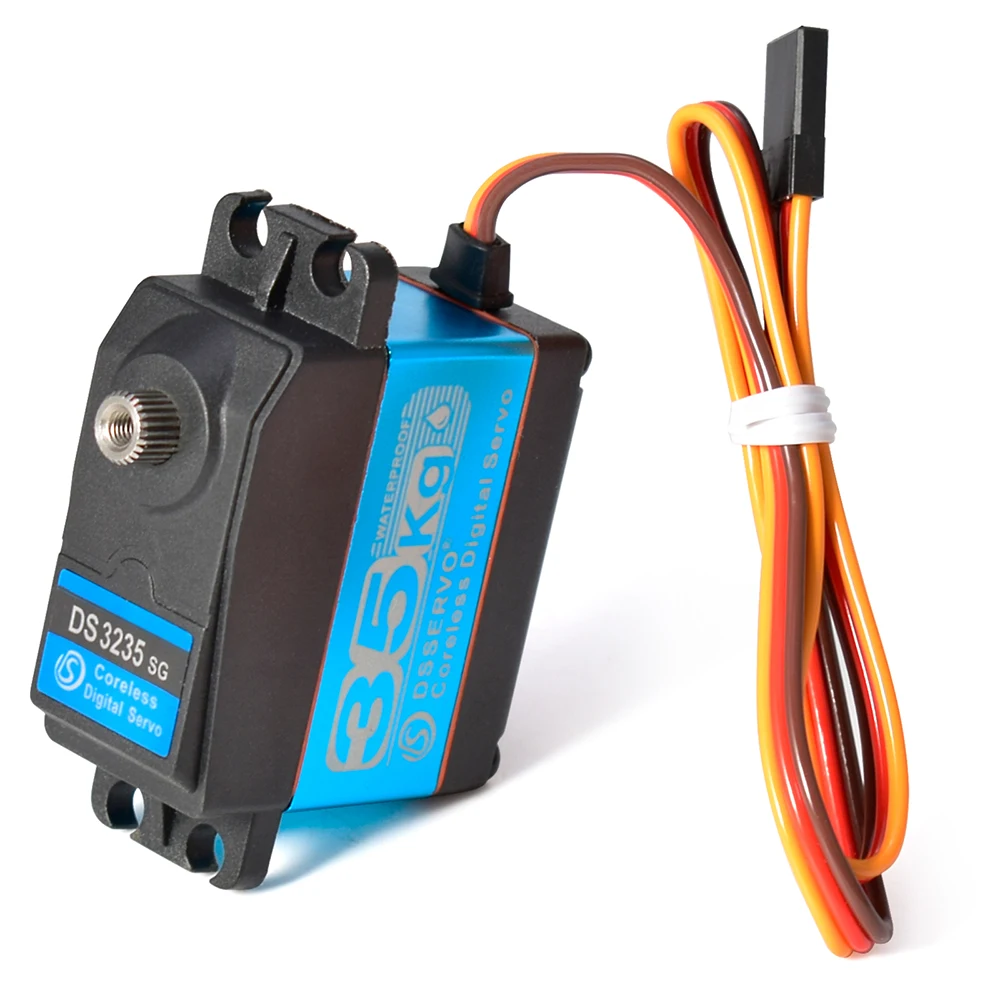

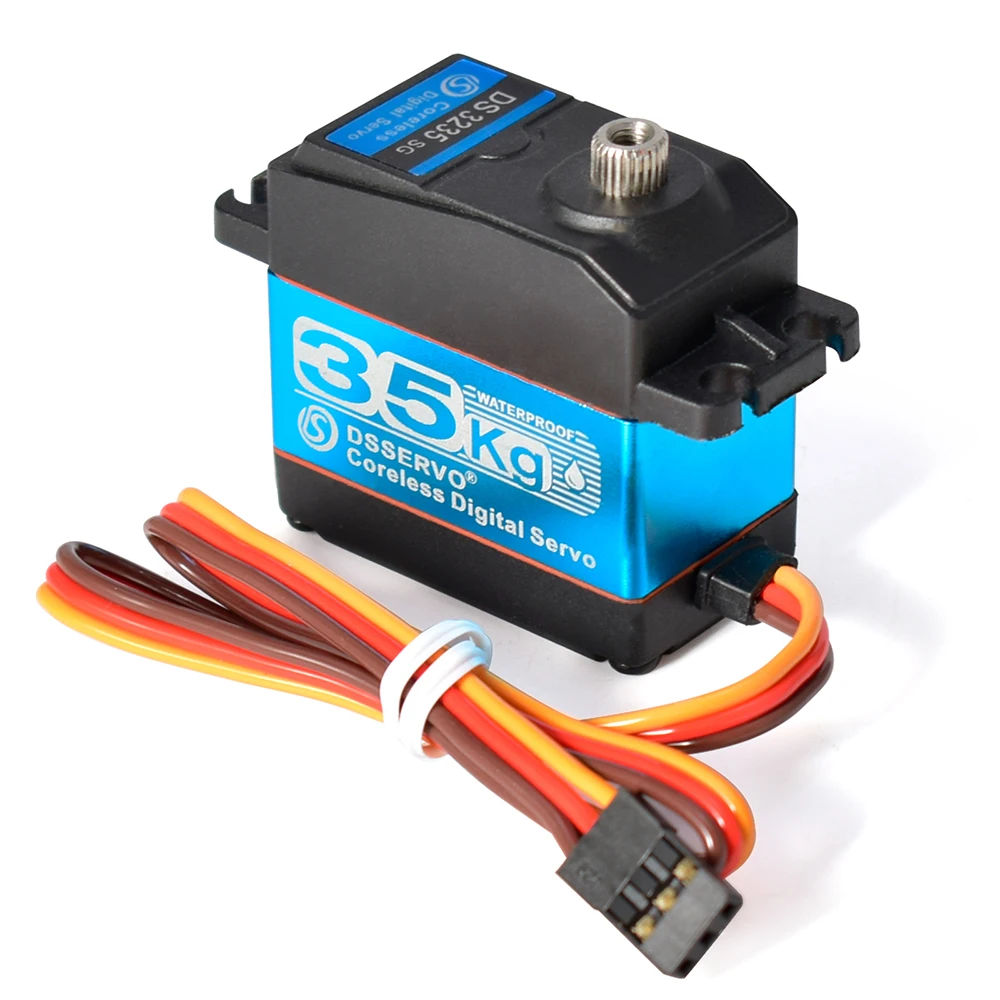

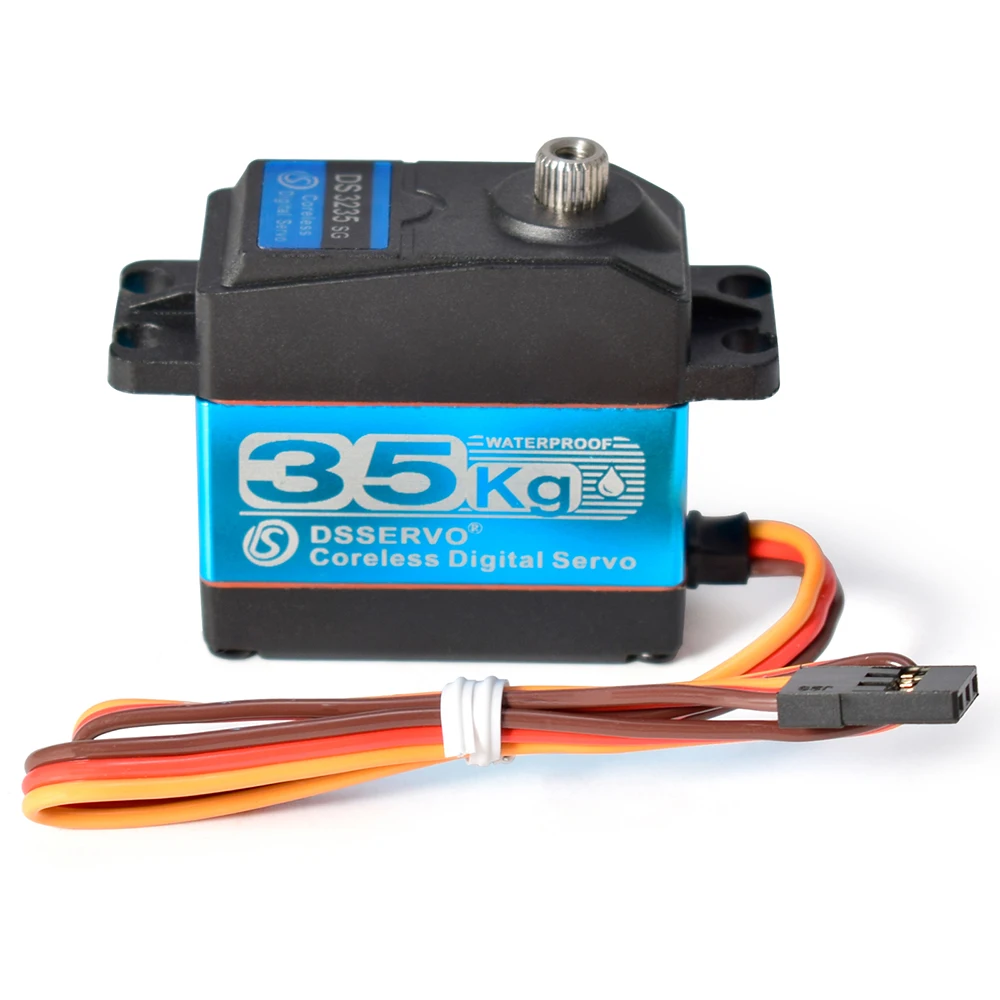

Model: DS3235MG

Item Name: DS3235MG Digital Servo

Rotation angle:180 degree,270 degree optional

Operating voltage range: 5-7.4V Operating speed (at no load) : 0.13 sec/60 degree @5.0V

Operating speed (at no load): 0.12 sec/60 degree @6.0V

Operating speed (at no load): 0.11 sec/60 degree @ 7.4V

Stall torque (at locked): 29kg/cm @5.0V

Stall torque (at locked): 32kg/cm @6.0V

Stall torque (at locked) : 35kg/cm @7.4V

Stall current (at locked): 1.9A @5.0V

Stall current (at locked): 2.1 [email protected]

Stall current (at locked): [email protected]

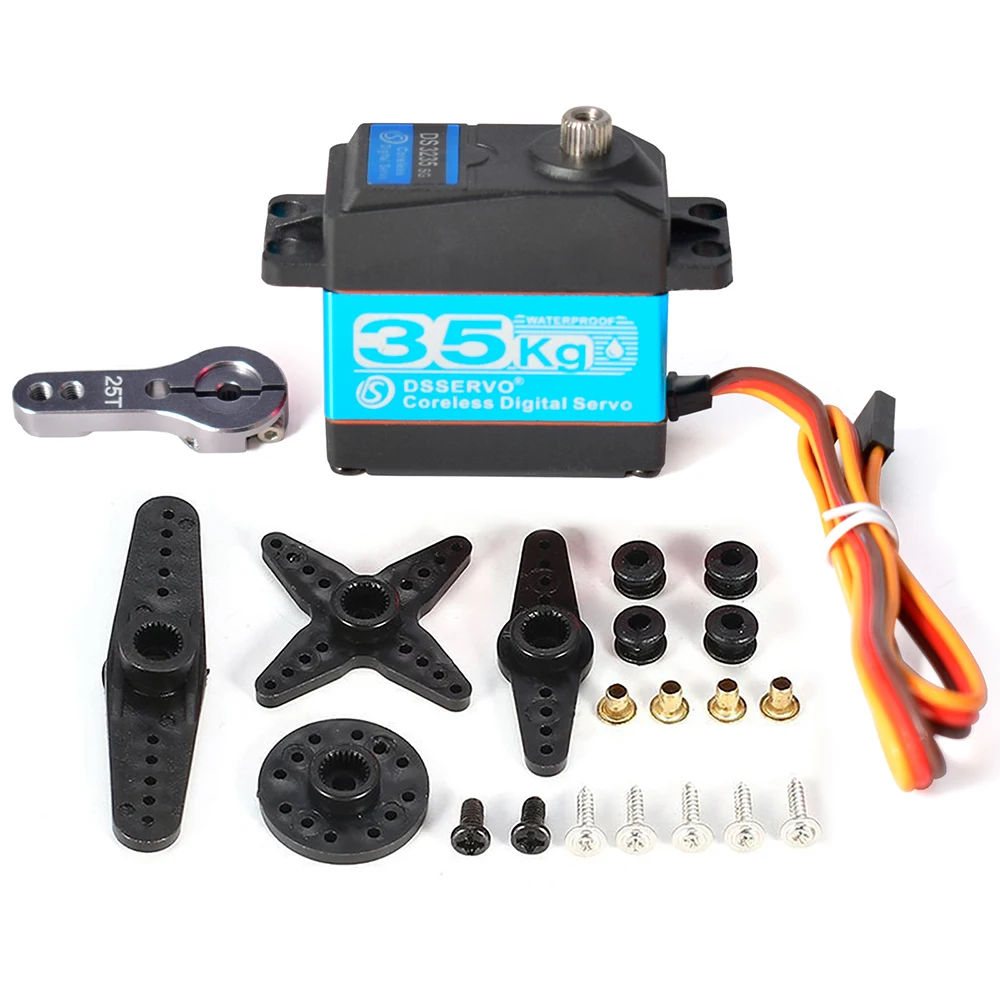

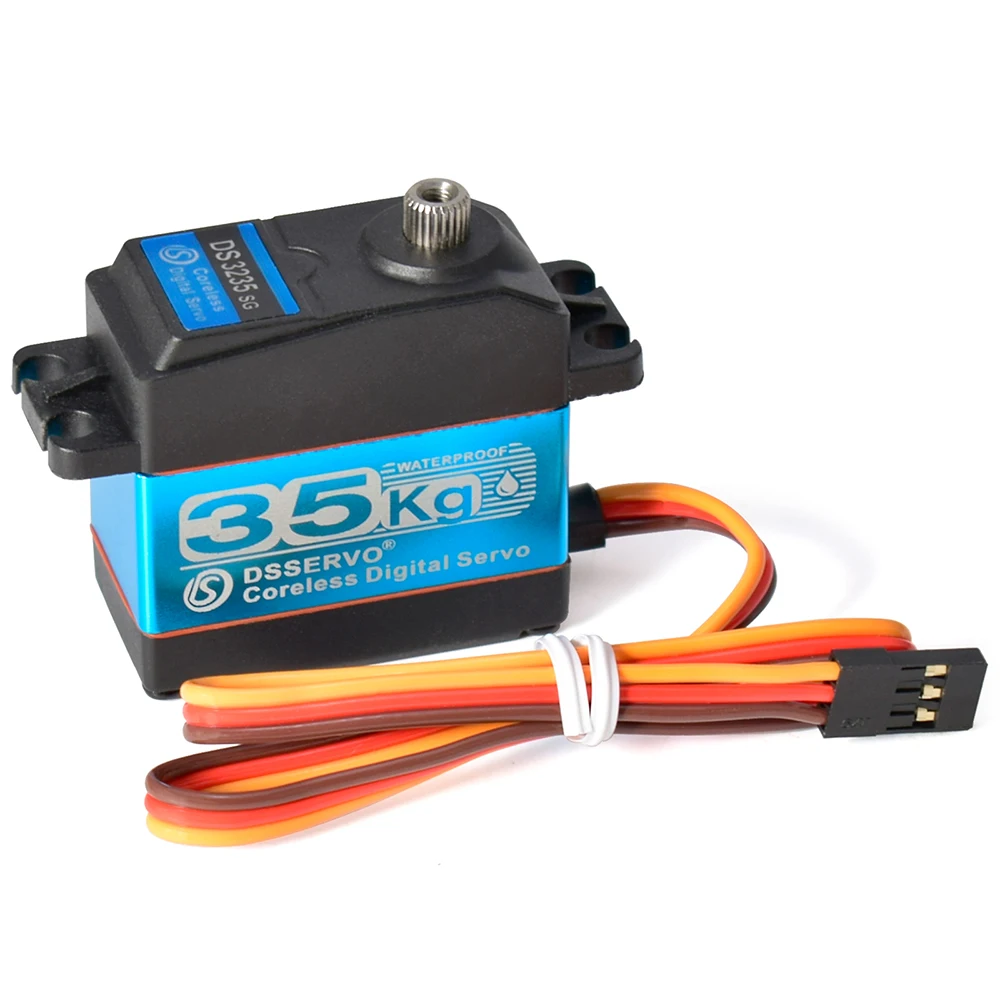

Item:DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital Servo

Operating Voltage: 5 ~ 7.4 DC Volts

Dead brand: 3μs / 2 μs

Motor Type: Coreless Motor

Gear Type: Copper & Aluminum / Stainless Steel & Aluminum

Working frequence: 50-333Hz

Size: 40 x 20 x 38.5 mm ( 1.58 x 0.79 x 1.50 in)

Weight: 60 g (2.12 oz)

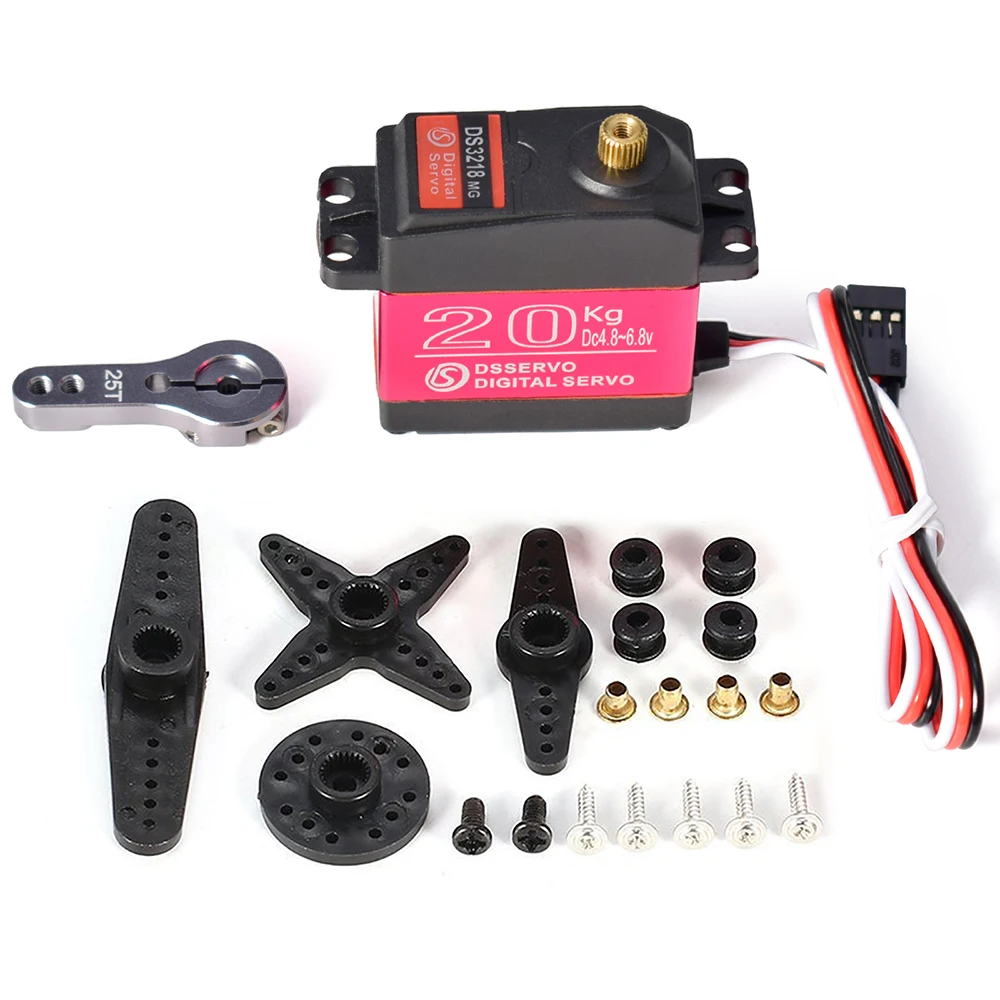

Package included:

1 x Digital Servo

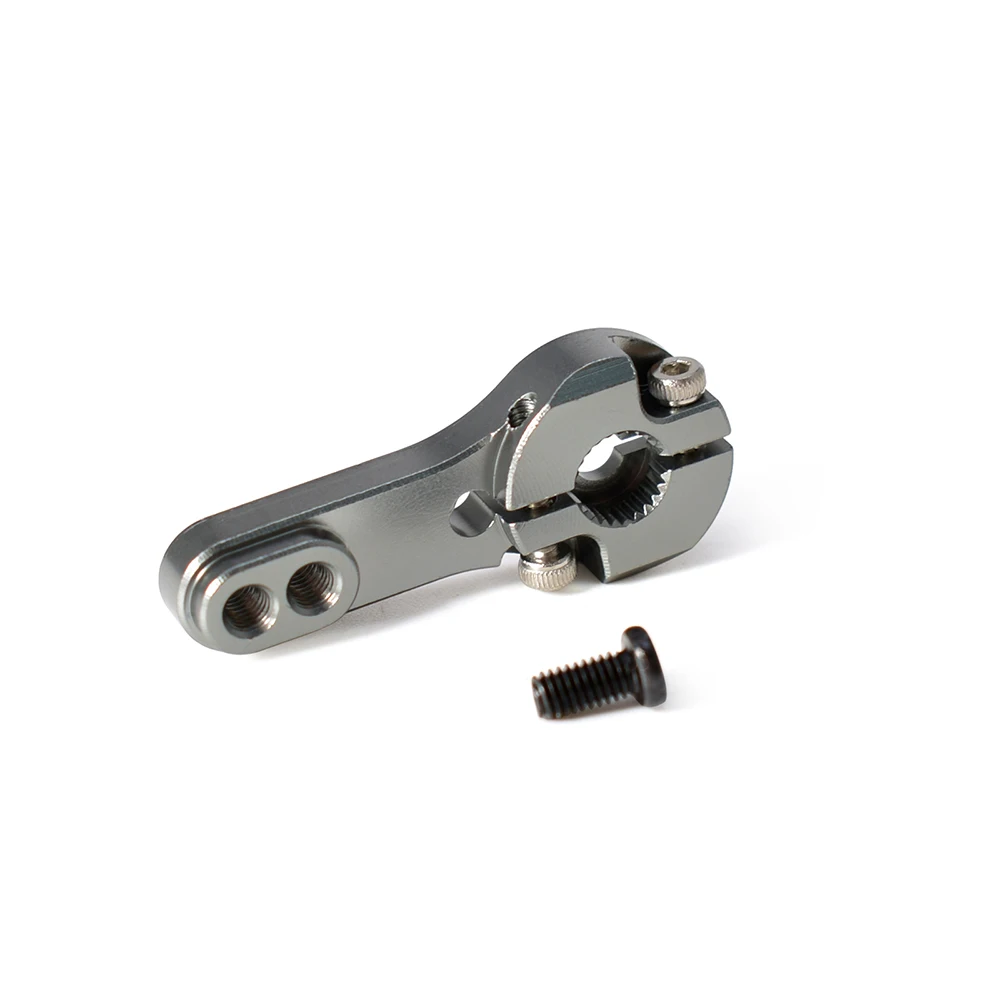

1 x 25T Metal Servo Arm

Note:
Only the above package content, other products are not included.
