RetroScaler2x AV to HDMI® Converter and Line-doubler For Retro Game Consoles PS2 N64 NES Dreamcast Saturn MD1 MD2

For product technical support:

1. Please join the RetroScaler Discord : discord.gg/aryJd43VWJ

2. Please visit RetroScaler Official Store to contact customer service.

3. E-mail :[email protected]

4. Visit RetroScaler on Youtube to see more videos of the product in use.
(https://www.youtube.com/@RetroScalerOffcial)

RetroScaler2x A/V to HDMI® Converter and Line-doubler for Retro Game Consoles

Attentions:

1. RetroScaler2X doesn't support all PAL-Mconsoles in Brazil and SFC pal version console.

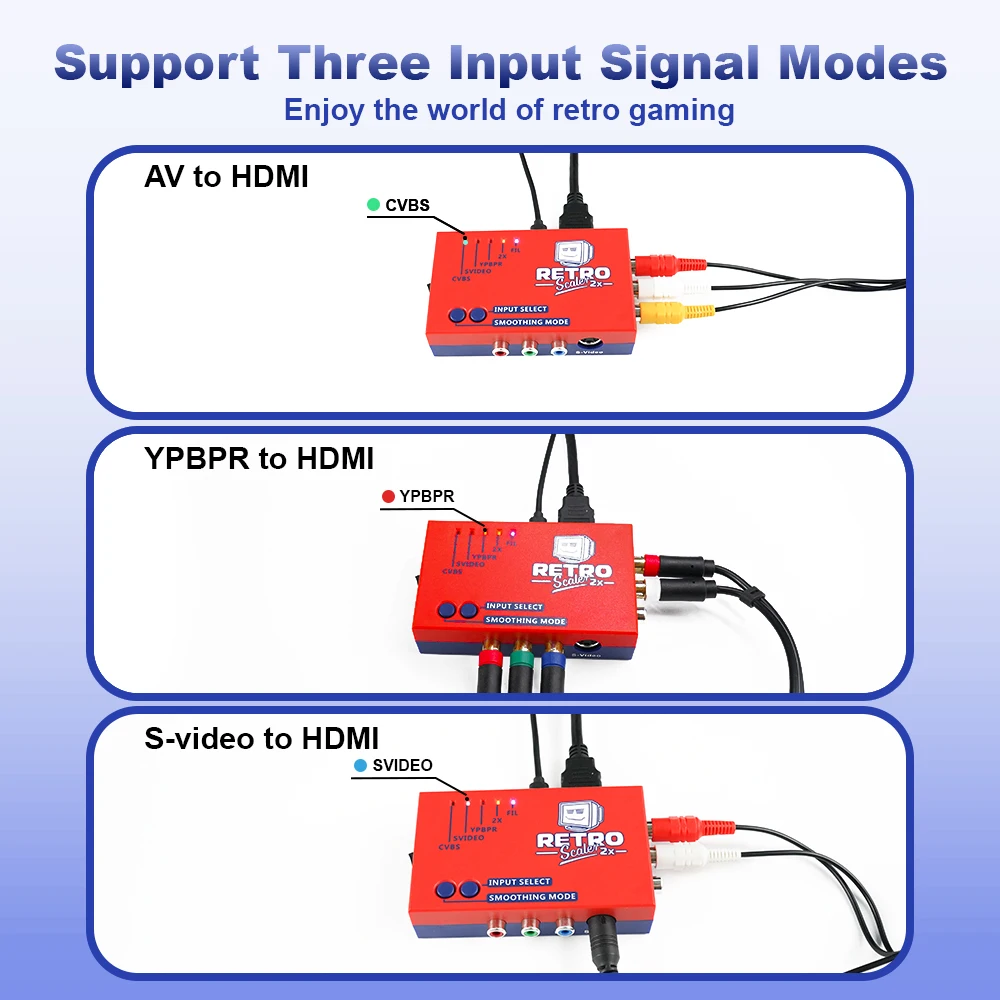

2. RetroScaler2X support component / AV/ SV signal input. Before purchasing, please confirm whether your game console can output these three video signals.

(Retroscaler2x doesn't support RGBS signal input, so don't use RGBS cable be used with it. )

3. When using Retroscaler2x, please use the signal cable to connect it to the game console and TV directly. Do not use other signal convertor with it.

4. usage video: https://youtu.be/C4ecNqamDa8

5. If you have high requirements for game quality, you can consider OSSC.

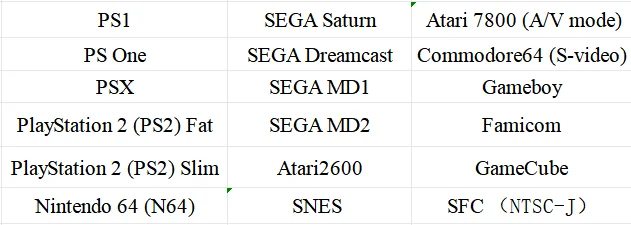

RetroScaler2x Supported Console (but not limited to):

Connecting your RetroScaler2x:

usage video: https://youtu.be/C4ecNqamDa8

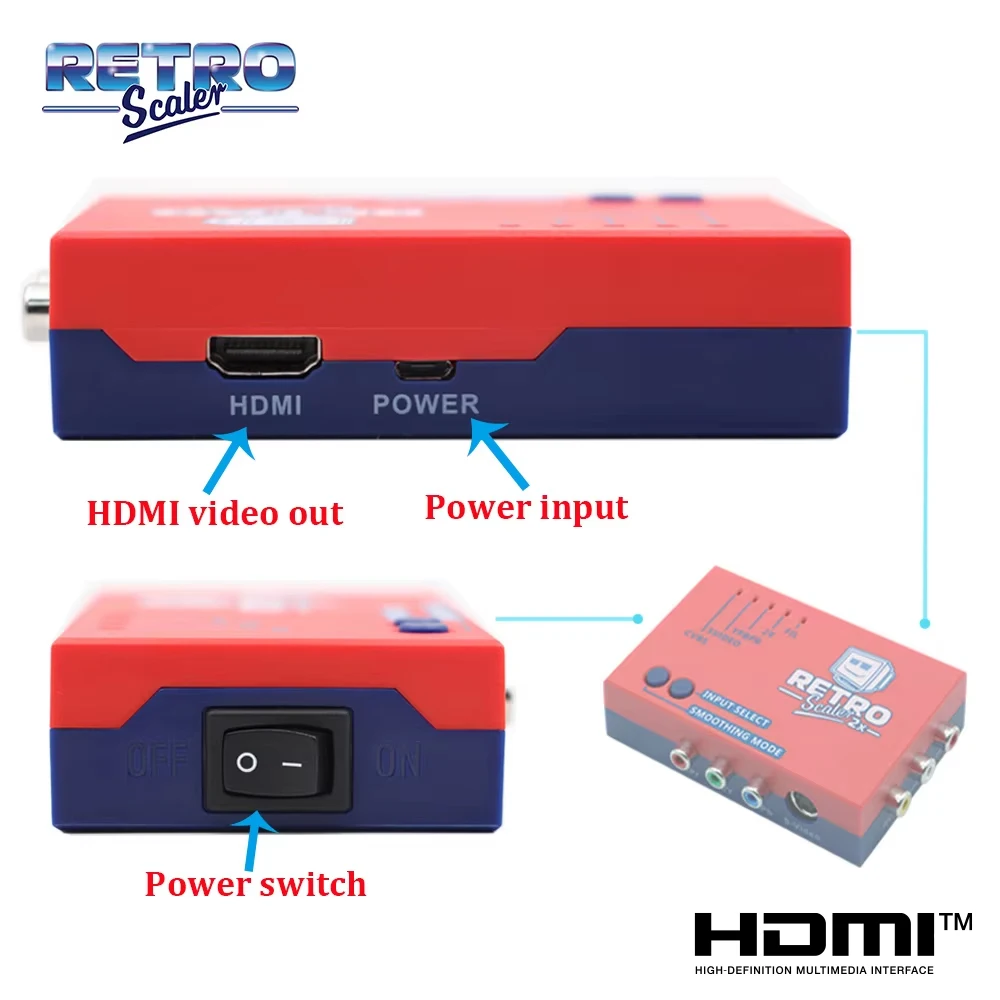

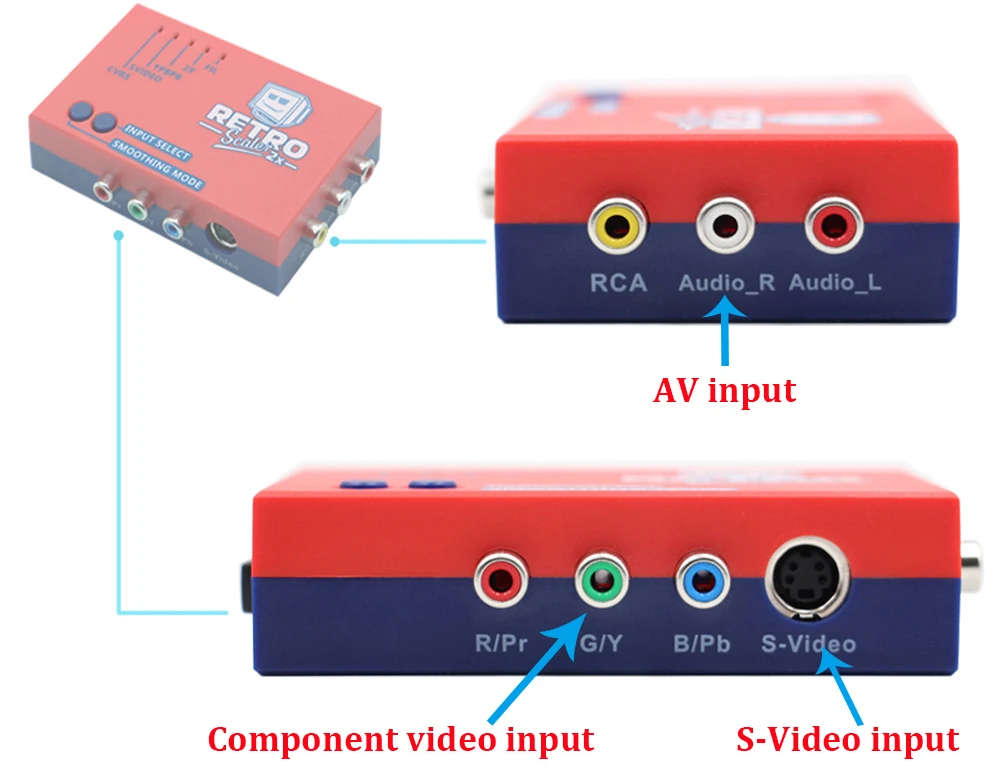

Buttons, connectors and external controls:

Component video input-- Connect component video (YPBPR) sources to this input. As a note, the chip used in this device does not support RGB, so an RGB SCART input will never be an option.

S-video input-- Connect an S-video (4 pins connector) source to this input, other sources are not support.

AV input-- Standard composite (RCA) connector. You can connect sources such as the Nintendo Super Famicom, Nintendo GameCube, N64 etc.

HDMI® video out-- All the received video and audio signals will be output on the modern LCD monitor/TVs with HDMI interface.

Power input-- Any decent quality Micro USB charger can be used to power the RetroScaler2x, as it’s a very efficient device. Your are even able to power mine via the USB ports of your TV!

Power Switch-- Toggles power off and on.

Input Select (INPUT SELECT)-- The input button selects between the composite, S-Video and Component Video inputs, or combination.

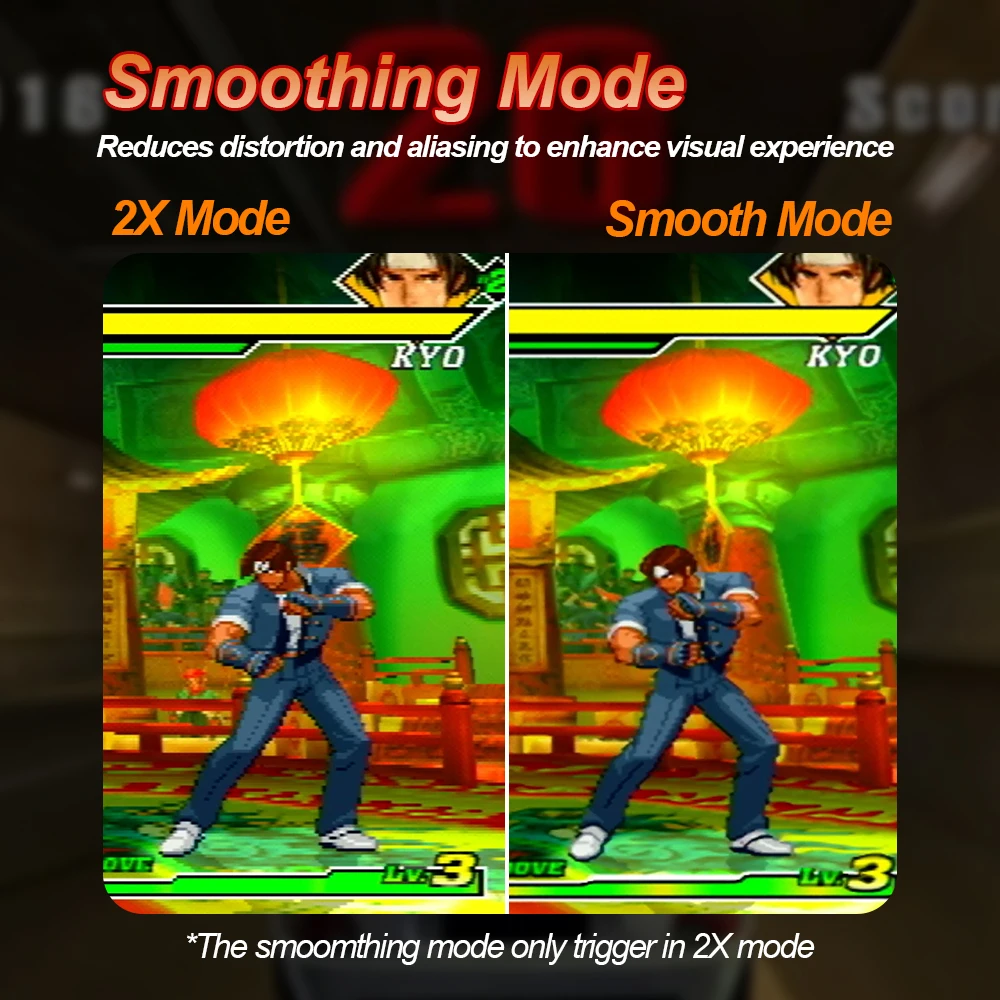

Output Select (SMOOTHING)-- The smoothing mode button allows you to chose which video mode it’s in.

FIL (blue led lights on):

This mode adds a filtering option to to minimize image aliasing for the 480p/576p output.

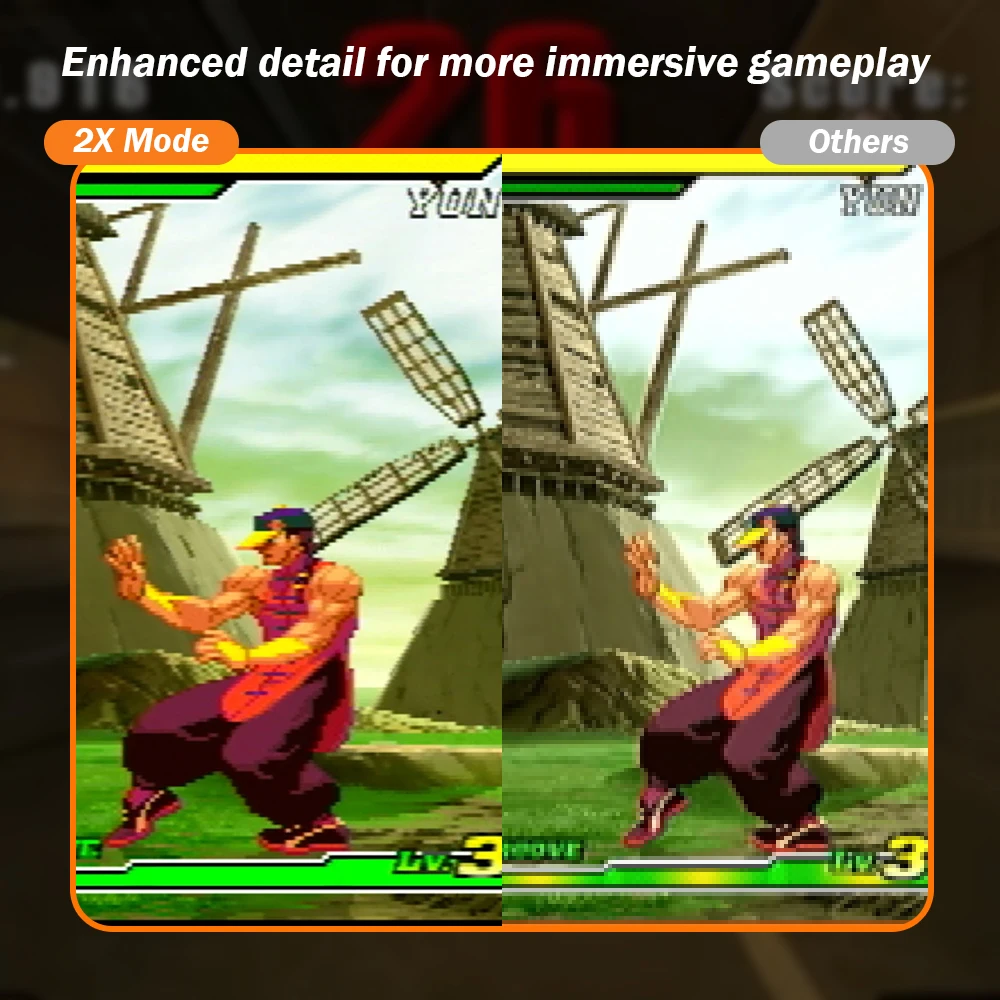

2x Mode (orange led light on ):
This is the standard “LINEDOUBLE” mode that outputs 480p/576p. This is the mode that’s the system defaults to when powered on.

Pass-through (both orange and blue LEDs light off):
This mode simply output whatever the input signal is, without changing the resolution.

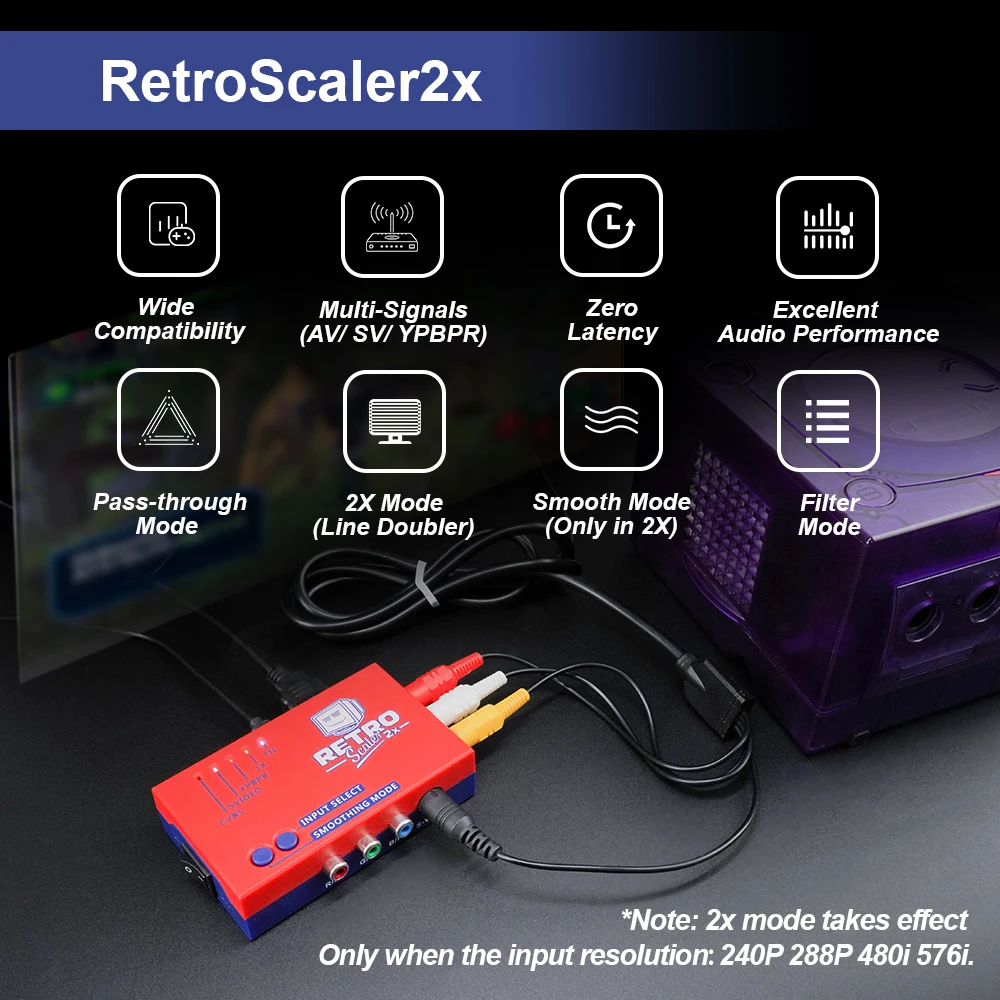

RetroScaler2x Features:

Signals / Resolutions:

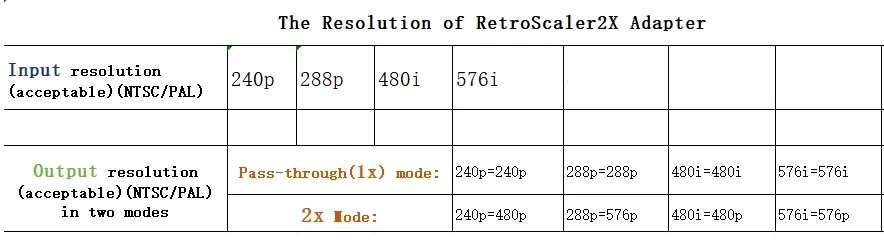

The RetroScaler2x can accept 240p/480i/288p/576i NTSC/PAL sources to converter to 480p/576p HDMI® output (480p for NTSC, 576p for PAL). For example 240p signals are supported properly, allowing for a completely progressive linedouble to 480p. 480i signals are deinterlaced and doubled also to 480p. Keep in mind that the output resolution of this device only up to 480p/576p.

Zero Lag:
The RetroScaler2x is a zero lag device, proven using multiple measurements and different devices.

Region Compatibility:
Both NTSC and PAL signals are supported, but they are not converted to each other. That means you can plug in whatever signal your target device is compatible with, but NTSC might not work on PAL HDMI® devices and vice versa.

Filter Modes:
The “FIL” mode is completely preference-based, but the average retro-gamer prefers the FIL mode off for 2D games (SNES, Genesis, etc) and on for 3D games (N64, Saturn, etc). Also, the FIL mode might help reduce flicker with some 480i-only games.

Compatibility:
Another great feature of the RetroScaler2x is that it outputs a true 480p60 signal, making it compatible with every device I tested it with! Compatibility is a big issue for retro-gamers, as modern displays aren’t used to the resolution or refresh rate of these older consoles. This device is an excellent help for streamers who want the highest chance of compatibility.

Performance – Audio:
Audio performance on the RetroScaler2X is good although we would have to stop short of saying it was perfect. In general uses there are no issues with the audio digitization but on brassiere sounds like explosions the output may sound a little rougher than it did through the OSSC. This isn’t something you’re likely to even notice on a TVs speakers, though you might if you have an external amp or home theatre system. In that case of course, it’s usually perfectly easy to route audio around the RetroScaler2X anyway.

The Pass-through:

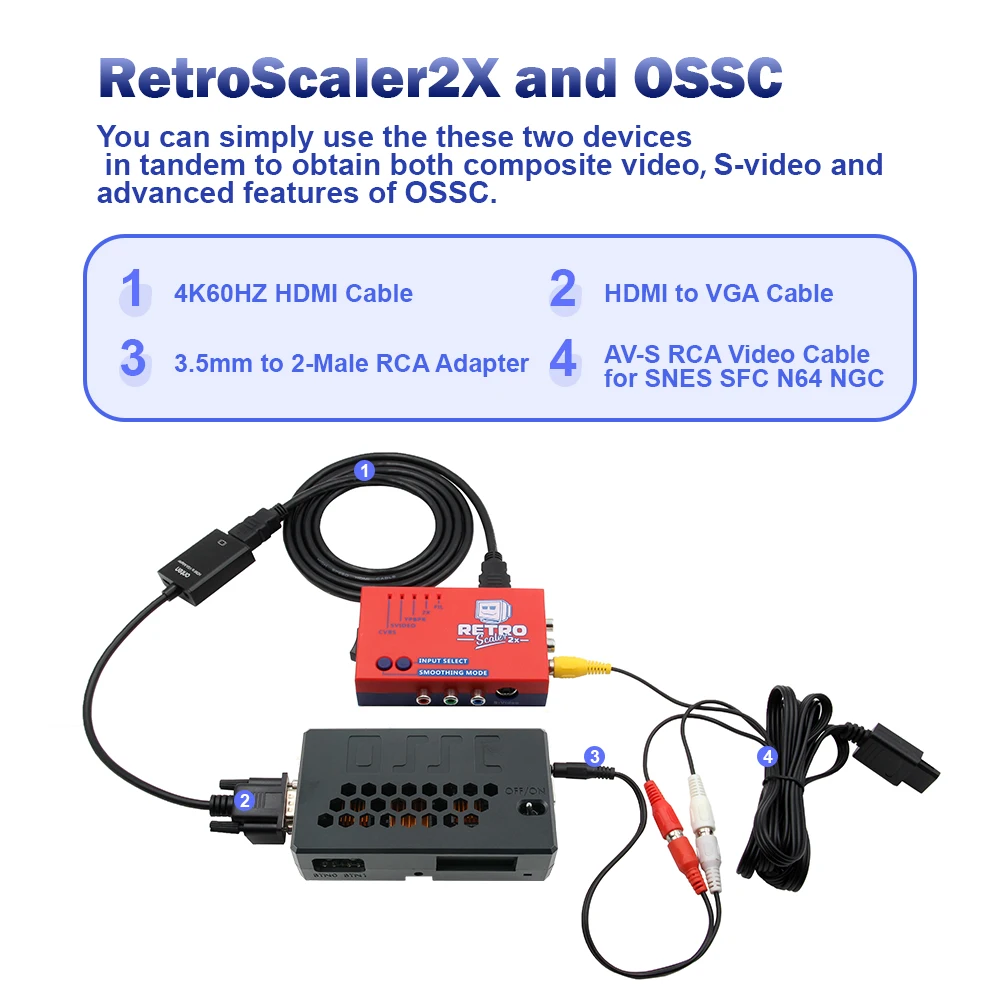

By putting the RetroScaler2X into pass-through mode, incoming composite, s-video or component signals are simply transparent and digitized into HDMI. Support for 240p is rare in the world of HDMI, but by adding a simple HDMI to VGA converter, you can convert the signal back to the analogue domain again. This makes the unit a perfect transcoder to go with 15 kHz displays like PVMs, or of course, the OSSC.
