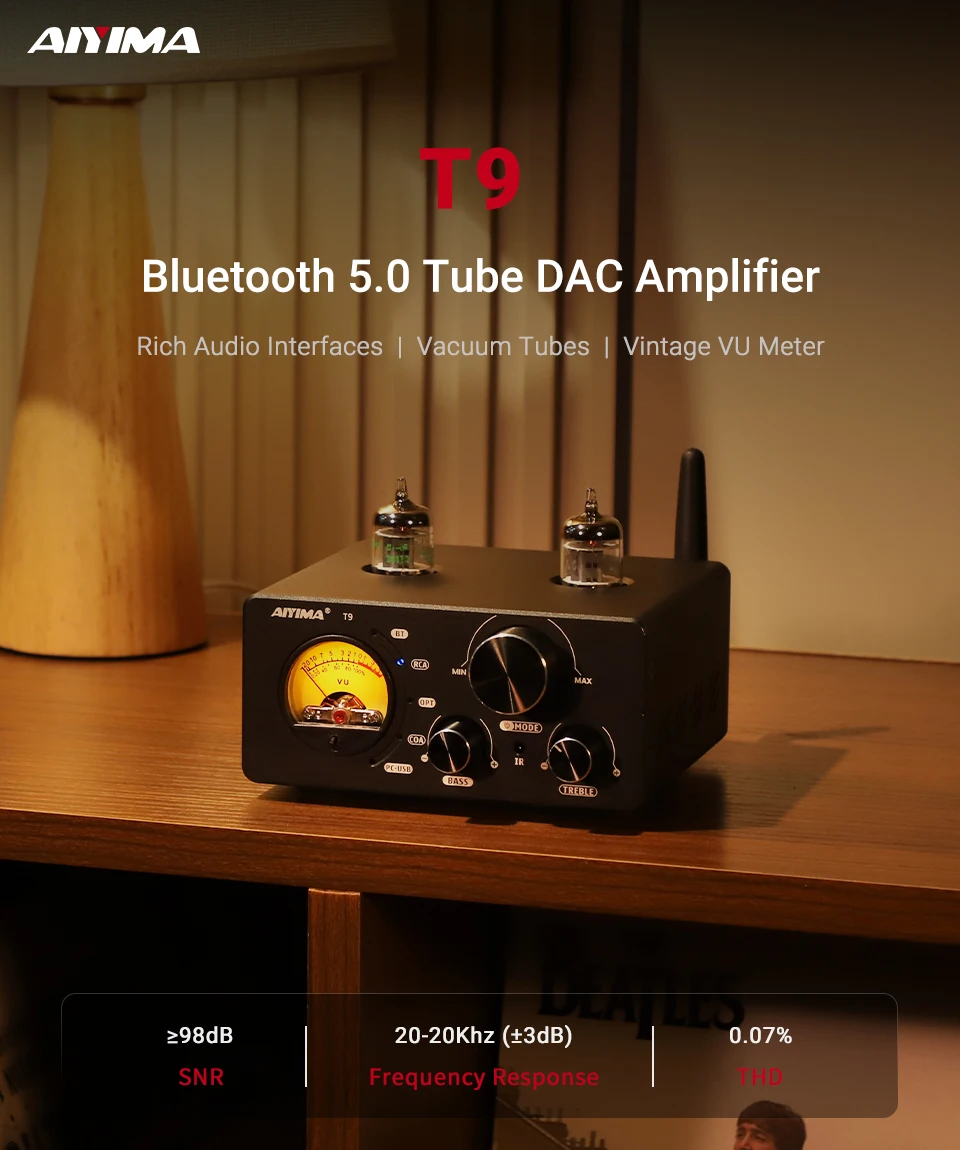

AIYIMA Audio T9 HiFi Bluetooth 5.0 Vacuum Tube Amplifier USB DAC Stereo Amplificador COAX OPT VU Meter Amplifier Speaker Amplify

NOTE

1、From 24/04/2024, the 6K4 tubes will be upgraded to American 6186 or 6AG5 or 5725(will be shipped at random) but the price remains the same.

2、If there is no input for 10 seconds there will be a prompt tone to remind you to go to sleep.

3、If you play music again, there will be a prompt tone to indicate that the input is successful.

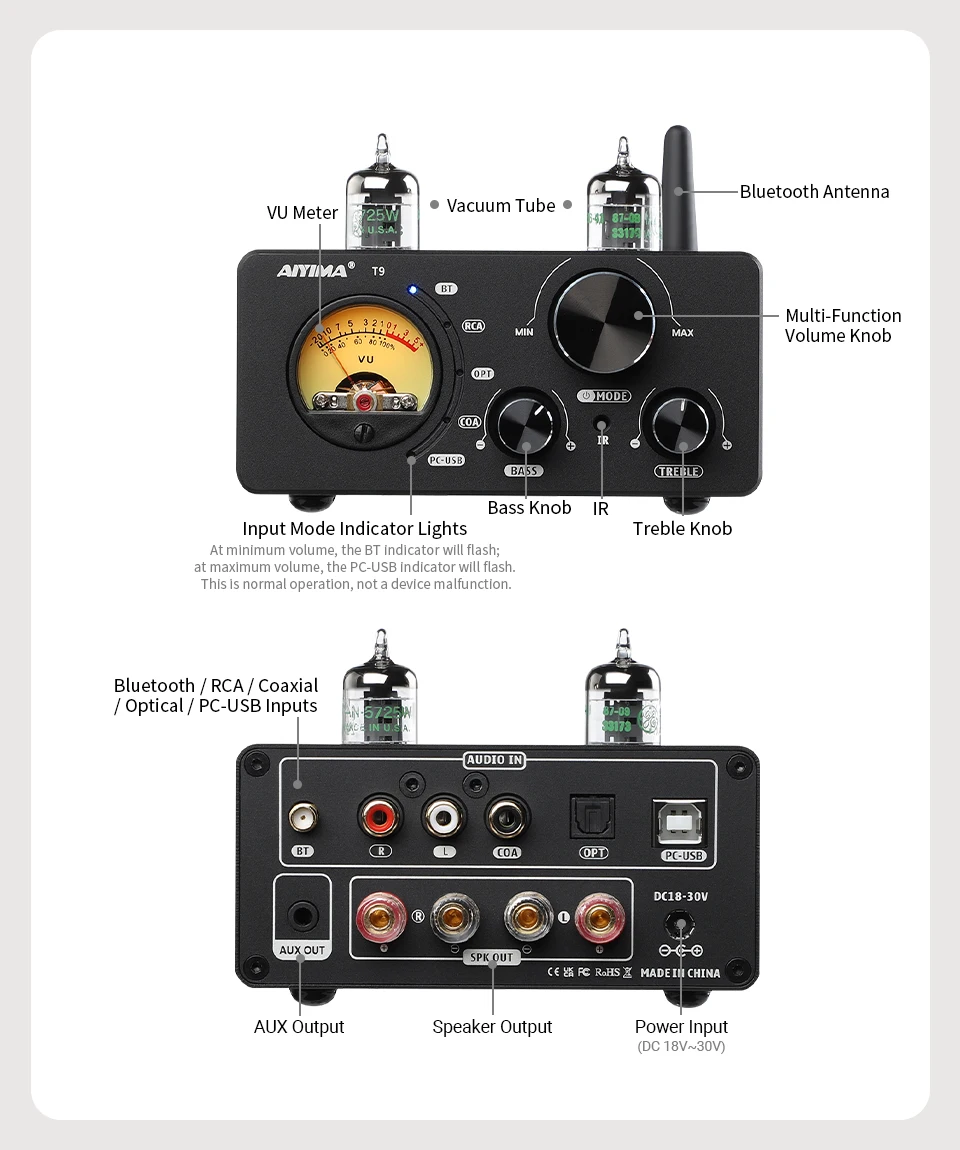

When the volume is at the minimum level, the BT light flashes; when the volume is at the maximum level, the PC-USB light flashes. This is not an indication of a device malfunction.

Features:

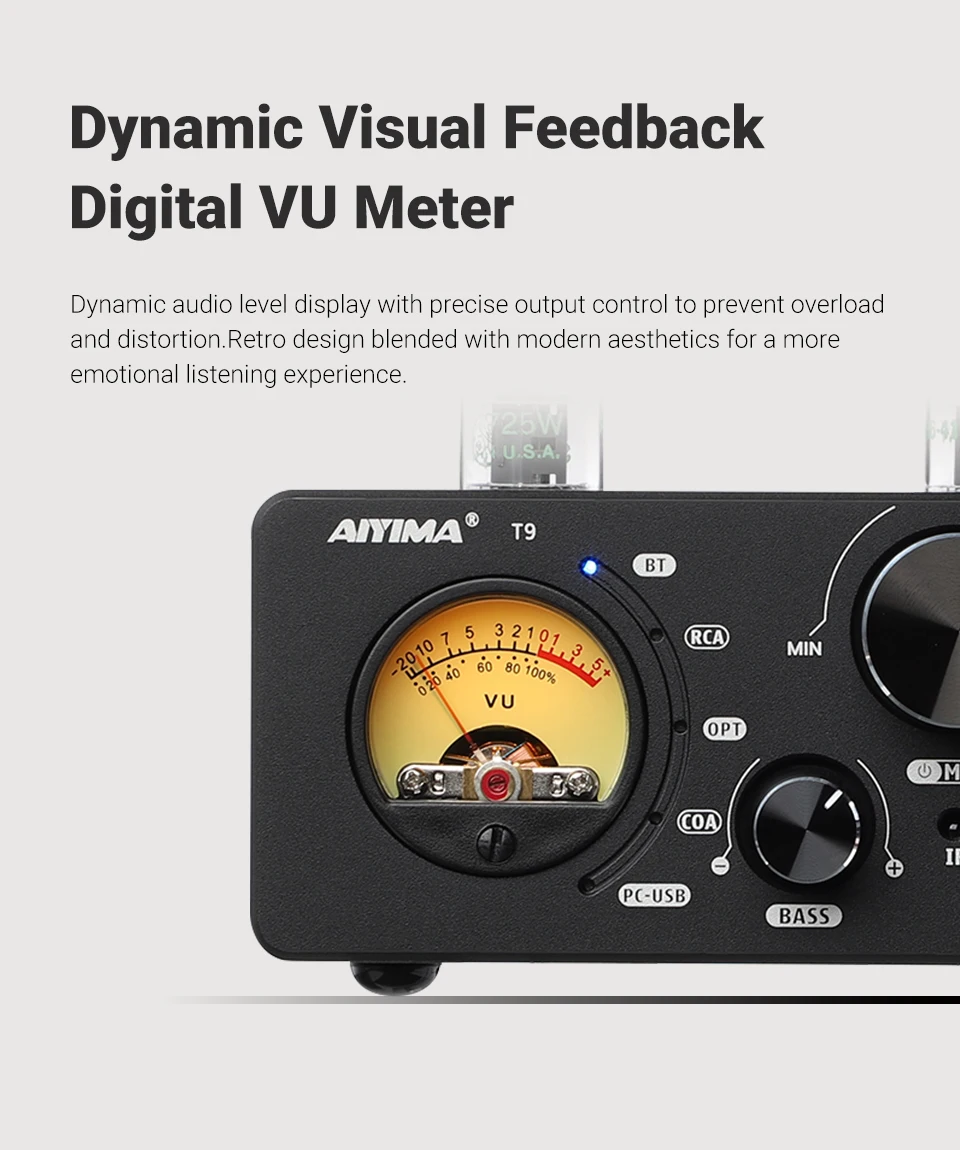

1.Unique and amazing combination: integrated T9 amplifier with VU meter into whole in such a mini size, when enjoy HiFi music, the pointer dancing in the warm light with strong vintage feelings, dynamically decorates the audio system space.

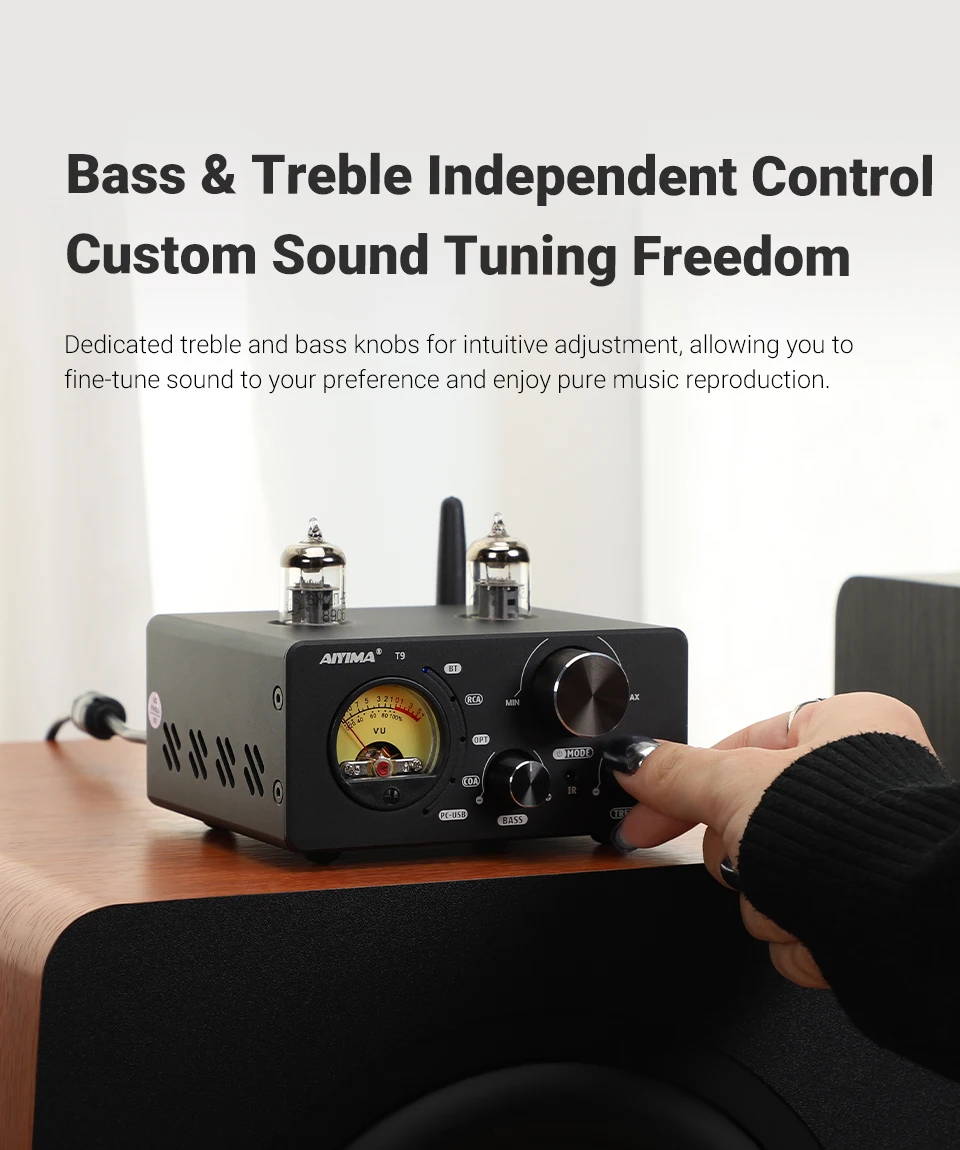

2.HiFi clear sound with tone control: resonable circuit and concise wiring, adopts vacuum tubes to soften the sound and filter out the digital feelings, sounds warm and sweet without noise. Also with treble and bass knobs to adjust one's own preferable sound styles, presents HiFi music with rousing highs and deep lows.

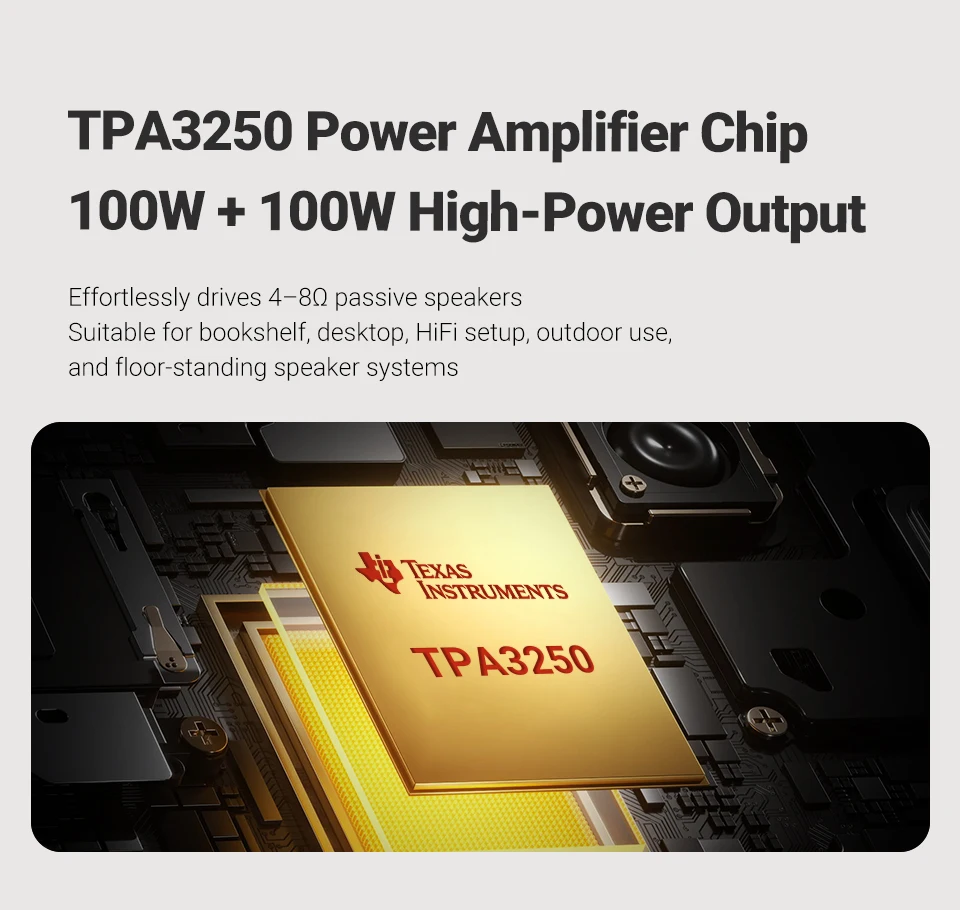

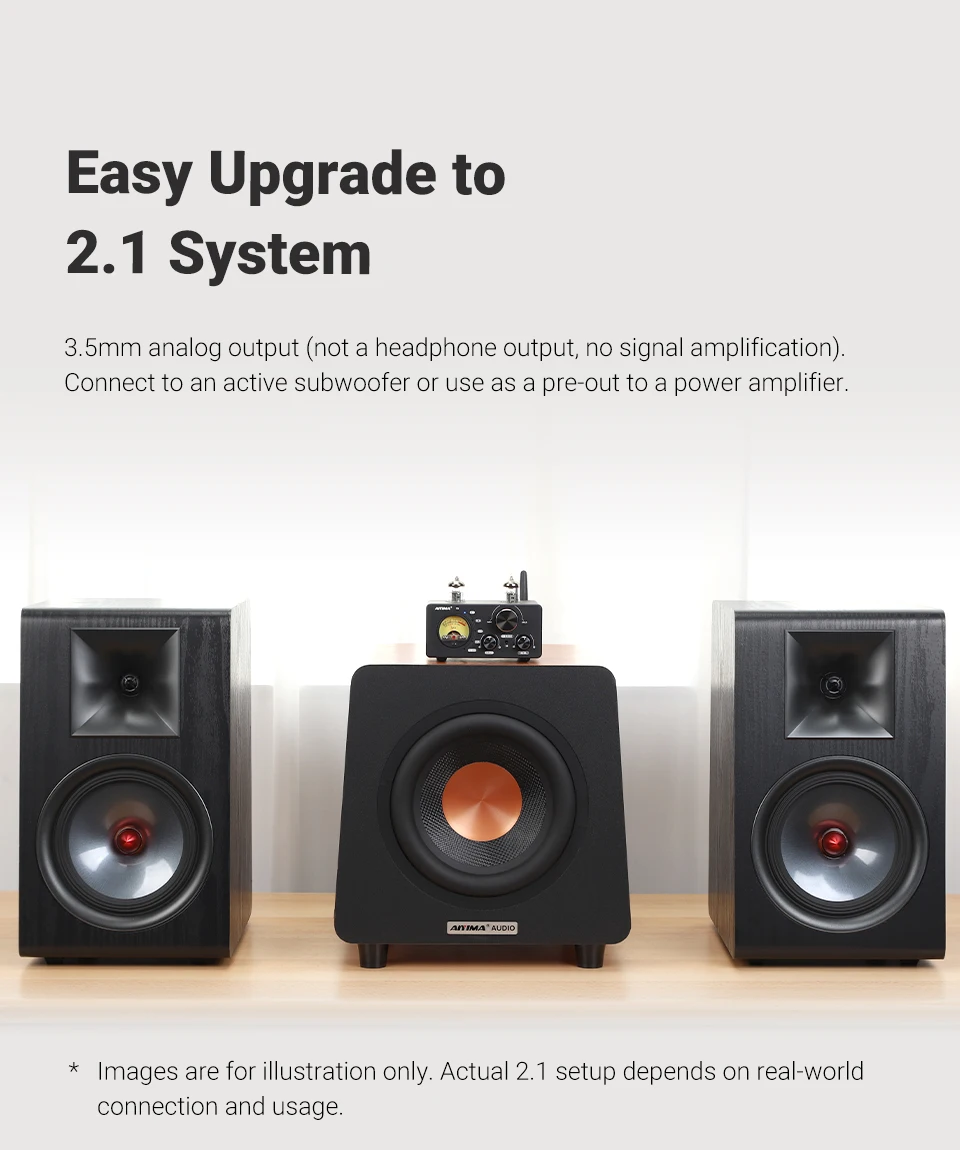

3.Strong output power and low frequency output: use amp IC TPA3250, each channel can output 100W(4Ω), match perfectly and easily to drive all 3-8Ω passive speakers, adds a low frequency output easy to connect active speakers and build 2.1 channel system, the bass effects is greatly enhanced.

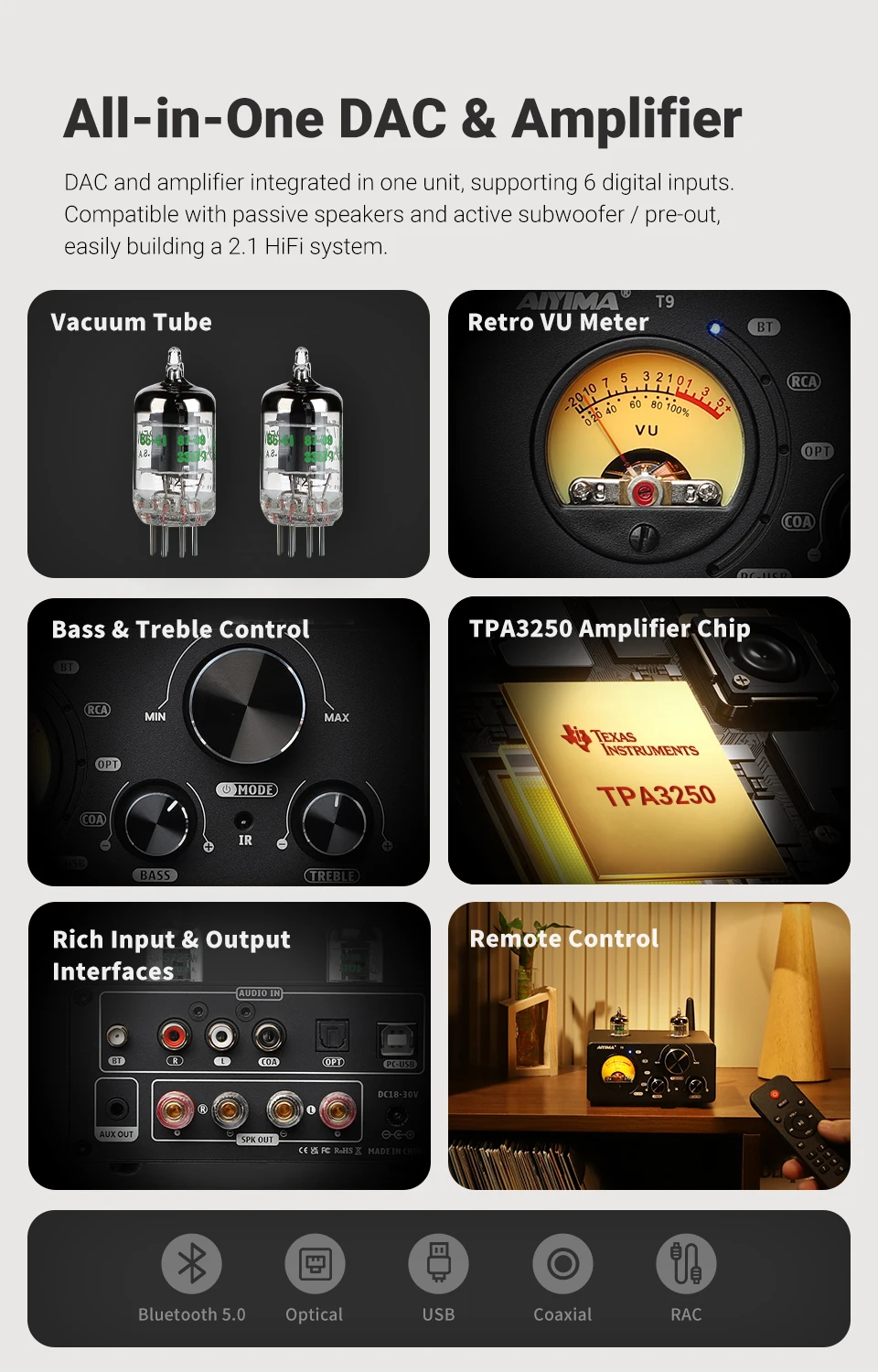

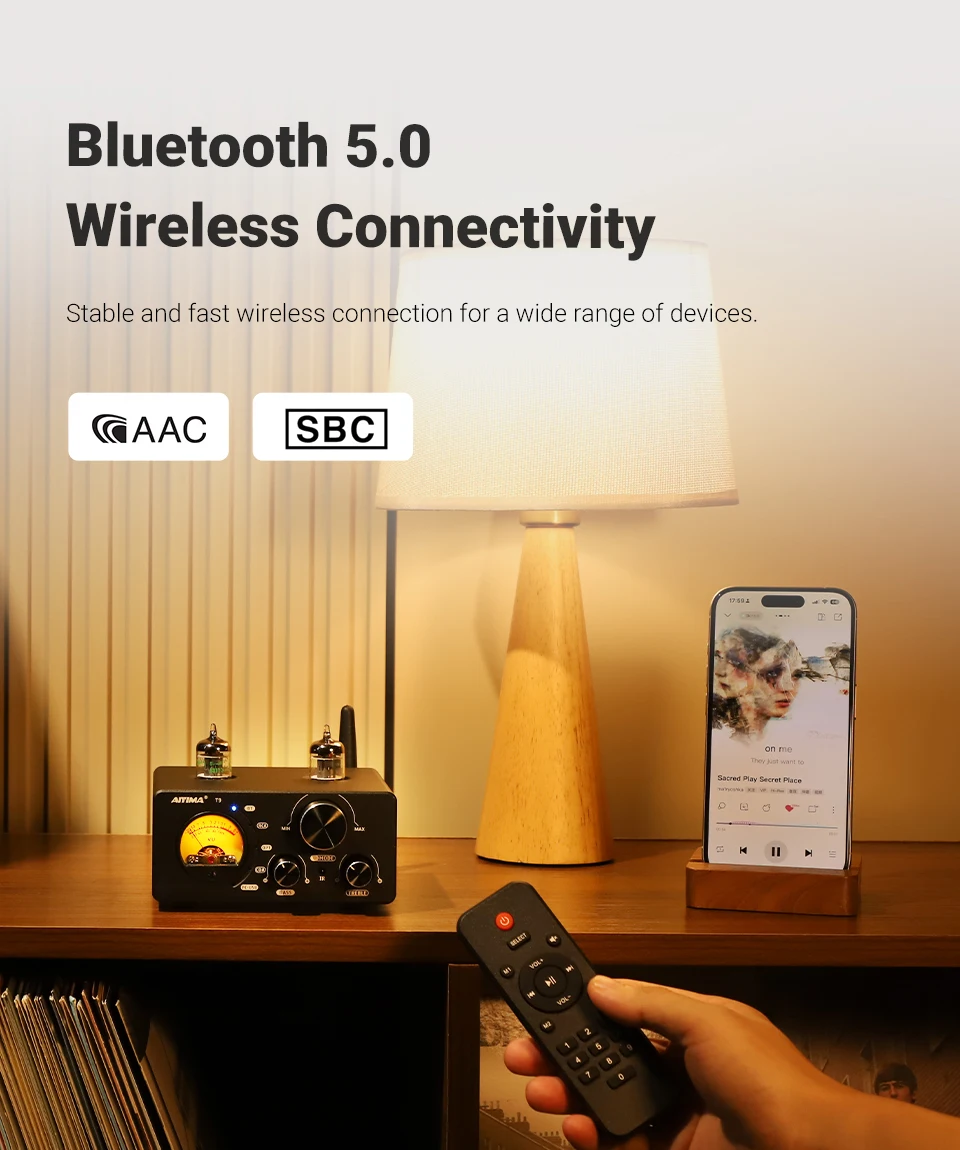

4.With multiple digital audio inputs: Bluetooth 5.0 / USB / Coaxial / Optical / stereo RCA, compatible with most audio device such as phones, computers, tablets, TVs, TV, CD players etc. The perfect combination of DAC and amplifier, very suitale for audiophiles who have various audio devices.

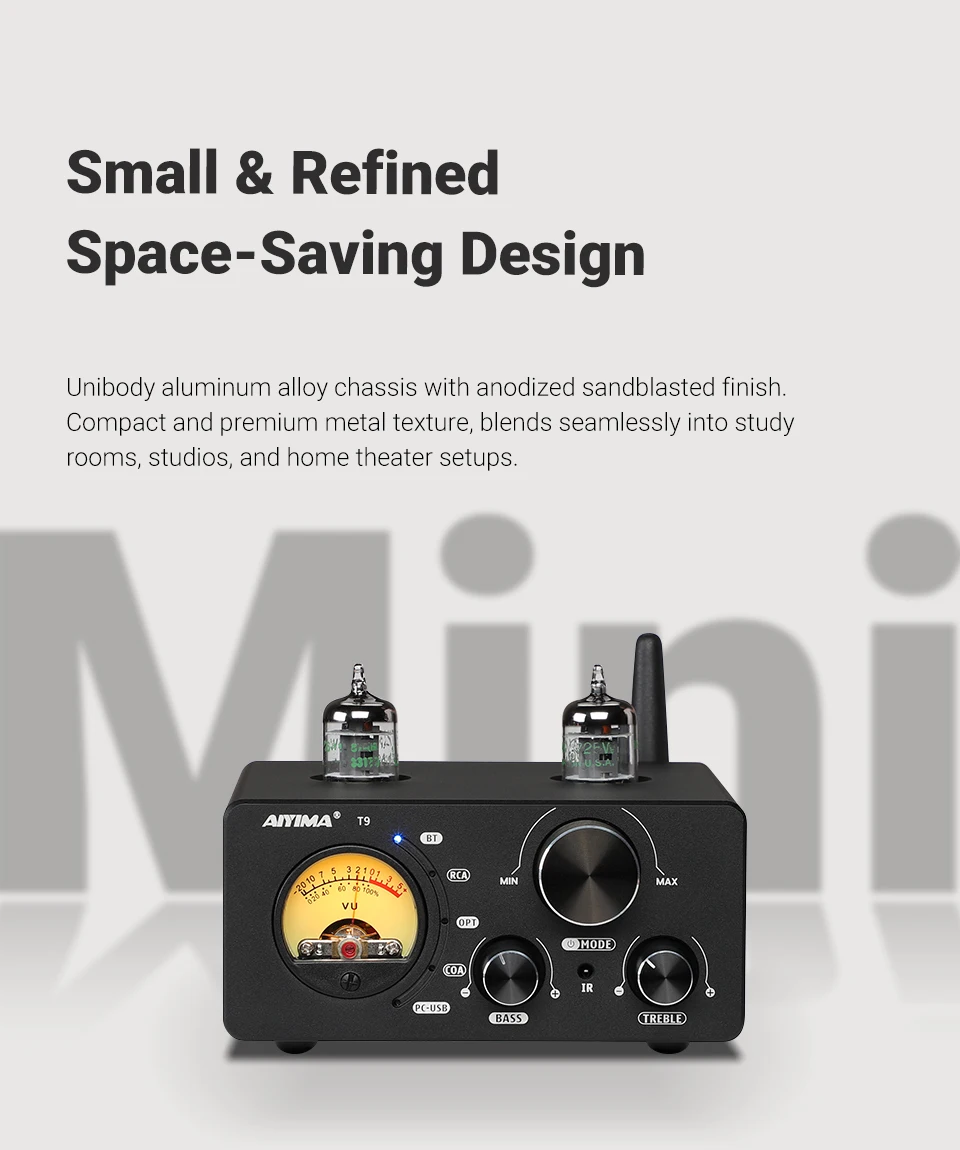

5.Practical funtions to simplify use: with input selection and indicators, clearly to show the working status in real time; aluminum alloy case is specially designed, cool and unique to decorate your desktop space.

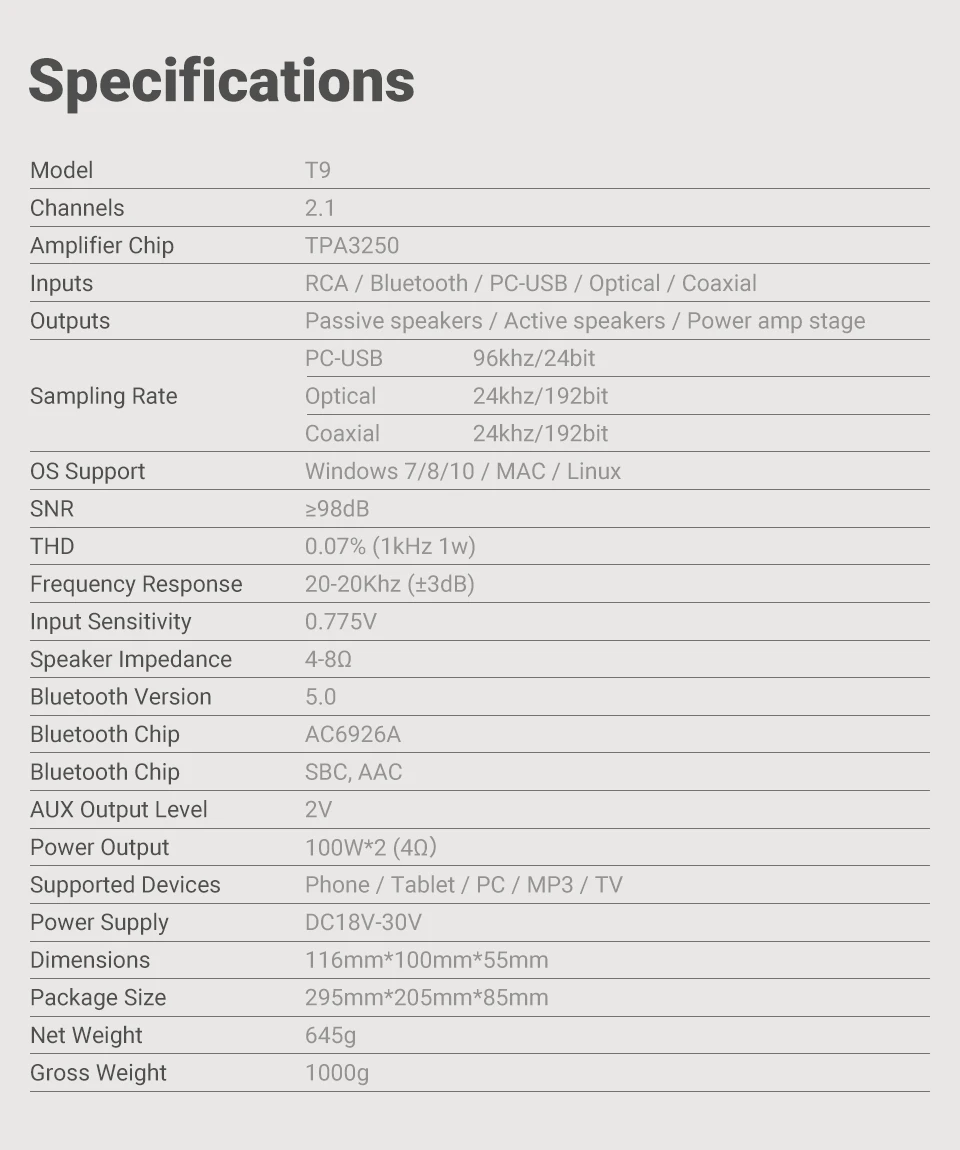

Product paramstes:

Chipt: 6K4+AC6926A+CM6542+MS8412+NE5532

Tube model: 6K4 or 5725

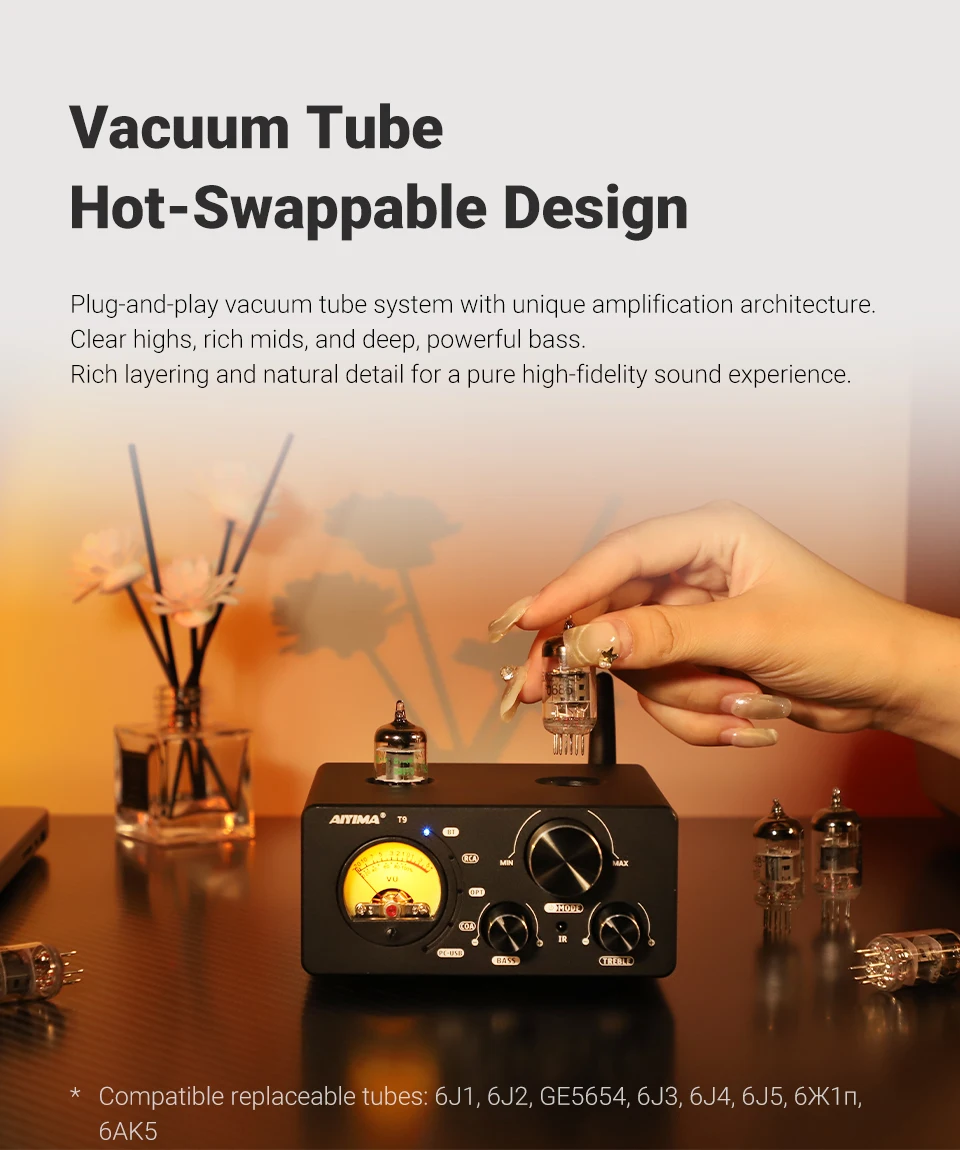

Replaceable tubes: 6J1, 6J2, GE5654, 6J3, 6J4, 6J5, 6Ж1п, 6AK5, etc.

Bluetooth chips: AC6926A

​Bluetooth 5.0 support: SBC

Support: MP3/WMA/APE/FLAC/WAV

pc-usb sampling rate: 24bit96khz

Optical fiber/coaxial sampling rate: 24bit 192khz

Bluetooth sampling rate: 16bit 44.1khz

pc-usb support system: XP/W10/W11/MAC/Linux

Total harmonic distortion: 0.07%

Signal to noise ratio: ≥98db

Frequency response: 20-20Khz (±1db)

Treble/bass adjustment range: ±6db

Speaker impedance: 4-8Ω

Output power: 100W*2 4Ω load

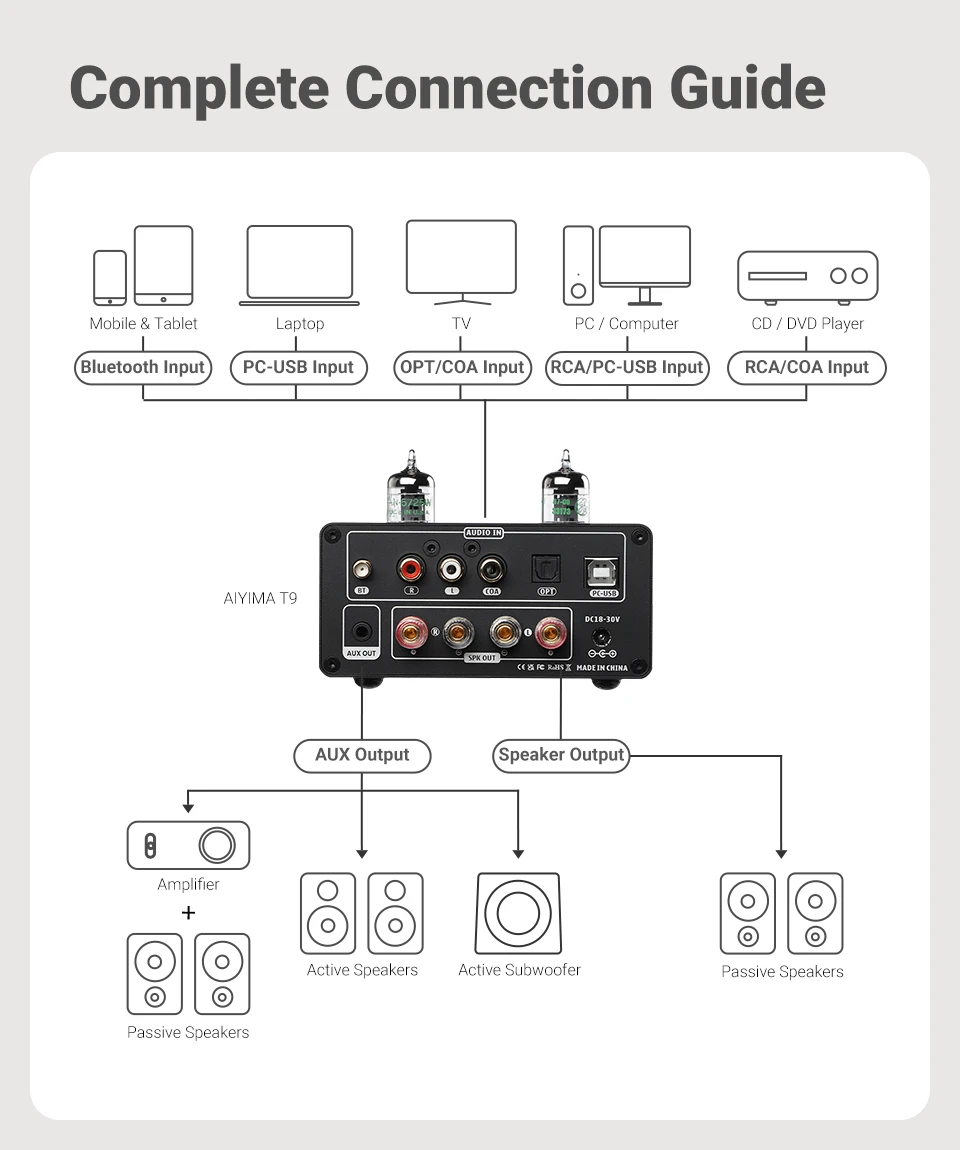

Input mode: Bluetooth / RCA/pc-usb/optical/coaxial

Support equipment: mobile phones, tablets, computers, MP3, TV, etc.

Output mode: passive speaker, active subwoofer

Working power supply: DC18-30V

Product size: 115*98*54mm

Packing size: 295*205*85mm

Product net weight: 645g

Packing（without power supply）weight:1000g

Package included:

1Pcs Tube T9 tube amplifier + 1Pcs Power adapter 24V 4A(optinal)
Warranty：24 Months
