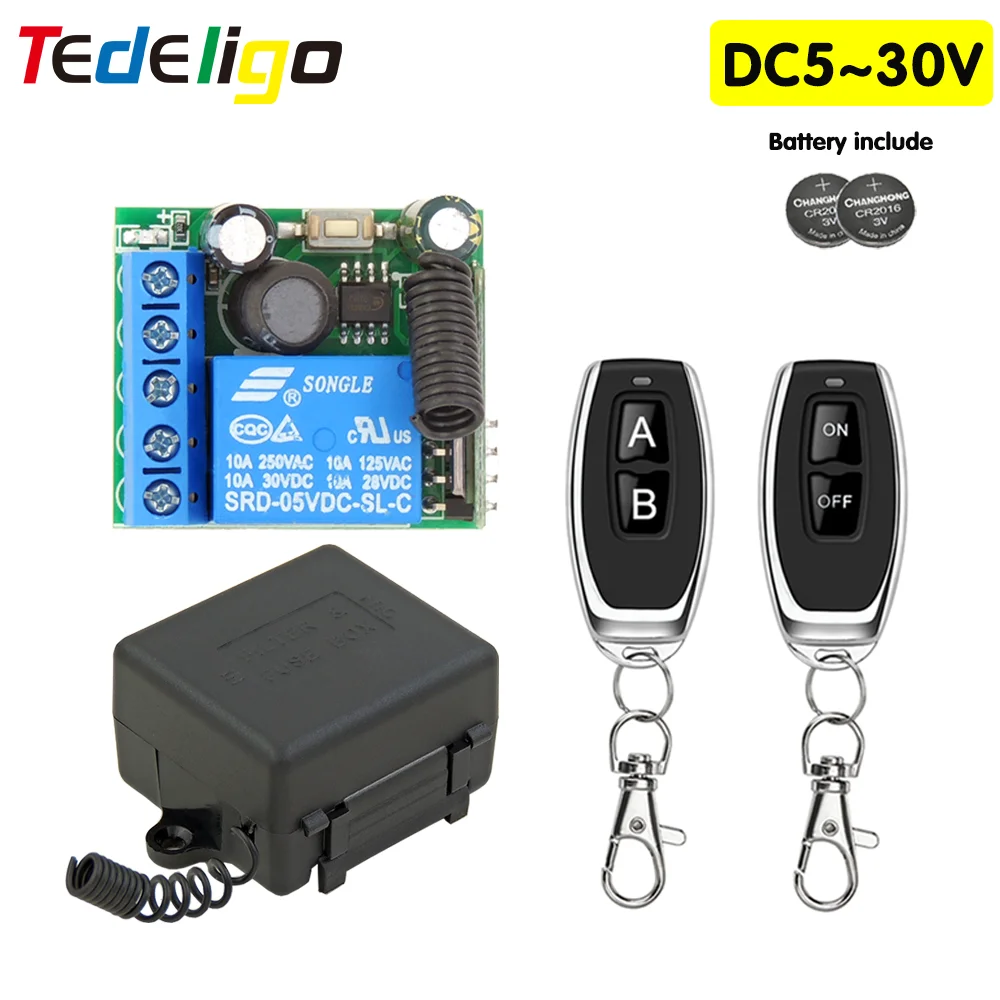

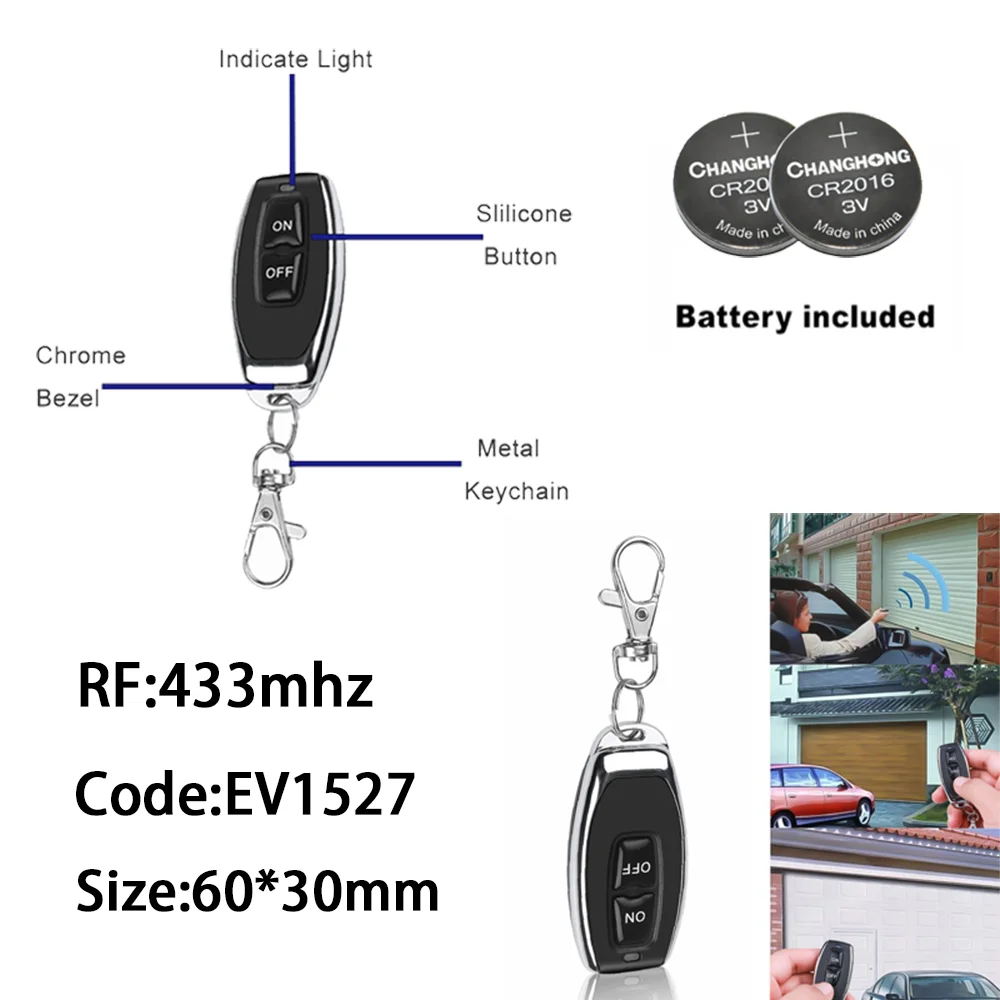

433Mhz RF Remote Control Wireless Switch DC 5V 12V 24V 1CH RF Relay Receiver and 2CH Transmitter For Door Electromagnetic Lock

433Mhz RF Remote Control Wireless Switch DC 5V 12V 24V 1CH rf Relay Receiver and 2CH Transmitter For Door Electromagnetic lock

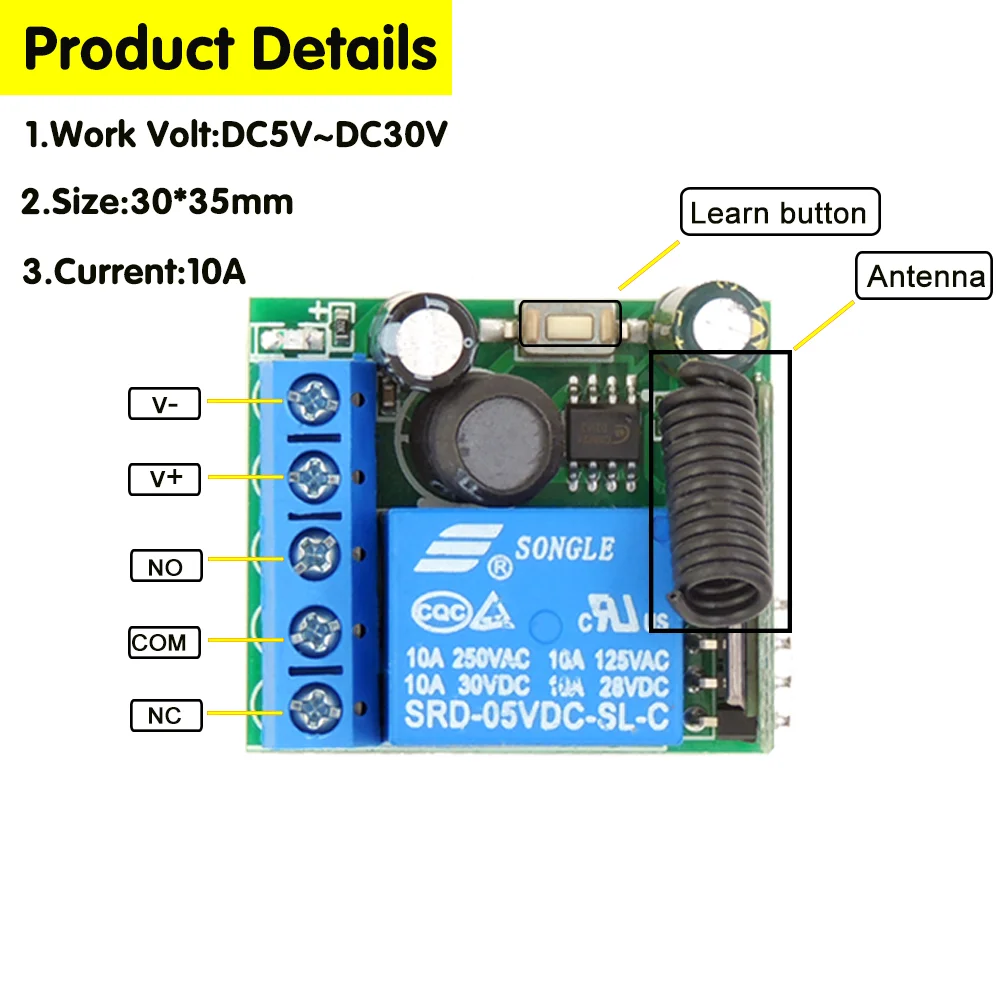

Relay Receiver Board Parameter

Working voltage : DC 5V/6V/12V/24V/30V
Input/Output vlotage : 1~250V
Quiescent Current : <5MA
Max current : 10A
Max load: 300W

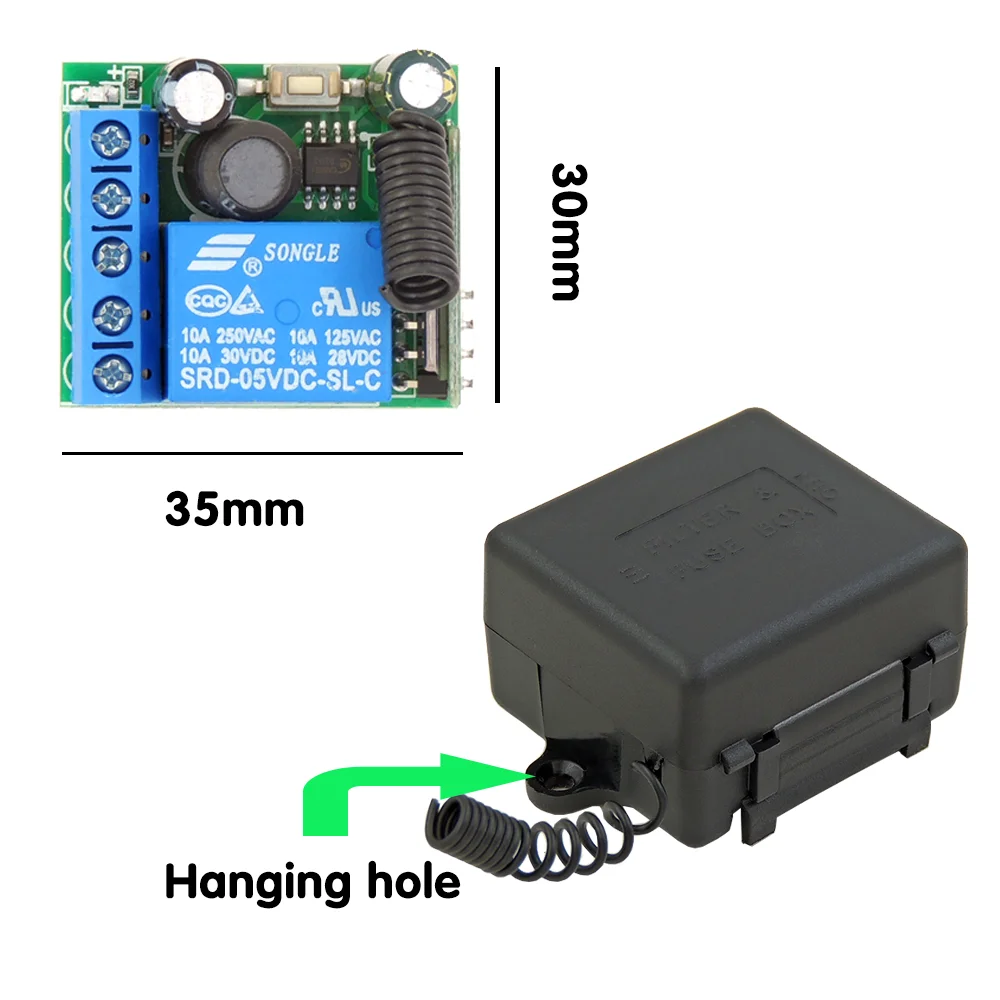

Circuit Board Size: 3.5*3.0*1.8cm(1.37*1.18*0.7in)
Receiving range:more than 50ms(on open space)
RF frequency : 433MHz
Pin : NO / COM / NC
Working temperature : -30~+80 degrees
Receiving Sensitivity : <97dbm
Amount of storage remote controls : 20 pieces

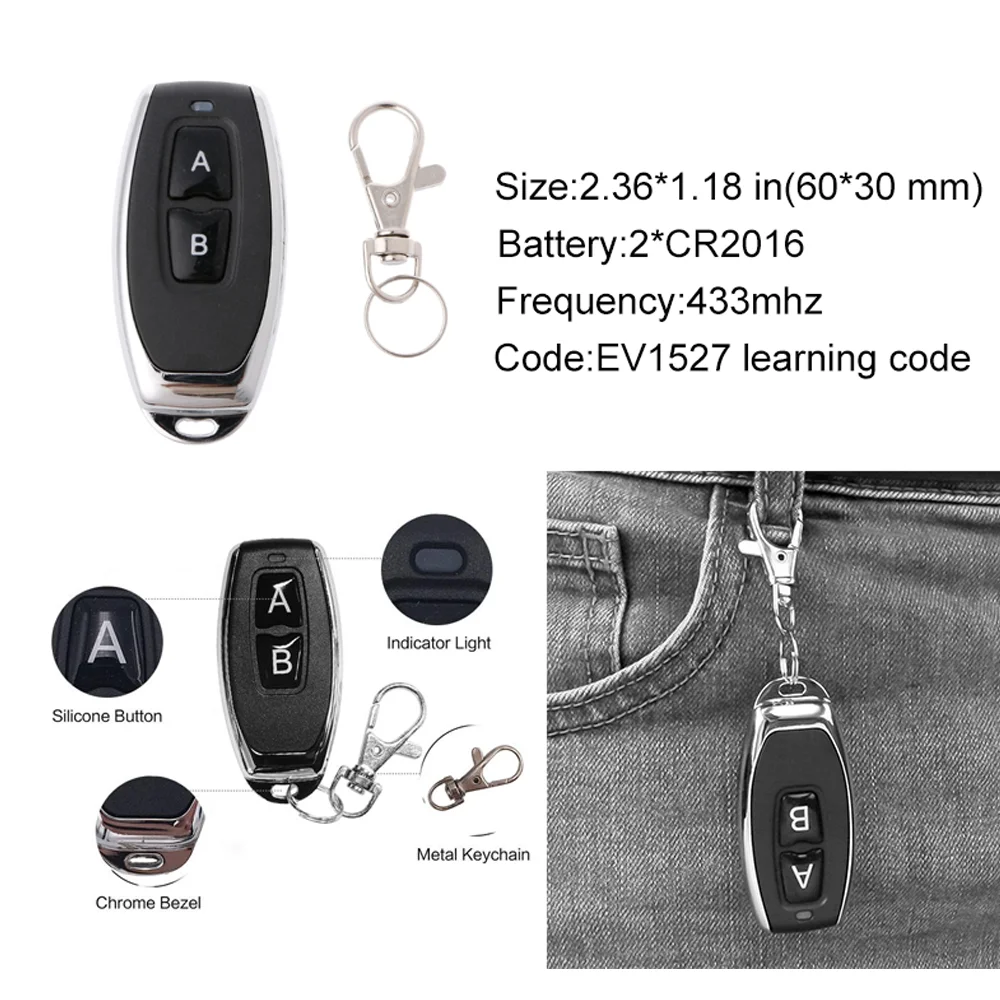

Support encoding : 1527 Learning code /2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Remote operating mode : Momentary Mode / Toggle Mode / Latched Mode / Time Delay Mode

Working Modes: 4 modes

Momentary mode,Toggle mode,Latched mode and Time delay mode
Momentary mode: Press and hold A button, will work;Release A button,will stop.
Toggle mode: Press A button,will work;press A button again,will stop;
Press B button,will work;press B button again,will stop.
Latched mode: Press A button,will work;Press B button again,will stop.
Time delay mode: Press and hold on button "A" , turn on;
Release the button, turn off after 5 seconds(or 10/15 seconds )

How to program

Momentary mode: Press learning button once,press A button once,succeed.

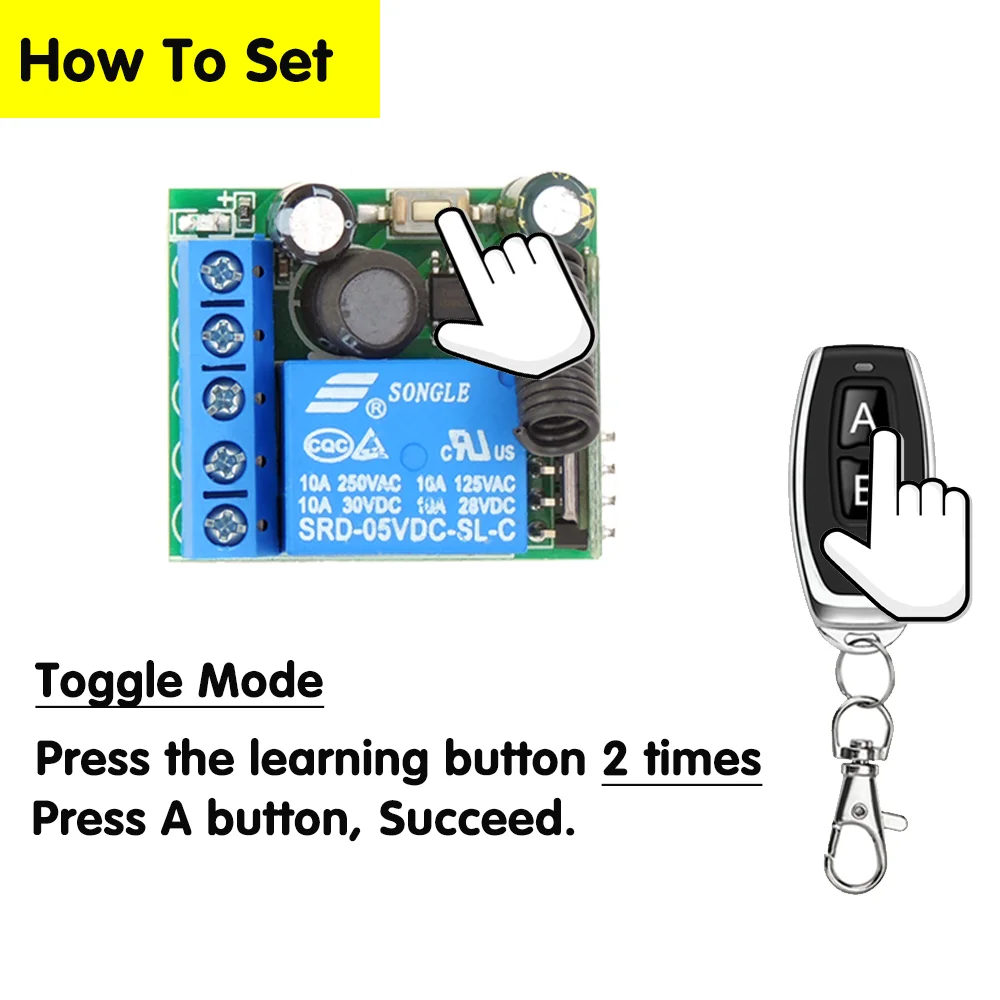

Toggle mode: Press learning button twice,press A button once,Press B button,succeed.
Latched mode: Press learning button 3times,press A button once;press the B button once.succeed.
Time delay mode: Press learning button 4/5/6 times,press A button once,succeed.

Reset

Press the learning button 8 times. The existing data will be deleted succeed.

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
