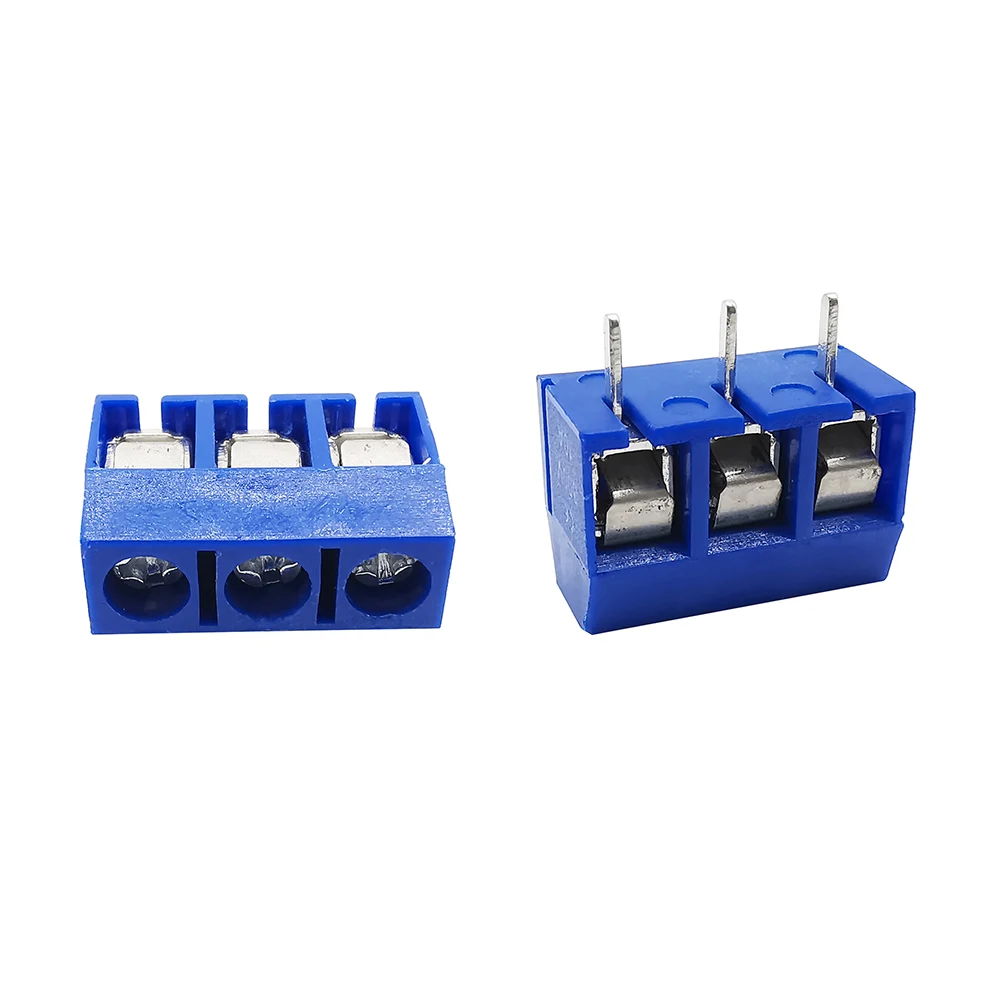

5-50Pcs KF301-2P KF301-3P 5mm PCB Screw Terminal Block KF301 2 Pin 3 Pin Wire Connector Straight Needle Blue

5-50Pcs KF301-2P KF301-3P 5mm PCB Screw Terminal Block KF301 2 Pin 3 Pin Wire Connector Straight Needle Blue

Product Description:

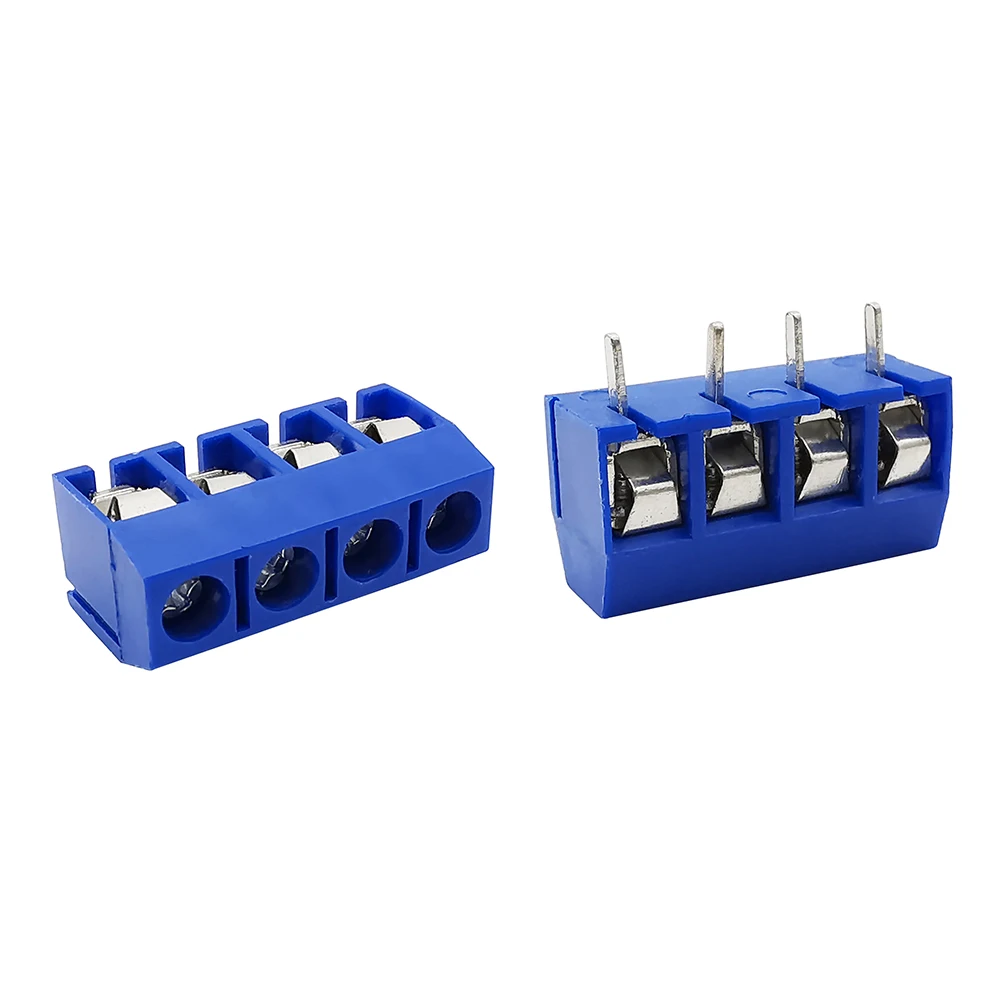

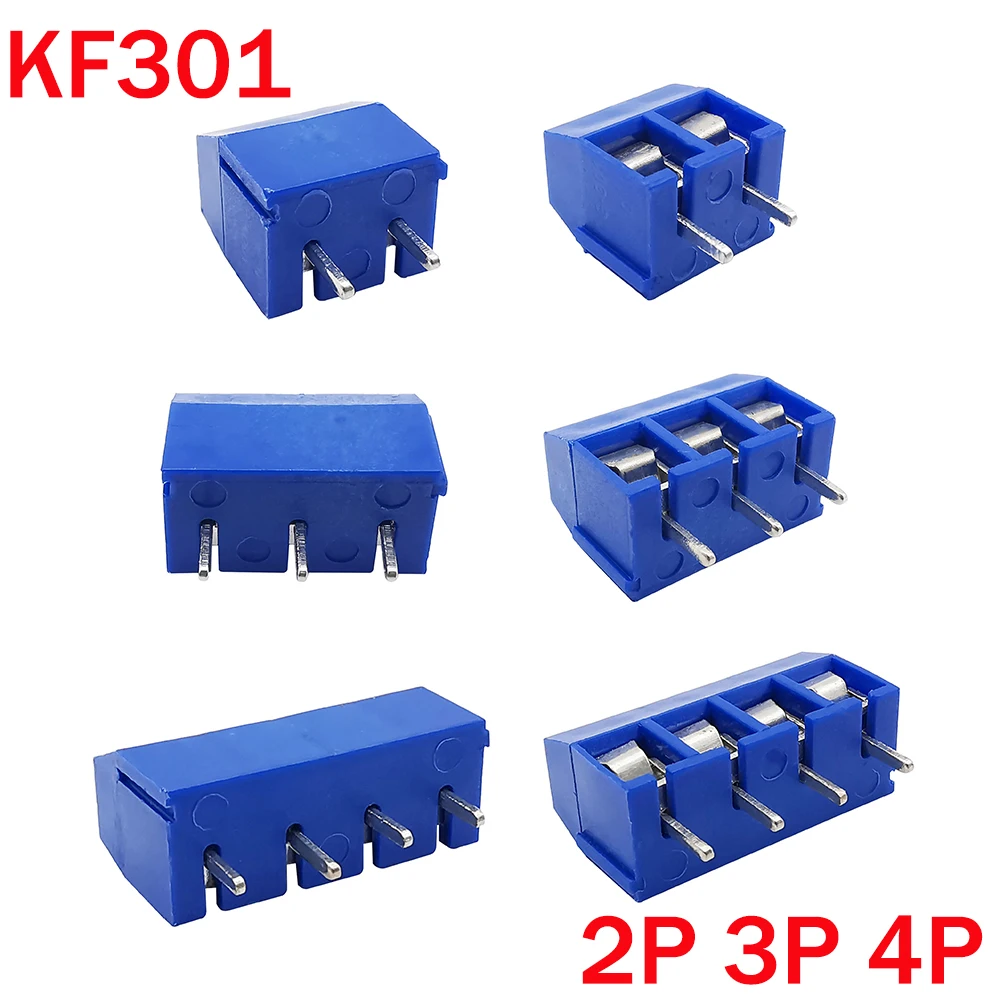

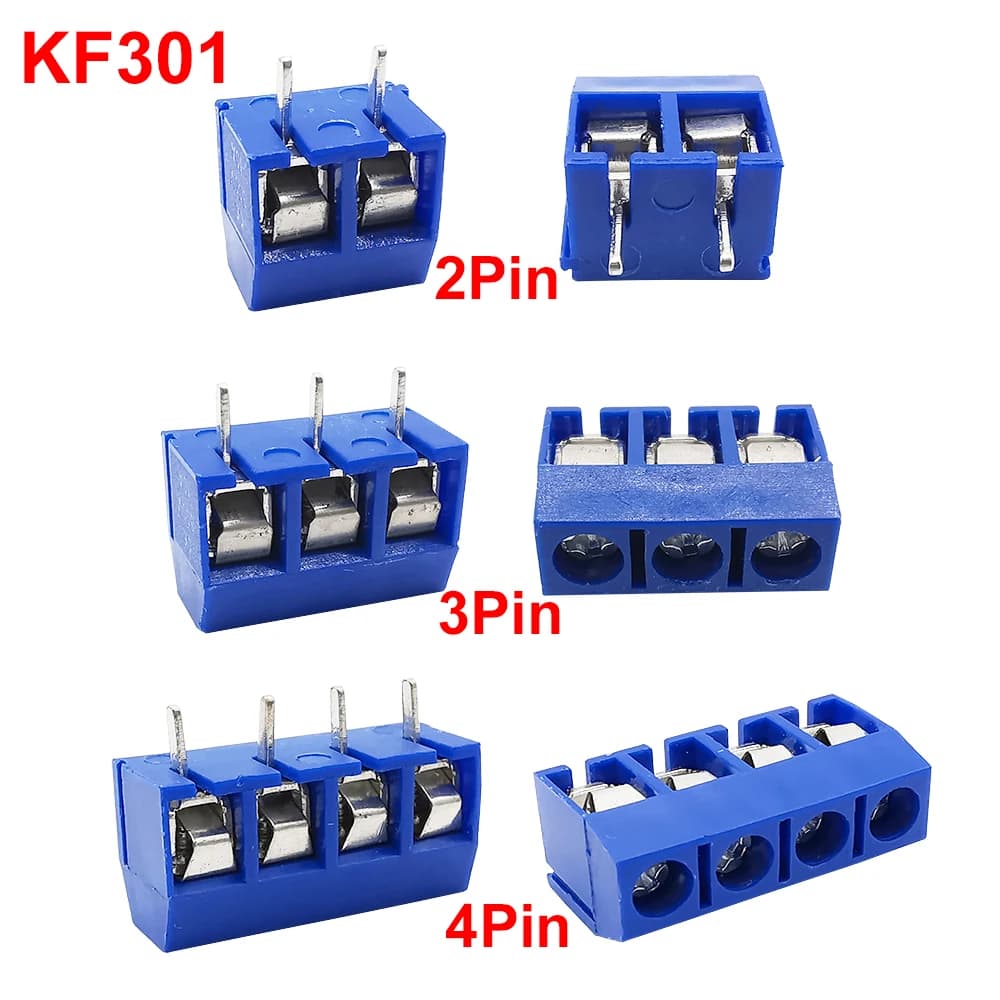

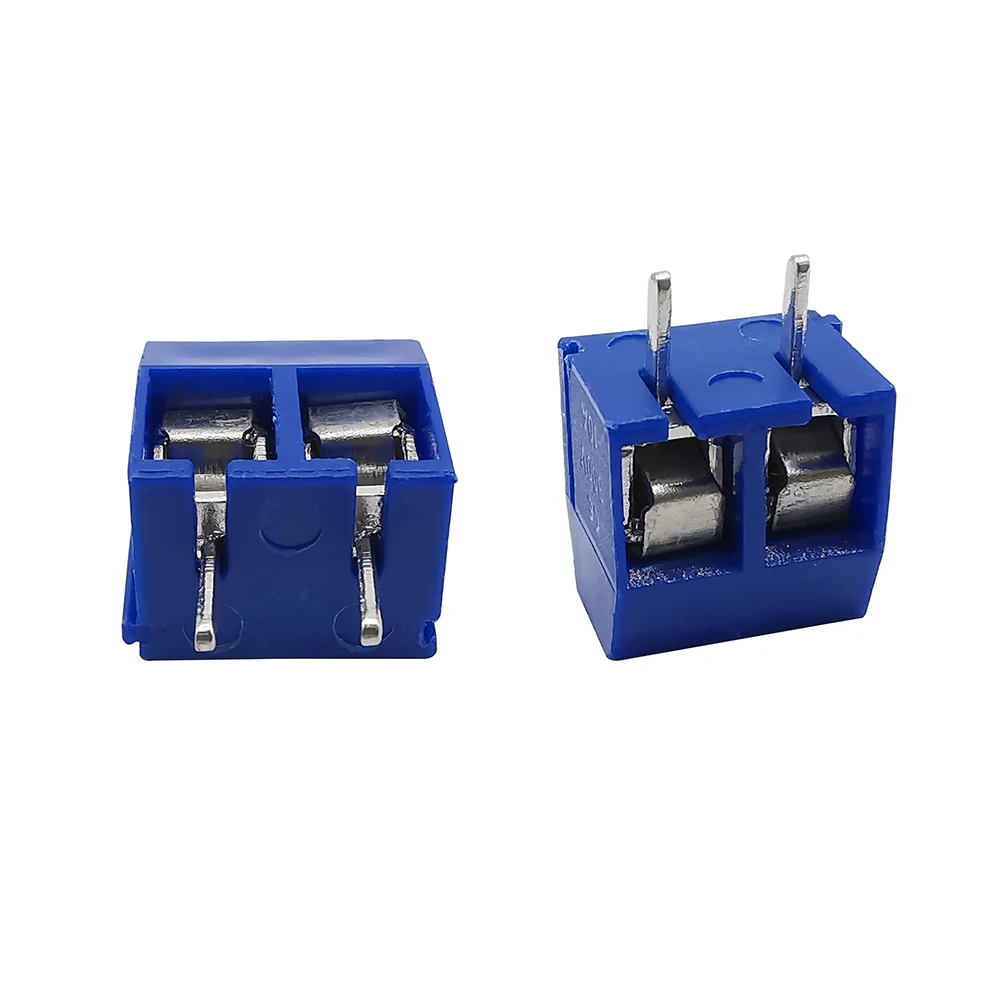

Name: KF301 2/3/4Pin 5.0mm Screw Terminal Block Connector Blue

Material: Plastic, Metal

Pitch: 5.0mm

Pin: 2/3/4Pin

Screws: M2.5 steel Zinc plated

Contact: phosphor bronze Ni plated or stainless steel

Pin header: Iron,Tin plated

Housing: PBT,UL94V-0

Rated voltage: 300V

Rated current: 16A

Contact resistance: 20mΩ

Insulation resistance: 5000MΩ/1000V

Withstanding Voltage: AC1500V/1Min

Wire range: 22-14AWG/2.5mm²

Temp.Range: -30°C~+120°C

MAX Soldering: +250°C for 5 Sec.

Torque: 0.5Nm(3.6lb.in)

Strip length: 4.5-5mm

Package :

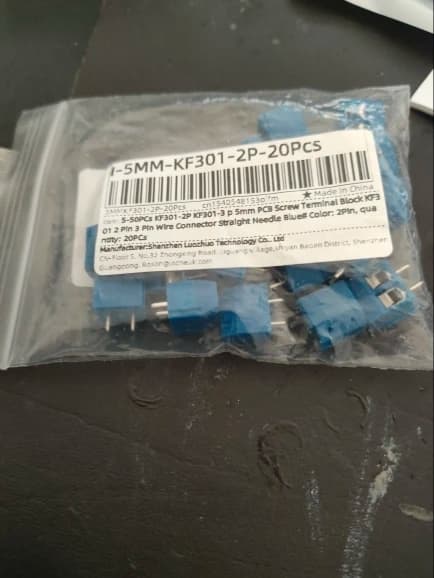

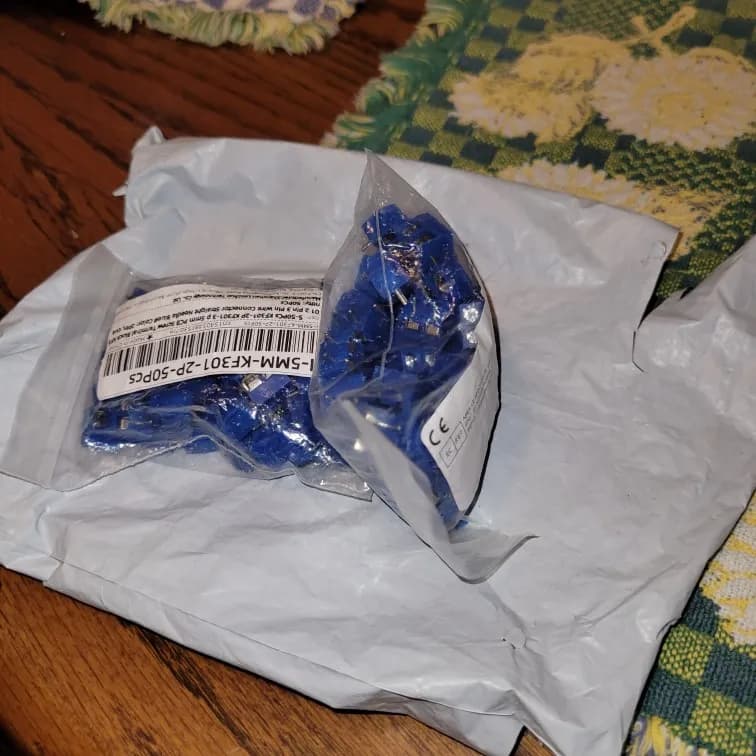

5/10/20/50Pcs KF301 2/3/4P PCB Screw Terminal Block Connector

Note:

1.The flaws in the product in the picture are caused by reflections

during shooting, the picture may not reflect the actual color of the

item.
