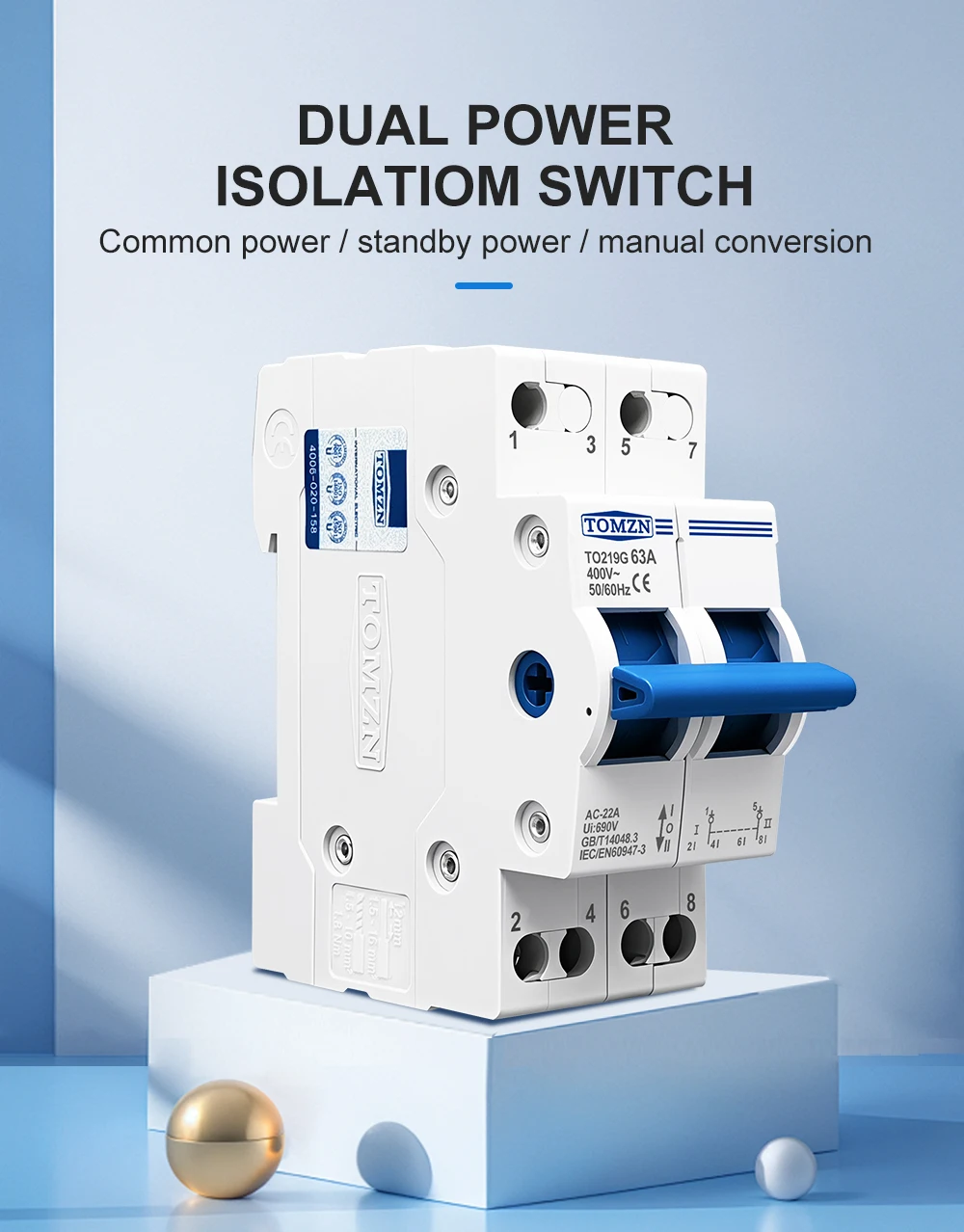

TOMZN TO219G 2P 40A 63A MTS Dual Power Manual Transfer Isolating Switch Interlock Circuit Breaker

Model:

TO219G 2P 230V AC 40A/63A

General

A Manual Transfer Switch (MTS) is a critical electrical device designed to provide reliable power supply for essential circuits. It serves as a secure bridge between two independent power sources, typically the utility power (main source) and a generator (backup source).

Basic Function

TO219G 2P 400V AC

2P Manual Transfer Switch(MTS)

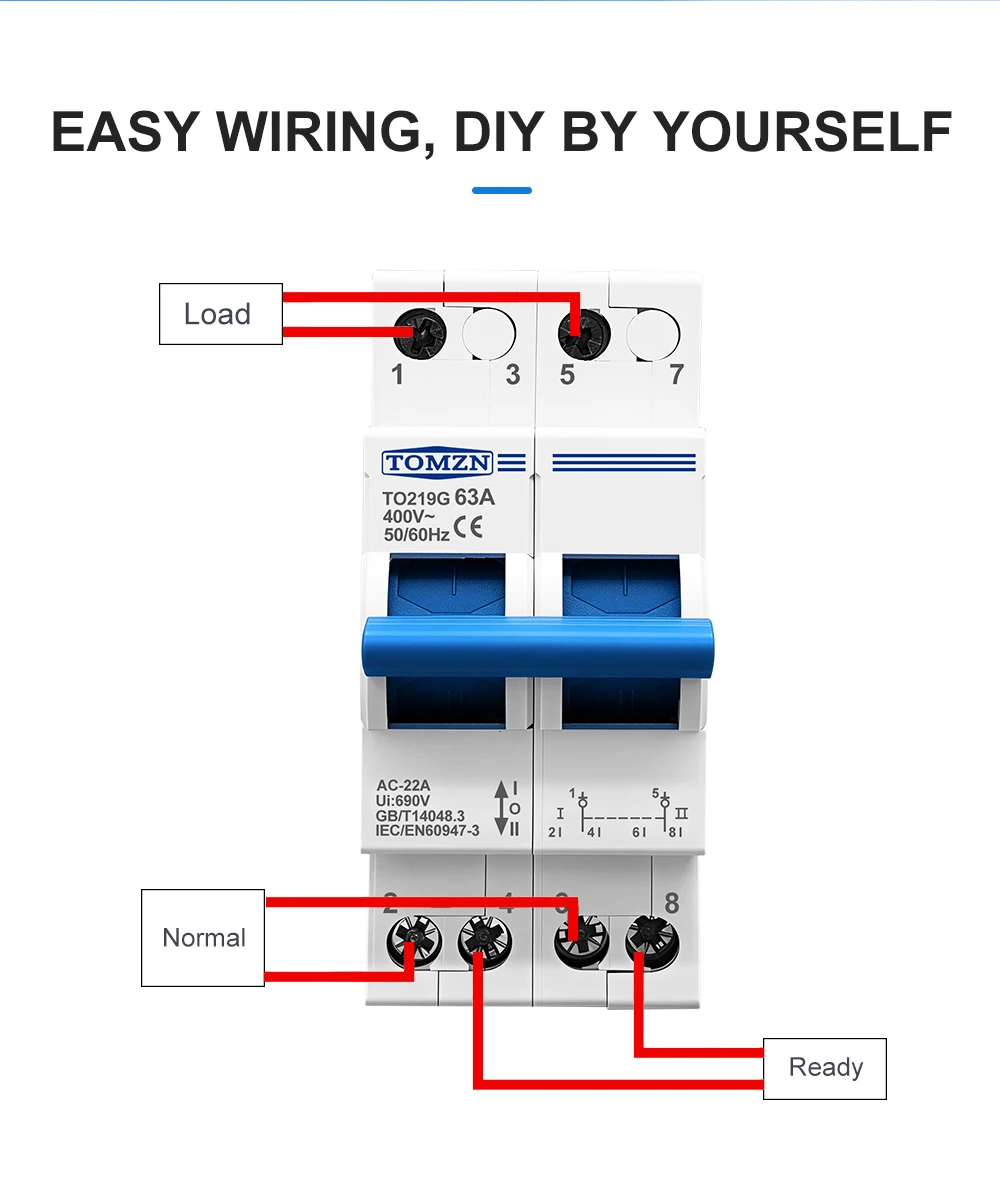

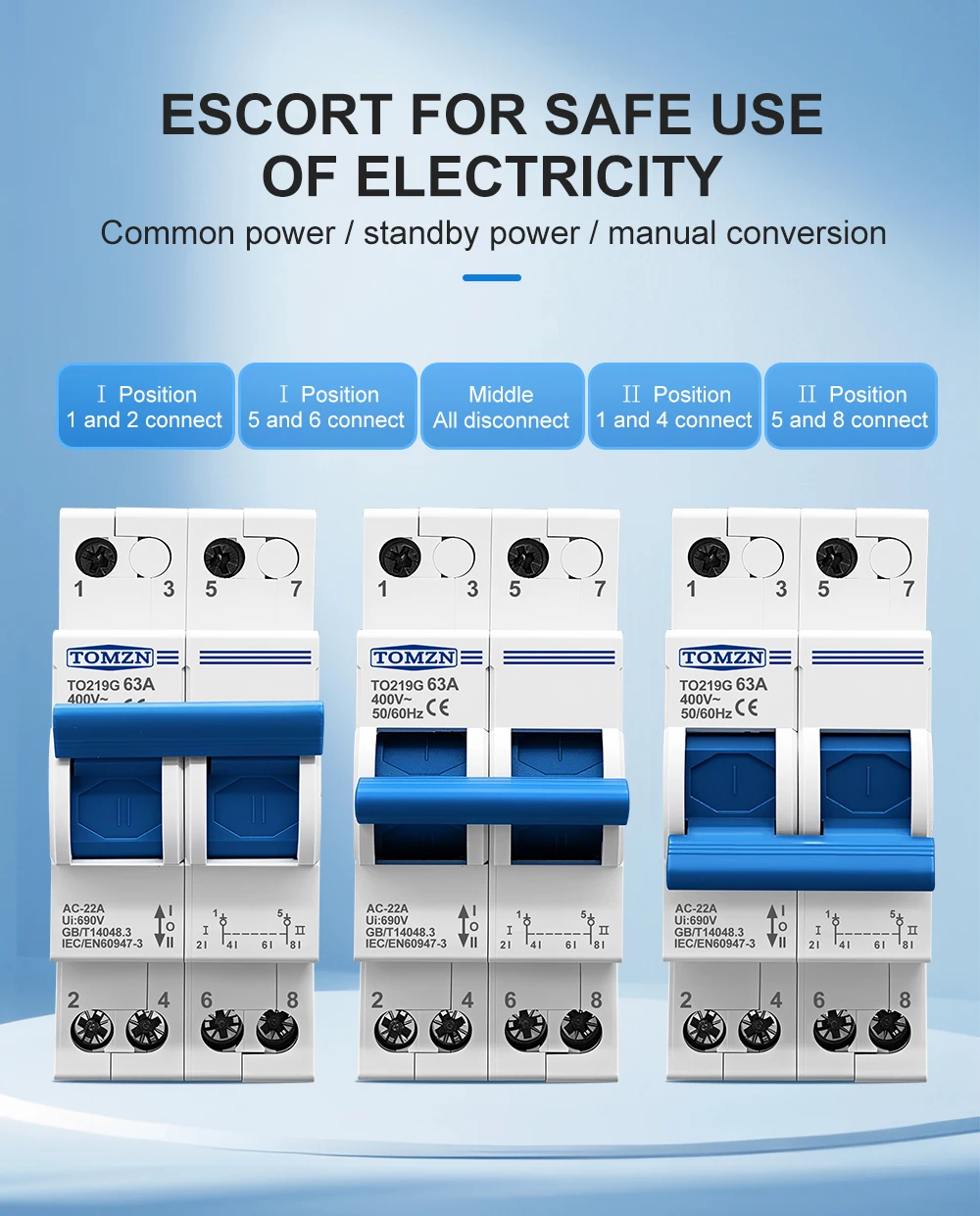

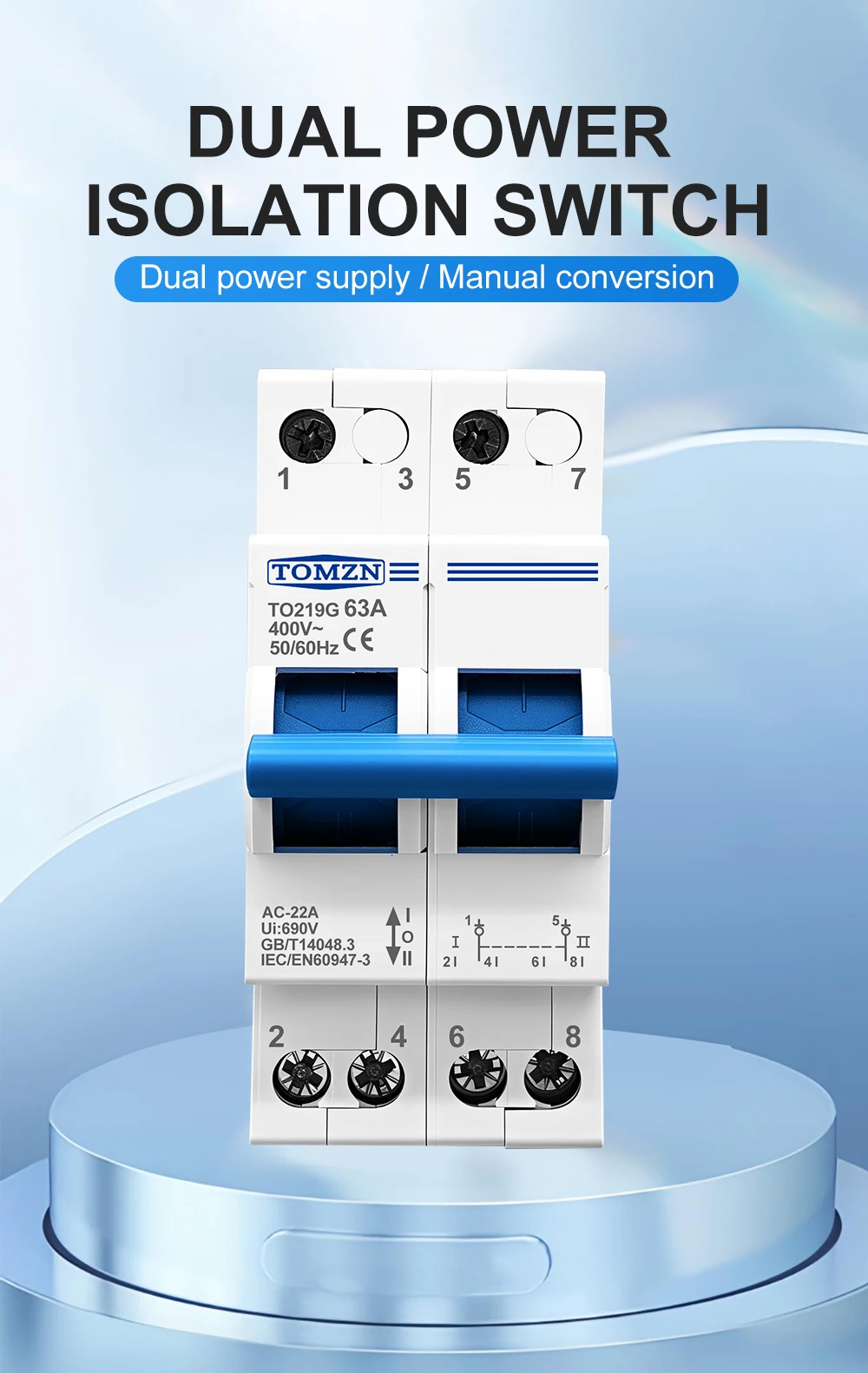

1.When the handle on the I position:

1 and 2 are connected

5 and 6 are connected.

2.When the handle on the II position:

1 and 4 are connected

5 and 8 are connected.

3.When the handle is in the middle position: both groups are disconnected.

The position of the incoming and outgoing wires can be adjusted according to actual needs (the upper and lower out are not necessarily required, when used for dual power switching, the lower in and upper out must be used.)
